◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51124 - NPR/NQR(RHD) EURO4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-40 - FUEL INJECTION SYSTEM ▶
0-40 — FUEL INJECTION SYSTEM (#38619) — 75 parça

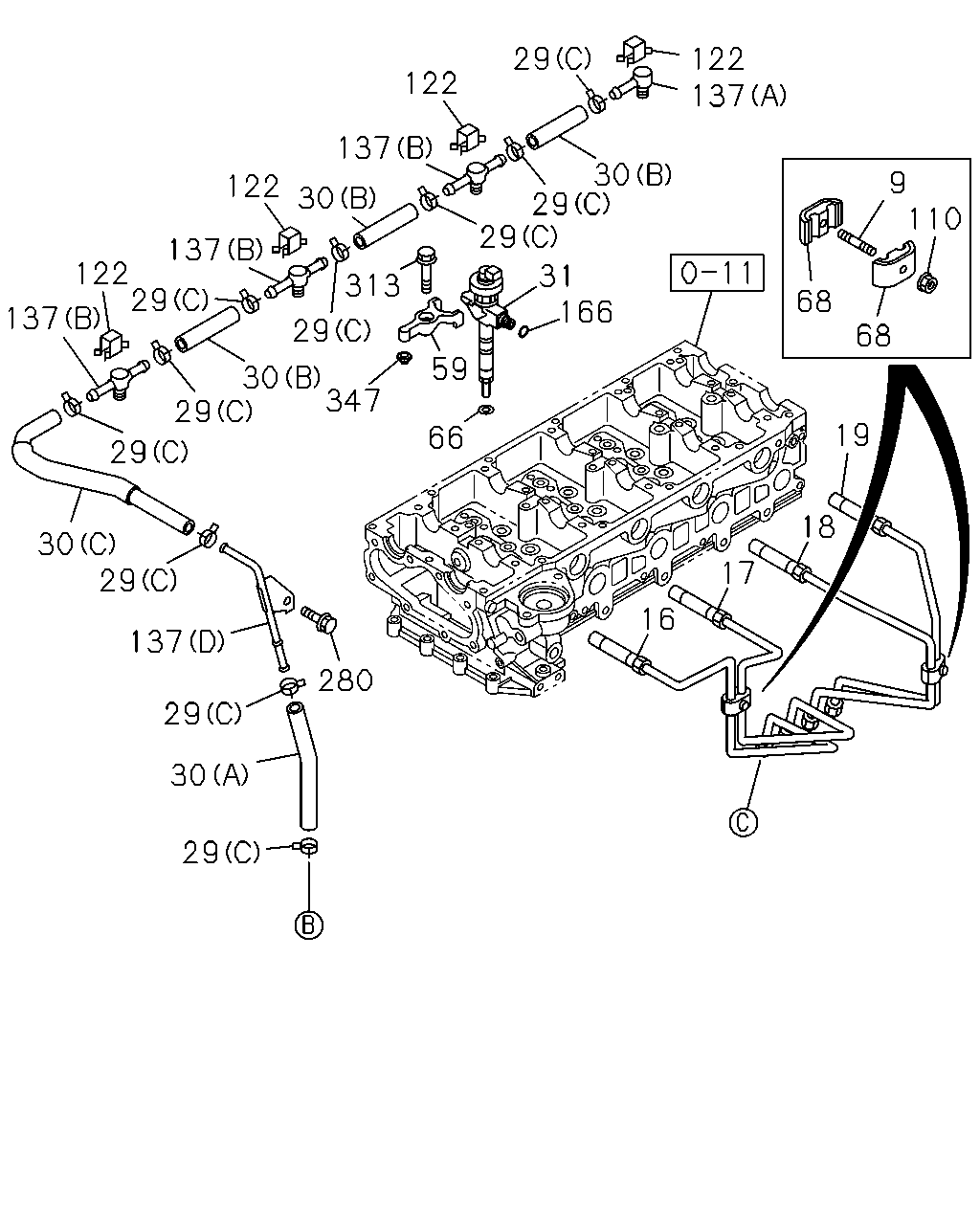

çizim 13616
29 122 137 122 137 30 29 29 9 110 122 30 137 122 29 31 166 313 68 137 29 68 59 30 347 29 19 66 29 18 30 29 17 16 137 280 29 30 29
BalonParca AdiParca NoAdetTipApplied Date
9 03.340 STUD; CLIP
03.162 M6X25 L=36 		8-97214-234-1 02 1 0608-
16 03.330 PIPE; INJ NO.1 8-98011-606-0 01 1 0608-
17 03.330 PIPE; INJ NO.2 8-98011-607-0 01 1 0608-0804
17 03.330 PIPE; INJ NO.2 8-98043-684-0 01 1 0805-
18 03.330 PIPE; INJ NO.3 8-98011-608-0 01 1 0608-
19 03.330 PIPE; INJ NO.4 8-98011-609-0 01 1 0608-
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0608-
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0608-
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-97362-306-2 01 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0608-1101
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102-
31 03.332 NOZZLE ASM; INJ 8-98011-604-4 04 1 0608-
59 03.332 CLAMP; NOZZLE HOLDER 8-98011-528-2 04 1 0608-0801
59 03.332 CLAMP; NOZZLE HOLDER 8-98092-539-0 04 1 0802-
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97251-334-0 04 1 0608-0608
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98057-731-0 04 1 0609-0702
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98077-165-0 04 1 0703-1103
66 03.332 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98181-540-0 04 1 1104-
68 03.162 CLIP; INJ PIPE 8-97213-481-0 04 1 0608-
110 03.330 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 0608-
122 03.162 CLIP; LEAK OFF PIPE 8-97315-286-0 04 1 0608-
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0608-1101
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0608-1101
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0608-
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0608-
166 03.304 GASKET; FUEL INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 03.332 ID=11 OD=14.8 		9-09566-111-0 04 1 0608-
280 03.330 BOLT; CLIP,FUEL HOSE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0608-
313 03.330 BOLT; BRKT,INJ NOZZLE 8-97372-144-0 04 1 0608-
347 03.332 PIN 8-97383-286-0 04 1 0608-1011
347 03.332 PIN 8-98165-035-0 04 1 1012-

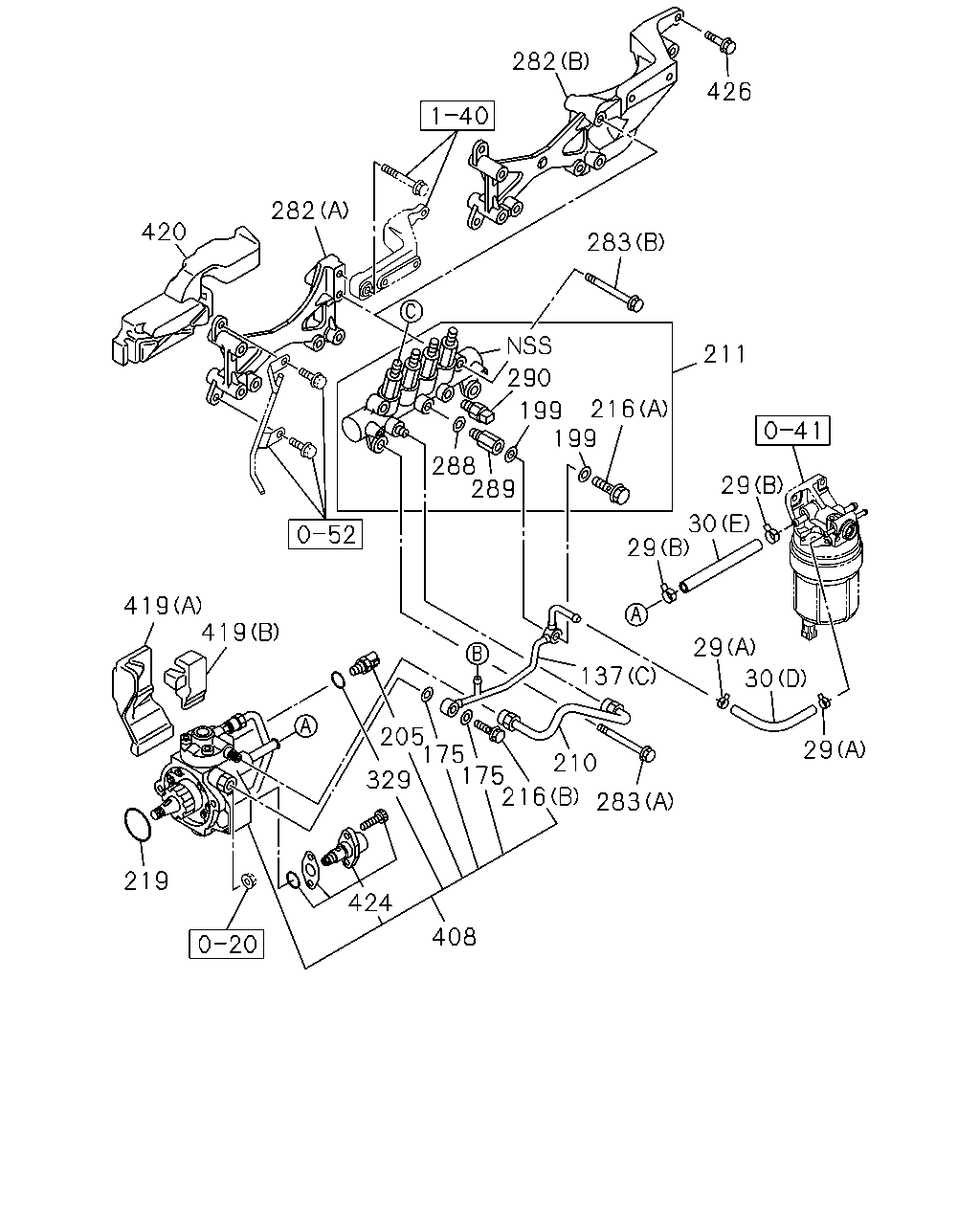

çizim 58703
282 426 282 420 283 211 290 199 288 289 29 30 29 419 419 29 137 30 205 175 175 216 29 210 329 283 219 424 408 199 216
BalonParca AdiParca NoAdetTipApplied Date
29 03.162 CLIP; HOSE
00.034 (A) ID=12 WO/PVC COATING 		8-94123-526-1 02 1 0608-
29 03.162 CLIP; HOSE
01.240 (B) ID=16 		8-94392-924-0 02 1 0608-
29 03.162 CLIP; HOSE
03.374 (C) ID=10.5 		8-97019-473-0 10 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(A) L=130 		0-01804-130-0 01 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(B) L=98 		8-97354-652-0 03 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(C) 		8-97362-306-2 01 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(D) L=110 		8-97377-894-0 01 1 0608-
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98009-700-2 01 1 0608-1101
30 03.163 HOSE; RUBBER,FUEL LEAK
(E) L=265 		8-98169-863-0 01 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-97315-230-2 01 1 0608-1101
137 03.163 PIPE ASM; LEAK OFF
(A) 		8-98161-062-0 01 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-97315-231-2 03 1 0608-1101
137 03.163 PIPE ASM; LEAK OFF
(B) 		8-98161-061-0 03 1 1102-
137 03.163 PIPE ASM; LEAK OFF
(C) 		8-98009-699-0 01 1 0608-
137 03.163 PIPE ASM; LEAK OFF
(D) 		8-98036-510-0 01 1 0608-
175 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE
01.531 ID=10.2 OD=15.2 		1-09630-083-0 02 1 0608-
199 03.332 GASKET; EYE BOLT 8-97602-218-0 02 1 0608-
205 03.320 SENSOR; FUEL TEMP 8-98023-581-0 01 1 0608-
210 03.330 PIPE; INJ,C/R 8-97388-902-0 01 1 0608-
211 03.331 RAIL ASM; COMMON 8-98011-888-2 01 1 0608-
216 03.162 BOLT; EYE
03.280 (B) 		9-88130-088-0 01 1 0608-
216 03.162 BOLT; EYE
(A) 		8-98043-033-0 01 1 0608-
219 03.162 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49.7 		1-09623-541-0 01 1 0608-
282 03.163 BRACKET; COMMON RAIL
(A) 		8-98053-912-0 01 1 0608-1001
282 03.163 BRACKET; COMMON RAIL
(B) 		8-98147-694-0 01 1 1002-
283 03.330 BOLT; COMMON RAIL
00.206 (A) M8X70 FLANGE 		0-28050-870-0 02 1 0608-
283 03.330 BOLT; COMMON RAIL
(B) M8X81 FLANGE 		8-97354-584-0 02 1 0608-
288 03.331 GASKET
ID=11 OD=16.3 		1-15641-046-0 01 1 0608-
289 03.331 LIMITER; FUEL PRESS 8-98032-549-0 01 1 0608-
290 03.331 SENSOR; PRESS 8-97318-684-0 01 1 0608-0809
290 03.331 SENSOR; PRESS 8-98119-790-0 01 1 0810-
329 03.335 GASKET; SENSOR,FUEL TEMP
03.304 ID=9.8 OD=11.7 		9-09566-110-0 01 1 0608-
408 03.306 PUMP ASM; FUEL,SUPPLY 8-97381-555-5 01 1 0608-
419 03.340 RUBBER; SPACE,PUMP
(A) 		8-98037-442-0 01 1 0608-
419 03.340 RUBBER; SPACE,PUMP
(B) 		8-98037-443-0 01 1 0608-
420 03.340 RUBBER; SPACE,COMMON RAIL 8-98037-444-1 01 1 0608-
424 03.332 OVERHAUL KIT; SUPPLY PUMP
W/ADAPTER 		8-98145-484-0 01 1 0608-0905
424 03.332 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-0 01 1 0906-
426 03.330 BOLT; BRACKET
04.686 M8X60 FLANGE 		0-28050-860-0 01 1 1002-
