Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

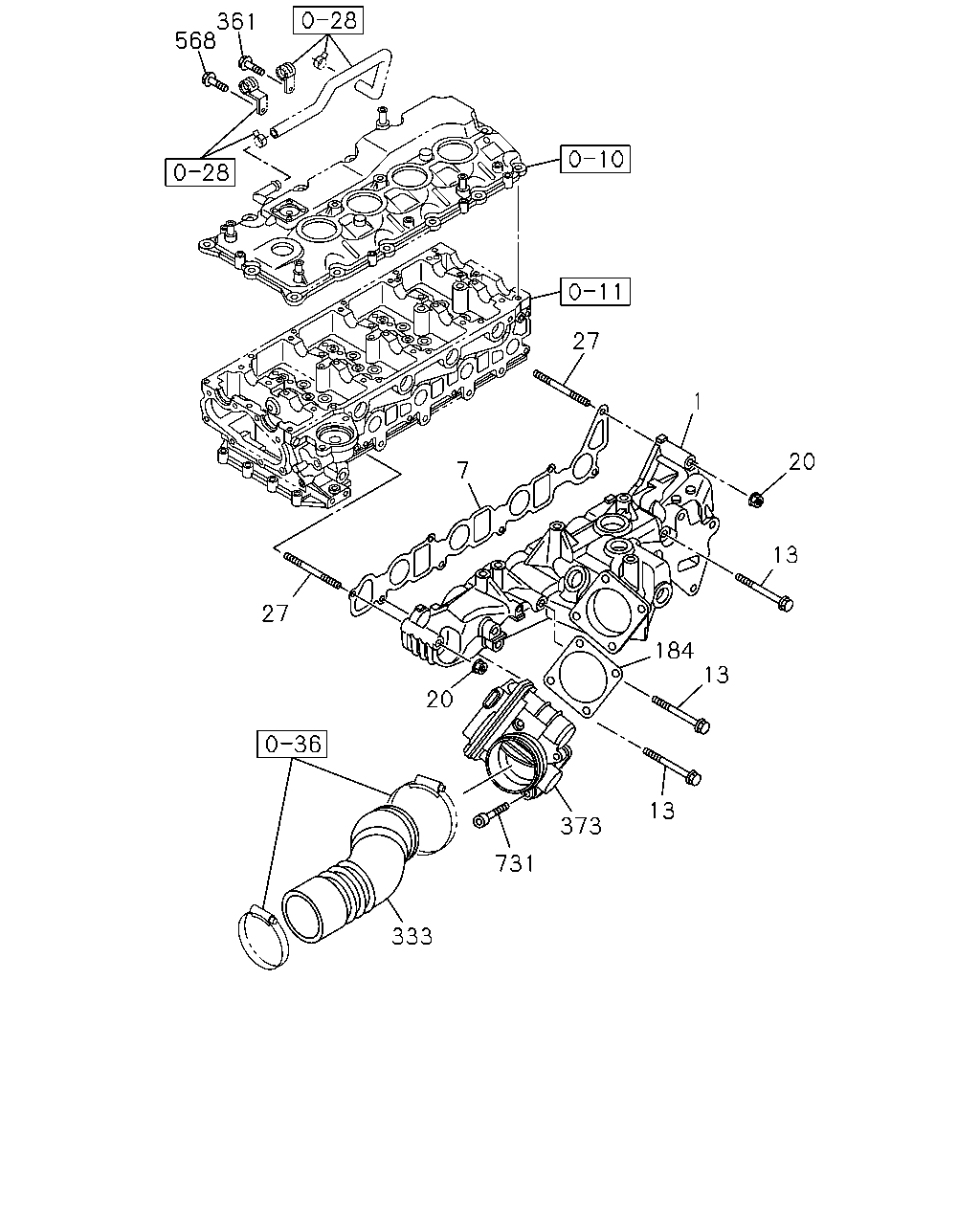

0-25 — INLET MANIFOLD
(#38611) — 16 parça
361
568
27
1
20
7
13
27
184
13
20
13
373
731
333
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.265 MANIFOLD; INL
8-98024-411-1
01
1
0608-
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97312-067-1
01
1
0608-0902
7
03.270 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98063-396-0
01
1
0903-
13
03.275 BOLT; INL MANIF
M8X110 FLANGE
0-28055-811-0
02
1
0608-
13
03.275 BOLT; INL MANIF
M8X70 12-POINT HEAD
8-97101-065-0
04
1
0608-
20
03.275 NUT; INL MANIF
01.540 M8 FLANGE
0-91180-208-0
02
1
0608-
27
03.275 STUD; INL MANIF
M8X71 L=83
8-98017-063-0
02
1
0608-
184
03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97366-784-1
01
1
0608-0902
184
03.275 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98096-968-0
01
1
0903-
333
03.278 HOSE; RUBBER,INL PIPE
8-98018-533-1
01
1
0608-0608
333
03.278 HOSE; RUBBER,INL PIPE
8-98056-469-0
01
1
0609-
361
03.278 BOLT; CLIP
03.671 M6X10 FLANGE
0-28050-610-0
01
1
0608-
373
03.265 THROTTLE ASM; INT
03.440
8-97312-210-2
01
1
0608-0608
373
03.265 THROTTLE ASM; INT
8-98040-003-4
01
1
0609-
568
03.330 BOLT; PIPE
0-58330-812-0
01
1
0608-
731
02.559 BOLT; THROTTLE ASM
M6X50 HEX SOCKET
0-58330-650-0
04
1
0608-
