Isuzu WW
▶
TRUCKS
▶
NPR
▶
51124 - NPR/NQR(RHD) EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶
0-22 — ENGINE MOUNTING
(#38610) — 28 parça
◀

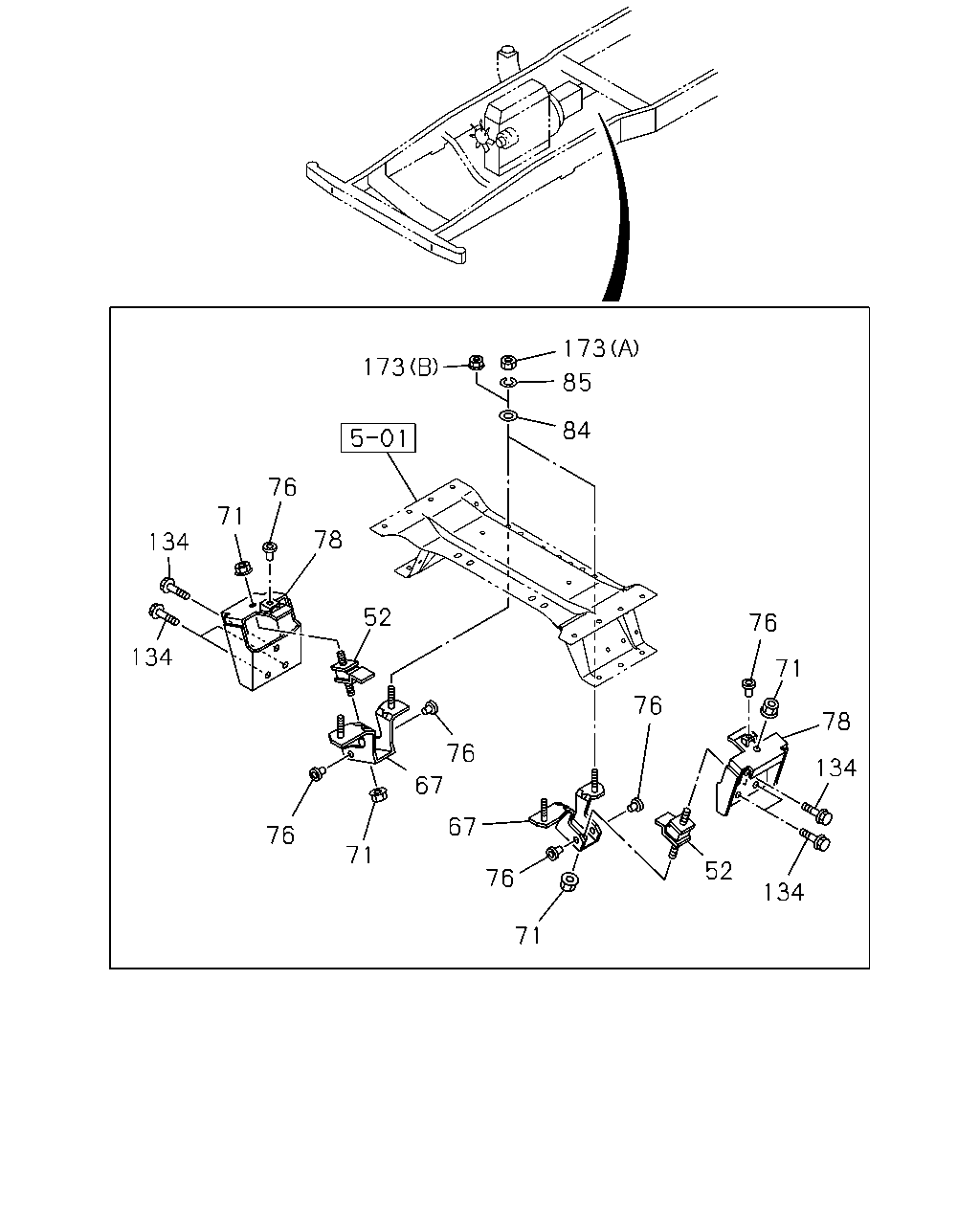

[022A] REAR SIDE (12 parça)
[022A] FRONT SIDE (16 parça)
▶
173
173
85
84
76
71
78
134
52
76
134
71
76
78
76
134
67
67
76
71
52
76
134
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
00.027 RUBBER; CUSHION,ENG MTG,RR
8-94111-903-1
02
1
0608-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-97371-919-0
01
1
0608-
67
00.029 BRACKET; SUPPORT,ENG MTG,RR
8-97325-569-0
01
1
0608-
71
00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE
0-91180-110-0
04
1
0608-
76
00.002 STOPPER; ENG MTG RUBBER
00.027
8-94111-904-0
06
1
0608-
78
00.029 BRACKET; ENG MTG,RR
8-97325-562-0
01
1
0608-
78
00.029 BRACKET; ENG MTG,RR
8-97325-563-0
01
1
0608-
84
00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0608-
85
00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2
0-91510-610-0
04
1
0608-0610
134
00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE
0-28751-225-0
06
1
0608-
173
00.002 NUT; ENG MTG RR TO FRAME
00.833 (A) M10
0-91110-510-0
04
1
0608-0610
173
00.002 NUT; ENG MTG RR TO FRAME
03.162 (B) M10 FLANGE
0-91180-110-0
04
1
0611-
17
22
1
22
17
252
22
1
22
252
22
22
20
20
20
20
20
2
2
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
00.027 RUBBER; ENG FOOT,FRT
8-98043-001-0
01
1
0608-
1
00.027 RUBBER; ENG FOOT,FRT
8-98043-000-0
01
1
0608-
2
00.029 FOOT; ENG
8-97381-513-1
01
1
0608-
2
00.029 FOOT; ENG
8-97381-514-2
01
1
0608-
17
00.027 COVER; CUSHION RUBBER,FRT
8-97229-825-0
01
1
0608-
17
00.027 COVER; CUSHION RUBBER,FRT
8-97383-796-0
01
1
0608-
20
00.029 BOLT; ENG FOOT
03.706 (C) M10X70 FLANGE
0-28051-070-0
01
1
0608-
20
00.029 BOLT; ENG FOOT
02.343 (D) M10X20 FLANGE
0-28651-020-0
01
1
0608-
20
00.029 BOLT; ENG FOOT
(E) M10X25 FLANGE
0-28651-025-0
02
1
0608-
20
00.029 BOLT; ENG FOOT
(A) M10X30 FLANGE
0-28651-030-0
03
1
0608-
20
00.029 BOLT; ENG FOOT
02.277 (B) M10X35 FLANGE
0-28651-035-0
01
1
0608-
22
00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (A) M12
0-91110-512-0
02
1
0608-0612
22
00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (C) M12 FLANGE
0-91180-112-0
02
1
0701-
22
00.002 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE
8-98039-410-0
02
1
0608-0610
22
00.002 NUT; CUSHION RUBBER TO BRKT
(B) M12 FLANGE
8-98046-987-0
02
1
0611-
252
00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2
0-91510-612-0
02
1
0608-0612
