Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#3861) — 197 parça

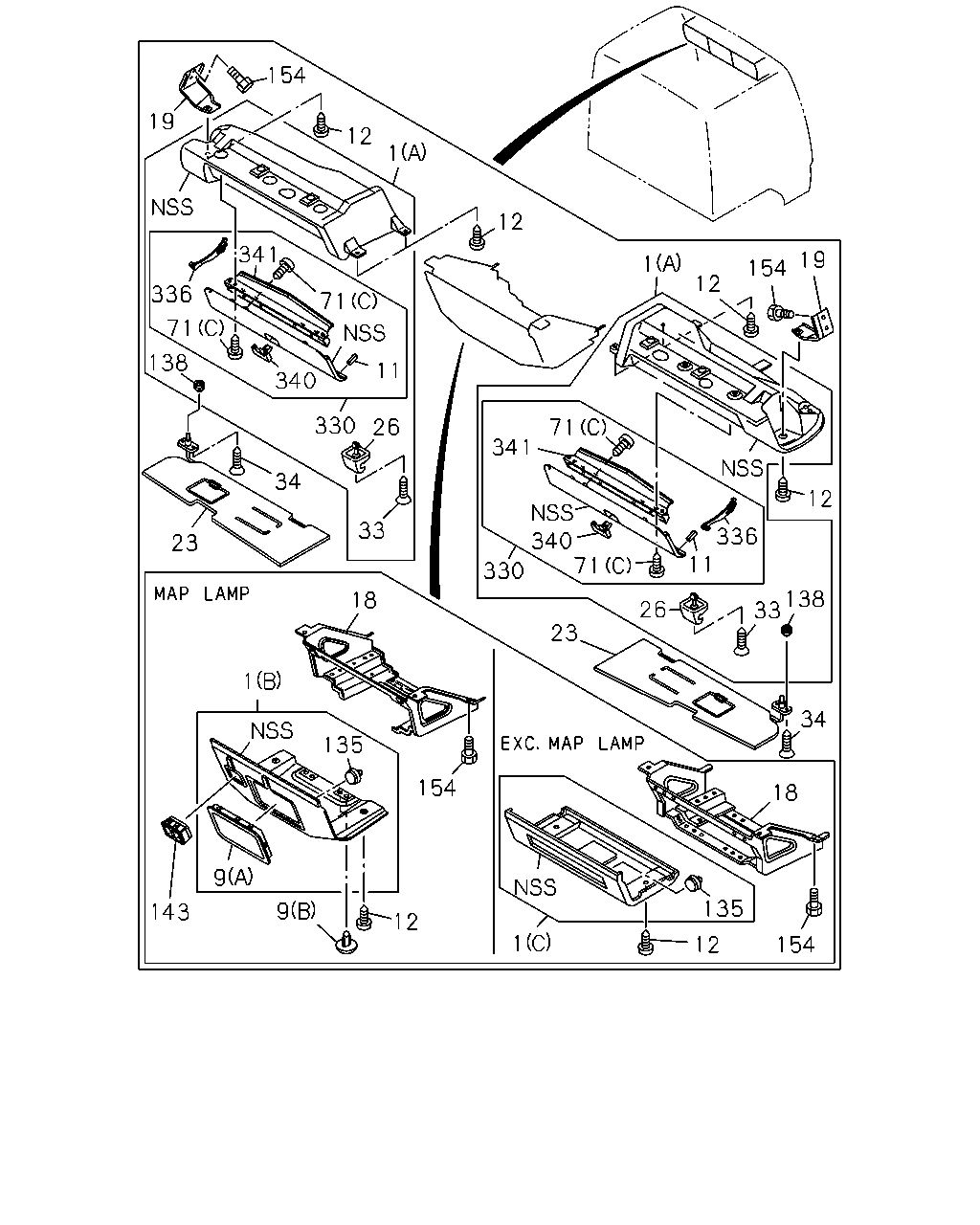

154 19 12 1 12 341 19 1 154 12 336 71 71 138 11 340 330 26 71 341 34 12 340 71 33 336 11 23 330 138 33 18 26 23 1 34 135 154 18 9 135 9 143 12 1 12 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-597-2	01	1	9601-9803	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-616-1	01	1	9804-0003	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-689-0	01	1	0004-0004	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-691-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-72448-596-2	01	1	9601-9803	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73317-362-1	01	1	9804-0003	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-687-0	01	1	0004-0004	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (A)	1-73318-690-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) CENTER	1-72448-568-1	01	1	9601-0004	●	●
1	BOARD; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> (C) CENTER	1-72448-663-0	01	1	0005-	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (B) CENTER	1-72448-573-1	01	1	9601-0004	●	●
1	BOARD; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> (B) CENTER	1-72448-702-0	01	1	0005-	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F> (A)	1-72448-547-2	01	1	9601-	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9601-0004	●	●
9	COVER; HOLE,HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0005-	●	●
11	CAP; HEADER SHELF HIGH ROOF<S2F>	8-94270-538-0	04	1	9601-	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9601-0004	●	●
12	SCREW; HEADER SHELF HIGH ROOF<S2F> M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	0005-	●	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	1-72448-552-4	01	1	9601-9604	●	●
18	SUPPORT; HEADER SHELF CENTER HIGH ROOF<S2F> EXC. MAP LAMP<C85>	8-97865-124-1	01	1	9605-	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-574-2	01	1	9601-9604	●	●
18	SUPPORT; HEADER SHELF CENTER MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-636-1	01	1	9605-	●	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-324-1	01	1	9601-	●	●
19	SUPPORT ASM; HEADER SHELF HIGH ROOF<S2F>	1-72448-323-1	01	1	9601-	●	●
23	SUN VISOR	1-73138-150-1	01	1	9601-9803	●	●
23	SUN VISOR	1-73138-150-1	01	1	9804-0004	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	9601-0004	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0005-	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-0101	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●	●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9601-9704	●	●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9601-	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9901-0211	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0612	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0701-		●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-9812	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9901-0212	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9901-0212	●	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0612	●	●
71	SCREW ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0612	●	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0701-	●	●
71	SCREW ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0701-		●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> OD=7.9 BLACK	8-94279-974-1	03	1	9601-0005	●	●
135	CLIP; HEADER SHELF MAP LAMP<C85> HIGH ROOF<S2F> OD=7.9 BLACK	8-94279-974-1	03	1	0006-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	02	1	9804-0209	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> D6X23 BLACK	1-09987-114-0	02	1	0210-	●	●
135	CLIP; HEADER SHELF HIGH ROOF<S2F> EXC. MAP LAMP<C85> OD=7.9 BLACK	8-94279-974-1	06	1	0006-	●	●
138	NUT; BRKT,HEADER SHELF HIGH ROOF<S2F>	1-09984-166-0	04	1	9601-9803	●	●
143	BEZEL MAP LAMP<C85> HIGH ROOF<S2F>	1-72448-532-0	01	1	9601-	●	●
154	BOLT; SUPPORT HIGH ROOF<S2F> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9601-	●	●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-360-3	02	1	9601-0004	●	●
330	LID; HEADER SHELF HIGH ROOF<S2F>	1-72448-679-0	02	1	0005-	●	●
336	STAY; LID HIGH ROOF<S2F>	1-72448-379-3	04	1	9601-	●	●
340	LOCK; HEADER SHELF HIGH ROOF<S2F>	1-72448-376-0	02	1	9601-	●	●
341	HINGE; LID,HEADER SHELF HIGH ROOF<S2F>	1-72448-403-1	02	1	9601-	●	●

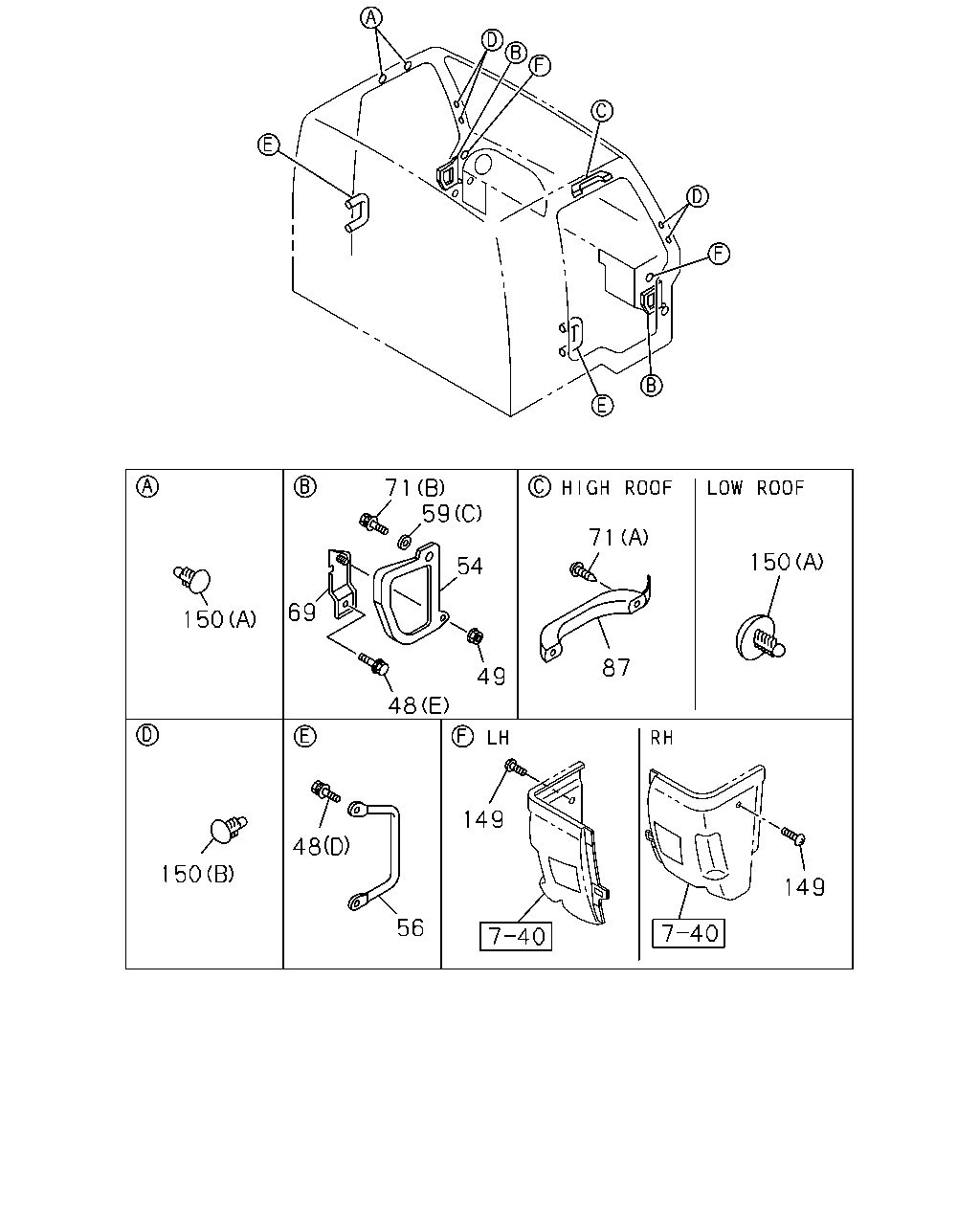

71 59 71 150 54 69 150 87 49 48 149 48 150 149 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9601-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-	●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0904	●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER	8-94279-215-0	02	1	9601-9603	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9601-9803	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91150-106-0	02	1	9804-0602	●	●
49	NUT; ASSIST GRIP M6 FLANGE	0-91180-106-0	02	1	0603-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-067-0	01	1	9601-0004	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-564-1	01	1	0005-	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-066-0	01	1	9601-0004	●	●
54	GRIP; ASSIST,QUARTER SIDE	1-73617-563-1	01	1	0005-	●	●
54	GRIP; ASSIST,QUARTER SIDE COLOMBIA EQUIPMENT(WJ2)	1-73618-158-2	02	1	9901-0211	●	●
54	GRIP; ASSIST,QUARTER SIDE COLOMBIA EQUIPMENT(WJ2)	1-73618-185-1	02	1	0212-0612	●	●
54	GRIP; ASSIST,QUARTER SIDE COLOMBIA EQUIPMENT(WJ2)	1-73618-185-1	02	1	0701-		●
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9601-0402	●	●
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804	●	●
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9601-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9601-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9601-0004	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-	●	●
69	BRACKET; ASSIST GRIP	1-73618-178-2	01	1	9601-	●	●
69	BRACKET; ASSIST GRIP	1-73618-181-1	01	1	9601-	●	●
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	9601-	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) (B) M6X20 W/LK&PL WASHER	1-09981-509-0	04	1	9901-0211	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0212-0612	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) (B) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0701-		●
71	SCREW HIGH ROOF<S2F> (A) M6X37 W/PL WASHER	1-09981-423-0	02	1	9601-9702	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9703-9812	●	●
71	SCREW HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9901-0212	●	●
71	SCREW COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	9901-0212	●	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X35 W/PL WASHER	1-09981-422-0	02	1	0301-0310	●	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0612	●	●
71	SCREW ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-0612	●	●
71	SCREW ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0701-	●	●
71	SCREW ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) M6X30 W/LK WASHER	5-09981-064-0	02	1	0701-		●
71	SCREW HIGH ROOF<S2F> (C) M5X14 W/PL WASHER	5-09981-050-0	06	1	9601-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9601-9812	●	●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F>	1-73618-170-0	01	1	9901-0004	●	●
87	GRIP; ASSIST,CANT RAIL SIDE COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ>	1-73618-170-0	01	1	9901-0004	●	●
87	GRIP; ASSIST,CANT RAIL SIDE HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●
87	GRIP; ASSIST,CANT RAIL SIDE COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> DARK GRAY	8-97098-476-2	01	1	0005-0212	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0301-0612	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> DARK GRAY	8-97098-476-2	01	1	0301-0612	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> HIGH ROOF<S2F> DARK GRAY	8-97098-476-2	01	1	0701-	●	●
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> DARK GRAY	8-97098-476-2	01	1	0701-		●
149	SCREW; ASSIST GRIP HOLE M6X12	8-97094-854-0	02	1	0404-	●	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-128-1	01	1	9601-9602	●	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9603-9812	●	●
150	CLIP; ASSIST GRIP HOLE EXC. COLOMBIA EQUIPMENT(WJ2) (B) OD=6 L=17 DARK GRAY	1-73996-128-1	04	1	9901-0004	●	●
150	CLIP; ASSIST GRIP HOLE EXC. COLOMBIA EQUIPMENT(WJ2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0005-0612	●	●
150	CLIP; ASSIST GRIP HOLE (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0701-	●
150	CLIP; ASSIST GRIP HOLE EXC. COLOMBIA EQUIPMENT(WJ2) (B) OD=6 L=17 DARK GRAY	1-73996-364-0	04	1	0701-		●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9601-9812	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9901-0004	●	●
150	CLIP; ASSIST GRIP HOLE COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (B) OD=6 L=17 DARK GRAY	1-73996-128-1	02	1	9901-0004	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●
150	CLIP; ASSIST GRIP HOLE COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0005-0212	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-0612	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0301-0612	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> HIGH ROOF<S2F> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0701-	●	●
150	CLIP; ASSIST GRIP HOLE ASSIST GRIP<EG5> COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0701-		●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9601-9812	●	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> EXC. COLOMBIA EQUIPMENT(WJ2) (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	9901-0212	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0612	●	●
150	CLIP; ASSIST GRIP HOLE COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0612	●	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> EXC. COLOMBIA EQUIPMENT(WJ2) (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0301-0612	●	●
150	CLIP; ASSIST GRIP HOLE HIGH ROOF<S2F> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0701-	●	●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0701-	●
150	CLIP; ASSIST GRIP HOLE COLOMBIA EQUIPMENT(WJ2) LOW ROOF<6XQ> EXC. ASSIST GRIP<EG5> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0701-		●
150	CLIP; ASSIST GRIP HOLE LOW ROOF<6XQ> EXC. COLOMBIA EQUIPMENT(WJ2) (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	04	1	0701-		●

24 24 24 26 14 121 26 33 24 14 33 121 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9601-0004	●	●
14	SCREW; BRKT LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	0005-	●	●
23	SUN VISOR	1-73138-150-1	01	1	9601-9803	●	●
23	SUN VISOR	1-73138-150-1	01	1	9804-0004	●	●
23	SUN VISOR	1-73138-157-1	01	1	0005-	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-148-1	01	1	9601-0004	●	●
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0005-	●	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (B)	1-73138-145-0	02	1	9601-	●	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-144-1	01	1	9601-	●	●
24	BRACKET; SUN VISOR LOW ROOF<6XQ> (A)	1-73138-143-1	01	1	9601-	●	●
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9601-0004	●	●
26	HOLDER; SUN VISOR	1-73137-175-0	02	1	0005-	●	●
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9601-0101	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR HIGH ROOF<S2F> M4X16 TAPPING OVAL-HEAD	0-70540-416-0	02	1	0604-	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	02	1	0102-0603	●	●
33	SCREW; HOLDER,SUN VISOR LOW ROOF<6XQ> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	02	1	0604-	●	●
34	SCREW; SUN VISOR HIGH ROOF<S2F> M6X25	1-09981-441-0	04	1	9601-9704	●	●
34	SCREW; SUN VISOR LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> LOW ROOF<6XQ> M6X25	1-09981-441-0	02	1	9601-9704	●	●
34	SCREW; SUN VISOR M6X25	1-09981-441-0	02	1	9705-	●	●
34	SCREW; SUN VISOR SUN VISOR PASSENGER<D20> M6X25	1-09981-441-0	02	1	9705-	●	●
121	SCREW; BRKT,SUN VISOR LOW ROOF<6XQ> M6X24 W/LK&PL WASHER	8-94279-404-0	02	1	9601-	●	●

64 64 64 62 64 48 48 48 48 62 68 66 103 48 59 68 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	06	1	9601-9602	●	●
48	BOLT; ASSIST GRIP (B) M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9603-	●	●
48	BOLT; ASSIST GRIP (D) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9601-	●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-0904	●	●
48	BOLT; ASSIST GRIP (E) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
48	BOLT; ASSIST GRIP (C) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9601-	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER	8-94279-215-0	02	1	9601-9603	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	9604-	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X40 LK&PL WASHER	8-94279-215-0	04	1	9601-9603	●	●
48	BOLT; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> (A) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9604-	●	●
59	COVER; ASSIST GRIP (B) OUTER	1-71998-789-2	02	1	9601-	●	●
59	COVER; ASSIST GRIP (A) INNER	1-71998-790-2	02	1	9601-	●	●
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9601-0004	●	●
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0005-	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	1-71997-895-1	01	1	9601-9610	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	1-71907-492-0	01	1	9611-0907	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4>	8-97630-819-0	01	1	0908-	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4>	1-71997-895-1	02	1	9601-9610	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4>	1-71907-492-0	02	1	9611-0907	●	●
62	GRIP; ASSIST,ROOF PANEL HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4>	8-97630-819-0	02	1	0908-	●	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> MIR O/S RR VIEW WIDE<WU4> 25X25	8-94272-533-0	02	1	9601-9810	●	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> 25X25	8-94272-533-0	04	1	9811-	●	●
64	SHEET; ASSIST GRIP HIGH ROOF<S2F> EXC. MIR O/S RR VIEW WIDE<WU4> 25X25	8-94272-533-0	04	1	9601-9810	●	●
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9601-	●	●
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9601-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-792-2	01	1	9601-	●	●
103	GRIP; ASSIST,FRT PNL	1-71998-791-2	01	1	9601-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
