◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#38606) — 50 parça

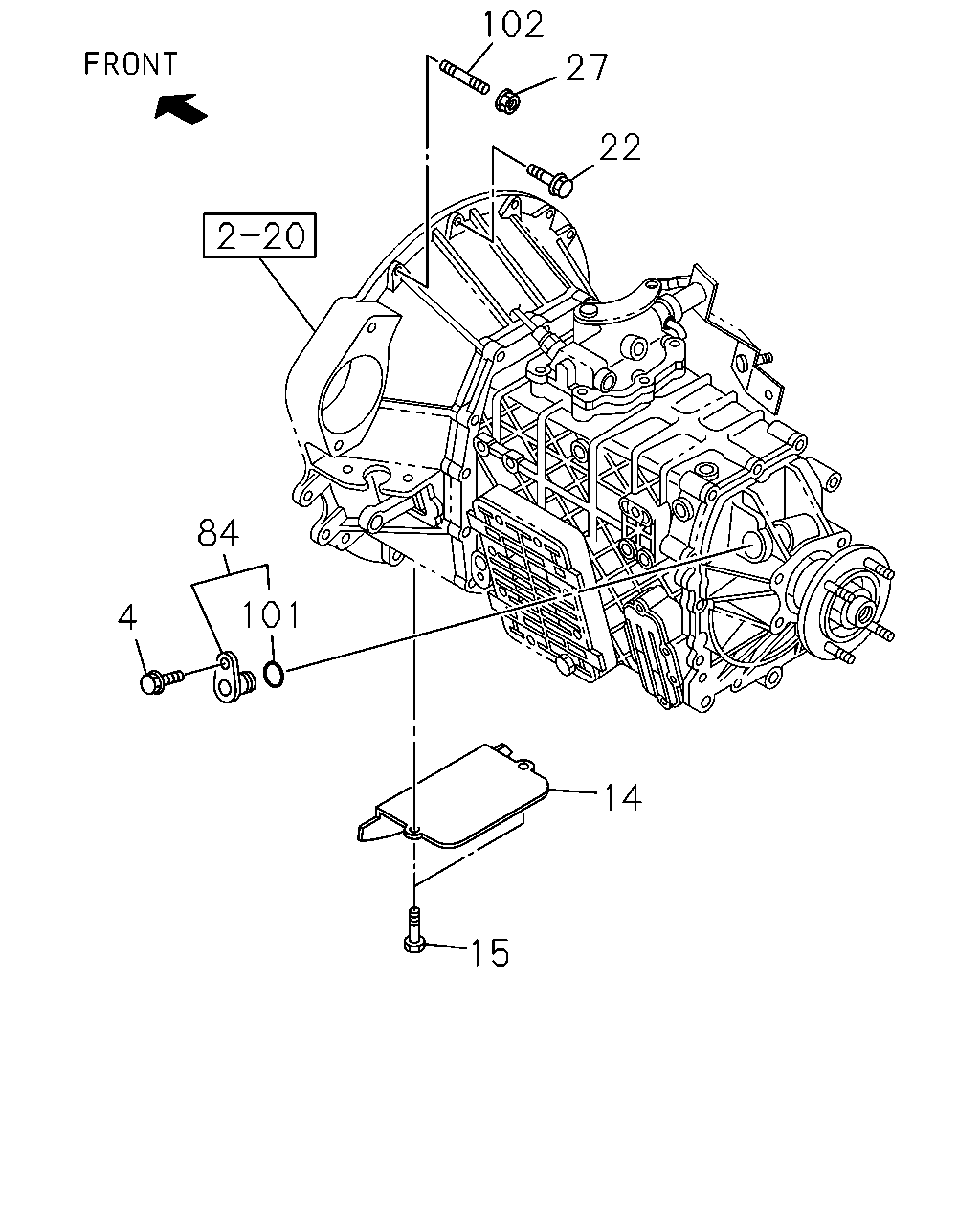

çizim 35484
102 27 22 84 101 4 14 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 04.338 BOLT; RET,DRIVEN GEAR
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ● ● ● ● ●
14 00.679 COVER; UNDER,TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97308-233-0 01 1 0710- ● ● ● ● ● ●
15 00.685 BOLT; UNDER COVER TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0710- ● ● ● ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X130 FLANGE 		0-28156-013-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE 		0-28151-030-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X120 FLANGE 		0-28156-012-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X140 FLANGE 		0-28156-014-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 03 1 0710- ● ● ● ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE 		0-28151-050-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE 		0-28151-050-0 04 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X150 FLANGE 		0-28156-015-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-97365-449-0 01 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 05 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.683 M10X140 FLANGE 		0-28156-014-0 02 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 0710- ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.683 M10X55 FLANGE 		8-97365-449-0 02 1 0710- ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-97365-449-0 06 1 0710- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0710-0903 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0710-0903 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0710-0903 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CON TROL ELECTRIC(7GR) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0904- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0904- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 02.042 M10X50 FLANGE 		0-28151-050-0 03 1 0904- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0710-0903 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0710-0903 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0710-0903 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC),POWER TAKE OFF CON TROL ELECTRIC(7GR) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0904- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66),PTO MANUAL CONTROL(6WC) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0904- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 00.683 M10X55 FLANGE 		8-97365-449-0 04 1 0904- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 02 1 0710-0909 ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 02 1 0710-0909 ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 02 1 0910- ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.670 M10X35 FLANGE 		0-28151-035-0 02 1 0910- ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0710-0909 ● ● ● ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0710-0909 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO TRANSMISSION SIDE(V66) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0710-0909 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0710-0909 ● ●
22 00.685 BOLT; TRANS CASE TO ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0910- ● ● ● ● ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCN ENG(RDQ) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO MANUAL CONTROL(6WC) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0910- ● ●
22 00.685 BOLT; TRANS CASE TO ENG
4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 09.171 M10X30 FLANGE 		0-28151-030-0 02 1 0910- ● ●
27 00.685 NUT; CLU HSG TO TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.085 M10 FLANGE 		0-91180-210-0 02 1 0710- ● ● ● ● ● ●
84 04.104 CAP; BUSH,SPEEDOMETER GEAR 8-98035-151-1 01 1 0710- ● ● ● ● ● ●
101 04.338 GASKET; CAP
04.439 		9-09561-324-0 01 1 0710- ● ● ● ● ● ●
102 00.683 STUD; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X50 L=99 		0-49241-050-0 02 1 0710- ● ● ● ● ● ●
