7-40 — INSTRUMENT PANEL AND BOX (#3860) — 123 parça

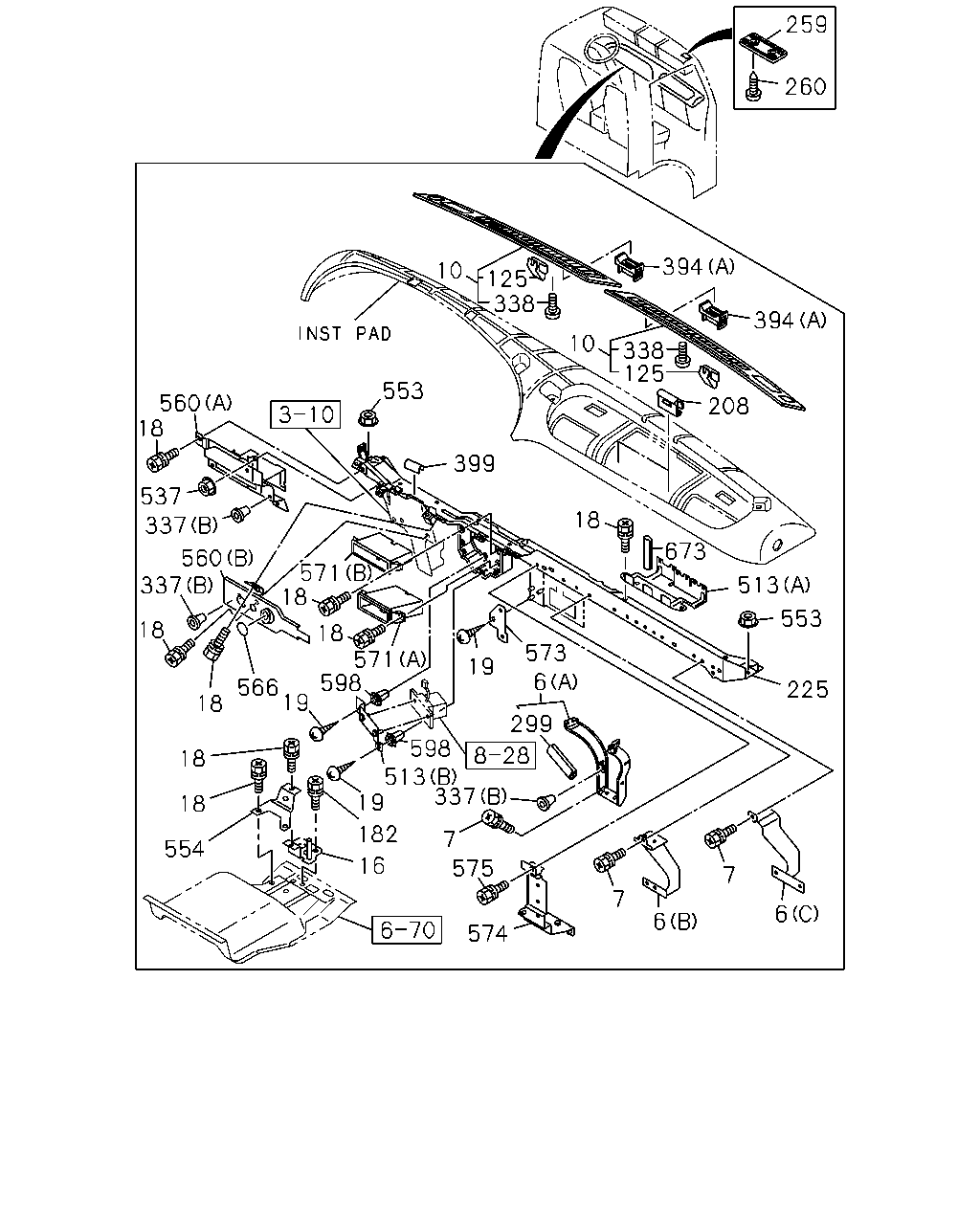

çizim 5215
259 260 394 10 125 338 394 10 338 125 553 560 18 208 399 537 18 337 673 560 337 571 18 513 18 553 18 571 598 573 19 6 566 19 225 18 299 598 513 337 19 18 18 182 7 554 16 575 7 7 6 6 574
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL
(A) 		1-65681-035-6 01 1 9601- ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		1-65681-061-2 01 1 9601- ● ●
6 SUPPORT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		1-65681-062-2 01 1 9601- ● ●
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9601- ● ●
7 BOLT; SUPPORT,INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601- ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-601-6 01 1 9601- ● ●
10 PANEL ASM; GARNISH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) W/SPEAKER NET 		1-72437-600-7 01 1 9601- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-158-1 01 1 9601- ● ●
10 PANEL ASM; GARNISH
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-72438-157-1 01 1 9601- ● ●
16 BRACKET; INST PNL 1-79738-802-1 01 1 9601- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601- ● ●
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 9601- ● ●
18 BOLT; BRKT
M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9601- ● ●
18 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9601- ● ●
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 02 1 9601- ● ●
19 SCREW; BRKT
PTO CONTROL<SV6> M5X14 		8-94279-325-0 02 1 9601- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-0607 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0608- ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004 ● ●
182 BOLT; BRKT,INST PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601- ● ●
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9601- ● ●
225 FRAME; FACIA 1-65681-028-8 01 1 9601-1002 ● ●
225 FRAME; FACIA 8-98142-104-0 01 1 1003- ● ●
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73318-551-0 01 1 9601-0004 ● ●
259 PLATE; STUFF,SUN VISOR
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0005- ● ●
260 SCREW; STUFF PLATE
LOW ROOF<6XQ> EXC. SUN VISOR PASSENGER<D20> M6X25 		1-09981-441-0 02 1 9601- ● ●
299 FINISHER; STAY,INST CENTER
L=150 SERVICED BY L=314 		8-94262-845-0 01 1 0006- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9601- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601- ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 9601-9909 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 05 1 9910-0004 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 05 1 9910-0004 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0005-0208 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94148-576-1 10 1 0209-0309 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 20 1 0310-0405 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 10 1 0406-0801 ● ●
338 SCREW; COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 		8-94279-325-0 15 1 0802- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-0407 ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ●
399 FINISHER; HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9803-9807 ● ●
399 FINISHER; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) L=60 		8-97865-346-0 01 1 9808- ● ●
513 BRACKET; RELAY
(A) 		1-73908-056-3 01 1 9601-9604 ● ●
513 BRACKET; RELAY
(A) 		8-97865-168-3 01 1 9605- ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 9601-0307 ● ●
513 BRACKET; RELAY
PTO CONTROL<SV6> (B) 		1-73908-043-1 01 1 0308- ●
513 BRACKET; RELAY
PTO CONTROL<SV6> EXC. A/T<X9D> (B) 		1-73908-043-1 01 1 0308- ●
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9601-0602 ● ●
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9601-0602 ● ●
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
554 BRACKET; CENTER BEZEL 1-65681-039-2 01 1 9601- ● ●
560 BRACKET
(A) 		1-65681-045-6 01 1 9601- ● ●
560 BRACKET
(B) 		1-65681-043-2 01 1 9601- ● ●
566 PLUG; HOLE
6HK1 TCC ENG(81L) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0608- ●
571 BEZEL; POCKET
(A) 		1-72438-060-1 01 1 9601-9812 ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-0 01 1 9601-9812 ● ●
571 BEZEL; POCKET
(B) 		1-72438-151-3 01 1 9901- ● ●
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) (B) 		1-72438-151-3 01 1 9901- ● ●
573 BRACKET; PANEL,RELAY BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-023-2 01 1 9601- ● ●
573 BRACKET; PANEL,RELAY BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		1-73908-200-0 01 1 9601- ● ●
574 PANEL; RELAY BOX 1-73908-058-7 01 1 9601- ● ●
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9601- ● ●
598 GROMMET; SCREW
PTO CONTROL<SV6> D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 02 1 9601- ● ●
673 FINISHER; BRKT,RELAY
L=30 SERVICED BY L=50 		8-94270-377-1 01 1 0006-0009 ● ●
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010- ● ●

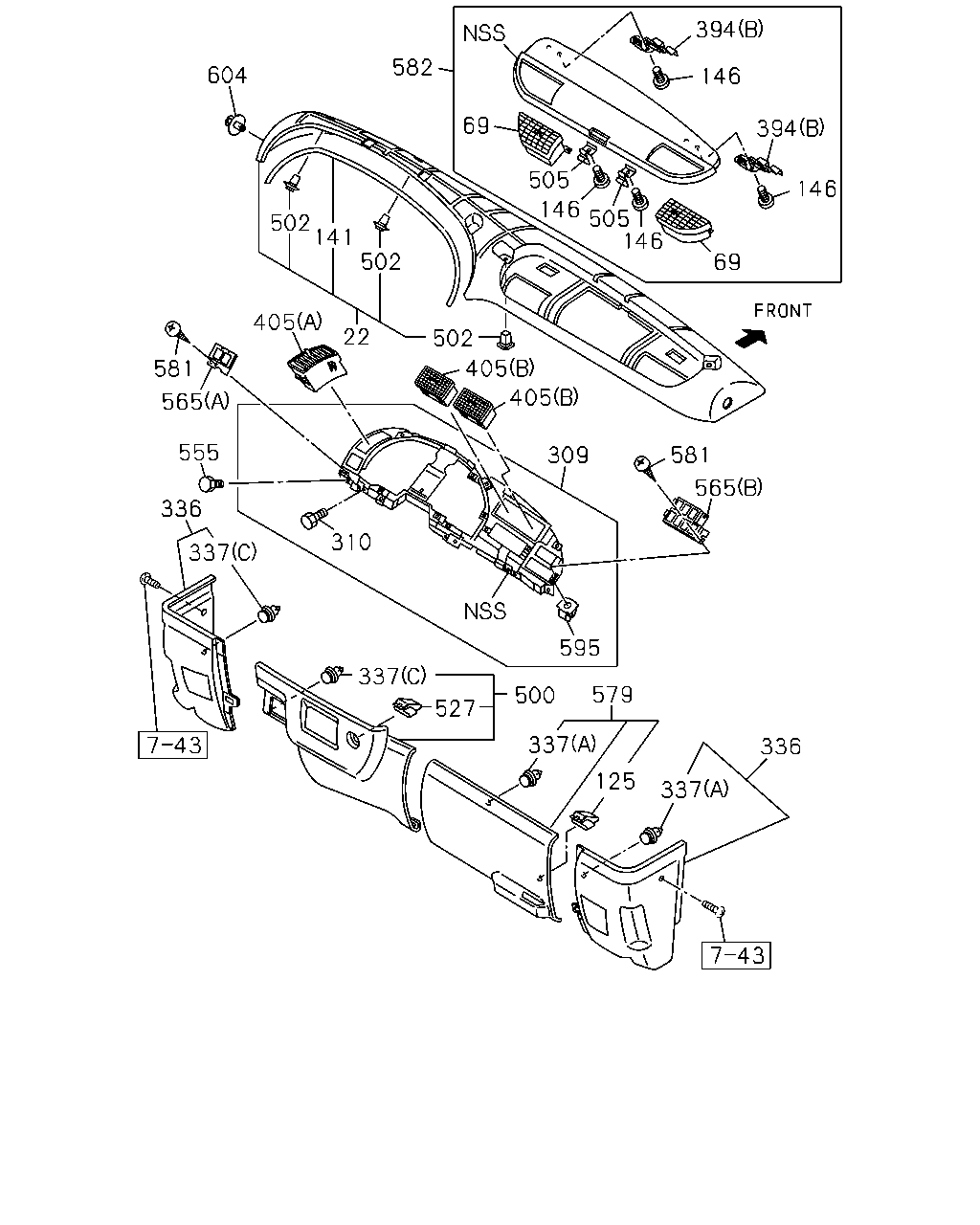

çizim 5851
394 582 604 146 69 394 505 146 146 505 146 502 141 502 69 405 22 502 405 581 405 565 555 581 309 565 336 310 337 595 337 579 500 527 337 336 125 337
BalonParca AdiParca NoAdetTipApplied Date A B
22 PAD; INST 1-72318-415-2 01 1 9601-0004 ● ●
22 PAD; INST 1-72318-435-3 01 1 0005- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9601- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9601- ● ●
125 CLIP; INST PANEL 8-97853-939-4 01 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 01 1 9901- ● ●
125 CLIP; INST PANEL 8-97853-939-4 08 1 9601-9812 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 9901-9909 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 04 1 9910-0004 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0005-0607 ● ●
125 CLIP; INST PANEL 8-97217-066-0 08 1 0608- ● ●
125 CLIP; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-97217-066-0 08 1 9910-0004 ● ●
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9601- ● ●
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9601- ● ●
309 PANEL; SW,INST 1-72418-018-3 01 1 9601- ● ●
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9601- ● ●
336 COVER; INST PANEL SIDE 1-72438-132-0 01 1 9601-0004 ● ●
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0005- ● ●
336 COVER; INST PANEL SIDE 1-72438-130-1 01 1 9601-0004 ● ●
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0005- ● ●
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 9601- ● ●
337 FASTENER; COVER
(C) 		1-72438-137-0 06 1 9601- ● ●
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 9601- ● ●
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 9601- ● ●
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9601-0407 ● ●
394 HOLDER; PANEL
(B) 		1-72558-048-0 02 1 0408- ● ●
405 GRILLE ASM; METER VENT
(A) 		1-76368-062-0 01 1 9601- ● ●
405 GRILLE ASM; METER VENT
(B) BLACK 		8-94333-730-4 02 1 9601- ● ●
500 CLUSTER; INST CENTER 1-72438-126-3 01 1 9601-0004 ● ●
500 CLUSTER; INST CENTER 1-72438-192-1 01 1 0005- ● ●
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9601- ● ●
505 LOCK; LID 1-72558-024-2 02 1 9601- ● ●
527 CLIP; INST CLUSTER 8-97853-939-4 04 1 9601-9812 ● ●
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9901- ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 9601-0512 ● ●
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604 ● ●
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605- ● ●
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9601- ● ●
565 BEZEL; SW PANEL
(B) 		1-72418-020-1 01 1 9601- ● ●
565 BEZEL; SW PANEL
(A) 		1-72418-021-1 01 1 9601- ● ●
579 COVER; INST PNL 1-72438-128-1 01 1 9601-0004 ● ●
579 COVER; INST PNL 1-72438-195-1 01 1 0005- ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9601-0604 ● ●
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605- ● ●
582 LID; FUSE & RELAY 1-72548-140-1 01 1 9601-0004 ● ●
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0005- ● ●
595 NUT; HOOK 1-72418-013-0 10 1 9601- ● ●
604 CLIP; INST PAD 1-09983-123-0 01 1 9601- ● ●
çizim 8520
597
BalonParca AdiParca NoAdetTipApplied Date A B
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0104- ● ●
