◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER ▶
1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#38596) — 67 parça

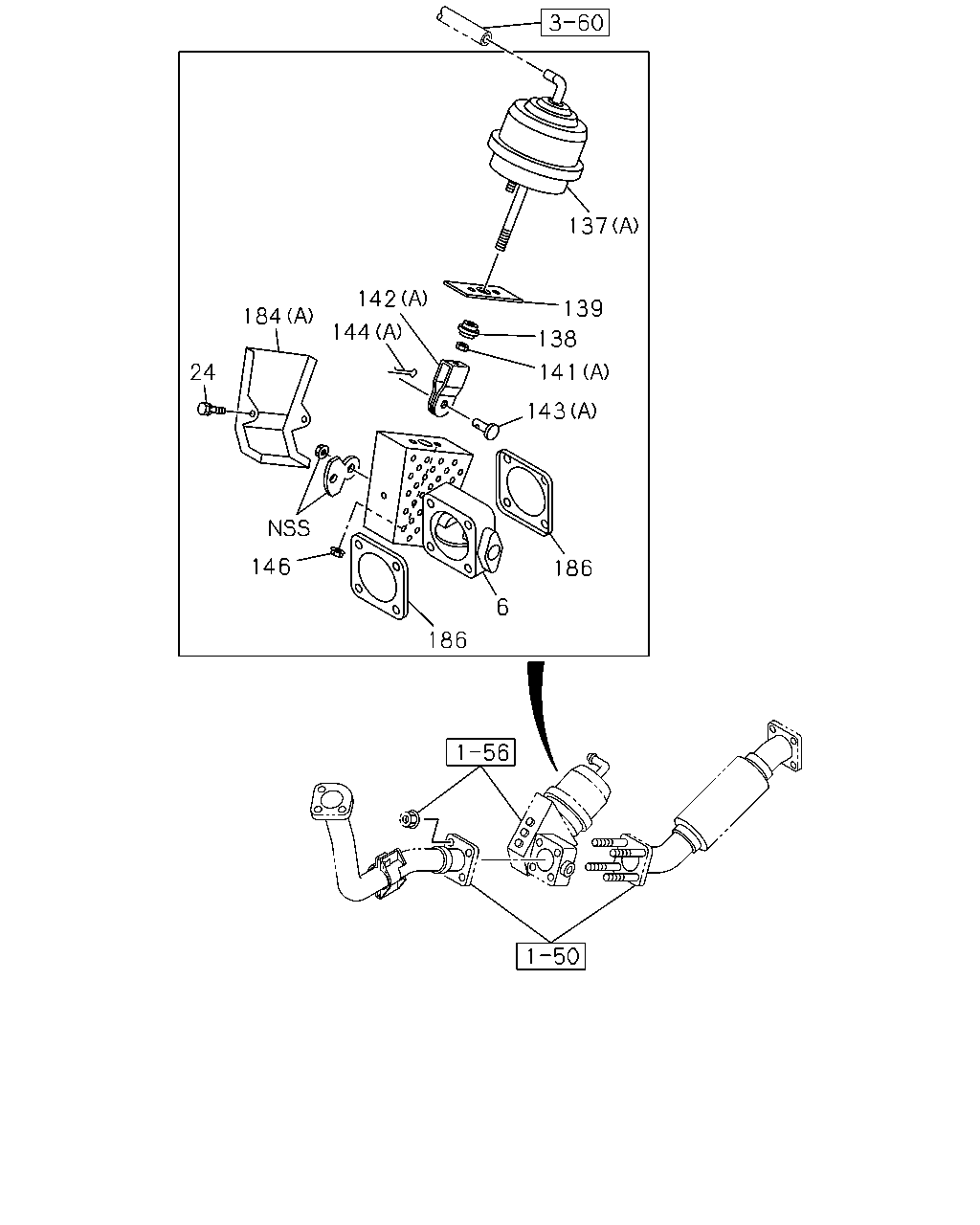

çizim 34680
137 142 139 184 144 138 24 141 143 146 186 6 186
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 03.632 VALVE; EXH BRAKE 8-98069-291-0 01 1 0710- ● ● ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0710- ● ● ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0710- ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 0710- ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
(B) 		8-98038-348-0 01 1 0710-1012 ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
(B) 		8-97985-132-0 01 1 1101- ● ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0710- ● ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0710- ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0710- ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0710- ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0710-1012 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0710-1012 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 1101- ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) 		8-97985-128-0 01 1 1101- ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0710-1012 ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0710-1012 ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 1101- ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(B) 		8-97985-133-0 01 1 1101- ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0710-1012 ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0710-1012 ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 1101- ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(B) 		8-97985-126-0 01 1 1101- ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0710-1012 ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0710-1012 ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 1101- ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 01 1 1101- ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
07.633 M8 FLANGE 		0-91150-108-0 02 1 0710-1103 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-1103 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1104- ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1104- ● ● ● ● ● ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 0710- ● ● ● ● ● ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 0710- ● ● ● ● ● ●
186 03.611 GASKET; EXH BRK VLV,BODY 8-98022-713-0 02 1 0710- ● ● ● ● ● ●

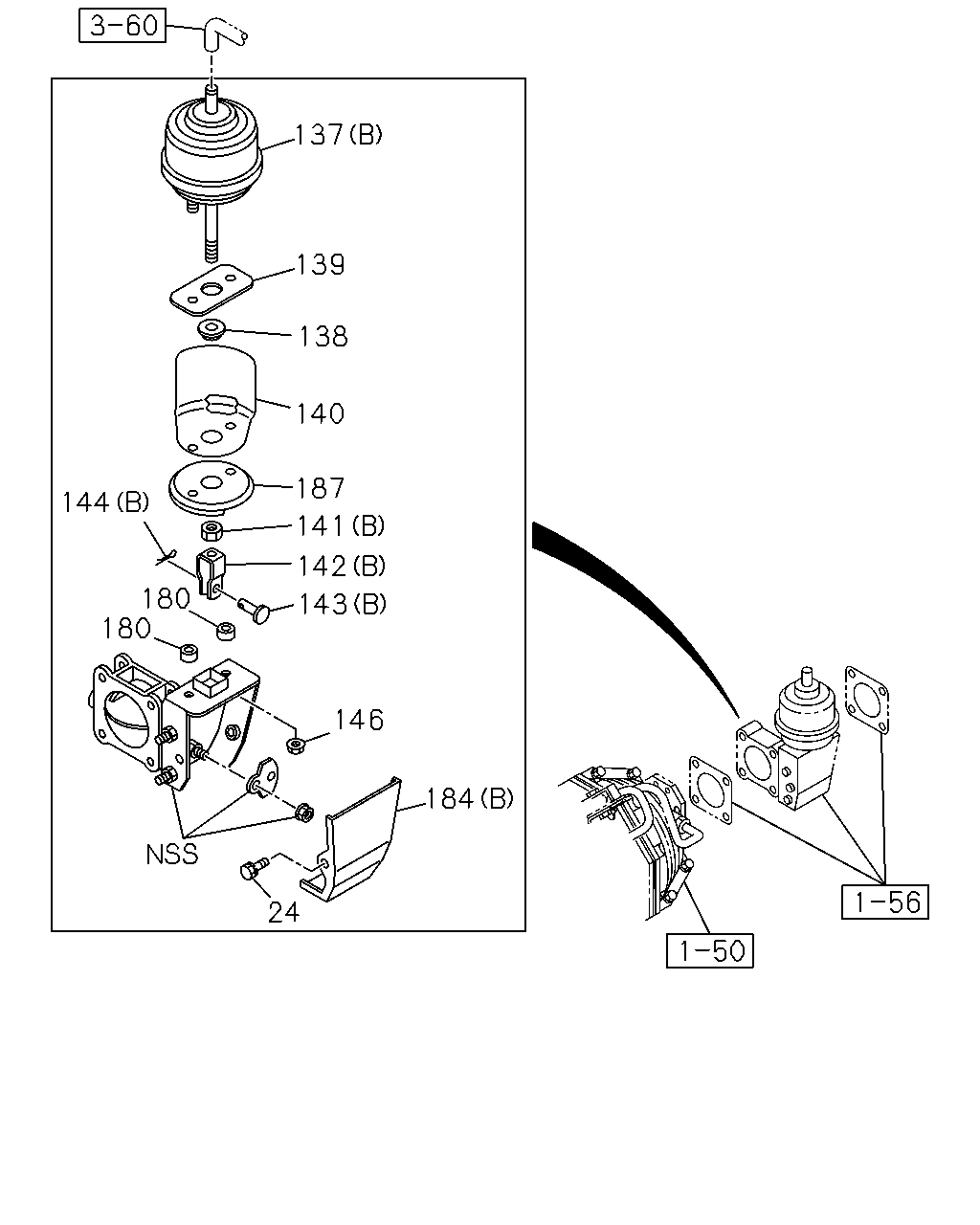

çizim 100543
137 139 138 140 187 144 141 142 180 180 143 146 184 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0710- ● ● ● ● ● ●
24 03.634 BOLT; COVER
03.444 		8-97065-029-0 02 1 0710- ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
(A) 		8-98043-596-0 01 1 0710- ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
(B) 		8-98038-348-0 01 1 0710-1012 ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
(B) 		8-97985-132-0 01 1 1101- ● ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0710- ● ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV 5-22189-004-0 01 1 0710- ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0710- ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV 8-94328-234-0 01 1 0710- ● ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV 8-98037-494-0 01 1 0710- ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0710-1012 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 0710-1012 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
05.122 (A) 		8-94311-428-0 01 1 1101- ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
(B) 		8-97985-128-0 01 1 1101- ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0710-1012 ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 0710-1012 ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(A) 		8-97177-311-0 01 1 1101- ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
(B) 		8-97985-133-0 01 1 1101- ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0710-1012 ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 0710-1012 ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(A) 		8-94311-452-0 01 1 1101- ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
(B) 		8-97985-126-0 01 1 1101- ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0710-1012 ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 0710-1012 ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(A) 		8-97029-428-0 01 1 1101- ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
(B) 		8-97985-124-0 01 1 1101- ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
07.633 M8 FLANGE 		0-91150-108-0 02 1 0710-1103 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 0710-1103 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1104- ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
01.062 M8 FLANGE 		0-91180-108-0 02 1 1104- ● ● ● ● ● ●
180 03.640 COLLAR; EXH BRK VLV
03.440 		8-97018-597-0 02 1 0912- ● ● ● ● ● ●
184 03.634 COVER; BRKT
(A) 		8-97370-068-0 01 1 0710- ● ● ● ● ● ●
184 03.634 COVER; BRKT
(B) 		8-98037-493-0 01 1 0710- ● ● ● ● ● ●
187 03.685 PROTECTOR; EXH BRK VLV 8-98037-495-0 01 1 0710- ● ● ● ● ● ●
