Sayfa 1-50 - Isuzu EPC

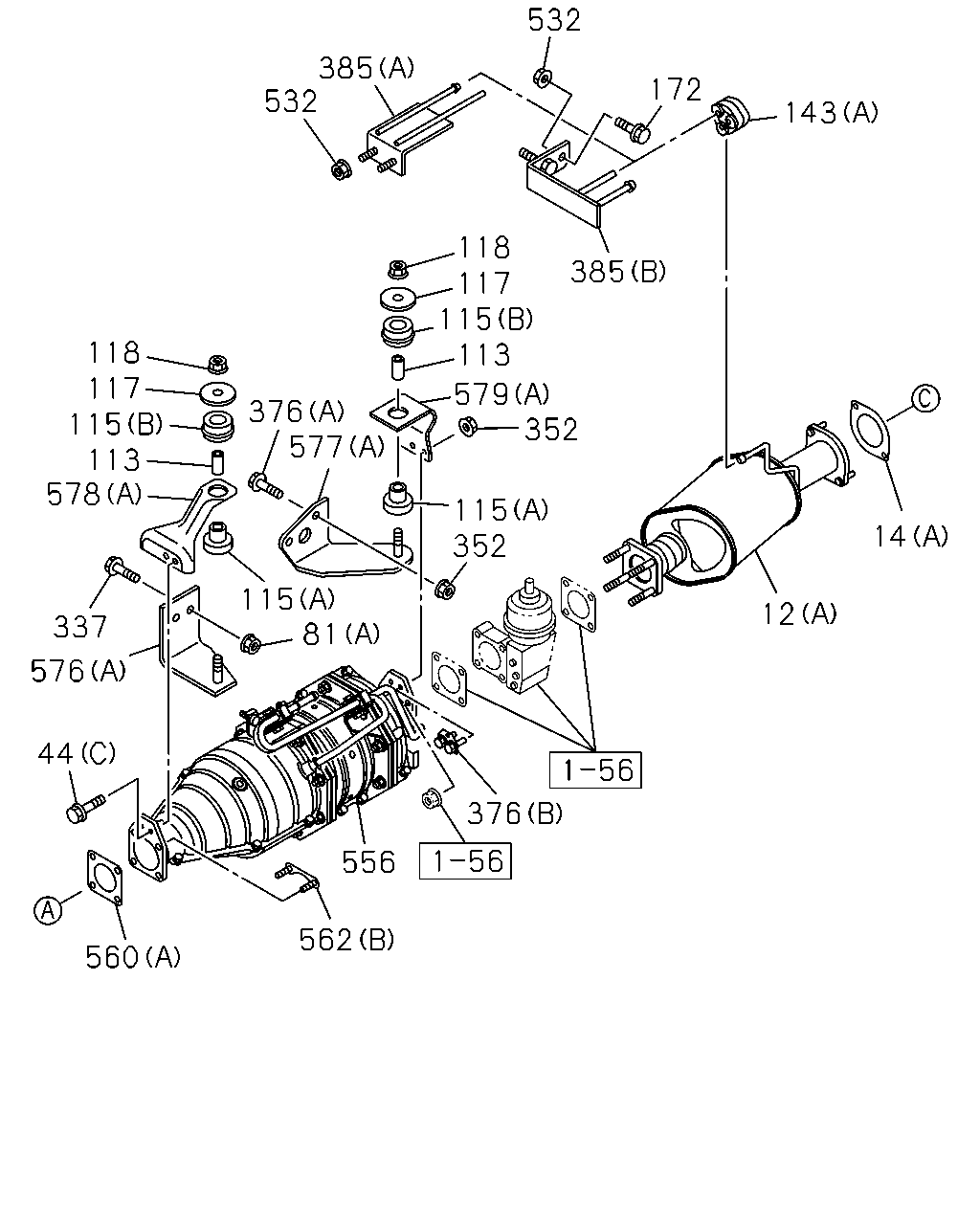

1-50 — EXHAUST PIPE AND SILENCER (#38595) — 936 parça

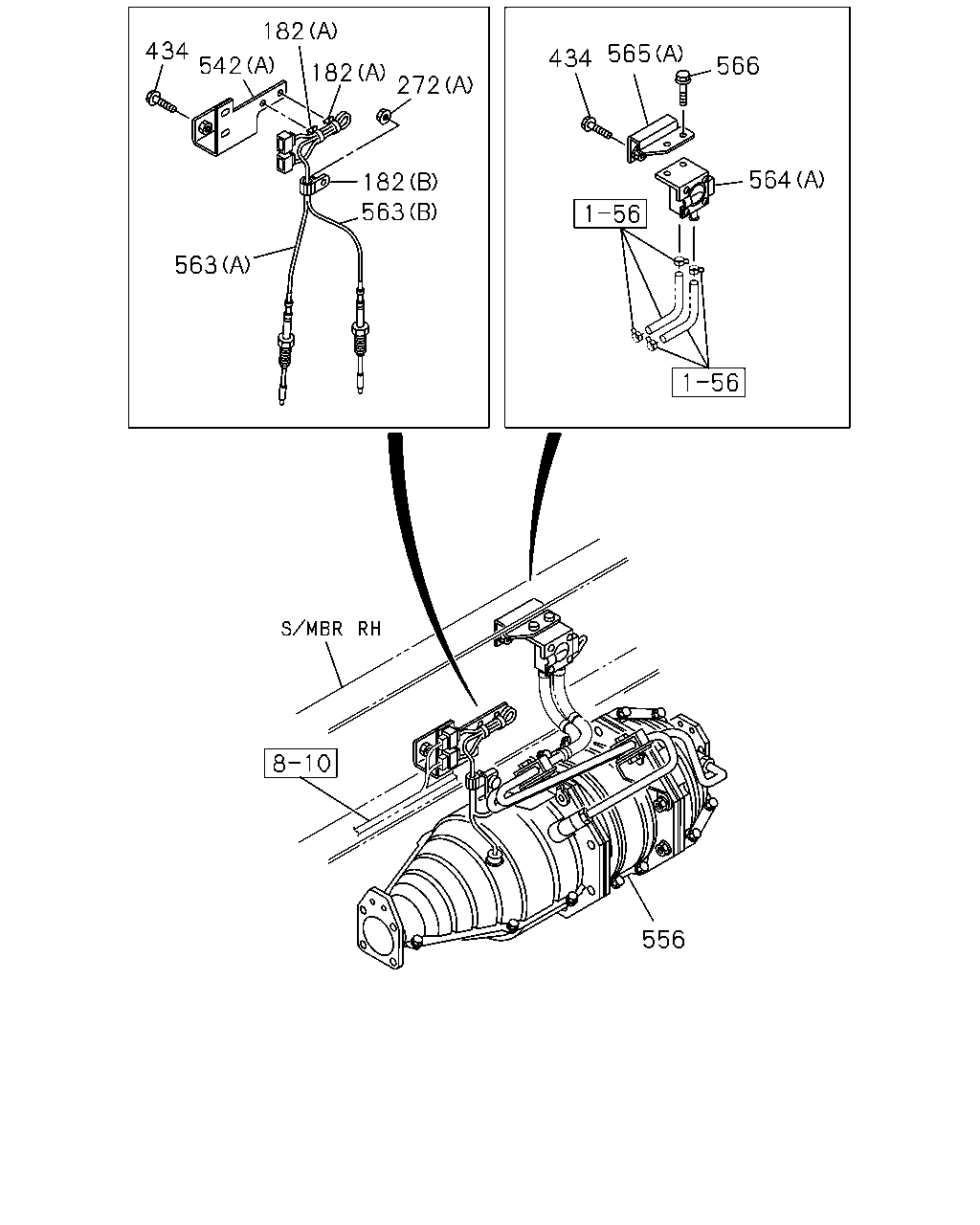

182 434 565 434 542 566 182 272 564 182 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (B) ID=7	8-98002-767-0	01	1	0710-	●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) (B) ID=7	8-98002-767-0	01	1	0710-			●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	02	1	0710-	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) 02.587 (A) L=112	8-94232-618-0	02	1	0710-					●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.587 (A) L=112	8-94232-618-0	01	1	0710-			●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) ID=7 L=7.5	8-97369-561-0	01	1	0710-					●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-			●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-			●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0710-					●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-			●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-				●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-			●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-					●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98004-026-1	01	1	0710-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98039-602-0	01	1	0710-					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0710-	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0710-	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-97359-985-2	01	1	0710-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) (A)	8-97359-985-2	01	1	0710-					●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ) (B)	8-97360-368-2	01	1	0710-			●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (A)	8-98012-396-0	01	1	0710-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98063-130-0	01	1	0710-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98063-129-0	01	1	0710-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) (B)	8-98063-129-0	01	1	0710-				●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (C)	8-98029-347-0	01	1	0710-					●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●	●	●	●	●

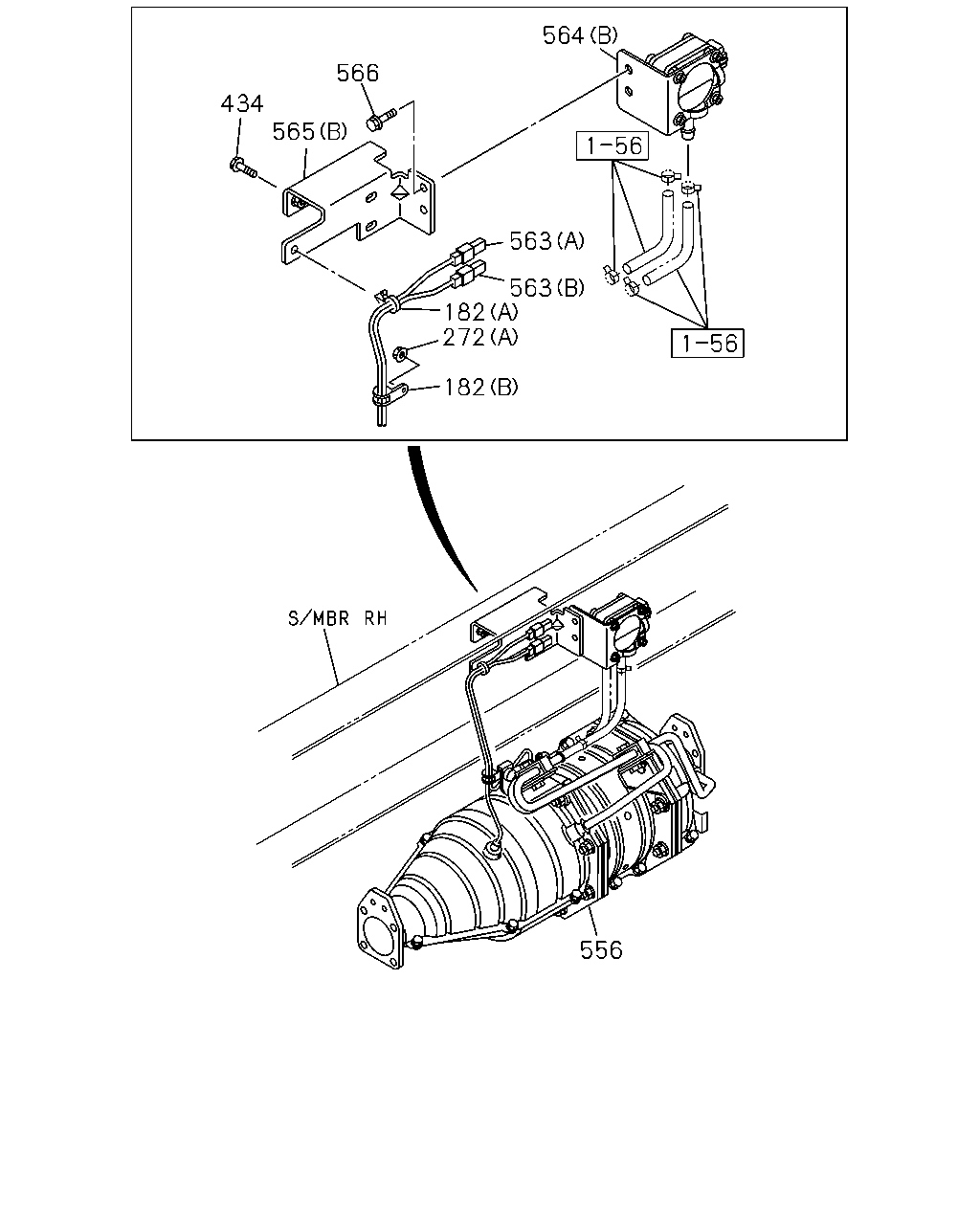

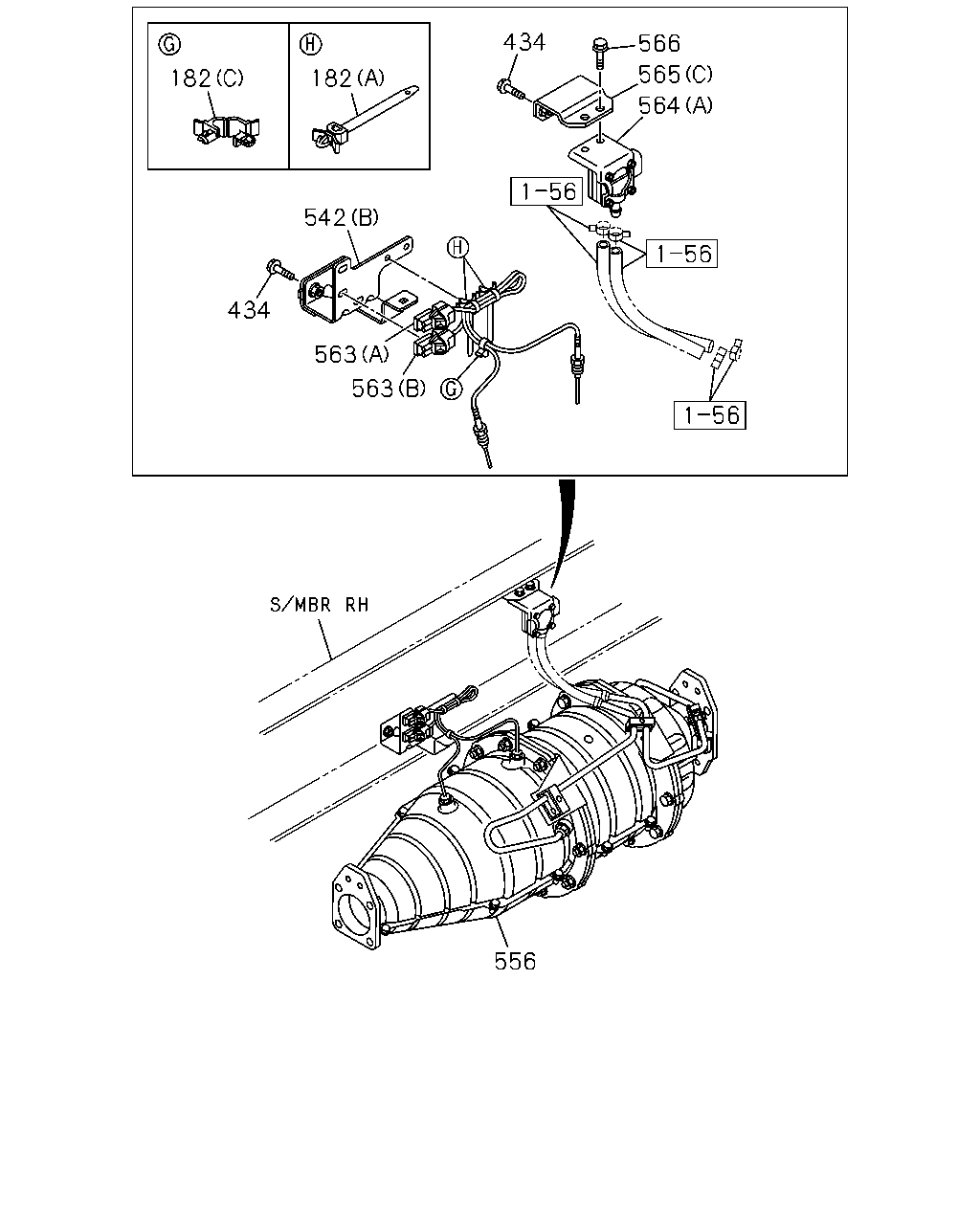

434 566 565 182 182 564 542 434 563 563 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (B) ID=7	8-98002-767-0	01	1	0710-	●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) (B) ID=7	8-98002-767-0	01	1	0710-			●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	02	1	0710-	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) 02.587 (A) L=112	8-94232-618-0	02	1	0710-					●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.587 (A) L=112	8-94232-618-0	01	1	0710-			●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) ID=7 L=7.5	8-97369-561-0	01	1	0710-					●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-			●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-				●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-			●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-					●	●
542	03.704 BRACKET 4JJ1-TCS ENG(LFB) (A)	8-98004-026-1	01	1	0710-	●	●
542	03.704 BRACKET 4HK1-TCS ENG(RJS) (B)	8-98039-602-0	01	1	0710-					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0710-	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0710-	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-97359-985-2	01	1	0710-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) (A)	8-97359-985-2	01	1	0710-					●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ) (B)	8-97360-368-2	01	1	0710-			●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (A)	8-98012-396-0	01	1	0710-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98063-130-0	01	1	0710-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98063-129-0	01	1	0710-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) (B)	8-98063-129-0	01	1	0710-				●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (C)	8-98029-347-0	01	1	0710-					●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●	●	●	●	●

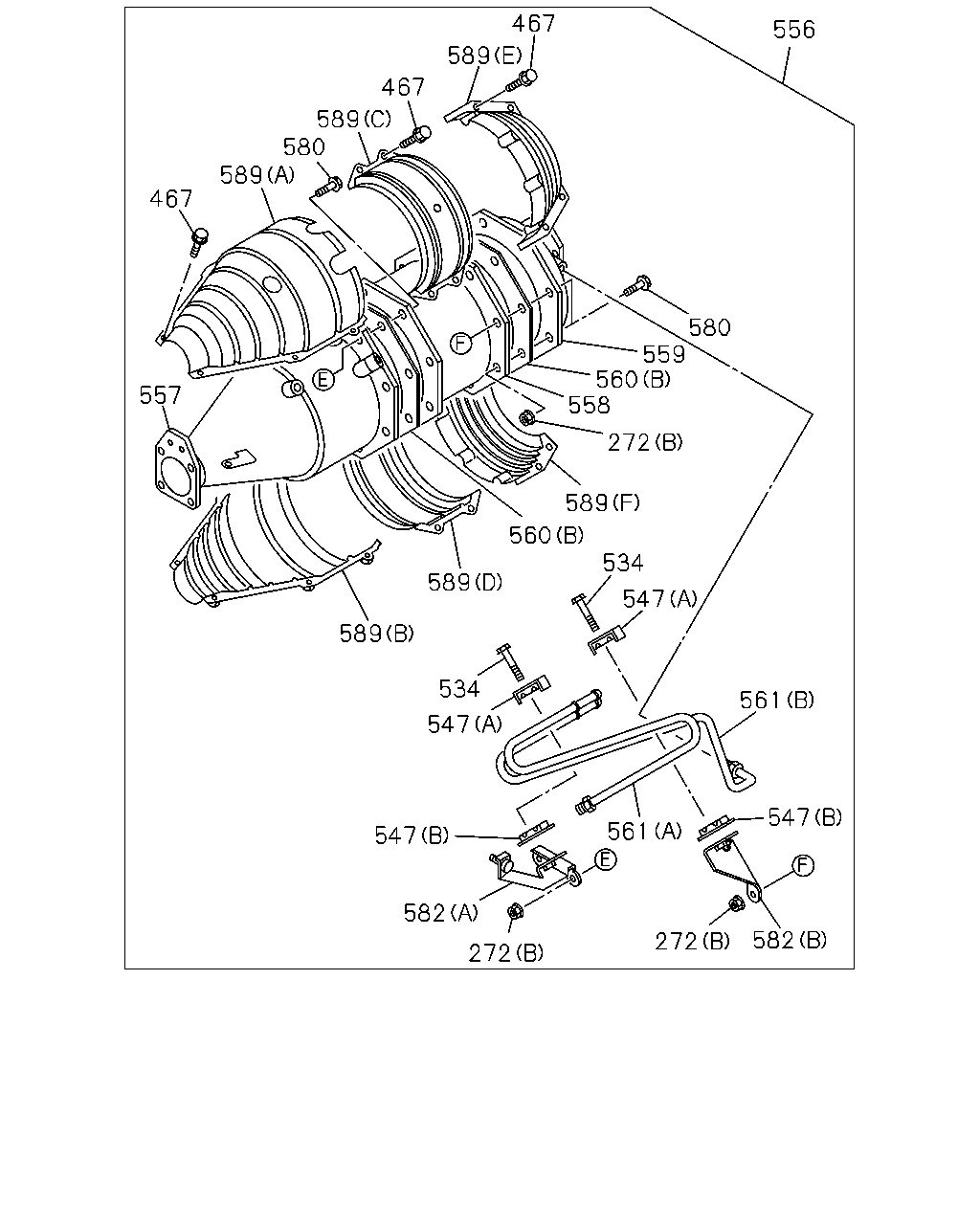

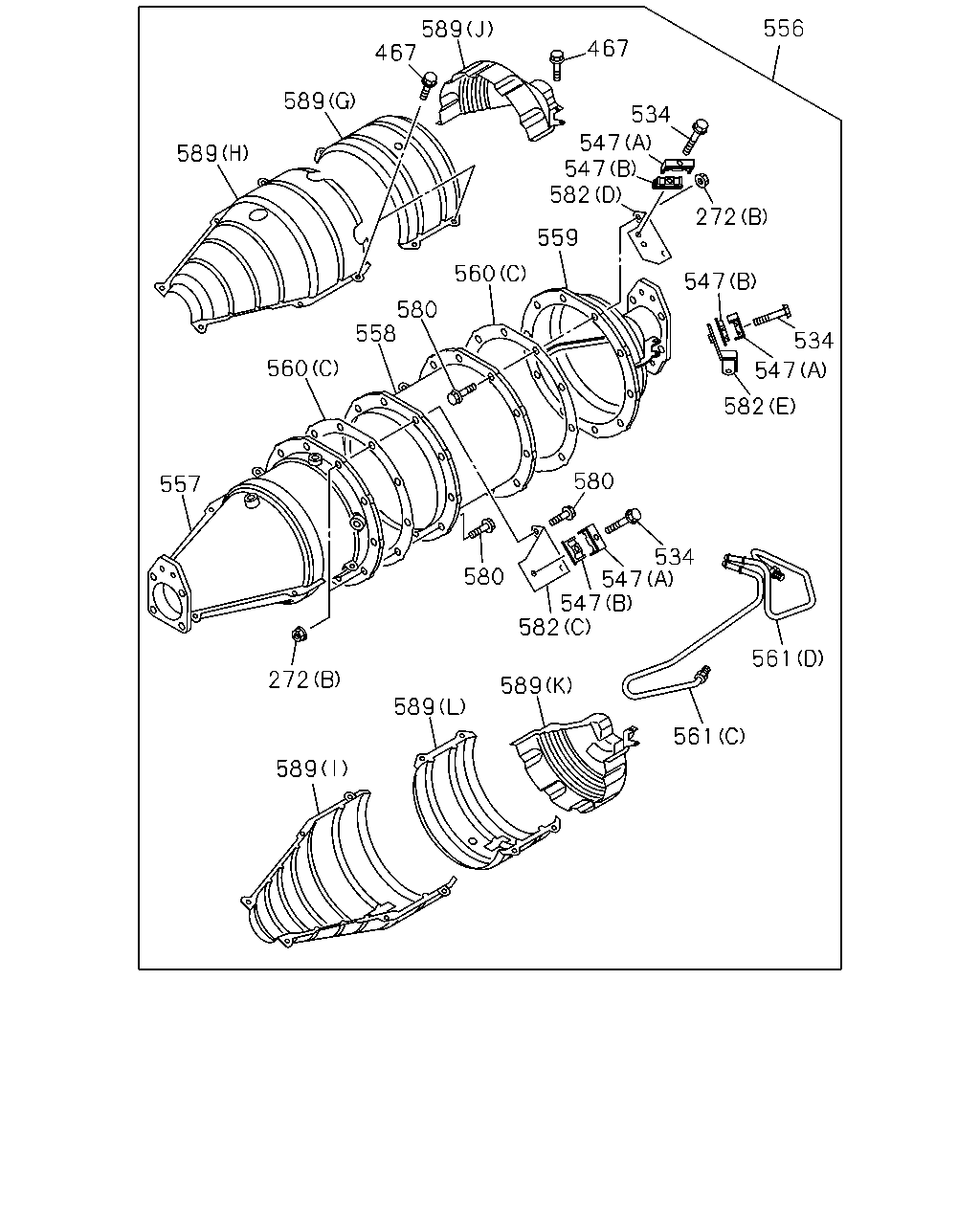

467 556 589 467 589 580 589 467 580 559 560 558 557 272 589 560 534 589 547 589 534 561 547 547 561 547 582 582 272 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-			●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-			●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0710-					●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0710-	●	●	●	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-	●	●
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-			●	●
534	03.704 BOLT; CLIP 4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0710-					●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (A)	8-97381-635-0	02	1	0710-	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (A)	8-97381-635-0	02	1	0710-			●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (B)	8-97381-636-0	02	1	0710-	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (B)	8-97381-636-0	02	1	0710-			●	●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (A)	8-97381-635-0	03	1	0710-					●	●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (B)	8-97381-636-0	03	1	0710-					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98036-815-6	01	1	0710-	●	●
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ)	8-98036-815-6	01	1	0710-			●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-97608-055-7	01	1	0710-					●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98032-908-2	01	1	0710-	●	●
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ)	8-98032-908-2	01	1	0710-			●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-97608-057-3	01	1	0710-					●	●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97611-078-0	01	1	0710-1010					●	●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97622-887-0	01	1	1011-					●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98084-599-0	01	1	0710-1011	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98084-599-0	01	1	0710-1011			●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98093-507-0	01	1	1012-	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98093-507-0	01	1	1012-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-97331-947-0	02	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (B)	8-97331-947-0	02	1	0710-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A) ID=64	8-97373-108-0	01	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0710-			●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	0710-					●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0710-					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98039-239-0	01	1	0710-1010					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98084-603-0	01	1	1011-					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98039-241-0	01	1	0710-1010					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98084-604-0	01	1	1011-					●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-910-0	01	1	0710-1011	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-910-0	01	1	0710-1011			●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98084-600-0	01	1	1012-	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98084-600-0	01	1	1012-			●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-911-1	01	1	0710-1011	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-911-1	01	1	0710-1011			●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98084-601-0	01	1	1012-	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98084-601-0	01	1	1012-			●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0710-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0710-			●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0710-					●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (A)	8-98032-919-0	01	1	0710-	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (A)	8-98032-919-0	01	1	0710-			●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-920-0	01	1	0710-	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98032-920-0	01	1	0710-			●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (C)	8-97611-083-0	01	1	0710-					●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (D)	8-97611-084-0	01	1	0710-					●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (E)	8-97611-085-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-97383-660-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (C)	8-97383-660-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-97383-663-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (F)	8-97383-663-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-921-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-921-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-923-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-923-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (D)	8-98032-924-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-98032-926-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (E)	8-98032-926-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (G)	8-97605-172-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (H)	8-97611-086-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (I)	8-97611-087-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (J)	8-97611-088-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (K)	8-97611-089-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (L)	8-97613-390-0	01	1	0710-					●	●

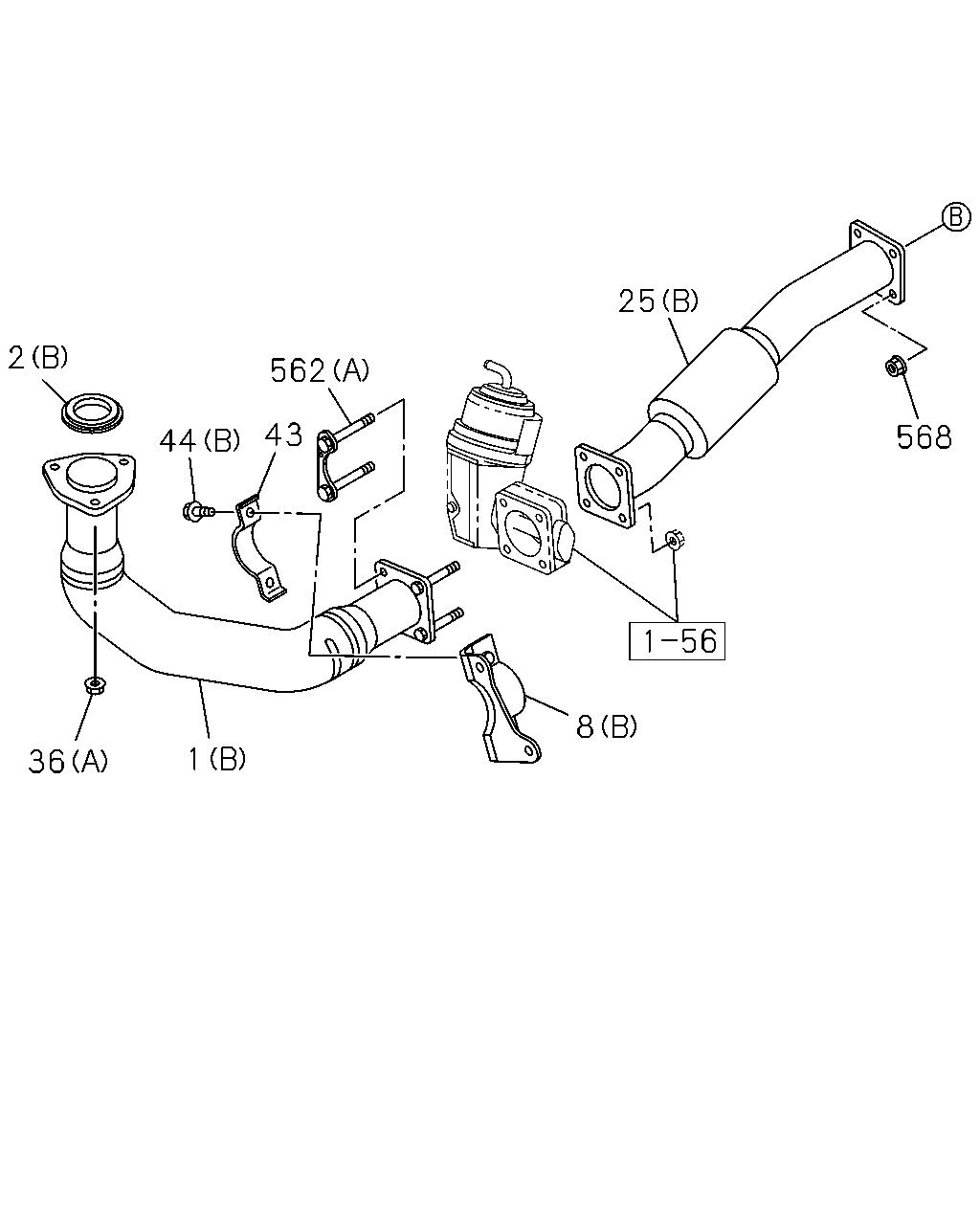

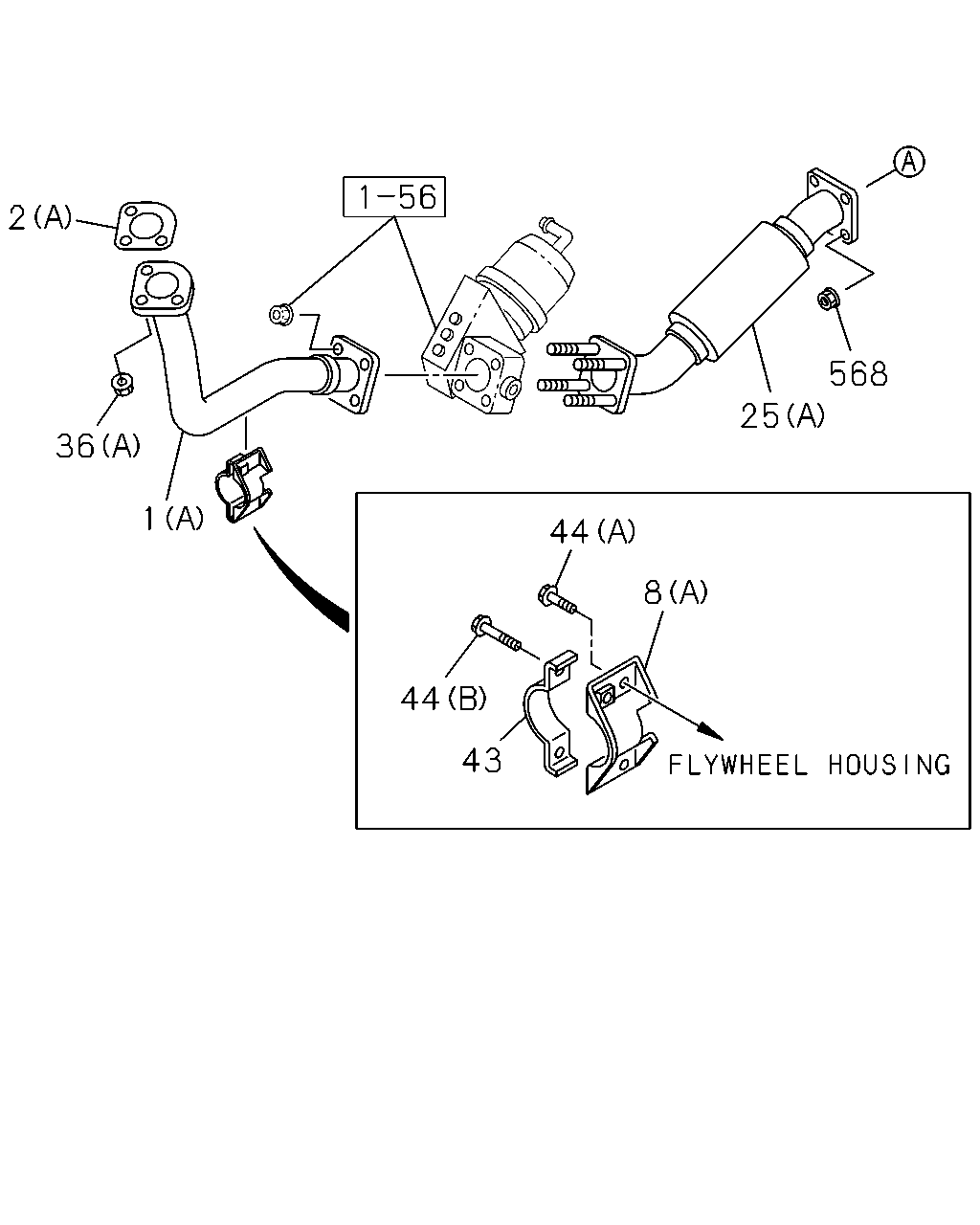

2 568 25 36 1 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB) (A)	8-98026-060-0	01	1	0710-	●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98006-765-2	01	1	0710-			●	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB) (A)	8-97384-590-0	01	1	0710-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	0710-			●	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (A)	8-98026-063-0	01	1	0710-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (B)	8-98020-555-0	01	1	0710-			●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) (A)	8-98026-062-2	01	1	0710-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (B)	8-98072-179-0	01	1	0710-			●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) (B)	8-98006-766-0	01	1	0710-					●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-					●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-				●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-						●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-	●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
568	03.704 NUT; DPD 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-			●	●
568	03.704 NUT; DPD 4HK1-TCS ENG(RJS) 02.042 M12 FLANGE	0-91180-112-0	04	1	0710-					●	●

564 566 434 565 563 563 182 272 182 556

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) (B) ID=7	8-98002-767-0	01	1	0710-	●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) (B) ID=7	8-98002-767-0	01	1	0710-			●	●
182	03.682 CLIP; HARNESS 4JJ1-TCS ENG(LFB) 02.587 (A) L=112	8-94232-618-0	02	1	0710-	●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) 02.587 (A) L=112	8-94232-618-0	02	1	0710-					●	●
182	03.682 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 02.587 (A) L=112	8-94232-618-0	01	1	0710-			●	●
182	03.682 CLIP; HARNESS 4HK1-TCS ENG(RJS) (C) ID=7 L=7.5	8-97369-561-0	01	1	0710-					●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-			●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-			●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0710-					●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
434	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-			●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-				●
434	03.613 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-			●
434	03.613 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	04	1	0710-					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
563	01.150 SENSOR; TEMPERATURE,DPD (A)	8-98004-329-0	01	1	0710-	●	●	●	●	●	●
563	01.150 SENSOR; TEMPERATURE,DPD (B)	8-98004-330-0	01	1	0710-	●	●	●	●	●	●
564	01.150 SENSOR; PRESSURE,DPD 4JJ1-TCS ENG(LFB) (A)	8-97359-985-2	01	1	0710-	●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCS ENG(RJS) (A)	8-97359-985-2	01	1	0710-					●	●
564	01.150 SENSOR; PRESSURE,DPD 4HK1-TCN ENG(RDQ) (B)	8-97360-368-2	01	1	0710-			●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4JJ1-TCS ENG(LFB) (A)	8-98012-396-0	01	1	0710-	●	●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98063-130-0	01	1	0710-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98063-129-0	01	1	0710-			●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCN ENG(RDQ) (B)	8-98063-129-0	01	1	0710-				●
565	03.706 BRACKET; SENSOR,PRESSURE 4HK1-TCS ENG(RJS) (C)	8-98029-347-0	01	1	0710-					●	●
566	03.706 BOLT; SENSOR 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0710-	●	●	●	●	●	●

25 2 562 43 568 44 8 1 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.609 PIPE; EXH 4JJ1-TCS ENG(LFB) (A)	8-98026-060-0	01	1	0710-	●	●
1	03.609 PIPE; EXH 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98006-765-2	01	1	0710-			●	●	●	●
2	03.611 GASKET; PIPE TO MANIF 4JJ1-TCS ENG(LFB) (A)	8-97384-590-0	01	1	0710-	●	●
2	03.611 GASKET; PIPE TO MANIF 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	0710-			●	●	●	●
8	03.704 BRACKET; EXH PIPE 4JJ1-TCS ENG(LFB) 03.613 (A)	8-98026-063-0	01	1	0710-	●	●
8	03.704 BRACKET; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (B)	8-98020-555-0	01	1	0710-			●	●	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4JJ1-TCS ENG(LFB) (A)	8-98026-062-2	01	1	0710-	●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCN ENG(RDQ) (B)	8-98072-179-0	01	1	0710-			●	●
25	03.609 PIPE; EXH,BRK VLV TO SILENCER 4HK1-TCS ENG(RJS) (B)	8-98006-766-0	01	1	0710-					●	●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-					●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-				●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-						●
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-	●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (B)	8-97373-966-0	02	1	0710-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0710-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98030-175-0	01	1	0710-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (B) M12X35	1-22131-963-0	02	1	0710-					●	●
568	03.704 NUT; DPD 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-	●	●
568	03.704 NUT; DPD 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-			●	●
568	03.704 NUT; DPD 4HK1-TCS ENG(RJS) 02.042 M12 FLANGE	0-91180-112-0	04	1	0710-					●	●

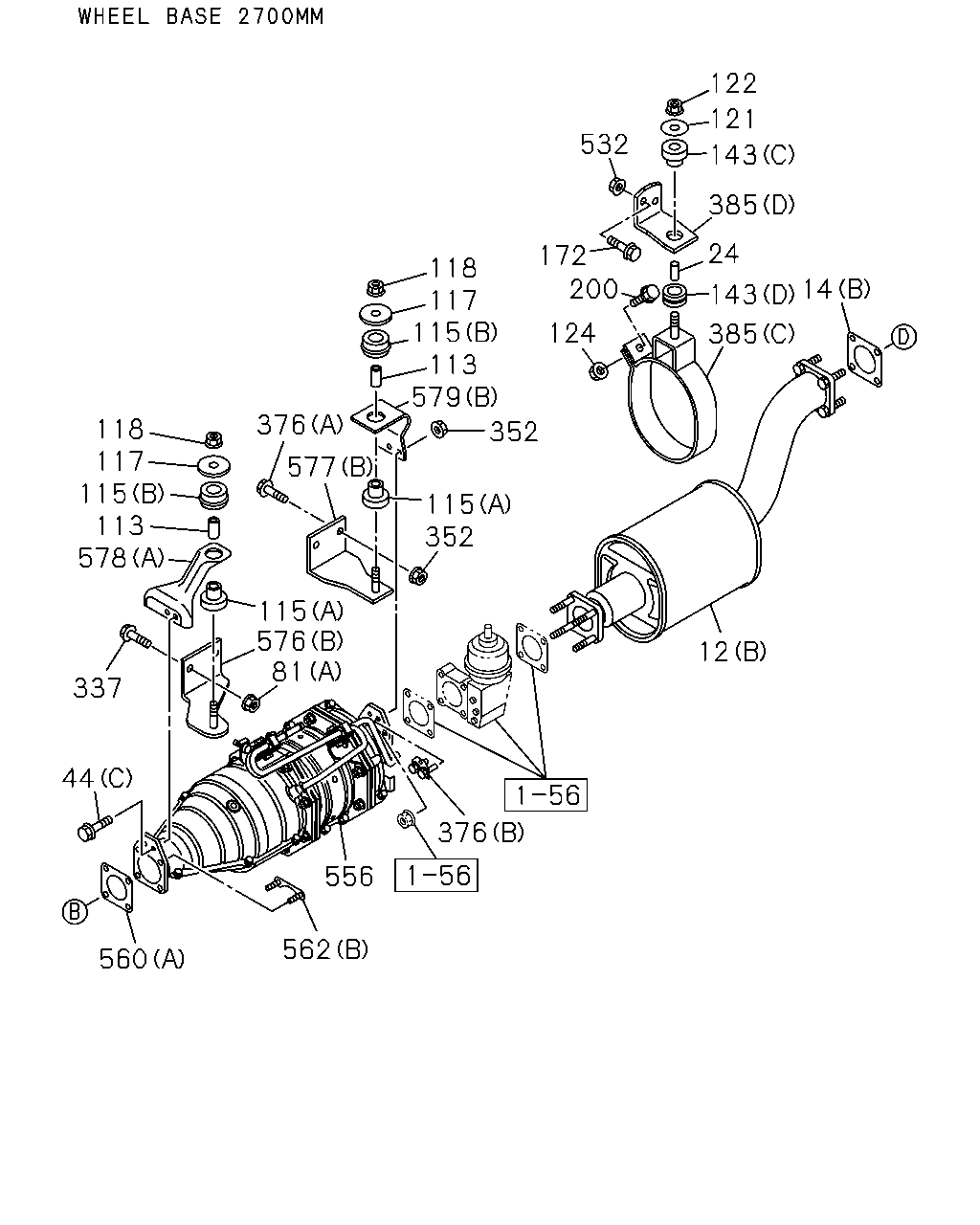

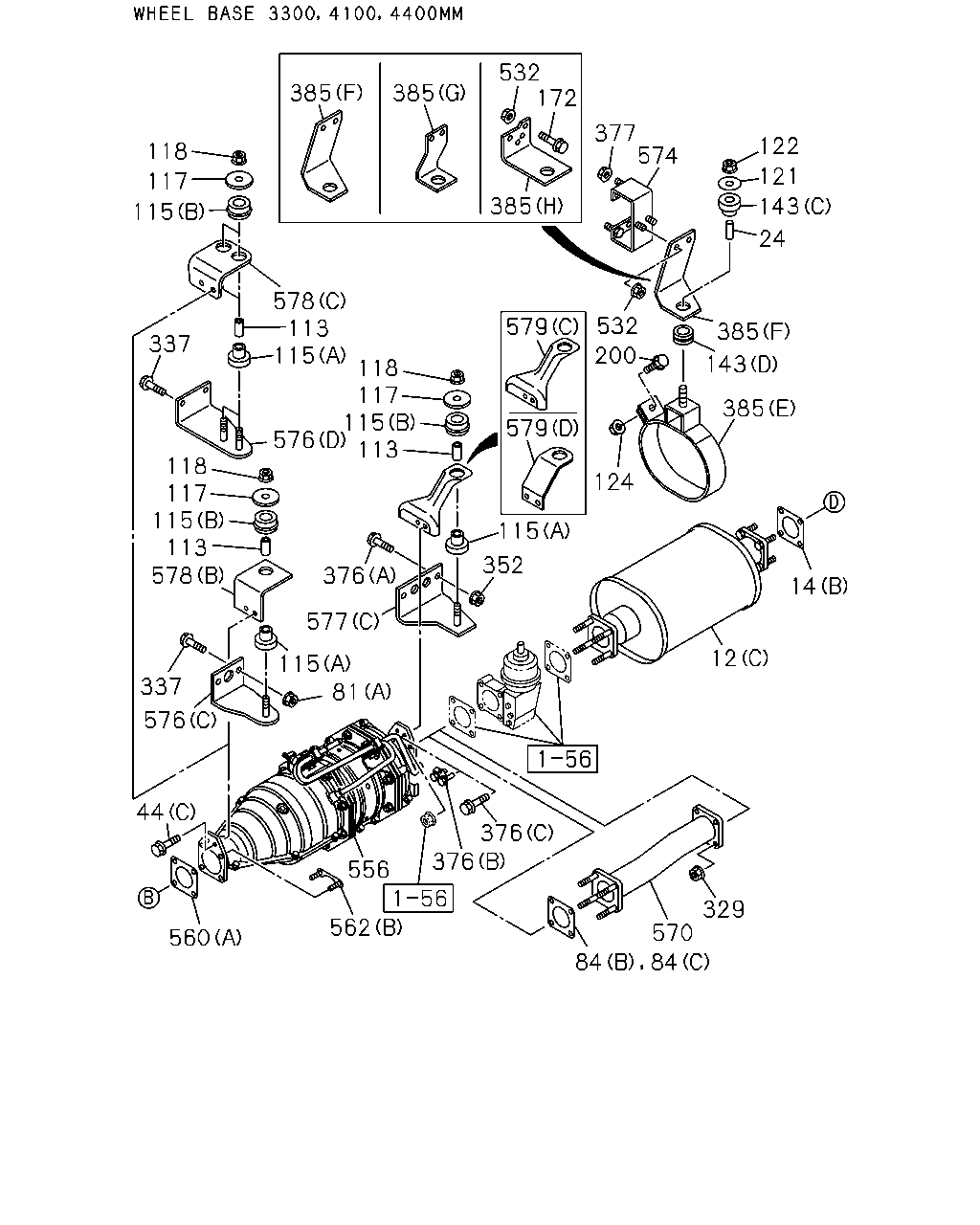

532 385 532 172 143 118 117 115 113 385 118 117 115 113 578 579 352 376 577 115 352 14 115 81 12 337 576 44 376 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (A)	8-97387-244-1	01	1	0710-	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98073-374-0	01	1	0710-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98020-562-1	01	1	0710-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (C)	8-98020-562-1	01	1	0710-					●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (C)	8-98020-562-1	01	1	0710-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 (A) ID=65	8-97148-757-1	01	1	0710-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	1-22116-043-0	01	1	0710-			●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-			●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-					●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-			●	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0710-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0710-			●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	03	1	0710-					●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	0710-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0710-			●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	0710-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0710-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	0710-					●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	0710-					●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	0710-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0710-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	03	1	0710-					●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	03	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (A)	8-97080-694-0	01	1	0710-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	0710-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0710-			●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (B)	8-98034-767-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-98034-767-0	01	1	0710-		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0710-			●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0710-			●	●	●	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-		●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●
172	03.708 BOLT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-					●
172	03.708 BOLT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-						●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●		●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (B)	8-98005-985-0	01	1	0710-	●	●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.690 (B)	8-98005-985-0	01	1	0710-			●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-					●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98001-889-1	01	1	0710-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-97387-251-1	01	1	0710-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) (B)	8-97387-251-1	01	1	0710-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-98053-974-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D)	8-98073-375-1	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G)	8-98006-774-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (G)	8-98006-774-0	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98006-776-1	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98006-776-1	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98006-776-1	01	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (E)	8-98006-776-1	01	1	0710-						●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (F)	8-98073-376-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (F)	8-98073-376-0	01	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (H)	8-98073-377-0	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (H)	8-98073-377-0	01	1	0710-						●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●
532	03.704 NUT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-					●
532	03.704 NUT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-						●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-97331-947-0	02	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (B)	8-97331-947-0	02	1	0710-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A) ID=64	8-97373-108-0	01	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0710-			●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	0710-					●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0710-					●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (B)	8-97373-966-0	02	1	0710-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0710-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98030-175-0	01	1	0710-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (B) M12X35	1-22131-963-0	02	1	0710-					●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-245-0	01	1	0710-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98038-467-0	01	1	0710-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98073-065-0	01	1	0710-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98073-065-0	01	1	0710-				●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) (D)	8-98006-770-0	01	1	0710-					●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-246-2	01	1	0710-	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98073-066-0	01	1	0710-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98038-469-0	01	1	0710-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98038-469-0	01	1	0710-				●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) (C)	8-98048-292-1	01	1	0710-					●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-97387-248-1	01	1	0710-	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-97387-248-1	01	1	0710-			●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98077-474-0	01	1	0710-			●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-98077-474-0	01	1	0710-				●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (C)	8-98048-296-0	01	1	0710-					●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-97387-249-1	01	1	0710-	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98001-883-1	01	1	0710-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98058-136-0	01	1	0710-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (C)	8-98058-136-0	01	1	0710-				●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (D)	8-98048-300-1	01	1	0710-					●	●

556 589 467 467 589 534 547 547 582 589 272 559 560 547 580 558 534 560 547 582 580 557 534 547 547 582 580 561 272 589 589 561 589

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0710-			●	●
272	03.685 NUT; FLANGE 4JJ1-TCS ENG(LFB) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-	●	●
272	03.685 NUT; FLANGE 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	16	1	0710-			●	●
272	03.685 NUT; FLANGE 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	20	1	0710-					●	●
467	03.685 BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0710-	●	●	●	●	●	●
534	03.704 BOLT; CLIP 4JJ1-TCS ENG(LFB) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-	●	●
534	03.704 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.162 M6X35 FLANGE	0-28650-635-0	02	1	0710-			●	●
534	03.704 BOLT; CLIP 4HK1-TCS ENG(RJS) 03.162 M6X35 FLANGE	0-28650-635-0	03	1	0710-					●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (A)	8-97381-635-0	02	1	0710-	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (A)	8-97381-635-0	02	1	0710-			●	●
547	03.682 CLIP; PIPE 4JJ1-TCS ENG(LFB) (B)	8-97381-636-0	02	1	0710-	●	●
547	03.682 CLIP; PIPE 4HK1-TCN ENG(RDQ) (B)	8-97381-636-0	02	1	0710-			●	●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (A)	8-97381-635-0	03	1	0710-					●	●
547	03.682 CLIP; PIPE 4HK1-TCS ENG(RJS) (B)	8-97381-636-0	03	1	0710-					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
557	03.701 CATALYST ASM 4JJ1-TCS ENG(LFB)	8-98036-815-6	01	1	0710-	●	●
557	03.701 CATALYST ASM 4HK1-TCN ENG(RDQ)	8-98036-815-6	01	1	0710-			●	●
557	03.701 CATALYST ASM 4HK1-TCS ENG(RJS)	8-97608-055-7	01	1	0710-					●	●
558	03.634 FILTER ASM 4JJ1-TCS ENG(LFB)	8-98032-908-2	01	1	0710-	●	●
558	03.634 FILTER ASM 4HK1-TCN ENG(RDQ)	8-98032-908-2	01	1	0710-			●	●
558	03.634 FILTER ASM 4HK1-TCS ENG(RJS)	8-97608-057-3	01	1	0710-					●	●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97611-078-0	01	1	0710-1010					●	●
559	03.602 COVER; RR 4HK1-TCS ENG(RJS)	8-97622-887-0	01	1	1011-					●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98084-599-0	01	1	0710-1011	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98084-599-0	01	1	0710-1011			●	●
559	03.602 COVER; RR 4JJ1-TCS ENG(LFB)	8-98093-507-0	01	1	1012-	●	●
559	03.602 COVER; RR 4HK1-TCN ENG(RDQ)	8-98093-507-0	01	1	1012-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-97331-947-0	02	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (B)	8-97331-947-0	02	1	0710-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A) ID=64	8-97373-108-0	01	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0710-			●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	0710-					●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0710-					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98039-239-0	01	1	0710-1010					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (C)	8-98084-603-0	01	1	1011-					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98039-241-0	01	1	0710-1010					●	●
561	03.609 PIPE; DPD 4HK1-TCS ENG(RJS) (D)	8-98084-604-0	01	1	1011-					●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-910-0	01	1	0710-1011	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-910-0	01	1	0710-1011			●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (A)	8-98084-600-0	01	1	1012-	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (A)	8-98084-600-0	01	1	1012-			●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-911-1	01	1	0710-1011	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-911-1	01	1	0710-1011			●	●
561	03.609 PIPE; DPD 4JJ1-TCS ENG(LFB) (B)	8-98084-601-0	01	1	1012-	●	●
561	03.609 PIPE; DPD 4HK1-TCN ENG(RDQ) (B)	8-98084-601-0	01	1	1012-			●	●
580	03.704 BOLT; FLANGE 4JJ1-TCS ENG(LFB) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0710-	●	●
580	03.704 BOLT; FLANGE 4HK1-TCN ENG(RDQ) 01.060 M8X35 FLANGE	0-28650-835-0	16	1	0710-			●	●
580	03.704 BOLT; FLANGE 4HK1-TCS ENG(RJS) 01.060 M8X35 FLANGE	0-28650-835-0	20	1	0710-					●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (A)	8-98032-919-0	01	1	0710-	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (A)	8-98032-919-0	01	1	0710-			●	●
582	03.706 BRACKET; PIPE 4JJ1-TCS ENG(LFB) (B)	8-98032-920-0	01	1	0710-	●	●
582	03.706 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98032-920-0	01	1	0710-			●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (C)	8-97611-083-0	01	1	0710-					●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (D)	8-97611-084-0	01	1	0710-					●	●
582	03.706 BRACKET; PIPE 4HK1-TCS ENG(RJS) (E)	8-97611-085-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (C)	8-97383-660-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (C)	8-97383-660-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (F)	8-97383-663-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (F)	8-97383-663-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (A)	8-98032-921-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (A)	8-98032-921-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (B)	8-98032-923-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (B)	8-98032-923-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (D)	8-98032-924-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (D)	8-98032-924-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4JJ1-TCS ENG(LFB) (E)	8-98032-926-0	01	1	0710-	●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCN ENG(RDQ) (E)	8-98032-926-0	01	1	0710-			●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (G)	8-97605-172-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (H)	8-97611-086-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (I)	8-97611-087-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (J)	8-97611-088-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (K)	8-97611-089-0	01	1	0710-					●	●
589	03.609 PROTECTOR; HEAT,DPD 4HK1-TCS ENG(RJS) (L)	8-97613-390-0	01	1	0710-					●	●

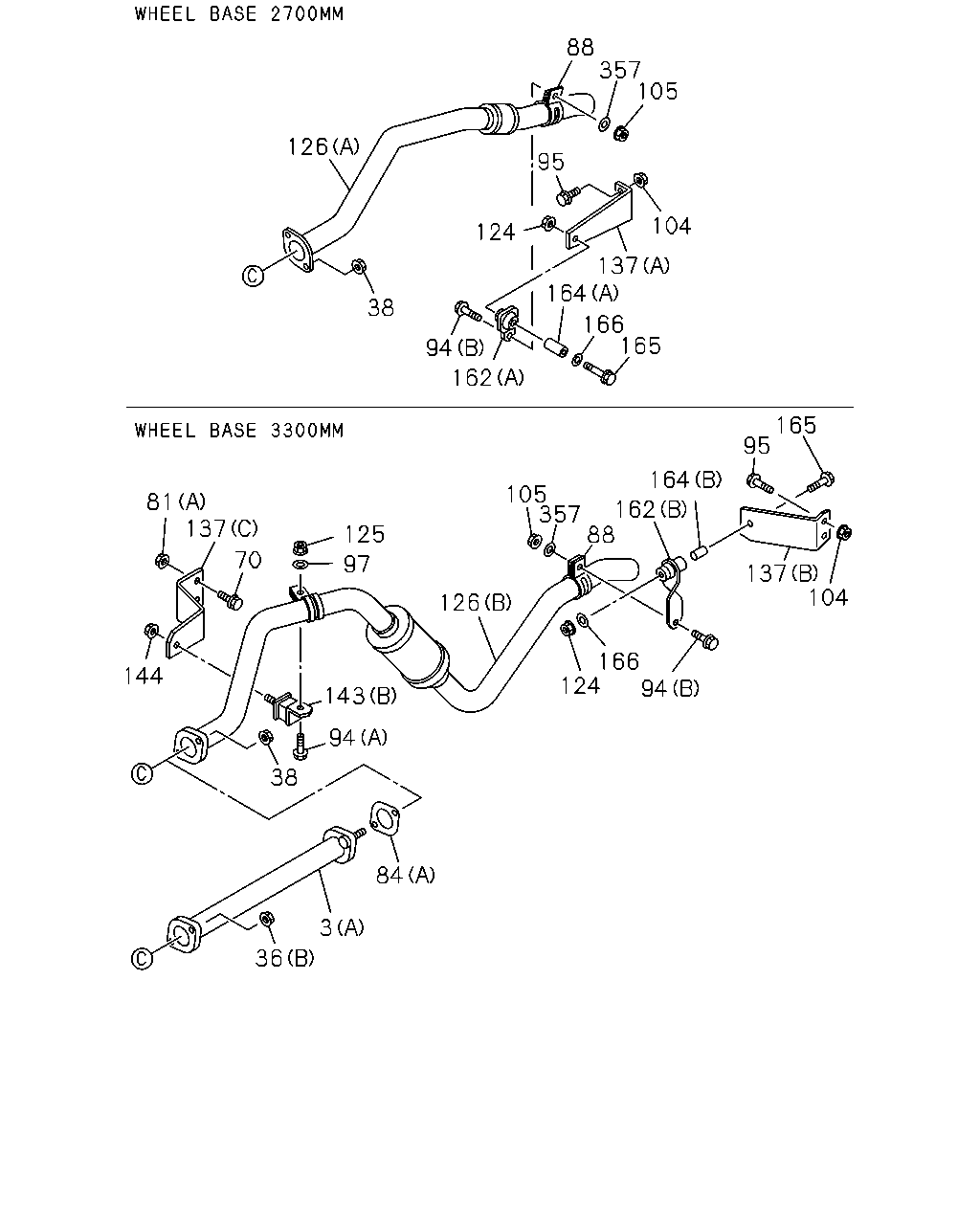

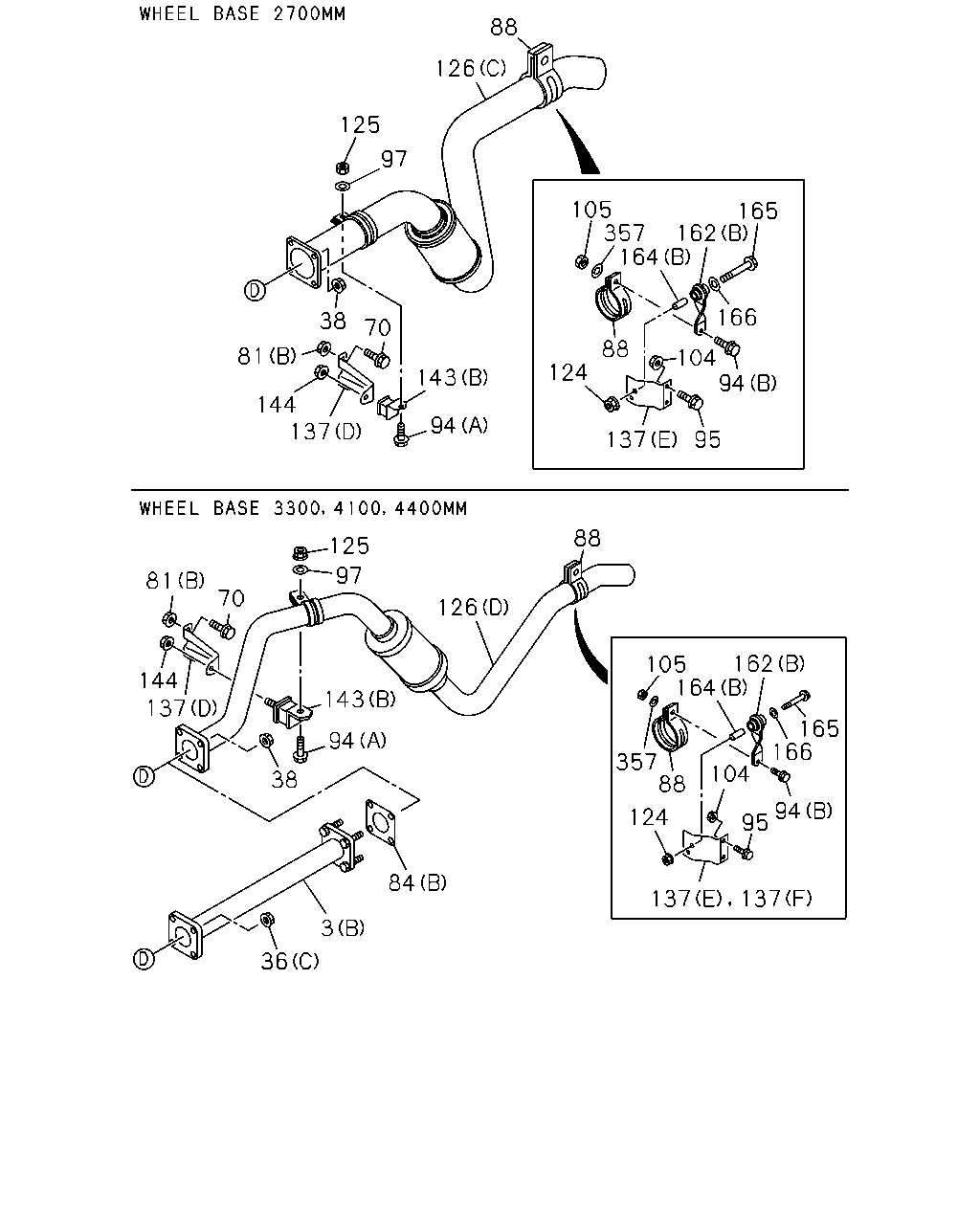

88 126 125 97 105 165 357 162 164 166 38 70 88 81 104 94 124 143 144 137 94 95 137 88 125 97 81 70 126 105 162 164 144 137 143 165 166 94 357 88 104 38 94 95 124 84 137 137 3 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98005-237-0	01	1	0710-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) (A)	8-98005-237-0	01	1	0710-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98099-061-0	01	1	0710-			●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98099-061-0	01	1	0710-				●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B)	8-98099-062-0	01	1	0710-					●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) (B)	8-98099-062-0	01	1	0710-						●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-					●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-				●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-						●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-			●	●	●	●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-		●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-			●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-					●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-			●	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) ID=65	8-97148-757-1	01	1	0710-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A) ID=65	8-97148-757-1	01	1	0710-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C) ID=64	8-97373-108-0	01	1	0710-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) (C) ID=64	8-97373-108-0	01	1	0710-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.704 (B)	1-22116-043-0	01	1	0710-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0710-					●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.704 (B)	1-22116-043-0	01	1	0710-					●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (B)	1-22116-043-0	01	1	0710-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0710-						●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	0710-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0710-	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	0710-		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98034-766-0	01	1	0710-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-			●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-					●	●
94	03.704 BOLT; CLAMP 4JJ1-TCS ENG(LFB) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-					●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-			●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-					●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-		●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-				●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-						●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-			●	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-					●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-					●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-		●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-						●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0710-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
125	03.708 NUT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0710-	●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0710-			●	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	0710-					●	●
125	03.708 NUT; CLAMP 4JJ1-TCS ENG(LFB) 00.833 M10	0-91110-510-0	01	1	0710-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98020-604-0	01	1	0710-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98079-101-0	01	1	0710-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (B)	8-98079-101-0	01	1	0710-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-98073-218-0	01	1	0710-			●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (D)	8-98045-047-0	01	1	0710-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (D)	8-98045-047-0	01	1	0710-					●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D)	8-98099-064-0	01	1	0710-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (D)	8-98099-064-0	01	1	0710-					●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) (D)	8-98099-064-0	01	1	0710-				●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) (D)	8-98099-064-0	01	1	0710-						●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-97387-256-1	01	1	0710-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0710-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (B)	8-98001-913-0	01	1	0710-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98019-904-2	01	1	0710-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (C)	8-98019-904-2	01	1	0710-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (D)	8-97096-651-0	01	1	0710-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (E)	8-97116-588-2	01	1	0710-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-97116-588-2	01	1	0710-					●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (F)	8-97185-801-0	01	1	0710-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (F)	8-97185-801-0	01	1	0710-					●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (F)	8-97185-801-0	01	1	0710-				●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) (F)	8-97185-801-0	01	1	0710-						●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (A)	8-97080-694-0	01	1	0710-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	0710-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0710-			●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (B)	8-98034-767-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-98034-767-0	01	1	0710-		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0710-			●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0710-			●	●	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-			●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-					●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98032-151-0	01	1	0710-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	0710-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	0710-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0710-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	0710-	●
164	03.706 COLLAR; DIST,TAIL PIPE (B) L=37.5	9-22151-217-0	01	1	0710-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0710-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0710-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE	0-28051-070-0	01	1	0710-			●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	0710-					●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) M10X70 FLANGE	0-28051-070-0	01	1	0710-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-	●	●	●	●	●	●

122 121 532 143 385 24 172 200 118 117 115 113 579 14 143 124 385 376 118 117 115 113 578 352 577 115 352 115 576 81 12 337 44 376 556 562 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (A)	8-97387-244-1	01	1	0710-	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98073-374-0	01	1	0710-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98020-562-1	01	1	0710-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (C)	8-98020-562-1	01	1	0710-					●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (C)	8-98020-562-1	01	1	0710-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 (A) ID=65	8-97148-757-1	01	1	0710-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	1-22116-043-0	01	1	0710-			●	●	●	●
24	03.613 COLLAR; DIST,CLAMP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	0710-			●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-			●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-					●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-			●	●	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0710-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0710-			●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	03	1	0710-					●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	0710-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0710-			●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	0710-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0710-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	0710-					●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	0710-					●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	0710-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0710-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	03	1	0710-					●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	03	1	0710-					●	●
121	03.704 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	01	1	0710-			●	●	●	●
122	03.275 NUT; HANGER BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	01	1	0710-			●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (A)	8-97080-694-0	01	1	0710-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	0710-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0710-			●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (B)	8-98034-767-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-98034-767-0	01	1	0710-		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0710-			●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0710-			●	●	●	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-		●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●
172	03.708 BOLT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-					●
172	03.708 BOLT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-						●
200	03.704 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0710-			●	●	●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●		●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (B)	8-98005-985-0	01	1	0710-	●	●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.690 (B)	8-98005-985-0	01	1	0710-			●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-					●	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98001-889-1	01	1	0710-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-97387-251-1	01	1	0710-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) (B)	8-97387-251-1	01	1	0710-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-98053-974-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D)	8-98073-375-1	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G)	8-98006-774-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (G)	8-98006-774-0	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98006-776-1	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98006-776-1	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98006-776-1	01	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (E)	8-98006-776-1	01	1	0710-						●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (F)	8-98073-376-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (F)	8-98073-376-0	01	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (H)	8-98073-377-0	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (H)	8-98073-377-0	01	1	0710-						●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●
532	03.704 NUT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-					●
532	03.704 NUT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-						●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-97331-947-0	02	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (B)	8-97331-947-0	02	1	0710-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A) ID=64	8-97373-108-0	01	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0710-			●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	0710-					●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0710-					●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (B)	8-97373-966-0	02	1	0710-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0710-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98030-175-0	01	1	0710-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (B) M12X35	1-22131-963-0	02	1	0710-					●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-245-0	01	1	0710-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98038-467-0	01	1	0710-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98073-065-0	01	1	0710-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98073-065-0	01	1	0710-				●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) (D)	8-98006-770-0	01	1	0710-					●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-246-2	01	1	0710-	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98073-066-0	01	1	0710-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98038-469-0	01	1	0710-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98038-469-0	01	1	0710-				●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) (C)	8-98048-292-1	01	1	0710-					●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-97387-248-1	01	1	0710-	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-97387-248-1	01	1	0710-			●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98077-474-0	01	1	0710-			●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-98077-474-0	01	1	0710-				●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (C)	8-98048-296-0	01	1	0710-					●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-97387-249-1	01	1	0710-	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98001-883-1	01	1	0710-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98058-136-0	01	1	0710-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (C)	8-98058-136-0	01	1	0710-				●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (D)	8-98048-300-1	01	1	0710-					●	●

532 172 385 385 377 574 122 118 121 117 385 143 115 24 578 113 115 532 579 385 337 200 143 118 117 115 576 113 385 579 118 117 115 113 578 124 115 352 376 14 577 12 115 81 337 576 44 376 376 556 329 570 562 560 84 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
12	03.701 SILENCER ASM; EXH 4JJ1-TCS ENG(LFB) (A)	8-97387-244-1	01	1	0710-	●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98073-374-0	01	1	0710-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98020-562-1	01	1	0710-			●
12	03.701 SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (C)	8-98020-562-1	01	1	0710-					●	●
12	03.701 SILENCER ASM; EXH 4HK1-TCN ENG(RDQ) (C)	8-98020-562-1	01	1	0710-				●
14	03.704 GASKET; SILENCER TO EXH PIPE 4JJ1-TCS ENG(LFB) 03.611 (A) ID=65	8-97148-757-1	01	1	0710-	●	●
14	03.704 GASKET; SILENCER TO EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	1-22116-043-0	01	1	0710-			●	●	●	●
24	03.613 COLLAR; DIST,CLAMP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	01	1	0710-			●	●	●	●
44	03.613 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
44	03.613 BOLT; BRKT 4JJ1-TCS ENG(LFB) 02.042 (A) M10X25 FLANGE	0-28151-025-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-			●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-					●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-			●	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) ID=65	8-97148-757-1	01	1	0710-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A) ID=65	8-97148-757-1	01	1	0710-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C) ID=64	8-97373-108-0	01	1	0710-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) (C) ID=64	8-97373-108-0	01	1	0710-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.704 (B)	1-22116-043-0	01	1	0710-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0710-					●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.704 (B)	1-22116-043-0	01	1	0710-					●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (B)	1-22116-043-0	01	1	0710-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0710-						●
113	03.704 COLLAR; DIST,MTG BRKT 4JJ1-TCS ENG(LFB) 03.706 L=37.5	9-22151-217-0	02	1	0710-	●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCN ENG(RDQ) 03.706 L=37.5	9-22151-217-0	02	1	0710-			●	●
113	03.704 COLLAR; DIST,MTG BRKT 4HK1-TCS ENG(RJS) 03.706 L=37.5	9-22151-217-0	03	1	0710-					●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (A)	8-94457-277-1	02	1	0710-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (A)	8-94457-277-1	02	1	0710-			●	●
115	03.704 RUBBER; MTG,SILENCER 4JJ1-TCS ENG(LFB) (B)	8-94457-278-1	02	1	0710-	●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCN ENG(RDQ) (B)	8-94457-278-1	02	1	0710-			●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (A)	8-94457-277-1	03	1	0710-					●	●
115	03.704 RUBBER; MTG,SILENCER 4HK1-TCS ENG(RJS) (B)	8-94457-278-1	03	1	0710-					●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) OD=55	9-09852-169-0	02	1	0710-	●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) OD=55	9-09852-169-0	02	1	0710-			●	●
117	03.704 WASHER; PL,SILENCER MTG BRKT 4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	03	1	0710-					●	●
118	03.704 NUT; SILENCER MTG BRKT 4JJ1-TCS ENG(LFB) 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-	●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCN ENG(RDQ) 07.874 M10 FLANGE	5-09440-006-0	02	1	0710-			●	●
118	03.704 NUT; SILENCER MTG BRKT 4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	03	1	0710-					●	●
121	03.704 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) OD=55	9-09852-169-0	01	1	0710-			●	●	●	●
122	03.275 NUT; HANGER BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.874 M10 FLANGE	5-09440-006-0	01	1	0710-			●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (A)	8-97080-694-0	01	1	0710-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	0710-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0710-			●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (B)	8-98034-767-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-98034-767-0	01	1	0710-		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0710-			●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0710-			●	●	●	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-	●
172	03.708 BOLT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0710-		●
172	03.708 BOLT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●
172	03.708 BOLT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-					●
172	03.708 BOLT 4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-						●
200	03.704 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 M10X40 FLANGE	0-28051-040-0	01	1	0710-			●	●	●	●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-			●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0710-				●
329	03.613 NUT; EXH PIPE TO PIPE 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-					●	●
337	03.706 BOLT; RUBBER,SUPPORT 02.277 M10X35 FLANGE	0-28651-035-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●	●	●	●	●
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
352	03.613 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●		●
376	03.708 BOLT; BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	02	1	0710-	●	●	●	●	●	●
376	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 03.690 (B)	8-98005-985-0	01	1	0710-	●	●
376	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 03.690 (B)	8-98005-985-0	01	1	0710-			●	●
376	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 02.277 (C) M10X35 FLANGE	0-28651-035-0	02	1	0710-					●	●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●
377	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19> 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
377	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98001-889-1	01	1	0710-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-97387-251-1	01	1	0710-	●
385	03.704 BRACKET; SILENCER MTG 4JJ1-TCS ENG(LFB) (B)	8-97387-251-1	01	1	0710-		●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-98053-974-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (D)	8-98073-375-1	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (G)	8-98006-774-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (G)	8-98006-774-0	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E)	8-98006-776-1	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E)	8-98006-776-1	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (E)	8-98006-776-1	01	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (E)	8-98006-776-1	01	1	0710-						●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (F)	8-98073-376-0	01	1	0710-			●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCN ENG(RDQ) (F)	8-98073-376-0	01	1	0710-				●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (H)	8-98073-377-0	01	1	0710-					●
385	03.704 BRACKET; SILENCER MTG 4HK1-TCS ENG(RJS) (H)	8-98073-377-0	01	1	0710-						●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
532	03.704 NUT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●
532	03.704 NUT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●
532	03.704 NUT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-		●
532	03.704 NUT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●
532	03.704 NUT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-					●
532	03.704 NUT 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-						●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98039-162-6	01	1	0710-1010					●	●
556	03.701 DPD ASM 4HK1-TCS ENG(RJS)	8-98084-602-3	01	1	1011-					●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98036-810-7	01	1	0710-1011	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98036-810-7	01	1	0710-1011			●	●
556	03.701 DPD ASM 4JJ1-TCS ENG(LFB)	8-98084-595-3	01	1	1012-	●	●
556	03.701 DPD ASM 4HK1-TCN ENG(RDQ)	8-98084-595-3	01	1	1012-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (B)	8-97331-947-0	02	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (B)	8-97331-947-0	02	1	0710-			●	●
560	03.611 GASKET; DPD 4JJ1-TCS ENG(LFB) (A) ID=64	8-97373-108-0	01	1	0710-	●	●
560	03.611 GASKET; DPD 4HK1-TCN ENG(RDQ) (A) ID=64	8-97373-108-0	01	1	0710-			●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (A)	1-22116-040-0	01	1	0710-					●	●
560	03.611 GASKET; DPD 4HK1-TCS ENG(RJS) (C)	8-97611-080-0	02	1	0710-					●	●
562	03.690 PLATE; STUD,BOLT 4JJ1-TCS ENG(LFB) (B)	8-97373-966-0	02	1	0710-	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ) (B)	8-97373-966-0	02	1	0710-			●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98030-175-0	01	1	0710-			●	●	●	●
562	03.690 PLATE; STUD,BOLT 4HK1-TCS ENG(RJS) 03.685 (B) M12X35	1-22131-963-0	02	1	0710-					●	●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W)	8-98073-217-0	01	1	0710-			●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCN ENG(RDQ)	8-98073-217-0	01	1	0710-				●
570	03.704 ADAPTER; EXH PIPE 4HK1-TCS ENG(RJS)	8-98073-373-0	01	1	0710-					●	●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19>	8-98078-962-1	01	1	0710-			●
574	03.706 SPACER; DPD 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W)	8-98078-962-1	01	1	0710-					●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19>	8-98044-774-0	01	1	0710-0710			●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-98044-774-0	01	1	0710-0710			●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ)	8-98044-774-0	01	1	0710-0710				●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19>	8-98044-774-0	01	1	0711-0711			●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-98044-774-0	01	1	0711-0711			●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) EXC. FUEL TANK 140 LITTER<N19>	8-98044-774-0	01	1	0712-			●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W)	8-98044-774-0	01	1	0712-			●
574	03.706 SPACER; DPD 4HK1-TCN ENG(RDQ)	8-98044-774-0	01	1	0712-				●
576	03.706 BRACKET; DPD FRT TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-245-0	01	1	0710-	●	●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98038-467-0	01	1	0710-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98073-065-0	01	1	0710-			●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98073-065-0	01	1	0710-				●
576	03.706 BRACKET; DPD FRT TO FRAME 4HK1-TCS ENG(RJS) (D)	8-98006-770-0	01	1	0710-					●	●
577	03.706 BRACKET; DPD RR TO FRAME 4JJ1-TCS ENG(LFB) (A)	8-97387-246-2	01	1	0710-	●	●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98073-066-0	01	1	0710-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98038-469-0	01	1	0710-			●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCN ENG(RDQ) (C)	8-98038-469-0	01	1	0710-				●
577	03.706 BRACKET; DPD RR TO FRAME 4HK1-TCS ENG(RJS) (C)	8-98048-292-1	01	1	0710-					●	●
578	03.706 BRACKET; DPD FRT 4JJ1-TCS ENG(LFB) (A)	8-97387-248-1	01	1	0710-	●	●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (A)	8-97387-248-1	01	1	0710-			●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (B)	8-98077-474-0	01	1	0710-			●
578	03.706 BRACKET; DPD FRT 4HK1-TCN ENG(RDQ) (B)	8-98077-474-0	01	1	0710-				●
578	03.706 BRACKET; DPD FRT 4HK1-TCS ENG(RJS) (C)	8-98048-296-0	01	1	0710-					●	●
579	03.704 BRACKET; DPD RR 4JJ1-TCS ENG(LFB) (A)	8-97387-249-1	01	1	0710-	●	●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (B)	8-98001-883-1	01	1	0710-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C)	8-98058-136-0	01	1	0710-			●
579	03.704 BRACKET; DPD RR 4HK1-TCN ENG(RDQ) (C)	8-98058-136-0	01	1	0710-				●
579	03.704 BRACKET; DPD RR 4HK1-TCS ENG(RJS) (D)	8-98048-300-1	01	1	0710-					●	●

88 357 105 126 95 104 124 137 164 38 166 165 94 162 165 95 164 105 162 357 88 81 137 125 70 97 137 104 126 166 124 94 144 143 94 38 84 3 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A)	8-98005-237-0	01	1	0710-	●
3	03.609 PIPE; EXH,CENTER 4JJ1-TCS ENG(LFB) (A)	8-98005-237-0	01	1	0710-		●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (B)	8-98099-061-0	01	1	0710-			●
3	03.609 PIPE; EXH,CENTER 4HK1-TCN ENG(RDQ) (B)	8-98099-061-0	01	1	0710-				●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (B)	8-98099-062-0	01	1	0710-					●
3	03.609 PIPE; EXH,CENTER 4HK1-TCS ENG(RJS) (B)	8-98099-062-0	01	1	0710-						●
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0710-	●	●	●	●	●	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-	●
36	03.613 NUT; EXH PIPE 4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE	0-91180-110-0	02	1	0710-		●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-			●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-					●
36	03.613 NUT; EXH PIPE 4HK1-TCN ENG(RDQ) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-				●
36	03.613 NUT; EXH PIPE 4HK1-TCS ENG(RJS) 03.162 (C) M10 FLANGE	0-91180-110-0	04	1	0710-						●
38	00.002 NUT; SILENCER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
38	00.002 NUT; SILENCER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	04	1	0710-			●	●	●	●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
70	03.706 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-		●
70	03.706 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●	●	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-	●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-			●	●
81	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-					●	●
81	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 (A) M10 FLANGE	0-91180-110-0	02	1	0710-		●
81	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0710-			●	●	●	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (A) ID=65	8-97148-757-1	01	1	0710-	●
84	03.611 GASKET; EXH PIPE 4JJ1-TCS ENG(LFB) (A) ID=65	8-97148-757-1	01	1	0710-		●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (C) ID=64	8-97373-108-0	01	1	0710-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) (C) ID=64	8-97373-108-0	01	1	0710-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.704 (B)	1-22116-043-0	01	1	0710-			●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0710-					●	●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.704 (B)	1-22116-043-0	01	1	0710-					●
84	03.611 GASKET; EXH PIPE 4HK1-TCN ENG(RDQ) 03.704 (B)	1-22116-043-0	01	1	0710-				●
84	03.611 GASKET; EXH PIPE 4HK1-TCS ENG(RJS) 03.704 (B)	1-22116-043-0	01	1	0710-						●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	0710-	●	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0710-	●
88	03.708 CLAMP; EXH PIPE 4JJ1-TCS ENG(LFB)	8-97373-158-0	01	1	0710-		●
88	03.708 CLAMP; EXH PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98034-766-0	01	1	0710-			●	●	●	●
94	03.704 BOLT; CLAMP 00.685 (B) M10X45 FLANGE	0-28051-045-0	01	1	0710-	●	●	●	●	●	●
94	03.704 BOLT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-	●
94	03.704 BOLT; CLAMP 4HK1-TCN ENG(RDQ) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-			●	●
94	03.704 BOLT; CLAMP 4HK1-TCS ENG(RJS) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-					●	●
94	03.704 BOLT; CLAMP 4JJ1-TCS ENG(LFB) 03.023 (A) M10X50 FLANGE	8-97301-165-0	01	1	0710-		●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-			●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0710-					●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-	●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-			●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-					●
95	03.708 BOLT; BRKT 4JJ1-TCS ENG(LFB) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-		●
95	03.708 BOLT; BRKT 4HK1-TCN ENG(RDQ) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-				●
95	03.708 BOLT; BRKT 4HK1-TCS ENG(RJS) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0710-						●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCN ENG(RDQ) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-			●	●
97	03.708 WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-					●	●
97	03.708 WASHER; PL,CLAMP 4JJ1-TCS ENG(LFB) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-		●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-					●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-	●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-			●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-					●
104	03.704 NUT; BRKT 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-		●
104	03.704 NUT; BRKT 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-				●
104	03.704 NUT; BRKT 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	02	1	0710-						●
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0710-	●	●	●	●	●	●
124	03.704 NUT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-	●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-			●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
124	03.704 NUT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0710-					●	●
125	03.708 NUT; CLAMP 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0710-	●
125	03.708 NUT; CLAMP 4HK1-TCN ENG(RDQ) 00.833 M10	0-91110-510-0	01	1	0710-			●	●
125	03.708 NUT; CLAMP 4HK1-TCS ENG(RJS) 00.833 M10	0-91110-510-0	01	1	0710-					●	●
125	03.708 NUT; CLAMP 4JJ1-TCS ENG(LFB) 00.833 M10	0-91110-510-0	01	1	0710-		●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98020-604-0	01	1	0710-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98079-101-0	01	1	0710-	●
126	03.705 PIPE; EXH,RR 4JJ1-TCS ENG(LFB) (B)	8-98079-101-0	01	1	0710-		●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W) (C)	8-98073-218-0	01	1	0710-			●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W) (D)	8-98045-047-0	01	1	0710-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (D)	8-98045-047-0	01	1	0710-					●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (D)	8-98099-064-0	01	1	0710-			●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (D)	8-98099-064-0	01	1	0710-					●
126	03.705 PIPE; EXH,RR 4HK1-TCN ENG(RDQ) (D)	8-98099-064-0	01	1	0710-				●
126	03.705 PIPE; EXH,RR 4HK1-TCS ENG(RJS) (D)	8-98099-064-0	01	1	0710-						●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-97387-256-1	01	1	0710-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98001-913-0	01	1	0710-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (B)	8-98001-913-0	01	1	0710-		●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (C)	8-98019-904-2	01	1	0710-	●
137	03.706 BRACKET; TAIL PIPE 4JJ1-TCS ENG(LFB) (C)	8-98019-904-2	01	1	0710-		●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.613 (D)	8-97096-651-0	01	1	0710-			●	●	●	●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (E)	8-97116-588-2	01	1	0710-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 3300MM(33W) (E)	8-97116-588-2	01	1	0710-					●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) WHEEL BASE 4100MM(41W) (F)	8-97185-801-0	01	1	0710-			●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) WHEEL BASE 4400MM(44W) (F)	8-97185-801-0	01	1	0710-					●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCN ENG(RDQ) (F)	8-97185-801-0	01	1	0710-				●
137	03.706 BRACKET; TAIL PIPE 4HK1-TCS ENG(RJS) (F)	8-97185-801-0	01	1	0710-						●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (A)	8-97080-694-0	01	1	0710-	●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B)	8-98034-767-0	01	1	0710-	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ) (B)	8-98034-767-0	01	1	0710-			●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCS ENG(RJS) (B)	8-98034-767-0	01	1	0710-					●	●
143	03.704 RUBBER; SUPPORT 4JJ1-TCS ENG(LFB) (B)	8-98034-767-0	01	1	0710-		●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C)	8-94457-277-1	01	1	0710-			●	●	●	●
143	03.704 RUBBER; SUPPORT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-94457-278-1	01	1	0710-			●	●	●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-	●
144	03.613 NUT; MTG RUBBER 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-			●	●
144	03.613 NUT; MTG RUBBER 4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-					●	●
144	03.613 NUT; MTG RUBBER 4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0710-		●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A)	8-98032-151-0	01	1	0710-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	0710-	●
162	03.706 RUBBER; SUPPORT,TAIL PIPE (B) L=115	8-98034-765-0	01	1	0710-		●	●	●	●	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) (A) L=23	8-98006-011-0	01	1	0710-	●
164	03.706 COLLAR; DIST,TAIL PIPE 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	0710-	●
164	03.706 COLLAR; DIST,TAIL PIPE (B) L=37.5	9-22151-217-0	01	1	0710-		●	●	●	●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 2700MM(27W) 00.685 M10X45 FLANGE	0-28051-045-0	01	1	0710-	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) WHEEL BASE 3300MM(33W) M10X70 FLANGE	0-28051-070-0	01	1	0710-	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCN ENG(RDQ) M10X70 FLANGE	0-28051-070-0	01	1	0710-			●	●
165	03.706 BOLT; SUPPORT RUBBER 4HK1-TCS ENG(RJS) M10X70 FLANGE	0-28051-070-0	01	1	0710-					●	●
165	03.706 BOLT; SUPPORT RUBBER 4JJ1-TCS ENG(LFB) M10X70 FLANGE	0-28051-070-0	01	1	0710-		●
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0710-	●	●	●	●	●	●
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0710-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
