Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#38593) — 224 parça

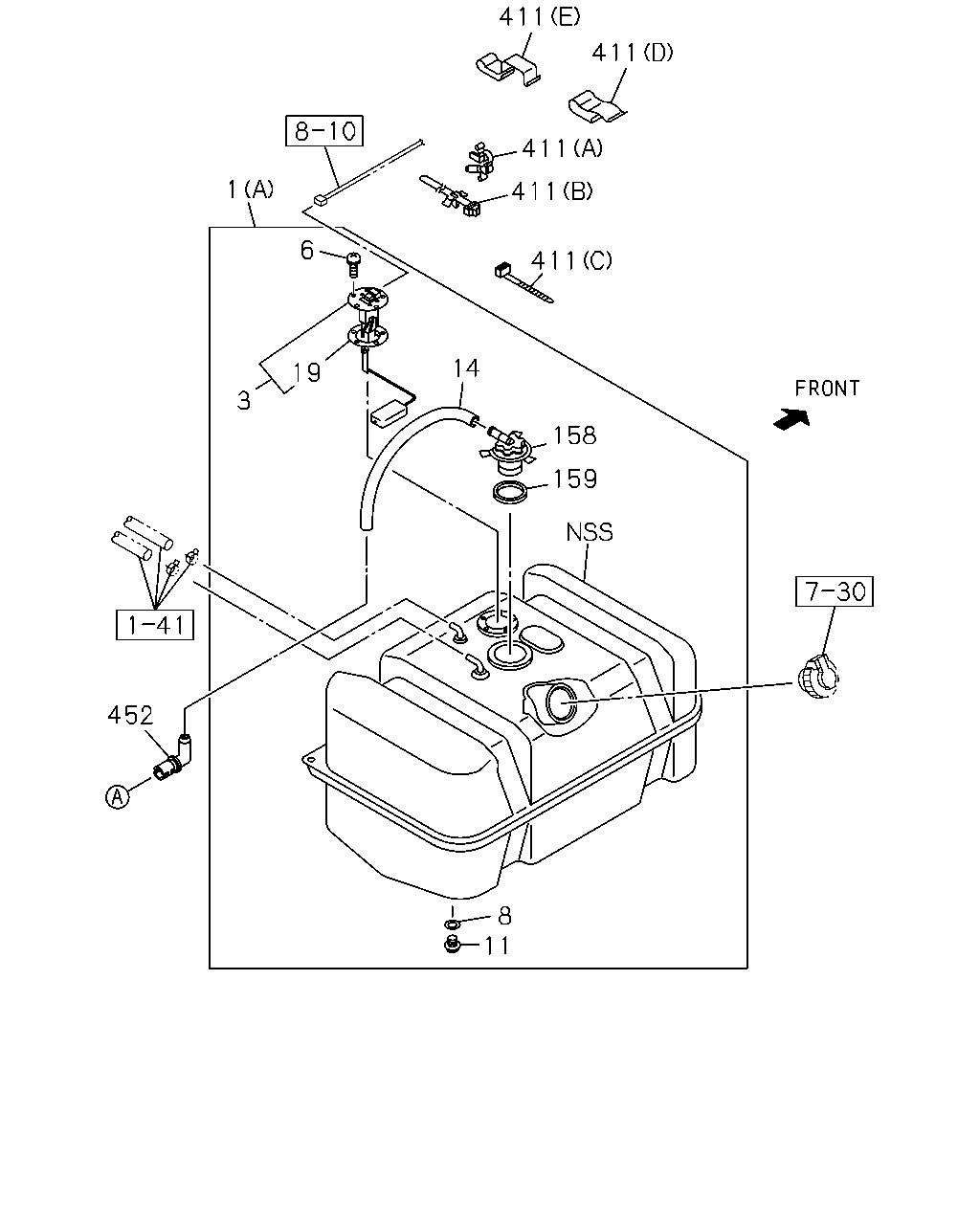

411 411 411 411 411 1 6 19 3 14 158 159 452 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL (A) 756X482X376 100L	8-98062-738-3	01	1	0710-	●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L	8-98062-738-3	01	1	0710-			●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L	8-98051-031-3	01	1	0710-			●
1	03.001 TANK; FUEL (B) 820X500X400 140L	8-98051-031-3	01	1	0710-				●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	0710-	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	0710-			●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	0710-			●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	0710-				●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	0710-	●	●		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	0710-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> ID=30	8-98067-041-0	01	1	0710-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK ID=30	8-98067-041-0	01	1	0710-				●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0710-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	0710-			●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	0710-			●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	0710-				●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	0710-			●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	0710-				●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=480	8-97135-581-0	01	1	0710-1003	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=480	8-97135-581-0	01	1	0710-1003			●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1004-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1004-			●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0710-	●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	0710-			●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	0710-			●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0710-				●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0710-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	0710-			●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	0710-			●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	0710-				●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0710-	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	0710-			●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19>	1-83149-003-0	01	1	0710-			●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	1-83149-003-0	01	1	0710-				●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0710-0710			●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=6.0	5-09709-012-0	02	1	0710-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=6.0	5-09709-012-0	02	1	0710-0804				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	0710-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-		●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0710-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3	1-09987-182-0	01	1	0710-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E) T=4.5 & 9	8-97371-947-0	01	1	0710-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	01	1	0710-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	0710-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	02	1	0710-0710	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0711-	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) (D) T=5.5	8-97371-951-0	01	1	0803-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	0710-0804	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	0805-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	0805-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	0805-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=6.0	5-09709-012-0	04	1	0710-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=6.0	5-09709-012-0	04	1	0710-0804				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=5.5	8-97371-951-0	04	1	0805-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	0805-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=6.0	5-09709-012-0	03	1	0710-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=6.0	5-09709-012-0	03	1	0710-0804				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=5.5	8-97371-951-0	03	1	0805-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	0805-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 02.483 (D) T=10.5	5-09709-014-0	03	1	0710-0804					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	03	1	0805-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 02.483 (D) T=10.5	5-09709-014-0	04	1	0710-0804						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	04	1	0805-						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=6.0	5-09709-024-0	02	1	0802-0804			●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	0805-			●	●	●	●
452	03.028 BREATHER; FUEL TANK	8-97357-261-0	01	1	0710-	●	●
452	03.028 BREATHER; FUEL TANK FUEL TANK 100 LITTER<N02>	8-97357-261-0	01	1	0710-			●

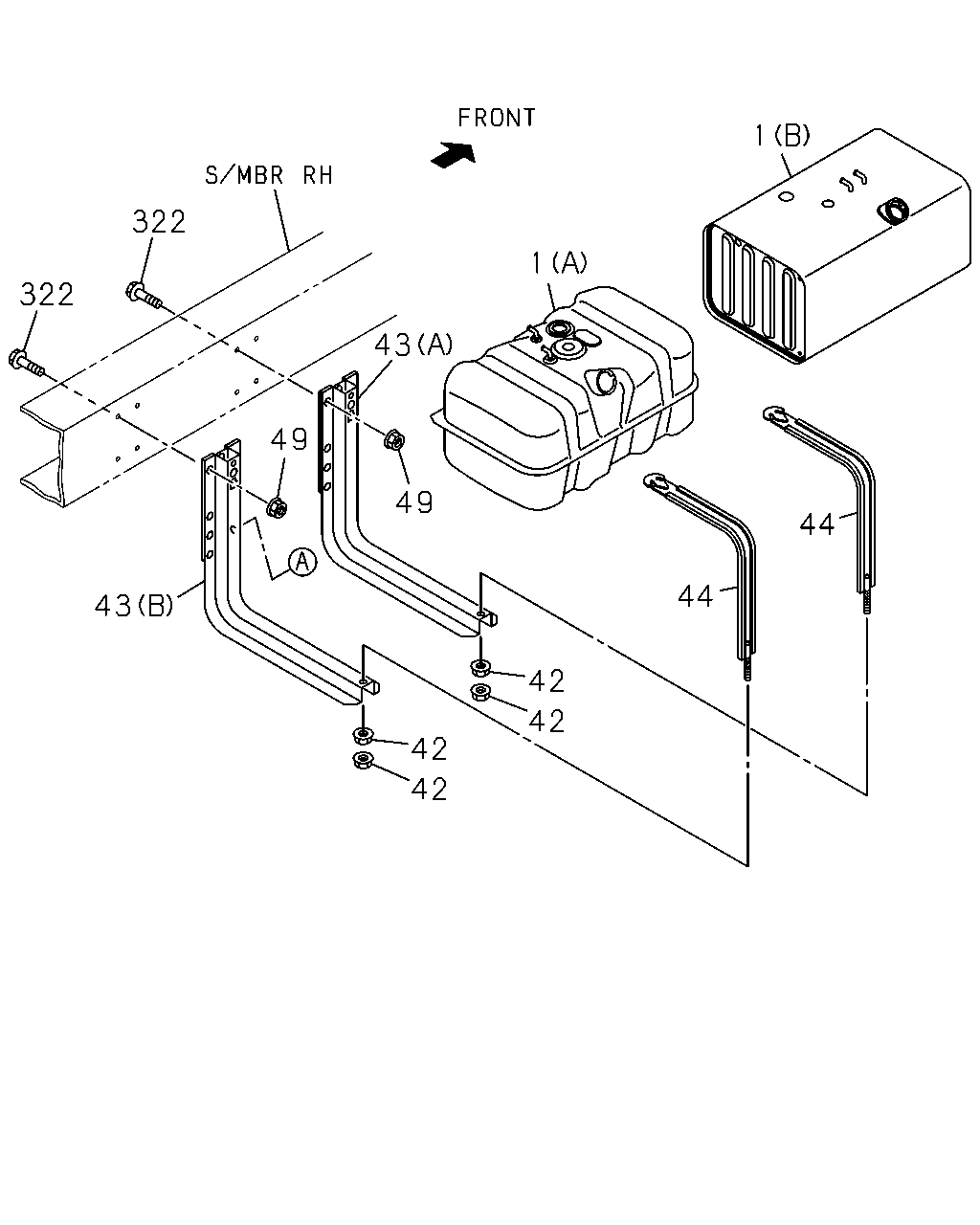

1 1 43 49 49 43 322 322 42 42 42 42 44 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL (A) 756X482X376 100L	8-98062-738-3	01	1	0710-	●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L	8-98062-738-3	01	1	0710-			●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L	8-98051-031-3	01	1	0710-			●
1	03.001 TANK; FUEL (B) 820X500X400 140L	8-98051-031-3	01	1	0710-				●	●	●
42	03.023 NUT; SUPPORT BELT M8 FLANGE	9-09130-408-0	02	1	0710-	●	●
42	03.023 NUT; SUPPORT BELT FUEL TANK 100 LITTER<N02> M8 FLANGE	9-09130-408-0	02	1	0710-			●
42	03.023 NUT; SUPPORT BELT FUEL TANK 140 LITTER<N19> 00.833 M10	0-91110-510-0	04	1	0710-			●
42	03.023 NUT; SUPPORT BELT 00.833 M10	0-91110-510-0	04	1	0710-				●	●	●
43	03.015 BRACKET; FUEL TANK (A)	8-97384-060-5	01	1	0710-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (A)	8-97384-060-5	01	1	0710-			●
43	03.015 BRACKET; FUEL TANK (B)	8-97384-062-6	01	1	0710-	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 100 LITTER<N02> (B)	8-97384-062-6	01	1	0710-			●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (A)	8-98049-768-1	01	1	0710-			●
43	03.015 BRACKET; FUEL TANK (A)	8-98049-768-1	01	1	0710-				●	●	●
43	03.015 BRACKET; FUEL TANK FUEL TANK 140 LITTER<N19> (B)	8-98083-790-0	01	1	0710-			●
43	03.015 BRACKET; FUEL TANK (B)	8-98083-790-0	01	1	0710-				●	●	●
44	03.023 BAND; FUEL TANK L=795	8-97384-080-2	02	1	0710-	●	●
44	03.023 BAND; FUEL TANK FUEL TANK 100 LITTER<N02> L=795	8-97384-080-2	02	1	0710-			●
44	03.023 BAND; FUEL TANK FUEL TANK 140 LITTER<N19> L=925	8-98049-769-1	02	1	0710-			●
44	03.023 BAND; FUEL TANK L=925	8-98049-769-1	02	1	0710-				●	●	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W) 04.085 M10 FLANGE	0-91180-210-0	08	1	0710-	●
49	03.023 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> 04.085 M10 FLANGE	0-91180-210-0	08	1	0710-			●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) 04.085 M10 FLANGE	0-91180-210-0	08	1	0710-				●
49	03.023 NUT; BRKT 04.085 M10 FLANGE	0-91180-210-0	08	1	0710-		●			●	●
49	03.023 NUT; BRKT WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	09	1	0710-	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	0710-	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	0710-			●
322	03.895 BOLT; BRKT FIX WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE	0-28661-040-0	08	1	0710-			●
322	03.895 BOLT; BRKT FIX WHEEL BASE 4400MM(44W) 03.613 M10X40 FLANGE	0-28661-040-0	08	1	0710-				●
322	03.895 BOLT; BRKT FIX 03.613 M10X40 FLANGE	0-28661-040-0	08	1	0710-		●			●	●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W) FUEL TANK 140 LITTER<N19> 03.613 M10X40 FLANGE	0-28661-040-0	07	1	0710-			●
322	03.895 BOLT; BRKT FIX WHEEL BASE 3300MM(33W) 03.613 M10X40 FLANGE	0-28661-040-0	07	1	0710-				●

411 411 411 411 1 635 3 19 14 6 158 159 640 8 7 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.001 TANK; FUEL (A) 756X482X376 100L	8-98062-738-3	01	1	0710-	●	●
1	03.001 TANK; FUEL FUEL TANK 100 LITTER<N02> (A) 756X482X376 100L	8-98062-738-3	01	1	0710-			●
1	03.001 TANK; FUEL FUEL TANK 140 LITTER<N19> (B) 820X500X400 140L	8-98051-031-3	01	1	0710-			●
1	03.001 TANK; FUEL (B) 820X500X400 140L	8-98051-031-3	01	1	0710-				●	●	●
3	03.107 UNIT; FUEL TANK,SUB	8-98056-705-0	01	1	0710-	●	●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 100 LITTER<N02>	8-98056-705-0	01	1	0710-			●
3	03.107 UNIT; FUEL TANK,SUB FUEL TANK 140 LITTER<N19>	8-98065-304-0	01	1	0710-			●
3	03.107 UNIT; FUEL TANK,SUB	8-98065-304-0	01	1	0710-				●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN M5X12 W/LK WASHER	0-36220-512-0	05	1	0710-	●	●		●	●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN FUEL TANK 100 LITTER<N02>,FUEL TANK 140 LITTER<N19> M5X12 W/LK WASHER	0-36220-512-0	05	1	0710-			●
7	03.112 GASKET; TANK UNIT,SUB TANK FUEL TANK 140 LITTER<N19> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-			●
7	03.112 GASKET; TANK UNIT,SUB TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-				●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100 LITTER<N02> 03.107 ID=14.2 OD=23.0	9-09572-014-0	01	1	0710-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 140 LITTER<N19> ID=30	8-98067-041-0	01	1	0710-			●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK ID=30	8-98067-041-0	01	1	0710-				●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.453 M14X14	9-09862-156-0	01	1	0710-	●	●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 100 LITTER<N02> 01.453 M14X14	9-09862-156-0	01	1	0710-			●
11	03.890 PLUG; DRAIN,FUEL TANK FUEL TANK 140 LITTER<N19> M18	8-98068-006-0	01	1	0710-			●
11	03.890 PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	0710-				●	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 140 LITTER<N19> L=460	8-98082-184-1	01	1	0710-			●
14	03.163 HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	0710-				●	●	●
14	03.163 HOSE; BREATHER,OUTLET L=480	8-97135-581-0	01	1	0710-1003	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=480	8-97135-581-0	01	1	0710-1003			●
14	03.163 HOSE; BREATHER,OUTLET L=420	8-98157-809-0	01	1	1004-	●	●
14	03.163 HOSE; BREATHER,OUTLET FUEL TANK 100 LITTER<N02> L=420	8-98157-809-0	01	1	1004-			●
19	03.112 GASKET; FUEL TANK UNIT	8-98051-797-0	01	1	0710-	●	●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 100 LITTER<N02>	8-98051-797-0	01	1	0710-			●
19	03.112 GASKET; FUEL TANK UNIT FUEL TANK 140 LITTER<N19> ID=42 OD=71	5-83148-001-0	01	1	0710-			●
19	03.112 GASKET; FUEL TANK UNIT ID=42 OD=71	5-83148-001-0	01	1	0710-				●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT	8-97179-645-0	01	1	0710-	●	●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 100 LITTER<N02>	8-97179-645-0	01	1	0710-			●
158	03.164 VALVE; ROLL OVER & FLOAT FUEL TANK 140 LITTER<N19>	8-98095-223-0	01	1	0710-			●
158	03.164 VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	0710-				●	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	8-97326-488-0	01	1	0710-	●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 100 LITTER<N02>	8-97326-488-0	01	1	0710-			●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19>	1-83149-003-0	01	1	0710-			●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE	1-83149-003-0	01	1	0710-				●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0710-0710			●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=6.0	5-09709-012-0	02	1	0710-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=6.0	5-09709-012-0	02	1	0710-0804				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	02	1	0710-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 06.525 (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-		●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (B) L=170.3	1-09987-182-0	01	1	0710-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS EXC. FUEL TANK 140 LITTER<N19> (B) L=170.3	1-09987-182-0	01	1	0710-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4100MM(41W) (E) T=4.5 & 9	8-97371-947-0	01	1	0710-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 4400MM(44W) (E) T=4.5 & 9	8-97371-947-0	01	1	0710-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	01	1	0710-					●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	02	1	0710-0710	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 03.162 (C) L=140	5-09707-031-1	01	1	0711-	●	●	●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W) (D) T=5.5	8-97371-951-0	01	1	0803-	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	0710-0804	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=5.5	8-97371-951-0	02	1	0805-	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	0805-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 3300MM(33W) (D) T=5.5	8-97371-951-0	02	1	0805-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=6.0	5-09709-012-0	04	1	0710-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=6.0	5-09709-012-0	04	1	0710-0804				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 100 LITTER<N02> (D) T=5.5	8-97371-951-0	04	1	0805-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	04	1	0805-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=6.0	5-09709-012-0	03	1	0710-0804			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=6.0	5-09709-012-0	03	1	0710-0804				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4100MM(41W) FUEL TANK 140 LITTER<N19> (D) T=5.5	8-97371-951-0	03	1	0805-			●
411	02.559 CLIP; FUEL TANK UNIT HARNESS WHEEL BASE 4400MM(44W) (D) T=5.5	8-97371-951-0	03	1	0805-				●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 02.483 (D) T=10.5	5-09709-014-0	03	1	0710-0804					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	03	1	0805-					●
411	02.559 CLIP; FUEL TANK UNIT HARNESS 02.483 (D) T=10.5	5-09709-014-0	04	1	0710-0804						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (D) T=10.5	8-97371-950-0	04	1	0805-						●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=6.0	5-09709-024-0	02	1	0802-0804			●	●	●	●
411	02.559 CLIP; FUEL TANK UNIT HARNESS (E) T=4.5 & 9	8-97371-947-0	02	1	0805-			●	●	●	●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE FUEL TANK 140 LITTER<N19> 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0710-			●
635	03.001 SCREW; ROLL OVER & FLOAT VALVE 02.361 M5X10 W/LK WASHER	0-36220-510-0	05	1	0710-				●	●	●
640	03.164 VENTILATOR; HOSE,BREATHER FUEL TANK 140 LITTER<N19>	8-98092-398-0	01	1	0710-			●
640	03.164 VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	0710-				●	●	●

634 633 301 301 299 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
299	03.162 BRACKET; FUEL FILTER 4JJ1-TCS ENG(LFB) (A)	8-98009-087-4	01	1	0710-1001	●	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98023-175-3	01	1	0710-			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80	0-28151-280-0	01	1	0710-0811			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (B) M8X40 FLANGE	0-28060-840-0	01	1	0710-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (A) M8X66 FLANGE	8-98081-507-0	01	1	0710-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (C) M14X58 FLANGE	8-98081-508-0	01	1	0710-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 (D) M12X100 FLANGE	0-28151-200-0	01	1	0710-			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.206 (E) M12X70 FLANGE	0-28151-270-0	01	1	0802-0811			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE	0-28151-250-0	02	1	0710-0811			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE	0-28151-250-0	01	1	0812-			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80	0-28151-280-0	01	1	0905-			●	●	●	●
633	03.162 STUD; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.275 M8X25 L=37	0-41010-825-0	02	1	0710-			●	●	●	●
634	03.162 NUT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	02	1	0710-			●	●	●	●

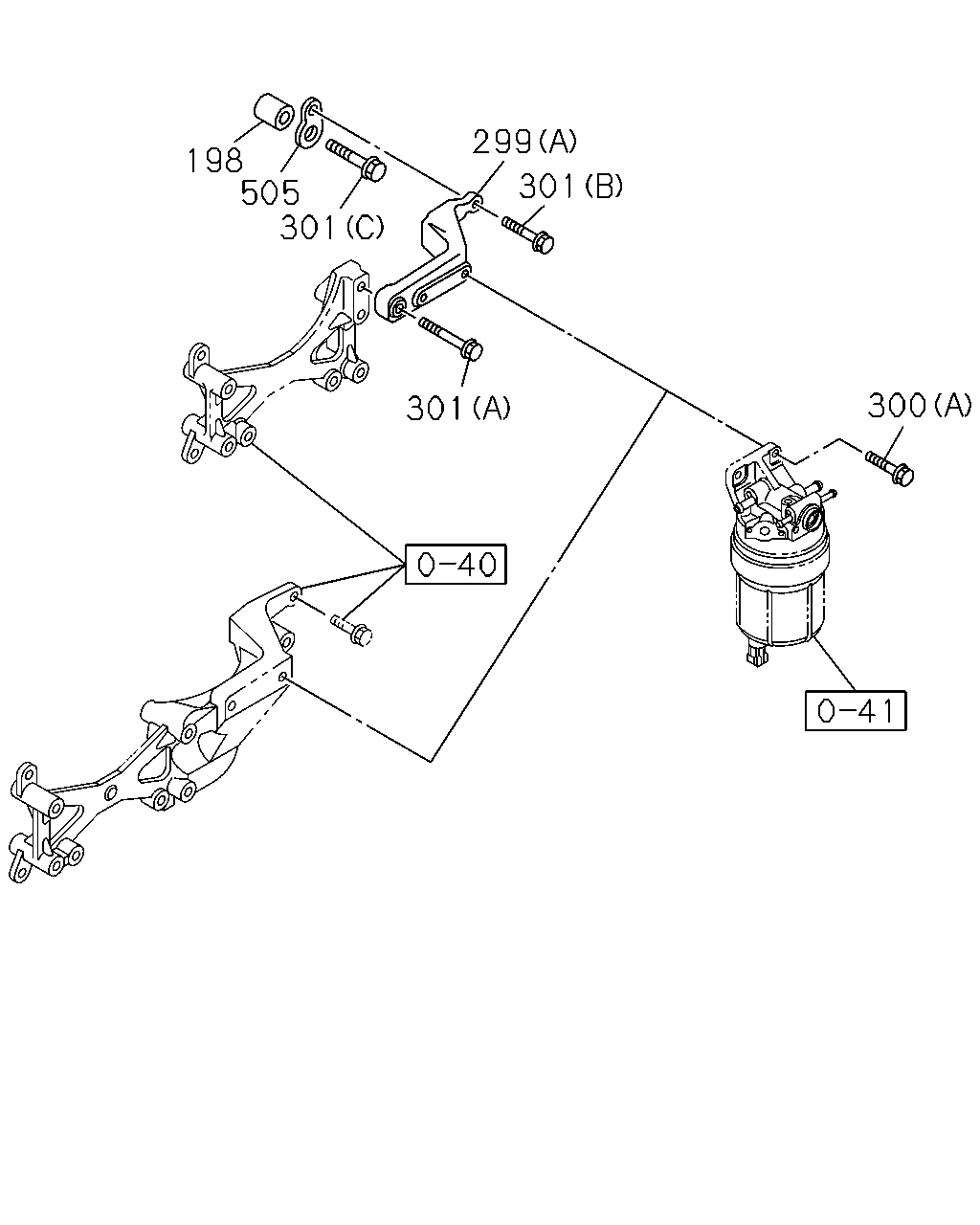

198 301 505 299 301 301 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
198	03.107 SPACER 4JJ1-TCS ENG(LFB)	8-98081-509-0	01	1	0710-1001	●	●
299	03.162 BRACKET; FUEL FILTER 4JJ1-TCS ENG(LFB) (A)	8-98009-087-4	01	1	0710-1001	●	●
299	03.162 BRACKET; FUEL FILTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98023-175-3	01	1	0710-			●	●	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0911-	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0911-			●		●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0911-				●		●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80	0-28151-280-0	01	1	0710-0811			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (B) M8X40 FLANGE	0-28060-840-0	01	1	0710-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (A) M8X66 FLANGE	8-98081-507-0	01	1	0710-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4JJ1-TCS ENG(LFB) (C) M14X58 FLANGE	8-98081-508-0	01	1	0710-1001	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 (D) M12X100 FLANGE	0-28151-200-0	01	1	0710-			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.206 (E) M12X70 FLANGE	0-28151-270-0	01	1	0802-0811			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE	0-28151-250-0	02	1	0710-0811			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.685 (E) M12X50 FLANGE	0-28151-250-0	01	1	0812-			●	●	●	●
301	03.162 BOLT; BRKT TO SEDIMENTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.181 (F) M12X80	0-28151-280-0	01	1	0905-			●	●	●	●
505	03.163 BRACKET 4JJ1-TCS ENG(LFB)	8-98081-486-0	01	1	0710-1001	●	●

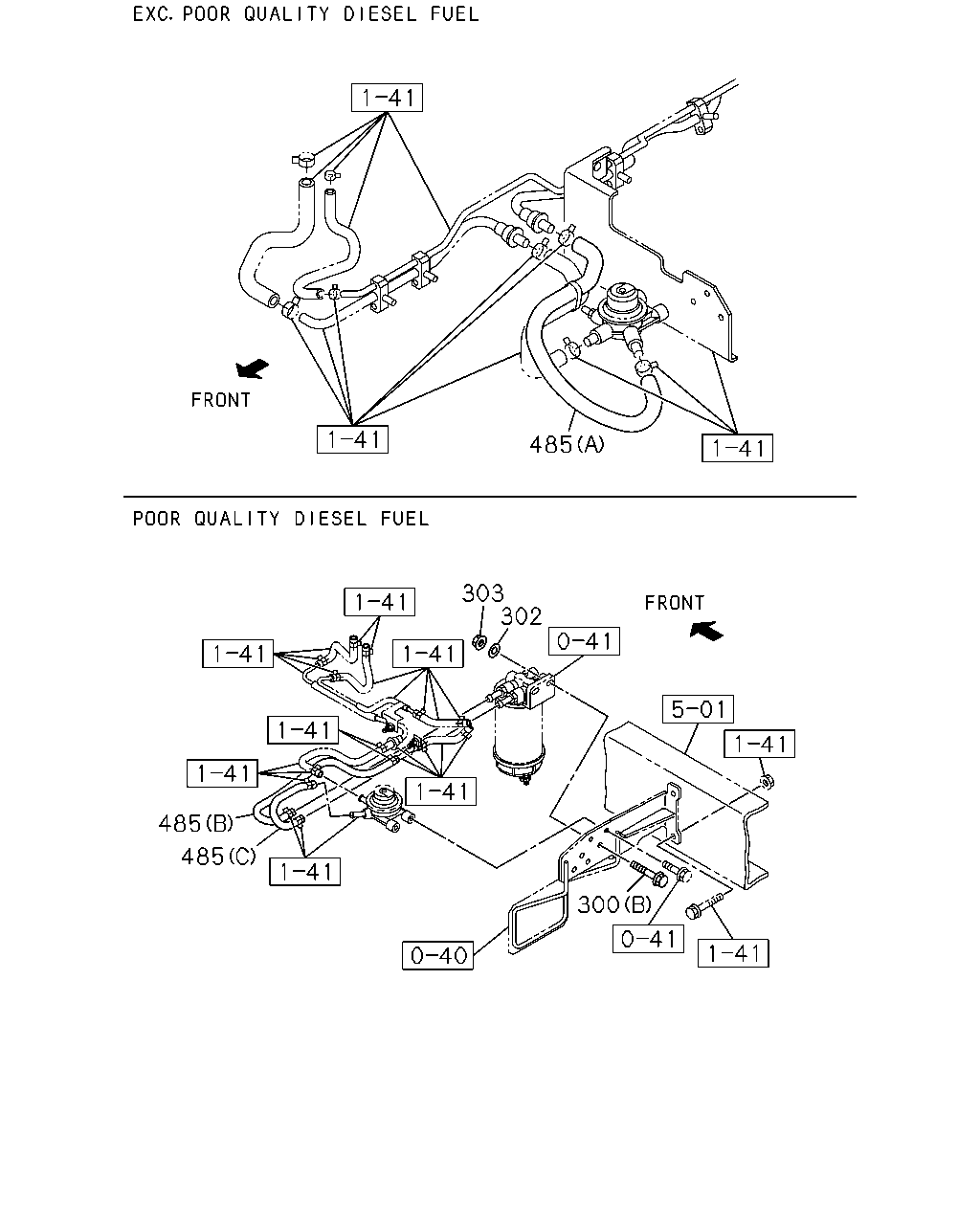

485 303 302 485 485 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-	●	●
300	03.162 BOLT; BRKT TO BODY 4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0911-	●	●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0911-			●		●
300	03.162 BOLT; BRKT TO BODY 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 03.613 (B) M10X40 FLANGE	0-28651-040-0	02	1	0911-				●		●
302	03.162 WASHER; PL,SEDIMENTER 4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0911-	●	●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0911-			●		●
302	03.162 WASHER; PL,SEDIMENTER 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) 04.085 ID=10.5 OD=26	0-91614-710-0	02	1	0911-				●		●
303	03.162 NUT; SEDIMENTER BRKT 4JJ1-TCS ENG(LFB) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	0911-	●	●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	0911-			●		●
303	03.162 NUT; SEDIMENTER BRKT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) M10 FLANGE	0-91180-110-0	02	1	0911-				●		●
485	03.163 HOSE; FUEL (A)	8-98041-728-0	01	1	0710-0906			●	●	●	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98041-728-0	01	1	0907-0910			●	●	●	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. POOR QUALITY DIESEL FUEL(KF0) (A)	8-98041-728-0	01	1	0911-			●	●	●	●
485	03.163 HOSE; FUEL POOR QUALITY DIESEL FUEL(KF0) (B)	8-98099-503-0	01	1	0911-			●	●	●	●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98099-503-0	01	1	0911-			●		●
485	03.163 HOSE; FUEL 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) (B)	8-98099-503-0	01	1	0911-				●		●
485	03.163 HOSE; FUEL 4HK1-TCN ENG(RDQ) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98105-710-0	01	1	0911-			●		●
485	03.163 HOSE; FUEL 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) (C)	8-98105-710-0	01	1	0911-				●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
