◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#38591) — 1093 parça

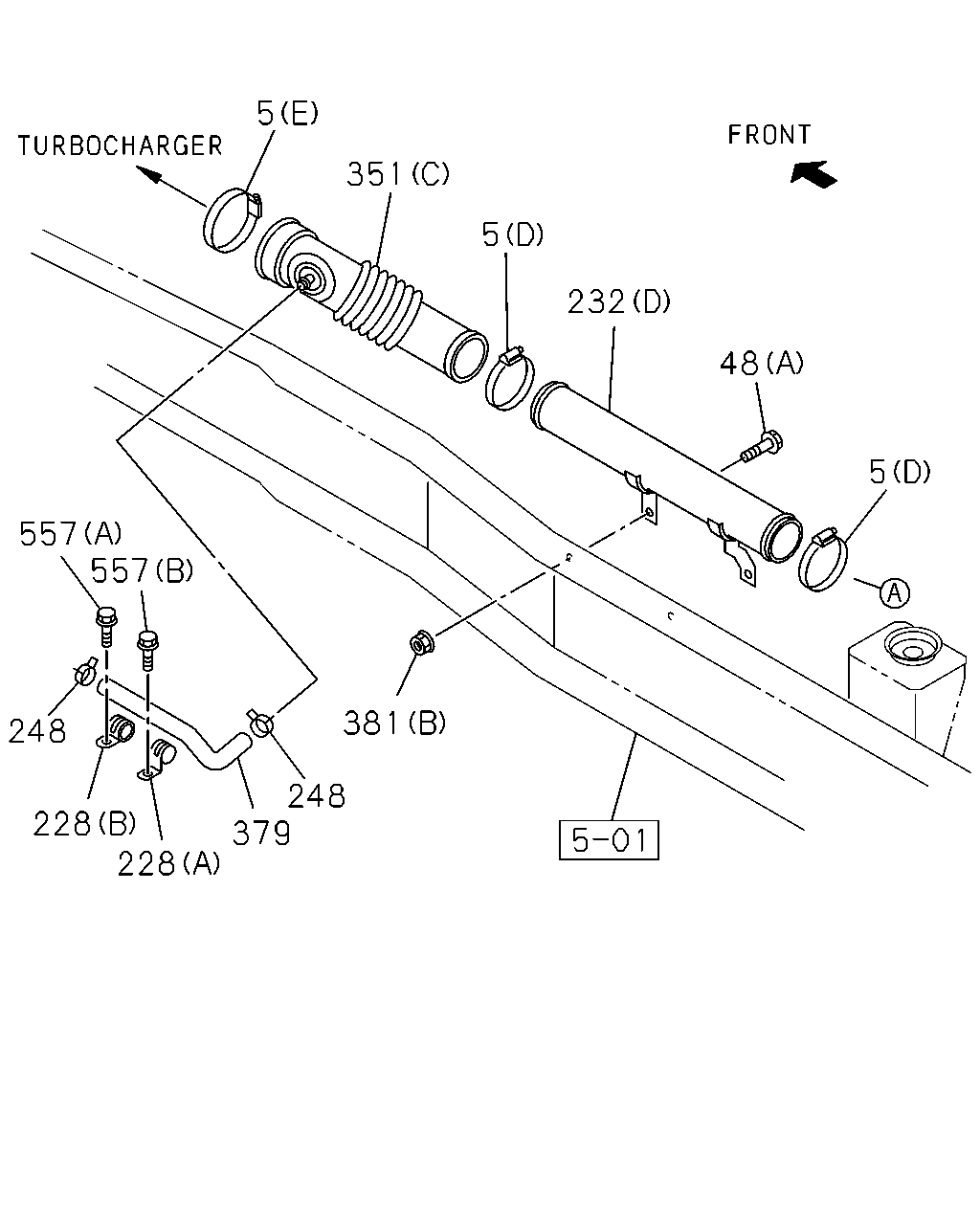

çizim 34548
5 351 5 232 48 5 557 557 381 248 248 379 228 228
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ● ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1001 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1002- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0710-1001 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ● ● ● ● ●
232 03.417 HOSE; CONN
(C) 		8-98048-137-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 0710- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
(C) 		8-98021-486-1 01 1 0710- ●
351 03.407 DUCT; AIR
(E) 		8-98070-864-0 01 1 0710- ●
351 03.407 DUCT; AIR
(D) 		8-98021-487-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0710-0711 ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
(F) 		8-98070-862-1 01 1 0710-1002 ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
379 03.675 HOSE; RUBBER
03.278 		8-98045-343-0 01 1 0710- ●
379 03.675 HOSE; RUBBER 8-98088-336-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (C) M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0710-0810 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●

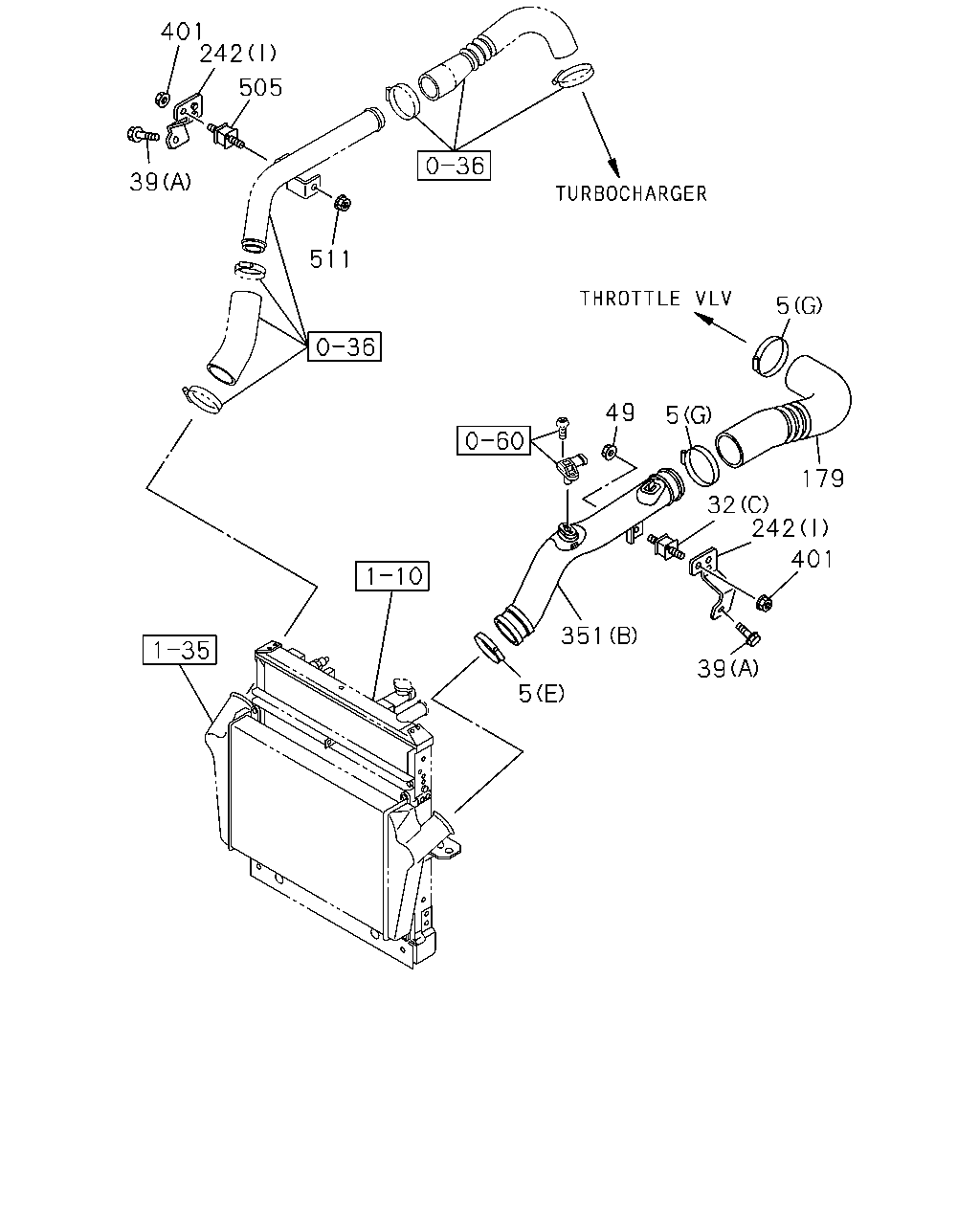

çizim 34862
401 242 505 39 511 5 49 5 179 32 242 401 351 39 5
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (B) 		8-94395-766-0 01 1 0710- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 0710- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-98036-826-0 01 1 0710-1106 ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97081-886-0 01 1 1107- ● ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ● ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0710- ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) 		8-98050-920-2 01 1 0710- ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98019-957-1 01 1 0710-0712 ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98106-255-0 01 1 0801-0802 ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98114-719-0 01 1 0803- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
(C) 		8-98021-486-1 01 1 0710- ●
351 03.407 DUCT; AIR
(E) 		8-98070-864-0 01 1 0710- ●
351 03.407 DUCT; AIR
(D) 		8-98021-487-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0710-0711 ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
(F) 		8-98070-862-1 01 1 0710-1002 ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
505 03.406 RUBBER; MTG
03.417 		8-98036-826-0 01 1 0710-1106 ● ● ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1107- ● ● ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ● ● ●

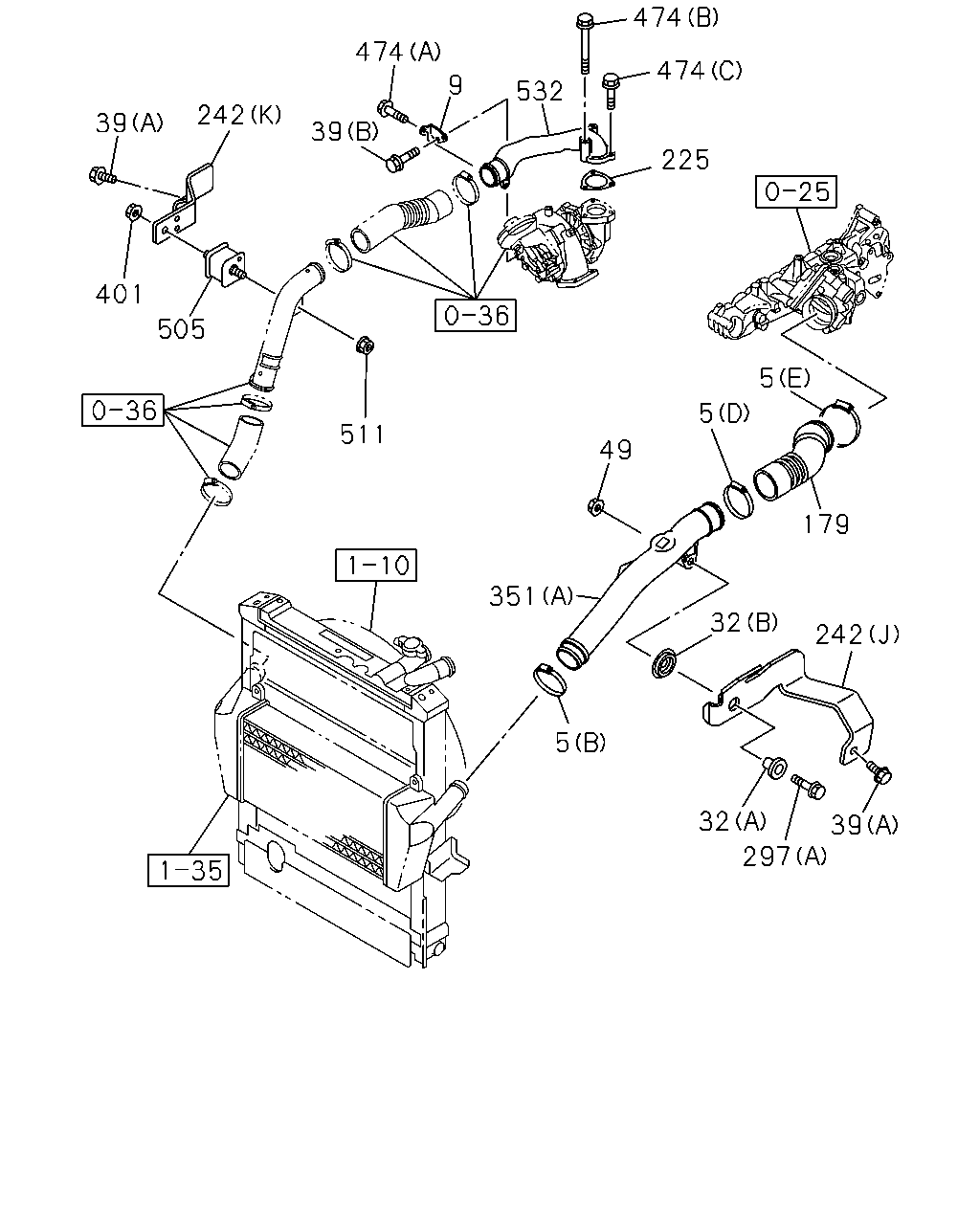

çizim 34887
474 474 9 474 532 242 39 39 225 401 505 5 5 511 49 179 351 32 242 5 32 39 297
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
9 03.417 BRACKET; INT PIPE
4JJ1-TCS ENG(LFB) 		8-98009-086-0 01 1 0710- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 01.277 (B) 		8-94395-766-0 01 1 0710- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4JJ1-TCS ENG(LFB) 03.265 (A) OD=23 		8-97105-689-6 01 1 0710- ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-98036-826-0 01 1 0710-1106 ● ● ● ●
32 03.417 RUBBER; AIR DUCT MTG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97081-886-0 01 1 1107- ● ● ● ●
39 03.417 BOLT; BRKT
06.216 (A) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ● ● ● ● ●
39 03.417 BOLT; BRKT
4JJ1-TCS ENG(LFB) 03.613 (B) M8X14 FLANGE 		8-97378-075-0 01 1 0710- ● ●
49 03.417 NUT; AIR DUCT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ● ● ●
179 03.417 HOSE; AIR INT
4JJ1-TCS ENG(LFB) 		8-98050-920-2 01 1 0710- ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98019-957-1 01 1 0710-0712 ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98106-255-0 01 1 0801-0802 ● ● ● ●
179 03.417 HOSE; AIR INT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98114-719-0 01 1 0803- ● ● ● ●
225 03.417 GASKET; AIR PIPE
4JJ1-TCS ENG(LFB) 03.270 		8-97202-328-1 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
(C) 		8-98021-486-1 01 1 0710- ●
351 03.407 DUCT; AIR
(E) 		8-98070-864-0 01 1 0710- ●
351 03.407 DUCT; AIR
(D) 		8-98021-487-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0710-0711 ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
(F) 		8-98070-862-1 01 1 0710-1002 ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
401 03.403 NUT; BRKT,AIR INT
4JJ1-TCS ENG(LFB) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
401 03.403 NUT; BRKT,AIR INT
4HK1-TCS ENG(RJS) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) (B) M6X70 FLANGE 		0-28050-670-0 02 1 0710- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 01 1 0710- ● ●
474 03.417 BOLT; PIPE
4JJ1-TCS ENG(LFB) 03.680 (C) M6X30 FLANGE 		0-28650-630-0 01 1 0710- ● ●
505 03.406 RUBBER; MTG
03.417 		8-98036-826-0 01 1 0710-1106 ● ● ● ● ● ●
505 03.406 RUBBER; MTG
03.417 		8-97081-886-0 01 1 1107- ● ● ● ● ● ●
511 03.417 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ● ● ● ● ●
532 03.417 PIPE; INTAKE
4JJ1-TCS ENG(LFB) 		8-97385-203-1 01 1 0710- ● ●

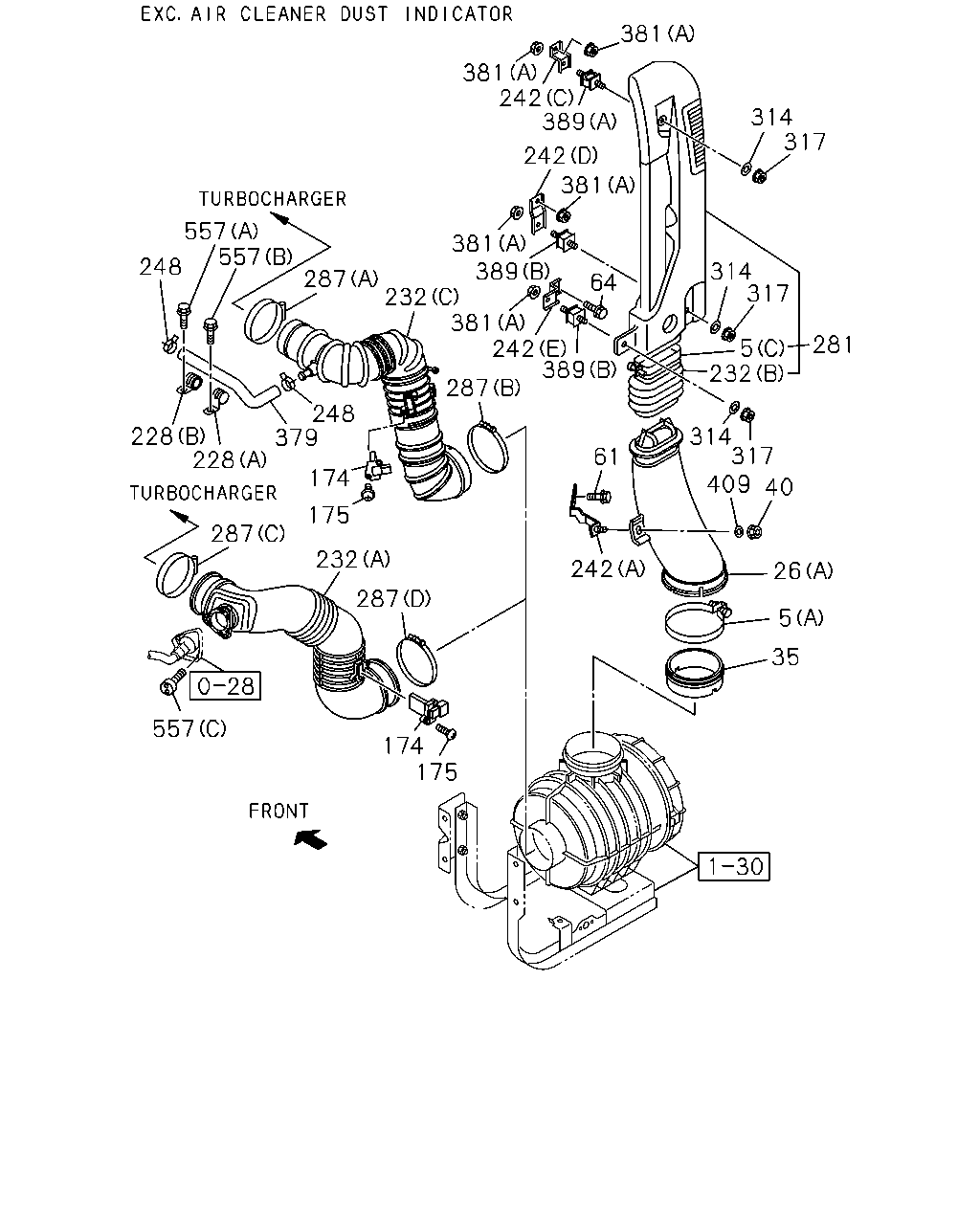

çizim 100404
381 381 242 389 314 317 242 381 381 389 557 557 248 314 317 64 287 232 381 242 389 5 232 281 287 248 379 228 228 314 317 409 61 174 40 175 287 232 242 26 287 5 35 557 174 175
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710- ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ● ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 04.866 (A) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0710-1001 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (B) ID=22 L=22 		8-98120-916-0 01 1 1002- ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) 09.242 (B) ID=22 L=22 		5-83574-045-0 01 1 0710-1001 ● ●
228 03.278 CLIP; PCV HOSE
4JJ1-TCS ENG(LFB) (A) ID=24.5 H=23 L=25 		8-98149-024-0 01 1 1002- ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ● ● ● ● ●
232 03.417 HOSE; CONN
(C) 		8-98048-137-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
248 03.417 CLIP; RUBBER HOSE
4JJ1-TCS ENG(LFB) 08.846 ID=21.7 		8-97203-074-0 02 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98000-230-4 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-1 01 1 0710- ● ● ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
03.407 (D) ID=112 		9-09915-074-1 01 1 0710- ● ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=68-85 		1-09707-202-0 01 1 0710-0810 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85 		8-98133-350-0 01 1 0811-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=77-95 		1-09707-198-0 01 1 0710-0810 ● ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=77-99 		1-09707-141-0 01 1 1002- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ● ● ● ● ●
379 03.675 HOSE; RUBBER
03.278 		8-98045-343-0 01 1 0710- ●
379 03.675 HOSE; RUBBER 8-98088-336-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ● ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (C) M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0710-0810 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●

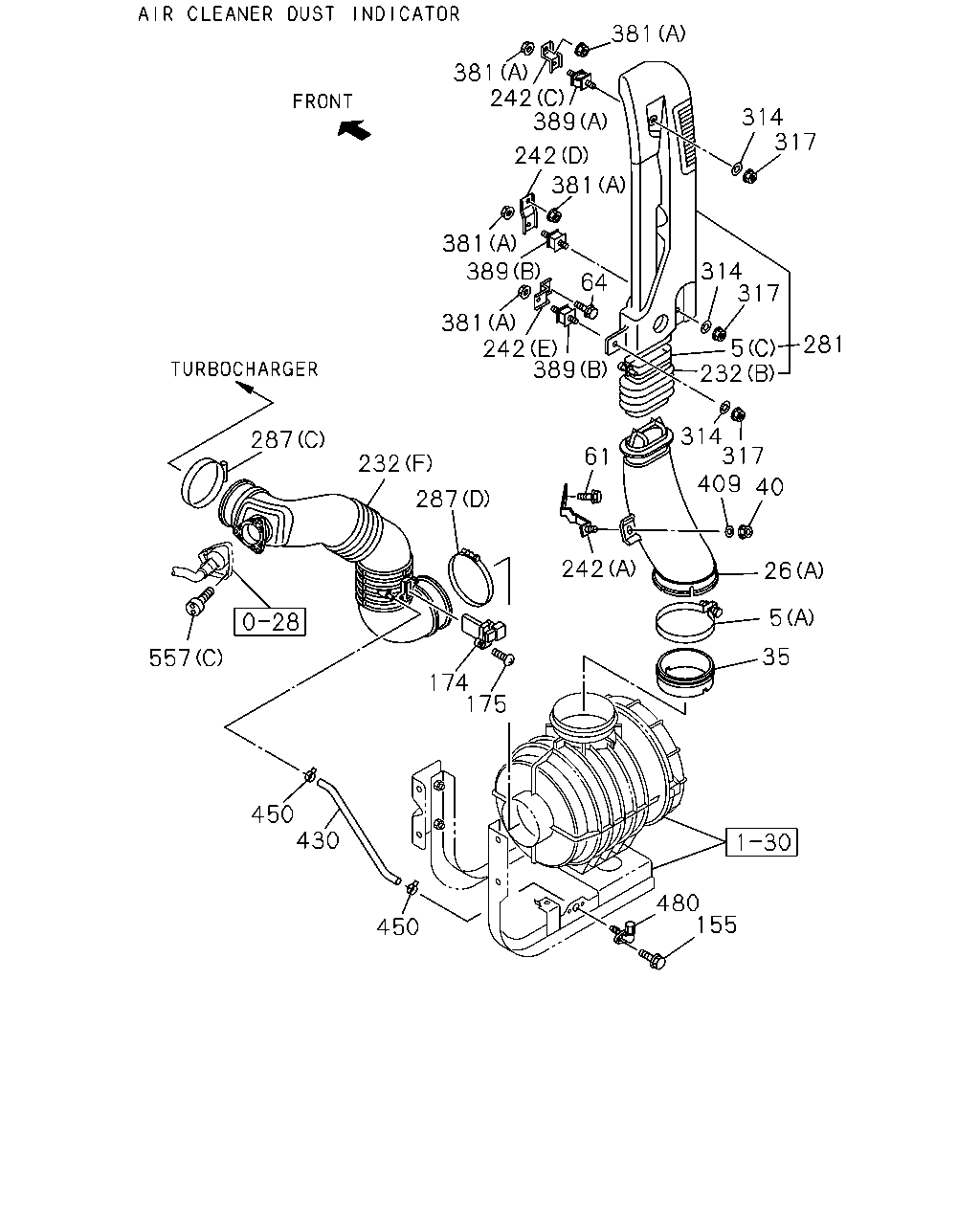

çizim 100475
381 381 242 389 314 317 242 381 381 389 314 317 64 381 242 389 5 232 281 314 317 409 287 61 232 40 287 242 26 5 35 557 174 175 450 430 480 155 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
64 03.417 BOLT; BRKT,AIR DUCT
M8X16 		0-52000-816-0 01 1 0710- ● ● ●
155 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1003-1003 ● ●
155 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1004- ● ●
155 03.417 BOLT; BRKT
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1004- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710- ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ● ● ● ● ●
232 03.417 HOSE; CONN
(C) 		8-98048-137-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98000-230-4 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-1 01 1 0710- ● ● ●
287 03.417 CLIP; AIR DUCT
03.407 (B) ID=117 		9-09915-075-1 01 1 0710- ●
287 03.417 CLIP; AIR DUCT
03.407 (D) ID=112 		9-09915-074-1 01 1 0710- ● ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=68-85 		1-09707-202-0 01 1 0710-0810 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=65-85 		8-98133-350-0 01 1 0811-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (A) ID=70-90 		8-98122-372-0 01 1 1002- ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=77-95 		1-09707-198-0 01 1 0710-0810 ● ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
287 03.417 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> 03.407 (C) ID=75-95 		8-98133-357-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> 03.407 (C) ID=77-99 		1-09707-141-0 01 1 0901-1001 ●
287 03.417 CLIP; AIR DUCT
03.407 (C) ID=77-99 		1-09707-141-0 01 1 1002- ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ● ● ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ● ● ● ● ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1003-1003 ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
430 03.417 HOSE; INDICATOR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1003-1003 ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
430 03.417 HOSE; INDICATOR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
450 03.417 CLAMP; HOSE
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1003-1003 ● ●
450 03.417 CLAMP; HOSE
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1004- ● ●
450 03.417 CLAMP; HOSE
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1004- ● ●
480 03.417 ADAPTER
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1003-1003 ● ●
480 03.417 ADAPTER
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1004- ● ●
480 03.417 ADAPTER
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1004- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (C) M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0710-0810 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
çizim 100477
381 381 242 389 314 317 242 381 381 389 314 317 389 381 175 5 232 281 174 242 381 314 317 5 26 351 409 40 297 242 61 5 35 384
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ● ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710- ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ● ● ● ● ●
232 03.417 HOSE; CONN
(C) 		8-98048-137-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98000-230-4 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-1 01 1 0710- ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ● ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
(C) 		8-98021-486-1 01 1 0710- ●
351 03.407 DUCT; AIR
(E) 		8-98070-864-0 01 1 0710- ●
351 03.407 DUCT; AIR
(D) 		8-98021-487-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0710-0711 ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
(F) 		8-98070-862-1 01 1 0710-1002 ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ● ● ● ● ●
çizim 100479
381 381 242 389 351 5 314 317 5 242 381 381 389 232 48 314 317 48 5 389 381 381 5 232 281 242 381 175 174 314 317 5 26 351 409 40 297 242 61 5 35 384 557
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ● ● ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ● ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710- ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ● ● ● ● ●
232 03.417 HOSE; CONN
(C) 		8-98048-137-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98000-230-4 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-1 01 1 0710- ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ● ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
(C) 		8-98021-486-1 01 1 0710- ●
351 03.407 DUCT; AIR
(E) 		8-98070-864-0 01 1 0710- ●
351 03.407 DUCT; AIR
(D) 		8-98021-487-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0710-0711 ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
(F) 		8-98070-862-1 01 1 0710-1002 ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ● ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (C) M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0710-0810 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
çizim 100480
381 381 242 389 351 5 314 317 5 242 381 381 389 232 48 314 317 48 5 389 381 381 5 232 281 242 381 175 174 314 317 5 26 351 409 40 297 242 61 5 35 155 480 384 450 430 557 450
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0710-0710 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(F) ID=117 		9-09915-075-1 01 1 0710- ●
5 03.407 CLIP; AIR DUCT
(H) ID=112 		9-09915-074-1 01 1 0710- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=68-85 		1-09707-202-0 01 1 0712-0810 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0811-0812 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (E) ID=65-85 		8-98133-350-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 01 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-95 		1-09707-198-0 02 1 0712-0810 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=75-95 		8-98133-357-0 02 1 0811-0812 ● ● ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) MANUAL TILT CAB<RWZ> (G) ID=75-95 		8-98133-357-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=68-85 		1-09707-202-0 02 1 0710-0711 ●
5 03.407 CLIP; AIR DUCT
(E) ID=68-85 		1-09707-202-0 02 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=65-85 		8-98133-350-0 02 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-99 		1-09707-141-0 01 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
(C) D=101.6 		9-09915-502-1 01 1 0801- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
03.417 (A) 		9-09915-504-1 01 1 0710-0802 ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
(A) ID=127 		1-14239-263-0 01 1 0803- ● ● ● ● ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=50-65 		1-09707-204-0 01 1 0710-0810 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=45-65 		8-98133-348-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=45-65 		8-98133-348-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
(G) ID=77-95 		1-09707-198-0 01 1 0712-0810 ● ●
5 03.407 CLIP; AIR DUCT
(G) ID=75-95 		8-98133-357-0 01 1 0811-0812 ● ●
5 03.407 CLIP; AIR DUCT
(E) ID=70-90 		8-98122-372-0 02 1 0901- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) 01.159 (D) ID=58-76 		1-09707-203-0 01 1 0710-0811 ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=55-75 		8-98133-349-0 01 1 0812-0812 ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
01.159 (D) ID=58-76 		1-09707-203-0 02 1 0710-0811 ●
5 03.407 CLIP; AIR DUCT
(D) ID=55-75 		8-98133-349-0 02 1 0812-0812 ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (D) ID=58-79 		1-09707-136-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
(D) ID=58-79 		1-09707-136-0 02 1 0901- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (E) ID=70-90 		8-98122-372-0 01 1 1002- ● ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (E) ID=70-90 		8-98122-372-0 01 1 1002- ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) EXC. MANUAL TILT CAB<RWZ> (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) ID=77-99 		1-09707-141-0 02 1 1002- ● ● ● ●
5 03.407 CLIP; AIR DUCT
(B) ID=60-65 		8-98096-418-0 01 1 0901-1001 ●
5 03.407 CLIP; AIR DUCT
4JJ1-TCS ENG(LFB) (B) ID=60-65 		8-98096-418-0 01 1 1002- ● ●
26 03.417 DUCT; AIR INT
(A) 		8-98025-626-0 01 1 0710- ● ● ●
26 03.417 DUCT; AIR INT
(B) 		8-98025-627-0 01 1 0710- ● ● ●
35 03.406 SEAL; DUCT,INT 8-98029-332-0 01 1 0710- ● ● ● ● ● ●
40 03.417 NUT; AIR INT DUCT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ● ● ● ●
48 03.417 BOLT; AIR DUCT
00.029 (A) M10X30 FLANGE 		0-28651-030-0 02 1 0710- ● ● ●
48 03.417 BOLT; AIR DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
61 03.417 BOLT; BRKT,AIR DUCT
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ● ●
61 03.417 BOLT; BRKT,AIR DUCT
02.277 M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
155 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1003-1003 ● ●
155 03.417 BOLT; BRKT
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1004- ● ●
155 03.417 BOLT; BRKT
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 09.242 M6X16 FLANGE 		0-28050-616-0 02 1 1004- ● ●
174 03.682 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0710- ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0710 ● ● ● ● ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4JJ1-TCS ENG(LFB) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCN ENG(RDQ) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
4HK1-TCS ENG(RJS) 02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0710-0804 ● ●
175 03.682 BOLT; AIR FLOW CONT SENSOR
02.559 M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0805- ● ● ● ● ● ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0710-0710 ● ● ● ● ● ●
232 03.417 HOSE; CONN
(C) 		8-98048-137-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> (A) 		8-98079-860-0 01 1 0710- ●
232 03.417 HOSE; CONN
(D) 		8-98021-072-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98063-793-3 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-98094-582-2 01 1 0710- ●
232 03.417 HOSE; CONN
(B) 		8-98082-535-0 01 1 0801- ● ● ● ● ● ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 0710-1002 ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1>, MULTI INFORMATION DISPLAY<7NY> (A) 		8-98059-989-2 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
232 03.417 HOSE; CONN
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98000-233-3 01 1 1003- ●
242 03.417 BRACKET; AIR DUCT
(A) 		8-98004-416-0 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(C) 		8-98036-646-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(D) 		8-98036-647-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(E) 		8-98036-649-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (J) 		8-98070-942-2 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4JJ1-TCS ENG(LFB) (K) 		8-98070-943-0 01 1 0710- ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-142-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) 		8-98032-143-1 01 1 0710- ● ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98029-819-1 01 1 0710- ●
242 03.417 BRACKET; AIR DUCT
(F) 		8-98055-243-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(G) 		8-98055-246-2 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(H) 		8-98055-247-1 01 1 0710- ● ● ●
242 03.417 BRACKET; AIR DUCT
(B) 		8-98049-012-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98000-230-4 01 1 0710- ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98080-929-1 01 1 0710- ● ●
281 03.417 DUCT; AIR,VERTICAL INT 8-98061-757-1 01 1 0710- ● ● ●
297 03.417 BOLT; DUCT
4JJ1-TCS ENG(LFB) 00.685 (A) M8X40 FLANGE 		0-28650-840-0 01 1 0710- ● ●
297 03.417 BOLT; DUCT
02.277 (B) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ● ●
314 03.417 WASHER; PL,AIR INT DUCT
00.002 ID=10.5 OD=32 		0-91614-810-0 03 1 0710- ● ● ● ● ● ●
317 03.417 NUT; CUSHION RUBBER
M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ● ● ● ● ●
351 03.407 DUCT; AIR
4JJ1-TCS ENG(LFB) 03.417 (A) 		8-98051-032-1 01 1 0710- ● ●
351 03.407 DUCT; AIR
(C) 		8-98021-486-1 01 1 0710- ●
351 03.407 DUCT; AIR
(E) 		8-98070-864-0 01 1 0710- ●
351 03.407 DUCT; AIR
(D) 		8-98021-487-2 01 1 0710- ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98039-933-1 01 1 0710-0711 ● ● ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98105-722-1 01 1 0712- ● ● ● ●
351 03.407 DUCT; AIR
(F) 		8-98070-862-1 01 1 0710-1002 ● ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) EXC. AIR CLEANER DUST INDICATOR<YD1> (F) 		8-98070-862-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
351 03.407 DUCT; AIR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 03.417 (G) 		8-98021-485-1 01 1 1003- ●
381 03.417 NUT; BRKT,AIR DUCT
(A) M8 W/LK WASHER 		8-97581-234-0 02 1 0710- ● ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ● ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) (A) M8 W/LK WASHER 		8-97581-234-0 03 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4JJ1-TCS ENG(LFB) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 01 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
381 03.417 NUT; BRKT,AIR DUCT
4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE 		0-91180-110-0 02 1 0710- ●
384 03.417 NUT; AIR INT DUCT BRKT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0710- ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-98036-825-0 01 1 0710- ● ● ● ● ● ●
389 03.317 RUBBER; SUPPORT,AIR INT UPR
03.417 (B) 		8-98036-826-0 02 1 0710- ● ● ● ● ● ●
409 03.417 WASHER; PL,BRKT
00.002 ID=10.5 OD=32 		0-91614-810-0 01 1 0710- ● ● ● ● ● ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1003-1003 ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
430 03.417 HOSE; INDICATOR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=350 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1003-1003 ●
430 03.417 HOSE; INDICATOR
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
430 03.417 HOSE; INDICATOR
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 08.962 L=250 SERVICED BY L=3000 		0-04770-300-0 01 1 1004- ●
450 03.417 CLAMP; HOSE
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1003-1003 ● ●
450 03.417 CLAMP; HOSE
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1004- ● ●
450 03.417 CLAMP; HOSE
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 01.240 ID=12 		8-98150-358-0 02 1 1004- ● ●
480 03.417 ADAPTER
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1003-1003 ● ●
480 03.417 ADAPTER
4HK1-TCN ENG(RDQ) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1004- ● ●
480 03.417 ADAPTER
4HK1-TCS ENG(RJS) AIR CLEANER DUST INDICATOR<YD1> 		8-98013-425-0 01 1 1004- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.671 (A) M6X10 FLANGE 		0-28050-610-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4JJ1-TCS ENG(LFB) 03.330 (B) M8X12 HEX SOCKET 		0-58330-812-0 01 1 0710- ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 (C) M6X16 FLANGE 		0-28050-616-0 03 1 0710-0710 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0710-0810 ● ● ● ●
557 03.403 BOLT; HOSE CLIP
00.386 (C) M6X20 FLANGE 		0-28050-620-0 03 1 0811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
