◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#38587) — 22 parça

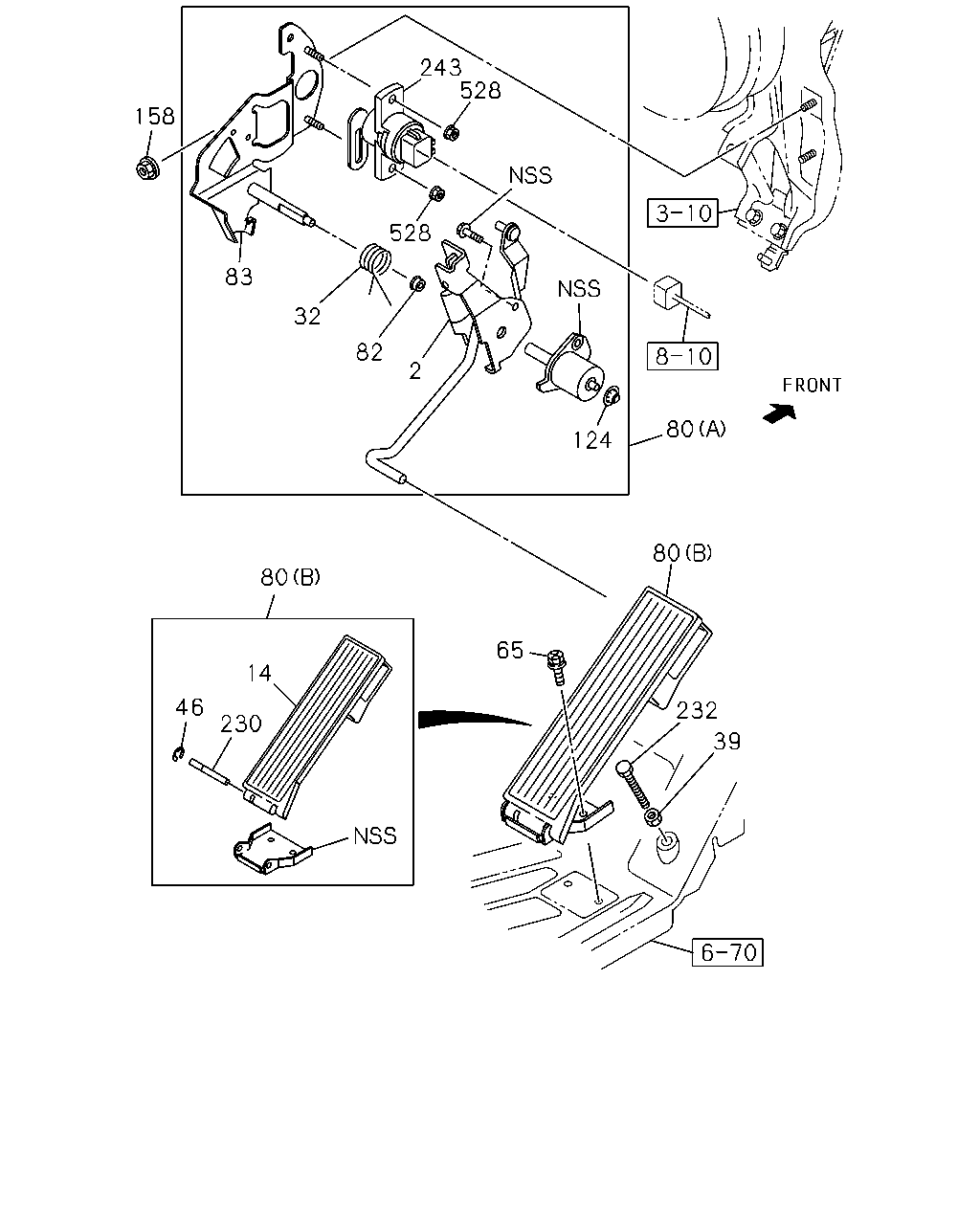

çizim 34579
243 528 158 528 83 32 82 2 80 124 80 80 65 14 46 232 230 39
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.454 LEVER; ENG CONT 8-98002-158-2 01 1 0710- ● ● ● ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97853-062-2 01 1 0710- ● ● ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0710- ● ● ● ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
02.334 M8 		0-91110-508-0 01 1 0710- ● ● ● ● ● ●
46 03.485 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0710- ● ● ● ● ● ●
65 03.483 BOLT
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 02 1 0710- ● ● ● ● ● ●
80 03.452 LINK ASM; ENG CONT
(A) 		8-97387-358-3 01 1 0710- ● ● ● ● ● ●
80 03.452 LINK ASM; ENG CONT
(B) 		8-97853-061-2 01 1 0710- ● ● ● ● ● ●
82 03.463 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0710- ● ● ● ● ● ●
83 03.452 BRACKET; CONT LINK 8-98023-885-2 01 1 0710- ● ● ● ● ● ●
124 03.463 NUT; LEVER
03.452 ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0710- ● ● ● ● ● ●
158 03.452 NUT; BRKT
08.857 M8 FLANGE 		8-94279-060-0 02 1 0710- ● ● ● ● ● ●
230 03.452 PIN; JOINT,ACCEL PEDAL TO BRKT 8-97853-064-0 01 1 0710- ● ● ● ● ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M8X45 		8-97378-461-0 01 1 0710- ● ● ● ● ● ●
243 03.425 SENSOR; ACCEL 8-97602-416-0 01 1 0710-0910 ● ● ● ● ● ●
243 03.425 SENSOR; ACCEL 8-98131-263-0 01 1 0911- ● ● ● ● ● ●
528 03.463 NUT; ACCEL SENSOR
12.183 M5 		8-94169-022-0 02 1 0710- ● ● ● ● ● ●

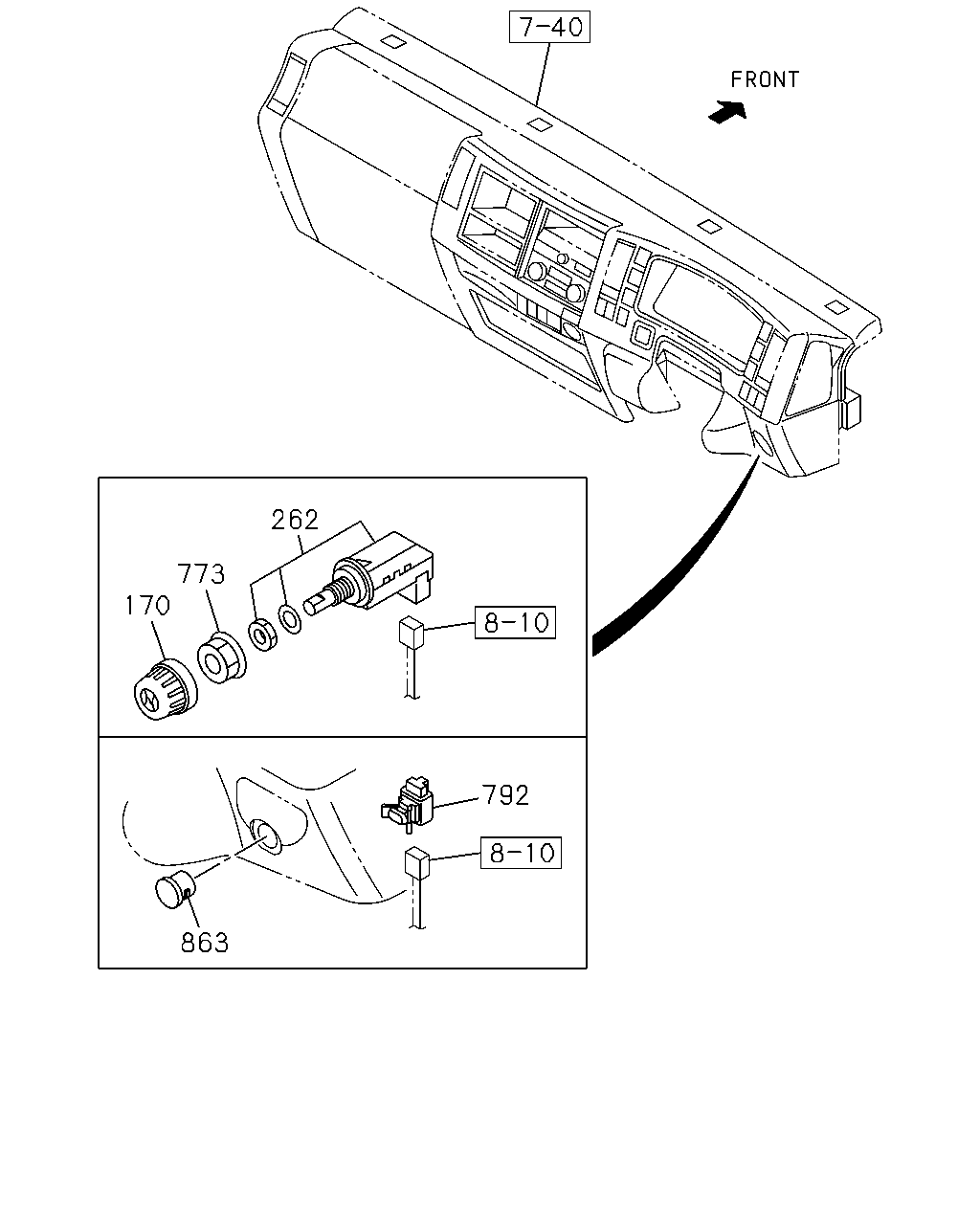

çizim 100400
262 773 170 792 863
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
170 03.480 KNOB
SWITCH HIGH IDLE ENGINE SPEED CONTROL <NMT> 		8-98013-420-0 01 1 0710- ● ● ● ● ● ●
262 03.452 SWITCH; ACCEL,IDLE
SWITCH HIGH IDLE ENGINE SPEED CONTROL <NMT> 		8-98013-418-0 01 1 0710- ● ● ● ● ● ●
773 03.452 HOLDER; ACCEL PEDAL
SWITCH HIGH IDLE ENGINE SPEED CONTROL <NMT> 		8-97352-127-0 01 1 0710- ● ● ● ● ● ●
792 03.483 RESISTOR; IDLE
EXC. SWITCH HIGH IDLE ENGINE SPEED CO NTROL<NMT> 		8-98013-906-0 01 1 0710- ● ● ● ● ● ●
863 03.463 COVER; SENSOR
EXC. SWITCH HIGH IDLE ENGINE SPEED CO NTROL<NMT> GRAY 		8-97408-816-0 01 1 0710- ● ● ● ● ● ●
