0-65 — STARTER (#38583) — 180 parça

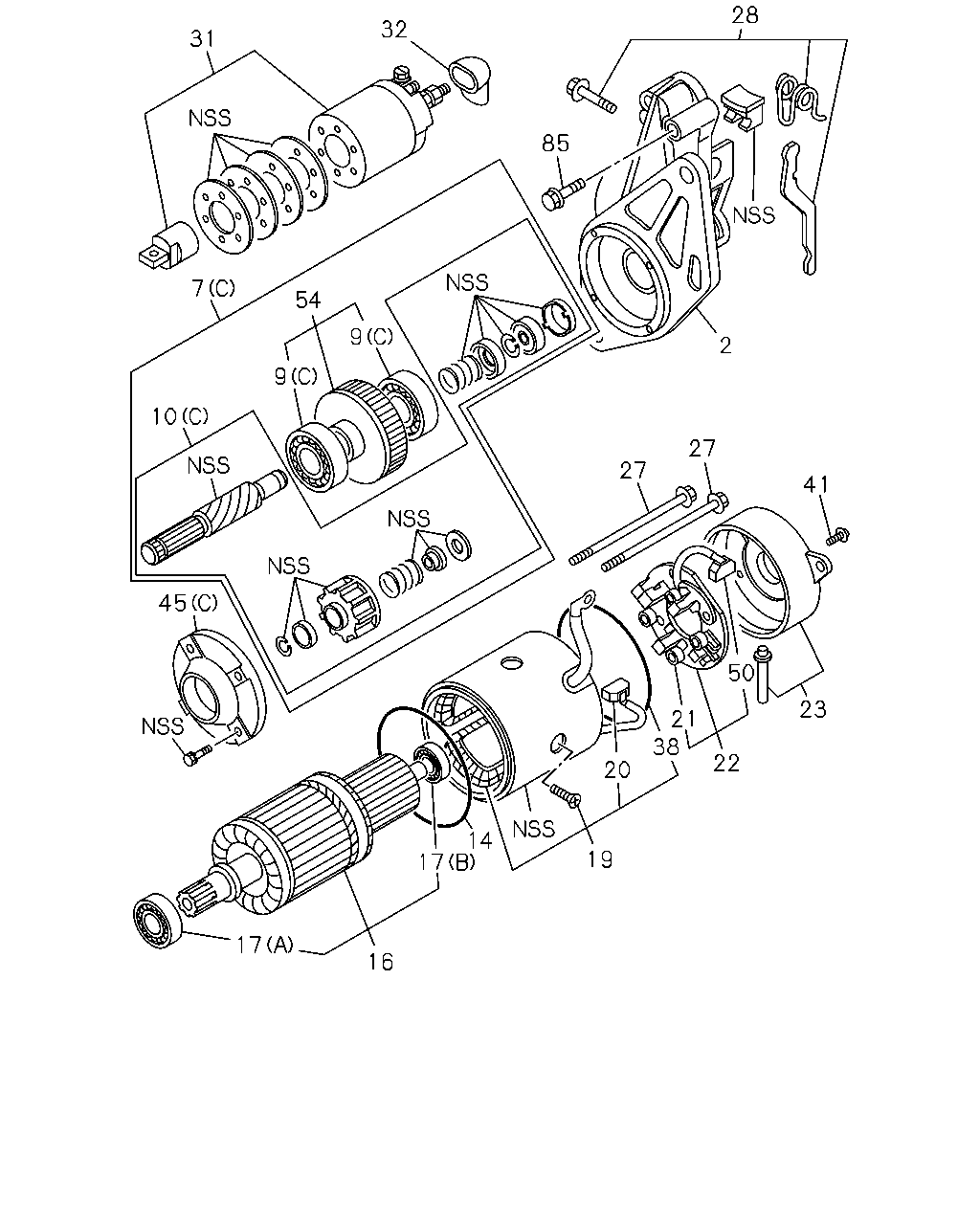

28 32 31 85 7 54 9 2 9 10 27 27 41 45 50 23 21 38 22 20 14 17 19 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-98055-279-1, 98055279	8-98055-786-1	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER (B) ASM PART: D = 8-98179-204-1, 98179204	8-97230-564-0	01	1	-1101
7	02.086 CLUTCH ASM; PINION,STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97230-564-0	01	1	-1008
7	02.086 CLUTCH ASM; PINION,STARTER (C) ASM PART: A = 8-97323-935-4, 97323935	8-98159-731-0	01	1	1009-
7	02.086 CLUTCH ASM; PINION,STARTER (C) ASM PART: D = 8-98179-204-1, 98179204	8-98159-731-0	01	1	1102-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-676-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97025-676-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER (B) ASM PART: D = 8-98179-204-1, 98179204	8-97030-395-0	01	1	-1101
10	02.086 SHAFT; GEAR STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97030-395-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-772-0	01	1	-
10	02.086 SHAFT; GEAR STARTER (C) ASM PART: A = 8-97323-935-4, 97323935	8-98159-734-0	01	1	1009-
10	02.086 SHAFT; GEAR STARTER (C) ASM PART: D = 8-98179-204-1, 98179204	8-98159-734-0	01	1	1102-
14	02.087 GASKET; YOKE,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97377-691-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97030-387-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97377-688-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-295-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-560-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-298-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97377-689-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98022-772-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97030-402-0	01	1	-1004
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-98159-690-0	01	1	1005-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98179-218-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97323-935-4, 97323935	8-94435-567-0	01	1	-1008
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (C) ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-98179-204-1, 98179204	8-97230-560-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97230-563-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-94408-500-0	02	1	-

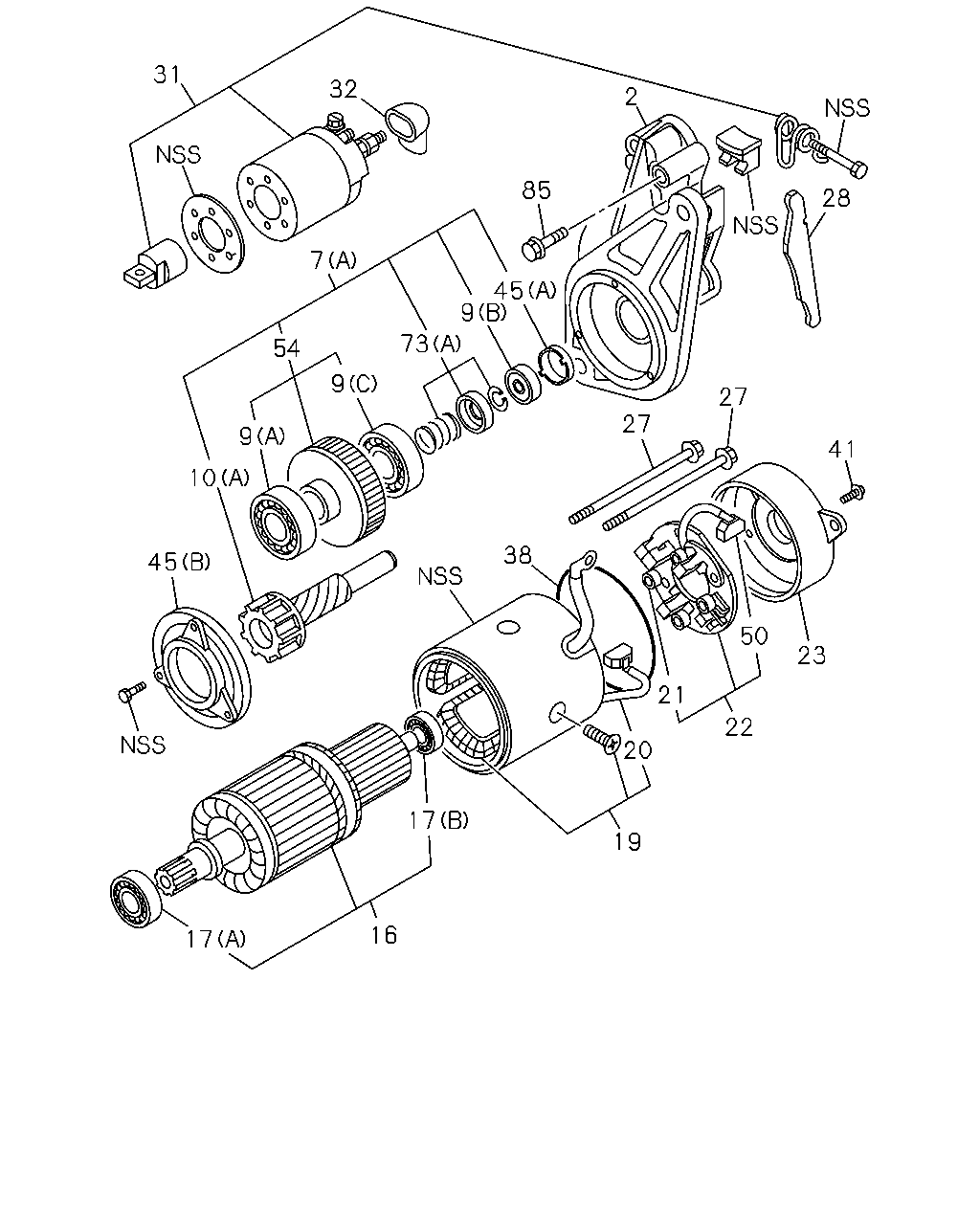

31 32 2 85 28 7 45 9 73 54 9 27 27 9 41 10 38 45 50 23 21 22 20 17 19 16 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-98055-279-1, 98055279	8-98055-786-1	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER (B) ASM PART: D = 8-98179-204-1, 98179204	8-97230-564-0	01	1	-1101
7	02.086 CLUTCH ASM; PINION,STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97230-564-0	01	1	-1008
7	02.086 CLUTCH ASM; PINION,STARTER (C) ASM PART: A = 8-97323-935-4, 97323935	8-98159-731-0	01	1	1009-
7	02.086 CLUTCH ASM; PINION,STARTER (C) ASM PART: D = 8-98179-204-1, 98179204	8-98159-731-0	01	1	1102-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-676-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97025-676-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER (B) ASM PART: D = 8-98179-204-1, 98179204	8-97030-395-0	01	1	-1101
10	02.086 SHAFT; GEAR STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97030-395-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-772-0	01	1	-
10	02.086 SHAFT; GEAR STARTER (C) ASM PART: A = 8-97323-935-4, 97323935	8-98159-734-0	01	1	1009-
10	02.086 SHAFT; GEAR STARTER (C) ASM PART: D = 8-98179-204-1, 98179204	8-98159-734-0	01	1	1102-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97030-387-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97377-688-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-295-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-560-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-298-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97377-689-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98022-772-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97030-402-0	01	1	-1004
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-98159-690-0	01	1	1005-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98179-218-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97323-935-4, 97323935	8-94435-567-0	01	1	-1008
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (C) ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-98179-204-1, 98179204	8-97230-560-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97230-563-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
73	02.063 STOPPER SET; PINION (A) ASM PART: A = 8-97323-935-4, 97323935	8-97030-396-0	01	1	-1008
73	02.063 STOPPER SET; PINION (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: A = 8-97323-935-4, 97323935	8-97030-398-0	01	1	-1008
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-94408-500-0	02	1	-

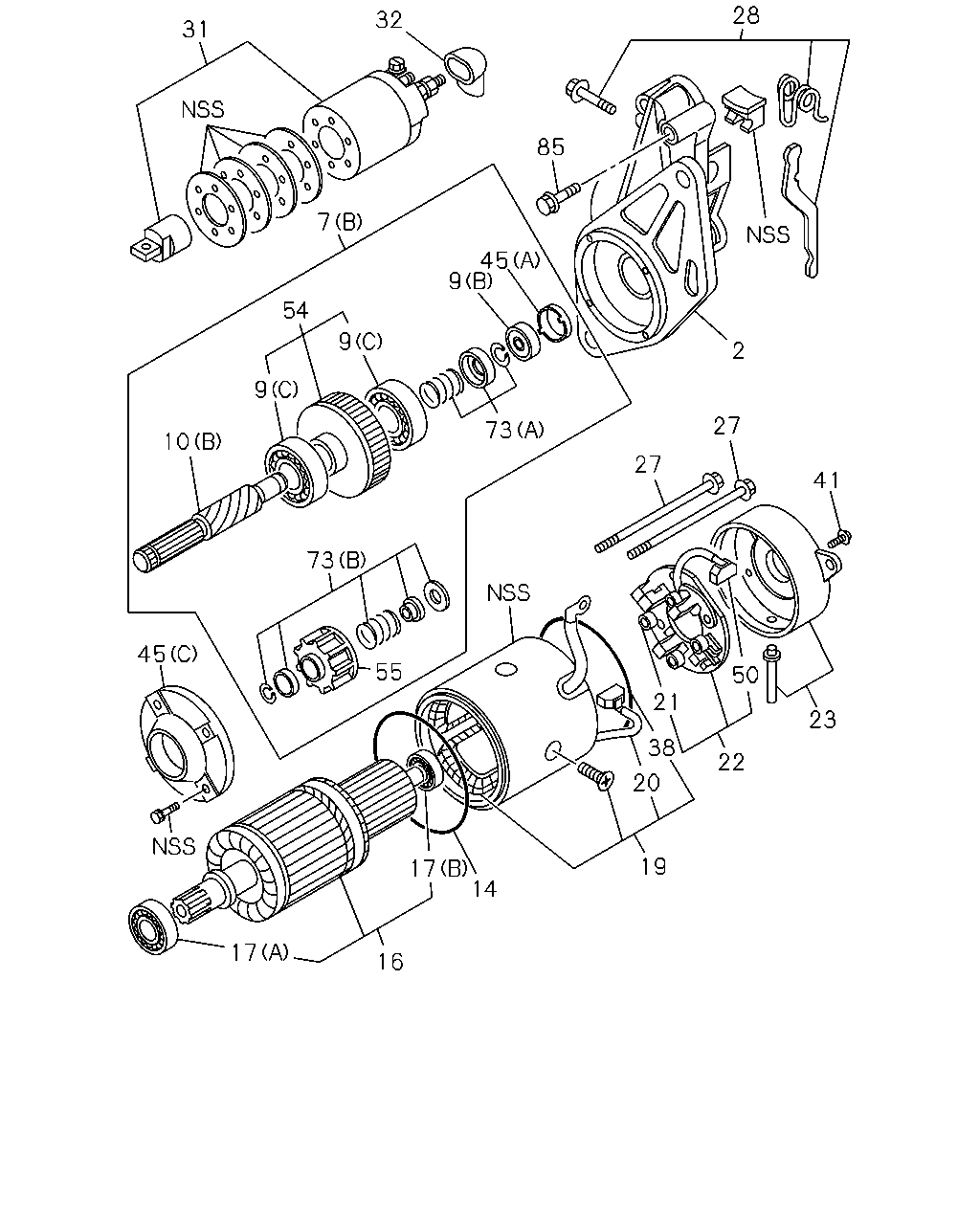

28 32 31 85 7 45 9 54 9 2 9 27 73 10 27 41 73 45 55 50 21 23 38 22 20 19 17 14 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.085 CASE; PINION,STARTER ASM PART: B = 8-98054-984-0, 98054984	8-97227-902-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97329-348-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98022-776-0	01	1	-
2	02.085 CASE; PINION,STARTER ASM PART: C = 8-98055-279-1, 98055279	8-98055-786-1	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-770-0	01	1	-
7	02.086 CLUTCH ASM; PINION,STARTER (B) ASM PART: D = 8-98179-204-1, 98179204	8-97230-564-0	01	1	-1101
7	02.086 CLUTCH ASM; PINION,STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97230-564-0	01	1	-1008
7	02.086 CLUTCH ASM; PINION,STARTER (C) ASM PART: A = 8-97323-935-4, 97323935	8-98159-731-0	01	1	1009-
7	02.086 CLUTCH ASM; PINION,STARTER (C) ASM PART: D = 8-98179-204-1, 98179204	8-98159-731-0	01	1	1102-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97025-673-0	02	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (C) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-673-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-674-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97025-676-0	01	1	-
9	02.083 BEARING; GEAR SHAFT STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97025-676-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER (B) ASM PART: D = 8-98179-204-1, 98179204	8-97030-395-0	01	1	-1101
10	02.086 SHAFT; GEAR STARTER (B) ASM PART: A = 8-97323-935-4, 97323935	8-97030-395-0	01	1	-1008
10	02.086 SHAFT; GEAR STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-772-0	01	1	-
10	02.086 SHAFT; GEAR STARTER (C) ASM PART: A = 8-97323-935-4, 97323935	8-98159-734-0	01	1	1009-
10	02.086 SHAFT; GEAR STARTER (C) ASM PART: D = 8-98179-204-1, 98179204	8-98159-734-0	01	1	1102-
14	02.087 GASKET; YOKE,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97377-691-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97192-299-0	01	1	-
16	02.043 ARMATURE; STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-557-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (B) ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-94228-436-0	01	1	-
17	02.083 BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97030-387-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97377-688-0	01	1	-
19	02.049 COIL; FIELD,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-295-0	01	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-560-0	02	1	-
20	02.051 BRUSH; (+),STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
21	02.053 SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-94152-972-0	04	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-562-0	01	1	-
22	02.051 HOLDER; BRUSH STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-298-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97227-901-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97377-689-0	01	1	-
23	02.067 COVER; RR COVER STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98022-772-0	01	1	-
27	02.077 BOLT; THROUGH,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97192-423-0	02	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97030-402-0	01	1	-1004
28	02.108 LEVER; SHIFT,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-776-0	01	1	-
28	02.108 LEVER; SHIFT,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-98159-690-0	01	1	1005-
28	02.108 LEVER; SHIFT,STARTER ASM PART: D = 8-98179-204-1, 98179204	8-98179-218-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97161-789-0	01	1	-
31	02.100 SWITCH; ENGAGE STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97217-569-0	01	1	-
32	02.115 COVER; RUBBER,STARTER HITACHI ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	5-81129-069-0	01	1	-
32	02.115 COVER; RUBBER,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97217-570-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97115-763-0	01	1	-
38	02.070 GASKET; RR COVER,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97230-559-0	01	1	-
41	02.067 SCREW; RR COVER,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-97117-107-0	02	1	-
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: A = 8-97323-935-4, 97323935	8-94435-567-0	01	1	-1008
45	02.042 RETAINER; BEARING,STARTER (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-94435-567-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (C) ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97030-401-0	01	1	-
45	02.042 RETAINER; BEARING,STARTER (B) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-774-0	01	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: D = 8-98179-204-1, 98179204	8-97230-560-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97230-563-0	02	1	-
50	02.051 BRUSH; (-),STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-98055-296-0	02	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: A = 8-97323-935-4, 97323935, D = 8-98179-204-1, 98179204	8-97115-816-0	01	1	-
54	02.086 CLUTCH; PINION,STARTER ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-771-0	01	1	-
55	02.086 PINION; CLU,STARTER ASM PART: A = 8-97323-935-4, 97323935	8-97230-569-0	01	1	-1008
73	02.063 STOPPER SET; PINION (A) ASM PART: A = 8-97323-935-4, 97323935	8-97030-396-0	01	1	-1008
73	02.063 STOPPER SET; PINION (A) ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97030-396-0	01	1	-
73	02.063 STOPPER SET; PINION (B) ASM PART: A = 8-97323-935-4, 97323935	8-97030-398-0	01	1	-1008
85	02.102 BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 8-97323-935-4, 97323935, B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279, D = 8-98179-204-1, 98179204	8-94408-500-0	02	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

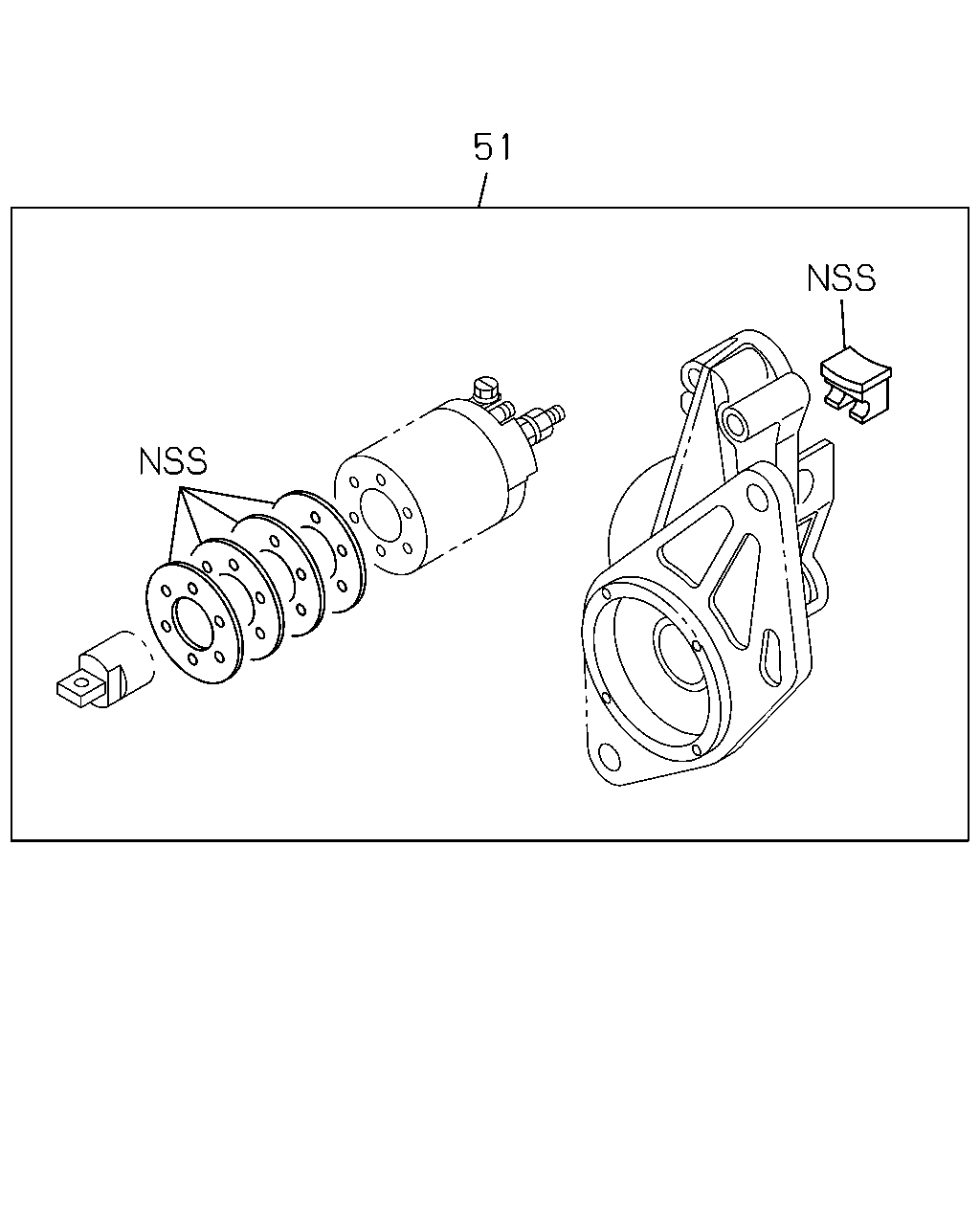

51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-778-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-97323-935-4, 97323935	8-97377-690-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-98179-204-1, 98179204	8-98022-789-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: B = 8-98054-984-0, 98054984, C = 8-98055-279-1, 98055279	8-97179-778-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: A = 8-97323-935-4, 97323935	8-97377-690-0	01	1	-
51	02.104 COVER SET; DUST ENGAGE SW STARTE ASM PART: D = 8-98179-204-1, 98179204	8-98022-789-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
