◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#38581) — 123 parça

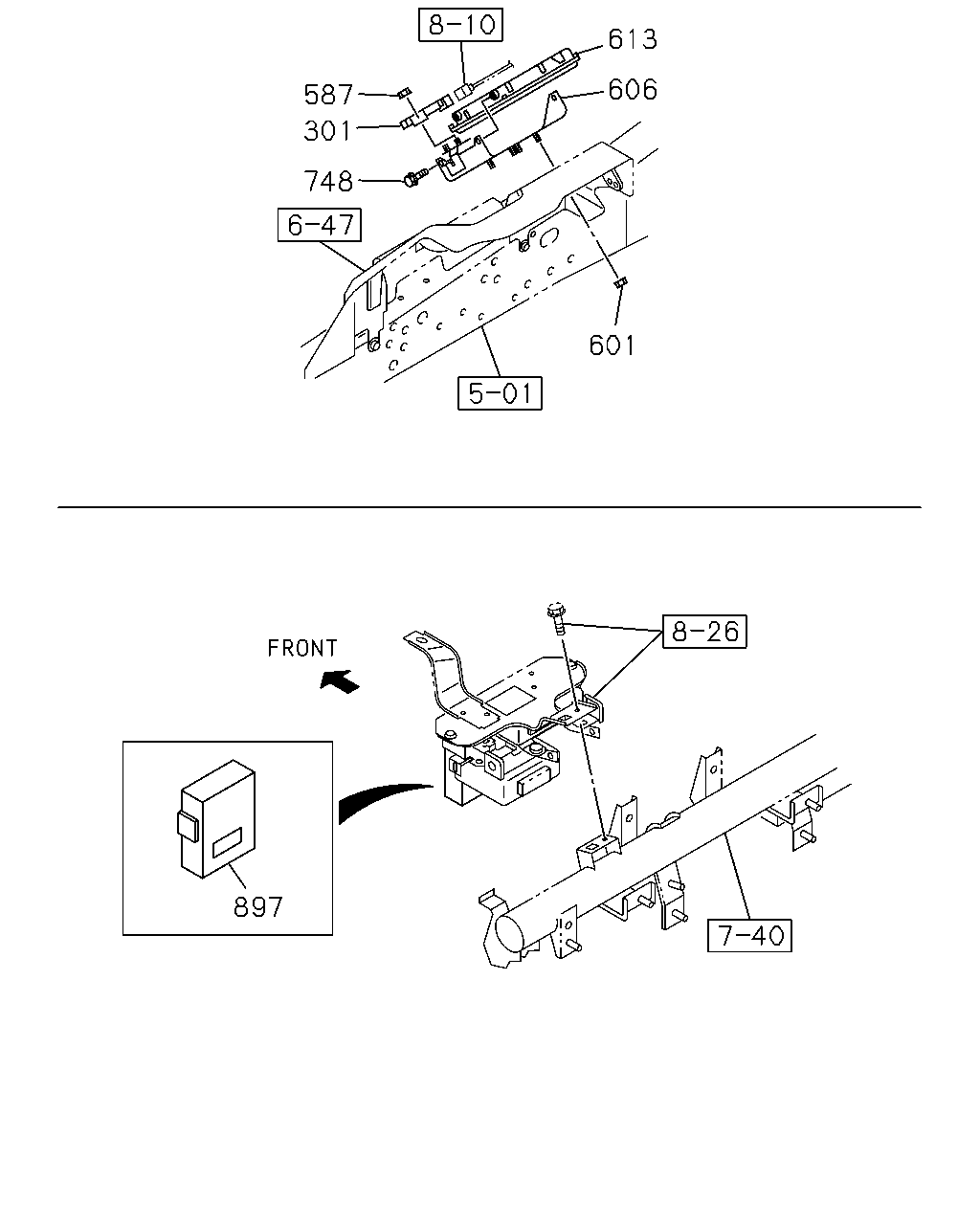

çizim 35174
613 606 587 301 748 601 897
BalonParca AdiParca NoAdetTipApplied Date A B C
301 02.510 RESISTOR; DROPPING 8-97357-613-0 01 1 0710- ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710-0710 ● ● ●
587 03.671 NUT; RESISTOR & RELAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0710- ● ● ●
601 03.670 NUT; UNIT
04.115 M6 W/DISHED WASHER 		8-98029-921-0 04 1 0710- ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0710-0906 ● ● ●
606 03.680 BRACKET; CONT UNIT 8-98004-751-1 01 1 0907- ● ● ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-060-8 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NNR SGL CAB(NP**SE) M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-053-8 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-073-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-071-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NPR SGL CAB(NP**SN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-068-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-073-8 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NNR DBL CAB(NP**WE) M/T MYY5T(RSM),M/T MYY6S(RST) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-067-8 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-296-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-293-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NPR DBL CAB(NP**WN) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-291-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98071-394-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-392-6 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NQR DBL CAB(NP**WS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98071-297-7 01 1 0710- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-086-6 01 1 0710-0805 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) IMMOBILIZER SYSTEM(7KC) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-086-6 01 1 0806-0806 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98081-086-6 01 1 0806- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-083-6 01 1 0710-0805 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-083-6 01 1 0806-0806 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-083-6 01 1 0806- ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-080-7 01 1 0710-0805 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) IMMOBILIZER SYSTEM(7KC) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-080-7 01 1 0806-0806 ●
613 03.670 CONTROL UNIT; ENG
NQR SGL CAB(NP**SS) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98081-080-7 01 1 0806- ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0710-0906 ● ● ●
748 02.500 BOLT; CONT UNIT
03.162 M6X12 FLANGE 		0-28050-612-0 03 1 0907- ● ● ●
897 02.510 DRM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98082-814-3 01 1 0710- ● ● ●

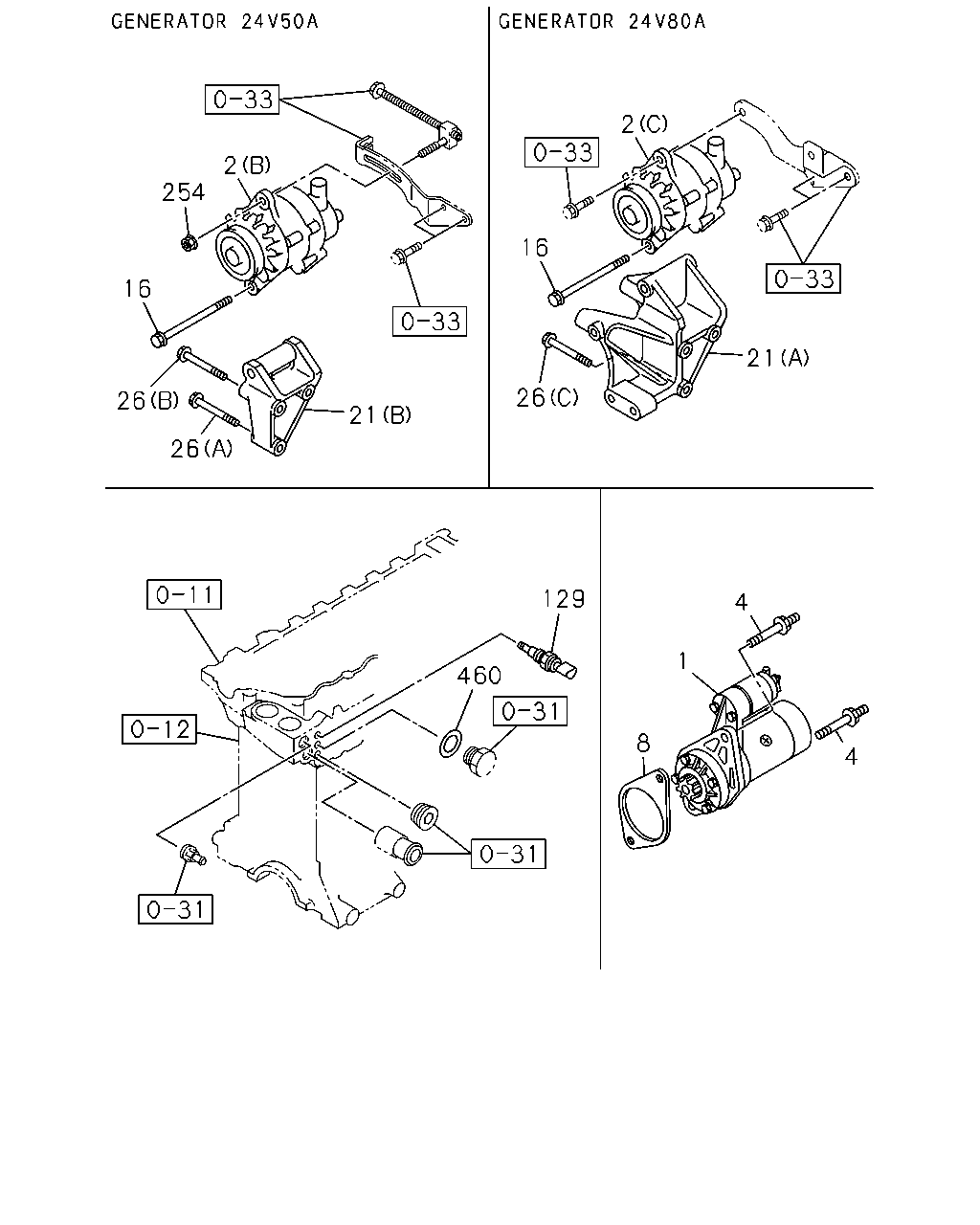

çizim 35213
2 2 254 16 16 21 26 26 21 26 129 4 1 460 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-1006 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0710-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0710-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0710- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0710- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0710- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-892-2 01 1 0710- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0710- ● ● ●
8 02.042 SPACER; STARTER
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97350-947-0 01 1 0710- ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0710- ● ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V50A(6QN) (B) 		8-97075-884-2 01 1 0710- ● ●
21 02.277 BRACKET; GEN
GENERATOR 24V80A(7YN) (A) 		8-98036-551-0 01 1 0710- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) 02.042 (A) M10X50 FLANGE 		0-28151-050-0 01 1 0710- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V50A(6QN) (B) M10X70 FLANGE 		0-28151-070-0 02 1 0710- ● ●
26 02.277 BOLT; GEN BRKT
GENERATOR 24V80A(7YN) 01.062 (C) M10X90 FLANGE 		0-28151-090-0 03 1 0710- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0710- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0710- ● ●
254 02.277 NUT; GEN BRKT
EXC. GENERATOR 24V80A(7YN) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0710- ● ●
460 02.363 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). 04.868 ID=16.2 		1-09630-086-0 01 1 0710- ● ●
çizim 35278
10 46
BalonParca AdiParca NoAdetTipApplied Date A B C
10 02.100 RELAY; STARTER
24V 50A 		8-97264-947-0 01 1 0710- ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0710-0906 ● ● ●
46 02.510 RELAY; GLOW PLUG
24V 50A 		8-97173-947-0 01 1 0907- ● ● ●

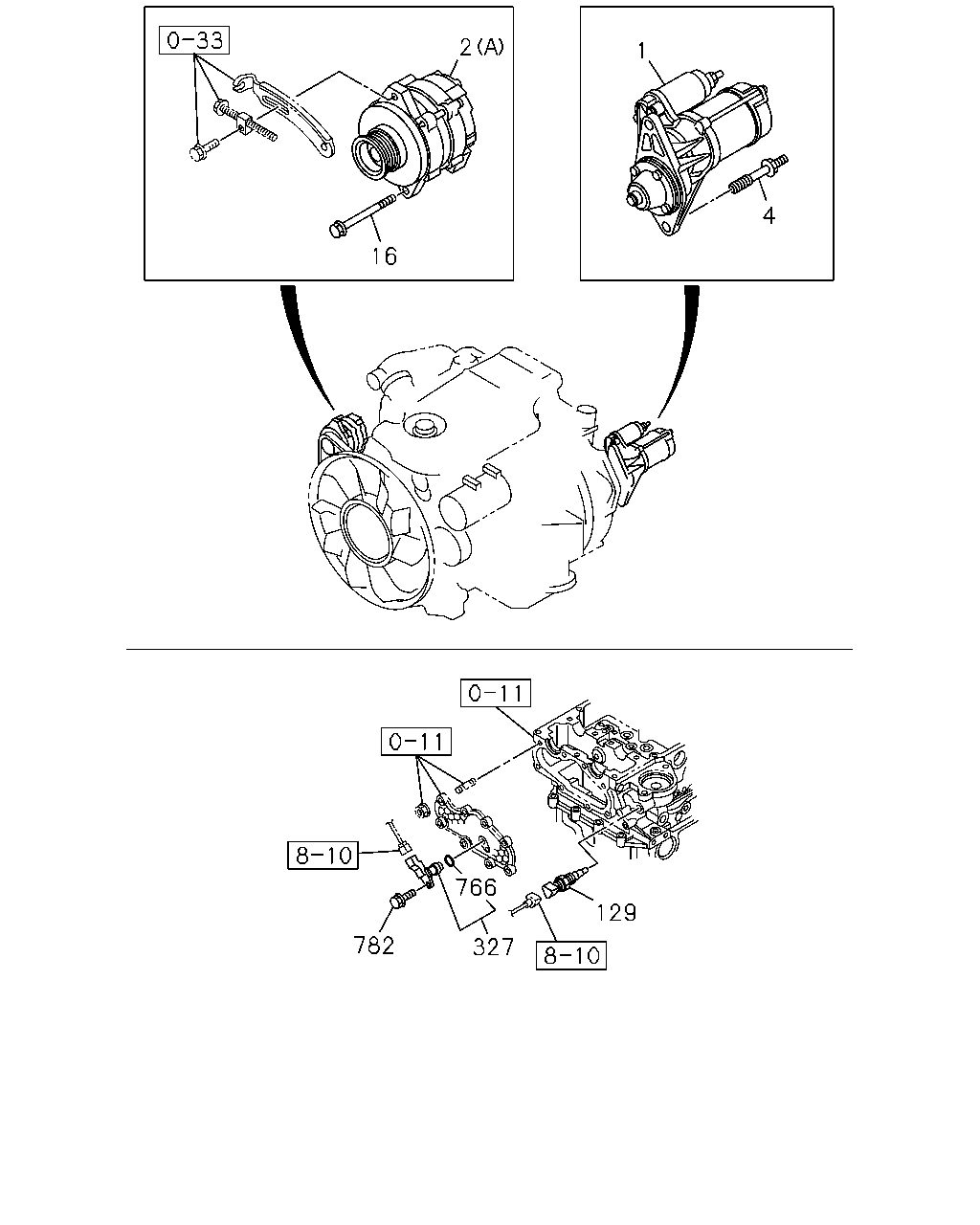

çizim 35279
2 1 4 16 766 129 782 327
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-1006 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0710-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0710-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (A) 24V 50A 		8-98029-887-2 01 1 0710- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (A) 24V 80A 		8-98029-889-2 01 1 0710- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) (B) 24V 50A 		8-98075-026-0 01 1 0710- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V80A(7YN) (C) 24V 80A 		8-98029-892-2 01 1 0710- ● ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 0710- ● ● ●
16 02.277 BOLT; GEN
M10X120 FLANGE 		0-28056-012-0 01 1 0710- ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT 		8-98023-717-0 01 1 0710- ●
129 01.150 SENSOR; GLOW PLUG,THERMO
MITSUBISHI 		8-98023-883-0 01 1 0710- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-97312-108-1 01 1 0710- ●
766 02.363 GASKET; SENSOR
00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 0710- ●
782 02.510 BOLT; SENSOR
09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0710- ●

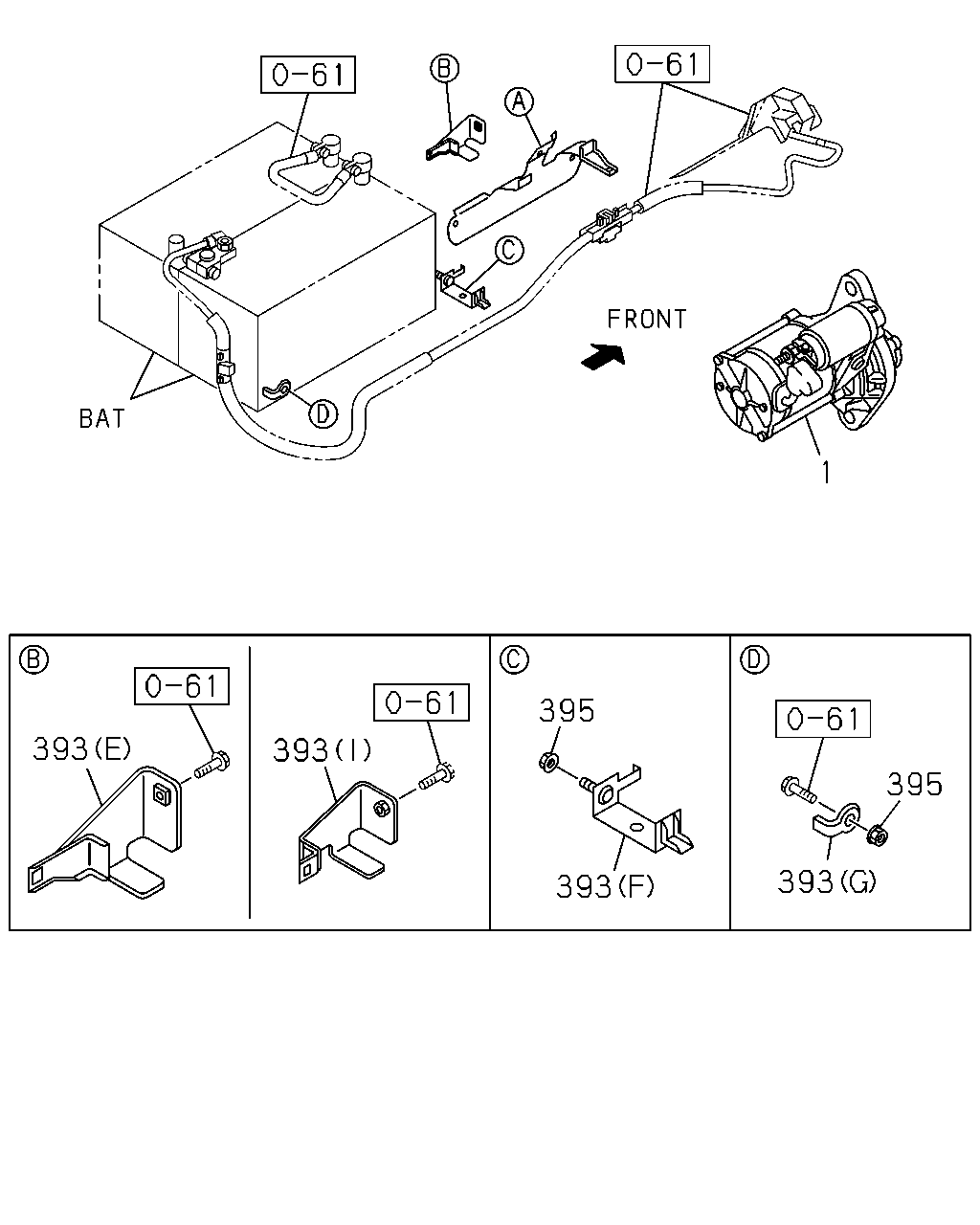

çizim 35280
1 395 393 393 395 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98054-984-0 01 1 0710-1006 ● ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 0710-1006 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-98055-279-1 01 1 1007- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.0KW HITACHI 		8-98055-279-1 01 1 1007- ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-97323-935-4 01 1 0710-1010 ● ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 4.5KW HITACHI 		8-98179-204-1 01 1 1011- ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98030-139-2 01 1 0710- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98030-138-2 01 1 0710- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0710-0903 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) (D) 		8-98041-946-1 01 1 0710-0903 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 0904- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0904- ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 0904- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●
395 02.343 NUT; BRKT FIX
WHEEL BASE 3300MM(33W) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
395 02.343 NUT; BRKT FIX
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 01.062 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
395 02.343 NUT; BRKT FIX
SGL CAB(NP**S*) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

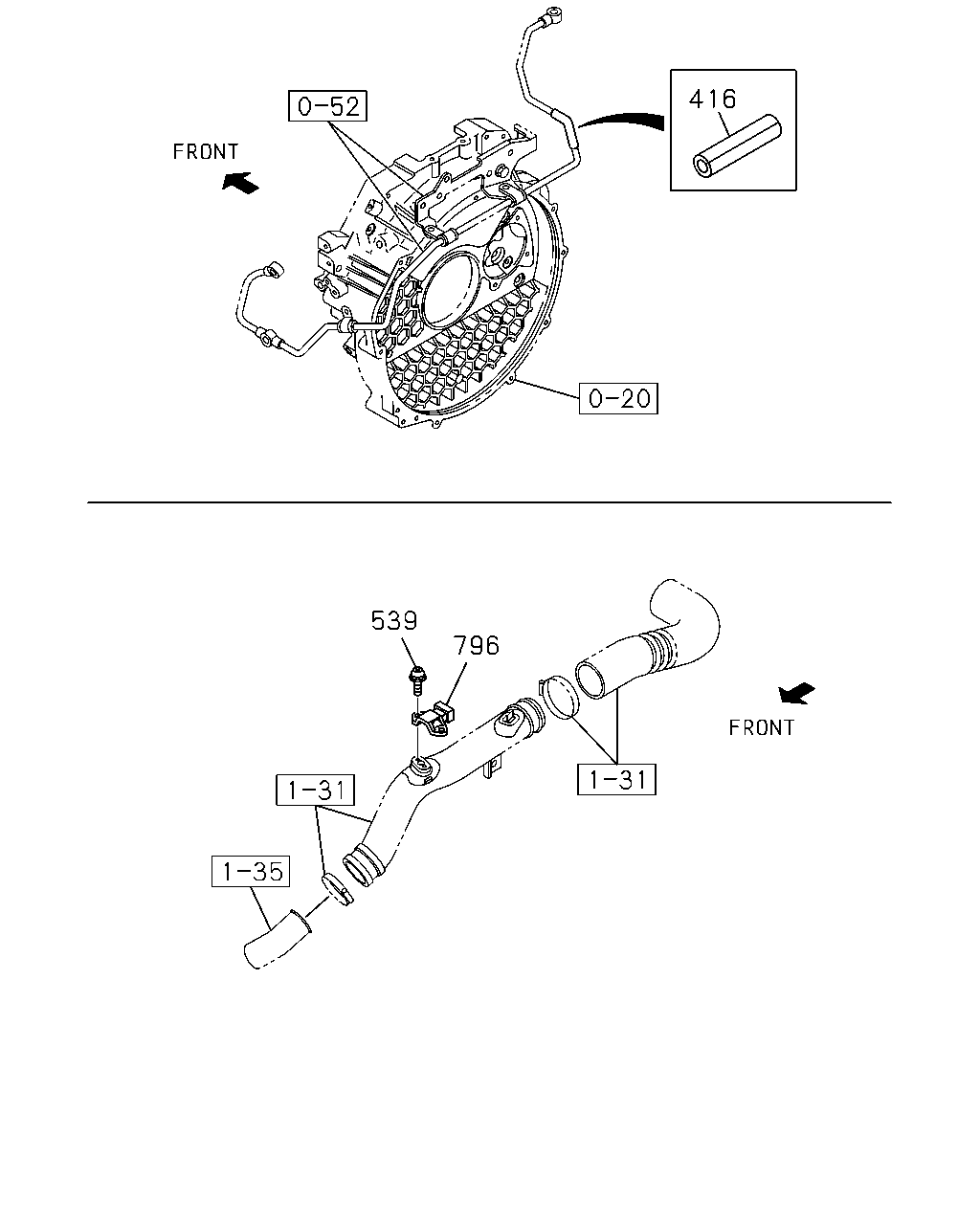

çizim 100348
416 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
416 02.530 SLEEVE; RUBBER
04.342 ID=17 OD=21 L=40 		1-09337-012-0 01 1 0710-0710 ● ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0710- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0710- ● ● ●
çizim 100349
393 393 393 393 393
BalonParca AdiParca NoAdetTipApplied Date A B C
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM(33W) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 02 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98030-139-2 01 1 0710- ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98030-138-2 01 1 0710- ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) BATTERY 115E41L<8MA> (G) 		8-98018-894-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
SGL CAB(NP**S*) EXC. BATTERY 115E41L<8MA> 02.483 (F) 		8-98018-251-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98041-947-1 01 1 0710- ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MYY5T(RSM),M/T MYY6S(RST) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) 		8-98041-946-1 01 1 0710-0903 ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) (D) 		8-98041-946-1 01 1 0710-0903 ●
393 02.343 BRACKET; HARNESS TO BODY
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (D) 		8-98041-946-1 01 1 0904- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98041-946-1 01 1 0904- ●
393 02.343 BRACKET; HARNESS TO BODY
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (H) 		8-98131-881-0 01 1 0904- ● ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-1103 ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (E) 		8-98018-903-0 01 1 0710-1103 ● ●
393 02.343 BRACKET; HARNESS TO BODY
WHEEL BASE 2700MM(27W) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ●
393 02.343 BRACKET; HARNESS TO BODY
DBL CAB(NP**W*) EXC. BATTERY 115E41L<8MA> (I) 		8-98123-872-0 01 1 1104- ● ●

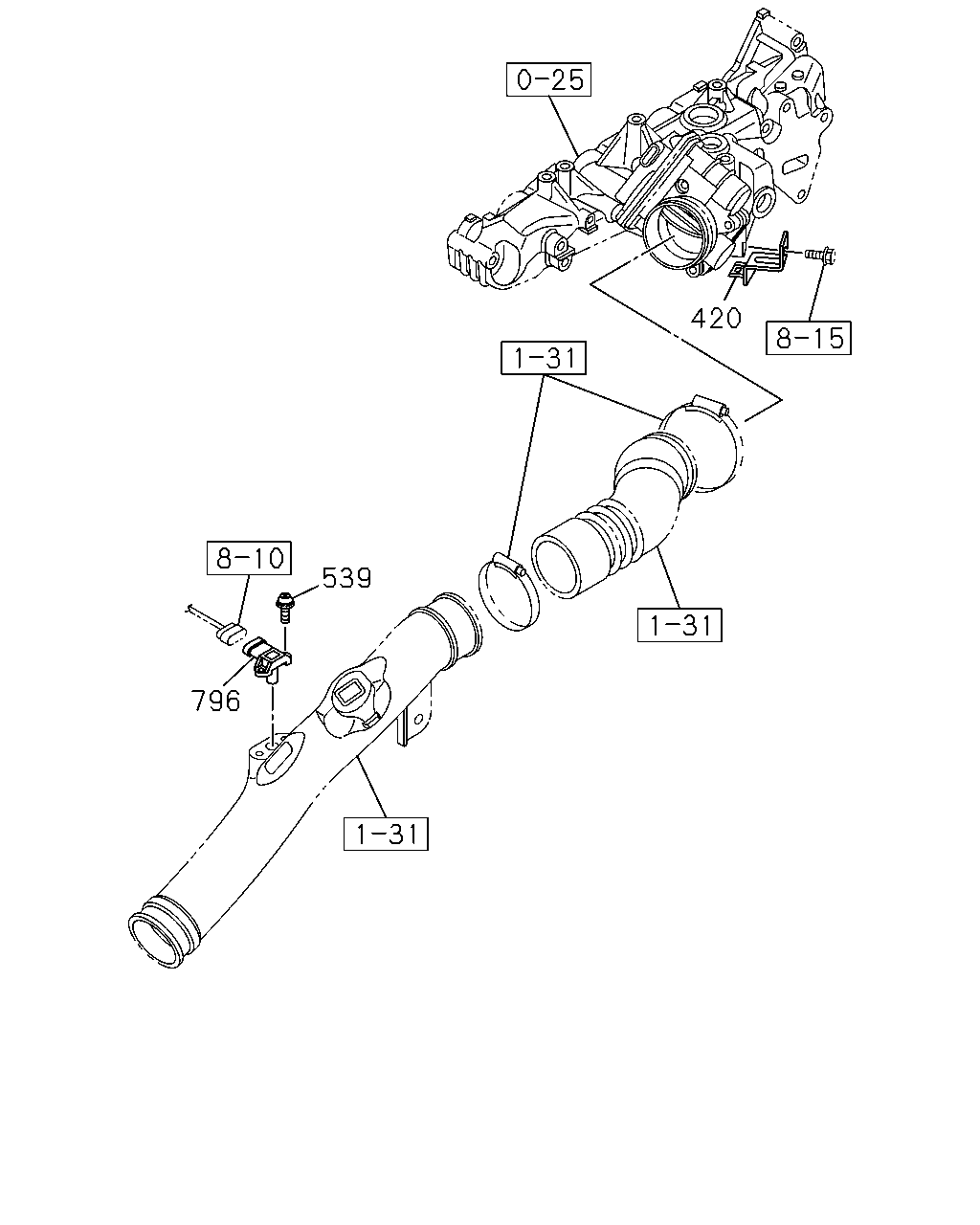

çizim 100350
420 539 796
BalonParca AdiParca NoAdetTipApplied Date A B C
420 02.183 BRACKET; HARNESS 8-98064-159-0 01 1 0710- ●
539 02.510 SCREW; SENSOR
M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0710- ● ● ●
796 01.150 SENSOR; MAP 8-98009-418-0 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
