◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51398 - NNR/NPR/NQR(AUST) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-41 - FUEL FILTER AND BRACKET ▶
0-41 — FUEL FILTER AND BRACKET (#38575) — 47 parça

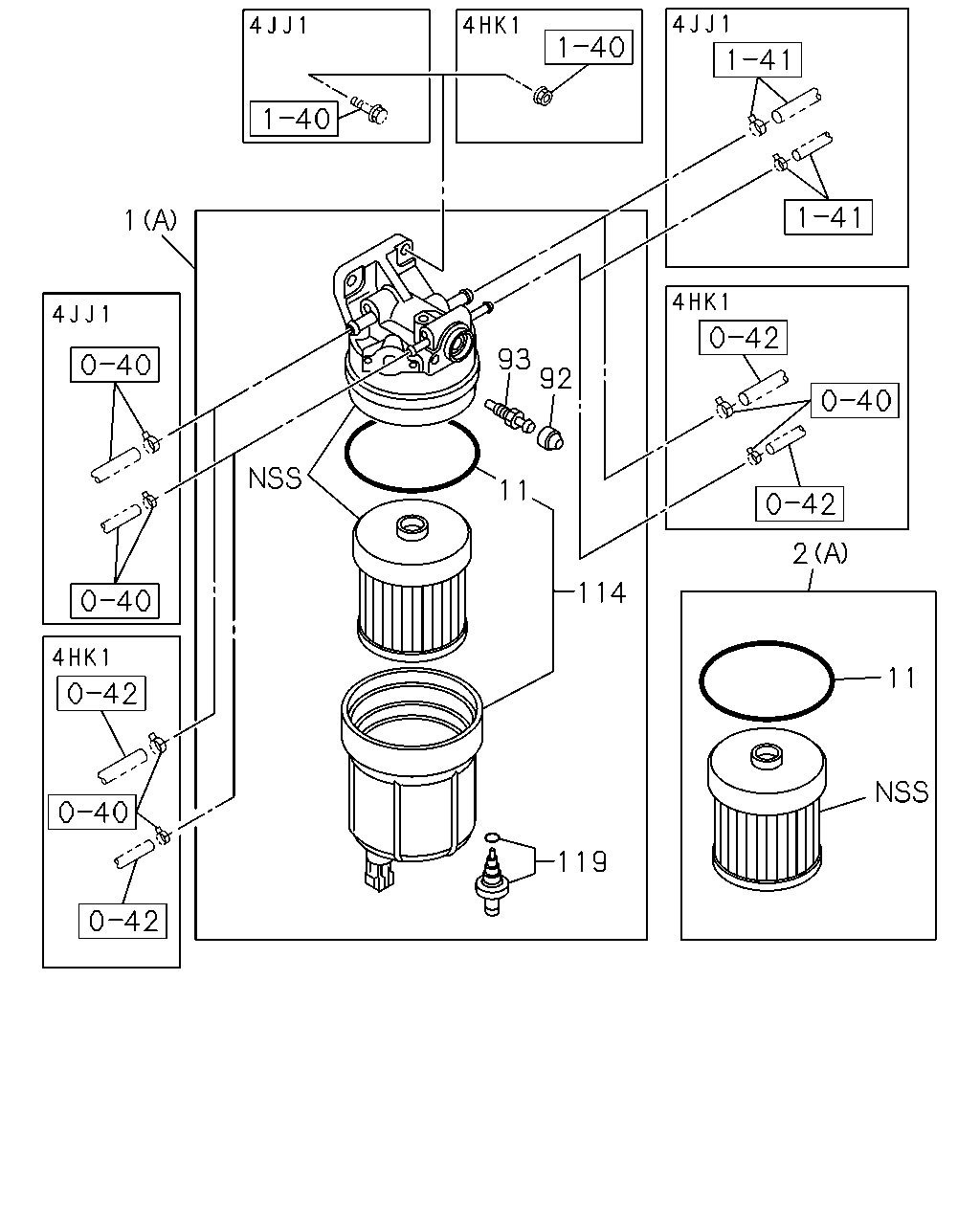

çizim 34757
1 93 92 11 2 114 11 119
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-97384-049-2 01 1 0710-0712 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-0 01 1 0710-0712 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0801-0912 ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 1001-1002 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 0911- ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-0 01 1 1001-1002 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1003- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0911- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0710-0912 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1002 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201-1201 ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98203-600-0 01 1 1201- ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 0710-1112 ● ● ●
11 03.890 GASKET; CASE TO BODY,FUEL FILTER 8-98037-015-0 01 1 1201-1201 ●
92 03.417 CAP; FUEL FILTER 8-98034-314-0 01 1 0710- ● ● ●
93 03.890 CONNECTOR; FUEL FILTER
M8X10 		8-98034-312-0 01 1 0710- ● ● ●
114 03.890 CASE ASM; FUEL FILTER 8-98039-987-1 01 1 0710- ● ● ●
119 03.890 PLUG; DRAIN,FUEL FILTER 8-98037-095-0 01 1 0710- ● ● ●

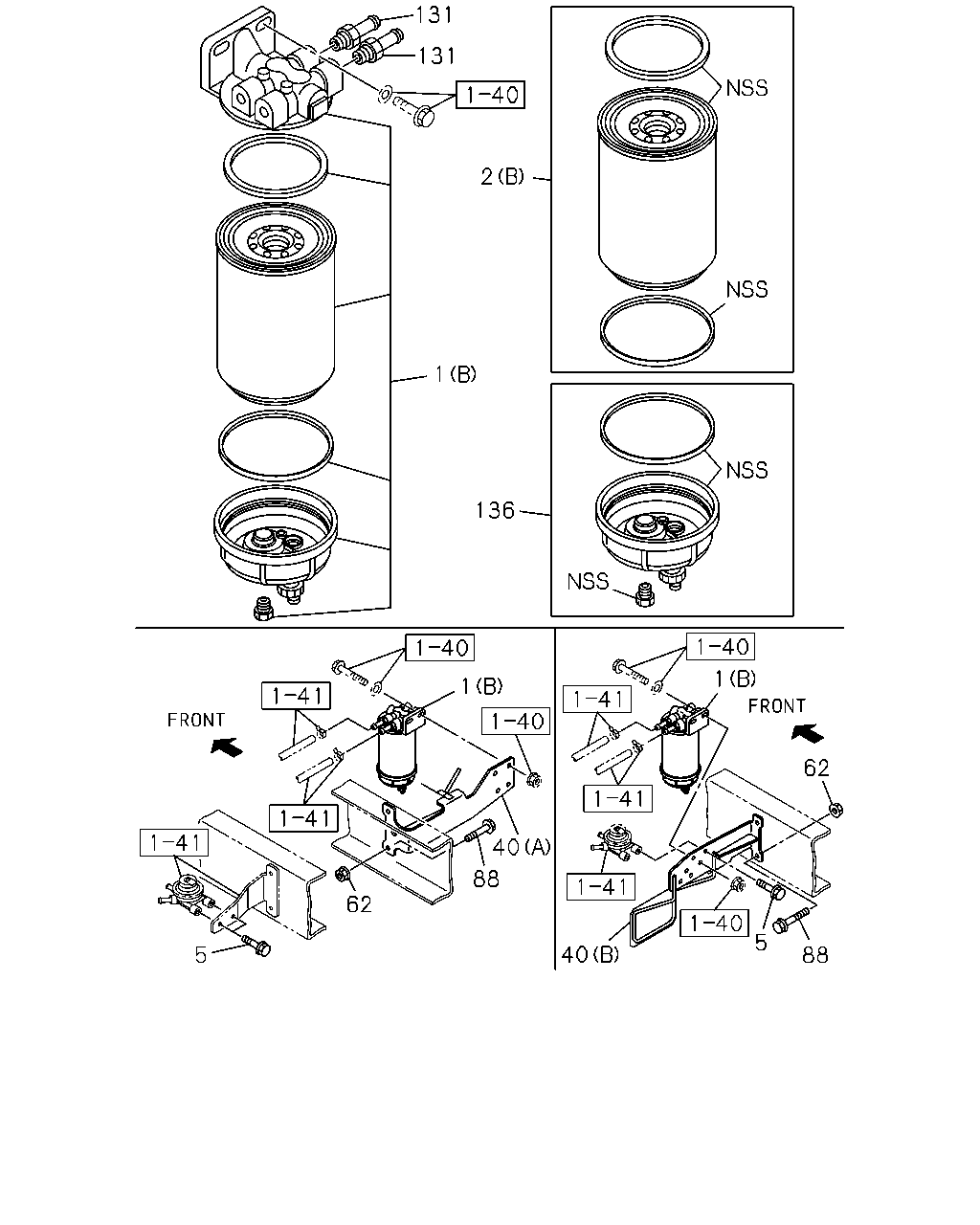

çizim 35266
131 131 2 1 136 1 1 62 40 88 62 5 40 5 88
BalonParca AdiParca NoAdetTipApplied Date A B C
1 03.890 FILTER ASM; FUEL
(A) 		8-97384-049-2 01 1 0710-0712 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-0 01 1 0710-0712 ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 0801-0912 ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98060-050-1 01 1 1001-1002 ●
1 03.890 FILTER ASM; FUEL
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-980-0 01 1 0911- ● ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-0 01 1 1001-1002 ● ●
1 03.890 FILTER ASM; FUEL
(A) 		8-98162-903-2 01 1 1003- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201-1201 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98203-599-0 01 1 1201- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98095-983-0 01 1 0911- ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 0710-0912 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98037-011-0 01 1 1001-1002 ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1001-1002 ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1003-1112 ● ● ●
2 03.890 ELEMENT KIT; FUEL FILTER
(A) 		8-98162-897-0 01 1 1201-1201 ●
5 03.890 BOLT; FUEL FILTER
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0710-0804 ● ● ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 2700MM(27W) POOR QUALITY DIESEL FUEL(KF0) (A) 		8-98121-708-0 01 1 0911- ●
40 03.890 BRACKET; FUEL FILTER
WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) (B) 		8-98107-354-3 01 1 0911- ●
40 03.890 BRACKET; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) FRAME STRAIGHT TYPE<7KJ> (B) 		8-98107-354-3 01 1 0911- ● ●
62 03.895 NUT; FUEL FILTER
WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) POOR QUALITY DIESEL FUEL(KF0) 03.162 M10 FLANGE 		0-91180-110-0 02 1 0911- ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0911-1009 ● ● ●
88 03.895 BOLT; BRKT,FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 00.029 M10X30 FLANGE 		0-28651-030-0 02 1 1010- ● ● ●
131 03.890 PIPE; FILTER
POOR QUALITY DIESEL FUEL(KF0) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0911- ● ● ●
136 03.890 CAP KIT; FUEL FILTER
POOR QUALITY DIESEL FUEL(KF0) 		8-98096-004-0 01 1 0911- ● ● ●
