Isuzu WW
▶
TRUCKS
▶
NNR
▶
51398 - NNR/NPR/NQR(AUST)
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#38566) — 24 parça
Tümü

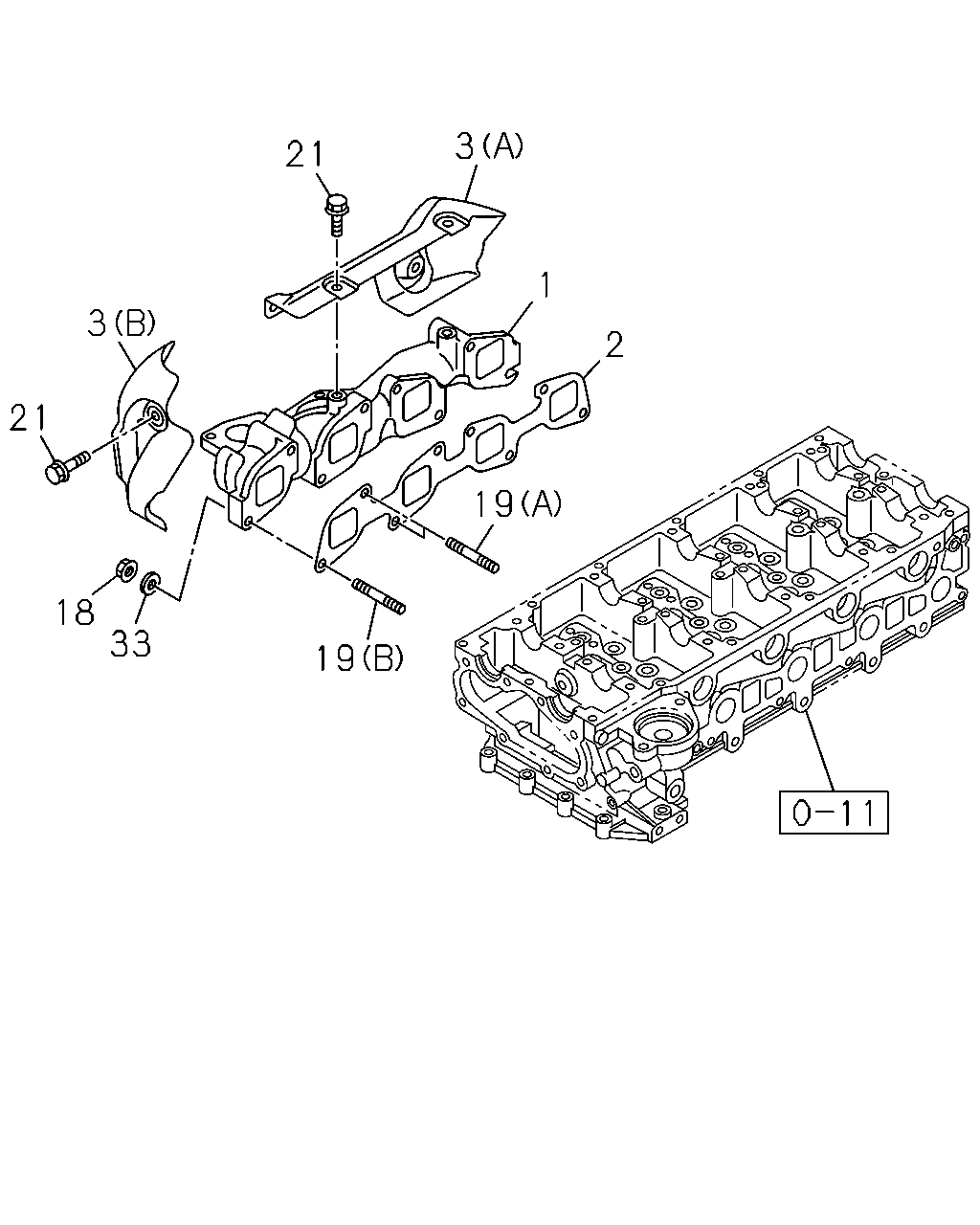

A - 4JJ1-TCS ENG

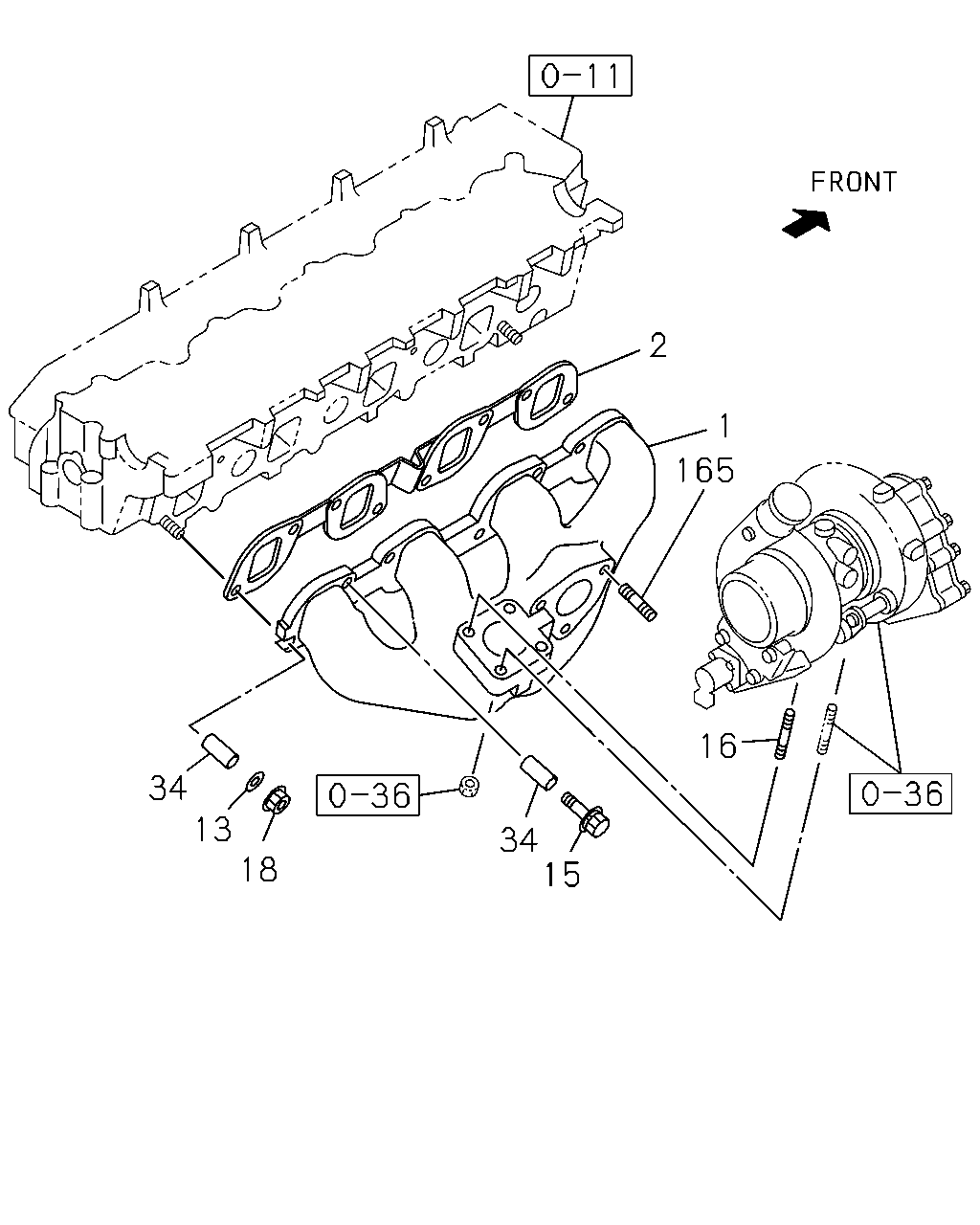

B - 4HK1-TCN ENG
C - 4HK1-TCS ENG
◀
[027A] 4JJ1 (12 parça)
[027A] 4HK1 (12 parça)
▶
3
21
1
3
2
21
19
18
33
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0710-
●
1
03.601 MANIFOLD; EXHAUST
8-97387-873-4
01
1
0710-
●
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0710-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0710-
●
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(A)
8-97381-503-4
01
1
0710-
●
3
03.602 PROTECTOR; HEAT,EXH MANIF
(B)
8-98011-523-0
01
1
0710-
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0710-
●
18
03.604 NUT; EXH MANIF
00.833 M10
0-91110-510-0
02
1
0710-
●
●
19
03.604 STUD; MANIF TO CYL HD
03.275 (B) M10X33 L=48
8-97307-075-2
04
1
0710-
●
19
03.604 STUD; MANIF TO CYL HD
(A) M10X70 L=83
8-98048-446-0
04
1
0710-
●
21
03.604 BOLT; HEAT PROTECTOR
02.343 M8X12 FLANGE
0-28050-812-0
07
1
0710-
●
33
03.604 WASHER; EXH MANIF
03.613 ID=10.5
5-09500-013-0
08
1
0710-
●
2
1
165
16
34
13
18
34
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
03.601 MANIFOLD; EXHAUST
8-98033-941-1
01
1
0710-
●
1
03.601 MANIFOLD; EXHAUST
8-97387-873-4
01
1
0710-
●
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97356-028-2
01
1
0710-
●
2
03.270 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97146-499-2
01
1
0710-
●
●
13
03.613 WASHER; LK,EXH MANIF
03.604 T=2.2
1-09556-015-0
02
1
0710-
●
●
15
03.604 BOLT; EXH MANIF
M10X60
8-97061-543-0
06
1
0710-
●
●
16
03.604 STUD; EXH PIPE TO MANIF
08.981 M10X25 L=40
9-04731-025-0
02
1
0710-0805
●
●
16
03.604 STUD; EXH PIPE TO MANIF
03.342 M10X30 L=45
1-09302-106-0
02
1
0806-
●
●
18
03.604 NUT; EXH MANIF
M10 FLANGE
8-97381-617-0
08
1
0710-
●
18
03.604 NUT; EXH MANIF
00.833 M10
0-91110-510-0
02
1
0710-
●
●
34
03.603 COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
08
1
0710-
●
●
165
03.417 STUD; EGR PIPE
03.342 M8X25 L=36
8-94476-282-0
03
1
0710-
●
●
