0-13 — OIL PAN AND LEVEL GAUGE (#38560) — 64 parça

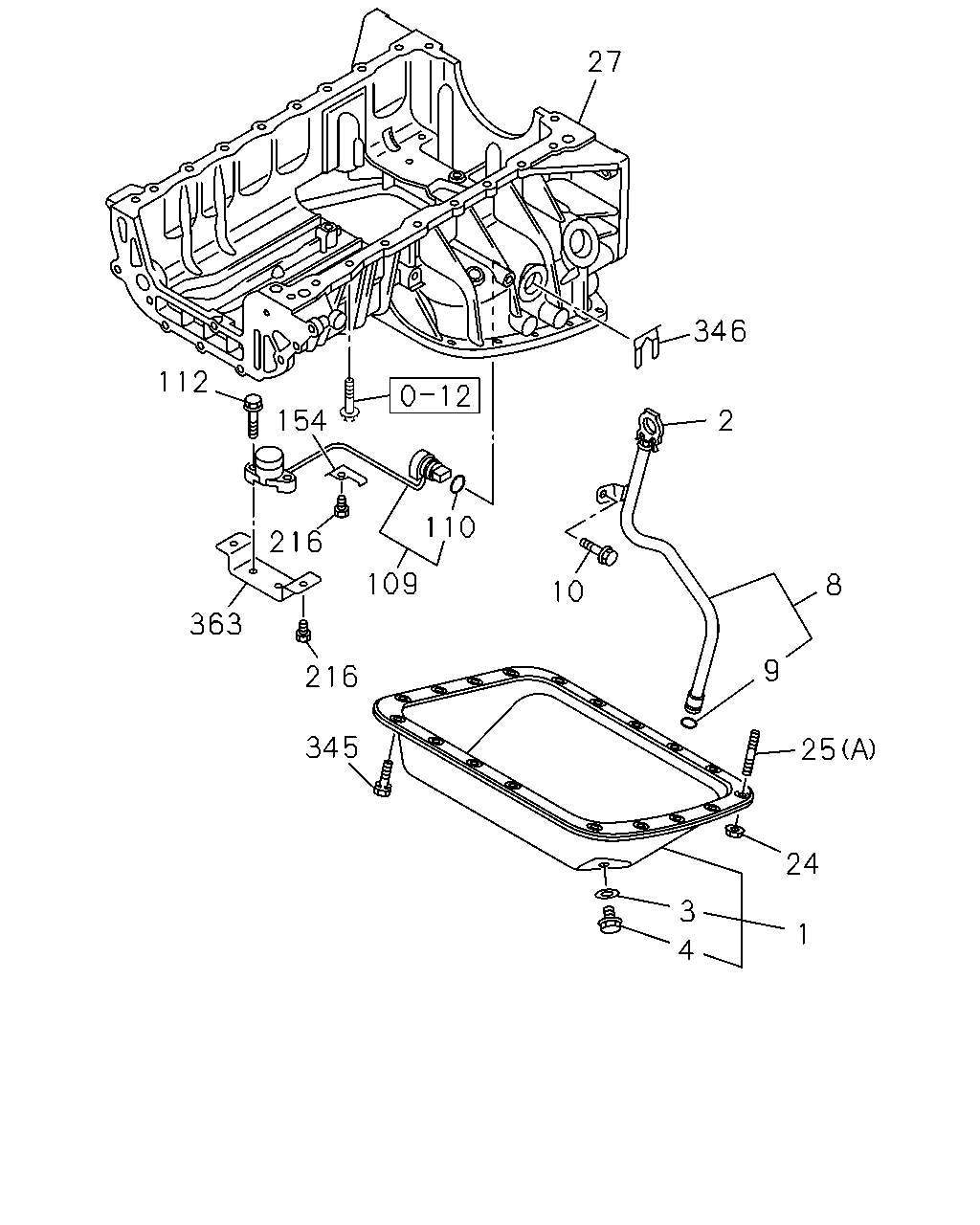

çizim 35137
27 346 112 154 2 110 216 109 8 10 363 9 216 345 25 24 3 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.426 PAN ASM; OIL 8-97383-067-3 01 1 0710- ●
1 01.426 PAN ASM; OIL 8-97386-772-0 01 1 0710- ● ●
2 01.516 GAUGE; OIL LEVEL 8-98058-659-0 01 1 0710-0801 ●
2 01.516 GAUGE; OIL LEVEL 8-98112-777-1 01 1 0802- ●
2 01.516 GAUGE; OIL LEVEL 8-98034-388-0 01 1 0710-1011 ● ●
2 01.516 GAUGE; OIL LEVEL 8-98183-141-0 01 1 1012- ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0710- ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0710-0806 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0710-0806 ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0807- ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97381-490-3 01 1 0710- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 0710- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0710- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0710- ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0710- ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0710- ● ●
25 01.453 STUD; OIL PAN
(A) M8X16 L=28 		0-41010-816-0 02 1 0710- ●
25 01.453 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0710- ● ●
25 01.453 STUD; OIL PAN
01.428 (C) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0710- ● ●
27 01.426 CRANKCASE 8-97381-483-7 01 1 0710- ●
109 01.516 SWITCH; OIL LEVEL 8-97328-879-0 01 1 0710- ●
109 01.516 SWITCH; OIL LEVEL 8-97328-993-1 01 1 0710- ● ●
110 01.456 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0710- ● ● ●
112 01.516 BOLT; SW,OIL LEVEL
03.680 M6X30 FLANGE 		0-28650-630-0 02 1 0710- ●
154 01.428 BRACKET; CLIP,ENG HARNESS 8-97386-380-0 01 1 0710- ●
216 01.429 BOLT; BRKT
02.343 M8X12 FLANGE 		0-28050-812-0 03 1 0710- ●
345 01.516 BOLT; SENSOR,OIL LEVEL
02.343 M8X12 FLANGE 		0-28050-812-0 17 1 0710- ●
346 01.516 CLIP; OIL LEVEL SW
04.047 ID=19.2 		8-97211-011-0 01 1 0710- ●
363 01.516 BRACKET; OIL LEVEL SW 8-97381-486-0 01 1 0710- ●

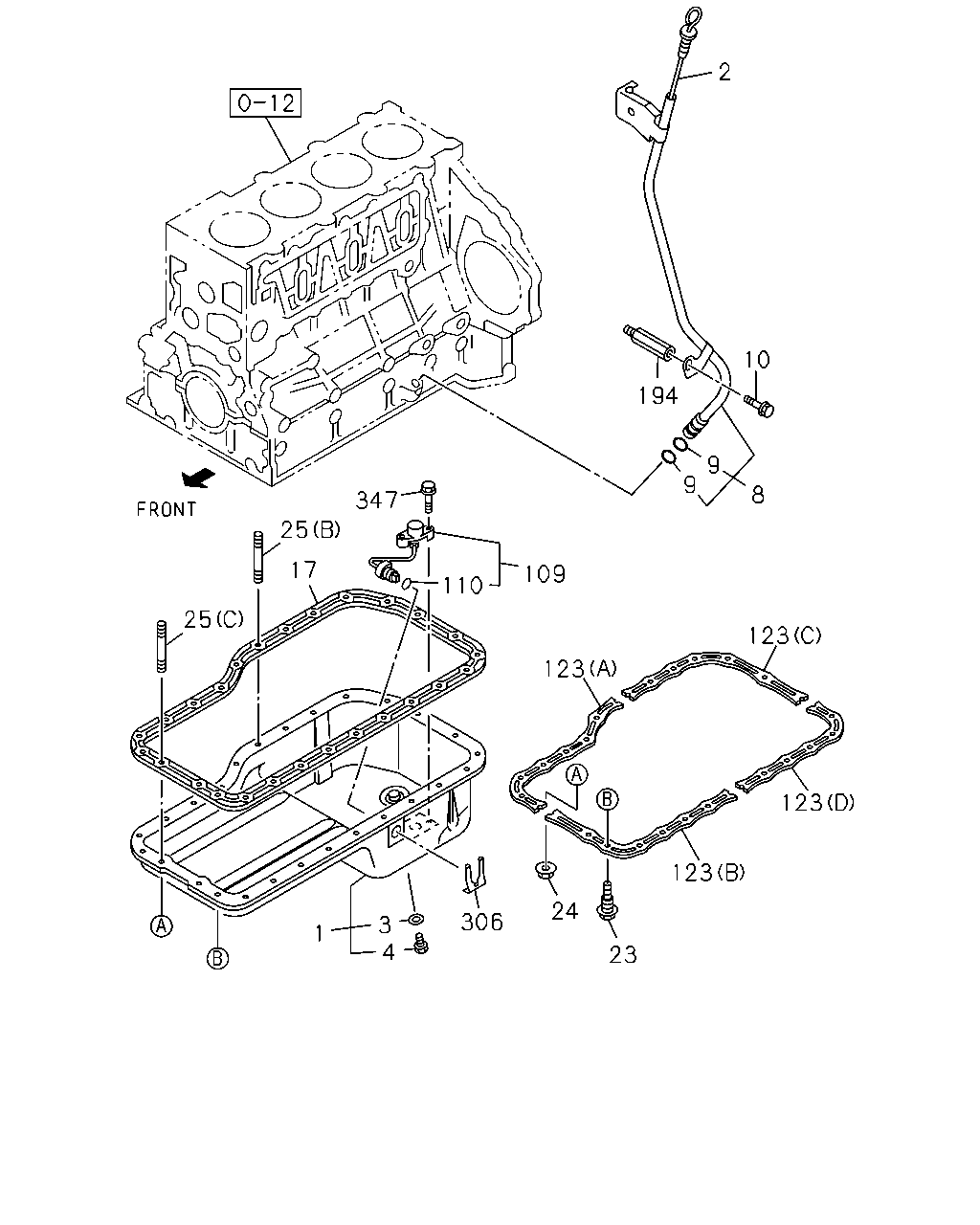

çizim 35232
2 10 194 9 9 8 347 25 17 109 110 2 123 123 123 123 24 306 3 4 1 23
BalonParca AdiParca NoAdetTipApplied Date A B C
1 01.426 PAN ASM; OIL 8-97383-067-3 01 1 0710- ●
1 01.426 PAN ASM; OIL 8-97386-772-0 01 1 0710- ● ●
2 01.516 GAUGE; OIL LEVEL 8-98058-659-0 01 1 0710-0801 ●
2 01.516 GAUGE; OIL LEVEL 8-98112-777-1 01 1 0802- ●
2 01.516 GAUGE; OIL LEVEL 8-98034-388-0 01 1 0710-1011 ● ●
2 01.516 GAUGE; OIL LEVEL 8-98183-141-0 01 1 1012- ● ●
3 01.456 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0710- ● ● ●
4 01.453 PLUG; DRAIN,OIL
M14X14 		8-97329-621-0 01 1 0710-0806 ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0710-0806 ● ●
4 01.453 PLUG; DRAIN,OIL
03.001 M14X14 		8-94152-613-0 01 1 0807- ● ● ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-97381-490-3 01 1 0710- ●
8 01.516 TUBE; GUIDE,OIL LEVEL GAUGE 8-98039-161-0 01 1 0710- ● ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 01 1 0710- ●
9 01.516 GASKET; GUIDE TUBE,OIL LEVEL GAU
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0710- ● ●
10 01.516 BOLT; GUIDE TUBE
02.343 M8X12 FLANGE 		0-28050-812-0 01 1 0710- ●
10 01.516 BOLT; GUIDE TUBE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
17 01.429 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0710- ● ●
23 01.428 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0710- ● ●
24 01.453 NUT; OIL PAN
01.540 M8 FLANGE 		0-91180-208-0 02 1 0710- ●
24 01.453 NUT; OIL PAN
01.062 M8 FLANGE 		0-91180-108-0 13 1 0710- ● ●
25 01.453 STUD; OIL PAN
(A) M8X16 L=28 		0-41010-816-0 02 1 0710- ●
25 01.453 STUD; OIL PAN
(B) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0710- ● ●
25 01.453 STUD; OIL PAN
01.428 (C) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0710- ● ●
109 01.516 SWITCH; OIL LEVEL 8-97328-879-0 01 1 0710- ●
109 01.516 SWITCH; OIL LEVEL 8-97328-993-1 01 1 0710- ● ●
110 01.456 GASKET; SW,OIL LEVEL 8-98048-191-0 01 1 0710- ● ● ●
123 01.516 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0710- ● ●
123 01.516 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0710- ● ●
123 01.516 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0710- ● ●
123 01.516 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0710- ● ●
194 01.429 SPACER; GUIDE TUBE 8-97101-215-0 01 1 0710- ● ●
306 01.516 CLIP; CONNECTOR 8-97229-219-0 01 1 0710- ● ●
347 01.516 BOLT; OIL LEVEL SW
00.685 M6X25 FLANGE 		0-28650-625-0 02 1 0710- ● ●
