9-01 — TOOLS (#38554) — 60 parça

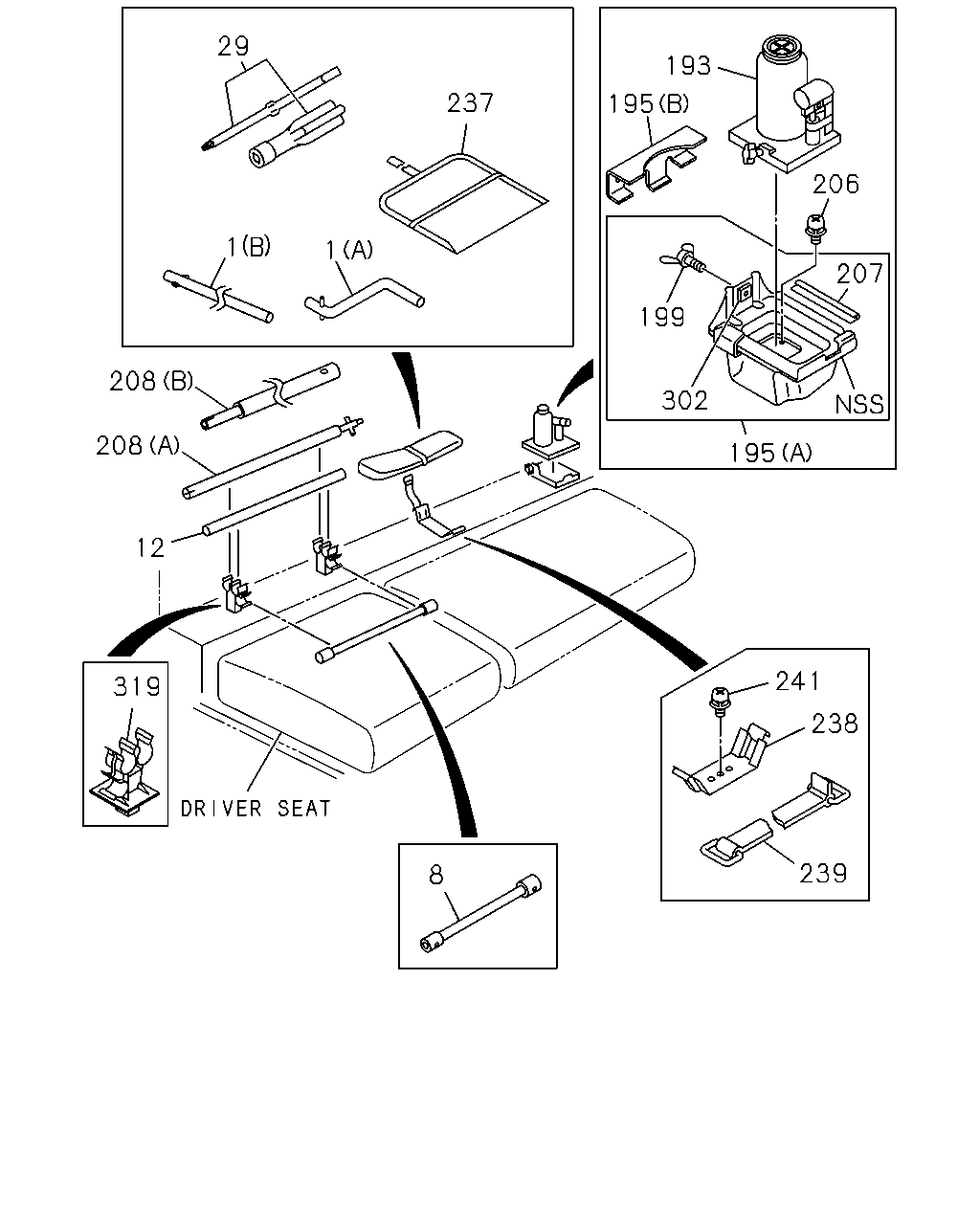

çizim 34601
29 193 237 195 206 1 1 207 199 208 302 208 195 12 241 319 238 239 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 07.629 HANDLE; SPARE TIRE CARRIER
(A) 		8-97218-985-0 01 1 0211- ●
1 07.629 HANDLE; SPARE TIRE CARRIER
08.821 (B) L=280 		1-85515-007-0 01 1 0211-1108 ● ● ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER
(B) L=280 		8-98181-251-0 01 1 1109- ● ● ● ●
8 08.821 WRENCH; WHEEL
B=41X19 L=330 		8-94386-490-1 01 1 0211- ●
8 08.821 WRENCH; WHEEL
G.V.W. 4.0-4.5TON(RPR) B=41X19 L=330 		8-94386-490-1 01 1 0211- ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440 		1-85113-015-1 01 1 0211-0501 ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0211-0501 ● ● ●
8 08.821 WRENCH; WHEEL
G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) B=41X21 L=440 		1-85113-015-1 01 1 0502- ●
8 08.821 WRENCH; WHEEL
B=41X21 L=440 		1-85113-015-1 01 1 0502- ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0211-1001 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002- ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0211- ● ● ● ● ●
193 08.820 JACK ASM
FRT&RR 225/70R19.5 19.5X6.00-127(CRR) 5TON 		8-94438-021-2 01 1 0502- ●
193 08.820 JACK ASM
5TON 		8-94438-021-2 01 1 0502- ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0211-0501 ● ● ● ●
193 08.820 JACK ASM
FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-1 27(AUS),FRT&RR TIRE 195-85R16 DISC 16-5.5J-116.5(CPG),FRT&RR TIRE 205-75R17. 5 DISC 17.5X6.00-127(CPH) 4TON 		8-94438-019-2 01 1 0211-0501 ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0502-0508 ● ● ●
193 08.820 JACK ASM
FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00-127(CPH) 4TON 		8-94438-019-2 01 1 0502-0508 ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0509-0701 ● ● ●
193 08.820 JACK ASM
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM) 4TON 		8-94438-019-2 01 1 0509-0701 ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0702-0910 ● ● ●
193 08.820 JACK ASM
FRT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV) 4TON 		8-94438-019-2 01 1 0702-0910 ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0911- ● ● ●
193 08.820 JACK ASM
F&R TIRE 205/75R17.5(MICHELIN)17.5X6.0 0-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS) 4TON 		8-94438-019-2 01 1 0911- ●
195 08.820 BRACKET; JACK
(B) 		8-97866-907-1 01 1 0211- ● ● ● ●
195 08.820 BRACKET; JACK
(A) 		8-97867-267-3 01 1 0211- ● ● ● ●
195 08.820 BRACKET; JACK
(A) 		8-94273-769-5 01 1 0211- ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0211- ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ● ●
207 08.820 PROTECTOR; JACK 8-97866-908-2 01 1 0211- ● ● ● ●
208 08.820 HANDLE; JACK
(B) L=580 		1-85515-005-1 01 1 0211-1108 ● ● ● ●
208 08.820 HANDLE; JACK
(B) L=580 		8-98181-249-0 01 1 1109- ● ● ● ●
208 08.820 HANDLE; JACK
(A) L=642 		8-97217-800-0 01 1 0211-1108 ●
208 08.820 HANDLE; JACK
(A) L=642 		8-98181-477-0 01 1 1109- ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0211- ● ● ● ● ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0211- ● ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0211- ● ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0211- ● ● ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0211- ● ● ● ● ●

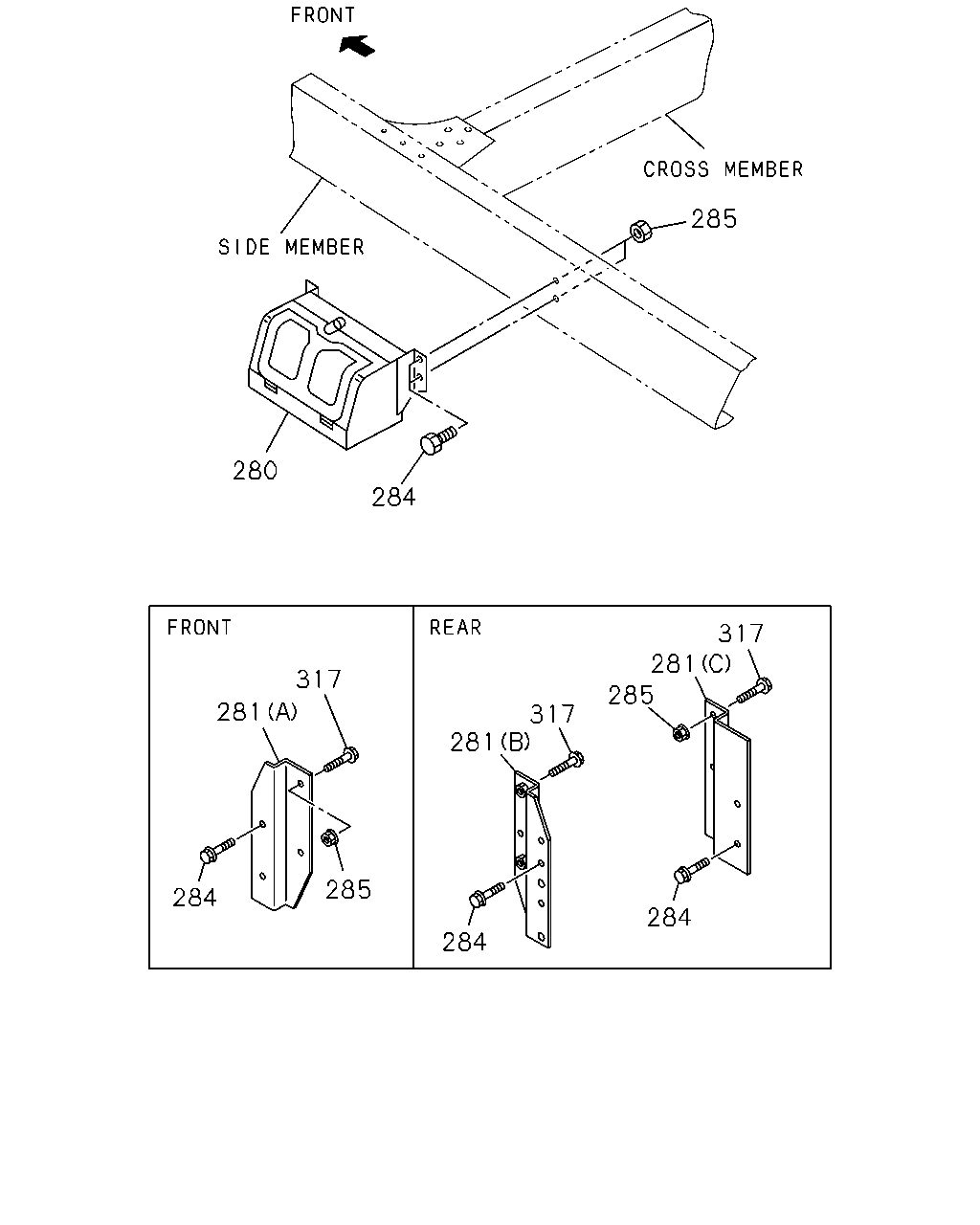

çizim 35045
285 280 284 317 281 285 317 281 317 281 285 284 284 284
BalonParca AdiParca NoAdetTipApplied Date A B C D E
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0211-0505 ● ● ● ● ●
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0506-0506 ● ● ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (C) 		8-97254-546-0 01 1 0211-0501 ● ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (B) 		8-97095-539-0 01 1 0211-0501 ●
281 08.821 BRACKET; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> (A) 		8-97248-971-0 01 1 0502-0505 ●
281 08.821 BRACKET; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> (A) 		8-97209-719-0 01 1 0211-0501 ●
281 08.821 BRACKET; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> (A) 		8-97209-719-0 01 1 0502-0505 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 03 1 0502-0506 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ● ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0502-0505 ● ● ● ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0506-0506 ● ● ●
285 08.821 NUT; TOOL BOX
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0502-0505 ●
285 08.821 NUT; TOOL BOX
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 04 1 0211-0501 ●
285 08.821 NUT; TOOL BOX
EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0502-0506 ●
285 08.821 NUT; TOOL BOX
07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ●
285 08.821 NUT; TOOL BOX
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ●
317 08.821 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ●
317 08.821 BOLT; BRKT TO FRAME
4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> 02.183 M8X35 FLANGE 		0-28680-835-0 03 1 0502-0505 ●
