◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#38553) — 40 parça

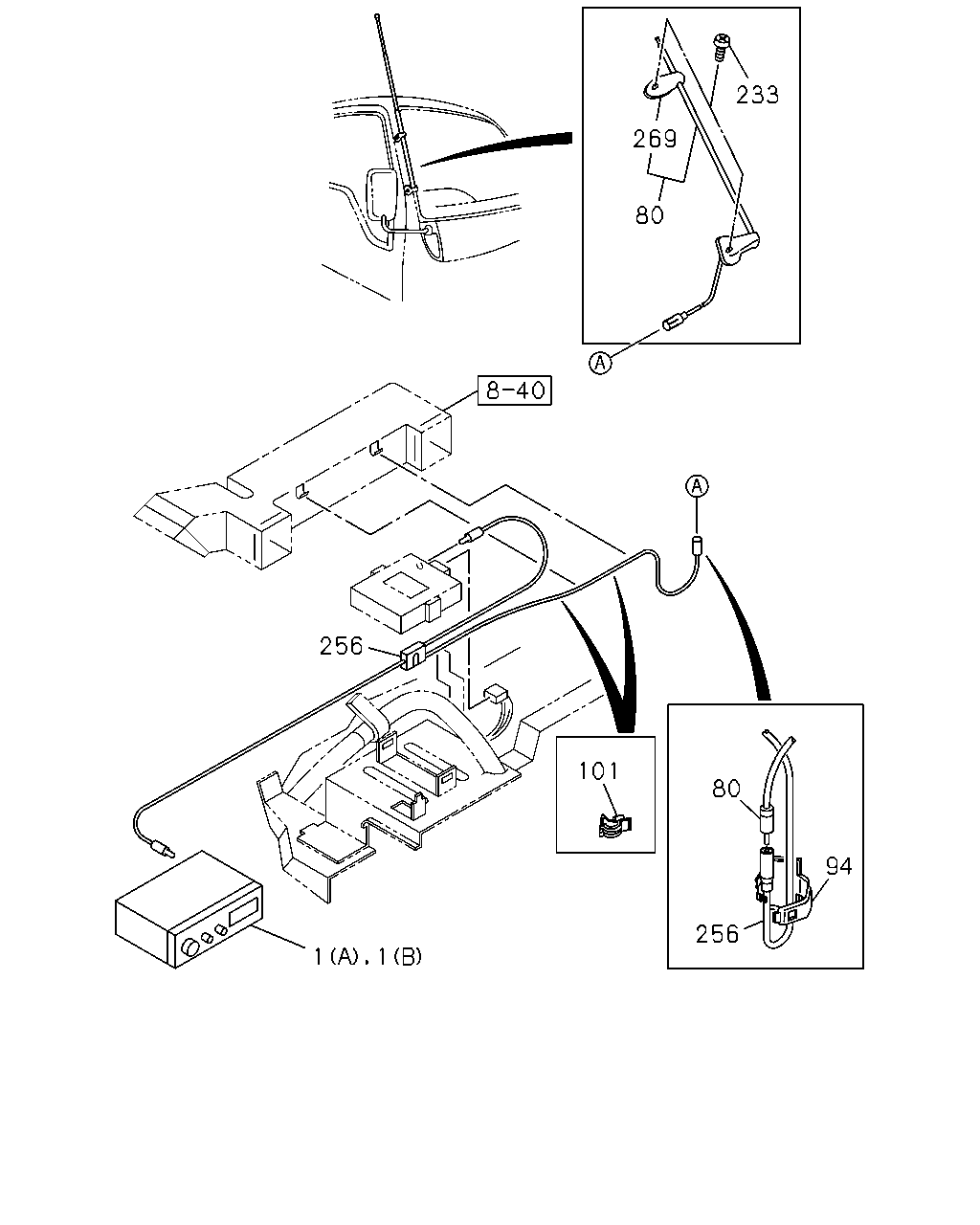

çizim 34545
233 269 80 256 101 80 94 256 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> (A) CLARION AM/FM 		8-97241-542-0 01 1 0211-0501 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) CLARION AM/FM 		8-97376-745-0 01 1 0502-1201 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) CLARION AM/FM 		8-98029-605-0 01 1 1202- ● ● ● ● ●
80 09.645 ANTENNA 8-97210-546-0 01 1 0211-0405 ● ● ● ● ●
80 09.645 ANTENNA 8-97211-564-0 01 1 0406- ● ● ● ● ●
94 09.656 CLIP; ANTENNA FEEDER 1-09987-155-3 01 1 0211- ● ● ● ● ●
101 09.649 CLIP; FEEDER TO BRKT
04.342 ID=7 		5-09707-053-0 02 1 0211- ● ● ● ● ●
233 09.647 SCREW
M6X20 		8-97120-686-0 01 1 0211- ● ● ● ● ●
233 09.647 SCREW
M6X16 		8-97123-696-0 01 1 0211- ● ● ● ● ●
256 09.647 DISTRIBUTOR UNIT; FEEDER 8-97256-812-0 01 1 0211- ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA 8-97108-183-0 01 1 0211-0405 ● ● ● ● ●
269 09.647 SUPPORT KIT; ANTENNA 8-97219-079-0 01 1 0406- ● ● ● ● ●
çizim 34602
268 1 268 1 34
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> (A) CLARION AM/FM 		8-97241-542-0 01 1 0211-0501 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) CLARION AM/FM 		8-97376-745-0 01 1 0502-1201 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) CLARION AM/FM 		8-98029-605-0 01 1 1202- ● ● ● ● ●
34 09.650 COVER; RADIO HOLE
EXC. RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97856-203-3 01 1 0211- ● ● ● ● ●
268 09.649 KNOB; VOL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> CLARION 		8-97093-559-0 01 1 0211-0501 ● ● ● ● ●
268 09.649 KNOB; VOL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) CLARION 		8-97375-820-0 01 1 0502- ● ● ● ● ●

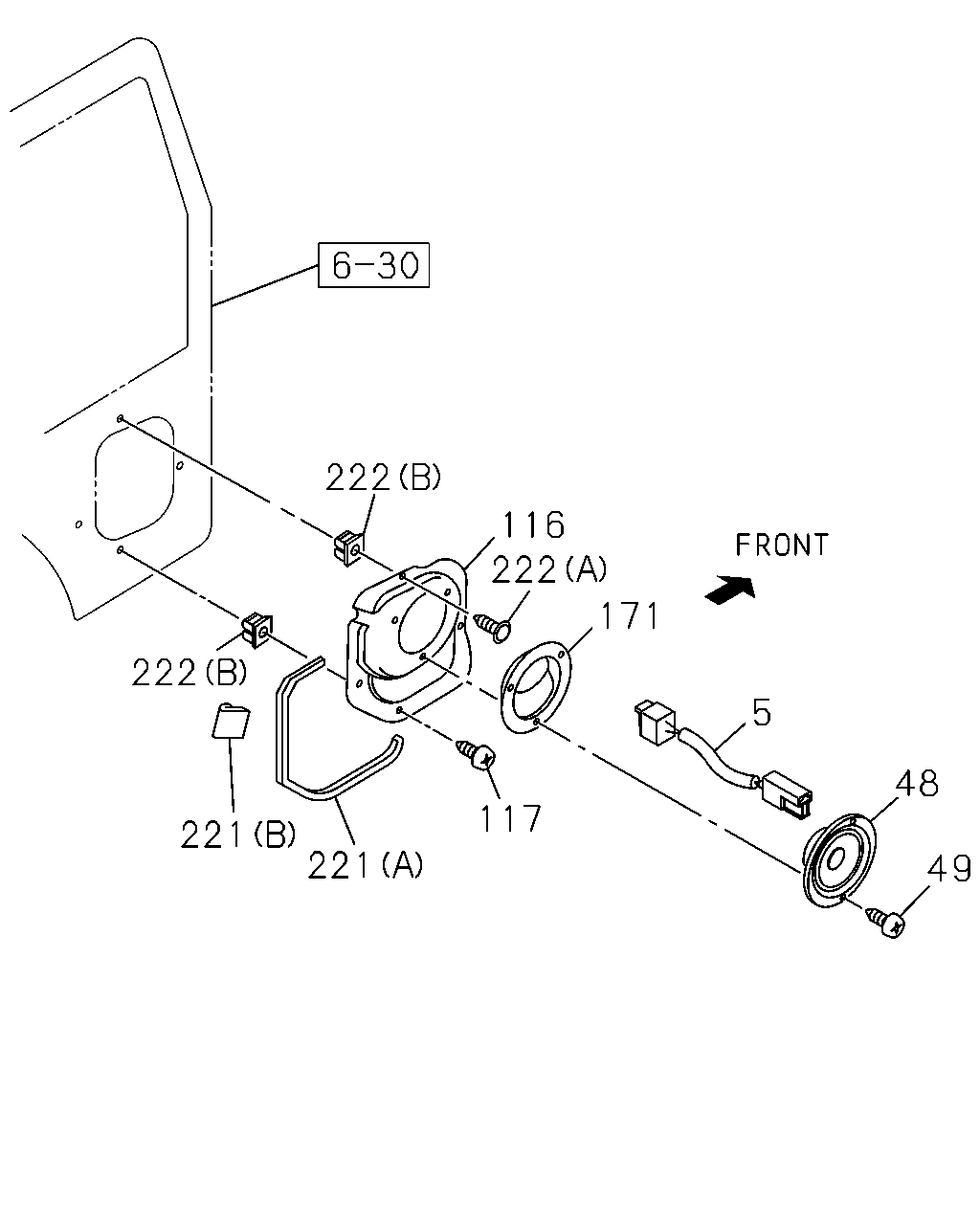

çizim 34915
222 116 222 171 222 5 48 117 221 221 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
5 09.647 HARNESS; EXT 8-97131-327-0 02 1 0211- ● ● ● ● ●
48 09.650 SPEAKER; AUDIO 8-97317-001-1 02 1 0211- ● ● ● ● ●
49 09.655 SCREW; SPEAKER
16.067 M5X14 		8-94279-325-0 06 1 0211-0612 ● ● ● ● ●
49 09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 0701- ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-324-3 01 1 0211- ● ● ● ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR 8-97852-325-3 01 1 0211- ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.067 M5X14 		8-94279-325-0 06 1 0211-0612 ● ● ● ● ●
117 16.165 SCREW; SPEAKER PANEL
16.570 T25 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 0701- ● ● ● ● ●
171 09.650 COVER; SPEAKER 8-97852-331-4 02 1 0211- ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(A) 		8-97852-327-5 02 1 0211- ● ● ● ● ●
221 16.165 SEAL; SPEAKER PANEL
(B) 		8-97852-601-2 02 1 0211- ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A) 		1-09987-144-0 02 1 0211- ● ● ● ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0211- ● ● ● ● ●
çizim 100342
1 1 6 7 7 226 6 226
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) TUNER BAND ASIA<7DN> (A) CLARION AM/FM 		8-97241-542-0 01 1 0211-0501 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) CLARION AM/FM 		8-97376-745-0 01 1 0502-1201 ● ● ● ● ●
1 09.650 RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) (B) CLARION AM/FM 		8-98029-605-0 01 1 1202- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97853-614-2 01 1 0211- ● ● ● ● ●
6 09.645 BRACKET; RADIO TO PANEL
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97853-615-2 01 1 0211- ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0211-0604 ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 03.680 M5X10 W/LK+PL WASHER 		0-36230-510-0 04 1 0605-0612 ● ● ● ● ●
7 09.650 SCREW; RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0701- ● ● ● ● ●
226 09.647 BOLT; BRKT
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0211- ● ● ● ● ●
