8-65 — CONTROL LEVER; HEATER AND AIR CON (#38547) — 16 parça

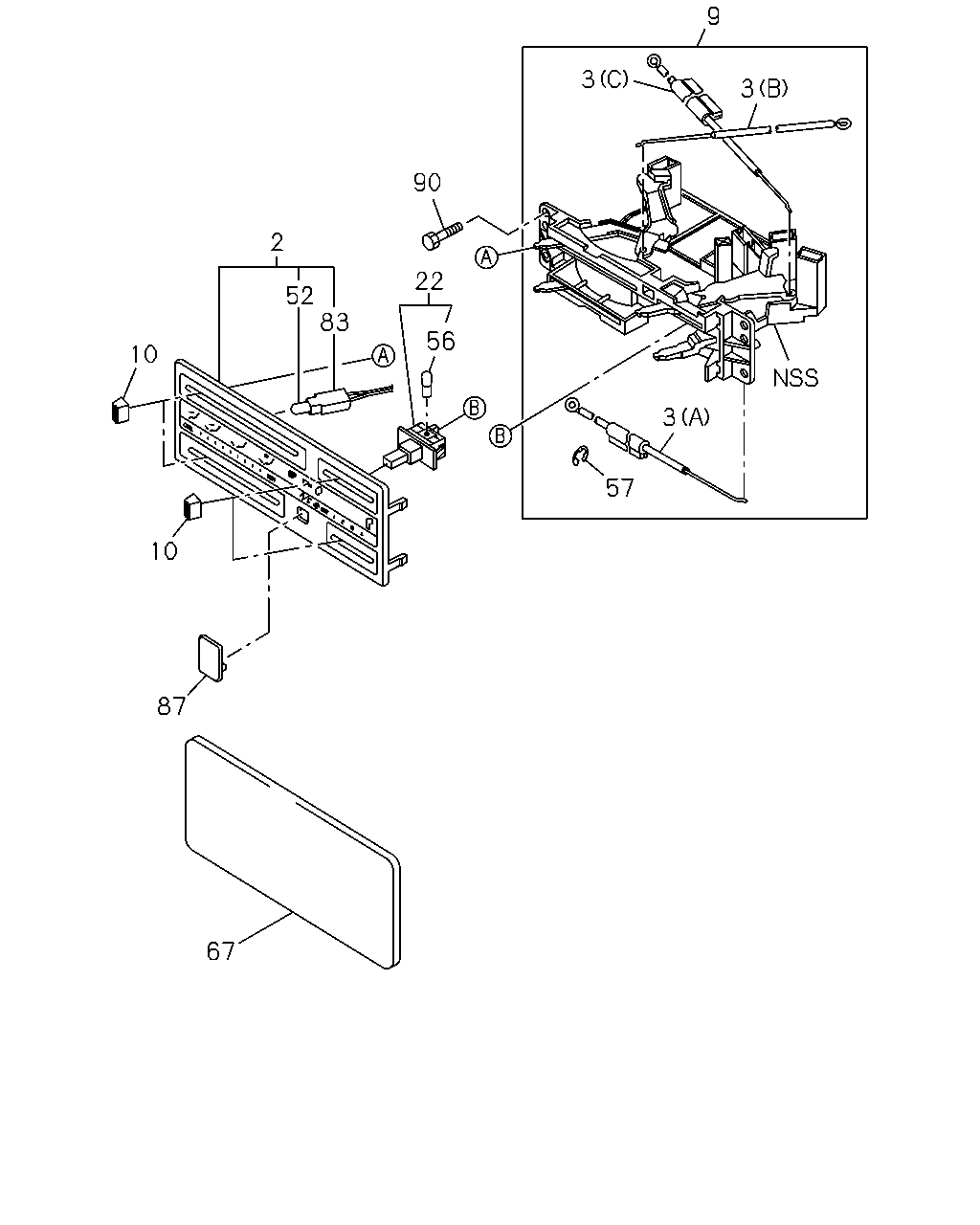

çizim 34886
9 3 3 90 2 22 52 83 56 10 3 57 10 87 67
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0211- ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97085-617-2 01 1 0211- ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 0211- ● ● ● ● ●
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97085-619-2 01 1 0211- ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97048-613-4 01 1 0211- ● ● ● ● ●
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97073-346-0 01 1 0211- ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0211- ● ● ● ● ●
10 08.852 KNOB; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0211- ● ● ● ● ●
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-97048-329-1 01 1 0211- ● ● ● ● ●
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0211- ● ● ● ● ●
56 08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 28V 33MA 		8-97182-224-0 01 1 0211- ● ● ● ● ●
57 09.787 RING; SNAP,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97262-535-0 01 1 0211- ● ● ● ● ●
67 08.849 CAP; BEZEL,CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0211- ● ● ● ● ●
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0211- ● ● ● ● ●
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0211- ● ● ● ● ●
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0211- ● ● ● ● ●
