8-52 — PIPING; AIR CONDITIONING (#38545) — 44 parça

50 168 148 147 50 66 67 67 147 67 148 66 67 118 112 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
50	09.222 GASKET; FLEX HOSE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97161-776-0	02	1	0502-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-624-3	01	1	0502-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97386-625-2	01	1	0502-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) ID=15.5	8-97161-777-0	02	1	0502-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=18.3	8-97161-778-0	01	1	0502-	●	●	●	●	●
67	09.260 GASKET; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C) ID=21.3	8-97223-125-0	01	1	0502-	●	●	●	●	●
112	09.220 PIPE; RECEIVER TANK TO A/C UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97386-606-0	01	1	0502-	●	●	●	●	●
118	09.225 GASKET; RECEIVER TANK TO EVAP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.195	8-97161-776-0	02	1	0502-	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0502-	●	●	●	●	●
147	09.242 CAP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0502-	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97083-100-0	01	1	0502-	●	●	●	●	●
148	09.262 VALVE; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.198 (B)	8-97083-892-0	01	1	0502-	●	●	●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97333-864-3	01	1	0502-	●	●	●	●	●

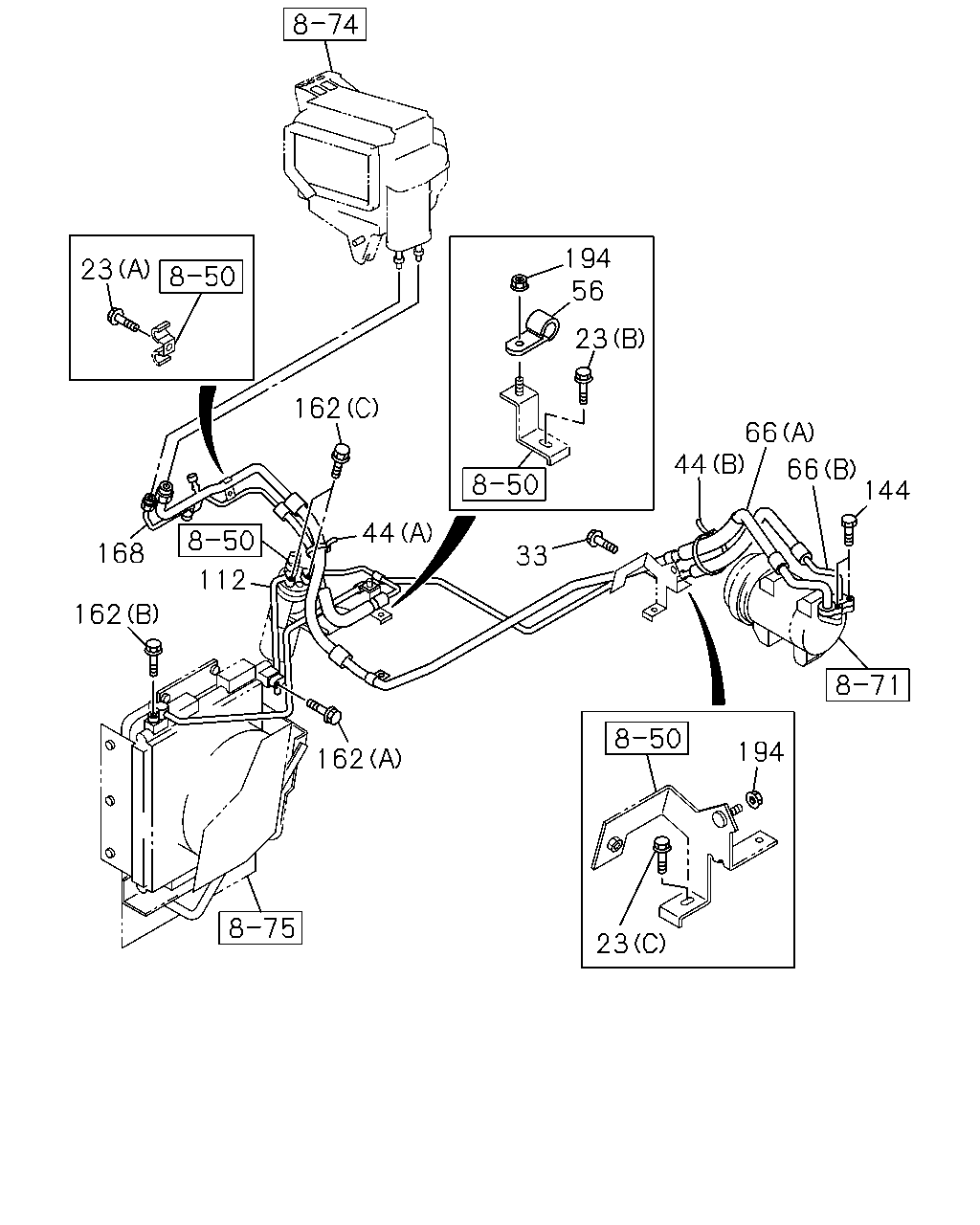

194 56 23 23 162 66 44 66 144 44 168 33 112 162 194 162 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) M6X12 FLANGE	0-28680-612-0	01	1	0502-0502	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	01	1	0502-0502	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.428 (B) M6X12 FLANGE	0-28080-612-0	02	1	0503-0512	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.930 (A) M6X20 FLANGE	0-28680-620-0	01	1	0502-0512	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.664 (C) M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●	●	●	●	●
23	09.171 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●	●	●
33	09.920 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.439 M6X16 FLANGE	0-28680-616-0	01	1	0502-0512	●	●	●	●	●
33	09.920 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.343 M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0502-	●	●	●	●	●
44	09.242 CLIP; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 (B) L=350	8-94152-256-1	01	1	0502-	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	1-83574-165-0	01	1	0502-0504	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.516 ID=13 L=20	9-09525-235-0	01	1	0502-0606	●	●	●	●	●
56	09.242 CLIP; PIPE,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) ID=13 L=20	0-95235-235-0	01	1	0607-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97386-624-3	01	1	0502-	●	●	●	●	●
66	09.225 HOSE; FLEX,A/C 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97386-625-2	01	1	0502-	●	●	●	●	●
112	09.220 PIPE; RECEIVER TANK TO A/C UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97386-606-0	01	1	0502-	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0502-0512	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0502-0512	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0601-	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.190 (C) M6X30 FLANGE	0-28680-630-0	02	1	0502-0512	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.680 (C) M6X30 FLANGE	0-28650-630-0	02	1	0601-	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
168	09.225 HOSE; FLEX,TANK TO EVAP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60)	8-97333-864-3	01	1	0502-	●	●	●	●	●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.594 M6 FLANGE	0-91150-106-0	02	1	0502-0502	●	●	●	●	●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.594 M6 FLANGE	0-91150-106-0	03	1	0502-0504	●	●	●	●	●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.594 M6 FLANGE	0-91150-106-0	02	1	0505-0602	●	●	●	●	●
194	09.242 NUT; HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●	●	●
