8-50 — AIR CONDITIONING SYSTEM; FRONT (#38544) — 131 parça

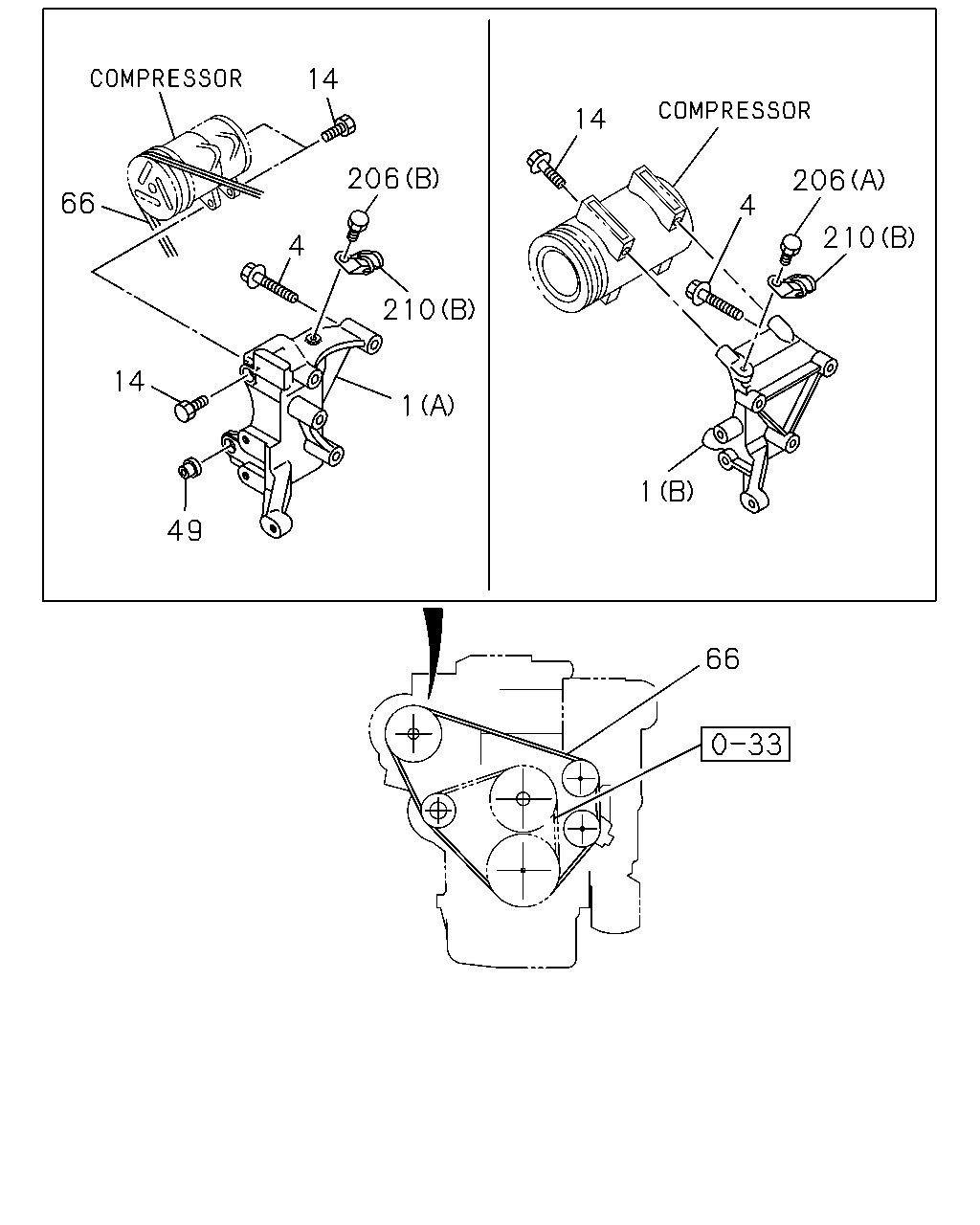

çizim 34570
14 14 206 206 66 4 210 4 210 14 1 1 49 66
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.242 BRACKET; A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97116-230-2 01 1 0211-0501 ● ● ● ● ●
1 09.242 BRACKET; A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97379-507-2 01 1 0502- ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.062 M10X85 FLANGE 		8-94397-359-1 02 1 0211-0501 ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28181-000-0 02 1 0502-0512 ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 02 1 0601- ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 00.683 M10X55 FLANGE 		8-94399-863-1 02 1 0211-0501 ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.085 M10X80 FLANGE 		0-28181-080-0 02 1 0502-0512 ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.042 M10X80 FLANGE 		0-28151-080-0 02 1 0601- ● ● ● ● ●
14 09.171 BOLT; CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 03.708 M10X40 		0-28281-040-0 04 1 0211-0501 ● ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) M8X90 FLANGE 		0-28080-890-0 04 1 0502-0512 ● ● ● ● ●
14 09.171 BOLT; CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 0601- ● ● ● ● ●
49 09.171 COLLAR; BRKT,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-94201-057-1 02 1 0211-0501 ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0211-0501 ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0502- ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) M6X16 FLANGE 		0-28050-616-0 01 1 0502- ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE 		0-28280-612-0 01 1 0211-0501 ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE 		0-28280-612-0 01 1 0502-0512 ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) M6X12 FLANGE 		0-28250-612-0 01 1 0601- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0507-0801 ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0211-0501 ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0502- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0211-0501 ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0502 ● ● ● ● ●
çizim 34609
78 74 78 378 210
BalonParca AdiParca NoAdetTipApplied Date A B C D E
74 09.215 DUCT; EVAP TO HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-801-0 01 1 0211-0501 ● ● ● ● ●
74 09.215 DUCT; EVAP TO HTR UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97262-801-0 01 1 0502- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0211-0501 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0502-0512 ● ● ● ● ●
78 09.211 BOLT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0507-0801 ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.671 (A) ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 0802- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0211-0501 ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) ID=12 B=13 ID=6.5 		5-09700-348-0 01 1 0502- ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HE1 ENG(RLY) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0211-0501 ● ● ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.446 (A) ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0502-0502 ● ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97043-419-1 01 1 0502- ● ● ● ● ●

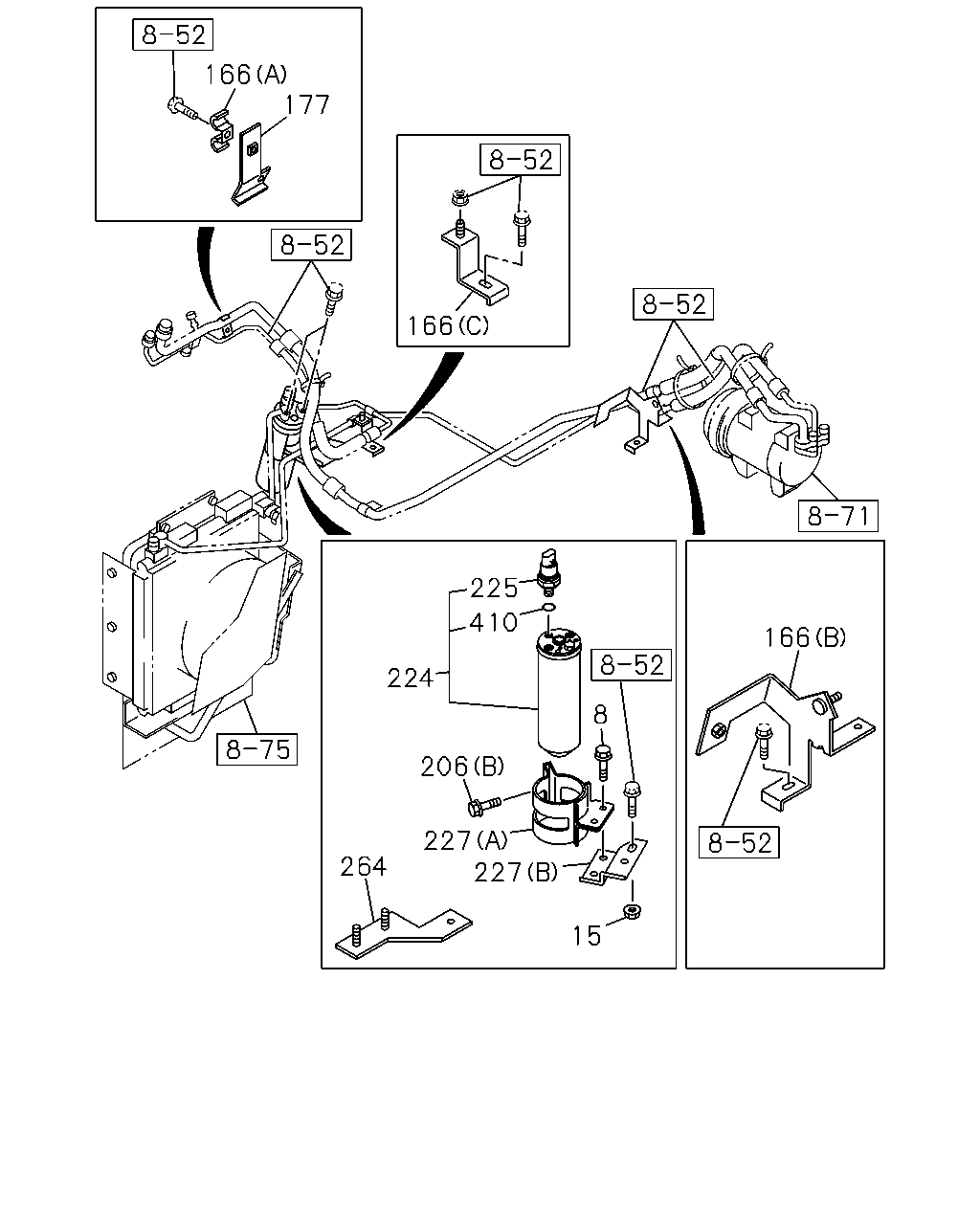

çizim 34743
166 177 166 225 410 166 224 8 206 227 227 264 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 09.171 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0502-0512 ● ● ● ● ●
8 09.171 BOLT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0601- ● ● ● ● ●
15 09.173 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0602 ● ● ● ● ●
15 09.173 NUT; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97352-128-0 01 1 0502- ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-607-1 01 1 0502- ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97090-310-1 01 1 0502-0611 ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A) 		8-98029-613-0 01 1 0612-1009 ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A) 		8-98151-264-0 01 1 1010- ● ● ● ● ●
177 09.242 BRACKET; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-614-0 01 1 0502-0504 ● ● ● ● ●
177 09.242 BRACKET; PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98019-107-0 01 1 0505- ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) M6X16 FLANGE 		0-28050-616-0 01 1 0502- ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE 		0-28280-612-0 01 1 0211-0501 ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.812 (A) M6X12 FLANGE 		0-28280-612-0 01 1 0502-0512 ● ● ● ● ●
206 09.242 BOLT; CLIP BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.216 (A) M6X12 FLANGE 		0-28250-612-0 01 1 0601- ● ● ● ● ●
224 09.195 TANK ASM; RECEIVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97366-992-0 01 1 0502- ● ● ● ● ●
225 09.172 SWITCH; RECEIVER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97366-964-0 01 1 0502- ● ● ● ● ●
227 09.196 BRACKET; RECEIVER TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97300-284-0 01 1 0502- ● ● ● ● ●
227 09.196 BRACKET; RECEIVER TANK
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97333-691-1 01 1 0502- ● ● ● ● ●
264 09.242 PLATE; BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98014-747-0 01 1 0503- ● ● ● ● ●
410 09.172 GASKET; PRESSURE SWITCH
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.190 		8-94154-048-0 01 1 0502- ● ● ● ● ●

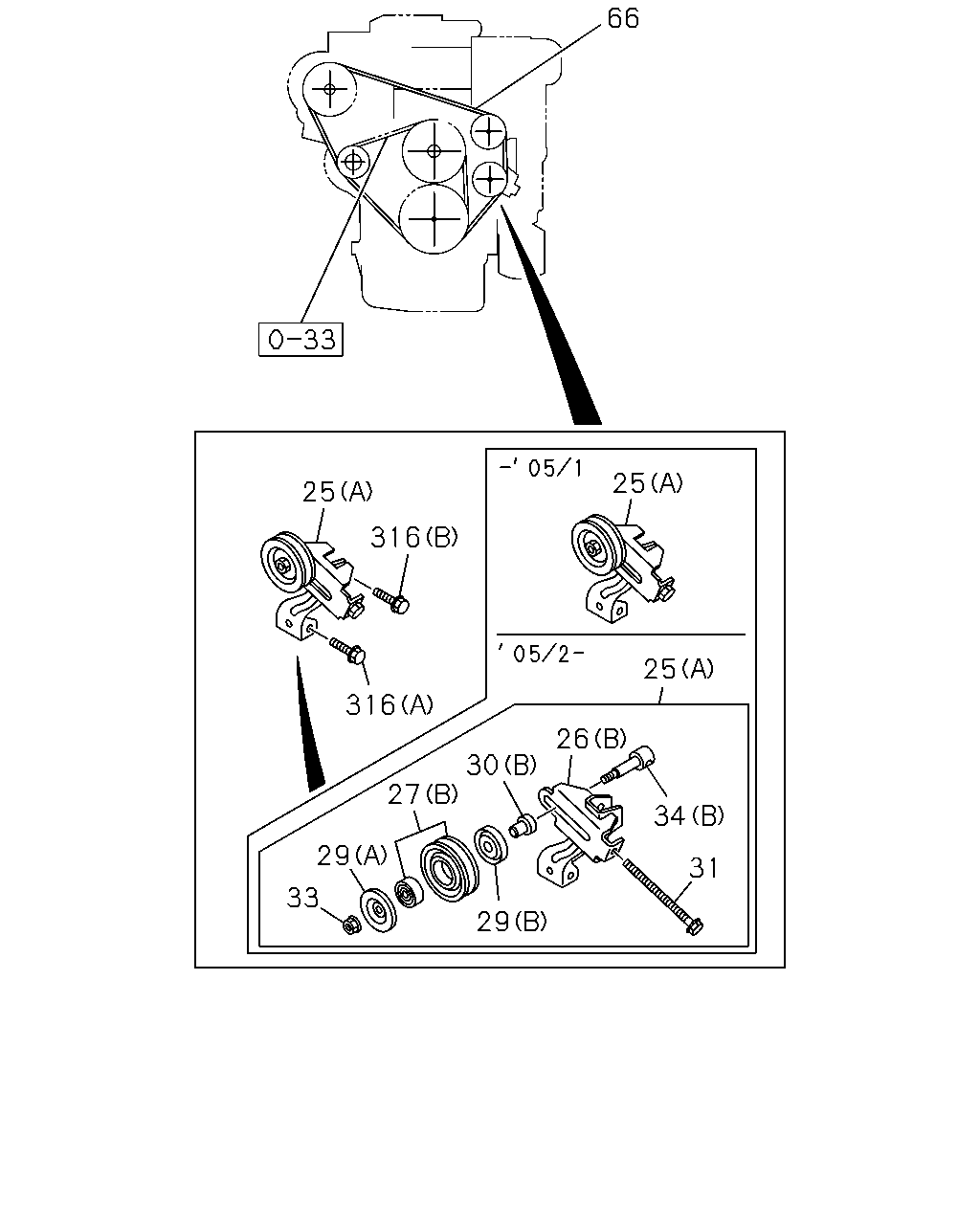

çizim 34885
66 25 25 316 25 316 26 30 27 34 29 31 33 29
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0502- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0502- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0211-0501 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0502- ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0502- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0211-0501 ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0502- ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0502- ●
27 09.180 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0211-0501 ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0502- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0502- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0211-0501 ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0502- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0211-0501 ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0502- ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0502- ●
30 09.181 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0211-0501 ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0502- ● ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0211-0501 ● ● ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 0502- ● ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0211-0501 ● ● ● ●
33 09.181 NUT; IDLER PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 0502- ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0502- ●
34 09.181 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0211-0501 ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0502- ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0211-0501 ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0502- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28181-000-0 01 1 0502-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0601- ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 0502-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0601- ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0211-0501 ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0502- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0211-0501 ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0502-0512 ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ● ● ● ●
çizim 100341
66 25 30 29 34 26 27 25 57 35 35 316 25 316 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (B) 1-GROOVE 		8-94334-696-2 01 1 0502- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 1-GROOVE 		8-94334-873-0 01 1 0502- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0211-0501 ● ● ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 1-GROOVE 		8-97161-198-1 01 1 0502- ● ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97060-362-0 01 1 0502- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0211-0501 ● ● ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97161-031-1 01 1 0502- ● ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		9-13663-606-0 01 1 0502- ●
27 09.180 PULLEY; IDLE,A/C
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0211-0501 ● ● ● ●
27 09.180 PULLEY; IDLE,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97386-869-0 01 1 0502- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (C) 		9-13669-603-0 02 1 0502- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0211-0501 ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-114-0 01 1 0502- ● ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0211-0501 ● ● ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-115-0 01 1 0502- ● ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94207-192-0 01 1 0502- ●
30 09.181 COLLAR; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0211-0501 ● ● ● ●
30 09.181 COLLAR; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-117-0 01 1 0502- ● ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.277 (A) M10X30 		0-28121-030-0 01 1 0502- ●
34 09.181 SHAFT; IDLE PULLEY
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0211-0501 ● ● ● ●
34 09.181 SHAFT; IDLE PULLEY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-116-0 01 1 0502- ● ● ● ● ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 05 1 0502-0512 ●
35 09.181 BOLT; IDLER PULLEY TO C/BL
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 02.343 M8X16 FLANGE 		0-28050-816-0 05 1 0601- ●
57 09.171 BRACKET; IDLER PULLEY
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 		8-97081-262-2 01 1 0502- ●
66 01.066 BELT; A/C CMPR
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0211-0501 ● ● ● ● ●
66 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-2 01 1 0502- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28181-000-0 01 1 0502-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 09.171 (C) M10X100 FLANGE 		0-28151-000-0 01 1 0601- ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 03.330 (D) M10X60 FLANGE 		0-28181-060-0 02 1 0502-0512 ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) 00.683 (D) M10X60 FLANGE 		0-28151-060-0 02 1 0601- ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0211-0501 ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 0502- ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HE1 ENG(RLY) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0211-0501 ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.780 (A) M8X50 FLANGE 		0-28080-850-0 01 1 0502-0512 ● ● ● ● ●
316 09.242 BOLT; BRKT FIX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 0601- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
