8-45 — HEATER PIPING (#38543) — 41 parça

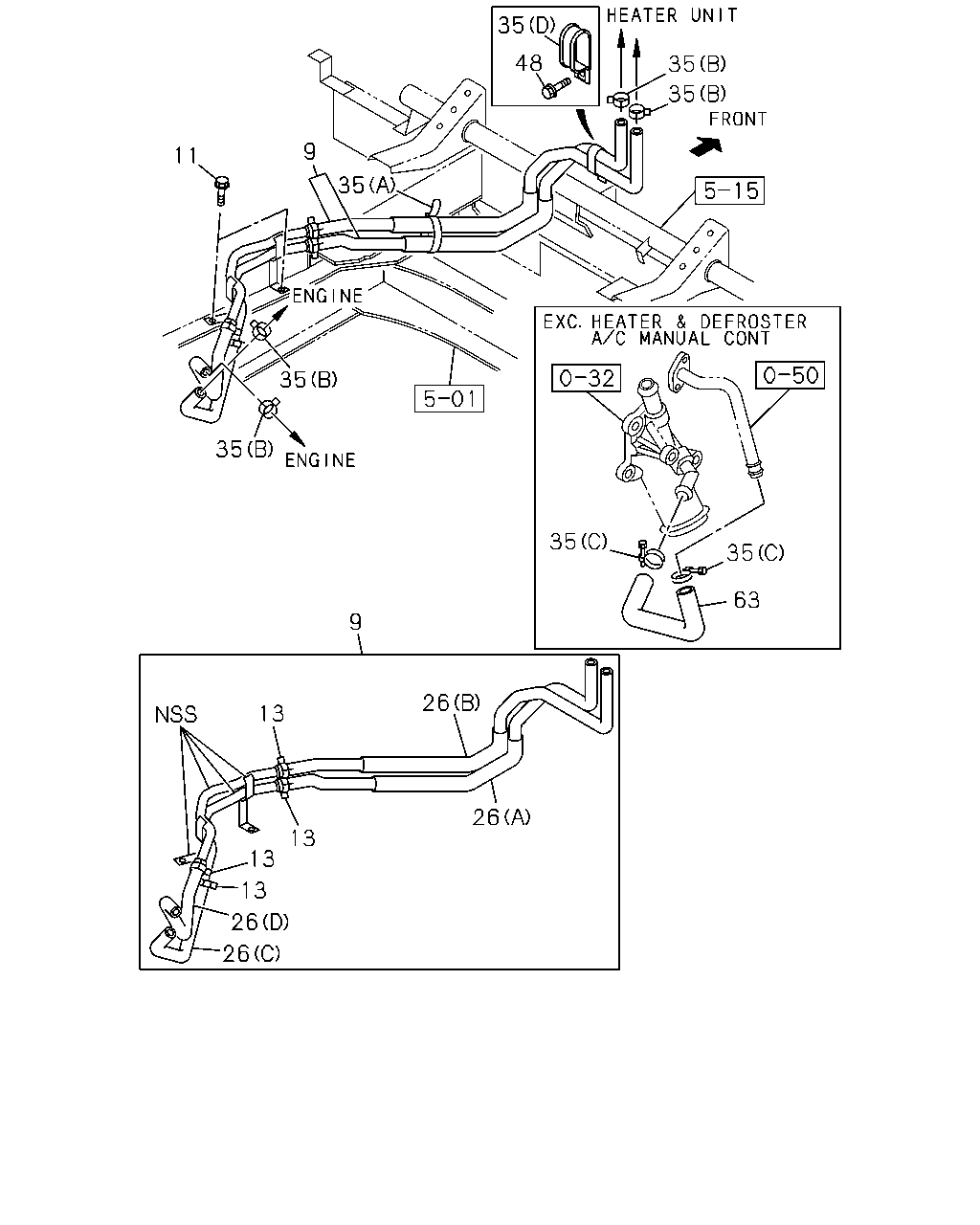

çizim 34536
35 48 35 35 9 11 35 35 35 35 35 63 9 26 13 26 13 13 13 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D E
9 08.846 PIPE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97378-620-3 01 1 0502- ● ● ● ● ●
11 08.845 BOLT; HTR PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ● ● ●
11 08.845 BOLT; HTR PIPE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 		8-94382-401-0 04 1 0502- ● ● ● ● ●
26 08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97373-832-0 01 1 0502- ● ● ● ● ●
26 08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) 		8-97373-833-0 01 1 0502- ● ● ● ● ●
26 08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98003-312-1 01 1 0502- ● ● ● ● ●
26 08.846 HOSE; HTR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98003-313-1 01 1 0502- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=25 		8-94233-115-0 02 1 0508- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0502-0610 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22 		8-97359-141-0 04 1 0611- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0502-0610 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		8-97359-144-0 01 1 0611- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 01 1 0502- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0211-0501 ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0512 ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ● ● ● ●
63 08.846 HOSE; WATER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 		8-94134-250-1 01 1 0508- ● ● ● ● ●

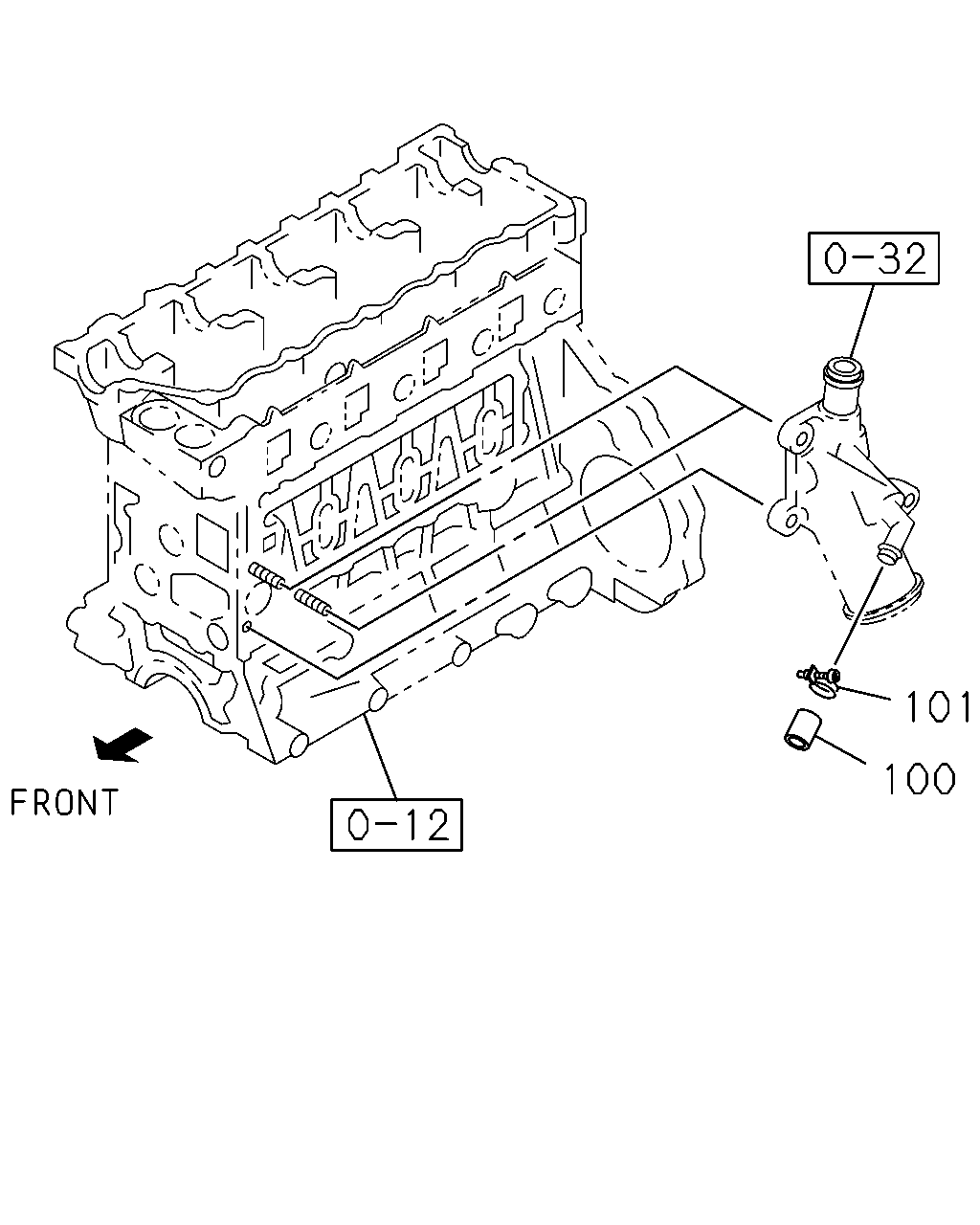

çizim 34537
101 100
BalonParca AdiParca NoAdetTipApplied Date A B C D E
100 08.846 CAP; RUBBER,WATER PIPE
4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) 01.166 		8-94107-793-0 01 1 0211-0501 ●
101 08.846 CLIP; CAP,WATER PIPE
4HE1 ENG(RLY) EXC. HEATER & DEFROSTER(C41) 01.166 ID=25 		8-94233-115-0 01 1 0211-0501 ●

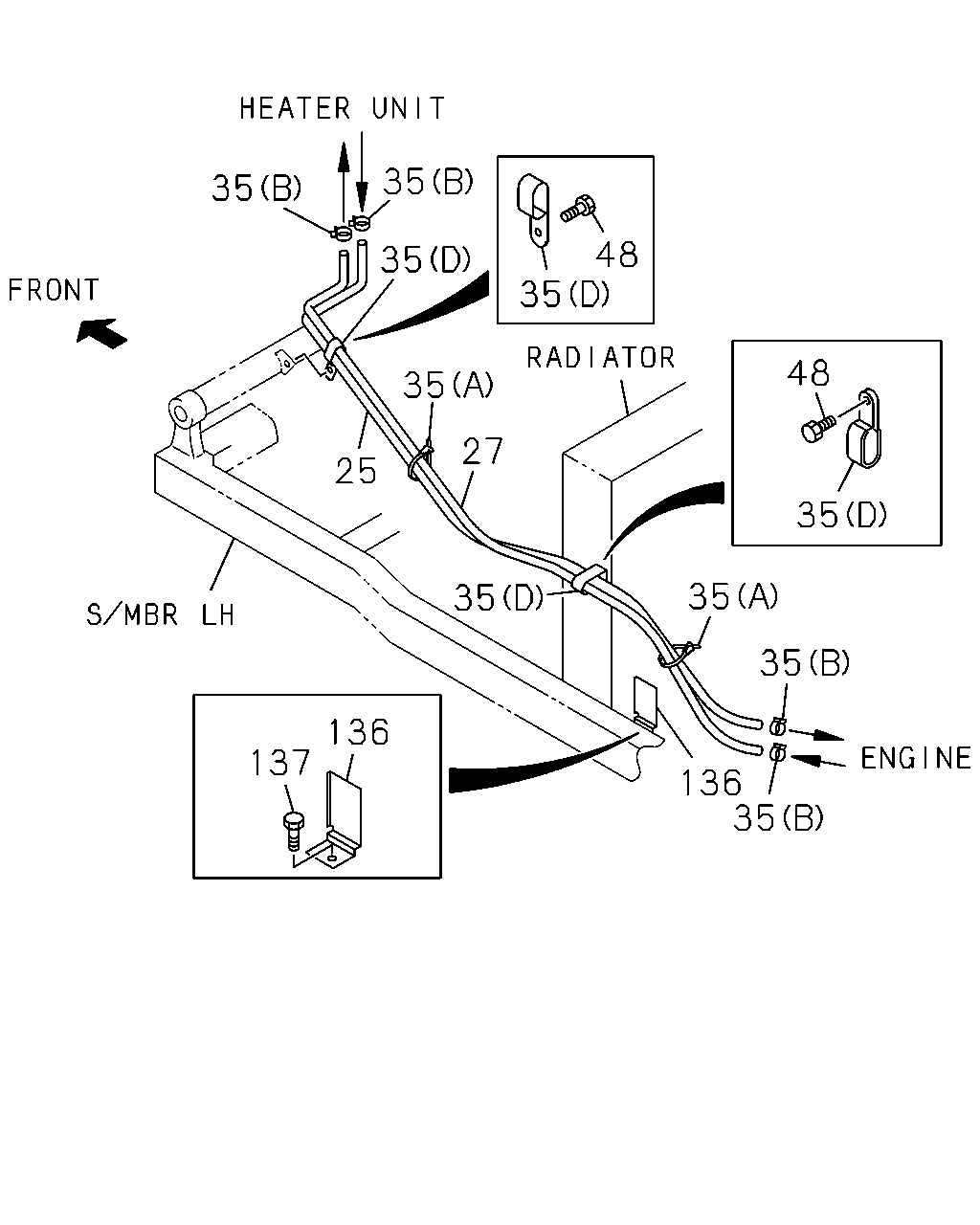

çizim 34607
35 35 48 35 35 48 35 27 25 35 35 35 35 136 137 136 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97149-152-4 01 1 0211-0501 ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97149-153-2 01 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.166 (C) ID=25 		8-94233-115-0 02 1 0508- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 02 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0502-0610 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (B) ID=22 		8-97359-141-0 04 1 0611- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		9-83651-948-1 01 1 0502-0610 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) B=18 		8-97359-144-0 01 1 0611- ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) ID=22 		8-94382-401-0 04 1 0211-0501 ● ● ● ● ●
35 08.852 CLIP; WATER HOSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 01 1 0502- ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0211-0501 ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0512 ● ● ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ● ● ● ●
136 08.846 GUIDE; WATER HOSE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-97183-818-2 01 1 0211-0501 ● ● ● ● ●
137 08.846 BOLT; GUIDE
4HE1 ENG(RLY) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0211-0501 ● ● ● ● ●
