8-40 — HEATER SYSTEM (#38542) — 36 parça

371 370

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
	370	08.866 PLATE; BAFFLE,BLOWER UNIT	8-97856-129-2	01	1	0211-	●	●	●	●	●
	371	08.866 FASTENER; BAFFLE PLATE 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	0211-	●	●	●	●	●

317 17 12 17 317 228 317 65 300 102 123 123 77 98 77 225 105 104 103 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

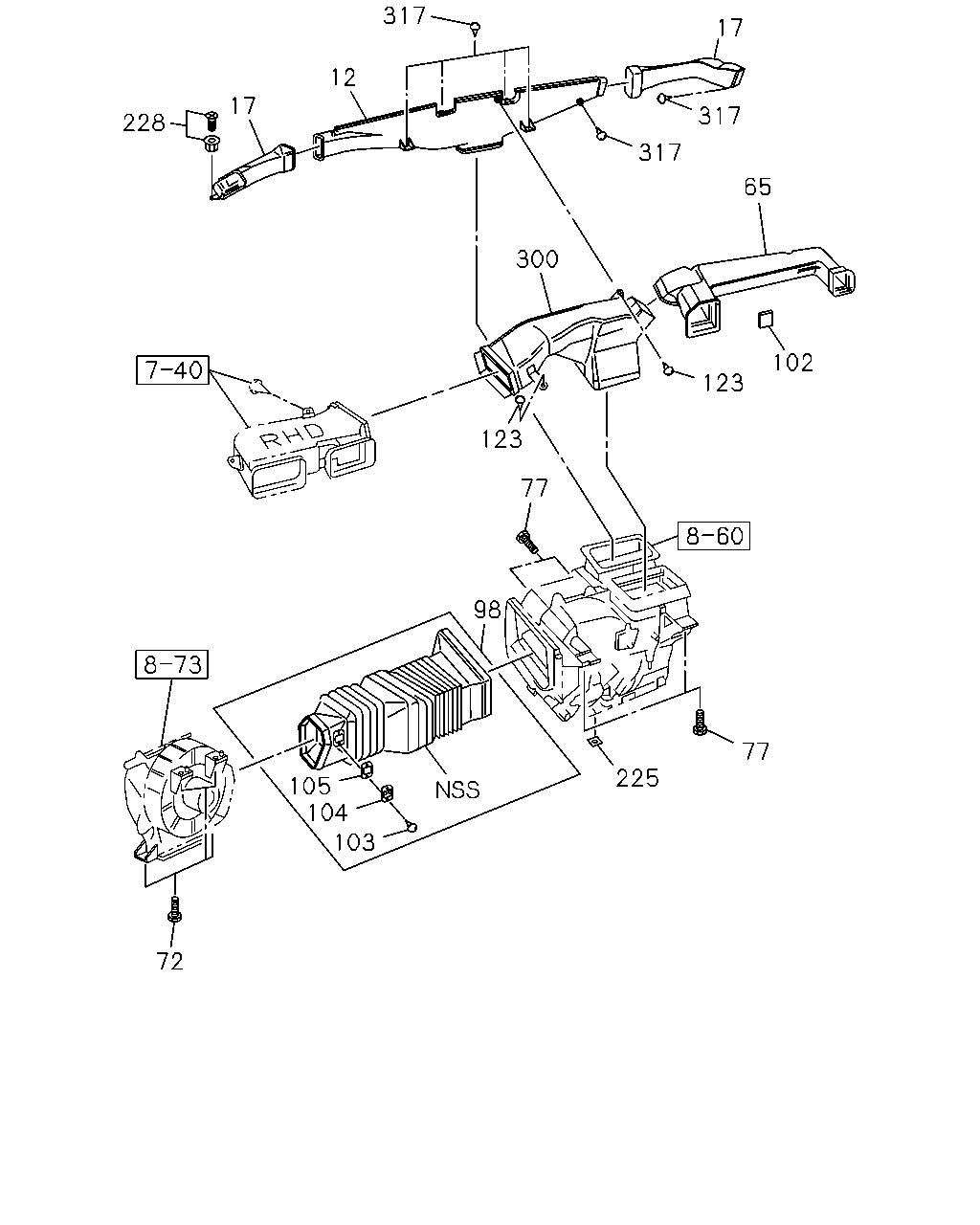

12	09.779 NOZZLE; DEFROSTER	8-97134-965-0	01	1	0211-	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97262-689-0	01	1	0211-	●	●	●	●	●
17	09.779 NOZZLE; DEFROSTER,SIDE	8-97262-701-0	01	1	0211-	●	●	●	●	●
65	09.786 DUCT; VENT,DRIVER SIDE	8-97262-691-0	01	1	0211-	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT M8X35	8-97103-452-0	02	1	0211-	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0512	●	●	●	●	●
72	08.857 BOLT; BLOWER UNIT 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●	●	●	●
77	08.845 BOLT; HTR UNIT M8X25	8-97103-451-0	02	1	0211-	●	●	●	●	●
77	08.845 BOLT; HTR UNIT 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0211-0512	●	●	●	●	●
77	08.845 BOLT; HTR UNIT 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97262-804-0	01	1	0211-0501	●	●	●	●	●
98	09.262 DUCT; BLOWER UNIT TO HTR UNIT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97358-598-0	01	1	0502-	●	●	●	●	●
102	09.262 LINING; HTR DUCT	8-97145-038-0	01	1	0211-	●	●	●	●	●
103	08.855 SCREW; TAPPING,RESISTOR FIX EXC. AIR CONDITIONER MANUAL CONT(C60) 09.789 M4X16 TAPPING	1-83579-114-0	02	1	0211-	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60) 09.277	8-97234-546-0	01	1	0211-0501	●	●	●	●	●
104	08.855 RESISTOR; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97358-389-0	01	1	0502-	●	●	●	●	●
105	08.856 PLATE; HTR DUCT EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97020-761-0	01	1	0211-	●	●	●	●	●
123	09.786 SCREW; DUCT 09.264 M5X12 W/PL WASHER	8-97147-069-0	02	1	0211-0612	●	●	●	●	●
123	09.786 SCREW; DUCT 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	02	1	0701-	●	●	●	●	●
225	08.845 SEAL; WATER	8-97856-616-0	04	1	0211-	●	●	●	●	●
228	09.780 CLIP; DEFROSTER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	01	1	0211-	●	●	●	●	●
300	09.264 DUCT; VENT,CENTER	8-97262-687-0	01	1	0211-	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE M5X12 W/PL WASHER	8-97147-069-0	06	1	0211-0612	●	●	●	●	●
317	09.264 SCREW; DEFROSTER NOZZLE 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	06	1	0701-	●	●	●	●	●

32 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

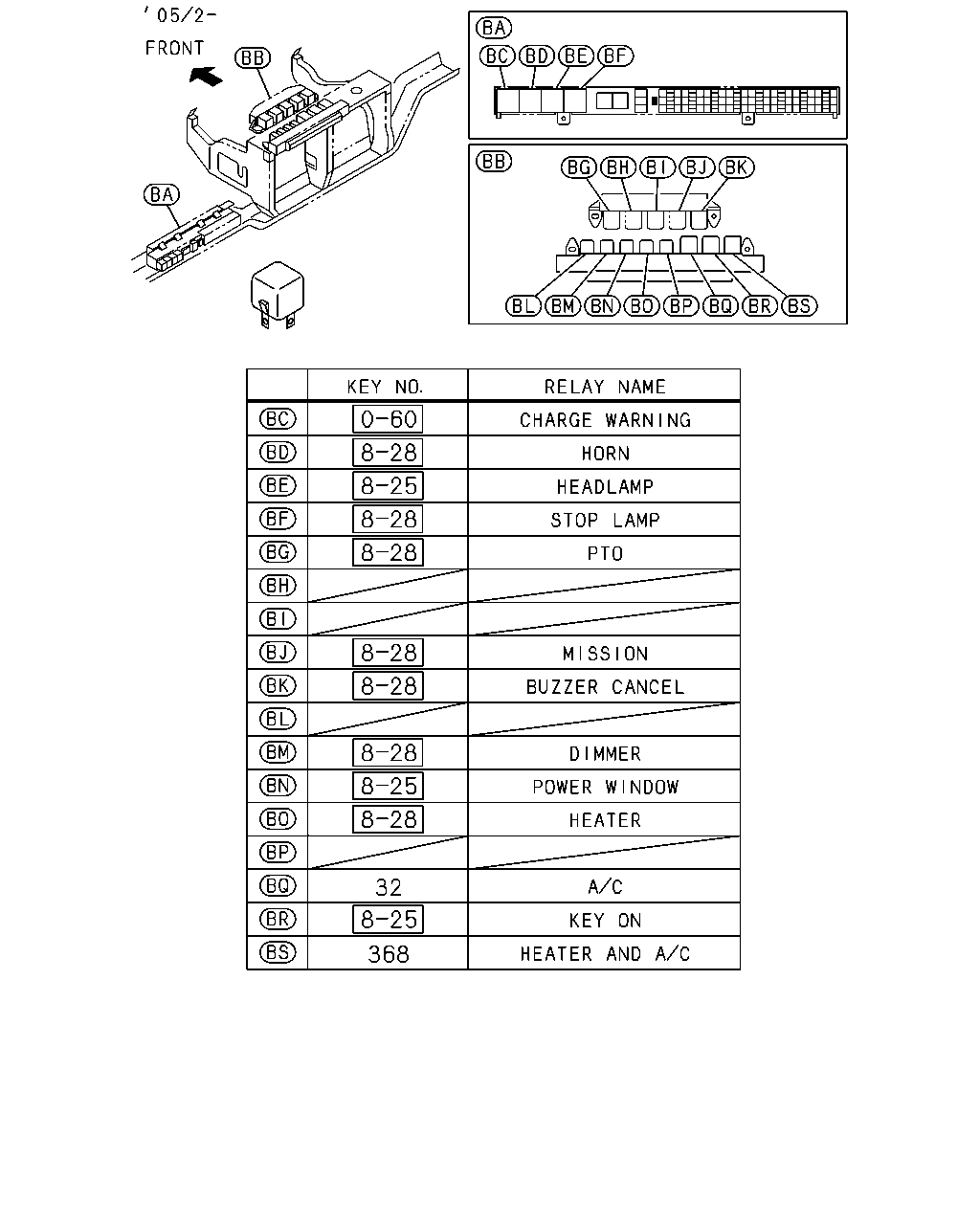

32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0502-	●	●	●	●	●
368	09.277 RELAY; HEATER AND A/C 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●	●

266 241 266 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E

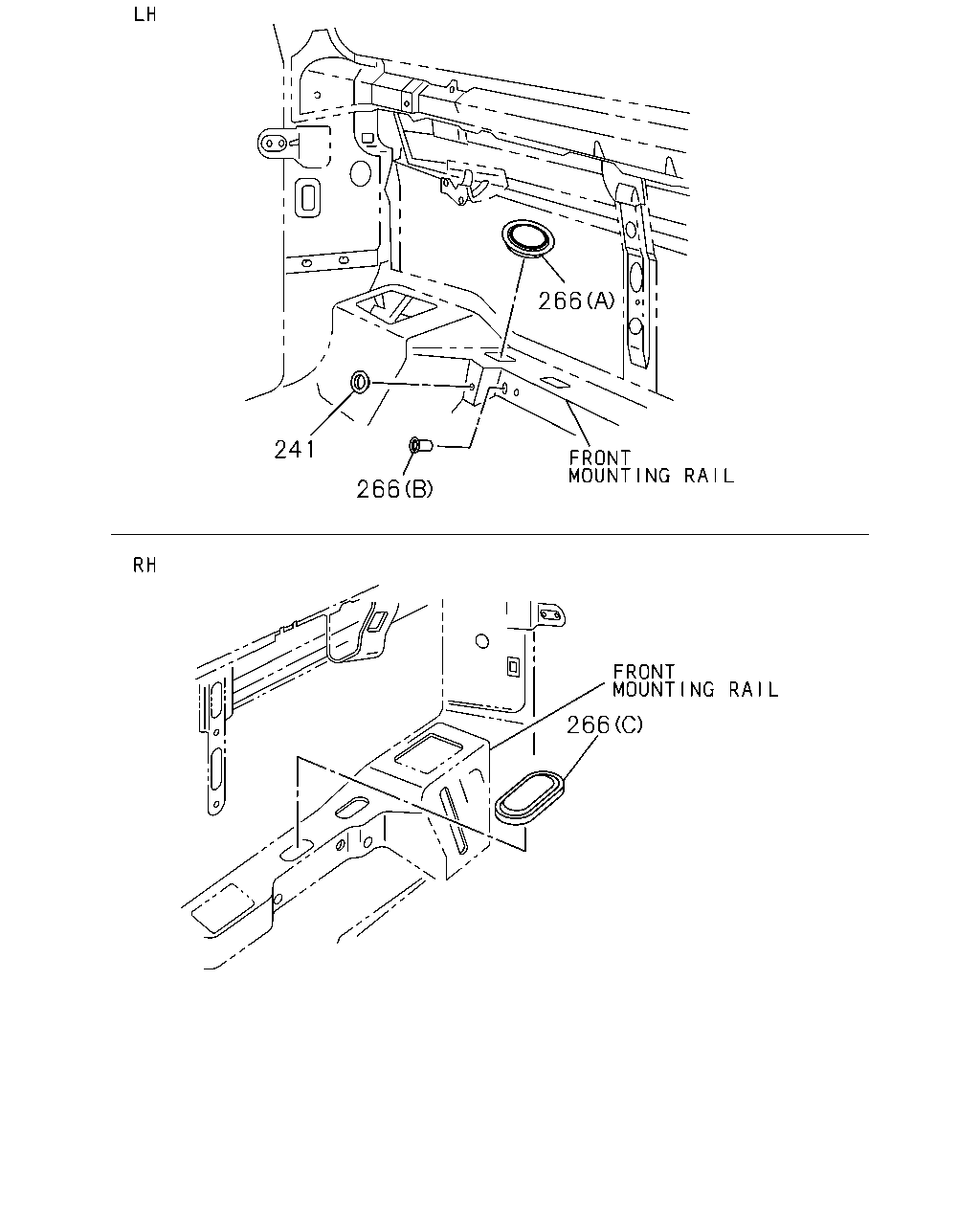

241	16.550 PLUG; RUBBER,EVAP DRAIN HOLE EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97037-392-0	01	1	0211-	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.5 B=29.5	8-97036-020-0	01	1	0211-	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) (A) H=78 B=37	8-97036-019-0	01	1	0211-	●	●	●	●	●
266	08.845 PLUG; HTR HOLE EXC. AIR CONDITIONER MANUAL CONT(C60) 09.211 (B) OD=13	9-09756-019-0	01	1	0211-	●	●	●	●	●

368 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-0501	●	●	●	●	●
32	02.440 RELAY; A/C AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0502-	●	●	●	●	●
368	09.277 RELAY; HEATER AND A/C 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	0211-	●	●	●	●	●
