8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#38539) — 41 parça

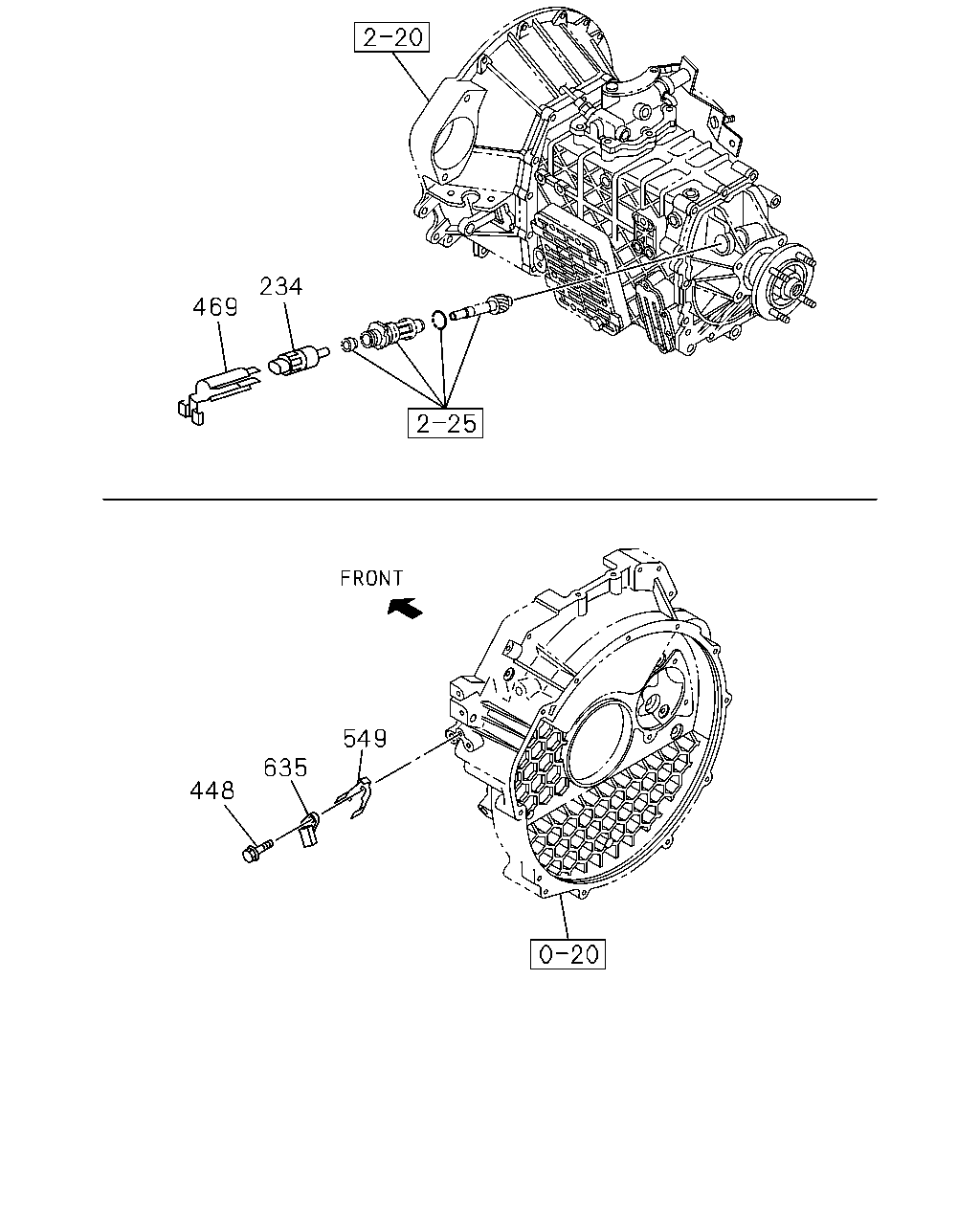

çizim 34608
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C D E
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0211-0501 ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0502- ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HE1 ENG(RLY) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0211-0501 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0502-0512 ● ● ● ● ●
448 02.500 BOLT; SENSOR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601- ● ● ● ● ●
469 03.682 PROTECTOR; SPEED SENSOR
A/T 4 SPEED-AISIN(RNJ) 		8-97168-308-0 01 1 0211-0501 ●
549 02.510 SHEET
4HE1 ENG(RLY) 09.743 		8-97161-633-2 01 1 0211-0501 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HE1 ENG(RLY) YAZAKI 		8-97214-325-0 01 1 0211-0501 ● ● ● ● ●
635 09.750 SENSOR; TACHOMETER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) DENSO 		8-97306-113-1 01 1 0502- ● ● ● ● ●

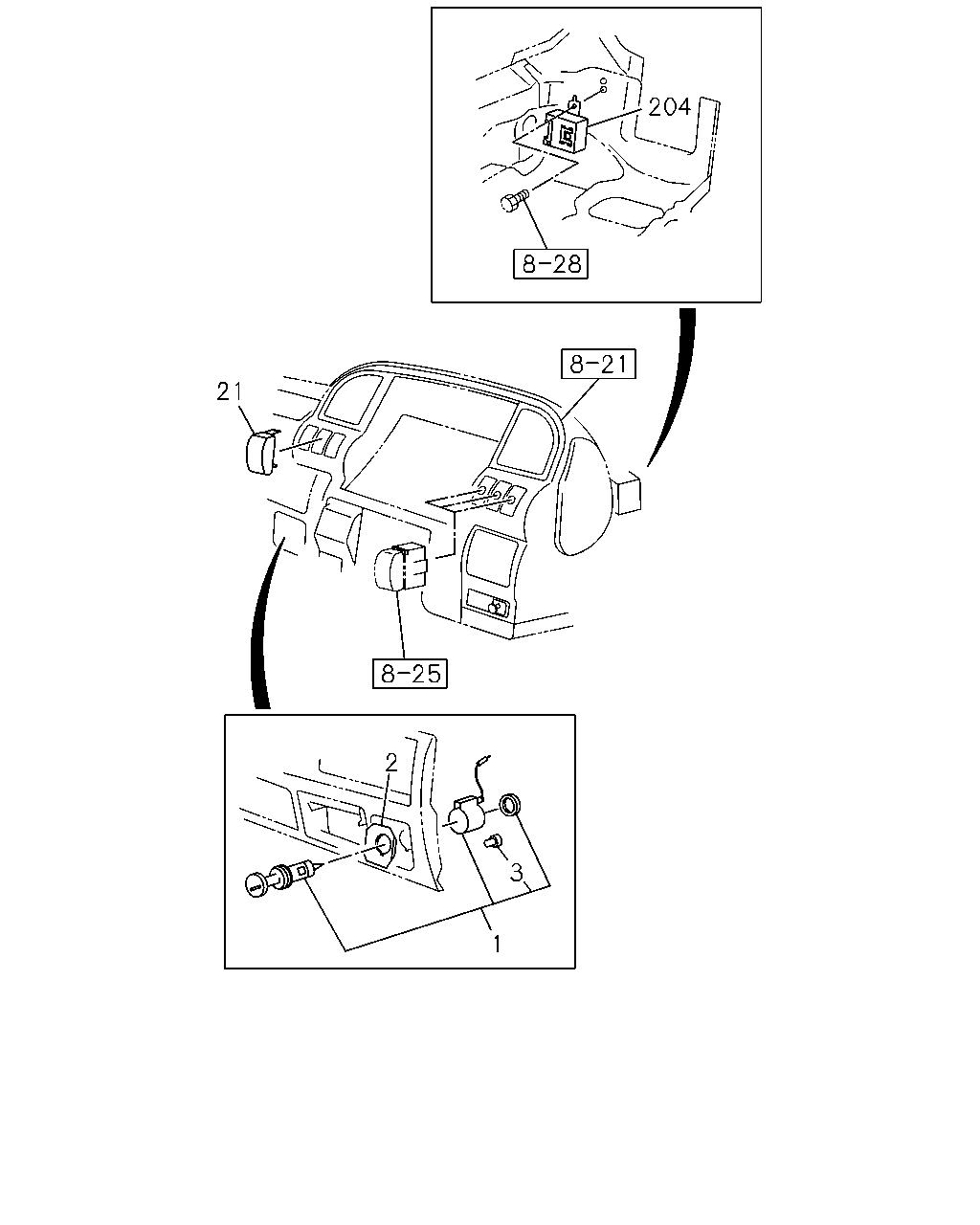

çizim 34631
204 21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0211- ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0211-0706 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707- ● ● ● ● ●
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0211- ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0211-0501 ● ● ● ● ●
21 09.744 COVER; HOLE
4HE1 ENG(RLY) 		8-97136-694-0 01 1 0211-0501 ● ● ● ● ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0211-0501 ● ● ● ●
21 09.744 COVER; HOLE
A/T 4 SPEED-AISIN(RNJ) EXC. FLOOR REMOTE SHIFT<M11> 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE
FLOOR REMOTE SHIFT<M11> 		8-97136-694-0 01 1 0211-0501 ●
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0502- ● ● ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ) EXC. H.S.A SYSTEM<6EP> 		8-97136-694-0 01 1 0502- ● ● ●
21 09.744 COVER; HOLE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. H.S.A SYSTEM<6EP> 		8-97136-694-0 01 1 0502- ●
204 02.195 BUZZER; KEY REMIND
A/T 4 SPEED-AISIN(RNJ) 09.765 		8-97036-649-0 01 1 0211-0501 ●
204 02.195 BUZZER; KEY REMIND
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.765 		8-97036-649-0 01 1 0502- ● ● ● ●

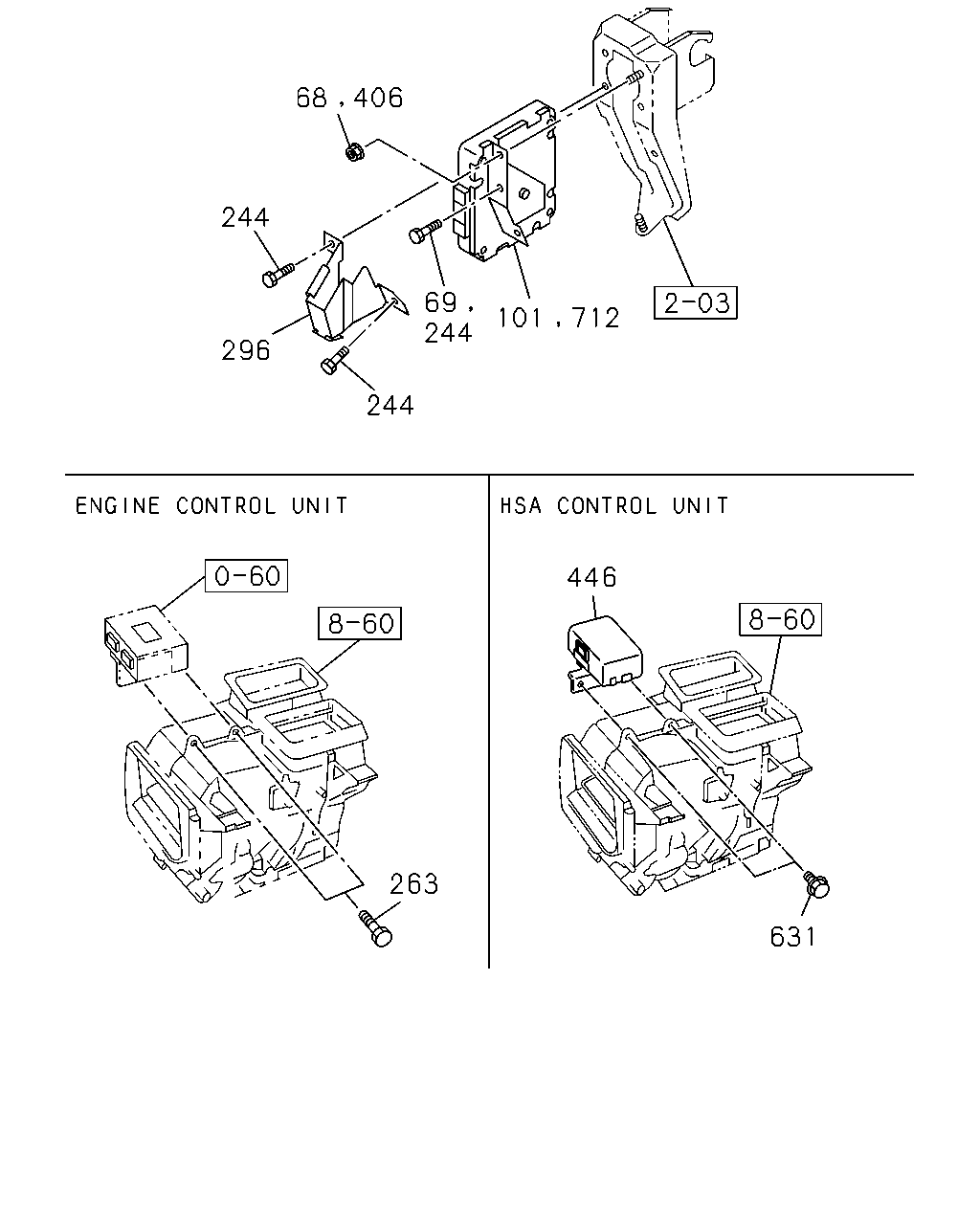

çizim 35036
68 406 244 69 244 101 712 296 244 446 263 631
BalonParca AdiParca NoAdetTipApplied Date A B C D E
68 02.500 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.662 M8X14 FLANGE 		0-28080-814-0 02 1 0502- ● ● ● ●
69 02.458 NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0502- ● ● ● ●
101 04.115 CONTROL UNIT; ELEC,A/T
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97205-034-1 01 1 0211-0501 ●
244 02.500 BOLT; COVER
A/T 4 SPEED-AISIN(RNJ) 00.662 M8X14 FLANGE 		0-28080-814-0 03 1 0211-0501 ●
263 04.115 BOLT; CONT UNIT
4HE1 ENG(RLY) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0211-0501 ● ● ● ● ●
296 09.709 COVER; CONT UNIT
A/T 4 SPEED-AISIN(RNJ) 		8-97204-758-3 01 1 0211-0501 ●
406 09.709 NUT; COVER
A/T 4 SPEED-AISIN(RNJ) 00.777 M8 W/LK WASHER 		8-94279-050-0 01 1 0211-0501 ●
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-97376-739-0 01 1 0502-0510 ● ● ● ●
446 02.510 CONTROL UNIT; HSA 8-97376-739-0 01 1 0502-0510 ●
446 02.510 CONTROL UNIT; HSA
H.S.A SYSTEM<6EP> 		8-98031-565-1 01 1 0511- ● ● ● ●
446 02.510 CONTROL UNIT; HSA 8-98031-565-1 01 1 0511- ●
631 04.054 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ● ● ● ●
631 04.054 BOLT; CONT UNIT
04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0502-0512 ●
631 04.054 BOLT; CONT UNIT
H.S.A SYSTEM<6EP> 03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ● ● ● ●
631 04.054 BOLT; CONT UNIT
03.162 M6X20 FLANGE 		0-28650-620-0 02 1 0601- ●
712 02.510 CONTROL UNIT; NEES
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97376-721-0 01 1 0502-0502 ● ● ● ●
712 02.510 CONTROL UNIT; NEES
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98008-796-0 01 1 0503-0504 ● ● ● ●
712 02.510 CONTROL UNIT; NEES
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98017-905-1 01 1 0505- ● ● ● ●
