◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#38538) — 88 parça

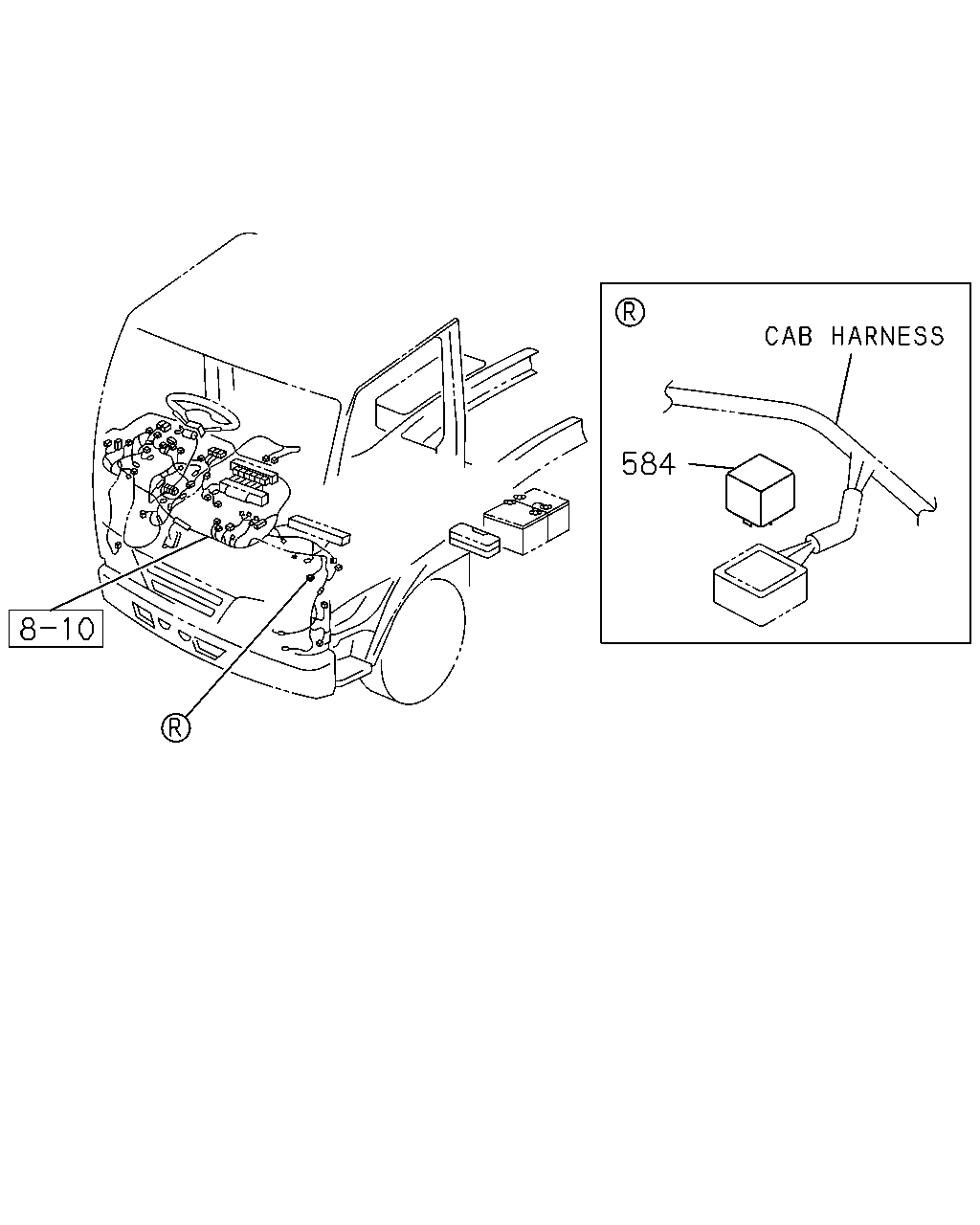

çizim 34767
584
BalonParca AdiParca NoAdetTipApplied Date A B C D E
584 02.510 RELAY; TIMING
4HE1 ENG(RLY) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●

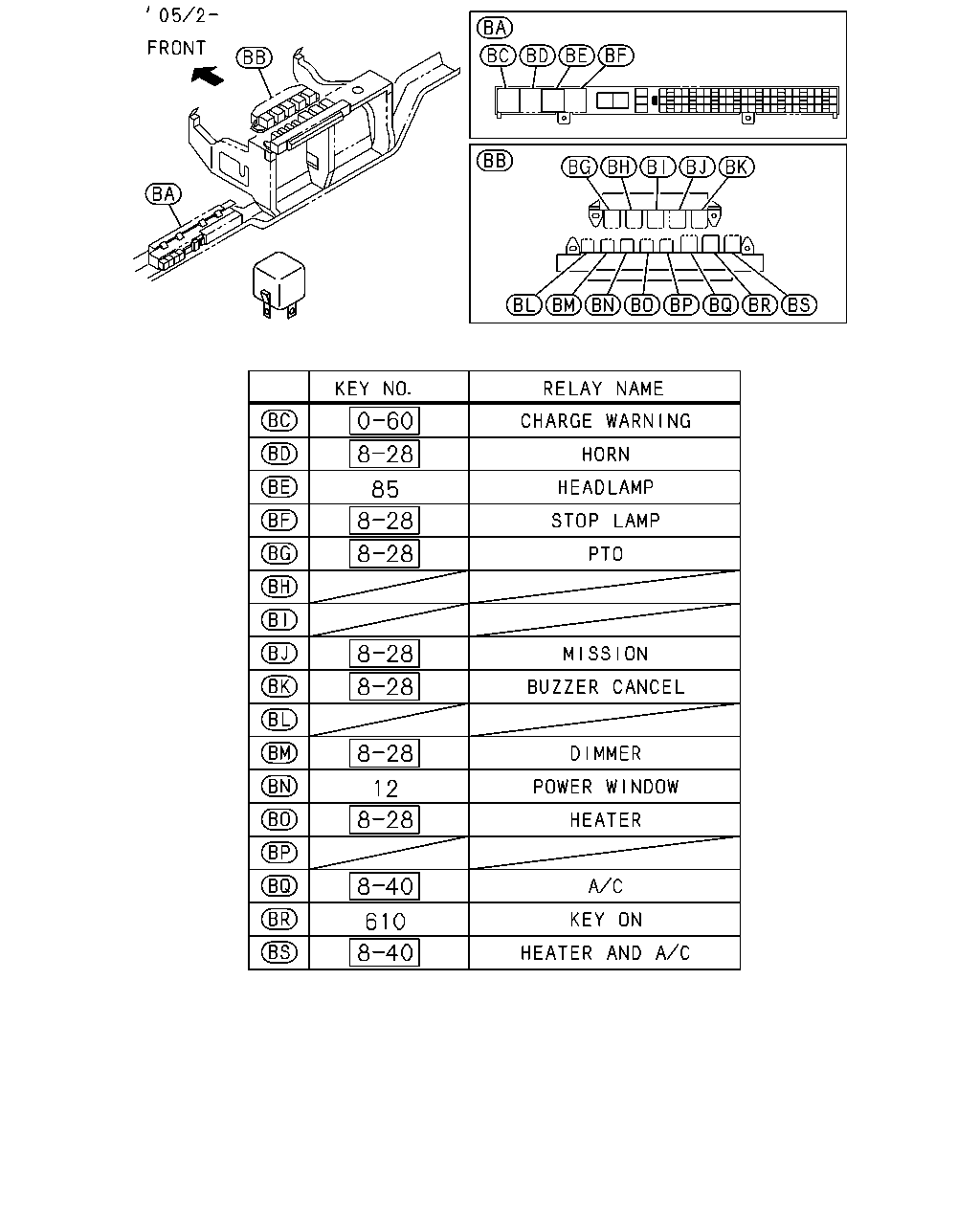

çizim 34914
85 12 610
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 08.852 RELAY; POWER WINDOW
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0502- ● ● ● ● ●

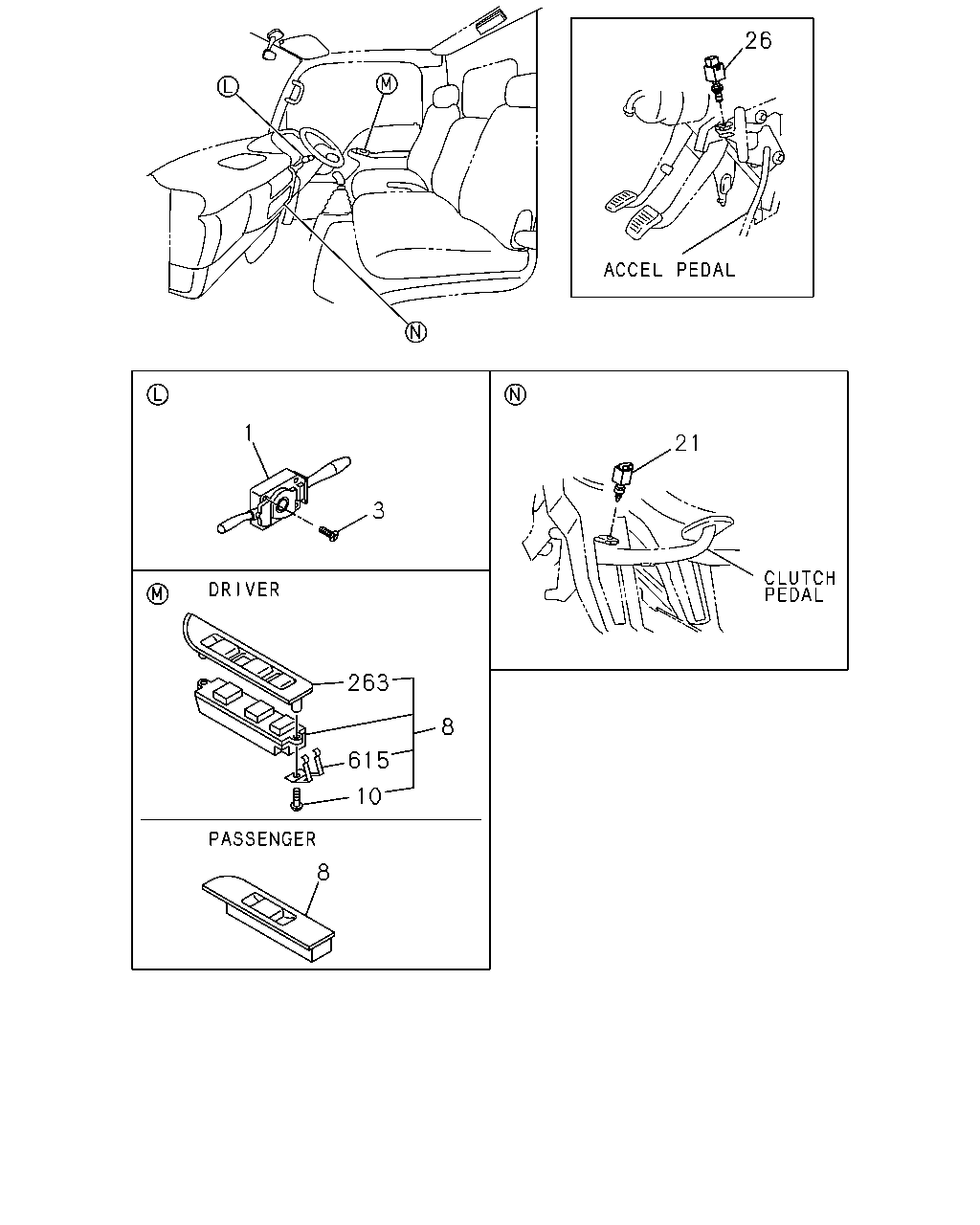

çizim 35004
26 1 21 3 263 8 615 10 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> W/SRS COIL 		8-97384-691-1 01 1 0502-1006 ● ● ● ● ●
1 02.895 SWITCH; COMB
AIR BAG DRIVER<AJ3> 		8-98172-381-0 01 1 1007- ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97287-892-2 01 1 0211-0301 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-97364-076-0 01 1 0302-0501 ● ● ● ● ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3> 		8-97383-519-0 01 1 0502- ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97287-886-2 01 1 0211-0301 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-97364-072-0 01 1 0302-0501 ● ● ● ● ●
1 02.895 SWITCH; COMB
EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-97383-515-0 01 1 0502- ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		9-03910-520-0 04 1 0211-0604 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/LK WASHER 		0-36220-520-0 04 1 0605-0612 ● ● ● ● ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 04 1 0701- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-97214-398-0 01 1 0211-0703 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98075-445-0 01 1 0704-0907 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
PASSENGER SIDE 		8-98147-235-0 01 1 0908- ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-97315-176-0 01 1 0211-0907 ● ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
DRIVER SIDE 		8-98147-225-0 01 1 0908- ● ● ● ● ●
10 03.885 SCREW; POWER WINDOW SW 8-97219-239-0 02 1 0211- ● ● ● ● ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) 04.054 		8-94331-723-1 01 1 0211-0211 ● ● ● ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 04.054 		8-94331-723-1 01 1 0211-0211 ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) 		8-97358-248-0 01 1 0212-0501 ● ● ● ●
21 02.575 SWITCH; CLU
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97358-248-0 01 1 0212-0501 ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ) 		8-97358-248-0 01 1 0502-0502 ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97358-248-0 01 1 0502-0502 ●
21 02.575 SWITCH; CLU
4HK1-TCS ENG(RJS) 		8-97358-248-0 01 1 0502-0502 ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0502- ● ● ●
21 02.575 SWITCH; CLU
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 0502- ●
21 02.575 SWITCH; CLU
4HK1-TCS ENG(RJS) 		8-97358-248-0 01 1 0502- ●
26 03.636 SWITCH; ACCEL
4HE1 ENG(RLY) 04.054 		8-94368-343-0 01 1 0211-0211 ● ● ● ● ●
26 03.636 SWITCH; ACCEL
4HE1 ENG(RLY) 		8-97358-315-0 01 1 0212-0501 ● ● ● ● ●
263 16.081 COVER; SW 8-97219-234-0 01 1 0211- ● ● ● ● ●
615 16.263 SPRING; POWER WINDOW SW 8-97219-238-0 01 1 0211- ● ● ● ● ●

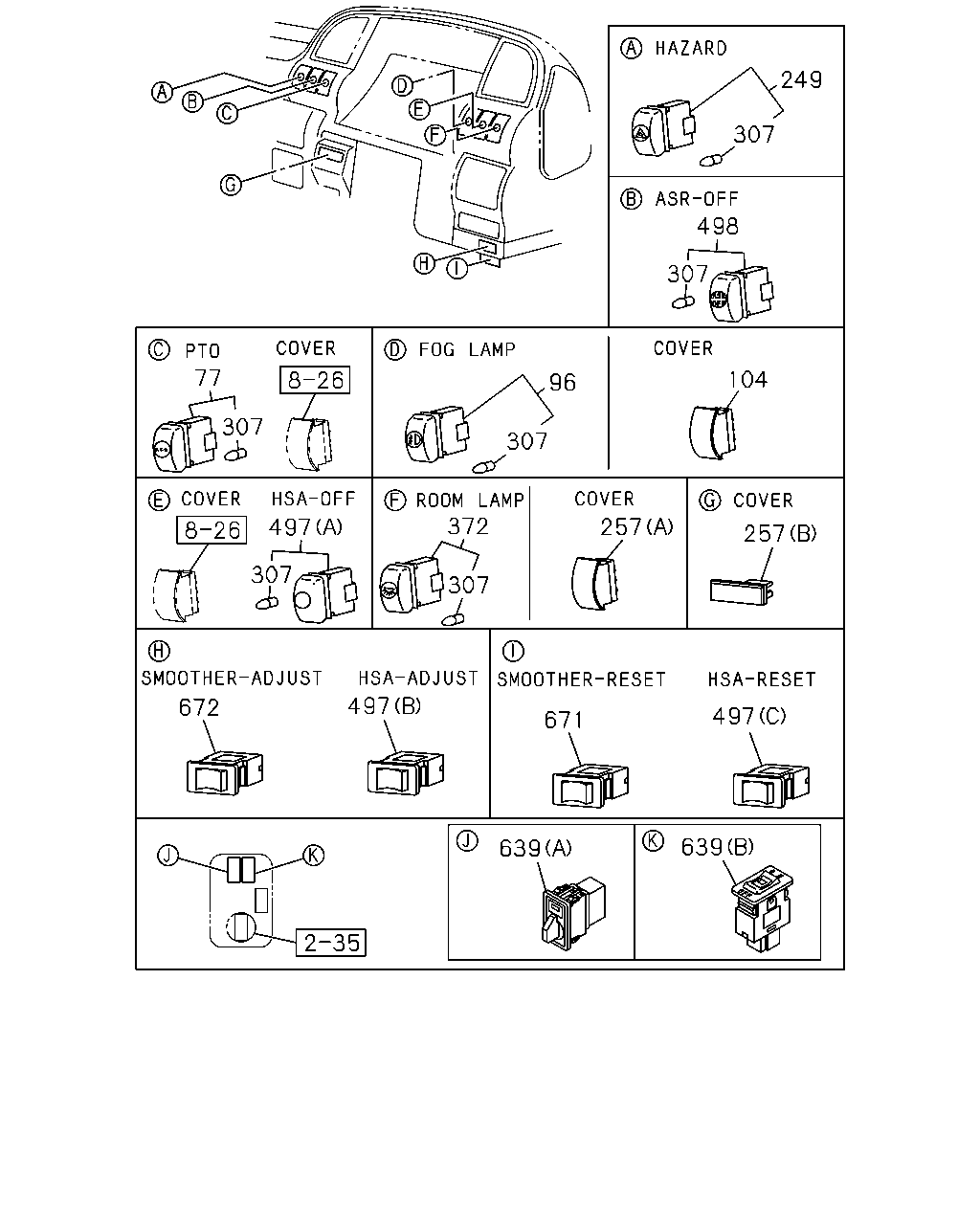

çizim 35005
249 307 498 307 77 104 96 307 307 372 257 497 257 307 307 497 672 497 671 639 639
BalonParca AdiParca NoAdetTipApplied Date A B C D E
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) TRANSMISSION CONTROL-SMOOTHER(8GF) 		1-82340-537-0 01 1 0609- ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-021-1 01 1 0211-0501 ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-021-1 01 1 0502-0506 ● ● ● ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97206-021-1 01 1 0507- ● ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
09.744 		8-97136-694-0 01 1 0211-0501 ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0211-0501 ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0502-0506 ● ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
09.744 		8-97136-694-0 01 1 0502-0506 ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 09.744 		8-97136-694-0 01 1 0507- ● ● ● ● ●
249 02.485 SWITCH; HAZARD 8-97202-475-0 01 1 0211- ● ● ● ● ●
257 16.081 COVER; HOLE,SW
PTO TRANSMISSION SIDE(V66) 02.485 (B) 		8-94310-890-0 01 1 0609- ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP SWITCH<7KL> 09.744 (A) 		8-97136-694-0 01 1 0211- ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
ROOM LAMP SWITCH<7KL> 28V 40MA 		8-97116-331-0 01 1 0502- ● ● ● ● ●
307 08.991 BULB ASM; SW
H.S.A SYSTEM<6EP> 28V 40MA 		8-97116-331-0 01 1 0502- ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 01 1 0502- ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0211-0501 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0211-0501 ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0502-0506 ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0502-0506 ● ● ● ●
307 08.991 BULB ASM; SW
28V 40MA 		8-97116-331-0 02 1 0507- ● ● ● ● ●
307 08.991 BULB ASM; SW
FOG LAMP<T96> 28V 40MA 		8-97116-331-0 02 1 0507- ● ● ● ● ●
372 08.852 SWITCH; ROOM LAMP
ROOM LAMP SWITCH<7KL> 		8-97136-693-0 01 1 0211- ● ● ● ● ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (C) HSA RESET 		8-97076-356-0 01 1 0502- ● ● ● ●
497 04.439 SWITCH; HSA
(C) HSA RESET 		8-97076-356-0 01 1 0502- ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) HSA ADJUST 		8-97076-358-1 01 1 0502- ● ● ● ●
497 04.439 SWITCH; HSA
(B) HSA ADJUST 		8-97076-358-1 01 1 0502- ●
497 04.439 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) HSA OFF 		8-97140-593-0 01 1 0502- ● ● ● ●
497 04.439 SWITCH; HSA
(A) HSA OFF 		8-97140-593-0 01 1 0502- ●
498 03.883 SWITCH; ASR 8-97140-601-0 01 1 0502- ● ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		1-82350-361-0 01 1 0502- ● ● ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97331-179-0 01 1 0502- ● ● ● ●
671 02.895 SWITCH; SMOOTHER,RESET
TRANSMISSION CONTROL-SMOOTHER(8GF) 16.263 		8-97329-833-0 01 1 0502- ● ● ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97329-781-0 01 1 0502- ● ● ● ●
çizim 100291
85 12 191
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 08.852 RELAY; POWER WINDOW
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
12 08.852 RELAY; POWER WINDOW
24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
85 02.485 RELAY; HEADLAMP
08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HE1 ENG(RLY) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●

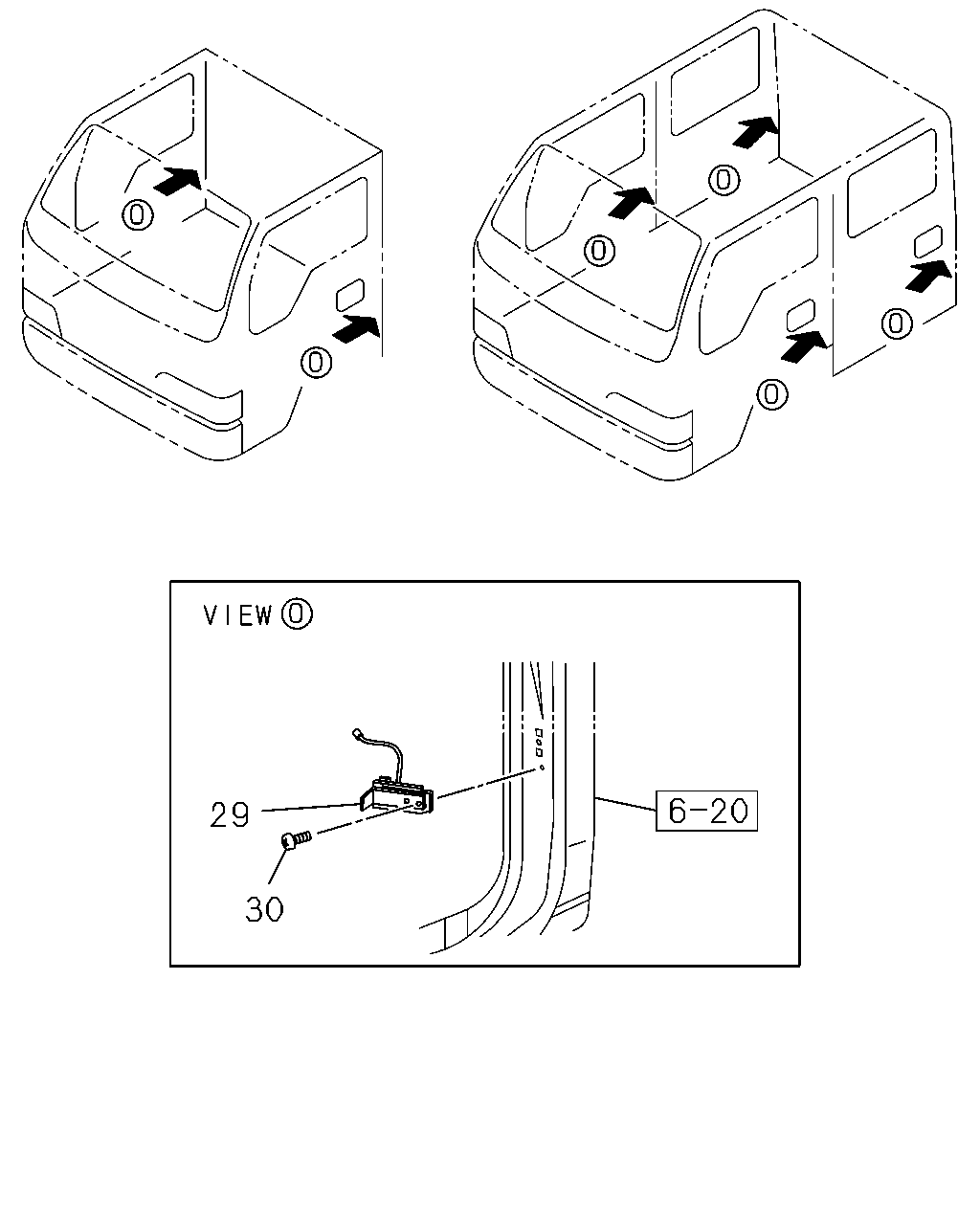

çizim 100294
29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E
29 16.263 SWITCH; DOOR 8-97855-032-3 02 1 0211- ● ● ● ●
29 16.263 SWITCH; DOOR 8-97855-032-3 04 1 0211- ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 02 1 0211- ● ● ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 0211- ●

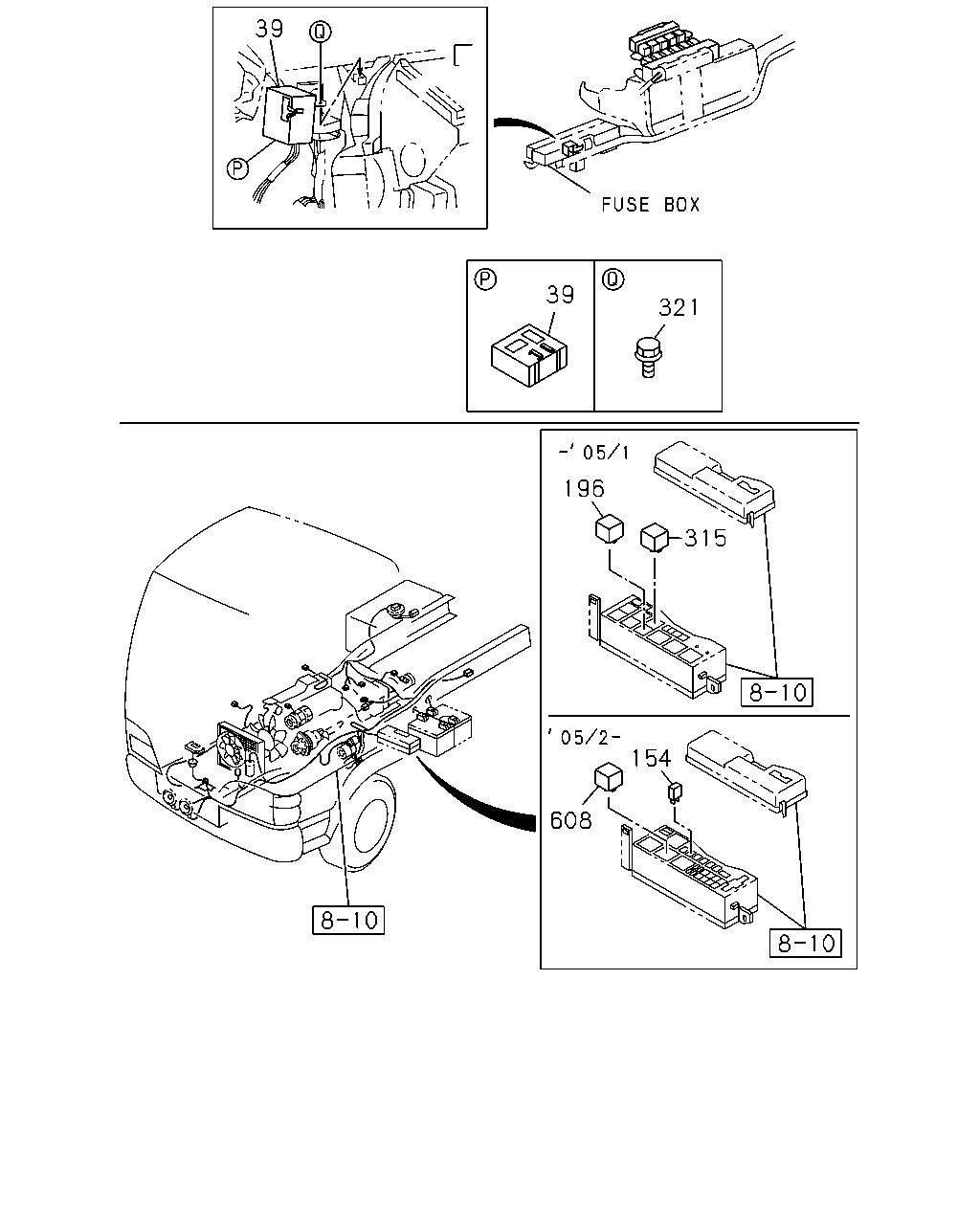

çizim 100345
39 39 321 196 315 154 608
BalonParca AdiParca NoAdetTipApplied Date A B C D E
39 16.341 RELAY; DOOR LK 8-97177-214-0 01 1 0211- ● ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 0502- ● ● ● ● ●
196 02.510 RELAY; BACKUP LAMP
A/T 4 SPEED-AISIN(RNJ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ●
315 09.277 RELAY; EXH BRAKE CONT
4HE1 ENG(RLY) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0211-0501 ● ● ● ● ●
321 16.341 BOLT; RELAY
01.269 M5X20 		8-94436-927-0 01 1 0211-0612 ● ● ● ● ●
321 16.341 BOLT; RELAY
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0701-1101 ● ● ● ● ●
321 16.341 BOLT; RELAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102- ● ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITUBA 		8-97238-540-0 01 1 0502- ● ● ● ●
