Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#38537) — 164 parça

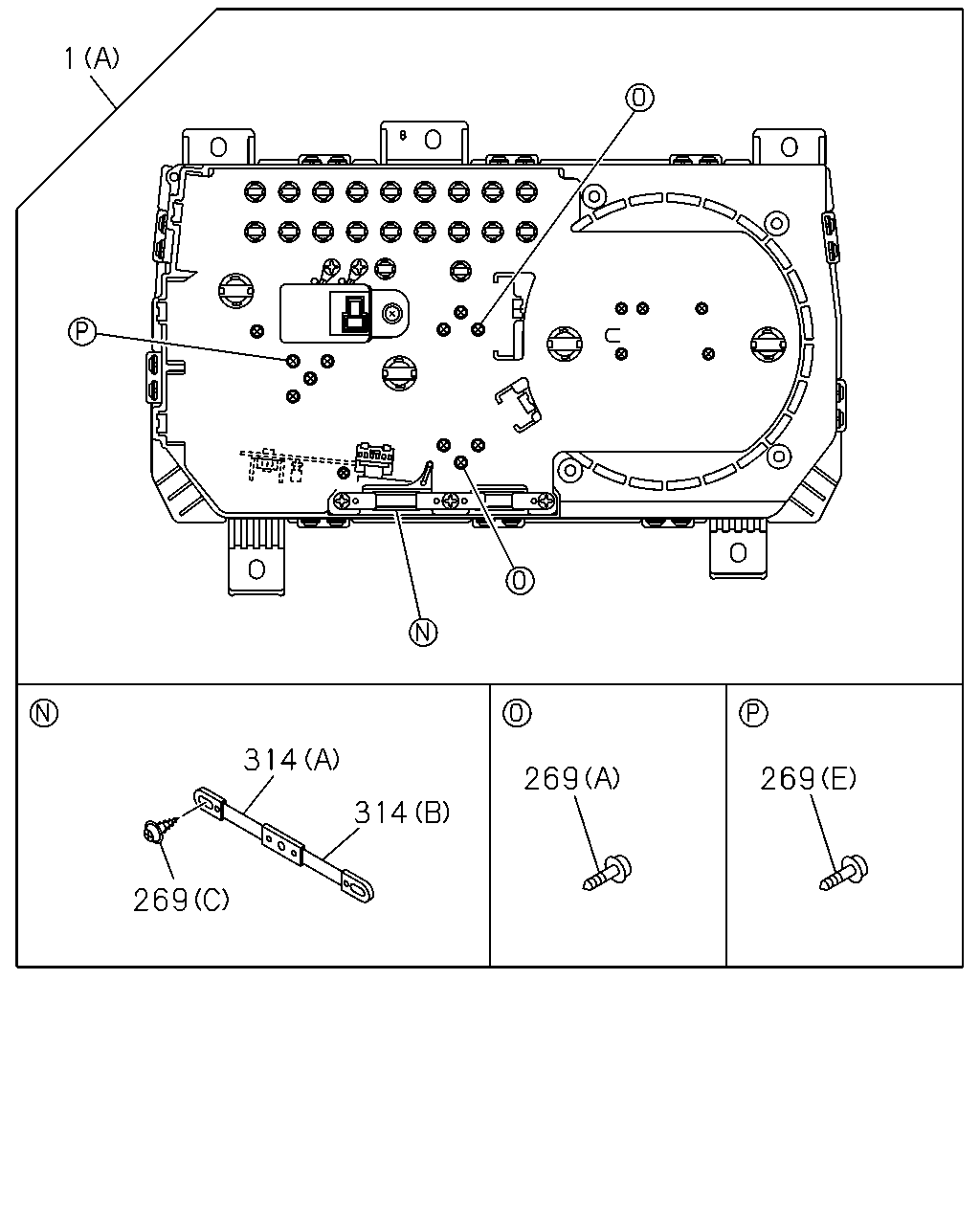

1 314 269 269 314 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) (A)	8-97259-819-0	01	1	0211-0501	●	●	●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A)	8-97259-819-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-518-4	01	1	0502-0607	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-735-0	01	1	0608-0808	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98124-890-0	01	1	0809-	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97350-665-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-514-4	01	1	0502-	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (B)	8-97185-523-0	01	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (E)	8-97185-524-0	08	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (A)	8-97185-525-0	06	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (C)	8-97185-528-0	05	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0211-	●	●	●	●	●
314	09.765 RESISTOR; COMB METER,CLUSTER MET (A)	8-97185-515-0	01	1	0211-0501	●	●	●	●	●
314	09.765 RESISTOR; COMB METER,CLUSTER MET (B)	8-97185-516-0	01	1	0211-0501	●	●	●	●	●

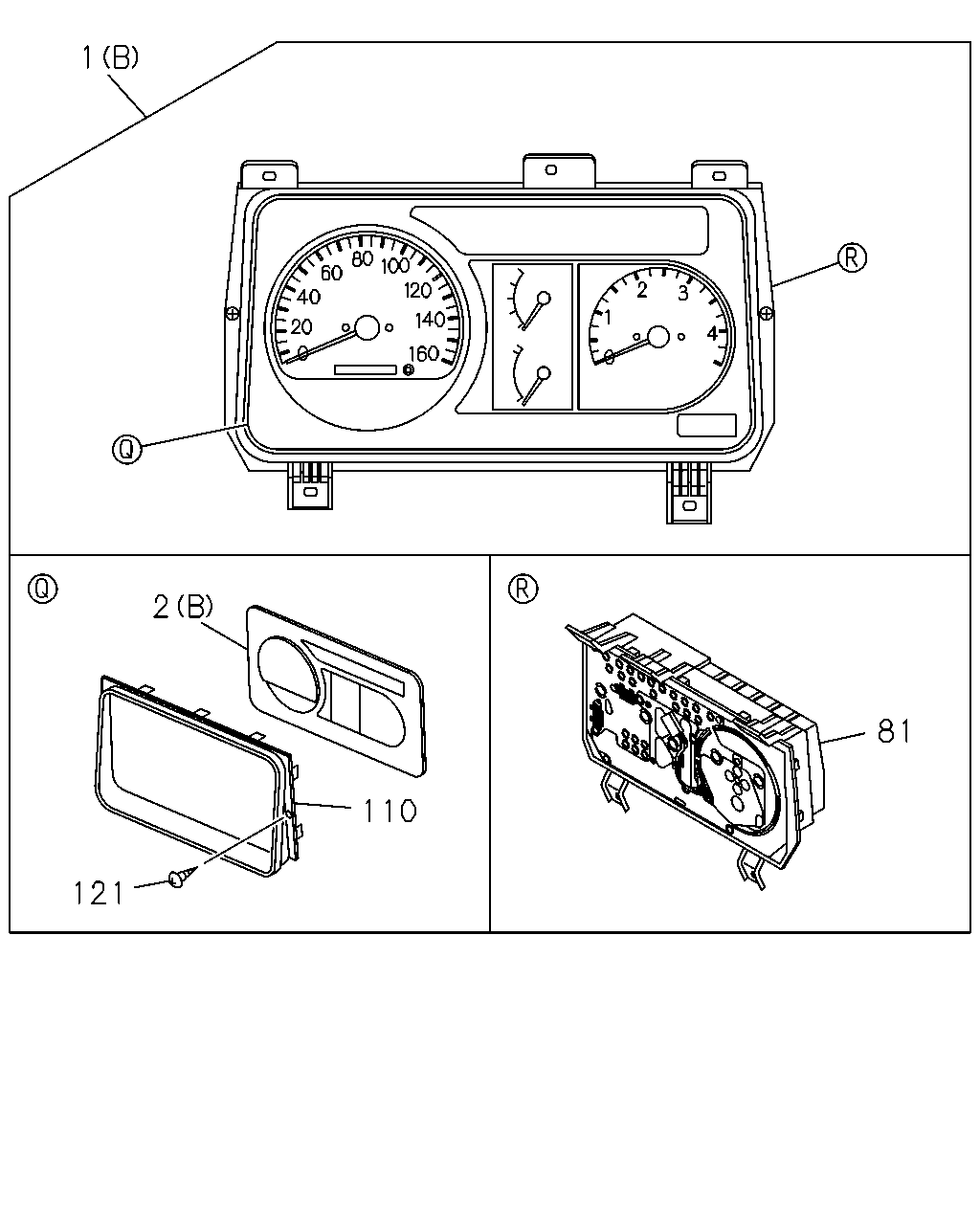

1 2 81 110 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) (A)	8-97259-819-0	01	1	0211-0501	●	●	●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A)	8-97259-819-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-518-4	01	1	0502-0607	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-735-0	01	1	0608-0808	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98124-890-0	01	1	0809-	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97350-665-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-514-4	01	1	0502-	●	●	●	●	●
2	09.735 PANEL; CLUSTER (A)	8-97185-443-0	01	1	0211-0501	●	●	●	●	●
2	09.735 PANEL; CLUSTER (B)	8-97185-047-0	01	1	0502-	●	●	●	●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743	8-98003-835-0	01	1	0502-	●	●	●	●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 09.743	8-98003-836-0	01	1	0502-0808	●	●		●	●
81	09.735 METER SUB ASM 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98127-296-0	01	1	0809-	●	●		●	●
110	09.748 GLASS; CLUSTER METER	8-97185-452-0	01	1	0211-0501	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER	8-97185-045-0	01	1	0502-	●	●	●	●	●
121	09.744 SCREW; PANEL FIX,CLUSTER METER	8-97185-100-0	02	1	0502-	●	●	●	●	●

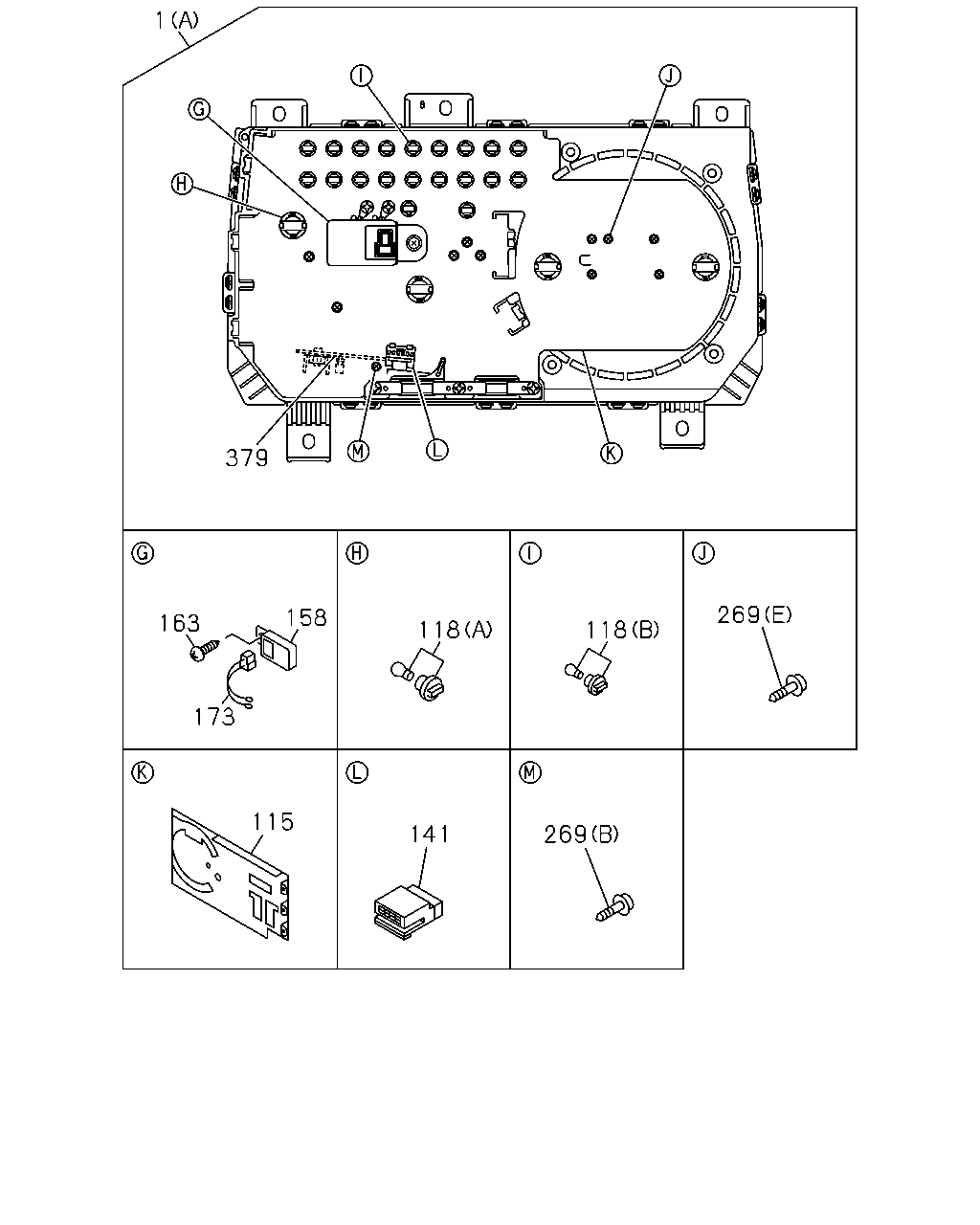

1 379 269 158 163 118 118 173 115 269 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) (A)	8-97259-819-0	01	1	0211-0501	●	●	●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A)	8-97259-819-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-518-4	01	1	0502-0607	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-735-0	01	1	0608-0808	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98124-890-0	01	1	0809-	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97350-665-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-514-4	01	1	0502-	●	●	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY)	8-97185-493-0	01	1	0211-0501	●	●	●	●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97185-493-0	01	1	0211-0501					●
115	09.744 CIRCUIT; PRINTED,CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97210-318-0	01	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	19	1	0502-0509	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	20	1	0510-	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0211-0501	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (D) 28V 1.8W	8-97305-177-0	18	1	0502-0502	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	18	1	0502-0509	●	●		●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	19	1	0510-	●	●		●	●
118	08.991 BULB; CLUSTER METER (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	02	1	0211-0501	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (C) 28V 3W	8-97305-178-0	05	1	0502-	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0211-0501	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	11	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 24V SOCKET COLOR BROWN	8-97185-541-0	06	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	12	1	0211-0501					●
141	09.744 CONNECTOR; CLUSTER METER	8-97185-513-0	01	1	0211-0501	●	●	●	●	●
158	09.765 BUZZER; VAC WARNING 24V	8-97185-519-0	01	1	0211-0501	●	●	●	●	●
158	09.765 BUZZER; VAC WARNING	8-98003-830-0	01	1	0502-	●	●	●	●	●
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	0211-0501	●	●	●	●	●
163	08.977 SCREW; BUZZER	8-97185-099-0	01	1	0502-0502	●	●	●	●	●
163	08.977 SCREW; BUZZER	8-97185-099-0	02	1	0503-	●	●	●	●	●
173	09.744 WIRE; LEAD	8-97185-643-0	01	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (B)	8-97185-523-0	01	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (E)	8-97185-524-0	08	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (A)	8-97185-525-0	06	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (C)	8-97185-528-0	05	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0211-	●	●	●	●	●
379	09.744 CIRCUIT; DROP	8-97185-512-0	01	1	0211-0501	●	●	●	●	●

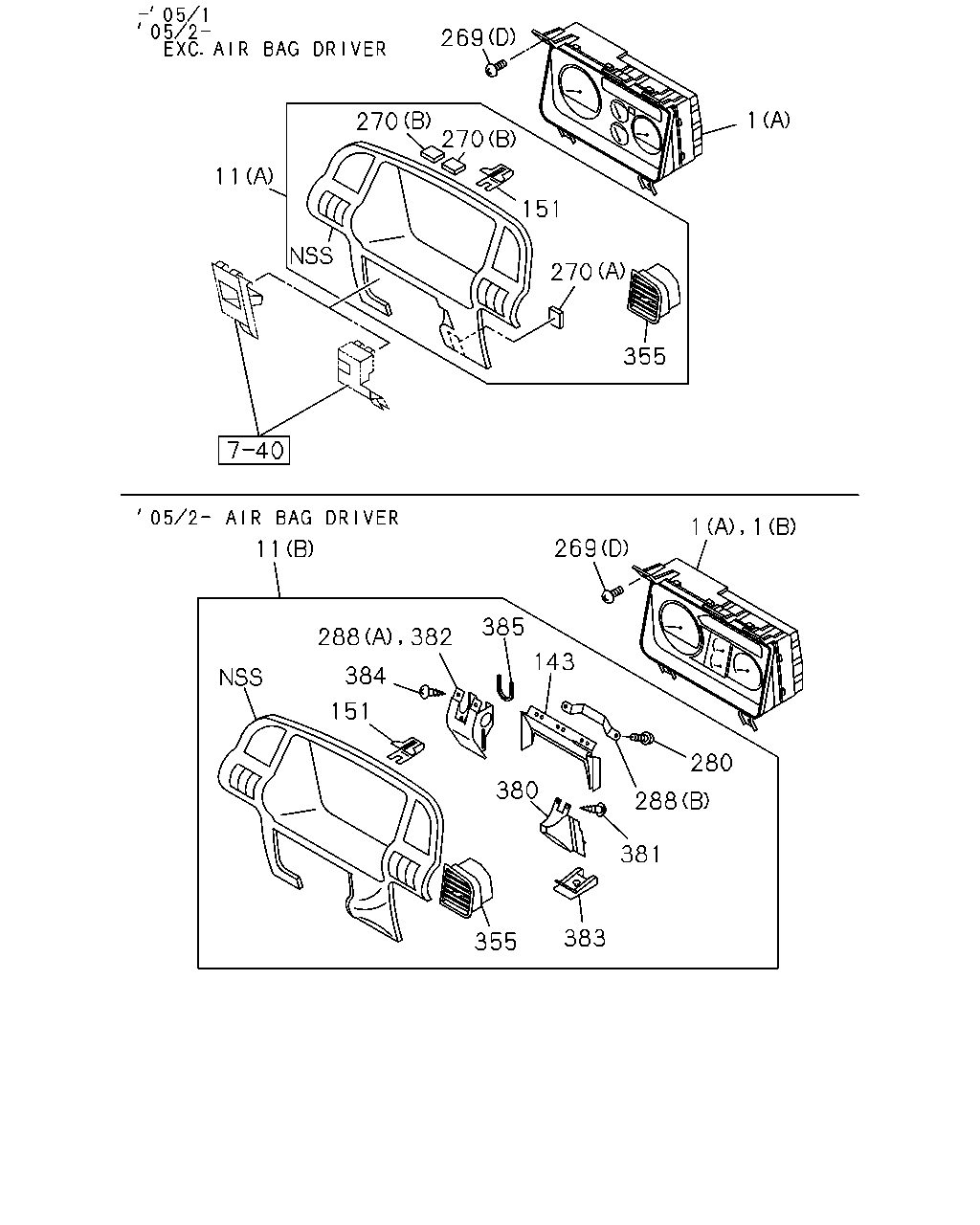

1 270 11 151 355 1 1 269 11 385 288 382 143 384 151 280 380 288 381 383 355 269 270 270

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) (A)	8-97259-819-0	01	1	0211-0501	●	●	●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A)	8-97259-819-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-518-4	01	1	0502-0607	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-735-0	01	1	0608-0808	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98124-890-0	01	1	0809-	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97350-665-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-514-4	01	1	0502-	●	●	●	●	●
11	09.743 CLUSTER ASM; METER AIR BAG DRIVER<AJ3> (B) BLACK	8-97868-145-7	01	1	0502-0608	●	●	●	●	●
11	09.743 CLUSTER ASM; METER AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) (B) BLACK	8-97868-145-7	01	1	0609-	●				●
11	09.743 CLUSTER ASM; METER AIR BAG DRIVER<AJ3> (B) BLACK	8-97868-145-7	01	1	0609-		●	●	●
11	09.743 CLUSTER ASM; METER AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) (B) BLACK	8-97196-063-4	01	1	0609-	●				●
11	09.743 CLUSTER ASM; METER (A) BLACK	8-97195-965-2	01	1	0211-0501	●	●	●	●	●
11	09.743 CLUSTER ASM; METER EXC. AIR BAG DRIVER<AJ3> (A) BLACK	8-97195-965-2	01	1	0502-	●	●	●	●	●
143	09.715 COVER; CLUSTER METER AIR BAG DRIVER<AJ3>	8-97185-757-1	01	1	0502-0608	●	●	●	●	●
143	09.715 COVER; CLUSTER METER AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66)	8-97185-757-1	01	1	0609-	●				●
143	09.715 COVER; CLUSTER METER AIR BAG DRIVER<AJ3>	8-97185-757-1	01	1	0609-		●	●	●
143	09.715 COVER; CLUSTER METER AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66)	8-97185-759-1	01	1	0609-	●				●
151	09.747 CLIP; METER CLUSTER	8-97217-066-0	07	1	0211-	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (B)	8-97185-523-0	01	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (E)	8-97185-524-0	08	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (A)	8-97185-525-0	06	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER (C)	8-97185-528-0	05	1	0211-0501	●	●	●	●	●
269	09.743 SCREW; METER CLUSTER 08.225 (D) M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0211-	●	●	●	●	●
270	09.743 CUSHION; METER CLUSTER 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	0211-0501	●	●	●	●	●
270	09.743 CUSHION; METER CLUSTER EXC. AIR BAG DRIVER<AJ3> 16.085 (A) 15X30 T=5	8-94270-366-2	01	1	0502-	●	●	●	●	●
270	09.743 CUSHION; METER CLUSTER (B) 6X30 T=2	8-94270-378-1	02	1	0211-0501	●	●	●	●	●
270	09.743 CUSHION; METER CLUSTER EXC. AIR BAG DRIVER<AJ3> (B) 6X30 T=2	8-94270-378-1	02	1	0502-	●	●	●	●	●
280	09.744 SCREW; COVER AIR BAG DRIVER<AJ3> 09.663 M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	0502-0604	●	●	●	●	●
280	09.744 SCREW; COVER AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER	0-74160-512-0	02	1	0605-	●	●	●	●	●
288	09.743 BRACKET AIR BAG DRIVER<AJ3> (B)	8-97205-060-0	01	1	0502-	●	●	●	●	●
288	09.743 BRACKET AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) (A)	8-97182-775-0	01	1	0609-	●				●
355	09.748 GRILLE; VENT BLACK	8-97195-966-1	01	1	0211-	●	●	●	●	●
355	09.748 GRILLE; VENT BLACK	8-97195-967-1	01	1	0211-	●	●	●	●	●
380	09.744 BRACKET; KNEE SPREADER AIR BAG DRIVER<AJ3>	8-97187-860-3	01	1	0502-	●	●	●	●	●
381	09.744 SCREW; KNEE SPREADER AIR BAG DRIVER<AJ3> 09.663 M5X12 TAPPING W/PL WASHER	0-74110-512-0	04	1	0502-0604	●	●	●	●	●
381	09.744 SCREW; KNEE SPREADER AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER	0-74160-512-0	04	1	0605-	●	●	●	●	●
382	09.744 BRACKET; KNEE BOLSTER AIR BAG DRIVER<AJ3>	8-97890-267-2	01	1	0502-0608	●	●	●	●	●
382	09.744 BRACKET; KNEE BOLSTER AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66)	8-97890-267-2	01	1	0609-	●				●
382	09.744 BRACKET; KNEE BOLSTER AIR BAG DRIVER<AJ3>	8-97890-267-2	01	1	0609-		●	●	●
383	09.744 NUT; SPIRE,KNEE BOLSTER AIR BAG DRIVER<AJ3> 16.081 M5 SPIRE NUT	8-94279-051-0	02	1	0502-	●	●	●	●	●
384	09.744 SCREW; KNEE BOLSTER AIR BAG DRIVER<AJ3> 09.663 M5X12 TAPPING W/PL WASHER	0-74110-512-0	02	1	0502-0604	●	●	●	●	●
384	09.744 SCREW; KNEE BOLSTER AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER	0-74160-512-0	02	1	0605-0608	●	●	●	●	●
384	09.744 SCREW; KNEE BOLSTER AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 16.345 M5X12 TAPPING W/PL WASHER	0-74160-512-0	02	1	0609-	●				●
384	09.744 SCREW; KNEE BOLSTER AIR BAG DRIVER<AJ3> 16.345 M5X12 TAPPING W/PL WASHER	0-74160-512-0	02	1	0609-		●	●	●
384	09.744 SCREW; KNEE BOLSTER AIR BAG DRIVER<AJ3> PTO TRANSMISSION SIDE(V66) 16.345 M5X12 TAPPING W/PL WASHER	0-74160-512-0	01	1	0609-	●				●
385	09.761 FINISHER; BRKT AIR BAG DRIVER<AJ3> 02.559 L=80	5-71997-133-0	01	1	0502-0608	●	●	●	●	●
385	09.761 FINISHER; BRKT AIR BAG DRIVER<AJ3> EXC. PTO TRANSMISSION SIDE(V66) 02.559 L=80	5-71997-133-0	01	1	0609-	●				●
385	09.761 FINISHER; BRKT AIR BAG DRIVER<AJ3> 02.559 L=80	5-71997-133-0	01	1	0609-		●	●	●

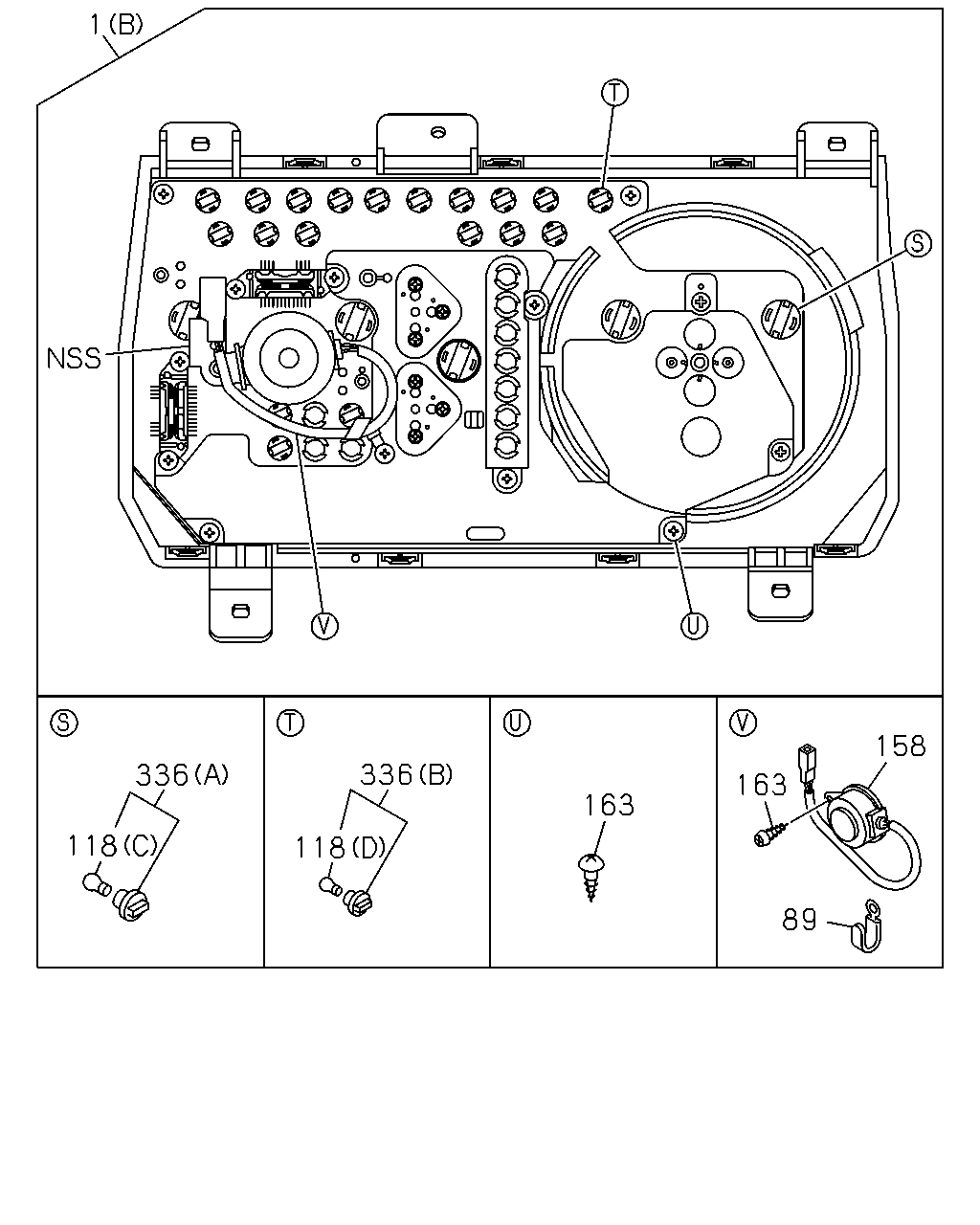

1 158 336 336 163 163 118 118 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) (A)	8-97259-819-0	01	1	0211-0501	●	●	●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A)	8-97259-819-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-518-4	01	1	0502-0607	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-735-0	01	1	0608-0808	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98124-890-0	01	1	0809-	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97350-665-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-514-4	01	1	0502-	●	●	●	●	●
89	09.761 CLIP; HARNESS	8-97253-928-0	01	1	0503-	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	19	1	0502-0509	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	20	1	0510-	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (A) 24V SOCKET COLOR DARK BROWN	8-97185-538-0	04	1	0211-0501	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (D) 28V 1.8W	8-97305-177-0	18	1	0502-0502	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	18	1	0502-0509	●	●		●	●
118	08.991 BULB; CLUSTER METER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 28V 1.8W	8-97305-177-0	19	1	0510-	●	●		●	●
118	08.991 BULB; CLUSTER METER (B) 24V SOCKET COLOR REDDISH BROWN	8-97185-540-0	02	1	0211-0501	●	●	●	●	●
118	08.991 BULB; CLUSTER METER (C) 28V 3W	8-97305-178-0	05	1	0502-	●	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0211-0501	●	●	●	●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	10	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	11	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 24V SOCKET COLOR BROWN	8-97185-541-0	06	1	0211-0501					●
118	08.991 BULB; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) HYDRO BRAKE BOOSTER<7QQ> (B) 24V SOCKET COLOR DARK BROWN	8-97185-539-0	12	1	0211-0501					●
158	09.765 BUZZER; VAC WARNING 24V	8-97185-519-0	01	1	0211-0501	●	●	●	●	●
158	09.765 BUZZER; VAC WARNING	8-98003-830-0	01	1	0502-	●	●	●	●	●
163	08.977 SCREW; BUZZER	8-97185-527-0	01	1	0211-0501	●	●	●	●	●
163	08.977 SCREW; BUZZER	8-97185-099-0	01	1	0502-0502	●	●	●	●	●
163	08.977 SCREW; BUZZER	8-97185-099-0	02	1	0503-	●	●	●	●	●
336	02.575 LAMP ASM; WARNING (A)	8-97185-093-0	05	1	0502-	●	●	●	●	●
336	02.575 LAMP ASM; WARNING (B)	8-97185-091-0	18	1	0502-0502	●	●	●	●	●
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97185-091-0	18	1	0502-0509	●	●		●	●
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97185-091-0	19	1	0510-	●	●		●	●
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97185-091-0	19	1	0502-0509	●	●	●	●	●
336	02.575 LAMP ASM; WARNING 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97185-091-0	20	1	0510-	●	●	●	●	●

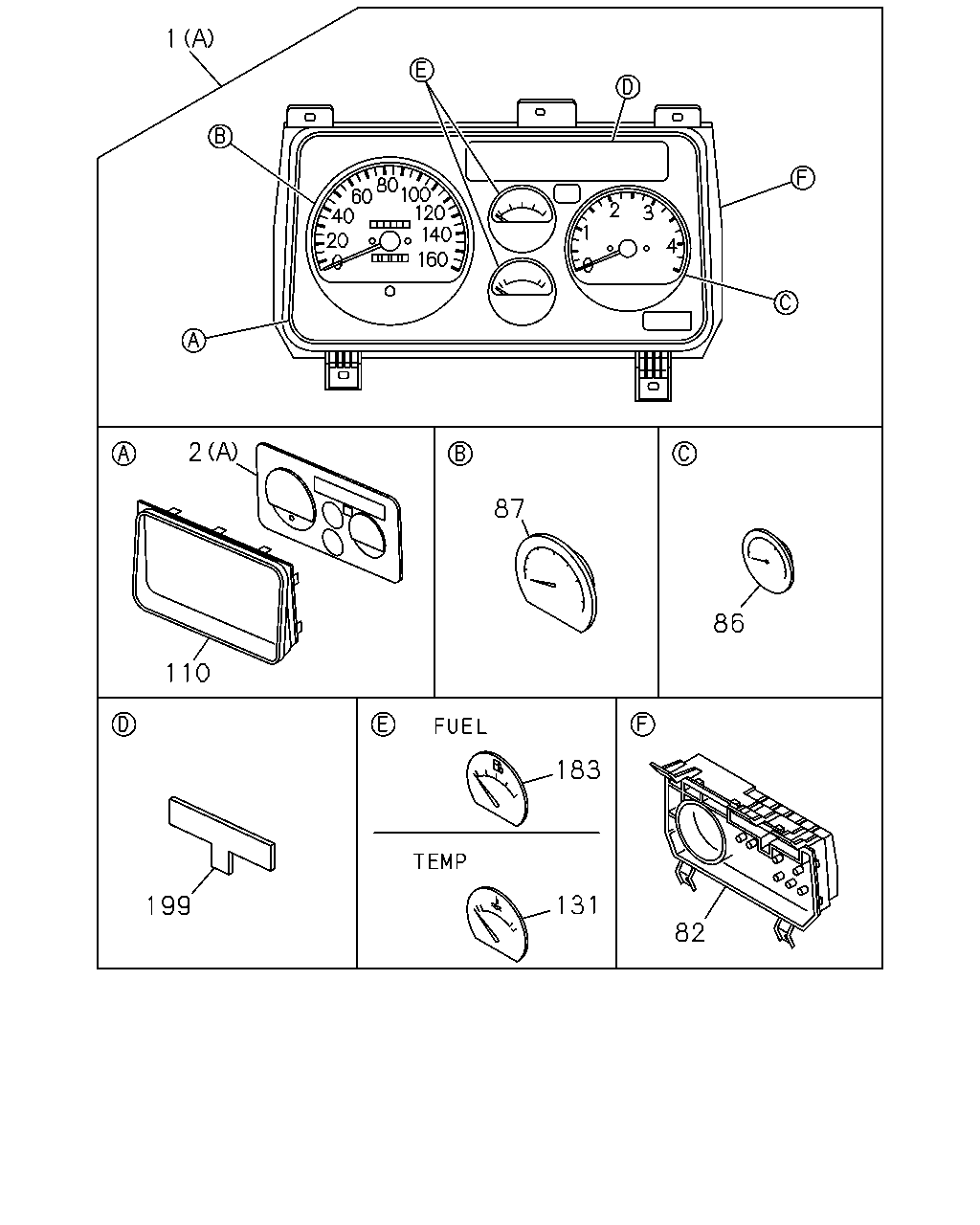

1 2 87 86 110 183 131 199 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) (A)	8-97259-819-0	01	1	0211-0501	●	●	●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A)	8-97259-819-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-518-4	01	1	0502-0607	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98055-735-0	01	1	0608-0808	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98124-890-0	01	1	0809-	●	●		●	●
1	09.735 METER COMPL; CLUSTER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A)	8-97350-665-0	01	1	0211-0501					●
1	09.735 METER COMPL; CLUSTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98000-514-4	01	1	0502-	●	●	●	●	●
2	09.735 PANEL; CLUSTER (A)	8-97185-443-0	01	1	0211-0501	●	●	●	●	●
2	09.735 PANEL; CLUSTER (B)	8-97185-047-0	01	1	0502-	●	●	●	●	●
82	09.743 CASE ASM; CLUSTER METER	8-97185-448-0	01	1	0211-0501	●	●	●	●	●
86	09.750 TACHOMETER; CLUSTER METER 4HE1 ENG(RLY)	8-97218-460-0	01	1	0211-0501	●	●	●	●
86	09.750 TACHOMETER; CLUSTER METER 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11>	8-97218-460-0	01	1	0211-0501					●
86	09.750 TACHOMETER; CLUSTER METER 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ)	8-97218-586-0	01	1	0211-0501					●
87	09.761 SPEEDOMETER	8-97185-457-0	01	1	0211-0501	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER	8-97185-452-0	01	1	0211-0501	●	●	●	●	●
110	09.748 GLASS; CLUSTER METER	8-97185-045-0	01	1	0502-	●	●	●	●	●
131	01.148 GAUGE; TEMP,CLUSTER METER	8-97185-475-0	01	1	0211-0501	●	●	●	●	●
183	03.107 GAUGE; FUEL	8-97185-473-0	01	1	0211-0501	●	●	●	●	●
199	09.772 LENS; WARNING LAMP	8-97185-482-0	01	1	0211-0501	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
