Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#38536) — 621 parça

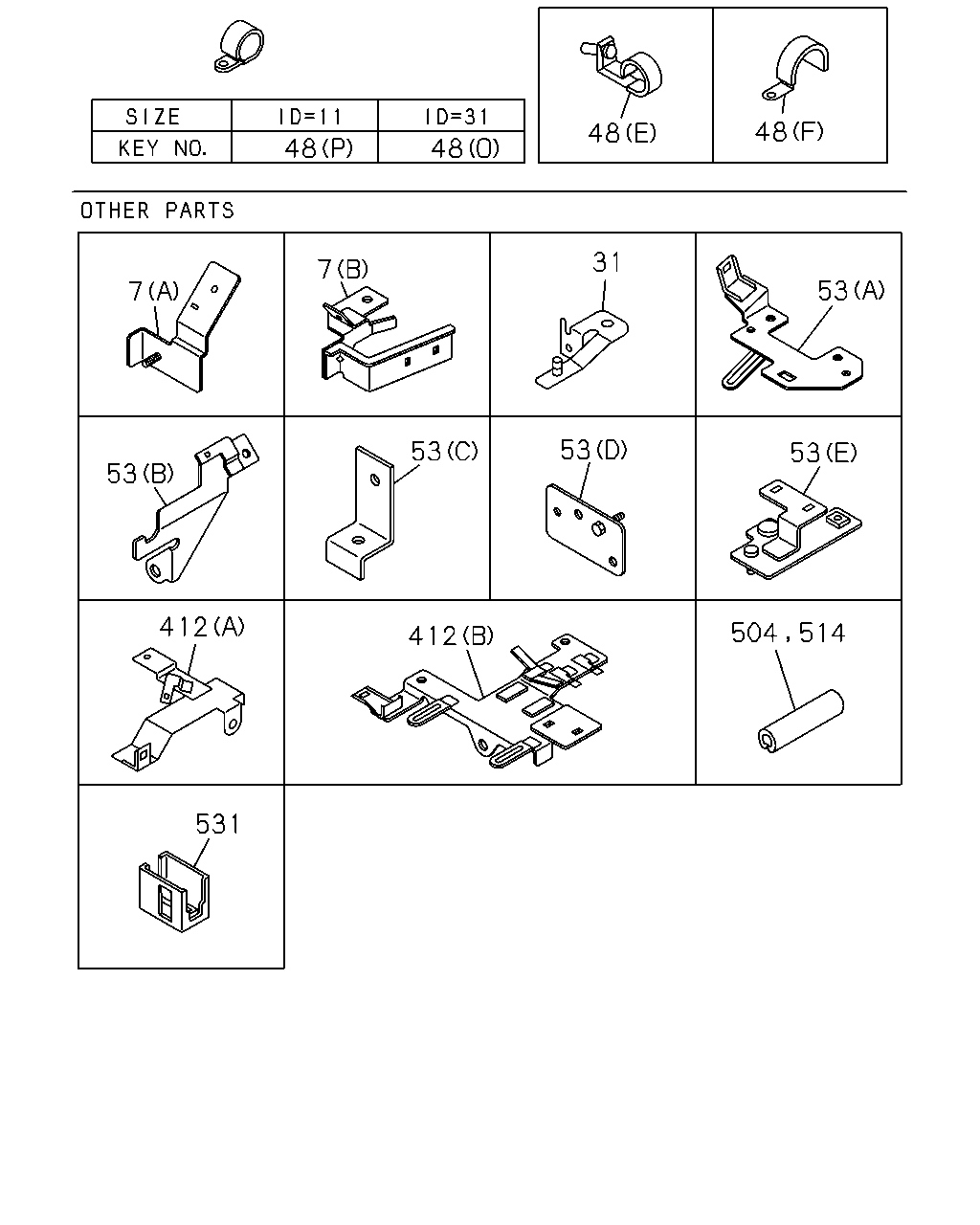

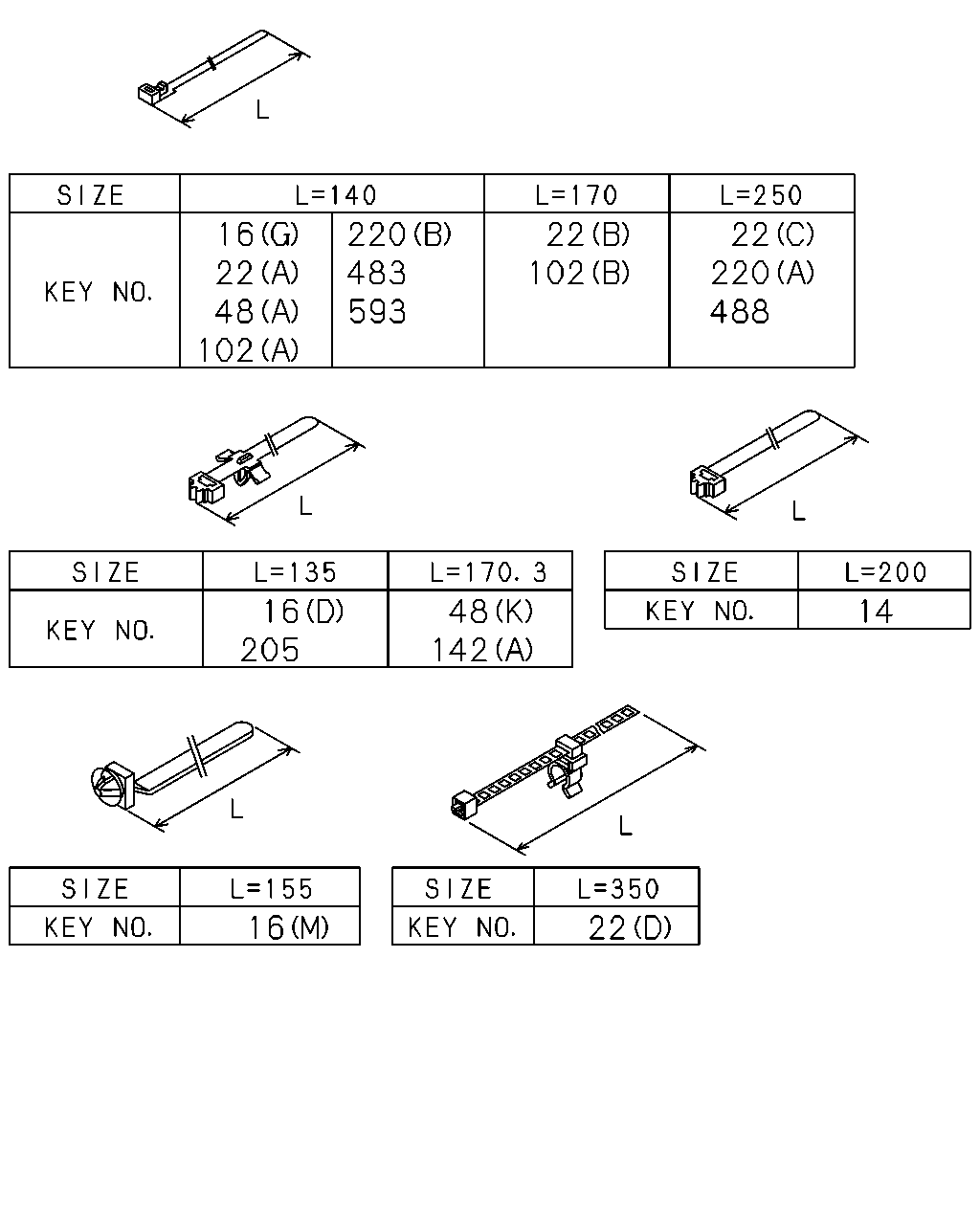

16 16 48 16 48 16 48 48 48 48 16 48 16 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
16	02.559 CLIP; HARNESS 02.525 (N) T=4.5 & 9	5-09709-023-0	03	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS (H) T=6.0	5-09709-024-0	04	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	05	1	0502-				●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	06	1	0503-0504	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	05	1	0505-	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	06	1	1010-	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0211-0501	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	01	1	0502-	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501	●	●	●	●	●
16	02.559 CLIP; HARNESS A/T 4 SPEED-AISIN(RNJ) 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501		●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501					●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0502-					●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501	●		●		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501				●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-	●			●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-		●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-			●		●
16	02.559 CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	03	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	01	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501				●
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0502-		●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0502-			●	●	●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	0211-0501		●			●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	06	1	0502-	●	●	●		●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	11	1	0211-0501			●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	04	1	0502-			●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	13	1	0211-0501				●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0502-				●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	12	1	0211-0501					●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	03	1	0502-0506	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	03	1	0507-		●			●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	02	1	0211-					●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	04	1	0211-					●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	0211-1009	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	0211-1009	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	1010-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0504	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608				●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0609-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501			●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (O) ID=31 L=30	1-09700-969-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	05	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	04	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-				●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	01	1	0211-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (E) ID=30 W/STUD	8-97078-642-2	02	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (Q) T=6.0	5-09709-012-0	01	1	0502-0506	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	01	1	0507-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-				●
48	02.559 CLIP; FRAME HARNESS A/T 4 SPEED-AISIN(RNJ) 04.785 (N) ID=9.6	8-94147-870-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (M) ID=24	8-94149-610-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (H) ID=30 L=56	1-09700-984-0	01	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	0-95235-085-0	01	1	0607-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3	1-09987-182-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	04	1	0211-0302	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	04	1	0303-0303	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	05	1	0303-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=30 W/STUD	8-97078-642-2	04	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502					●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0606					●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	01	1	0607-					●

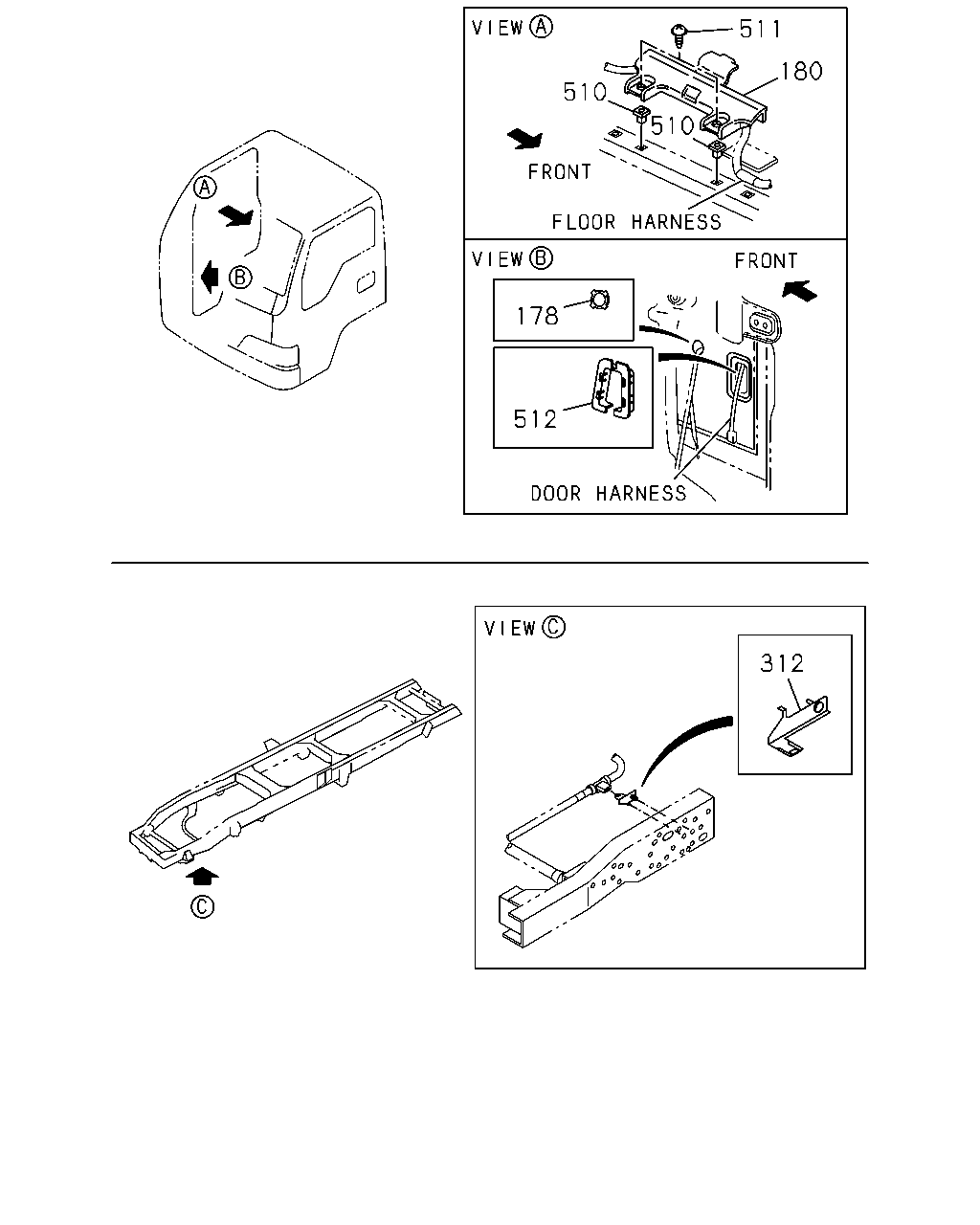

511 180 510 510 178 512 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0211-	●	●	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0211-	●	●	●	●	●
312	02.559 BRACKET; CLIP HARNESS	8-97017-072-2	01	1	0211-	●	●	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0211-	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0211-0604	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702	●	●	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-	●	●	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0211-	●	●	●	●	●

377 386 139 150 386 150 377 386 239 8 38 139 239 38 139 19 64 219 294 219 294 515 294 469 515 519 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
8	02.559 BOLT; BRKT,CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502	●	●	●		●
19	02.559 BOLT; PROTECTOR 4HE1 ENG(RLY) 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0211-0501	●	●	●	●	●
19	02.559 BOLT; PROTECTOR 03.162 M10X35 FLANGE	0-28681-035-0	01	1	0502-0512	●	●	●	●	●
19	02.559 BOLT; PROTECTOR 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) 04.686 (A) M8X30 FLANGE	0-28680-830-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0501		●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502	●		●		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502	●		●		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502				●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502				●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502					●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512				●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512					●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-		●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCS ENG(RJS) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-				●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-					●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0211-0410					●
64	02.559 SCREW; CLIP 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0411-0501		●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0411-0501					●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0502-0502					●
64	02.559 SCREW; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0503-	●	●	●
64	02.559 SCREW; CLIP 16.742 M4X16 TAPPING	1-09981-477-0	01	1	0503-					●
139	02.559 BOLT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28680-825-0	01	1	0502-0502	●	●	●	●	●
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (C) M8X35 FLANGE	0-28680-835-0	02	1	0502-0512	●	●	●		●
139	02.559 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 01.060 (C) M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●		●
139	02.559 BOLT; BRKT 01.062 (B) M8X16 FLANGE	0-28080-816-0	03	1	0211-0512	●	●	●	●	●
139	02.559 BOLT; BRKT 02.343 (B) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0502-0512	●	●	●	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.594 (B) M6 FLANGE	0-91150-106-0	04	1	0502-0602	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M6 FLANGE	0-91180-106-0	04	1	0603-	●	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●	●	●
219	02.559 NUT 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501		●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●	●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●		●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602		●
219	02.559 NUT 4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602				●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602					●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
219	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●		●		●
219	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●
219	02.559 NUT 4HK1-TCS ENG(RJS) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-				●
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-					●
239	02.559 BOLT; GRAND 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004	●	●	●	●	●
239	02.559 BOLT; GRAND 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●	●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●	●	●
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●		●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●
294	02.559 NUT TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●		●
294	02.559 NUT 4HE1 ENG(RLY) M/T MZZ6U(RSF) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0211		●		●
294	02.559 NUT 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0212-0501	●	●	●	●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0502-0602	●	●	●	●	●
294	02.559 NUT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 (C) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0211-0306	●	●	●	●	●
294	02.559 NUT 4HE1 ENG(RLY) 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●	●	●	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501	●		●		●
294	02.559 NUT EXC. HYDRO BRAKE BOOSTER<7QQ> 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0501		●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●	●	●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●	●	●
294	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0211-0501	●		●	●	●
294	02.559 NUT FLOOR REMOTE SHIFT<M11> 07.633 (C) M8 FLANGE	0-91150-108-0	02	1	0211-0501		●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
377	02.559 BOLT; CAB EARTH EXC. AIR BAG DRIVER<AJ3> (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004	●	●	●	●	●
377	02.559 BOLT; CAB EARTH EXC. AIR BAG DRIVER<AJ3> 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0211-0501	●	●	●	●	●
377	02.559 BOLT; CAB EARTH AIR BAG DRIVER<AJ3> (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0502-1004	●	●	●	●	●
377	02.559 BOLT; CAB EARTH AIR BAG DRIVER<AJ3> 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1005-	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0501	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004	●	●	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●	●	●
469	02.559 NUT; PROTECTOR 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●	●
469	02.559 NUT; PROTECTOR 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●	●	●
469	02.559 NUT; PROTECTOR 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●
515	02.559 NUT; BRKT 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●	●	●
515	02.559 NUT; BRKT 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●
515	02.559 NUT; BRKT 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0502	●	●	●	●	●
515	02.559 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0602	●	●	●	●	●
515	02.559 NUT; BRKT M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0602	●
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0602		●
515	02.559 NUT; BRKT M/T MYY6P(RSJ) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0602			●		●
515	02.559 NUT; BRKT M/T MZZ6U(RSF) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0503-0602				●
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●	●
515	02.559 NUT; BRKT M/T MYY5T(RSM) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●
515	02.559 NUT; BRKT M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●
515	02.559 NUT; BRKT M/T MYY6P(RSJ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-			●		●
515	02.559 NUT; BRKT M/T MZZ6U(RSF) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-				●
519	02.559 NUT; EARTH CABLE 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●	●
519	02.559 NUT; EARTH CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 M10 FLANGE	0-91150-110-0	01	1	0502-0602	●	●	●	●	●
519	02.559 NUT; EARTH CABLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●	●	●
525	02.559 NUT; CLIP 4HE1 ENG(RLY) 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0501	●	●	●	●	●

48 48 48 48 31 7 53 7 53 53 53 53 412 412 531 504 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98003-672-0	01	1	0502-0502	●	●	●		●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-98003-671-1	01	1	0502-	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE	8-97042-635-0	01	1	0211-0501	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ)	8-97042-635-0	01	1	0502-	●		●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97042-635-0	01	1	0502-		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCS ENG(RJS)	8-97042-635-0	01	1	0502-				●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HE1 ENG(RLY)	8-97077-845-0	02	1	0211-0501	●	●	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ)	8-97077-845-0	02	1	0502-	●		●		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97077-845-0	02	1	0502-		●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4HK1-TCS ENG(RJS)	8-97077-845-0	02	1	0502-				●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0504	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608				●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0609-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501			●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (O) ID=31 L=30	1-09700-969-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	05	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	04	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-				●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	01	1	0211-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (E) ID=30 W/STUD	8-97078-642-2	02	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (Q) T=6.0	5-09709-012-0	01	1	0502-0506	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	01	1	0507-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-				●
48	02.559 CLIP; FRAME HARNESS A/T 4 SPEED-AISIN(RNJ) 04.785 (N) ID=9.6	8-94147-870-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (M) ID=24	8-94149-610-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (H) ID=30 L=56	1-09700-984-0	01	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	0-95235-085-0	01	1	0607-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3	1-09987-182-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	04	1	0211-0302	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	04	1	0303-0303	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	05	1	0303-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=30 W/STUD	8-97078-642-2	04	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502					●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0606					●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	01	1	0607-					●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97373-512-1	01	1	0502-	●	●	●		●
53	02.483 BRACKET; HARNESS (E)	8-98003-050-0	01	1	0502-	●	●	●	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> (D)	8-98012-847-0	01	1	0502-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98012-847-0	01	1	0502-			●
53	02.483 BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98012-847-0	01	1	0502-				●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97373-532-2	01	1	0502-0611	●	●	●		●
53	02.483 BRACKET; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98018-899-1	01	1	0612-	●	●	●		●
53	02.483 BRACKET; HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (C)	8-97352-527-0	01	1	0211-	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97369-191-3	01	1	0502-	●	●	●		●
412	02.559 BRACKET; HARNESS,TRANS (A)	8-97324-451-1	01	1	0211-0211	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) (A)	8-97324-451-1	01	1	0212-0501	●	●	●	●	●
412	02.559 BRACKET; HARNESS,TRANS M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97324-451-1	01	1	0502-	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0502-0504	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0505-0608	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80	5-22439-006-0	01	1	0505-0608	●	●	●		●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0609-	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.008 L=80	5-22439-006-0	01	1	0609-	●	●	●	●	●
504	02.559 PROTECTOR; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 03.008 L=80	5-22439-006-0	01	1	0609-	●	●	●		●
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0211-	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0211-	●	●	●	●	●
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HE1 ENG(RLY) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0211-0501	●	●	●	●	●
514	02.559 FINISHER; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-0506	●	●	●	●	●
514	02.559 FINISHER; HARNESS H.S.A SYSTEM<6EP> L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-	●	●	●		●
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0507-				●
531	02.559 HOLDER AIR BAG DRIVER<AJ3> 03.636	8-97147-637-0	01	1	0502-	●	●	●	●	●

16 48 48 142 48 183 264 397 16 16 16 264

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
16	02.559 CLIP; HARNESS 02.525 (N) T=4.5 & 9	5-09709-023-0	03	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS (H) T=6.0	5-09709-024-0	04	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	05	1	0502-				●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	06	1	0503-0504	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	05	1	0505-	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	06	1	1010-	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0211-0501	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	01	1	0502-	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501	●	●	●	●	●
16	02.559 CLIP; HARNESS A/T 4 SPEED-AISIN(RNJ) 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501		●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501					●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0502-					●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501	●		●		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501				●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-	●			●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-		●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-			●		●
16	02.559 CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	03	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	01	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501				●
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0502-		●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0502-			●	●	●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	0211-0501		●			●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	06	1	0502-	●	●	●		●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	11	1	0211-0501			●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	04	1	0502-			●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	13	1	0211-0501				●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0502-				●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	12	1	0211-0501					●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	03	1	0502-0506	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	03	1	0507-		●			●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	02	1	0211-					●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	04	1	0211-					●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	0211-1009	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	0211-1009	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	1010-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0504	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608				●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0609-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501			●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (O) ID=31 L=30	1-09700-969-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	05	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	04	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-				●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	01	1	0211-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (E) ID=30 W/STUD	8-97078-642-2	02	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (Q) T=6.0	5-09709-012-0	01	1	0502-0506	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	01	1	0507-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-				●
48	02.559 CLIP; FRAME HARNESS A/T 4 SPEED-AISIN(RNJ) 04.785 (N) ID=9.6	8-94147-870-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (M) ID=24	8-94149-610-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (H) ID=30 L=56	1-09700-984-0	01	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	0-95235-085-0	01	1	0607-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3	1-09987-182-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	04	1	0211-0302	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	04	1	0303-0303	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	05	1	0303-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=30 W/STUD	8-97078-642-2	04	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502					●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0606					●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	01	1	0607-					●
142	02.559 CLIP; HARNESS,ENG (A) L=170.3	1-09987-182-0	01	1	0211-0501	●		●	●	●
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> (A) L=170.3	1-09987-182-0	01	1	0211-0501		●
142	02.559 CLIP; HARNESS,ENG M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3	1-09987-182-0	01	1	0502-	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.483 (B)	8-97101-436-0	01	1	0211-0501	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	0502-0511		●		●
183	02.559 CLIP; CONNECTOR L=15	8-94315-436-1	02	1	0211-					●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0211-0404	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501	●	●	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-	●	●	●	●	●
397	02.559 CLIP; RR DOOR HARNESS 10.154 ID=7	8-97014-713-0	02	1	0211-					●

16 22 48 102 220 483 593 22 102 22 220 488 16 205 48 142 14 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.525 (N) T=4.5 & 9	5-09709-023-0	03	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS (H) T=6.0	5-09709-024-0	04	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	05	1	0502-				●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	06	1	0503-0504	●	●	●	●	●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	05	1	0505-	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	06	1	1010-	●	●	●	●	●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	08	1	0211-0501	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	01	1	0502-	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501	●	●	●	●	●
16	02.559 CLIP; HARNESS A/T 4 SPEED-AISIN(RNJ) 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501		●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-0501					●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0502-	●	●	●	●	●
16	02.559 CLIP; HARNESS 16.065 (B) 1 SET=5 PIECE	1-09987-214-0	02	1	0502-					●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501	●		●		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0211-0501				●
16	02.559 CLIP; HARNESS 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-	●			●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-		●
16	02.559 CLIP; HARNESS EXC. HYDRO BRAKE BOOSTER<7QQ> 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-		●
16	02.559 CLIP; HARNESS POWER ASSIST CLUTCH(S2T) 01.166 (C) ID=22 & 22	8-94464-837-0	01	1	0502-			●		●
16	02.559 CLIP; HARNESS (D) L=135	1-09987-143-1	02	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.343 (E) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS (F) ID=15-32	8-97174-404-0	03	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (G) L=140	5-09707-031-1	01	1	0211-	●	●	●	●	●
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501		●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0211-0501				●
16	02.559 CLIP; HARNESS HYDRO BRAKE BOOSTER<7QQ> 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0502-		●
16	02.559 CLIP; HARNESS 04.930 (I) ID=10 & 16.5	8-94360-745-0	01	1	0502-			●	●	●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	10	1	0211-0501		●			●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	06	1	0502-	●	●	●		●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	11	1	0211-0501			●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	04	1	0502-			●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	13	1	0211-0501				●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	07	1	0502-				●
16	02.559 CLIP; HARNESS 01.240 (A) ID=14 L=47	5-09700-319-0	12	1	0211-0501					●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	03	1	0502-0506	●	●	●	●	●
16	02.559 CLIP; HARNESS 02.589 (L) ID=27	5-09700-323-0	03	1	0507-		●			●
16	02.559 CLIP; HARNESS (J) L=100	8-94442-388-0	02	1	0211-					●
16	02.559 CLIP; HARNESS (K) L=60	8-94457-053-0	04	1	0211-					●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	0211-1009	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	0211-1009	●	●	●	●	●
16	02.559 CLIP; HARNESS (M) L=155	8-97173-307-0	05	1	1010-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.680 (D) L=350	8-97373-487-0	01	1	0502-0502	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	01	1	0502-0502	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0502-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS (C) L=250	5-09707-030-1	01	1	0502-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	03	1	0502-	●	●	●	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170	5-09707-054-0	02	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0504	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0608				●
48	02.559 CLIP; FRAME HARNESS 02.589 (D) ID=27	5-09700-323-0	01	1	0609-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXH SYSTEM CHROME SINGLE VERTICAL TAIL PIPE<NC4> 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501			●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	01	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 04.197 (F) ID=32 L=75	1-09700-702-0	01	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (O) ID=31 L=30	1-09700-969-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	03	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (B) ID=33 L=63	1-09700-807-0	05	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (B) ID=33 L=63	1-09700-807-0	05	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 01.240 (G) ID=14 L=47	5-09700-319-0	03	1	0502-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 02.525 (C) T=4.5 & 9	5-09709-023-0	03	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	04	1	0502-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	04	1	0502-				●
48	02.559 CLIP; FRAME HARNESS (L) ID=9	8-97063-874-0	01	1	0211-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (E) ID=30 W/STUD	8-97078-642-2	02	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (Q) T=6.0	5-09709-012-0	01	1	0502-0506	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (Q) T=6.0	5-09709-012-0	01	1	0502-0506				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (R) T=6.0	5-09709-024-0	01	1	0507-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (R) T=6.0	5-09709-024-0	01	1	0507-				●
48	02.559 CLIP; FRAME HARNESS A/T 4 SPEED-AISIN(RNJ) 04.785 (N) ID=9.6	8-94147-870-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (M) ID=24	8-94149-610-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (H) ID=30 L=56	1-09700-984-0	01	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	9-09525-085-0	01	1	0502-0606				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (P) ID=11 L=50	0-95235-085-0	01	1	0607-	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (P) ID=11 L=50	0-95235-085-0	01	1	0607-				●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF) (B) ID=33 L=63	1-09700-807-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=42 W/STUD	8-97363-356-0	04	1	0502-0502	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS HYDRO BRAKE BOOSTER<7QQ> (K) L=170.3	1-09987-182-0	01	1	0211-0501		●
48	02.559 CLIP; FRAME HARNESS (K) L=170.3	1-09987-182-0	01	1	0211-0501				●
48	02.559 CLIP; FRAME HARNESS (B) ID=33 L=63	1-09700-807-0	04	1	0211-0302	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	04	1	0303-0303	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) (B) ID=33 L=63	1-09700-807-0	05	1	0303-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) (I) ID=40 L=90	1-09701-290-0	02	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) ID=30 W/STUD	8-97078-642-2	04	1	0502-	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HE1 ENG(RLY) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0211-0501	●	●	●	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502	●		●		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502		●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCS ENG(RJS) 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502				●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0502					●
48	02.559 CLIP; FRAME HARNESS 04.785 (J) ID=11 L=28	9-09525-055-0	01	1	0502-0606					●
48	02.559 CLIP; FRAME HARNESS (J) ID=11 L=28	0-95235-055-0	01	1	0607-					●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (A) L=140	5-09707-031-1	01	1	0502-0508	●	●	●	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.162 (B) L=170	5-09707-054-0	01	1	0502-	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG (A) L=170.3	1-09987-182-0	01	1	0211-0501	●		●	●	●
142	02.559 CLIP; HARNESS,ENG FLOOR REMOTE SHIFT<M11> (A) L=170.3	1-09987-182-0	01	1	0211-0501		●
142	02.559 CLIP; HARNESS,ENG M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=170.3	1-09987-182-0	01	1	0502-	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HE1 ENG(RLY) 03.483 (B)	8-97101-436-0	01	1	0211-0501	●	●	●	●	●
142	02.559 CLIP; HARNESS,ENG 4HK1-TCS ENG(RJS) 03.483 (B)	8-97101-436-0	01	1	0502-0511		●		●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0211-0211	●	●	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS 4HE1 ENG(RLY) M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) L=135	1-09987-143-1	01	1	0212-	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE (A) L=250	5-09707-030-1	01	1	0503-	●	●	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) M/T MYY5T(RSM) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501	●
220	02.559 CLIP; HARNESS TO CABLE 4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ),M/T MYY5T(RSM) 03.162 (B) L=140	5-09707-031-1	01	1	0211-0501		●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) 03.162 L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
483	02.559 CLIP; ENG HARNESS 4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 03.162 L=140	5-09707-031-1	01	1	0211-0501	●	●	●	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0211-	●	●	●	●	●
593	02.559 CLIP 03.162 L=140	5-09707-031-1	01	1	0211-0211	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
