8-10 — WIRING HARNESS AND FUSE (#38535) — 408 parça

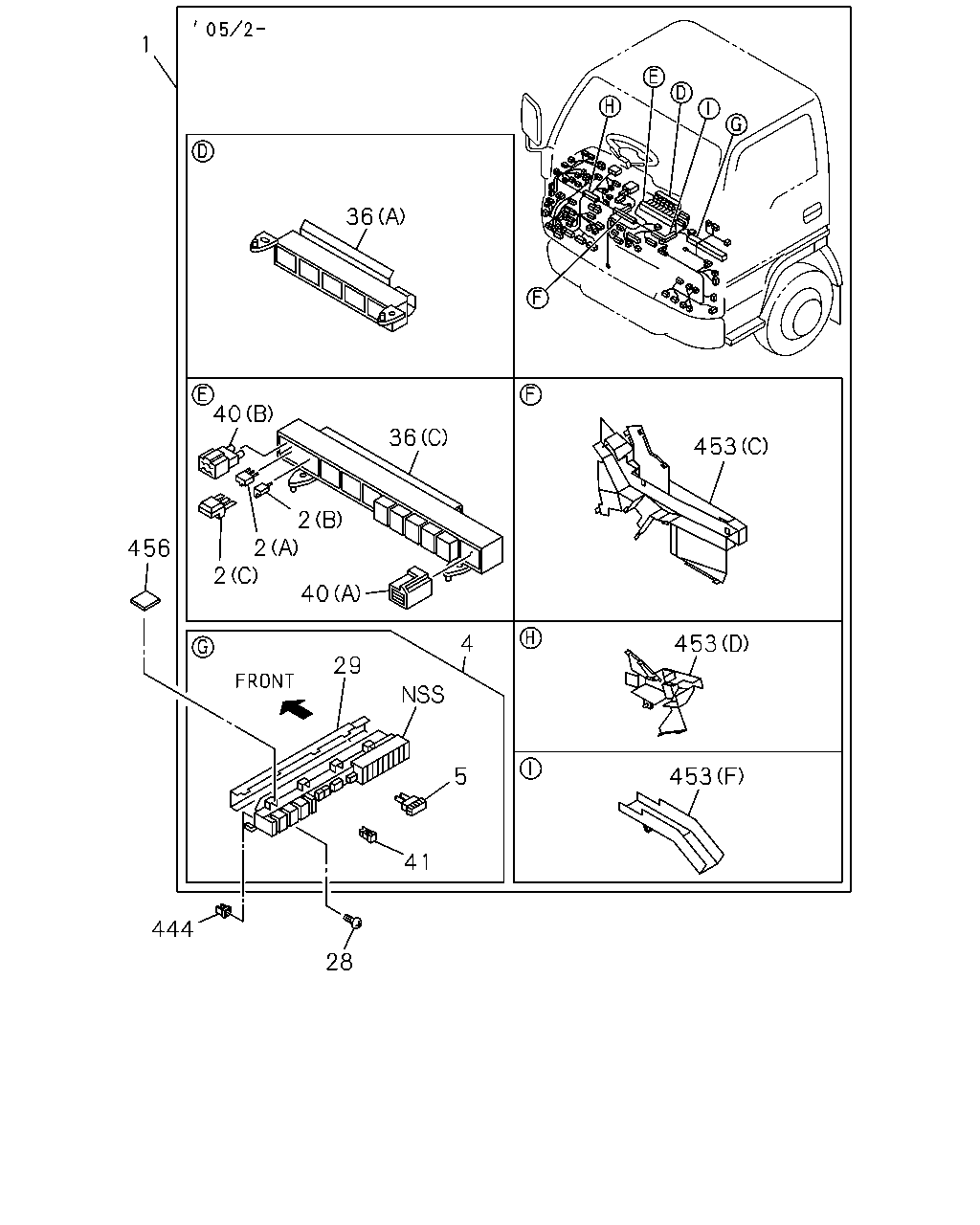

çizim 34339
1 36 40 36 453 2 2 2 456 40 453 4 29 453 5 41 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-747-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-750-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-749-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98000-748-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0502- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) 		8-97214-415-0 01 1 0211-0501 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0211-0501 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97214-415-0 01 1 0211-0501 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97187-921-1 01 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0211- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ● ● ● ●
29 02.483 COVER; FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97074-955-0 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) (B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B) 		8-97087-639-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97187-918-1 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) (A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97087-640-2 01 1 0502- ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) NATURAL 8P 		8-97200-753-0 01 1 0502- ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> (A) BLACK 8P 		8-97078-064-0 01 1 0605-0607 ● ● ● ● ●
40 02.483 BOX; DIODE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) BLACK 8P 		8-97078-064-1 01 1 0611- ● ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97103-388-0 01 1 0502- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 		8-97088-615-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (E) 		8-97093-668-1 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (E) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (E) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97093-668-1 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97120-591-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97120-591-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97120-591-1 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (C) 		8-97259-730-3 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (C) 		8-97259-730-3 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (C) 		8-97259-730-3 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97259-730-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (D) 		8-97261-653-2 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (D) 		8-97261-653-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) 		8-97261-653-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97261-653-2 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97062-169-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97062-169-0 01 1 0502- ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ● ● ●

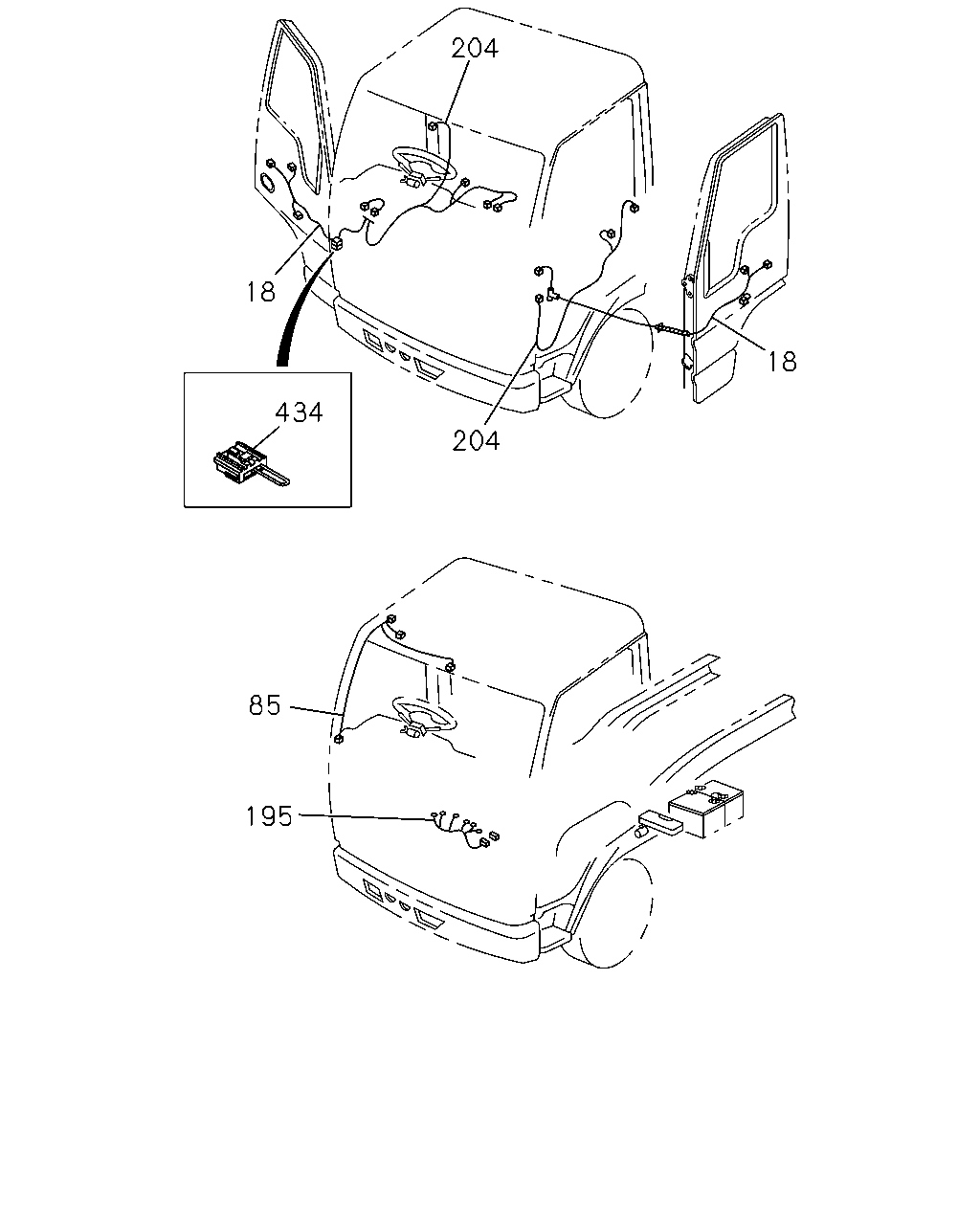

çizim 34368
204 18 18 434 204 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97312-148-0 01 1 0211- ● ● ● ● ●
18 02.480 HARNESS; DOOR
REAR DOOR 		8-97075-738-2 02 1 0211- ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 0211-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1010- ● ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97307-518-0 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-161-0 01 1 0303- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97312-297-0 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-163-0 01 1 0303- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) 		8-97306-681-0 01 1 0211-0501 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-875-2 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-140-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0502- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-145-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97364-142-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0502-0502 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0502-0502 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97364-140-0 01 1 0503-0503 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0504- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0502-0502 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY6P(RSJ) 		8-97364-143-0 01 1 0503-0503 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY6P(RSJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0504- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0502- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-449-0 01 1 0502- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCS ENG(RJS) 		8-97388-449-0 01 1 0502- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) 		8-97140-182-0 01 1 0211-0501 ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0211-0501 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0502- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0502- ●

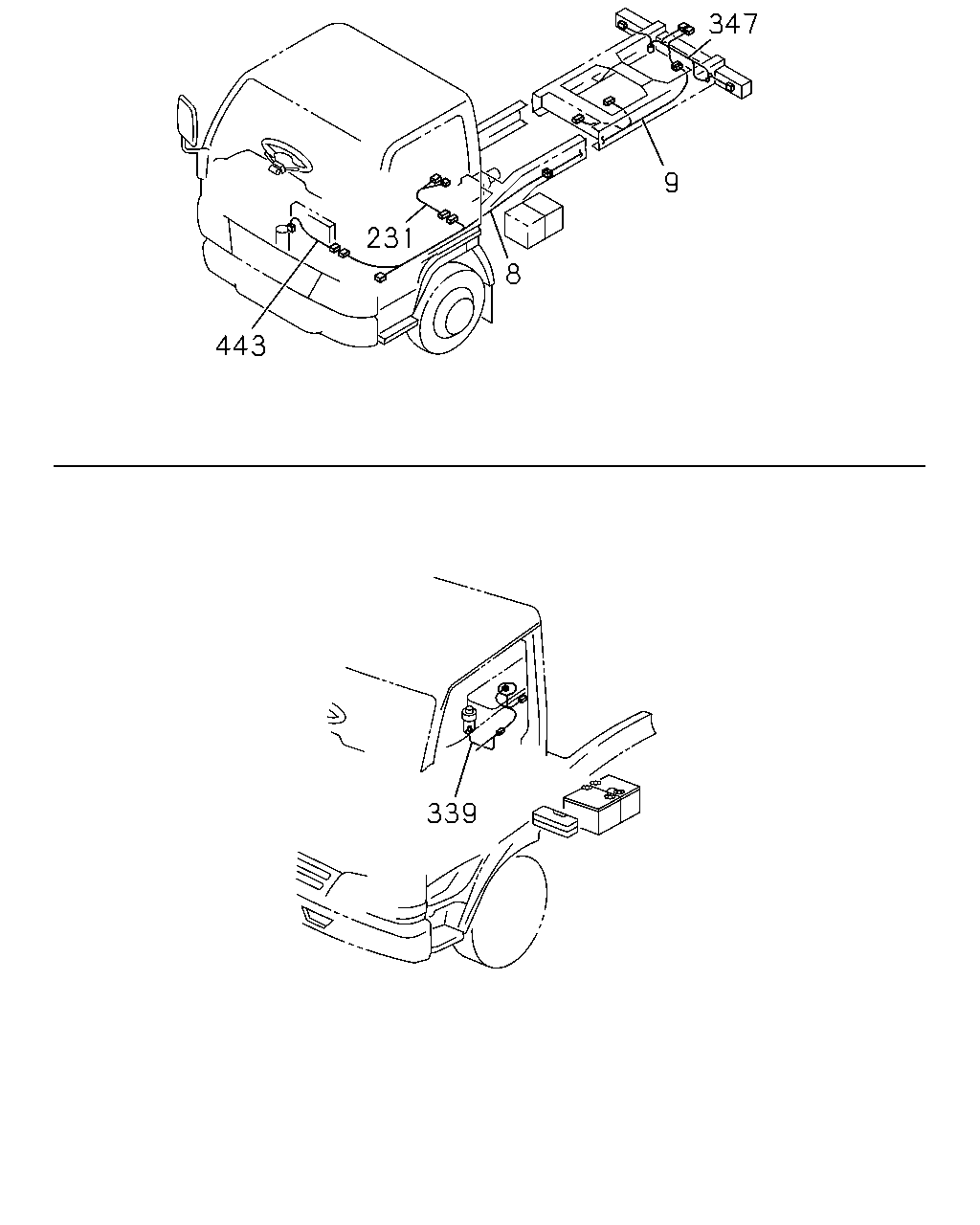

çizim 34568
347 9 231 8 443 339
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-071-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-766-0 01 1 0502-0502 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0502-0610 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-765-0 01 1 0502-0502 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0502-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-072-1 01 1 0211-0501 ●

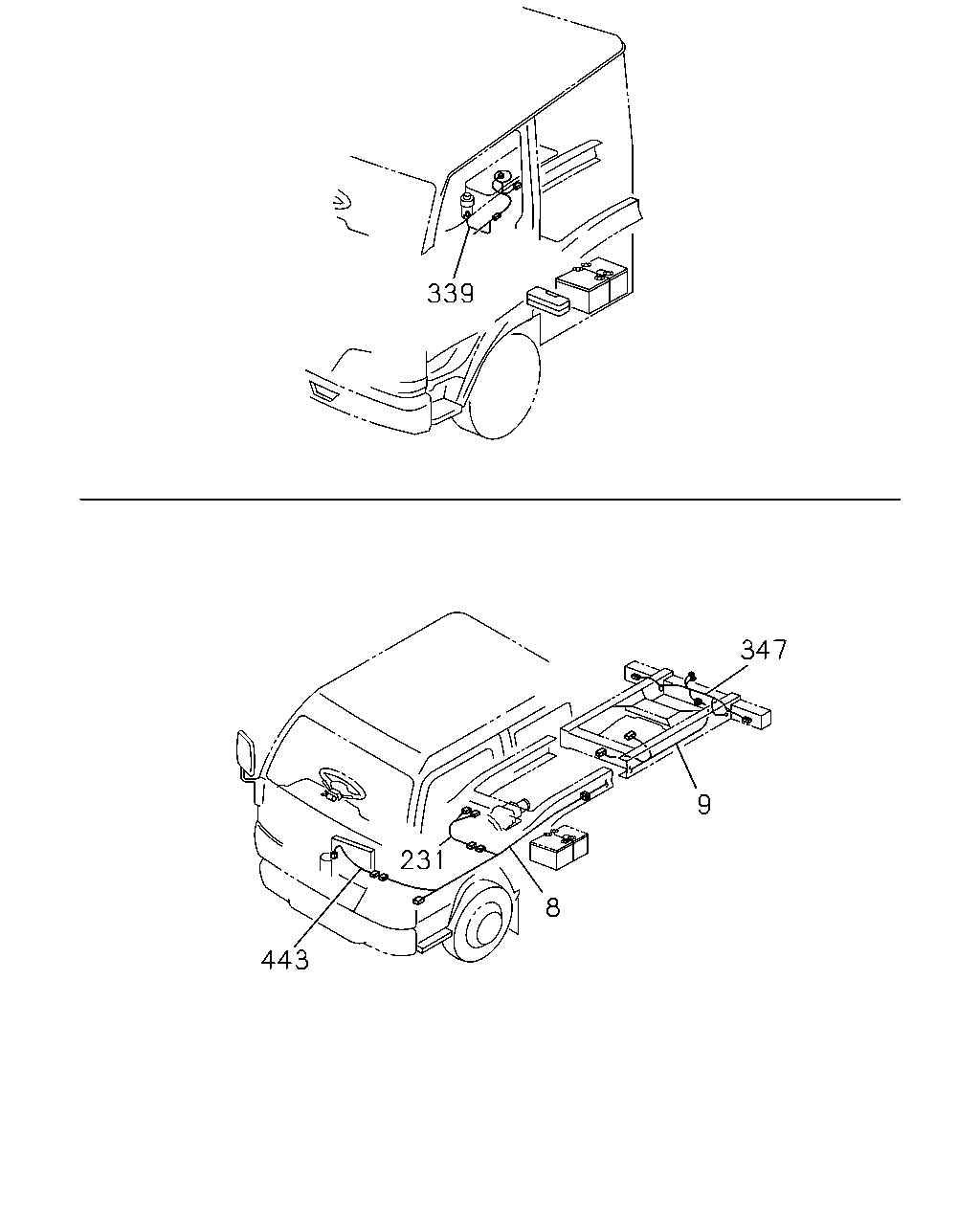

8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-768-0 01 1 0502-0502 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0502-0610 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-767-0 01 1 0502-0502 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0502-0610 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-074-1 01 1 0211-0501 ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 		8-98000-799-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-800-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 		8-98000-801-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) 		8-98000-802-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 		8-98000-804-2 01 1 0502- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL TANK 125L,33GAL<NL7> 		8-98012-979-0 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HE1 ENG(RLY) 02.480 		8-94318-759-0 01 1 0211-0501 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 0211-0302 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0303- ● ● ● ● ●
443 02.480 HARNESS; EXT,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98012-984-1 01 1 0503- ● ● ● ● ●

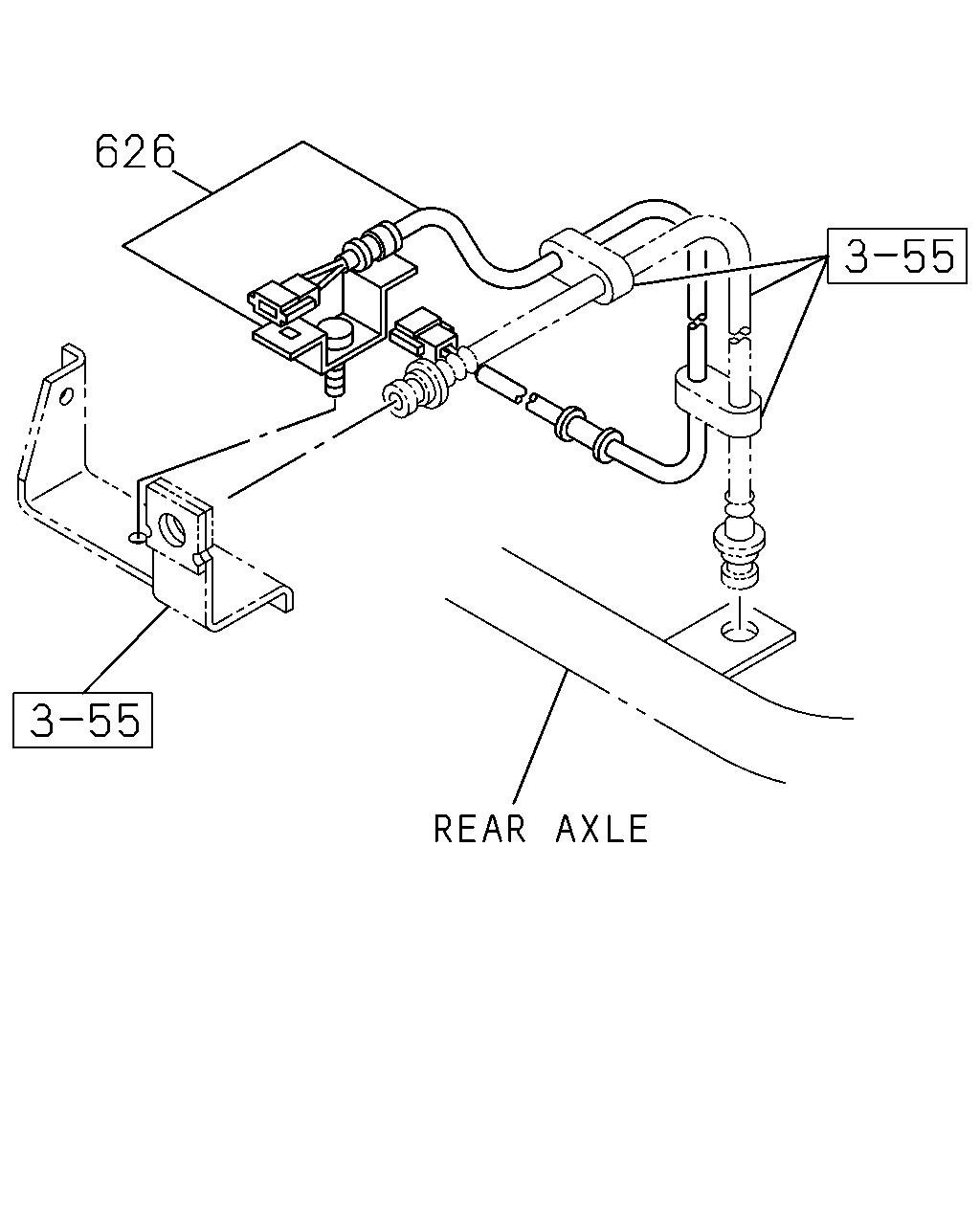

çizim 34706
626
BalonParca AdiParca NoAdetTipApplied Date A B C D E
626 02.480 HARNESS; FLEX HOSE 8-97253-968-1 01 1 0502- ● ● ● ● ●
626 02.480 HARNESS; FLEX HOSE 8-97253-969-1 01 1 0502- ● ● ● ● ●

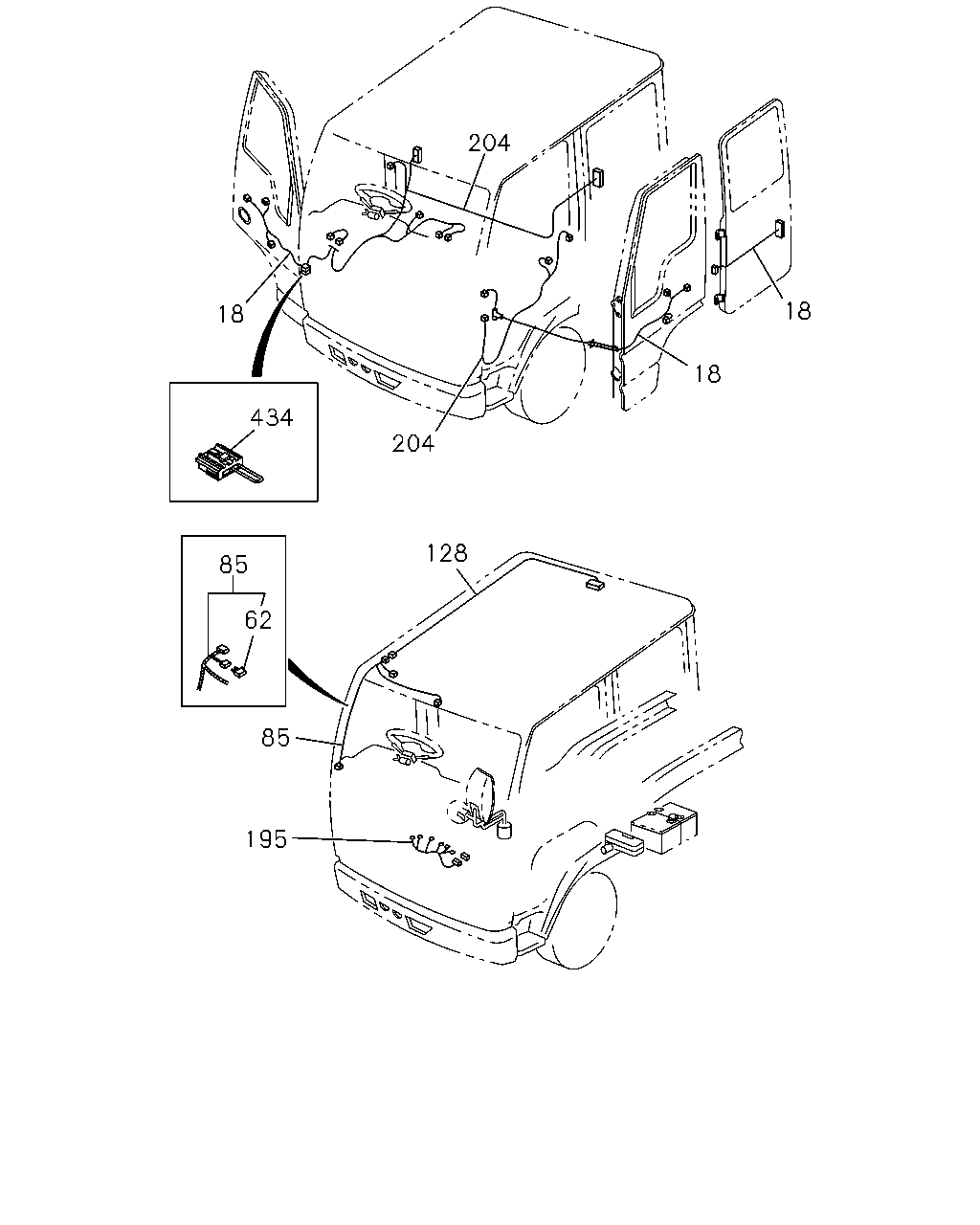

çizim 34735
204 18 18 18 434 204 128 85 62 85 195
BalonParca AdiParca NoAdetTipApplied Date A B C D E
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97312-148-0 01 1 0211- ● ● ● ● ●
18 02.480 HARNESS; DOOR
REAR DOOR 		8-97075-738-2 02 1 0211- ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-97226-669-0 01 1 0211-1009 ● ● ● ● ●
18 02.480 HARNESS; DOOR
FRONT DOOR 		8-98166-820-0 01 1 1010- ● ● ● ● ●
62 02.530 DIODE; HARNESS
02.483 BLACK 2P-1.5A 		8-94422-639-1 01 1 0211- ●
85 06.495 HARNESS; ROOM LAMP 8-97307-518-0 01 1 0211-0302 ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-161-0 01 1 0303- ● ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97312-297-0 01 1 0211-0302 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-163-0 01 1 0303- ●
128 02.480 HARNESS; BODY,RR 8-97300-349-0 01 1 0211-0302 ●
128 02.480 HARNESS; BODY,RR 8-97364-164-0 01 1 0303- ●
195 01.150 HARNESS; EXT
4HE1 ENG(RLY) 		8-97306-681-0 01 1 0211-0501 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-875-2 01 1 0502- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97162-629-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303-0501 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97364-140-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-874-2 01 1 0502- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0211-0302 ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-145-0 01 1 0303- ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97162-625-3 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97364-142-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0502-0502 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0502-0502 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) 		8-97364-140-0 01 1 0503-0503 ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MZZ6U(RSF),M/T MYY6P(RSJ),M/T MYY5T(RSM) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-140-0 01 1 0504- ● ● ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-626-4 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-143-0 01 1 0303-0501 ●
204 02.559 HARNESS; CABLE,FLOOR
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0502-0502 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY6P(RSJ) 		8-97364-143-0 01 1 0503-0503 ●
204 02.559 HARNESS; CABLE,FLOOR
M/T MYY6P(RSJ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97364-143-0 01 1 0504- ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-632-2 01 1 0211-0302 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-146-0 01 1 0303- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER<7QQ> 		8-97388-449-0 01 1 0502- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-449-0 01 1 0502- ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCS ENG(RJS) 		8-97388-449-0 01 1 0502- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) 		8-97140-182-0 01 1 0211-0501 ● ● ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> ENGINE POWER N-SPEC(7QV) 		8-97140-182-0 01 1 0211-0501 ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ) 		8-97388-448-0 01 1 0502- ●
434 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97388-448-0 01 1 0502- ●

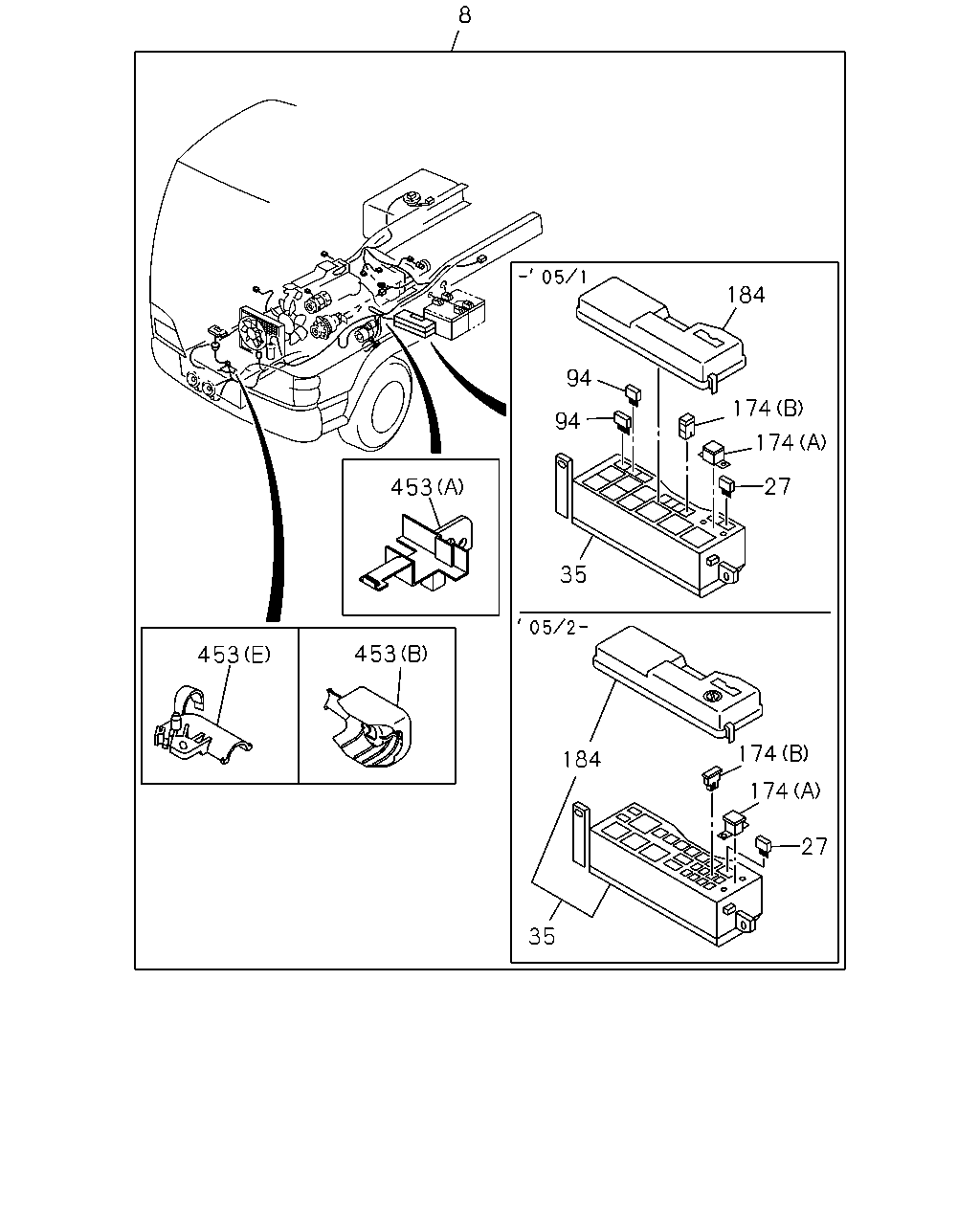

çizim 34740
8 184 94 174 94 174 27 453 35 453 453 174 184 174 27 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-071-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-766-0 01 1 0502-0502 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0502-0610 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-765-0 01 1 0502-0502 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0502-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-072-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-768-0 01 1 0502-0502 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0502-0610 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-767-0 01 1 0502-0502 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0502-0610 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-074-1 01 1 0211-0501 ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 10A MINI RED 		8-97062-022-0 01 1 0502-0502 ● ● ● ● ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 10A MINI RED 		8-97062-022-0 02 1 0502- ● ● ● ● ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 15A MINI BLUE 		8-97062-023-0 01 1 0502-0502 ● ● ● ● ●
27 08.965 FUSE UNIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 15A MINI BLUE 		8-97062-023-0 02 1 0502- ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) 		8-97063-150-1 01 1 0211-0501 ● ● ● ●
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97063-150-1 01 1 0211-0501 ●
35 02.530 BOX; RELAY & FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97063-150-1 01 1 0211-0501 ●
35 02.530 BOX; RELAY & FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-739-0 01 1 0502- ● ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
4HE1 ENG(RLY) BLACK 3P-1.5A 		8-94422-640-1 01 1 0211-0501 ● ● ● ●
94 02.483 DIODE; FRAME HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> BLACK 3P-1.5A 		8-94422-640-1 01 1 0211-0501 ●
94 02.483 DIODE; FRAME HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) BLACK 4P-1.5A 		8-94381-730-0 01 1 0211-0501 ●
174 08.965 FUSE; SLOW BLOW
(A) 60A YELLOW 		8-94388-303-0 AR 1 0211- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 40A GREEN 		8-97183-644-0 AR 1 0502- ● ● ● ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) 		8-97063-152-1 01 1 0211-0501 ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97063-152-1 01 1 0211-0501 ●
184 02.559 COVER; RELAY & FUSE BOX
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97063-152-1 01 1 0211-0501 ●
184 02.559 COVER; RELAY & FUSE BOX
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97377-741-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 		8-97088-615-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (E) 		8-97093-668-1 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (E) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (E) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97093-668-1 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97120-591-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97120-591-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97120-591-1 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (C) 		8-97259-730-3 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (C) 		8-97259-730-3 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (C) 		8-97259-730-3 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97259-730-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (D) 		8-97261-653-2 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (D) 		8-97261-653-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) 		8-97261-653-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97261-653-2 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97062-169-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97062-169-0 01 1 0502- ● ● ● ● ●

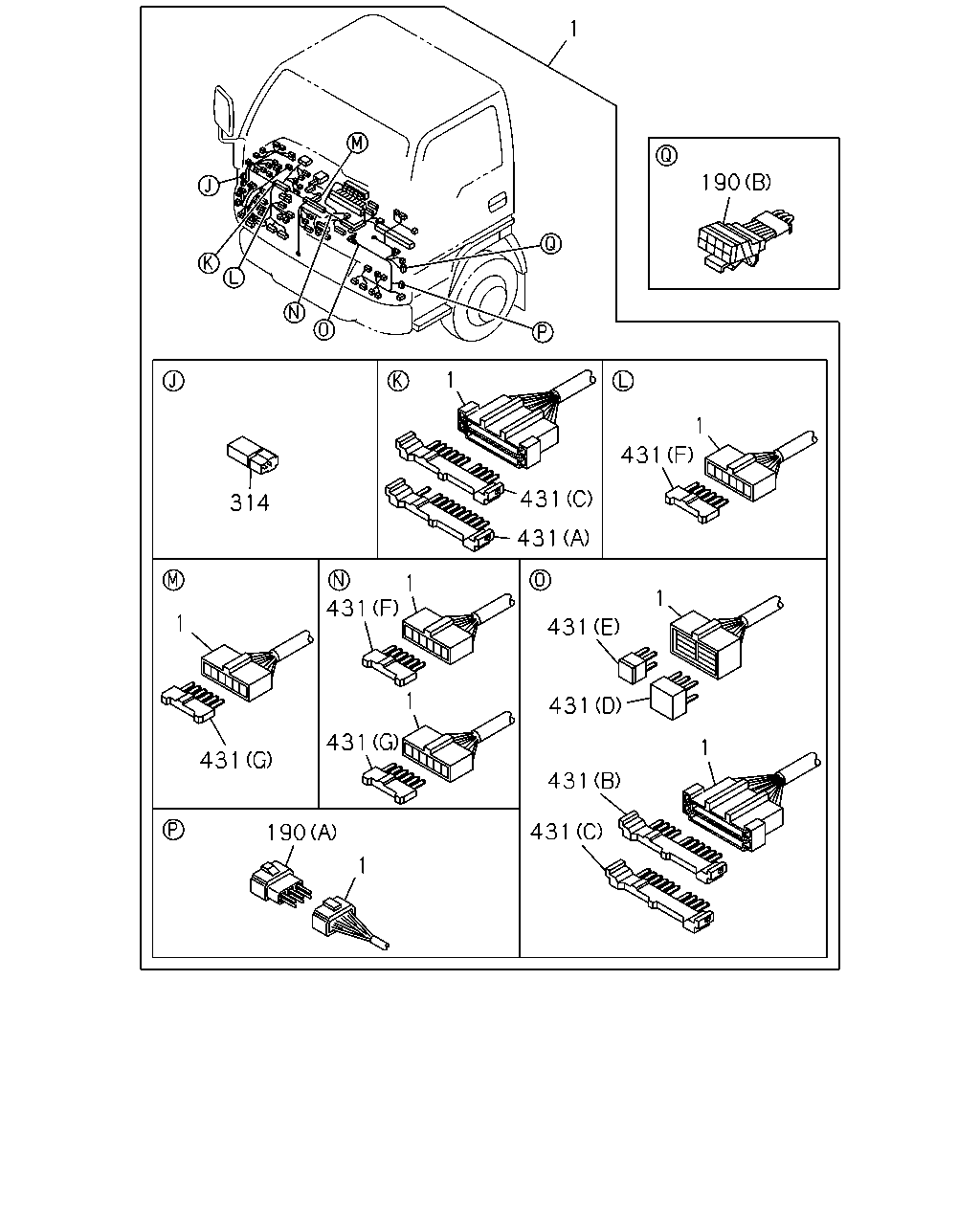

çizim 34877
1 190 1 1 431 431 314 431 1 431 1 1 431 1 431 431 1 431 431 431 190 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-747-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-750-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-749-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98000-748-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		5-82690-411-0 01 1 0502- ● ● ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLUE 		1-82691-204-0 01 1 0502-0604 ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> BLUE 		1-82691-204-0 02 1 0605-0607 ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) BLUE 		1-82691-204-0 02 1 0608- ● ● ● ● ●
314 02.510 RESISTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3> BLUE 		1-82691-204-0 01 1 0605-0607 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 6P 		1-82691-206-0 03 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 10P BLUE 		1-82699-598-0 01 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 10P GREEN 		1-82699-599-0 02 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 10P BROWN 		1-82699-601-0 01 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E) 4P 		8-97077-939-0 01 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 6P 		8-97077-941-0 01 1 0502- ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) 3P & 3P 		1-82698-170-0 02 1 0502-0504 ● ● ● ● ●
431 02.530 CONNECTOR; JOINT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (G) 3P & 3P 		1-82698-170-0 03 1 0505- ● ● ● ● ●
çizim 99556
339 347 9 231 8 443
BalonParca AdiParca NoAdetTipApplied Date A B C D E
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-071-1 01 1 0211-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. VEHICLE CATEGORY NQR<7NQ> 		8-97357-071-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-766-0 01 1 0502-0502 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-898-3 01 1 0502-0610 ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-149-0 01 1 0611- ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> VEHICLE CATEGORY NQR<7NQ> 		8-97357-073-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-765-0 01 1 0502-0502 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-897-3 01 1 0502-0610 ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-147-0 01 1 0611- ● ● ● ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-072-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-768-0 01 1 0502-0502 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-900-3 01 1 0502-0610 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-150-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-075-1 01 1 0211-0501 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-767-0 01 1 0502-0502 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-899-3 01 1 0502-0610 ●
8 02.480 HARNESS; FRAME,FRT
4HK1-TCN ENG(RDQ) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98062-148-0 01 1 0611- ●
8 02.480 HARNESS; FRAME,FRT
4HE1 ENG(RLY) 		8-97357-074-1 01 1 0211-0501 ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 		8-98000-799-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-98000-800-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 		8-98000-801-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCS ENG(RJS) 		8-98000-802-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR
4HK1-TCN ENG(RDQ) 		8-98000-804-2 01 1 0502- ●
231 02.480 HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97373-511-2 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) FUEL TANK 125L,33GAL<NL7> 		8-98012-979-0 01 1 0502- ● ● ● ●
339 02.530 HARNESS; EXT,FUEL
4HE1 ENG(RLY) 02.480 		8-94318-759-0 01 1 0211-0501 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-568-0 01 1 0211-0302 ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-152-0 01 1 0303- ● ● ● ● ●
443 02.480 HARNESS; EXT,A/C
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-98012-984-1 01 1 0503- ● ● ● ● ●

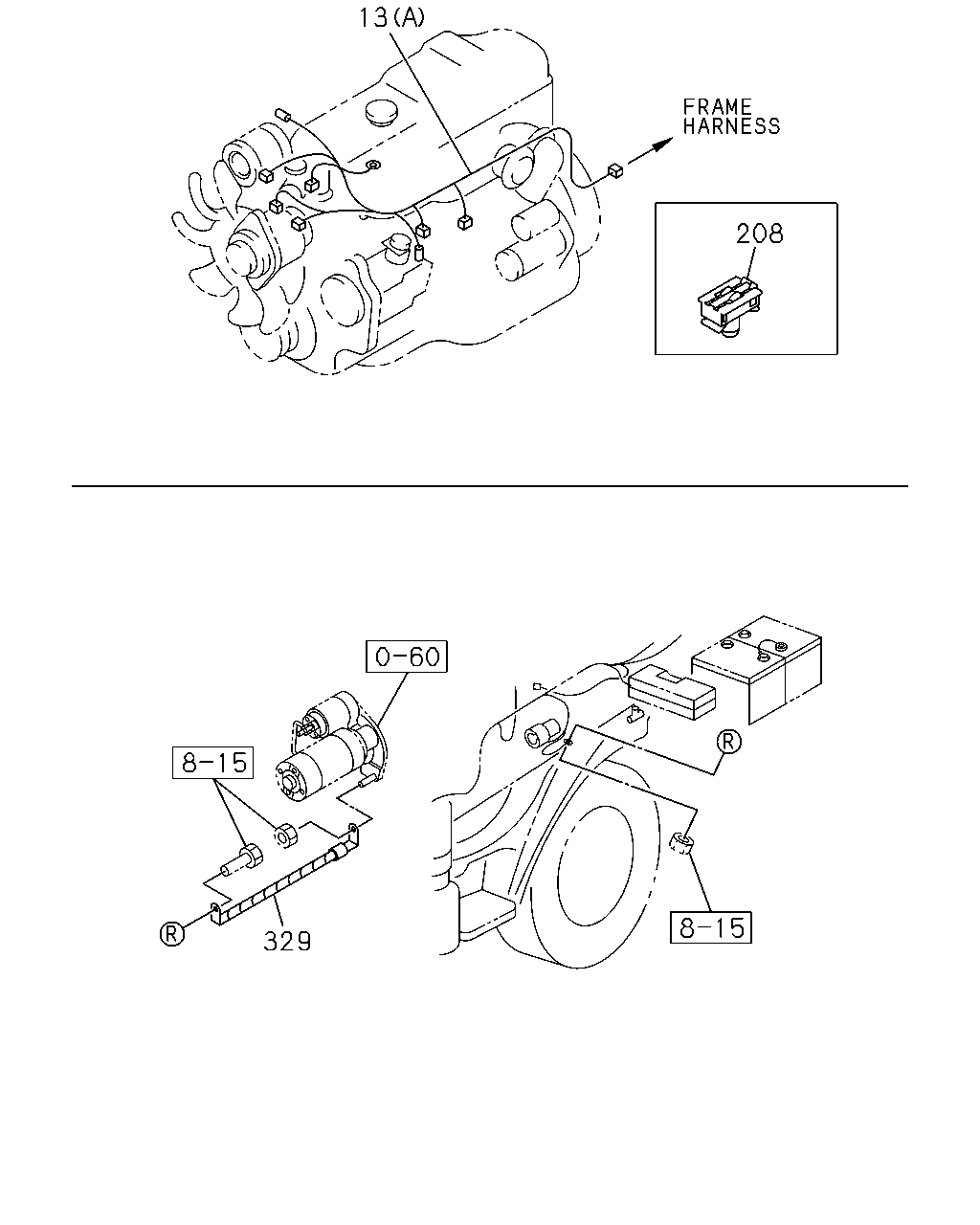

çizim 100229
13 208 329
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97356-989-0 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-3 01 1 0502- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97166-705-1 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97386-230-2 01 1 0502-0505 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98020-041-0 01 1 0506-0509 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-708-0 01 1 0510- ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR
4HE1 ENG(RLY) 		8-94459-973-1 01 1 0211-0501 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98019-595-0 01 1 0505- ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HE1 ENG(RLY) 		8-97182-112-0 01 1 0211-0501 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97182-112-0 01 1 0502-0504 ● ● ● ● ●
329 02.480 CABLE; ENG TO FRAME
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97182-112-0 01 1 0505- ● ● ● ● ●
çizim 100230
1 36 36 456 2 2 453 453 4 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-747-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-750-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-749-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98000-748-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0211- ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0502- ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) 		8-97214-415-0 01 1 0211-0501 ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97214-415-0 01 1 0211-0501 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 		8-97214-415-0 01 1 0211-0501 ●
4 02.483 BOX ASM; FUSE,HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97187-921-1 01 1 0502- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A RED 		5-82516-002-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A BLUE 		5-82516-003-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0211- ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW 		8-97062-024-0 AR 1 0211- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) (B) 		8-97087-639-1 01 1 0211-0501 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97087-639-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (B) 		8-97087-639-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97187-918-1 01 1 0502- ● ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) (A) 		8-97087-640-1 01 1 0211-0501 ● ● ● ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97087-640-1 01 1 0211-0501 ●
36 02.530 BOX; RELAY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97087-640-2 01 1 0502- ● ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ● ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ●
41 08.821 PULLER; FUSE
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ●
41 08.821 PULLER; FUSE
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97103-388-0 01 1 0502- ● ● ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (F) 		8-97088-615-0 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (E) 		8-97093-668-1 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (E) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (E) 		8-97093-668-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 		8-97093-668-1 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (A) 		8-97120-591-1 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97120-591-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97120-591-1 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-97120-591-1 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (C) 		8-97259-730-3 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (C) 		8-97259-730-3 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (C) 		8-97259-730-3 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (C) 		8-97259-730-3 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) (D) 		8-97261-653-2 01 1 0211-0501 ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (D) 		8-97261-653-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (D) 		8-97261-653-2 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D) 		8-97261-653-2 01 1 0502- ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (B) 		8-97062-169-0 01 1 0211-0501 ●
453 02.483 PROTECTOR; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97062-169-0 01 1 0502- ● ● ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ● ● ●
çizim 100231
534 13 1 483 189 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-747-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-599-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-723-1 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. AIR BAG DRIVER<AJ3>,TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-916-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> EXC. HYDRO BRAKE BOOSTER<7QQ> 02.726 		8-97357-037-1 01 1 0211-0501 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-750-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-602-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-726-2 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-919-0 01 1 0611- ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> HYDRO BRAKE BOOSTER<7QQ> 		8-97357-039-2 01 1 0211-0501 ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98000-749-0 01 1 0502-0502 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-601-1 01 1 0502-0510 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98028-725-2 01 1 0511-0610 ● ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98061-918-0 01 1 0611- ● ● ● ● ●
1 02.480 HARNESS; CAB
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) 		8-97357-038-1 01 1 0211-0501 ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98000-748-0 01 1 0502-0502 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98010-600-1 01 1 0502-0510 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98028-724-1 01 1 0511-0610 ● ● ● ●
1 02.480 HARNESS; CAB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3> 		8-98061-917-0 01 1 0611- ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) FLOOR REMOTE SHIFT<M11> (A) 		8-97356-989-0 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-97332-133-3 01 1 0502- ● ● ● ● ●
13 02.525 HARNESS; ENG
4HE1 ENG(RLY) A/T 4 SPEED-AISIN(RNJ) (A) 		8-97166-705-1 01 1 0211-0501 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-97386-230-2 01 1 0502-0505 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98020-041-0 01 1 0506-0509 ● ● ● ● ●
13 02.525 HARNESS; ENG
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) 		8-98023-708-0 01 1 0510- ● ● ● ● ●
189 02.480 HARNESS; EXT
FOG LAMP<T96> 		8-98027-774-0 01 1 0511- ● ● ● ● ●
483 02.480 HARNESS; EXT,RADIO
RADIO AM/FM STEREO 2 SPEAKERS(6GZ) 		8-97383-850-0 01 1 0502- ● ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-94399-863-1 03 1 0502-0805 ● ● ● ● ●
534 02.483 BOLT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE 		8-97365-449-0 03 1 0806- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
