Isuzu WW
▶
TRUCKS
▶
NPR
▶
51397 - NPR/NQR(AUST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-03 - LAMP; REAR AND REAR SIDE
▶
8-03 — LAMP; REAR AND REAR SIDE
(#38533) — 34 parça
Tümü
A - NPC5SC
B - NPC5SF
C - NPC5SK
D - NPC5SN
E - NPC5WF
◀

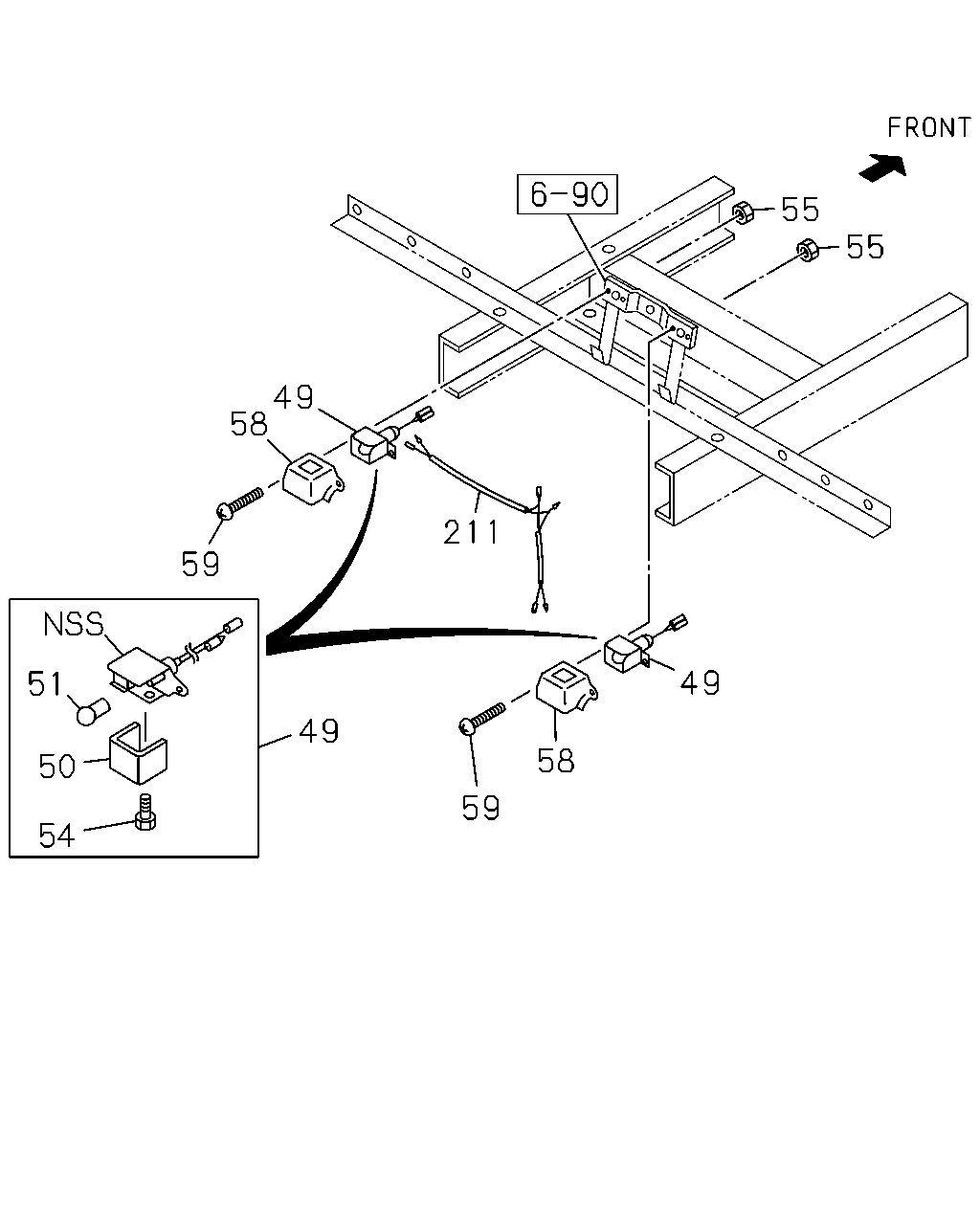

[803A] LICENSE PLATE LAMP (8 parça)

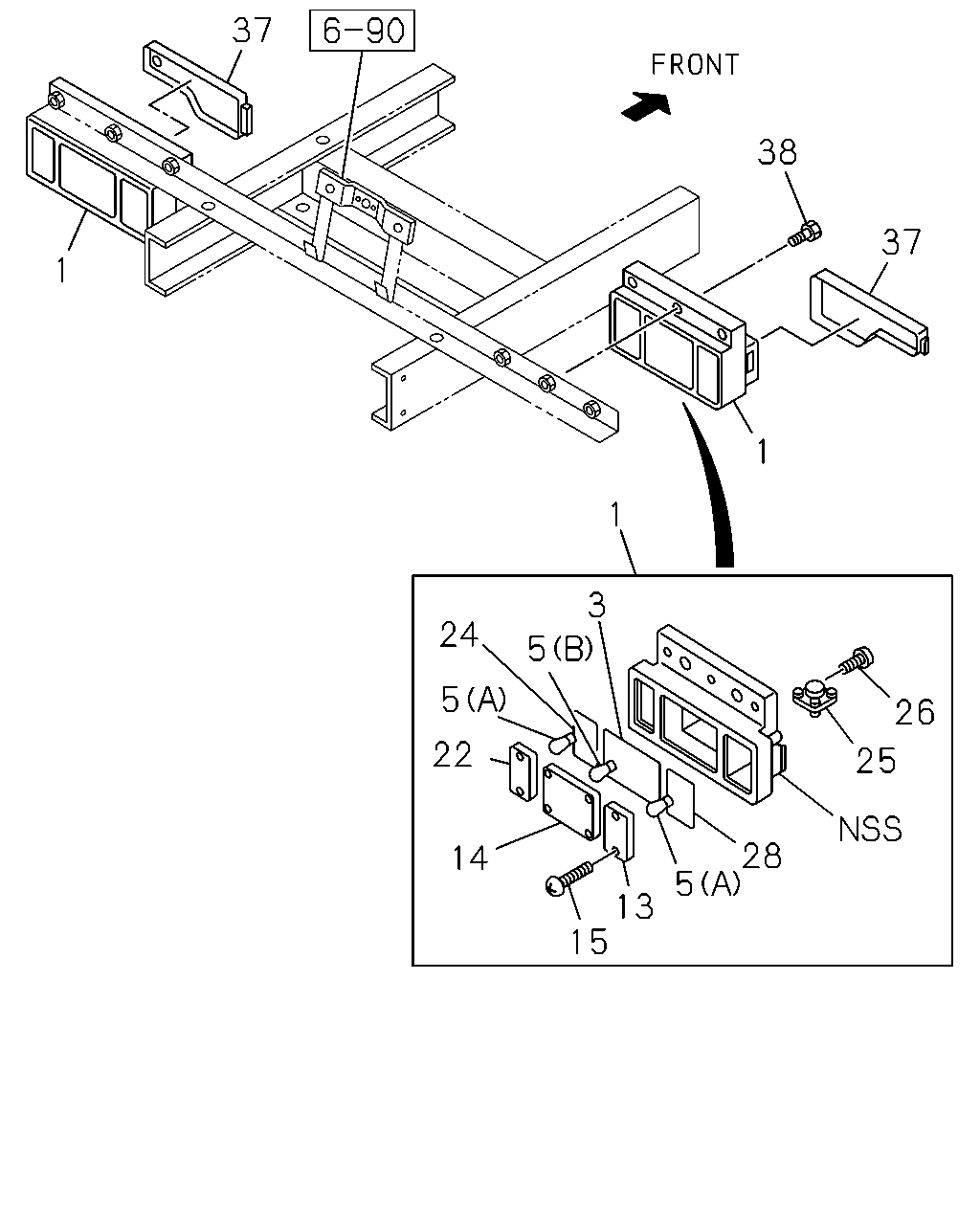

[803A] RR COMB LAMP (26 parça)
▶
55
55
49
58
211
59
49
51
49
58
50
59
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
49
02.700 LAMP; LICENSE PLATE
24V 5W
8-97105-380-0
02
1
0211-
●
●
●
●
●
50
02.709 LENS; LICENSE PLATE LAMP
8-97108-212-0
02
1
0211-
●
●
●
●
●
51
08.991 BULB; LICENSE PLATE LAMP
24V 5W
1-82194-039-0
02
1
0211-
●
●
●
●
●
54
02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8
8-94419-312-0
02
1
0211-
●
●
●
●
●
55
02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE
8-94153-039-0
04
1
0211-
●
●
●
●
●
58
02.705 COVER; LICENSE PLATE LAMP
8-97076-590-1
02
1
0211-
●
●
●
●
●
59
02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20
9-93490-520-0
04
1
0211-
●
●
●
●
●
211
02.708 HARNESS; EXT
5-82129-004-1
01
1
0211-
●
●
●
●
●
37
38
37
1
1
1
3
24
5
5
26
22
25
28
14
5
13
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
02.679 LAMP ASM; RR COMB
8-97213-369-0
01
1
0211-
●
●
●
●
●
1
02.679 LAMP ASM; RR COMB
8-97213-370-0
01
1
0211-
●
●
●
●
●
3
02.684 GASKET; RR COMB LAMP
8-94257-505-0
01
1
0211-
●
●
●
●
●
3
02.684 GASKET; RR COMB LAMP
8-94257-505-0
01
1
0211-
●
●
●
●
●
5
08.991 BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0211-
●
●
●
●
●
5
08.991 BULB; RR COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0211-
●
●
●
●
●
5
08.991 BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0211-
●
●
●
●
●
5
08.991 BULB; RR COMB LAMP
(B) 24V 21/5W
1-82194-038-0
01
1
0211-
●
●
●
●
●
13
02.682 LENS; TURN SIGNAL
8-94174-638-0
01
1
0211-
●
●
●
●
●
13
02.682 LENS; TURN SIGNAL
8-94174-639-0
01
1
0211-
●
●
●
●
●
14
02.682 LENS; TAIL & STOP,RR COMB LAMP
8-94178-624-0
01
1
0211-
●
●
●
●
●
14
02.682 LENS; TAIL & STOP,RR COMB LAMP
8-94178-625-0
01
1
0211-
●
●
●
●
●
15
02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0211-
●
●
●
●
●
15
02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS
0-71190-420-0
08
1
0211-
●
●
●
●
●
22
02.697 LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0211-
●
●
●
●
●
22
02.697 LENS; BACKUP,RR COMB LAMP
8-94257-512-1
01
1
0211-
●
●
●
●
●
24
02.697 GASKET; BACK,LAMP
8-94257-506-0
01
1
0211-
●
●
●
●
●
24
02.697 GASKET; BACK,LAMP
8-94257-506-0
01
1
0211-
●
●
●
●
●
25
02.810 HORN ASM; BACK
8-94257-518-0
01
1
0211-
●
●
●
●
●
26
02.812 SCREW; BACK HORN
02.688 M4X12 TAPPING
9-07076-412-0
02
1
0211-
●
●
●
●
●
26
02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING
9-07076-414-0
01
1
0211-
●
●
●
●
●
28
02.684 GASKET; TURN,LAMP
8-94257-507-0
01
1
0211-
●
●
●
●
●
28
02.684 GASKET; TURN,LAMP
8-94257-507-0
01
1
0211-
●
●
●
●
●
37
02.680 COVER; RR COMB LAMP
8-94128-858-4
01
1
0211-
●
●
●
●
●
37
02.680 COVER; RR COMB LAMP
8-94129-274-4
01
1
0211-
●
●
●
●
●
38
02.689 BOLT; LAMP,RR COMB
02.664 M6X20
8-94402-623-0
06
1
0211-
●
●
●
●
●
