8-01 — LAMP; FRONT AND FRONT SIDE (#38532) — 200 parça

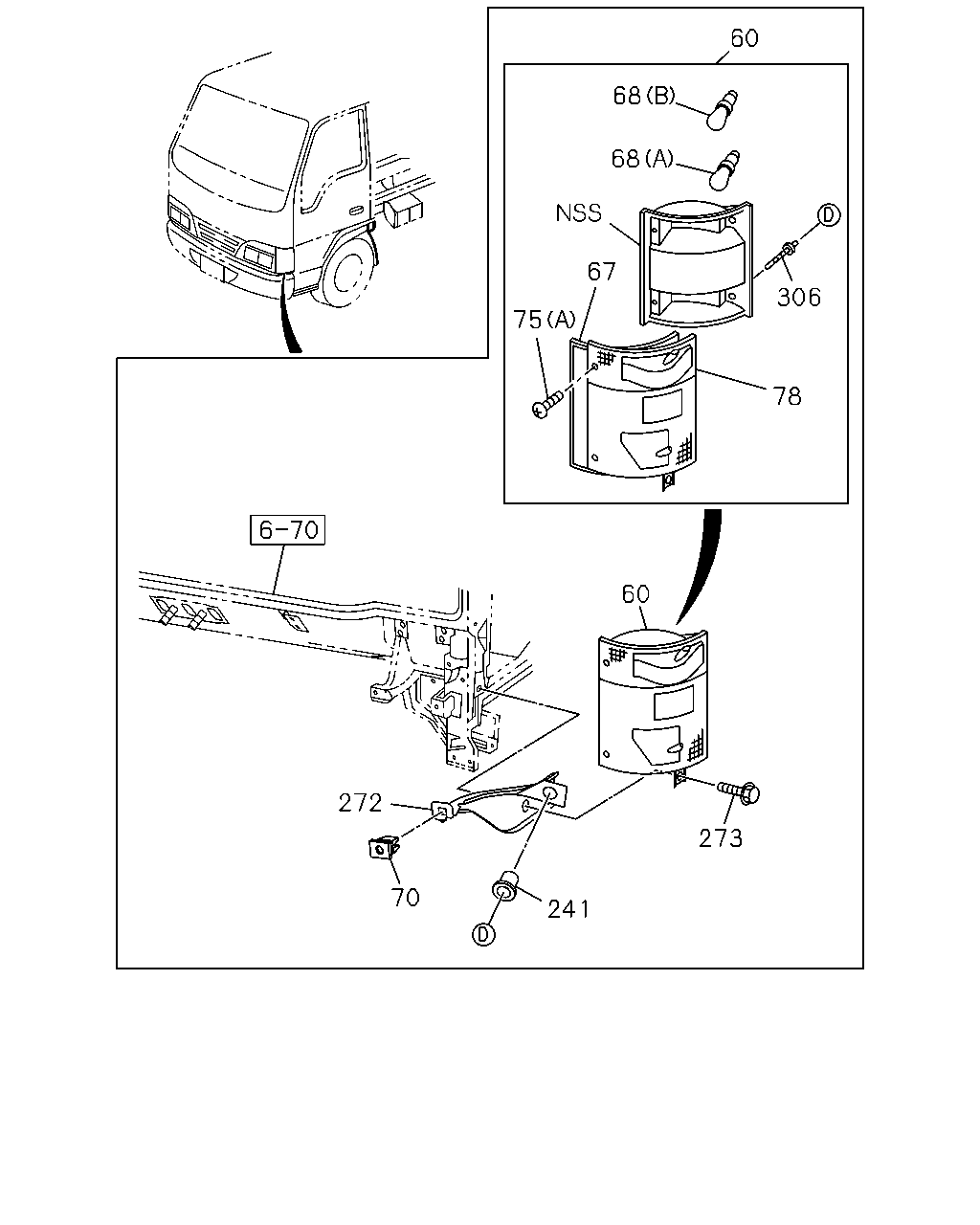

çizim 34338
60 68 68 67 306 75 78 60 272 273 70 241
BalonParca AdiParca NoAdetTipApplied Date A B C D E
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0211-0501 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97365-174-5 01 1 0502-0502 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0503-0701 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0211-0501 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97365-175-5 01 1 0502-0502 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0503-0701 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0211-0501 ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 0211-0501 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0502- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 0211-0501 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0502- ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0211-0501 ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-130-0 01 1 0211-0501 ● ● ● ● ●
78 02.589 LENS ASM; FRT COMB 8-97855-133-0 01 1 0211-0501 ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0211-0501 ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502- ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-236-2 01 1 0211-0501 ● ● ● ● ●
272 02.726 BRACKET; FRT COMB LAMP 8-97853-237-2 01 1 0211-0501 ● ● ● ● ●
273 02.726 BOLT; BRKT
08.225 M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211-0501 ● ● ● ● ●
306 02.587 PIVOT; FRT COMB LAMP 8-97219-053-0 04 1 0211-0501 ● ● ● ● ●

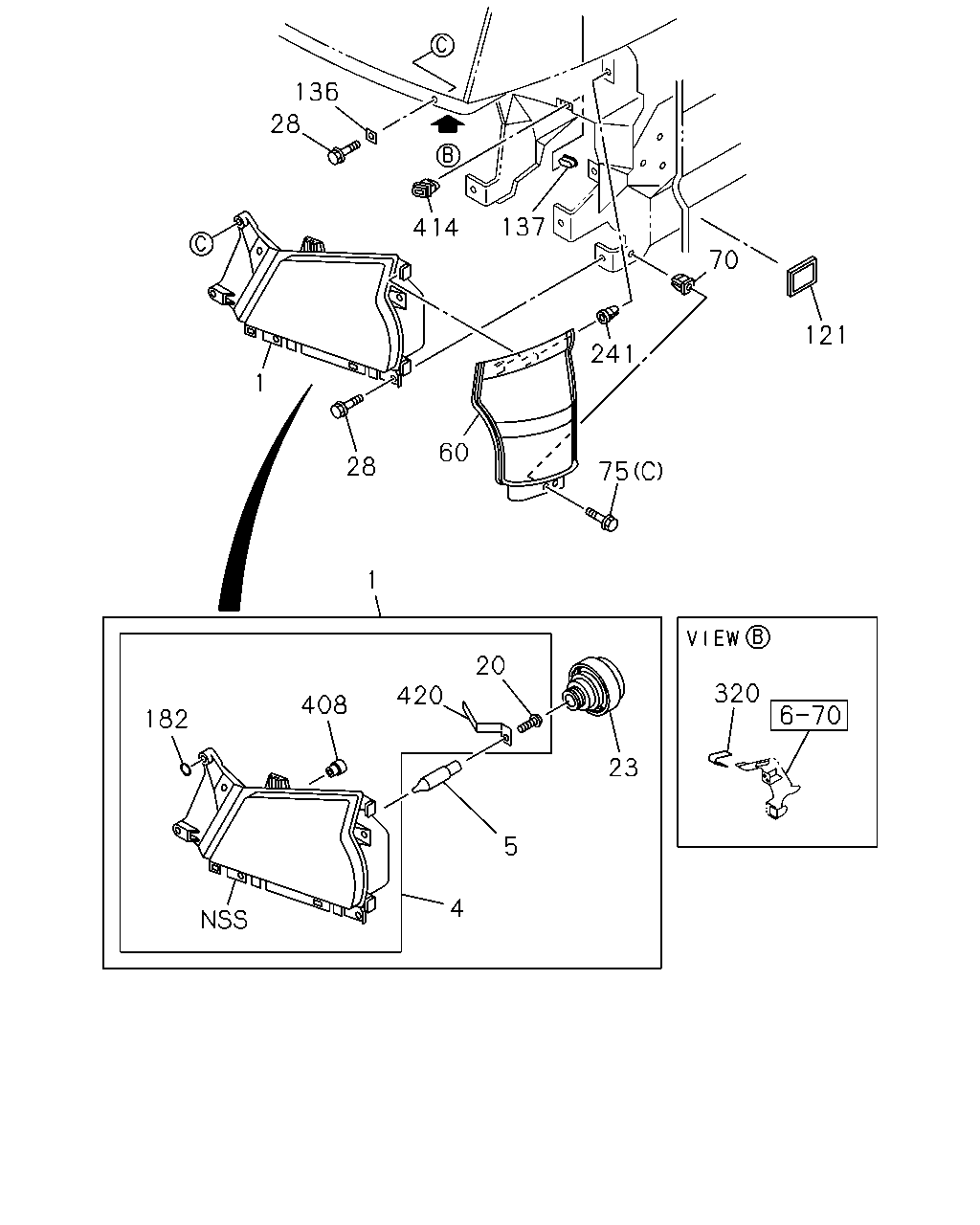

çizim 34370
136 28 137 414 70 121 241 1 60 28 75 1 20 320 420 408 182 23 5 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97316-094-1 01 1 0211-0501 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0502- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97316-095-1 01 1 0211-0501 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0502- ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97324-948-0 01 1 0211-0501 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98009-818-0 01 1 0502- ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97324-949-0 01 1 0211-0501 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98009-819-0 01 1 0502- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0211- ● ● ● ● ●
20 02.736 SCREW; HEADLAMP 8-97378-871-0 02 1 0502- ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97855-080-0 02 1 0211-0501 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0502- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0607 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0211-0501 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97365-174-5 01 1 0502-0502 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0503-0701 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0211-0501 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97365-175-5 01 1 0502-0502 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0503-0701 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP 8-97030-792-0 04 1 0211-0501 ● ● ● ● ●
70 02.587 GROMMET; SCREW,FRT COMB LAMP
16.445 		1-09983-081-0 02 1 0502- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ● ● ● ●
121 02.575 REFLECTOR; REFLEX 8-97367-133-0 02 1 0502-0503 ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-0 02 1 0504-0504 ● ●
121 02.575 REFLECTOR; REFLEX 8-98013-990-1 02 1 0505- ● ● ● ● ●
136 02.726 SEAL; HEADLAMP
03.602 25X25 		8-94272-533-0 02 1 0502- ● ● ● ● ●
137 02.726 GROMMET; HEADLAMP 8-97581-666-0 02 1 0502- ● ● ● ● ●
182 02.722 GASKET; HEADLAMP 8-97378-869-0 02 1 0502- ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-94452-095-0 04 1 0211-0501 ● ● ● ● ●
241 02.726 GROMMET; FRT LAMP 8-97380-030-0 02 1 0502- ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0211- ● ● ● ● ●
408 02.727 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0502- ● ● ● ● ●
414 02.736 PIN; HEADLAMP,RIM 8-97581-667-0 02 1 0502- ● ● ● ● ●
420 02.737 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0502- ● ● ● ● ●

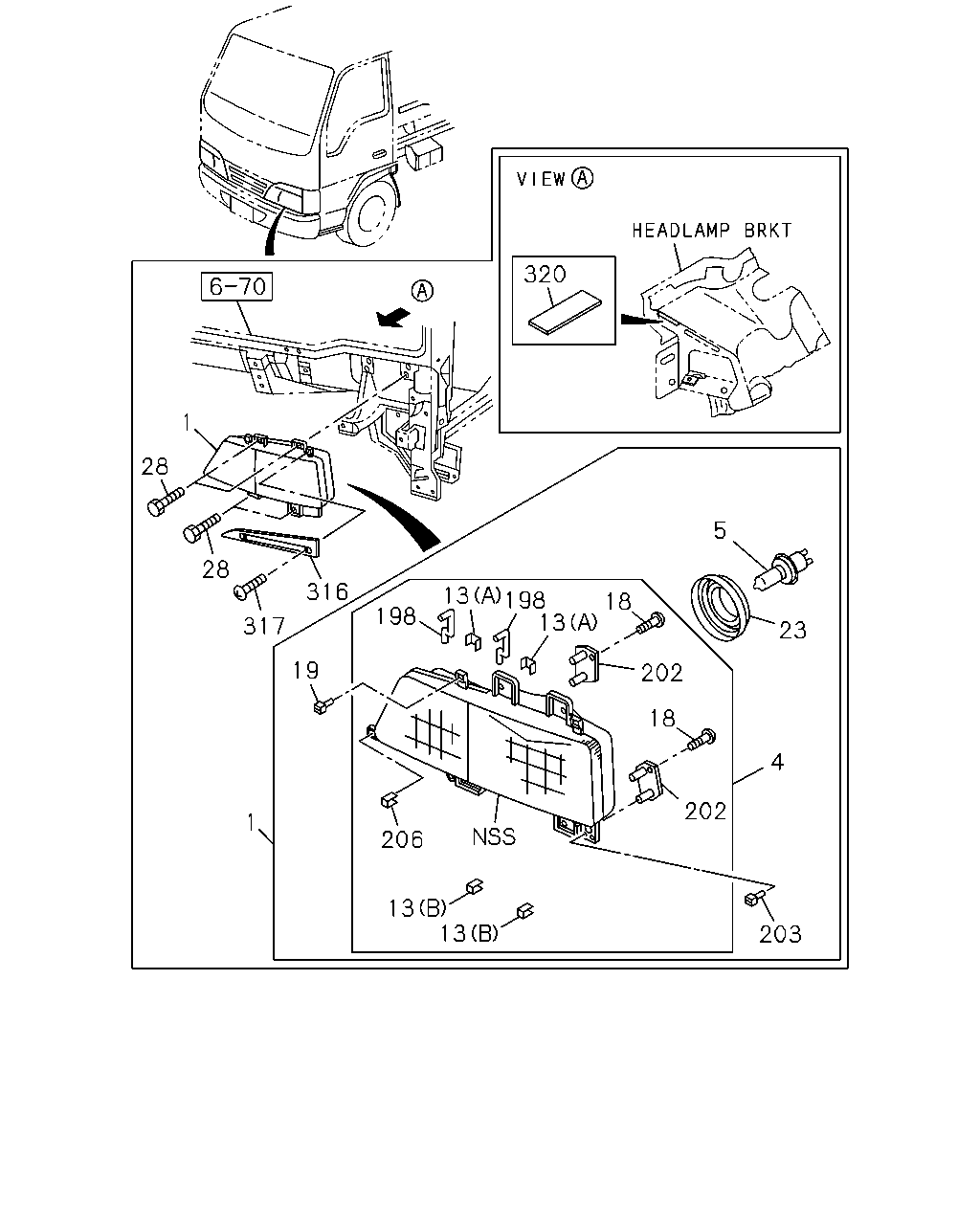

çizim 34373
320 1 28 5 28 316 13 198 13 18 198 317 23 19 202 18 4 202 1 206 13 13 203
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97316-094-1 01 1 0211-0501 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97372-528-5 01 1 0502- ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97316-095-1 01 1 0211-0501 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
24V 75/70W 		8-97372-529-5 01 1 0502- ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97324-948-0 01 1 0211-0501 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98009-818-0 01 1 0502- ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97324-949-0 01 1 0211-0501 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98009-819-0 01 1 0502- ● ● ● ● ●
5 02.727 BULB; HEADLAMP
24V 75/70W 		1-82194-063-0 02 1 0211- ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
02.729 (A) 		1-82119-084-0 02 1 0211-0501 ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
02.729 (B) 		8-94381-588-0 12 1 0211-0501 ● ● ● ● ●
18 02.726 SCREW; GEAR CASE 1-82119-086-0 16 1 0211-0501 ● ● ● ● ●
19 02.726 NUT; HEADLAMP 8-97044-618-0 04 1 0211-0501 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97855-080-0 02 1 0211-0501 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0502- ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-94279-203-0 08 1 0211-0607 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0608- ● ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-97253-896-0 01 1 0211-0501 ● ● ● ● ●
198 02.722 TUBE; COVER,HEADLAMP 8-97253-897-0 01 1 0211-0501 ● ● ● ● ●
202 02.726 GEAR UNIT; HEADLAMP 8-94345-040-0 04 1 0211-0501 ● ● ● ● ●
203 02.726 FASTENER; HEADLAMP 8-94382-231-0 04 1 0211-0501 ● ● ● ● ●
206 02.727 HOLDER; HEADLAMP 8-97868-156-0 02 1 0211-0501 ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-863-0 01 1 0211-0501 ● ● ● ● ●
316 02.726 ORNAMENT; HEAD LAMP 8-97867-864-0 01 1 0211-0501 ● ● ● ● ●
317 02.726 SCREW; ORNAMENT
02.729 M4X20 TAPPING 		8-97326-998-0 04 1 0211-0501 ● ● ● ● ●
320 02.726 SEALER; HEADLAMP BRKT 8-97850-499-1 01 1 0211- ● ● ● ● ●

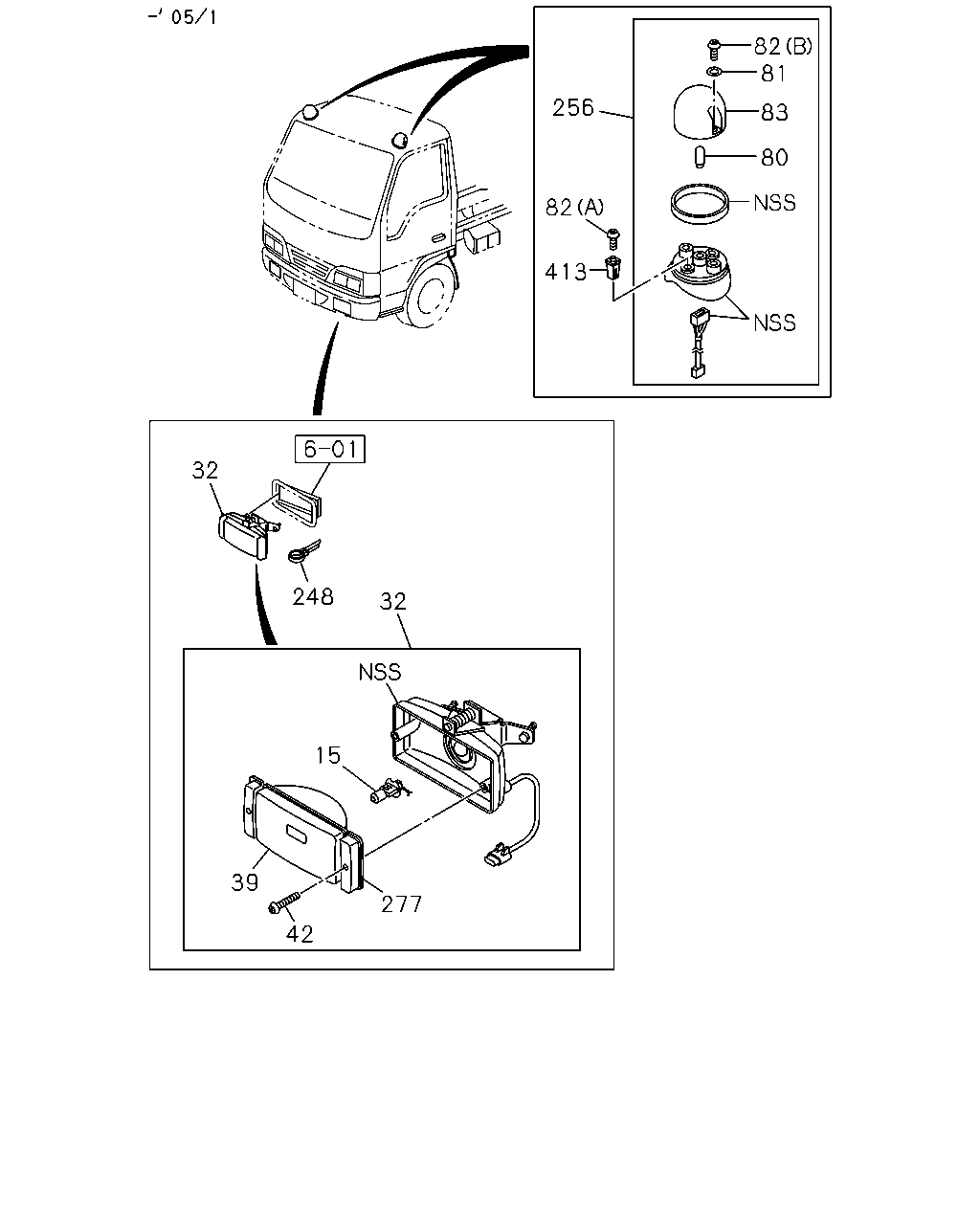

çizim 34400
82 81 256 83 80 82 413 32 248 32 15 39 277 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0211-0501 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0502-0506 ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0507- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97181-940-0 01 1 0211-0308 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-954-1 01 1 0309-0501 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97373-813-1 01 1 0502-0504 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98015-287-0 01 1 0505-0506 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-408-0 01 1 0507- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97181-942-0 01 1 0211-0308 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-955-1 01 1 0309-0501 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97373-815-1 01 1 0502-0504 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98015-288-0 01 1 0505-0506 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-409-0 01 1 0507- ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97357-929-0 02 1 0211-0501 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97378-975-0 02 1 0502-0506 ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98020-463-0 02 1 0507- ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-931-0 04 1 0211-0501 ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0502-0506 ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0507- ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0211- ● ● ● ● ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0211- ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0211- ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0211- ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0211- ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0211-0501 ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 04 1 0502-0506 ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 04 1 0507- ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0211- ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0211- ● ● ● ● ●
277 02.575 CLIP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-930-0 02 1 0211-0501 ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0211- ● ● ● ● ●

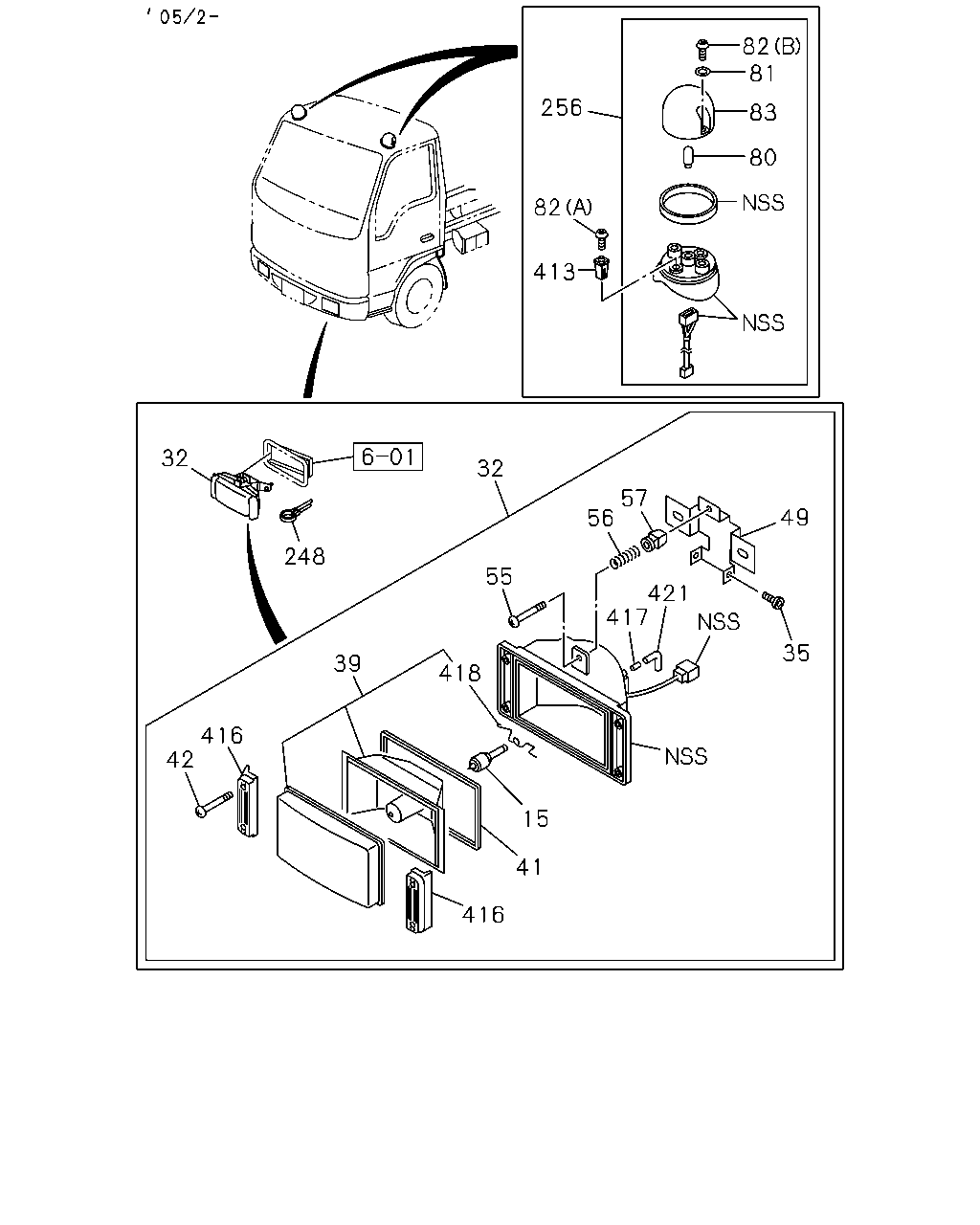

çizim 34569
82 81 256 83 80 82 413 32 32 57 56 49 248 55 421 417 35 39 418 416 42 15 41 416
BalonParca AdiParca NoAdetTipApplied Date A B C D E
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0211-0501 ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0502-0506 ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		8-97203-926-0 02 1 0507- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97181-940-0 01 1 0211-0308 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-954-1 01 1 0309-0501 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97373-813-1 01 1 0502-0504 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98015-287-0 01 1 0505-0506 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-408-0 01 1 0507- ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97181-942-0 01 1 0211-0308 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97353-955-1 01 1 0309-0501 ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97373-815-1 01 1 0502-0504 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98015-288-0 01 1 0505-0506 ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98022-409-0 01 1 0507- ● ● ● ● ●
35 02.726 SCREW; RIM,FOG LAMP
FOG LAMP<T96> 		8-97378-979-0 04 1 0502-0506 ● ● ● ●
35 02.726 SCREW; RIM,FOG LAMP
FOG LAMP<T96> 		8-97378-979-0 04 1 0507- ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97357-929-0 02 1 0211-0501 ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97378-975-0 02 1 0502-0506 ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-98020-463-0 02 1 0507- ● ● ● ● ●
41 02.575 GASKET; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-986-0 02 1 0502-0506 ● ● ● ●
41 02.575 GASKET; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-986-0 02 1 0507- ● ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97357-931-0 04 1 0211-0501 ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0502-0506 ● ● ● ●
42 02.575 SCREW; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-977-0 08 1 0507- ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97378-985-0 01 1 0502-0506 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97378-985-0 01 1 0507- ● ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97379-141-0 01 1 0502-0506 ● ● ● ●
49 02.726 BRACKET; LAMP
FOG LAMP<T96> 		8-97379-141-0 01 1 0507- ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97378-978-0 02 1 0502-0506 ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-97378-978-0 02 1 0507- ● ● ● ● ●
56 02.737 SPRING; COIL,FOG LAMP
FOG LAMP<T96> 		8-97378-980-0 02 1 0502-0506 ● ● ● ●
56 02.737 SPRING; COIL,FOG LAMP
FOG LAMP<T96> 		8-97378-980-0 02 1 0507- ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-97378-981-0 02 1 0502-0506 ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-97378-981-0 02 1 0507- ● ● ● ● ●
80 08.991 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0211- ● ● ● ● ●
81 02.587 SEAT; SCREW 1-82219-012-0 04 1 0211- ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
(B) 		1-82219-011-0 04 1 0211- ● ● ● ● ●
82 02.587 SCREW; MARKER LAMP
16.716 (A) M6X25 TAPPING 		9-07067-625-0 04 1 0211- ● ● ● ● ●
83 02.589 LENS; MARKER LAMP 8-97318-299-0 02 1 0211- ● ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 02 1 0211-0501 ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 04 1 0502-0506 ● ● ● ●
248 02.727 CLIP; HARNESS
FOG LAMP<T96> 02.559 ID=20 		5-09700-321-0 04 1 0507- ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-625-0 01 1 0211- ● ● ● ● ●
256 02.589 LAMP; MARKER 8-97307-626-0 01 1 0211- ● ● ● ● ●
413 02.575 GROMMET; SCREW,MARKER LAMP FIX 8-97289-492-0 04 1 0211- ● ● ● ● ●
416 02.587 CLAMP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-976-0 04 1 0502-0506 ● ● ● ●
416 02.587 CLAMP; LENS,FOG LAMP
FOG LAMP<T96> 		8-97378-976-0 04 1 0507- ● ● ● ● ●
417 02.596 FILTER; BREATHER,LAMP
FOG LAMP<T96> 		8-97378-983-0 04 1 0502-0506 ● ● ● ●
417 02.596 FILTER; BREATHER,LAMP
FOG LAMP<T96> 		8-97378-983-0 04 1 0507- ● ● ● ● ●
418 02.737 SPRING; BULB,FOG LAMP
FOG LAMP<T96> 		8-97378-982-0 02 1 0502-0506 ● ● ● ●
418 02.737 SPRING; BULB,FOG LAMP
FOG LAMP<T96> 		8-97378-982-0 02 1 0507- ● ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97378-984-0 04 1 0502-0506 ● ● ● ●
421 02.593 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97378-984-0 04 1 0507- ● ● ● ● ●

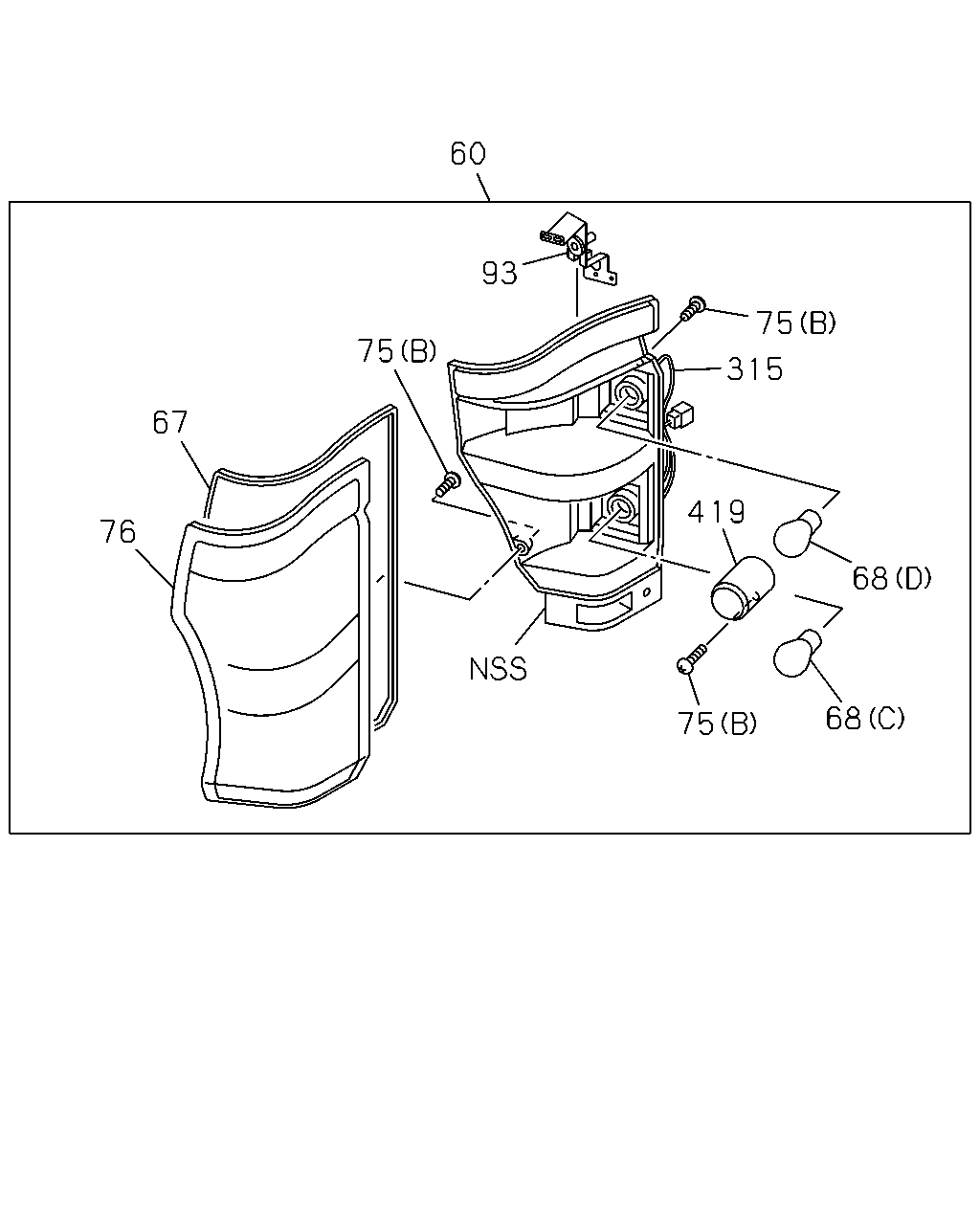

çizim 34632
60 93 75 75 315 67 419 76 68 68 75
BalonParca AdiParca NoAdetTipApplied Date A B C D E
60 02.585 LAMP ASM; FRT COMB 8-97855-112-2 01 1 0211-0501 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97365-174-5 01 1 0502-0502 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-883-0 01 1 0503-0701 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-940-0 01 1 0702- ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97855-113-2 01 1 0211-0501 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-97365-175-5 01 1 0502-0502 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98010-884-0 01 1 0503-0701 ● ● ● ● ●
60 02.585 LAMP ASM; FRT COMB 8-98053-941-0 01 1 0702- ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97855-121-0 02 1 0211-0501 ● ● ● ● ●
67 02.590 GASKET; FRT COMB LAMP 8-97378-948-0 02 1 0502- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(B) 24V 21W 		8-94125-956-0 02 1 0211-0501 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(C) 24V 21/5W 		8-94125-957-0 02 1 0502- ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(A) 24V 10W 		8-97094-888-0 02 1 0211-0501 ● ● ● ● ●
68 08.991 BULB; FRT COMB LAMP
(D) 24V 21W AMBER 		8-97323-806-0 02 1 0502- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(B) M4X12 		8-97378-944-0 14 1 0502- ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
08.977 (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0211-0501 ● ● ● ● ●
75 02.587 SCREW; FRT COMB LAMP
(C) M6X16 TAPPING 		8-97374-995-0 02 1 0502- ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-961-0 01 1 0502- ● ● ● ● ●
76 02.589 LENS; FRT COMB LAMP 8-97378-962-0 01 1 0502- ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-943-0 01 1 0502- ● ● ● ● ●
93 02.892 BRACKET; SIDE COMB LAMP 8-97378-945-0 01 1 0502- ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-97378-970-0 02 1 0502-0502 ● ● ● ● ●
315 02.596 HARNESS; FRT COMB LAMP 8-98010-917-0 02 1 0503- ● ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-946-0 01 1 0502- ● ● ● ● ●
419 02.589 LENS; INNER,FRT COMB LAMP 8-97378-947-0 01 1 0502- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
