7-60 — SEAT BELT (#38531) — 52 parça

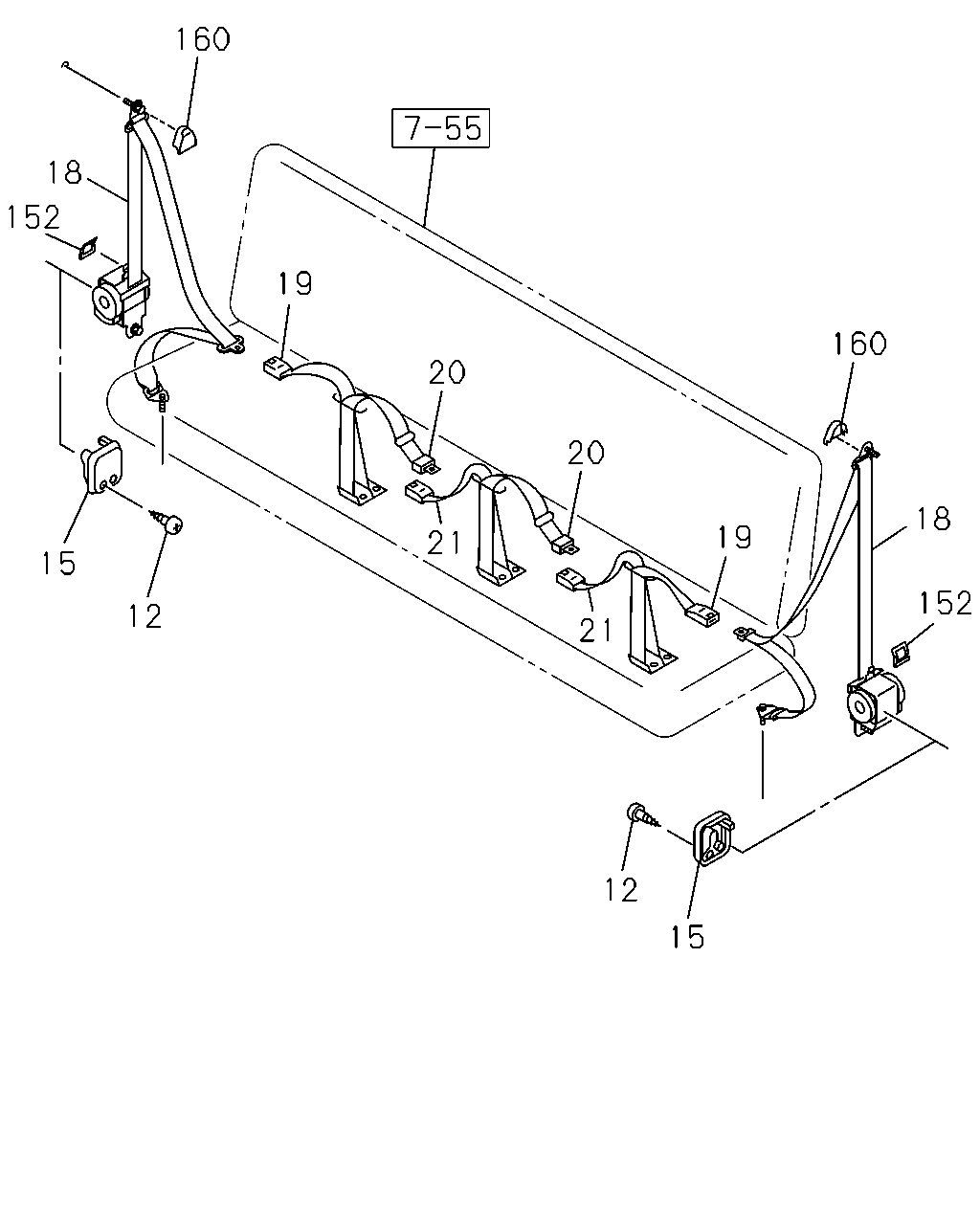

çizim 34465
160 18 152 19 160 20 20 18 19 21 15 152 12 21 12 15
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
16.584 M6X13 		5-09981-074-0 04 1 0211-0611 ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M4X14 TAPPING 		0-74360-414-0 04 1 0612- ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
DARK GRAY 		8-94351-619-3 02 1 0211-0501 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRAY 		8-97396-955-3 02 1 0502-0708 ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
16.578 GRAY 		8-97405-192-3 02 1 0709- ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97394-533-0 02 1 0211-0501 ●
18 16.714 BELT; SEAT,RR
GRAY 		8-97400-630-1 02 1 0502- ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-529-0 02 1 0211-0501 ●
19 16.714 BELT; RR SEAT,BUCKLE SIDE
GRAY 		8-97400-627-0 02 1 0502- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97394-542-0 01 1 0211-0501 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-039-0 01 1 0503- ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
DARK GRAY 		8-97394-547-0 01 1 0211-0501 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE 8-97400-640-0 01 1 0502-0502 ●
20 16.714 BELT; RR SEAT CTR,TONGUE SIDE
GRAY 		8-97404-040-0 01 1 0503- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97394-538-0 01 1 0211-0501 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-036-0 01 1 0503- ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
DARK GRAY 		8-97394-539-0 01 1 0211-0501 ●
21 16.714 BELT; RR SEAT CTR,BUCKLE SIDE
GRAY 		8-97404-037-0 01 1 0503- ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211- ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211- ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0502- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0502- ●

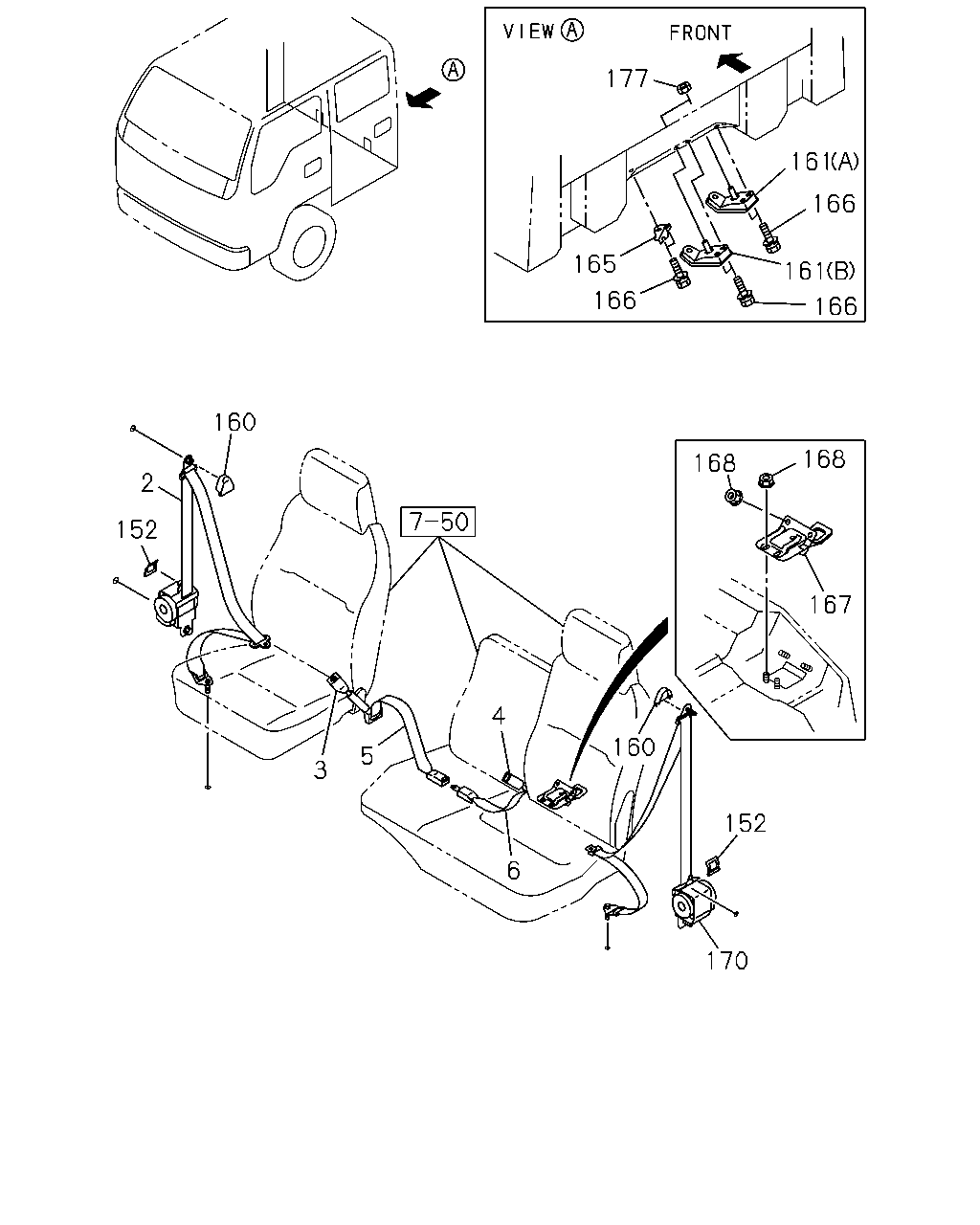

çizim 34759
177 161 166 165 161 166 166 160 168 168 2 152 167 4 160 5 3 152 6 170
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97394-514-0 01 1 0211-0501 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
GRAY 		8-97400-625-1 01 1 0502- ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-509-0 01 1 0211-0501 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97400-349-0 01 1 0502- ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
DARK GRAY 		8-97326-220-0 01 1 0211-0501 ● ● ● ● ●
4 16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97396-952-0 01 1 0502- ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
DARK GRAY 		8-97394-523-0 01 1 0211-0501 ● ● ● ● ●
5 16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97404-031-0 01 1 0502- ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
DARK GRAY 		8-97394-526-0 01 1 0211-0501 ● ● ● ● ●
6 16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97404-032-0 01 1 0503- ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211- ● ● ● ● ●
152 16.714 PROTECTOR 8-97287-563-0 02 1 0211- ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
DARK GRAY 		8-97854-897-0 02 1 0211-0501 ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0502- ● ● ● ● ●
160 16.714 COVER; THROUGH ANCHOR
GRAY 		8-97396-954-0 02 1 0502- ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(A) 		8-97850-286-5 01 1 0211- ● ● ● ● ●
161 16.714 REINFORCEMENT; SEAT BELT ANCHOR
(B) 		8-97850-329-4 01 1 0211- ● ● ● ● ●
165 16.714 HOOK; SEAT BELT ANCHOR 8-97869-415-0 01 1 0211- ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
02.559 M8X25 FLANGE 		0-28680-825-0 06 1 0211-0512 ● ● ● ● ●
166 16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE 		0-28650-825-0 06 1 0601- ● ● ● ● ●
167 16.714 PLATE; ANCHOR 8-97869-412-2 01 1 0211- ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE 		5-09440-005-0 04 1 0211-0712 ● ● ● ● ●
168 16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE 		0-91180-108-0 04 1 0801- ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
DARK GRAY 		8-97394-521-0 01 1 0211-0501 ● ● ● ● ●
170 16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97400-449-1 01 1 0502- ● ● ● ● ●
177 16.714 NUT
07.833 M8 W/LK WASHER 		8-94327-073-0 02 1 0211-0805 ● ● ● ● ●
177 16.714 NUT
03.417 M8 W/LK WASHER 		8-97581-234-0 02 1 0806- ● ● ● ● ●
