◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51397 - NPR/NQR(AUST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#38529) — 151 parça

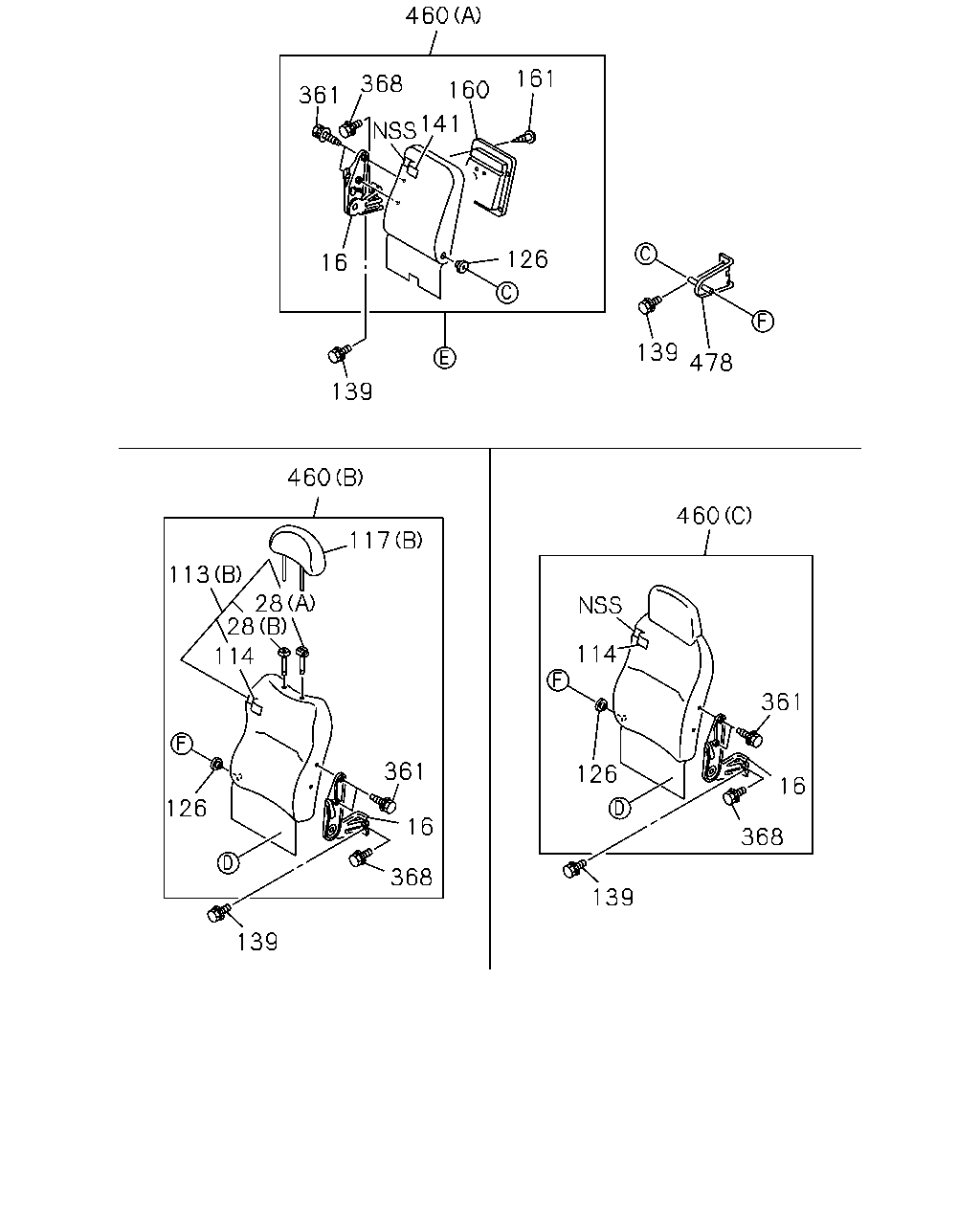

çizim 34365
460 161 368 160 361 141 126 16 139 478 139 460 460 117 113 28 28 114 114 361 361 126 16 126 16 368 368 139 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0211- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0211- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0211- ● ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (A) LOCK, DARK GRAY 		8-97150-984-1 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (A) LOCK, DARK GRAY 		8-97150-984-1 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (B) FREE, DARK GRAY 		8-97150-985-1 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (B) FREE, DARK GRAY 		8-97150-985-1 01 1 0211-0501 ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-367-3 01 1 0211-0501 ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97394-187-1 01 1 0211-0501 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97394-634-0 01 1 0211-0501 ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97394-634-0 01 1 0211-0501 ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
DARK GRAY 		8-97400-696-1 01 1 0502- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97393-859-0 01 1 0211-0501 ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 0211-0501 ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 0211-0501 ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0211-0501 ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0211-0501 ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 0211-0501 ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 0211-0501 ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 02 1 0502-0804 ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 02 1 0805- ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> 		8-97854-900-0 02 1 0211-0501 ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0211- ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97393-767-0 01 1 0211-0501 ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-767-0 01 1 0211-0501 ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
DARK GRAY 		8-97400-699-1 01 1 0502- ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97197-970-2 01 1 0211-0501 ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-0 01 1 0211-0501 ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0502- ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0211- ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0211-0501 ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0211-0501 ● ● ●
361 16.682 BOLT; ADJ,RECLINING
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 0211-0501 ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 0211-0501 ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 04 1 0502- ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 0211-0501 ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211-0501 ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211-0501 ● ● ●
368 16.682 BOLT; SEAT
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211-0501 ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211-0501 ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0502- ● ● ● ● ●
368 16.682 BOLT; SEAT
CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0211-0501 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97293-578-3 01 1 0211-0404 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-926-3 01 1 0405-0501 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97393-759-2 01 1 0211-0501 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97393-759-2 01 1 0211-0501 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(A) DARK GRAY 		8-97400-659-2 01 1 0502- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97394-574-0 01 1 0211-0404 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97393-834-1 01 1 0405-0501 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(C) DARK GRAY 		8-97394-573-2 01 1 0211-0501 ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> (C) DARK GRAY 		8-97394-573-2 01 1 0211-0501 ● ●
460 16.670 BACK ASM; PASSENGER SEAT
(C) DARK GRAY 		8-97400-656-1 01 1 0502- ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 0211- ● ● ● ● ●
çizim 34366
1 24 18 228 2 16 99 17 19 12 13 510 15 69 382 67 168 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97393-776-1 01 1 0211-0501 ● ●
1 16.720 BACK ASM; SEAT
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-776-1 01 1 0211-0501 ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97400-492-2 01 1 0502- ● ● ● ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97393-771-1 01 1 0211-0501 ●
1 16.720 BACK ASM; SEAT
DARK GRAY 		8-97400-684-2 01 1 0502- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97393-778-0 01 1 0211-0501 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-778-0 01 1 0211-0501 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-493-1 01 1 0502- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97393-773-0 01 1 0211-0501 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
DARK GRAY 		8-97400-685-1 01 1 0502- ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97393-779-1 01 1 0211-0501 ● ●
12 16.670 CUSHION; SEAT,FRT
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-779-1 01 1 0211-0501 ● ●
12 16.670 CUSHION; SEAT,FRT
CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 0211-0501 ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-494-1 01 1 0502- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97393-774-1 01 1 0211-0501 ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-686-1 01 1 0502- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97393-780-1 01 1 0211-0501 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-780-1 01 1 0211-0501 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 0211-0501 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-495-1 01 1 0502- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97393-775-1 01 1 0211-0501 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-687-1 01 1 0502- ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-986-1 01 1 0211- ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0211- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0211- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0211- ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0211- ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0211-0501 ● ● ● ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97398-249-0 01 1 0502- ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0604 ● ● ● ● ●
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0211-0501 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) GRAY 		8-97398-250-0 01 1 0502-0804 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) GRAY 		8-97415-445-0 01 1 0805- ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 0211-0501 ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0211- ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211- ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0211- ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0211- ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0211- ● ● ● ● ●
168 16.682 SCREW; LOCK SPRING
16.686 		8-94279-317-0 02 1 0211- ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0211- ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0211- ● ● ● ● ●
510 16.682 SPRING; LOCK 8-97311-844-0 01 1 0211- ●

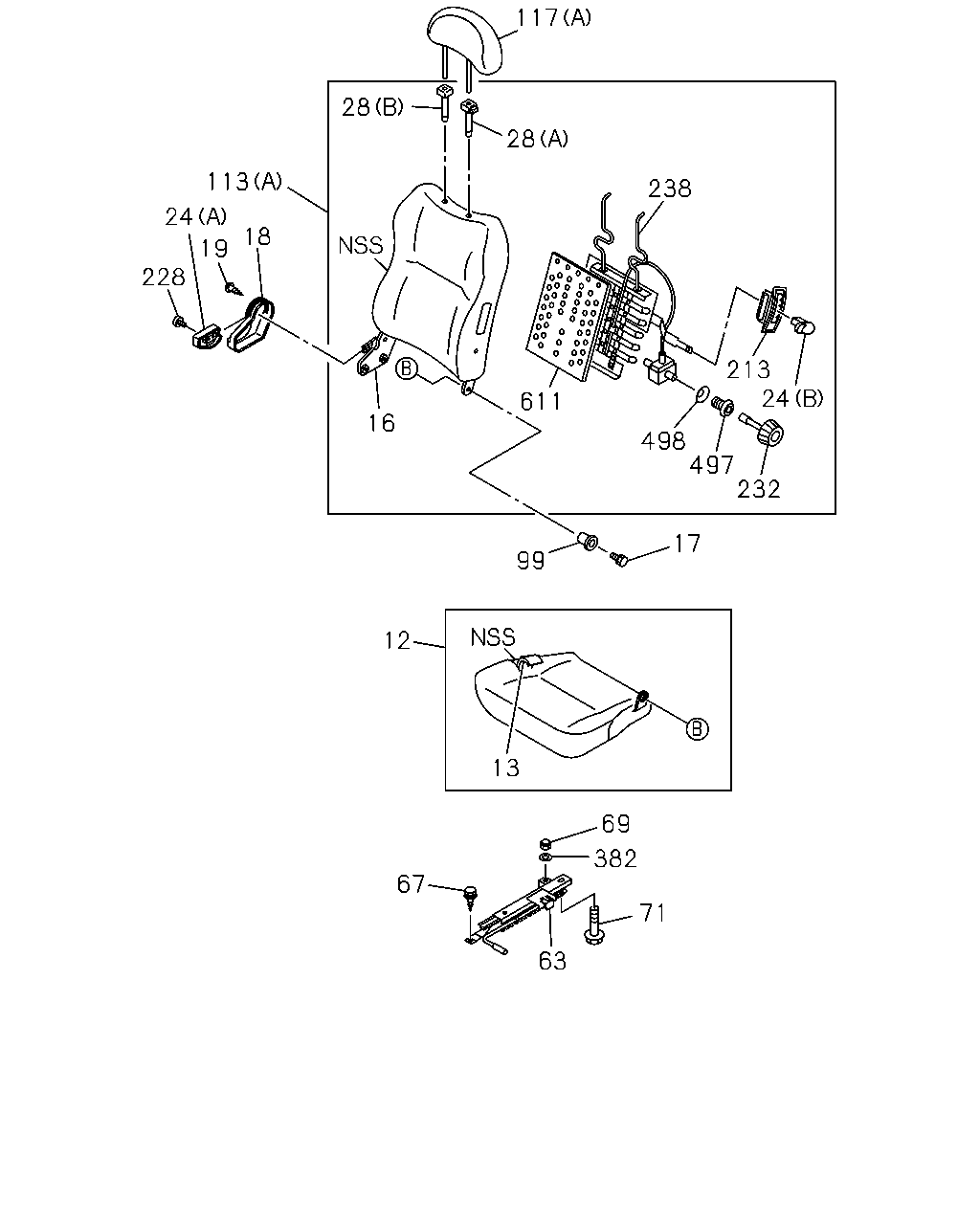

çizim 34437
117 28 28 113 238 24 18 19 228 213 24 611 16 498 497 232 17 99 12 13 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97393-779-1 01 1 0211-0501 ● ●
12 16.670 CUSHION; SEAT,FRT
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-779-1 01 1 0211-0501 ● ●
12 16.670 CUSHION; SEAT,FRT
CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 0211-0501 ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-494-1 01 1 0502- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97393-774-1 01 1 0211-0501 ●
12 16.670 CUSHION; SEAT,FRT
DARK GRAY 		8-97400-686-1 01 1 0502- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97393-780-1 01 1 0211-0501 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-780-1 01 1 0211-0501 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 0211-0501 ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-495-1 01 1 0502- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97393-775-1 01 1 0211-0501 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
DARK GRAY 		8-97400-687-1 01 1 0502- ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-3 01 1 0211- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0211- ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-274-3 01 1 0211- ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0211- ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0211-0501 ● ● ● ● ●
18 16.682 COVER; RECLINING
GRAY 		8-97398-249-0 01 1 0502- ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0211-0604 ● ● ● ● ●
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0211-0501 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) GRAY 		8-97398-250-0 01 1 0502-0804 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) GRAY 		8-97415-445-0 01 1 0805- ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (A) LOCK, DARK GRAY 		8-97150-984-1 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (A) LOCK, DARK GRAY 		8-97150-984-1 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (B) FREE, DARK GRAY 		8-97150-985-1 01 1 0211-0501 ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> (B) FREE, DARK GRAY 		8-97150-985-1 01 1 0211-0501 ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0211- ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0211- ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 0211- ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0211- ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0211- ● ● ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-367-3 01 1 0211-0501 ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97394-187-1 01 1 0211-0501 ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 0211-0501 ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 0211-0501 ● ●
213 16.682 COVER; HOLE
CUSTOM PACKAGE<YM8> 		8-97096-373-1 01 1 0211-0501 ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0211- ● ● ● ● ●
232 16.682 KNOB; HINGE CONT,FRT SEAT
CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 0211-0501 ● ●
238 16.720 SUPPORT ASM; LUMBAR
CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 0211-0501 ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 0211- ● ● ● ● ●
497 16.682 INSERT; KNOB
CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 0211-0501 ● ●
498 16.682 WASHER; INSERT
CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 0211-0501 ● ●
611 16.720 PLATE; ANTI-FRICTION
CUSTOM PACKAGE<YM8> 16.682 		8-97096-375-0 01 1 0211-0501 ● ●
çizim 34463
115 116 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97393-760-1 01 1 0211-0501 ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-760-1 01 1 0211-0501 ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
DARK GRAY 		8-97400-668-2 01 1 0502- ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> BLUE 		8-97293-579-3 01 1 0211-0501 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97393-770-1 01 1 0211-0501 ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-770-1 01 1 0211-0501 ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
DARK GRAY 		8-97400-706-1 01 1 0502- ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
CUSTOM PACKAGE<YM8> BLUE 		8-97197-973-2 01 1 0211-0501 ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0211- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
