9-01 — TOOLS (#38527) — 37 parça

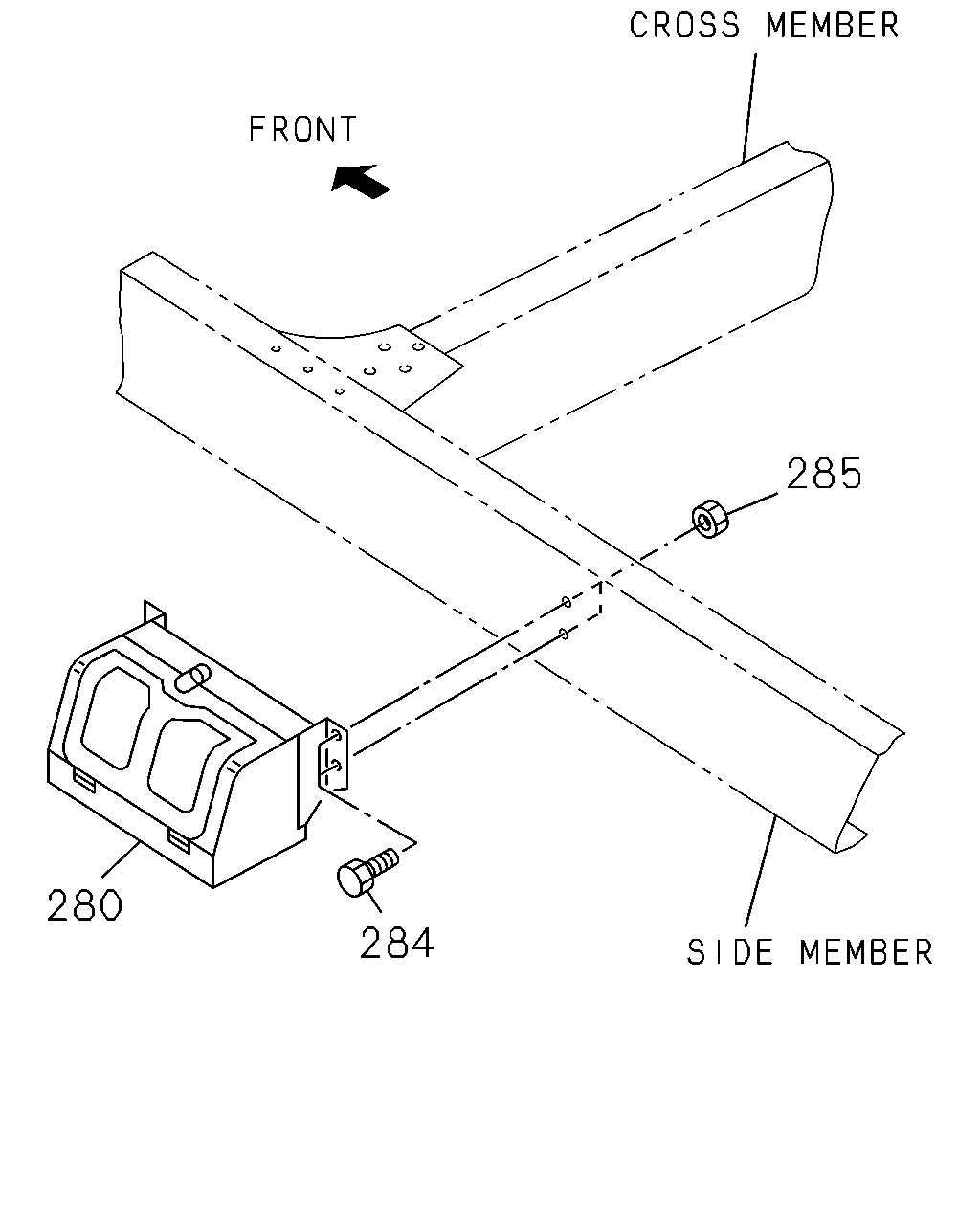

çizim 18761
285 280 284
BalonParca AdiParca NoAdetTipApplied Date A B C
280 08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2> 		8-97222-496-0 01 1 0211-0501 ●
284 08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0211-0501 ●
285 08.821 NUT; TOOL BOX
TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE 		0-91150-108-0 03 1 0211-0501 ●

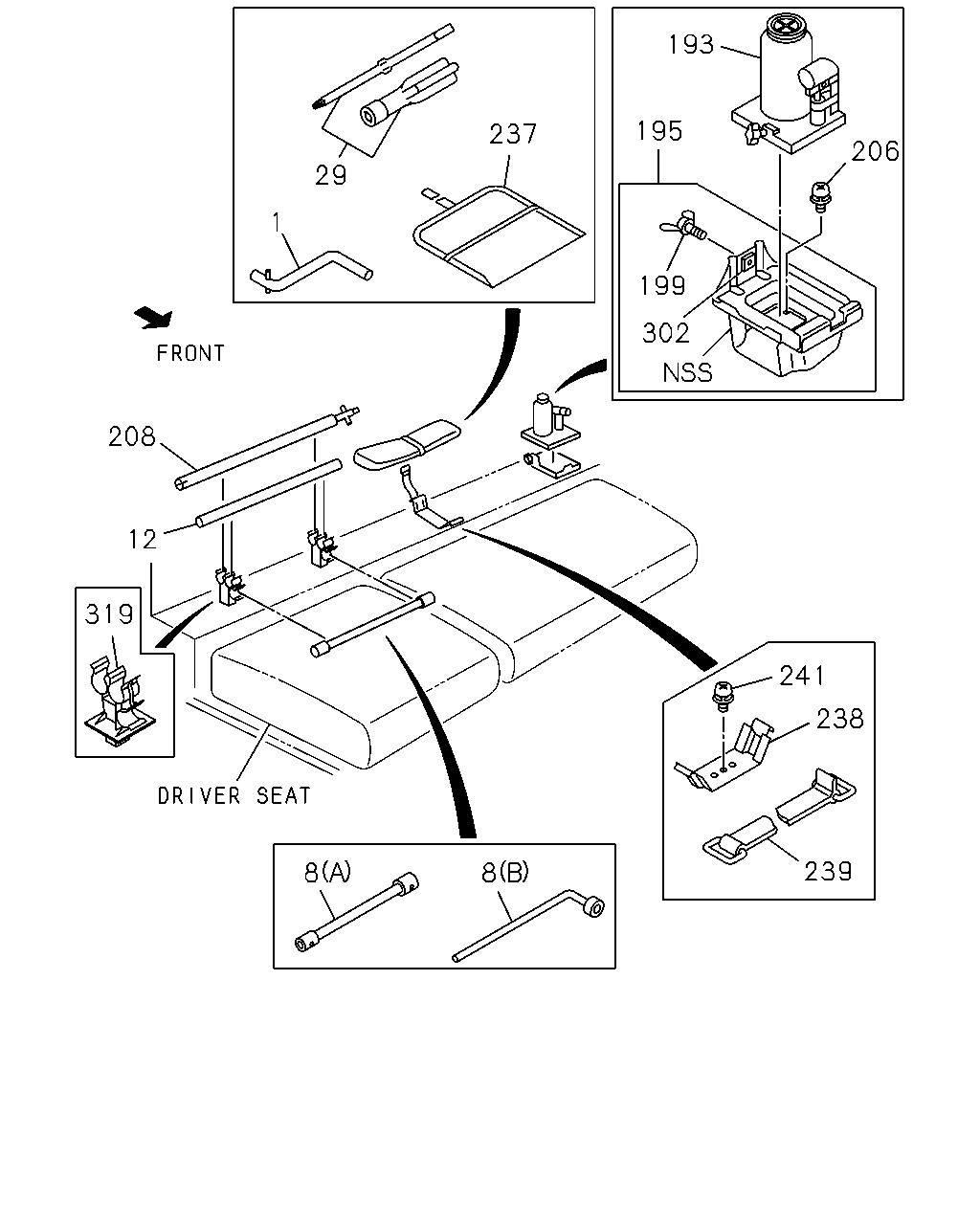

çizim 71443
193 195 237 206 29 1 199 302 208 12 319 241 238 239 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.629 HANDLE; SPARE TIRE CARRIER
EXC. SPARE TIRE CARRIER INSIDE MOUNTED<P15> 		8-97218-985-0 01 1 0211-0505 ●
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0211-0505 ● ●
1 07.629 HANDLE; SPARE TIRE CARRIER 8-97218-985-0 01 1 0506- ● ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 0211-0606 ● ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 0607-1404 ● ● ●
8 08.821 WRENCH; WHEEL
(A) B=41X19 L=330 		8-94386-490-1 01 1 1405- ● ●
8 08.821 WRENCH; WHEEL
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) (A) B=41X19 L=330 		8-94386-490-1 01 1 1405- ●
8 08.821 WRENCH; WHEEL
(A) B=35X17 L=300 		8-94341-283-1 01 1 0211- ●
8 08.821 WRENCH; WHEEL
(B) B=23 L=300 		9-85113-935-0 01 1 0211-0606 ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590 		8-97332-988-0 01 1 0211-1001 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
08.820 OD=25 L=480 		1-85116-011-0 01 1 1002-1407 ● ● ●
12 08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1408- ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 0211-1404 ● ● ●
29 08.821 DRIVER; SCREW
<+>,<-> L=160 		8-94242-798-1 01 1 1405- ● ●
29 08.821 DRIVER; SCREW
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) <+>,<-> L=160 		8-94242-798-1 01 1 1405- ●
193 08.820 JACK ASM
4TON 		8-94438-020-3 01 1 0211- ● ●
193 08.820 JACK ASM
4TON 		8-94438-019-2 01 1 0211- ●
195 08.820 BRACKET; JACK 8-97857-473-3 01 1 0211- ● ●
195 08.820 BRACKET; JACK 8-97857-476-3 01 1 0211- ●
199 08.820 BOLT; JACK
M8X50 WING 		8-94279-136-0 01 1 0211- ● ●
199 08.820 BOLT; JACK
M8X30 WING 		8-94279-018-1 01 1 0211- ●
206 08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ●
206 08.820 SCREW; OIL JACK BRKT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-97217-800-0 01 1 0211-1108 ● ● ●
208 08.820 HANDLE; JACK
L=642 		8-98181-477-0 01 1 1109- ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 0211-1404 ● ● ●
237 08.821 BAG; TOOL 8-97130-903-1 01 1 1405- ● ●
237 08.821 BAG; TOOL
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) 		8-97130-903-1 01 1 1405- ●
238 08.820 SUPPORT; TOOL BAG 8-97994-977-0 01 1 0211- ● ● ●
239 08.820 BAND; TOOL BAG
L=100 		5-73997-026-1 01 1 0211- ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER 		8-94279-403-0 01 1 0211-0612 ● ● ●
241 08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16 		0-38050-616-0 01 1 0701- ● ● ●
302 08.820 NUT; JACK BRKT 8-94279-522-0 01 1 0211- ● ● ●
319 08.821 CLIP; TOOL BAR 8-97853-077-2 02 1 0211- ● ● ●
