Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#38526) — 24 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
◀

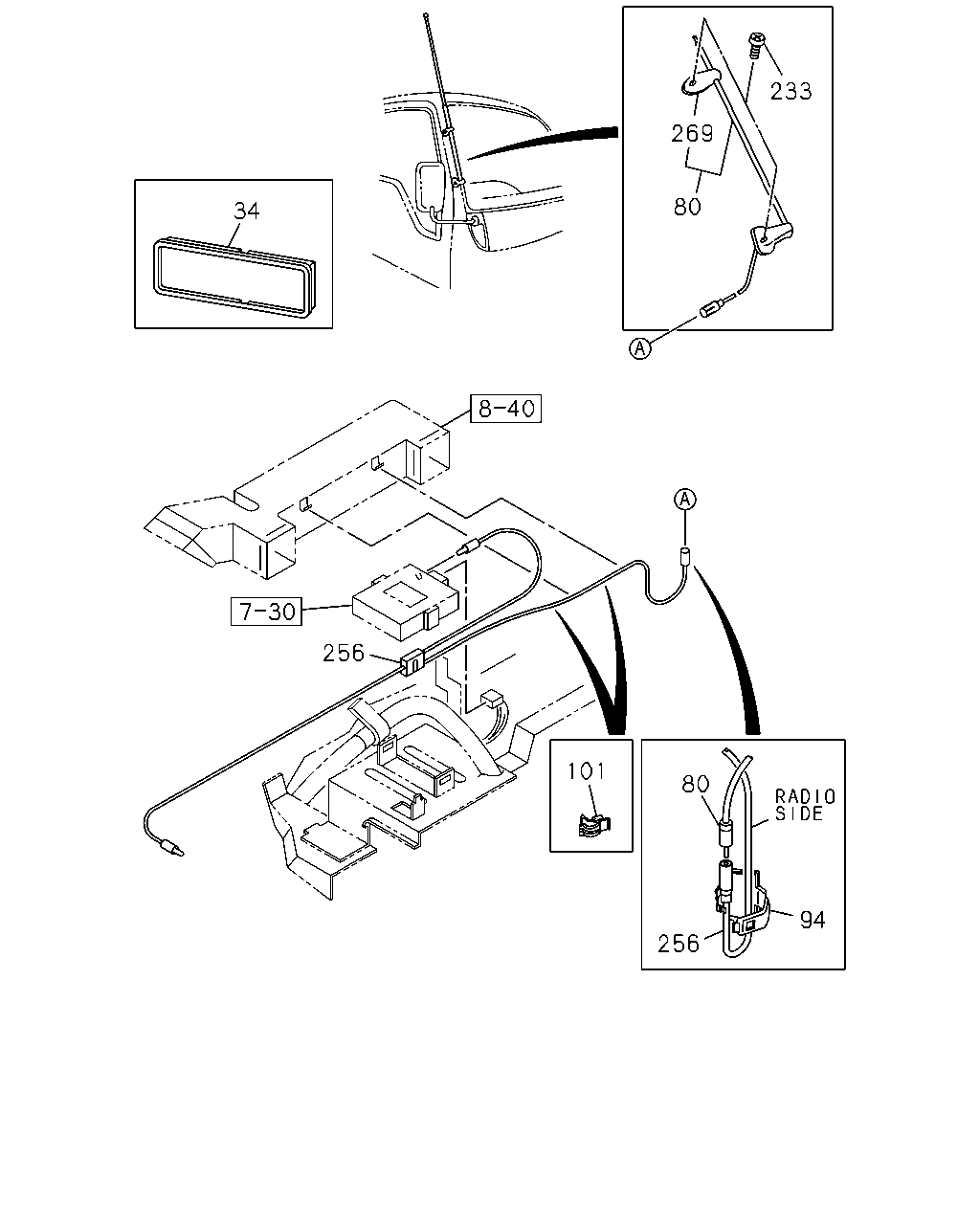

[890A] ANTENNA AND COVER (10 parça)

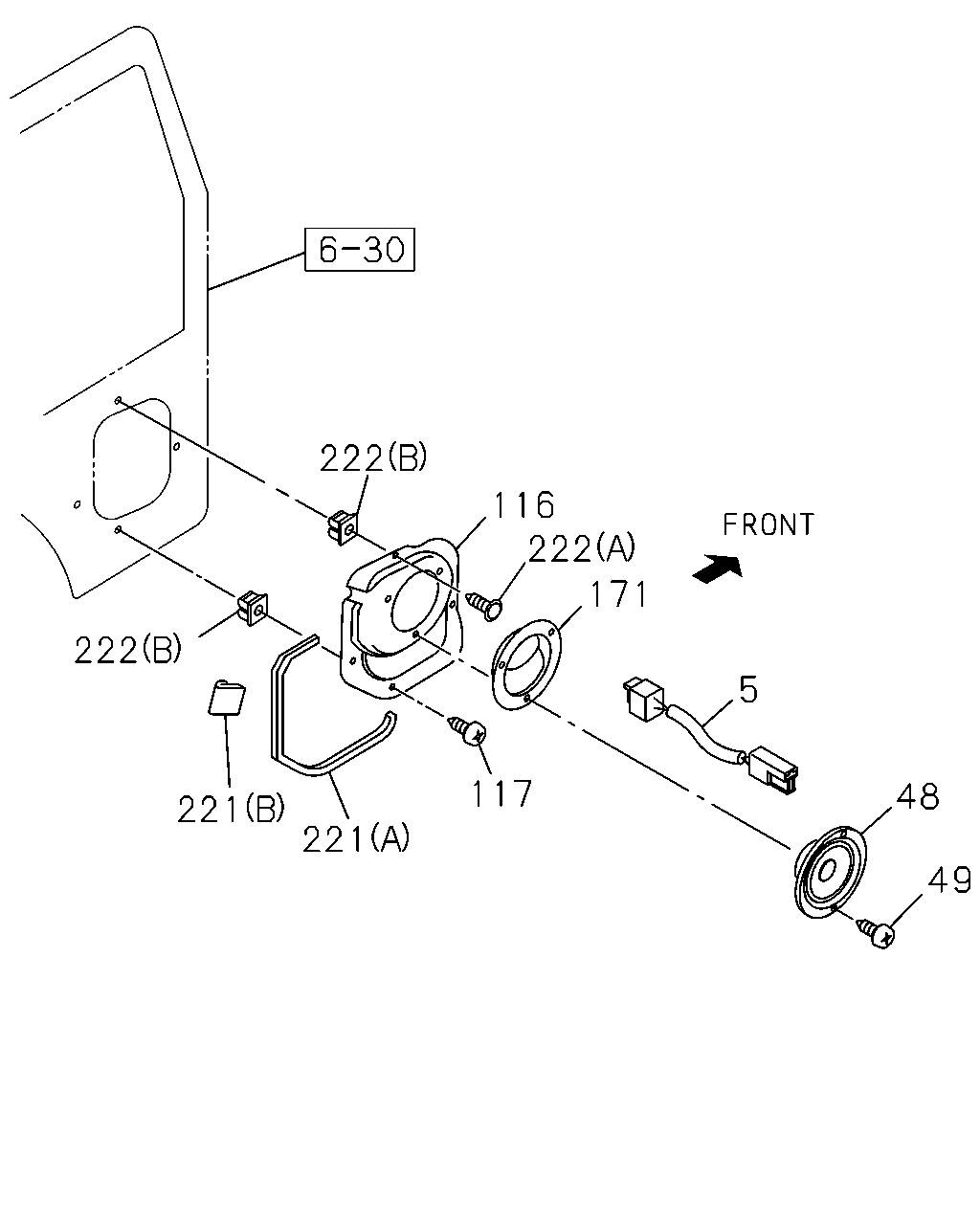

[890A] SPEAKER UNIT (14 parça)
▶
233
269
80
34
256
101
80
94
256
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
34
09.650 COVER; RADIO HOLE
8-97856-203-3
01
1
0211-
●
●
●
80
09.645 ANTENNA
8-97210-546-0
01
1
0211-0405
●
●
●
80
09.645 ANTENNA
8-97211-564-0
01
1
0406-
●
●
●
94
09.656 CLIP; ANTENNA FEEDER
1-09987-155-3
01
1
0211-
●
●
●
101
09.649 CLIP; FEEDER TO BRKT
04.342 ID=7
5-09707-053-0
02
1
0211-
●
●
●
233
09.647 SCREW
M6X20
8-97120-686-0
01
1
0211-
●
●
●
233
09.647 SCREW
M6X16
8-97123-696-0
01
1
0211-
●
●
●
256
09.647 DISTRIBUTOR UNIT; FEEDER
8-97256-812-0
01
1
0211-
●
●
●
269
09.647 SUPPORT KIT; ANTENNA
8-97108-183-0
01
1
0211-0405
●
●
●
269
09.647 SUPPORT KIT; ANTENNA
8-97219-079-0
01
1
0406-
●
●
●
222
116
222
171
222
5
117
48
221
221
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
5
09.647 HARNESS; EXT
8-97131-327-0
02
1
0211-
●
●
●
48
09.650 SPEAKER; AUDIO
8-97317-000-0
02
1
0211-0805
●
●
●
48
09.650 SPEAKER; AUDIO
8-97317-001-1
02
1
0806-
●
●
●
49
09.655 SCREW; SPEAKER
16.067 M5X14
8-94279-325-0
06
1
0211-0612
●
●
●
49
09.655 SCREW; SPEAKER
M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0701-
●
●
●
116
16.165 PANEL; SPEAKER,FRT DOOR
8-97852-324-3
01
1
0211-
●
●
●
116
16.165 PANEL; SPEAKER,FRT DOOR
8-97852-325-3
01
1
0211-
●
●
●
117
16.165 SCREW; SPEAKER PANEL
16.067 M5X14
8-94279-325-0
06
1
0211-0612
●
●
●
117
16.165 SCREW; SPEAKER PANEL
16.570 M5X16 TAPPING HEXALOBULAR
0-72380-516-0
06
1
0701-
●
●
●
171
09.650 COVER; SPEAKER
8-97852-331-4
02
1
0211-
●
●
●
221
16.165 SEAL; SPEAKER PANEL
(A)
8-97852-327-5
02
1
0211-
●
●
●
221
16.165 SEAL; SPEAKER PANEL
(B)
8-97852-601-2
02
1
0211-
●
●
●
222
16.165 GROMMET; SCREW,SPEAKER PANEL
09.264 (A)
1-09987-144-0
02
1
0211-
●
●
●
222
16.165 GROMMET; SCREW,SPEAKER PANEL
01.269 (B) D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0211-
●
●
●
