◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#38520) — 38 parça

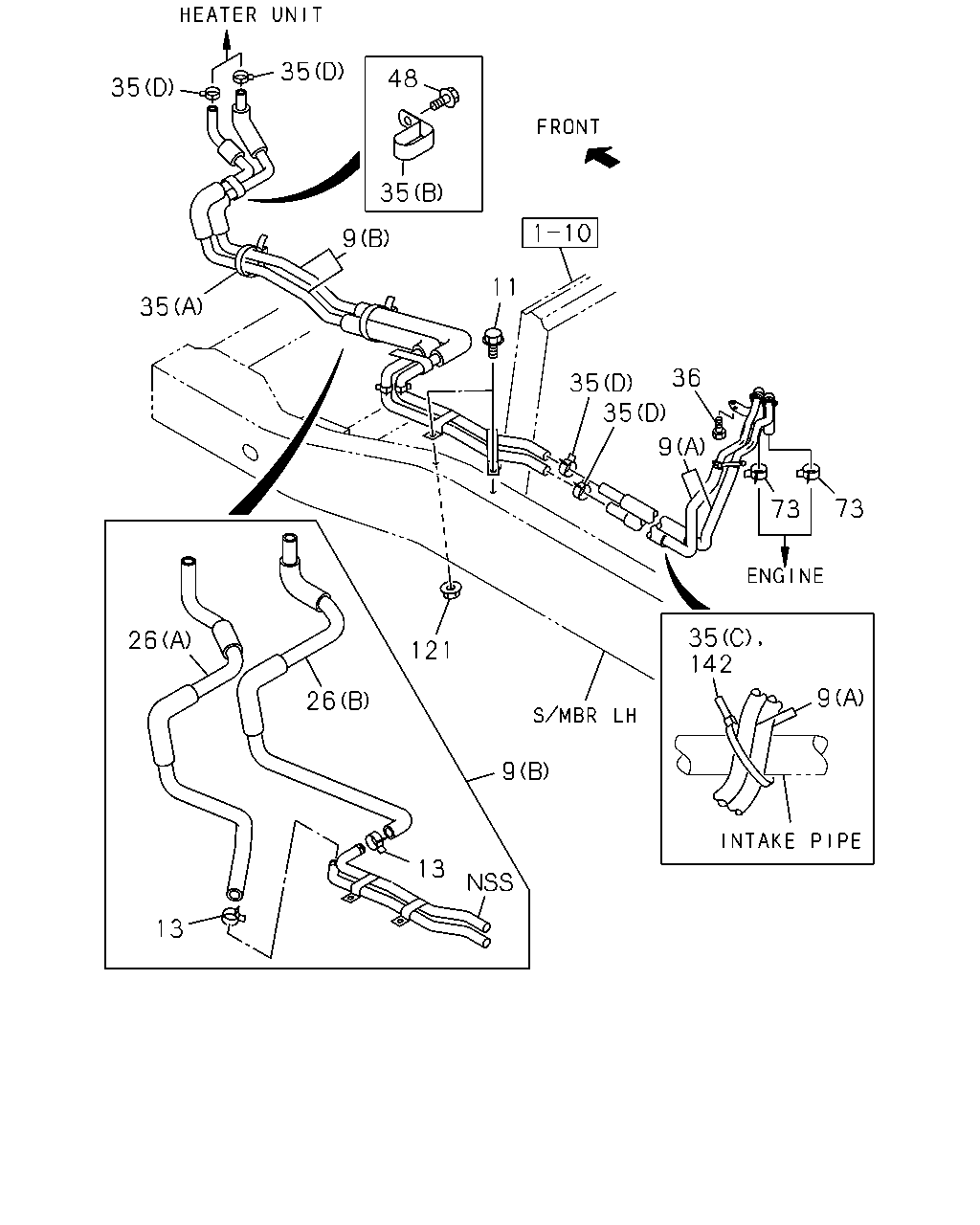

çizim 71604
35 48 35 35 9 11 35 36 35 35 9 73 73 35 142 26 121 9 26 9 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C
9 08.846 PIPE; HTR
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (A) 		8-97261-456-3 01 1 0211-0501 ● ● ●
9 08.846 PIPE; HTR
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) 		8-97261-456-3 01 1 0502- ● ● ●
9 08.846 PIPE; HTR
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97260-267-3 01 1 0211-0501 ● ● ●
9 08.846 PIPE; HTR
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B) 		8-97260-267-3 01 1 0502- ● ● ●
11 08.845 BOLT; HTR PIPE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0501 ● ● ●
11 08.845 BOLT; HTR PIPE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0502-0512 ● ● ●
11 08.845 BOLT; HTR PIPE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
13 08.846 CLIP; HTR HOSE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=22 		8-94382-401-0 02 1 0211-0501 ● ● ●
13 08.846 CLIP; HTR HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 02 1 0502- ● ● ●
26 08.846 HOSE; HTR
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97239-082-0 01 1 0211-0501 ● ● ●
26 08.846 HOSE; HTR
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) 		8-97239-082-0 01 1 0502- ● ● ●
26 08.846 HOSE; HTR
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97239-083-0 01 1 0211-0501 ● ● ●
26 08.846 HOSE; HTR
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B) 		8-97239-083-0 01 1 0502- ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.483 (C) L=450 		1-09707-142-1 01 1 0502- ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (C) L=350 		8-94152-256-1 01 1 0502- ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 02.559 (A) L=250 		5-09707-030-1 01 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22 		8-94382-401-0 04 1 0502-0610 ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.278 (D) ID=22 		8-97359-141-0 04 1 0611- ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (B) 		5-83574-006-0 01 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 08.846 (B) 		5-83574-006-0 01 1 0502-0610 ● ● ●
35 08.852 CLIP; WATER HOSE
HEATER & DEFROSTER(C41) 08.846 (B) 		8-98029-677-0 01 1 0611- ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.846 (D) ID=22 		8-94382-401-0 04 1 0211-0501 ● ● ●
35 08.852 CLIP; WATER HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.559 (A) L=250 		5-09707-030-1 01 1 0502- ● ● ●
36 08.846 BOLT; BRKT
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0308-0501 ● ● ●
36 08.846 BOLT; BRKT
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0502-0512 ● ● ●
36 08.846 BOLT; BRKT
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0211-0512 ● ● ●
48 09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.162 M6X12 FLANGE 		0-28050-612-0 01 1 0601- ● ● ●
73 08.846 CLIP; HTR HOSE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.166 ID=25 		9-09915-642-2 02 1 0211-0310 ● ● ●
73 08.846 CLIP; HTR HOSE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 02 1 0311-0501 ● ● ●
73 08.846 CLIP; HTR HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=22 		8-94382-401-0 02 1 0502-0610 ● ● ●
73 08.846 CLIP; HTR HOSE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.278 ID=22 		8-97359-141-0 02 1 0611- ● ● ●
121 08.845 NUT; PIPE
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0211-0501 ● ● ●
121 08.845 NUT; PIPE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91150-208-0 01 1 0502-0602 ● ● ●
121 08.845 NUT; PIPE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE 		0-91180-208-0 01 1 0603-1401 ● ● ●
121 08.845 NUT; PIPE
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.062 M8 FLANGE 		0-91180-108-0 01 1 1402- ● ● ●
142 08.846 CLIP; BAND
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 03.483 L=450 		1-09707-142-1 01 1 0211-0501 ● ● ●
142 08.846 CLIP; BAND
4JH1 ENG(RJX) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 08.852 L=350 		8-94152-256-1 01 1 0211-0501 ● ● ●
