Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶
8-21 — METER ASM
(#38515) — 58 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
◀

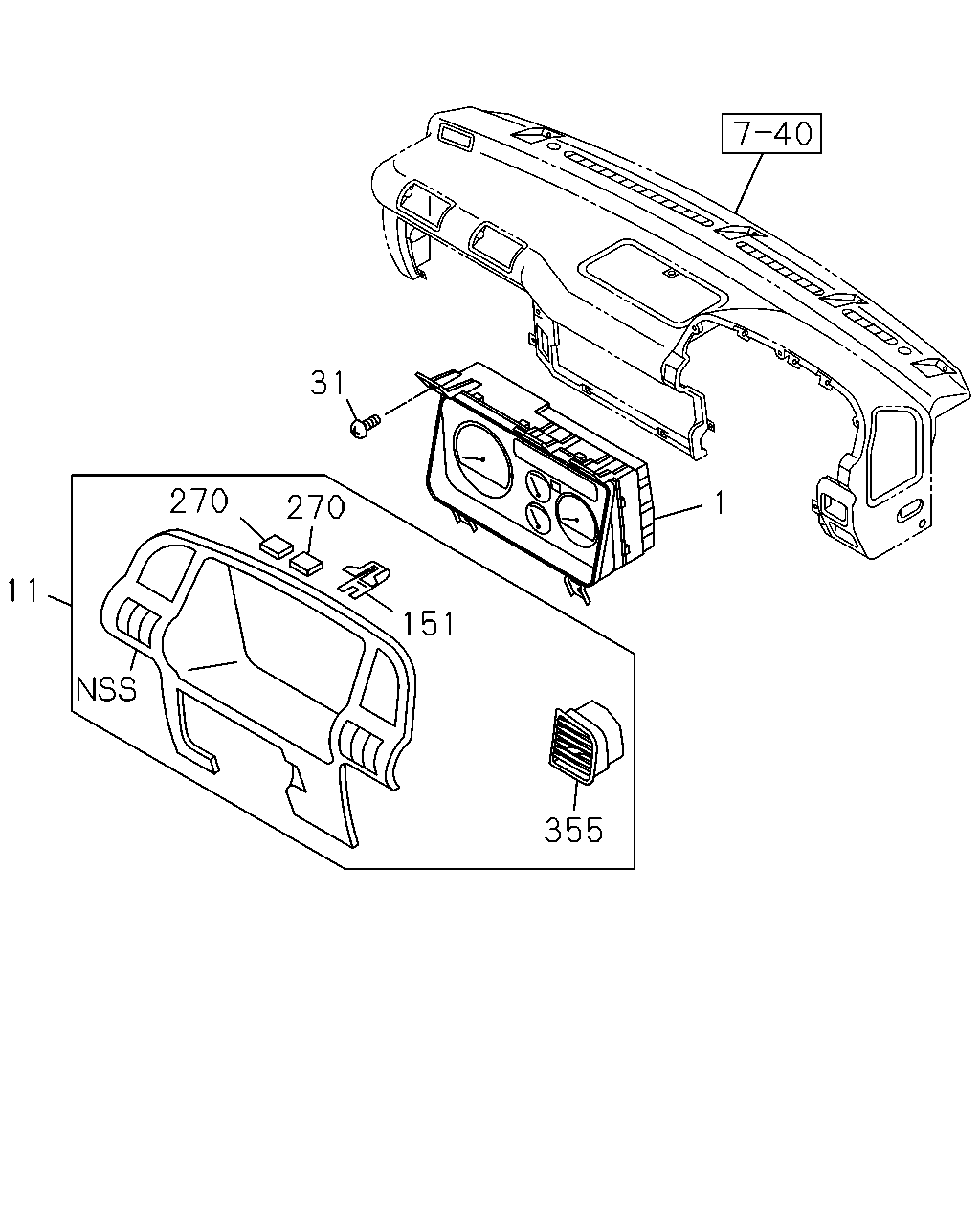

[821A] CLUSTER ASM (10 parça)

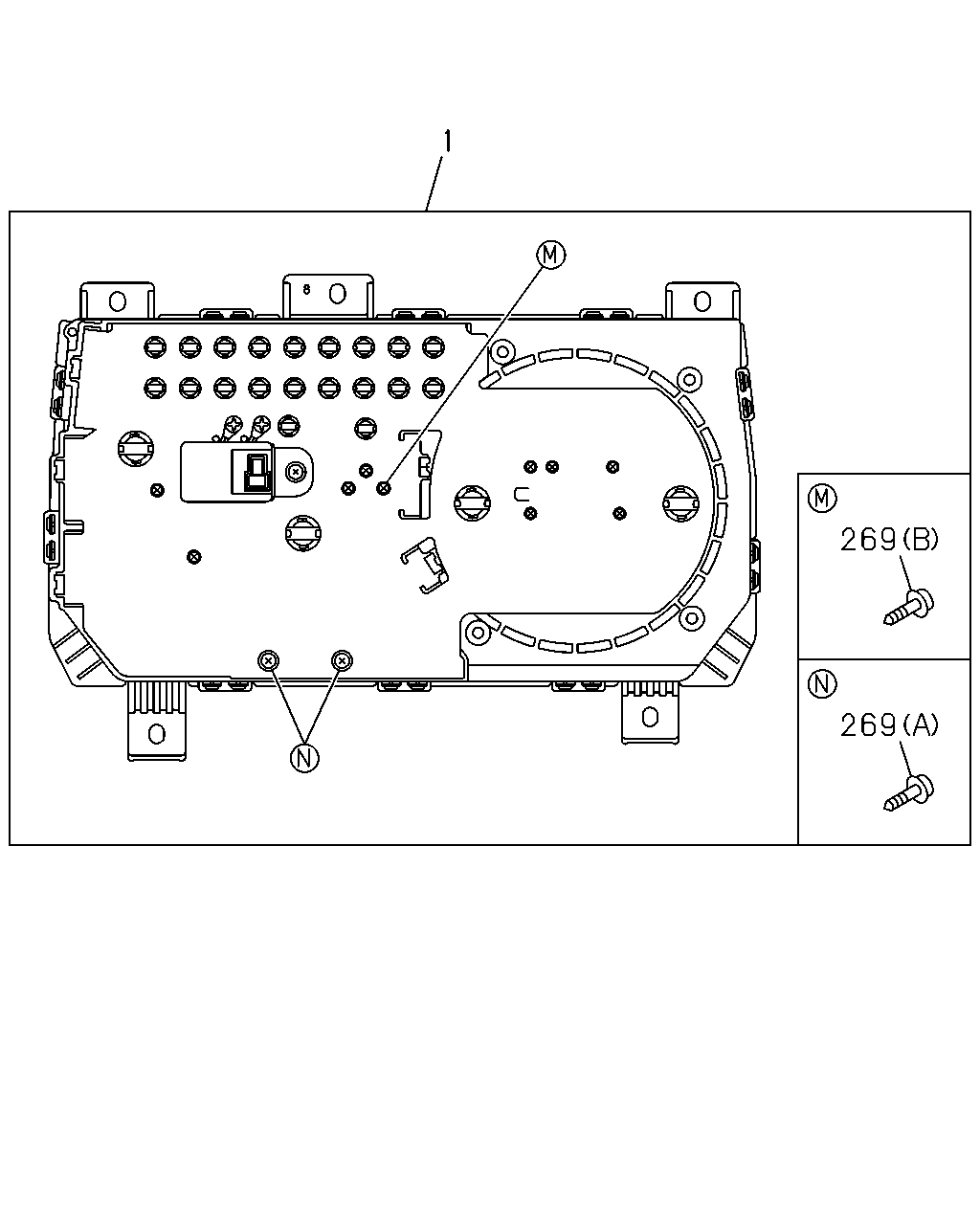

[821A] METER COMPL(NO.3) (8 parça)

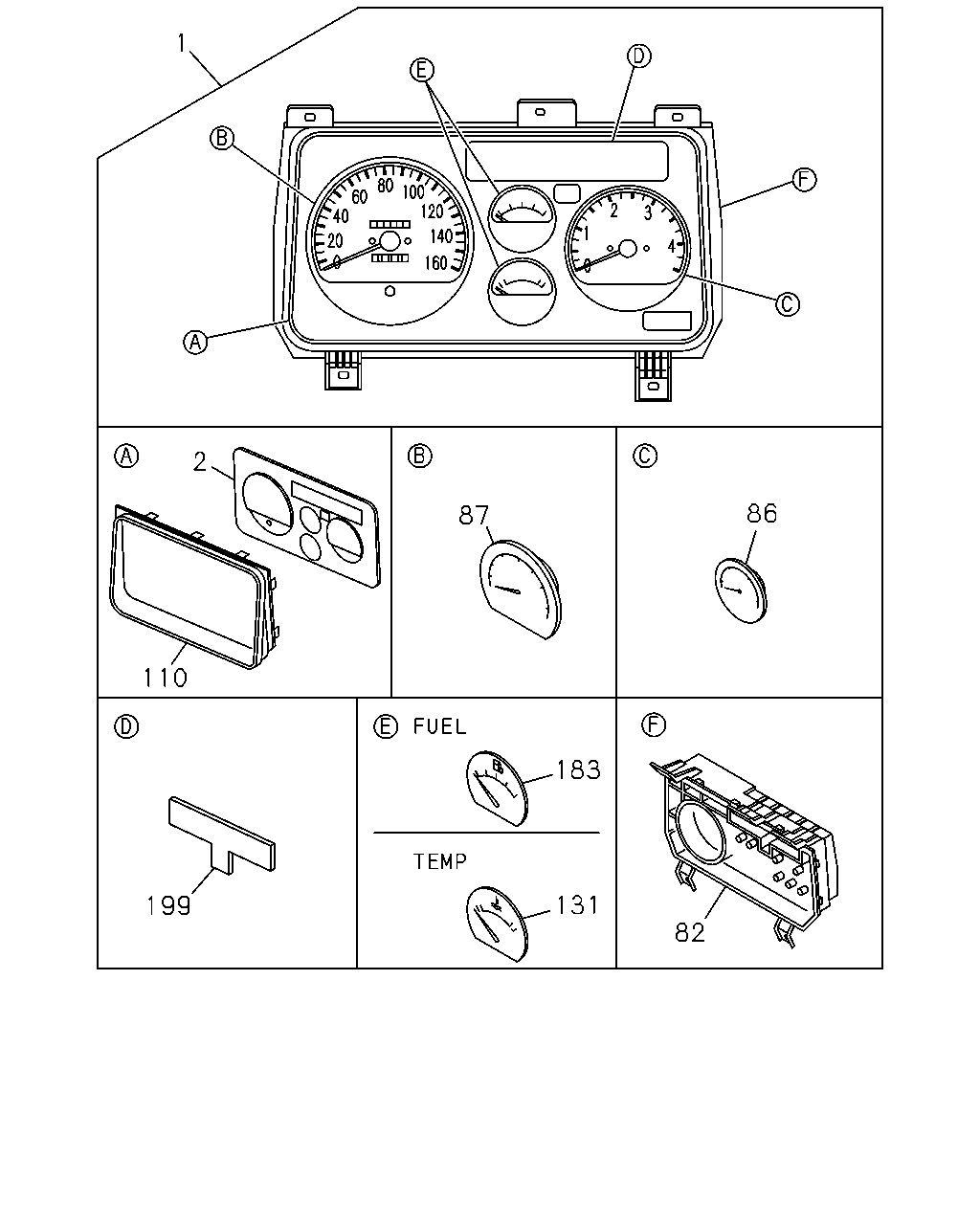

[821A] METER COMPL(NO.1) (18 parça)

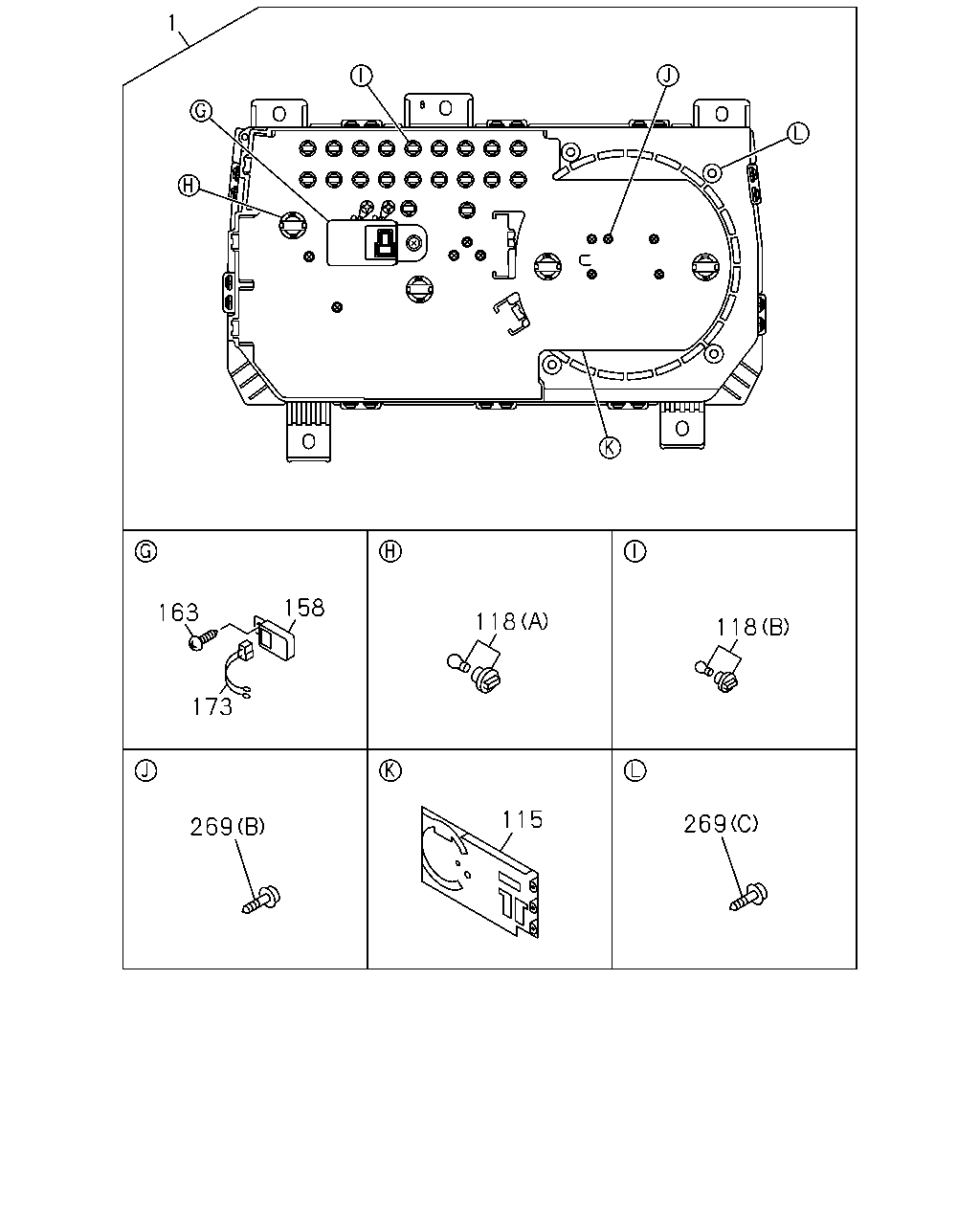

[821A] METER COMPL(NO.2) (22 parça)
▶
31
270
1
270
11
151
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX)
8-97350-735-1
01
1
0211-0501
●
●
●
1
09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM)
8-97383-483-0
01
1
0502-
●
●
●
11
09.743 CLUSTER ASM; METER
BLACK
8-97195-964-2
01
1
0211-
●
●
●
31
09.761 SCREW; METER,INST PANEL
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
0211-1210
●
●
●
31
09.761 SCREW; METER,INST PANEL
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
05
1
1211-
●
●
●
151
09.747 CLIP; METER CLUSTER
8-97217-066-0
07
1
0211-
●
●
●
270
09.743 CUSHION; METER CLUSTER
6X30 T=2
8-94270-378-1
02
1
0211-
●
●
●
270
09.743 CUSHION; METER CLUSTER
16.085 15X30 T=5
8-94270-366-2
01
1
0401-
●
●
●
355
09.748 GRILLE; VENT
BLACK
8-97195-966-1
01
1
0211-
●
●
●
355
09.748 GRILLE; VENT
BLACK
8-97195-967-1
01
1
0211-
●
●
●
1
269
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX)
8-97350-735-1
01
1
0211-0501
●
●
●
1
09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM)
8-97383-483-0
01
1
0502-
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (B)
8-97185-524-0
08
1
0211-0501
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (B)
8-97185-524-0
08
1
0502-
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C)
8-97185-525-0
06
1
0211-0501
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C)
8-97185-525-0
06
1
0502-
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (A)
8-97185-528-0
02
1
0211-0501
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A)
8-97185-528-0
02
1
0502-
●
●
●
1
2
86
87
110
183
131
199
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX)
8-97350-735-1
01
1
0211-0501
●
●
●
1
09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM)
8-97383-483-0
01
1
0502-
●
●
●
2
09.735 PANEL; CLUSTER
4JH1 ENG(RJX)
8-97185-443-0
01
1
0211-0501
●
●
●
2
09.735 PANEL; CLUSTER
4JH1-TC ENG(RDM)
8-97185-443-0
01
1
0502-
●
●
●
82
09.743 CASE ASM; CLUSTER METER
4JH1 ENG(RJX)
8-97185-448-0
01
1
0211-0501
●
●
●
82
09.743 CASE ASM; CLUSTER METER
4JH1-TC ENG(RDM)
8-97185-448-0
01
1
0502-
●
●
●
86
09.750 TACHOMETER; CLUSTER METER
4JH1 ENG(RJX)
8-97307-050-0
01
1
0211-0501
●
●
●
86
09.750 TACHOMETER; CLUSTER METER
4JH1-TC ENG(RDM)
8-98002-116-0
01
1
0502-
●
●
●
87
09.761 SPEEDOMETER
4JH1 ENG(RJX)
8-97185-457-0
01
1
0211-0501
●
●
●
87
09.761 SPEEDOMETER
4JH1-TC ENG(RDM)
8-98002-107-0
01
1
0502-
●
●
●
110
09.748 GLASS; CLUSTER METER
4JH1 ENG(RJX)
8-97185-452-0
01
1
0211-0501
●
●
●
110
09.748 GLASS; CLUSTER METER
4JH1-TC ENG(RDM)
8-97185-452-0
01
1
0502-
●
●
●
131
01.148 GAUGE; TEMP,CLUSTER METER
4JH1 ENG(RJX)
8-97185-476-0
01
1
0211-0501
●
●
●
131
01.148 GAUGE; TEMP,CLUSTER METER
4JH1-TC ENG(RDM)
8-98002-122-0
01
1
0502-
●
●
●
183
03.107 GAUGE; FUEL
4JH1 ENG(RJX)
8-97185-473-0
01
1
0211-0501
●
●
●
183
03.107 GAUGE; FUEL
4JH1-TC ENG(RDM)
8-98002-118-0
01
1
0502-
●
●
●
199
09.772 LENS; WARNING LAMP
4JH1 ENG(RJX)
8-97185-482-0
01
1
0211-0501
●
●
●
199
09.772 LENS; WARNING LAMP
4JH1-TC ENG(RDM)
8-98002-124-0
01
1
0502-
●
●
●
1
158
163
118
118
173
115
269
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
09.735 METER COMPL; CLUSTER
4JH1 ENG(RJX)
8-97350-735-1
01
1
0211-0501
●
●
●
1
09.735 METER COMPL; CLUSTER
4JH1-TC ENG(RDM)
8-97383-483-0
01
1
0502-
●
●
●
115
09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1 ENG(RJX)
8-97307-051-0
01
1
0211-0501
●
●
●
115
09.744 CIRCUIT; PRINTED,CLUSTER METER
4JH1-TC ENG(RDM)
8-97307-051-0
01
1
0502-
●
●
●
118
08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) (A) 12V SOCKET COLOR BLACK
8-97185-535-0
04
1
0211-0501
●
●
●
118
08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) (A) 12V SOCKET COLOR BLACK
8-97185-535-0
04
1
0502-
●
●
●
118
08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) (B) 12V SOCKET COLOR BLACK
8-97185-536-0
10
1
0211-0501
●
●
●
118
08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) (B) 12V SOCKET COLOR BLACK
8-97185-536-0
11
1
0502-
●
●
●
118
08.991 BULB; CLUSTER METER
4JH1 ENG(RJX) (B) 12V SOCKET COLOR BLUE
8-97185-537-0
02
1
0211-0501
●
●
●
118
08.991 BULB; CLUSTER METER
4JH1-TC ENG(RDM) (B) 12V SOCKET COLOR BLUE
8-97185-537-0
02
1
0502-
●
●
●
158
09.765 BUZZER; VAC WARNING
4JH1 ENG(RJX) 12V
8-97185-520-0
01
1
0211-0501
●
●
●
158
09.765 BUZZER; VAC WARNING
4JH1-TC ENG(RDM) 12V
8-97185-520-0
01
1
0502-
●
●
●
163
08.977 SCREW; BUZZER
4JH1 ENG(RJX)
8-97185-527-0
01
1
0211-0501
●
●
●
163
08.977 SCREW; BUZZER
4JH1-TC ENG(RDM)
8-97185-527-0
01
1
0502-
●
●
●
173
09.744 WIRE; LEAD
4JH1 ENG(RJX)
8-97185-643-0
01
1
0211-0501
●
●
●
173
09.744 WIRE; LEAD
4JH1-TC ENG(RDM)
8-97185-643-0
01
1
0502-
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (B)
8-97185-524-0
08
1
0211-0501
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (B)
8-97185-524-0
08
1
0502-
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (C)
8-97185-525-0
06
1
0211-0501
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (C)
8-97185-525-0
06
1
0502-
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1 ENG(RJX) (A)
8-97185-528-0
02
1
0211-0501
●
●
●
269
09.743 SCREW; METER CLUSTER
4JH1-TC ENG(RDM) (A)
8-97185-528-0
02
1
0502-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
