Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#38514) — 319 parça

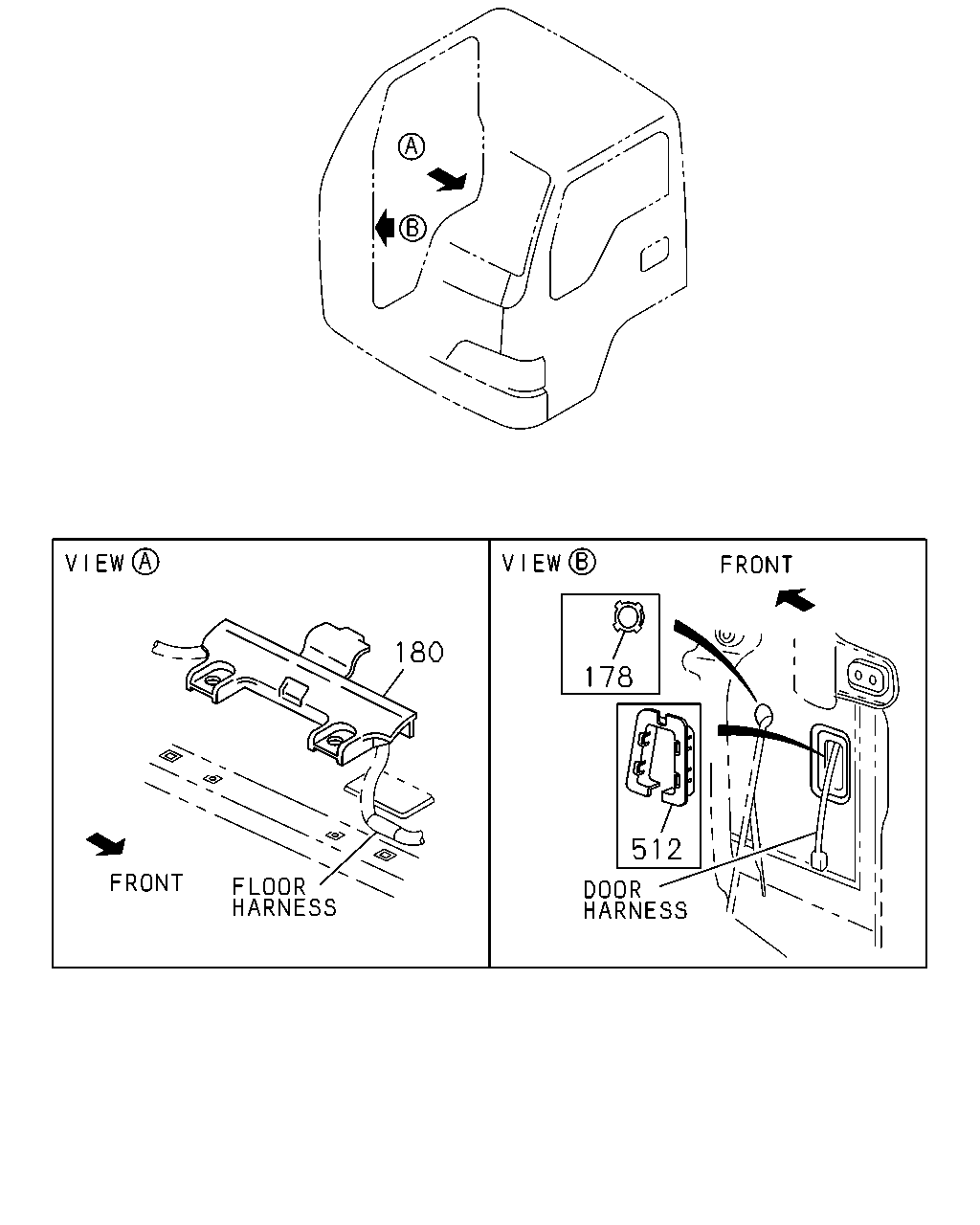

180 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0211-	●	●	●
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0211-	●	●	●
512	02.559 PROTECTOR; HARNESS	8-97072-950-0	02	1	0211-	●	●	●

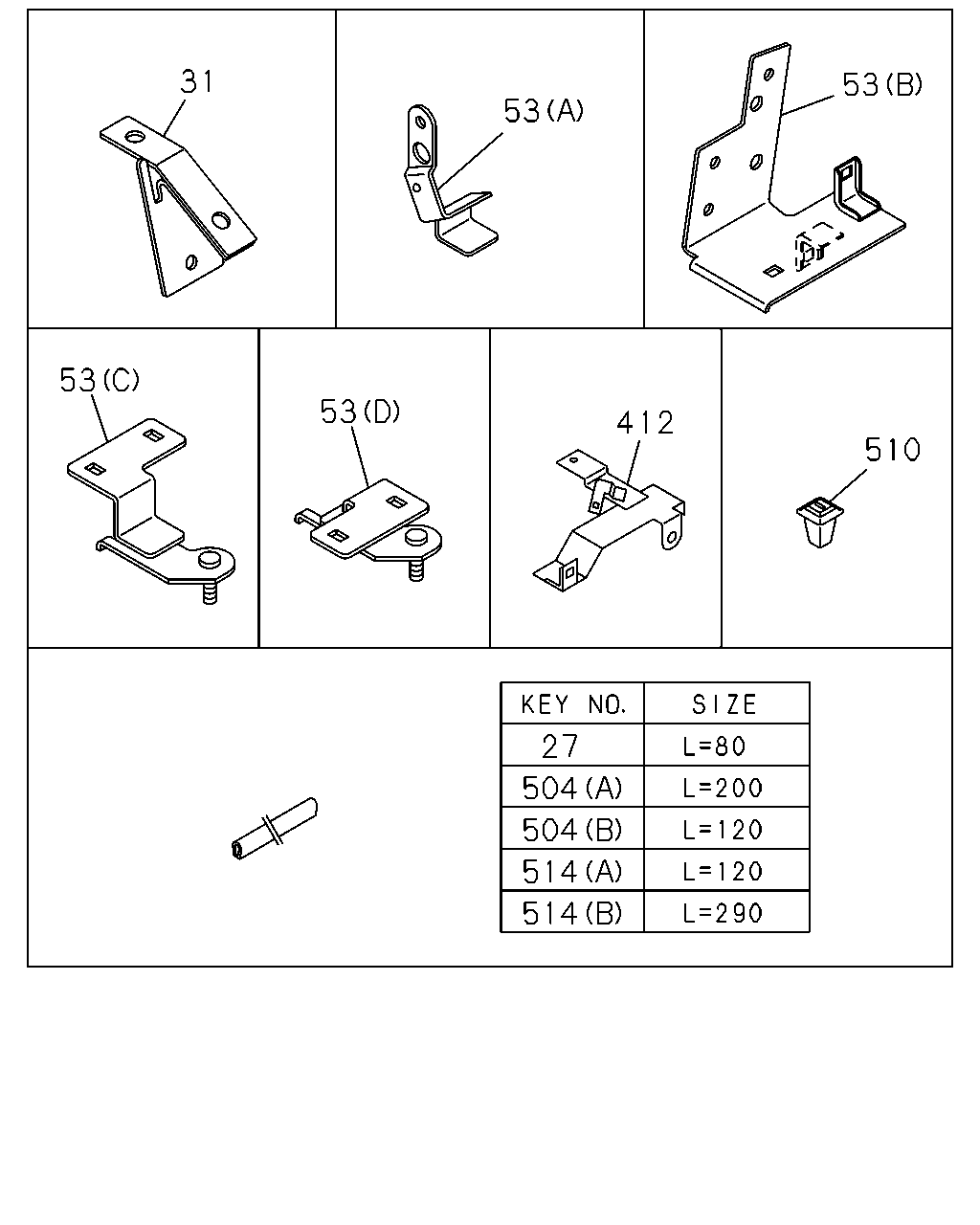

31 53 53 53 53 412 510 27 504 504 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
27	02.559 PROTECTOR; EDGE 4JH1 ENG(RJX) 03.008 L=80	5-22439-006-0	01	1	0301-0501	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX)	8-97357-142-0	03	1	0211-0211	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1 ENG(RJX)	8-97362-859-0	03	1	0211-0501	●	●	●
31	02.559 BRACKET; HARNESS CLIP,PIPE 4JH1-TC ENG(RDM)	8-97362-859-0	03	1	0502-	●	●	●
53	02.483 BRACKET; HARNESS (D)	8-98003-046-0	01	1	0502-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98003-047-0	01	1	0502-			●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (A)	8-97091-462-1	01	1	0211-0501	●	●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM) (A)	8-97091-462-1	01	1	0502-	●
53	02.483 BRACKET; HARNESS 4JH1 ENG(RJX) (B)	8-97357-140-0	01	1	0211-0501	●	●	●
53	02.483 BRACKET; HARNESS 4JH1-TC ENG(RDM) (B)	8-97357-140-0	01	1	0502-	●	●	●
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0211-	●	●	●
504	02.559 PROTECTOR; HARNESS 4JH1 ENG(RJX) 02.343 (B) L=120	8-97117-880-0	01	1	0211-0212	●	●	●
504	02.559 PROTECTOR; HARNESS 04.785 (A) L=200	8-97096-423-0	01	1	0211-	●	●	●
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0211-	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●
514	02.559 FINISHER; HARNESS (A) L=120 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●
514	02.559 FINISHER; HARNESS 16.550 (A) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS (A) L=175 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●
514	02.559 FINISHER; HARNESS 4JH1 ENG(RJX) (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0211-0501	●	●	●
514	02.559 FINISHER; HARNESS 4JH1-TC ENG(RDM) (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0502-	●	●	●

16 48 52 16 48 48 48 464 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	06	1	1010-1405	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS (F) ID=24 H=40 L=24	1-09701-243-1	01	1	0502-	●		●
16	02.559 CLIP; HARNESS 02.589 (C) ID=27	5-09700-323-0	04	1	0502-		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0211-0501	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0502-0506	●		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0507-	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1010-1405	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1403	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1403	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	01	1	1404-	●	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0502-0506		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0507-		●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0211-0501			●
16	02.559 CLIP; HARNESS 02.589 (C) ID=27	5-09700-323-0	01	1	0502-	●		●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (B) ID=12	5-09700-331-0	01	1	0211-0302	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.150 (J) ID=12	8-97367-983-0	01	1	0303-0501	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.150 (J) ID=12	8-97367-983-1	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	02	1	0502-0504	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	02	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (G) ID=24	8-94149-610-0	01	1	0211-0501	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (G) ID=24	8-94149-610-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (J) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (J) ID=33 L=63	1-09700-807-0	05	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	02	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 01.240 (H) ID=14 L=47	5-09700-319-0	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 02.589 (D) ID=27	5-09700-323-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0506	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.589 (D) ID=27	5-09700-323-0	01	1	0507-	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0502-0504	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (B) T=4.5 & 13	5-09709-096-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (L) ID=30 W/STUD	8-97078-642-2	02	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.008 (E) L=330	5-09709-118-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 03.008 (E) L=330	5-09709-118-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0211	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (L) ID=30 W/STUD	8-97078-642-2	01	1	0212-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0212-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (B) T=4.5 & 13	5-09709-096-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	01	1	0502-	●	●	●
52	02.559 CLIP; HARNESS TO BRKT 01.240 ID=14 L=47	5-09700-319-0	01	1	0211-	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1 ENG(RJX) 02.559 ID=6.5	8-94257-639-0	01	1	0211-0501	●	●	●
464	02.525 CLIP; SEDIMENTER HARNESS 4JH1-TC ENG(RDM) 02.559 ID=6.5	8-94257-639-0	01	1	0502-	●	●	●

14 16 48 162 220 488 48 14 16 205 142 16 16 483 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS 4JH1-TC ENG(RDM) 03.162 (B) L=140	5-09707-031-1	01	1	0502-	●	●	●
14	02.559 CLIP; BAND,HARNESS 03.430 (A) L=200	8-94464-835-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	06	1	1010-1405	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS (F) ID=24 H=40 L=24	1-09701-243-1	01	1	0502-	●		●
16	02.559 CLIP; HARNESS 02.589 (C) ID=27	5-09700-323-0	04	1	0502-		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0211-0501	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0502-0506	●		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0507-	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1010-1405	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1403	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1403	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	01	1	1404-	●	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0502-0506		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0507-		●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0211-0501			●
16	02.559 CLIP; HARNESS 02.589 (C) ID=27	5-09700-323-0	01	1	0502-	●		●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (B) ID=12	5-09700-331-0	01	1	0211-0302	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.150 (J) ID=12	8-97367-983-0	01	1	0303-0501	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.150 (J) ID=12	8-97367-983-1	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	02	1	0502-0504	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	02	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (G) ID=24	8-94149-610-0	01	1	0211-0501	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (G) ID=24	8-94149-610-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (J) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (J) ID=33 L=63	1-09700-807-0	05	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	02	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 01.240 (H) ID=14 L=47	5-09700-319-0	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 02.589 (D) ID=27	5-09700-323-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0506	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.589 (D) ID=27	5-09700-323-0	01	1	0507-	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0502-0504	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (B) T=4.5 & 13	5-09709-096-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (L) ID=30 W/STUD	8-97078-642-2	02	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.008 (E) L=330	5-09709-118-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 03.008 (E) L=330	5-09709-118-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0211	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (L) ID=30 W/STUD	8-97078-642-2	01	1	0212-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0212-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (B) T=4.5 & 13	5-09709-096-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	01	1	0502-	●	●	●
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0211-0501	●	●	●
162	02.559 CLIP; SW HARNESS 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	01	1	0211-0501	●	●	●
162	02.559 CLIP; SW HARNESS 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	01	1	0502-0506	●	●	●
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0211-	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1 ENG(RJX) 03.162 L=140	5-09707-031-1	02	1	0211-0501	●	●	●
220	02.559 CLIP; HARNESS TO CABLE 4JH1-TC ENG(RDM) 03.162 L=140	5-09707-031-1	02	1	0502-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0211-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0502-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0211-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0502-0606	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●	●
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0211-	●	●	●

150 8 38 139 150 139 38 150 139 466 386 377 386 377 386 481 159 159 139 511 511 219 294 515 219 294 469 515 524 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-1210	●	●	●
8	02.559 BOLT; BRKT,CONNECTOR 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	1211-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4JH1 ENG(RJX) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0211-0305	●	●	●
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0211-0512	●	●	●
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0601-	●	●	●
38	02.559 BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●	●
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
139	02.559 BOLT; BRKT 04.665 (B) M8X10 W/LK WASHER	8-97025-916-0	02	1	0502-0610	●	●	●
139	02.559 BOLT; BRKT 04.665 (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	0611-	●	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) (C)	8-97028-451-3	01	1	0211-0501	●	●	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM) (C)	8-97028-451-3	01	1	0502-	●	●	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) 02.183 (D) M8X35 FLANGE	0-28680-835-0	01	1	0211-0501	●	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM) 02.183 (D) M8X35 FLANGE	0-28680-835-0	01	1	0502-0512	●
139	02.559 BOLT; BRKT 4JH1-TC ENG(RDM) 01.060 (D) M8X35 FLANGE	0-28650-835-0	01	1	0601-	●
139	02.559 BOLT; BRKT 4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0501	●	●	●
139	02.559 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0502-0512	●	●	●
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●	●
150	02.343 BOLT; CLIP 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0502-0512	●		●
150	02.343 BOLT; CLIP 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●		●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0211-0501	●	●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.500 (C) M6X10 FLANGE	0-28080-610-0	01	1	0502-0512	●	●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 03.671 (C) M6X10 FLANGE	0-28050-610-0	01	1	0601-	●	●	●
150	02.343 BOLT; CLIP 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0211-0501	●	●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	0502-0512	●	●	●
150	02.343 BOLT; CLIP 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0211-1004	●	●	●
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0211-0211	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0212-0305	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	0306-0501	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●
219	02.559 NUT 01.062 (B) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●	●
219	02.559 NUT 4JH1 ENG(RJX) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●
219	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
219	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
219	02.559 NUT 4JH1-TC ENG(RDM) 01.062 (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●
219	02.559 NUT 04.594 (B) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●	●	●
294	02.559 NUT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●		●
294	02.559 NUT 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0603-	●		●
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0211-0602	●	●	●
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
294	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0307-0602	●	●	●
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0211-1004	●	●	●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0211-0501	●	●	●
386	02.559 BOLT; GRAND HARNESS (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0502-1004	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (C) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-	●	●	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1 ENG(RJX) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0211-0501			●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM) 02.183 M8X35 FLANGE	0-28680-835-0	01	1	0502-0512		●	●
466	02.483 BOLT; HEAT PROTECTOR 4JH1-TC ENG(RDM) 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0601-		●	●
469	02.559 NUT; PROTECTOR 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0501			●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0502-0602		●	●
469	02.559 NUT; PROTECTOR 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-		●	●
481	13.090 BOLT; CABLE HARNESS 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0502-0512	●	●	●
481	13.090 BOLT; CABLE HARNESS 01.531 M8X20 FLANGE	0-28650-820-0	01	1	0601-	●	●	●
511	02.559 SCREW; HARNESS COVER 08.845 (A) M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0211-0604	●	●	●
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702	●	●	●
511	02.559 SCREW; HARNESS COVER 04.681 (B) T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-	●	●	●
515	02.559 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0502-0602	●	●	●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
515	02.559 NUT; BRKT 4JH1 ENG(RJX) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0211-0501	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0502-0602	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-	●
515	02.559 NUT; BRKT 4JH1 ENG(RJX) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0211-0501	●	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM) 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0502-0602	●	●	●
515	02.559 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-	●	●	●
524	02.559 NUT; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0211-0501	●	●	●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91150-208-0	01	1	0502-0602	●	●	●
524	02.559 NUT; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.540 M8 FLANGE	0-91180-208-0	01	1	0603-	●	●	●

483 48 16 49 16 16 48 48 48 16 264 264 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	06	1	1010-1405	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1406-	●	●	●
16	02.559 CLIP; HARNESS (F) ID=24 H=40 L=24	1-09701-243-1	01	1	0502-	●		●
16	02.559 CLIP; HARNESS 02.589 (C) ID=27	5-09700-323-0	04	1	0502-		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0211-0501	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0502-0506	●		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	0507-	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	0211-1009	●	●	●
16	02.559 CLIP; HARNESS (K) L=155	8-97173-307-0	05	1	1010-1405	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0211-0501	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1403	●	●	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (A) L=140	5-09707-031-1	01	1	0502-1403	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	01	1	1404-	●	●	●
16	02.559 CLIP; HARNESS (F) L=135	1-09987-143-1	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 16.065 (E) 1 SET=5 PIECE	1-09987-214-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 02.343 (G) ID=10 & 16	8-94413-325-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 01.166 (H) ID=22 & 22	8-94464-837-0	01	1	0211-	●	●	●
16	02.559 CLIP; HARNESS (I) ID=15-32	8-97174-404-0	02	1	0211-	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	0211-0501		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0502-0506		●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	06	1	0507-		●	●
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	08	1	0211-0501			●
16	02.559 CLIP; HARNESS 02.589 (C) ID=27	5-09700-323-0	01	1	0502-	●		●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) (B) ID=12	5-09700-331-0	01	1	0211-0302	●	●	●
16	02.559 CLIP; HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 01.150 (J) ID=12	8-97367-983-0	01	1	0303-0501	●	●	●
16	02.559 CLIP; HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 01.150 (J) ID=12	8-97367-983-1	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (J) T=5.5	5-09709-047-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (K) ID=20	8-94169-650-0	01	1	0211-0305	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.162 (A) L=140	5-09707-031-1	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	02	1	0502-0504	●	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (H) ID=14 L=47	5-09700-319-0	02	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (G) ID=24	8-94149-610-0	01	1	0211-0501	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (G) ID=24	8-94149-610-0	01	1	0502-	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (J) ID=33 L=63	1-09700-807-0	05	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (J) ID=33 L=63	1-09700-807-0	05	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (F) ID=31 L=30	1-09700-969-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS (C) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 03.162 (A) L=140	5-09707-031-1	02	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 01.240 (H) ID=14 L=47	5-09700-319-0	02	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 01.240 (H) ID=14 L=47	5-09700-319-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 02.589 (D) ID=27	5-09700-323-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.589 (D) ID=27	5-09700-323-0	01	1	0502-0506	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.589 (D) ID=27	5-09700-323-0	01	1	0507-	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0502-0504	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 02.525 (I) T=4.5 & 9	5-09709-023-0	01	1	0505-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (B) T=4.5 & 13	5-09709-096-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (L) ID=30 W/STUD	8-97078-642-2	02	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) 03.008 (E) L=330	5-09709-118-0	01	1	0211-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) 03.008 (E) L=330	5-09709-118-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (M) ID=9	8-97063-874-0	01	1	0211-	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0211-0211	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1 ENG(RJX) (L) ID=30 W/STUD	8-97078-642-2	01	1	0212-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS (L) ID=30 W/STUD	8-97078-642-2	01	1	0212-0501	●	●	●
48	02.559 CLIP; FRAME HARNESS 4JH1-TC ENG(RDM) (B) T=4.5 & 13	5-09709-096-0	01	1	0502-	●	●	●
48	02.559 CLIP; FRAME HARNESS (B) T=4.5 & 13	5-09709-096-0	01	1	0502-	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0211-0501	●	●	●
49	02.559 CLIP; GEN HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0502-	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	03	1	0211-0404	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.343 (A) ID=10 & 16	8-94413-325-0	02	1	0405-0501	●	●	●
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 (B) ID=6 & 10-13	8-97069-515-0	01	1	0405-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0211-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 04.342 (A) L=197	1-83574-032-0	01	1	0502-	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0211-0501	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 02.343 (B) ID=16 L=20	9-09525-535-0	01	1	0502-0606	●	●	●
483	02.559 CLIP; ENG HARNESS 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
