◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#38513) — 167 parça

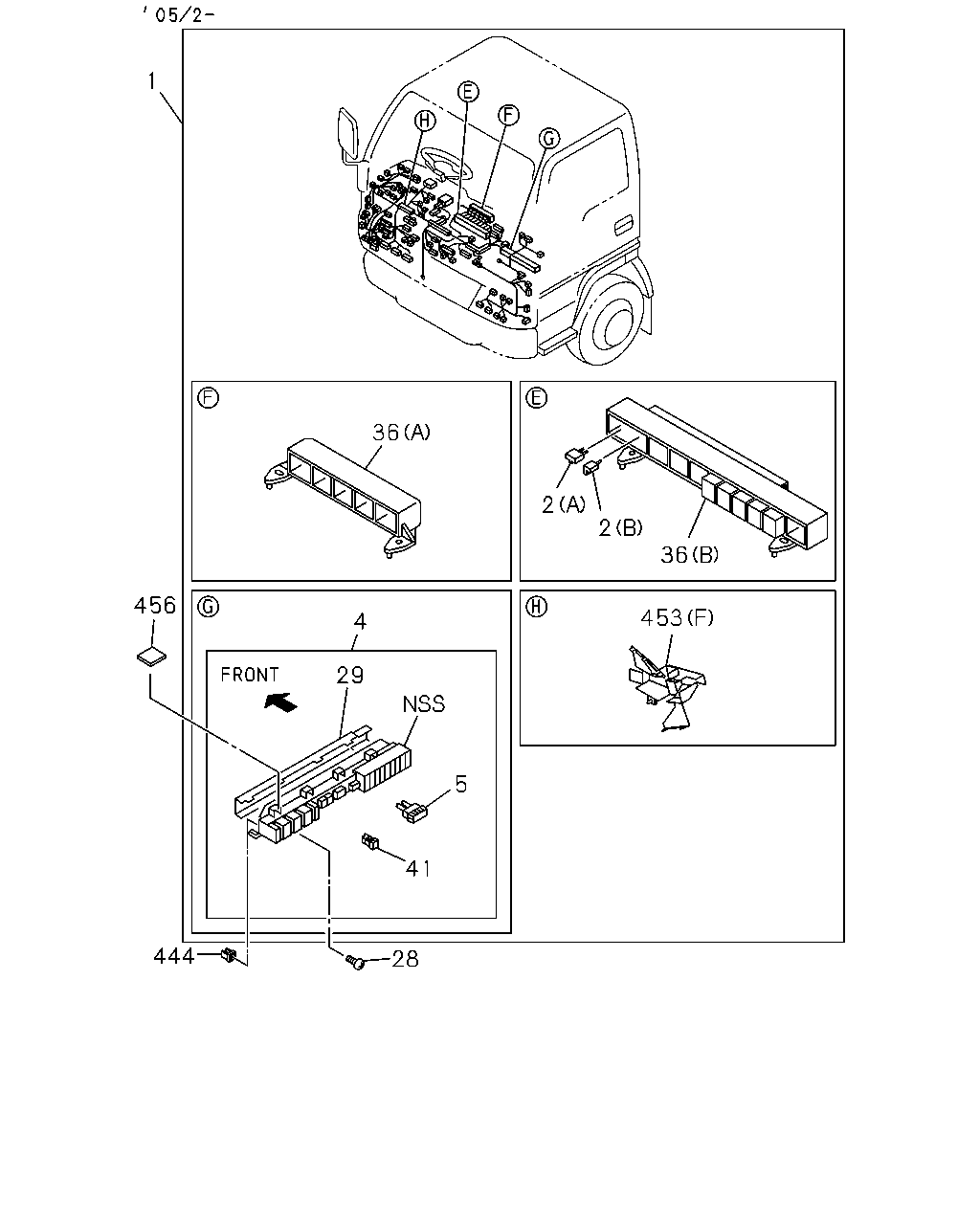

çizim 73971
1 36 2 2 36 456 453 4 29 5 41 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97357-036-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-97383-603-0 01 1 0502-0502 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-608-2 01 1 0502- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0502- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1 ENG(RJX) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211-0501 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0502- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) 		8-97214-415-0 01 1 0211-0501 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1-TC ENG(RDM) 		8-97187-921-1 01 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1 ENG(RJX) 08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1-TC ENG(RDM) 08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1 ENG(RJX) 08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1-TC ENG(RDM) 08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1 ENG(RJX) 08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1-TC ENG(RDM) 08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
29 02.483 COVER; FUSE BOX
4JH1-TC ENG(RDM) 		8-97074-955-0 01 1 0502- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (B) 		8-97087-639-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (B) 		8-97187-918-1 01 1 0502- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (A) 		8-97087-640-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0502- ● ● ●
41 08.821 PULLER; FUSE
4JH1 ENG(RJX) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ●
41 08.821 PULLER; FUSE
4JH1-TC ENG(RDM) 		8-97103-388-0 01 1 0502- ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-97093-668-1 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94417-716-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (D) 		8-97259-730-3 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94452-553-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97262-956-3 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) 		8-97259-730-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97120-589-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) 		8-94482-169-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) 		8-94482-169-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-97259-731-2 01 1 0502- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ●

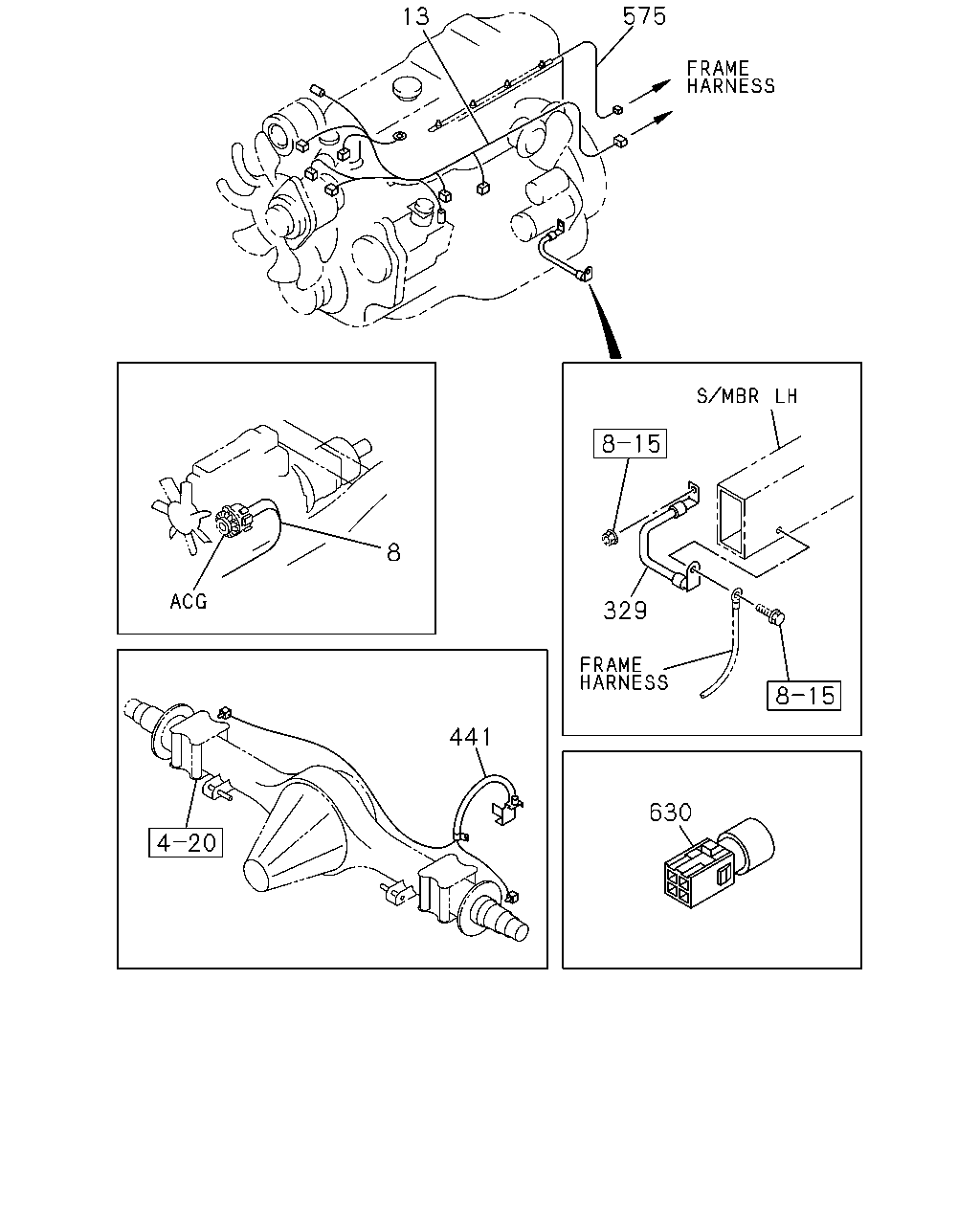

çizim 73972
575 13 8 329 441 630
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97357-068-1 01 1 0211-0211 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97362-338-0 01 1 0212-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97364-885-1 01 1 0304-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 		8-97380-152-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97357-067-1 01 1 0211-0211 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97362-337-1 01 1 0212-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 		8-97377-883-3 01 1 0502- ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) 		8-97240-032-6 01 1 0507-0507 ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) 		8-97261-132-4 01 1 0211-0501 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 		8-97261-132-6 01 1 0502-0506 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) GENERATOR 12V80A(K97) 		8-97261-132-6 01 1 0507-0507 ● ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 		8-97261-132-6 01 1 0507- ● ● ●
13 02.525 HARNESS; ENG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) EXC. GENERATOR 12V80A(K97) 		8-97240-032-5 01 1 0211-0501 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1 ENG(RJX) 		8-97305-771-0 01 1 0211-0501 ● ● ●
329 02.480 CABLE; ENG TO FRAME
4JH1-TC ENG(RDM) 		8-97305-771-0 01 1 0502- ● ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-97308-220-4 01 1 0502- ● ●
441 02.480 HARNESS; CABLE,SPEED SENSOR 8-97308-224-2 01 1 0502- ●
575 02.525 HARNESS; GLOW PLUG
4JH1 ENG(RJX) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0211-0501 ● ● ●
575 02.525 HARNESS; GLOW PLUG
4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 		8-97212-328-0 01 1 0502- ● ● ●
630 02.559 CONNECTOR; SHORT,ABS 8-97258-073-0 01 1 0502- ●

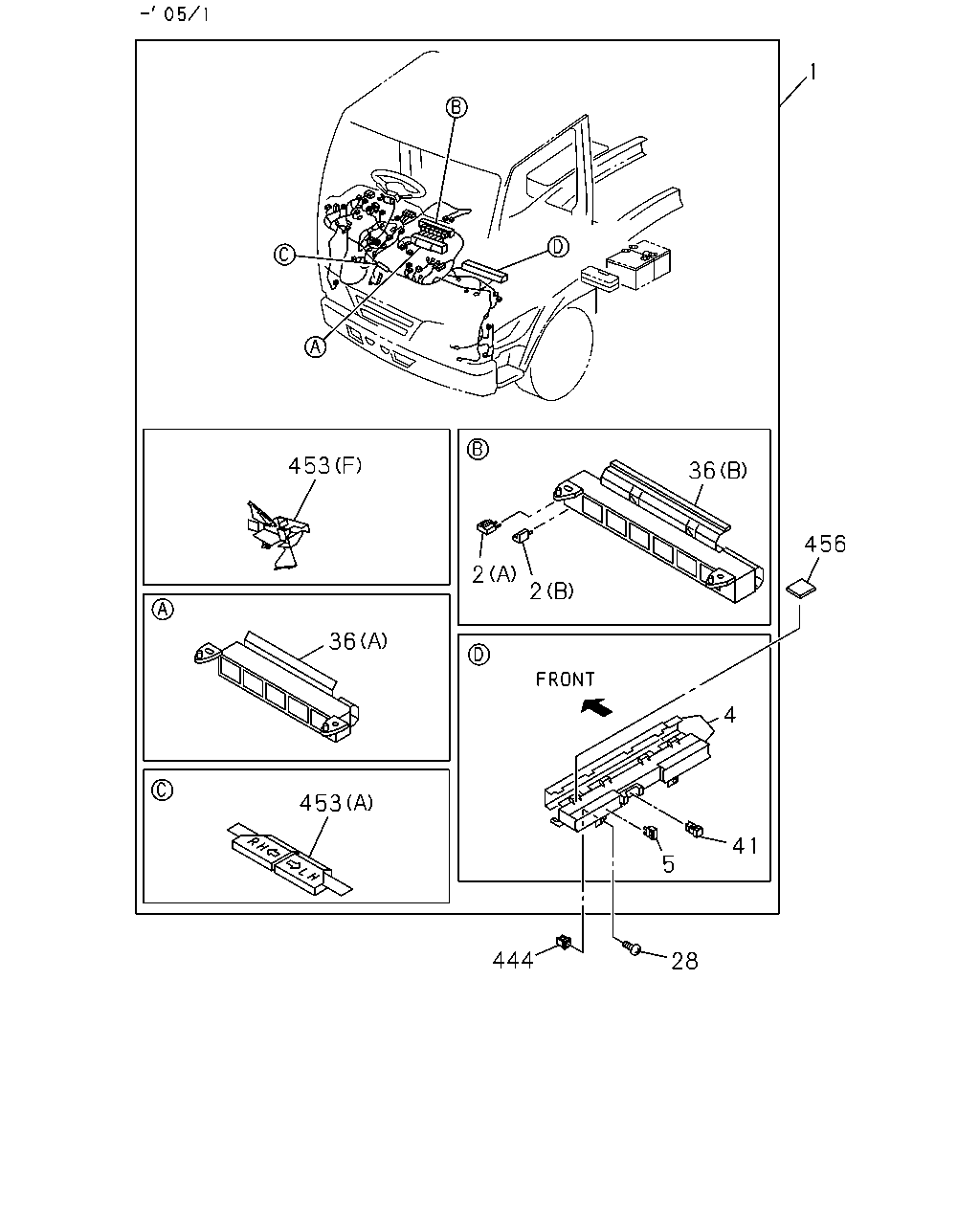

çizim 74002
1 453 36 456 2 2 36 4 453 41 5 444 28
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97357-036-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-97383-603-0 01 1 0502-0502 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-608-2 01 1 0502- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0502- ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1 ENG(RJX) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0211-0501 ● ● ●
2 02.483 DIODE; CABLE HARNESS
4JH1-TC ENG(RDM) (B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0502- ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1 ENG(RJX) 		8-97214-415-0 01 1 0211-0501 ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS
4JH1-TC ENG(RDM) 		8-97187-921-1 01 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1 ENG(RJX) 08.965 10A RED 		5-82516-002-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1-TC ENG(RDM) 08.965 10A MINI RED 		8-97062-022-0 AR 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1 ENG(RJX) 08.965 15A BLUE 		5-82516-003-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1-TC ENG(RDM) 08.965 15A MINI BLUE 		8-97062-023-0 AR 1 0502- ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1 ENG(RJX) 08.965 25A CLEAR 		5-82516-005-0 AR 1 0211-0501 ● ● ●
5 02.485 FUSE; FACIA HARNESS
4JH1-TC ENG(RDM) 08.965 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ●
28 02.483 SCREW; FUSE BOX
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 02 1 0211-0604 ● ● ●
28 02.483 SCREW; FUSE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 02 1 0605-0612 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0701-1101 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (B) 		8-97087-639-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (B) 		8-97187-918-1 01 1 0502- ● ● ●
36 02.530 BOX; RELAY
4JH1 ENG(RJX) (A) 		8-97087-640-1 01 1 0211-0501 ● ● ●
36 02.530 BOX; RELAY
4JH1-TC ENG(RDM) (A) 		8-97087-640-2 01 1 0502- ● ● ●
41 08.821 PULLER; FUSE
4JH1 ENG(RJX) 02.483 L=25.3 B=11.5 		8-94121-482-0 01 1 0211-0501 ● ● ●
41 08.821 PULLER; FUSE
4JH1-TC ENG(RDM) 		8-97103-388-0 01 1 0502- ● ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0211- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-97093-668-1 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94417-716-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (D) 		8-97259-730-3 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94452-553-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97262-956-3 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) 		8-97259-730-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97120-589-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) 		8-94482-169-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) 		8-94482-169-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-97259-731-2 01 1 0502- ● ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 0211- ● ● ●

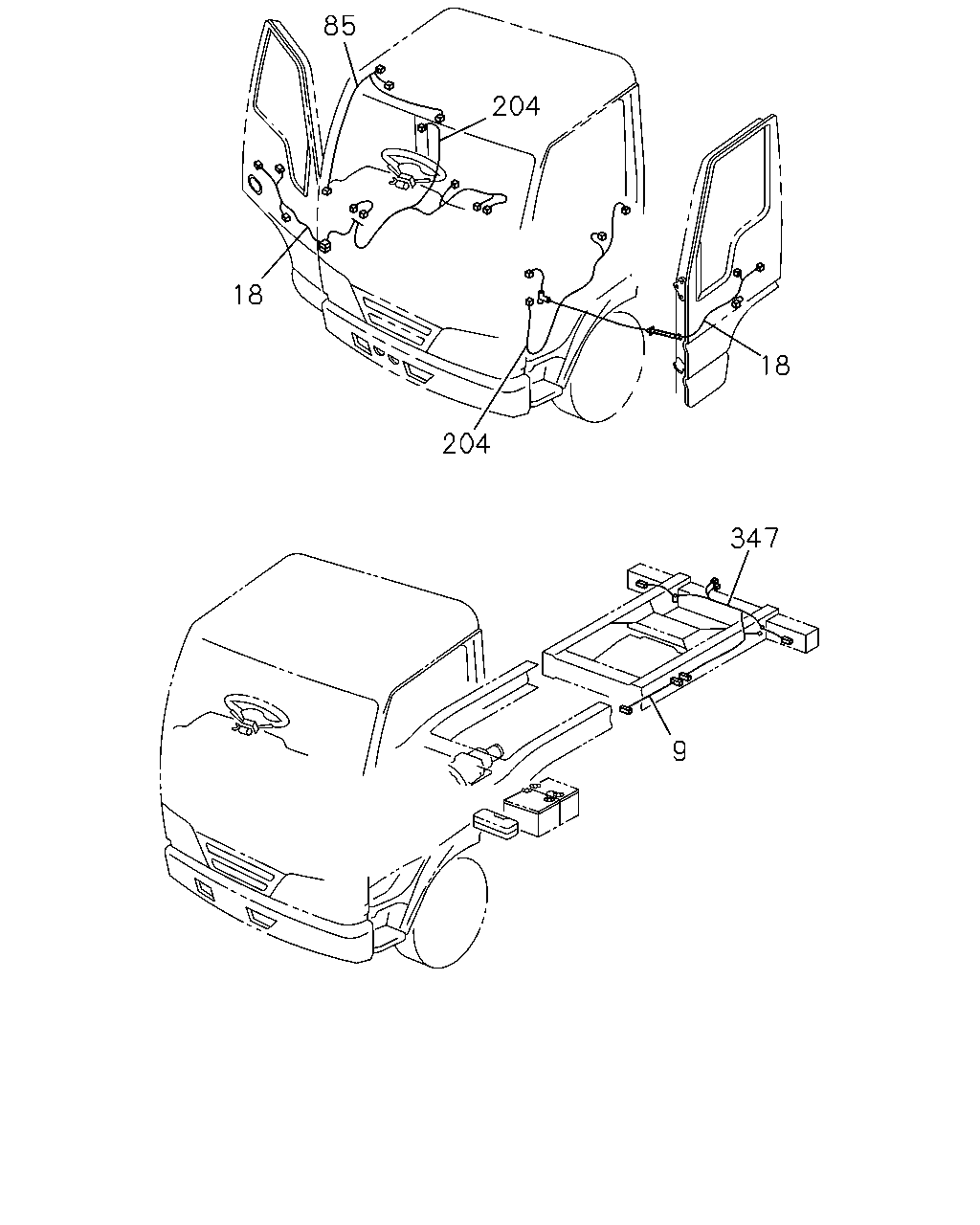

çizim 74011
85 204 18 18 204 347 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 02.480 HARNESS; FRAME,RR 8-98004-054-2 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR 8-97381-166-1 01 1 0502- ●
9 02.480 HARNESS; FRAME,RR 8-97381-165-1 01 1 0502- ●
18 02.480 HARNESS; DOOR 8-97226-669-0 01 1 0211-1009 ● ● ●
18 02.480 HARNESS; DOOR 8-98166-820-0 01 1 1010-1405 ● ● ●
18 02.480 HARNESS; DOOR 8-97226-669-0 01 1 1406- ● ● ●
18 02.480 HARNESS; DOOR 8-97312-148-0 01 1 0211- ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97164-610-2 01 1 0211-0302 ● ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 0303- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-629-2 01 1 0211-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 0303- ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97162-631-2 01 1 0211-0302 ● ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-145-0 01 1 0303- ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97213-566-0 01 1 0211-0302 ● ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-97364-151-0 01 1 0303- ● ● ●

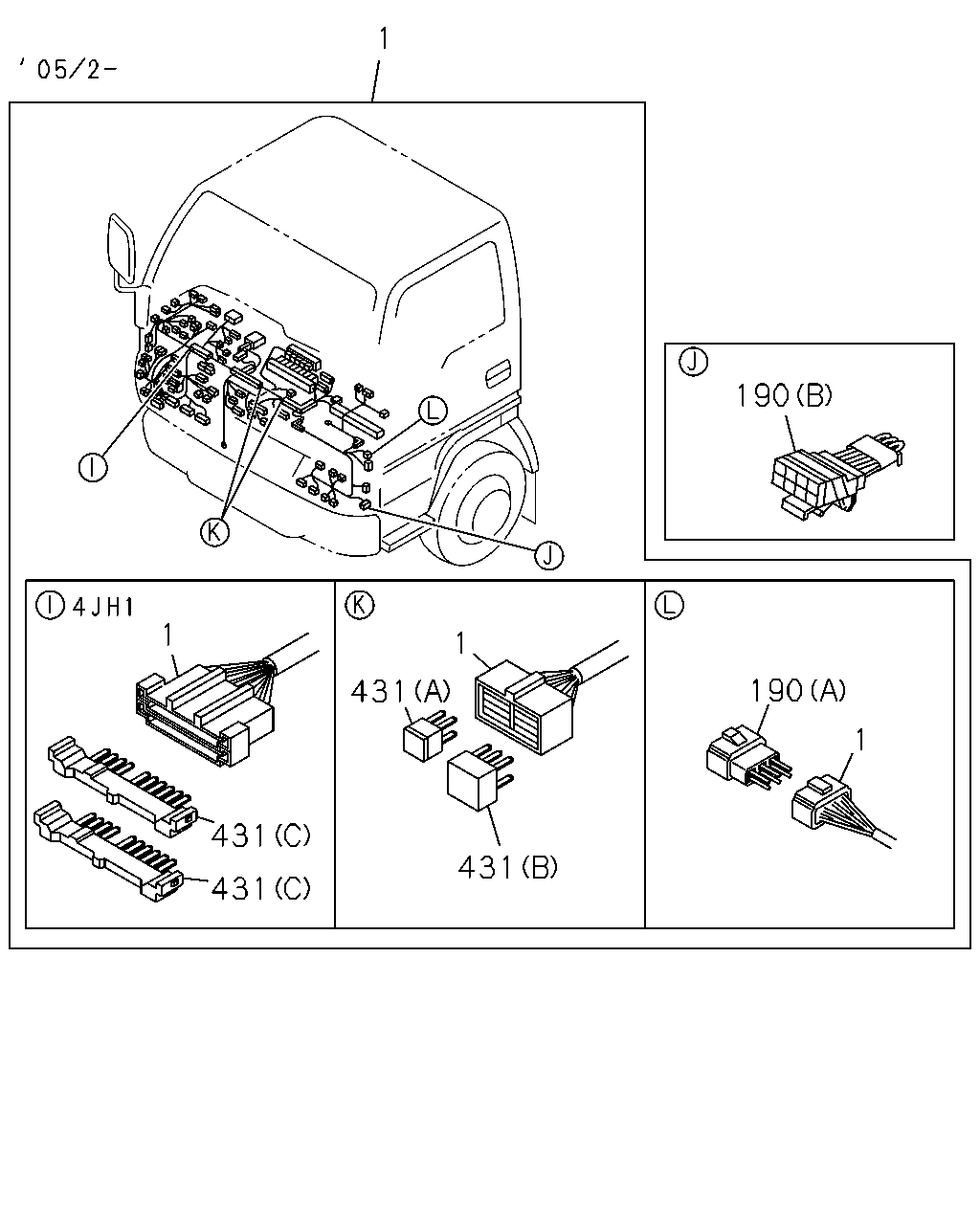

çizim 74042
1 190 1 1 190 431 1 431 431 431
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.480 HARNESS; CAB
4JH1 ENG(RJX) 		8-97357-036-1 01 1 0211-0501 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-97383-603-0 01 1 0502-0502 ● ● ●
1 02.480 HARNESS; CAB
4JH1-TC ENG(RDM) 		8-98010-608-2 01 1 0502- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
4JH1-TC ENG(RDM) (A) 		5-82690-411-0 01 1 0607- ● ● ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> (B) 		8-98036-238-0 01 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (C) 10P GREEN 		1-82699-599-0 02 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (A) 4P 		8-97077-939-0 02 1 0607- ● ● ●
431 02.530 CONNECTOR; JOINT
4JH1-TC ENG(RDM) (B) 6P 		8-97077-941-0 02 1 0607- ● ● ●

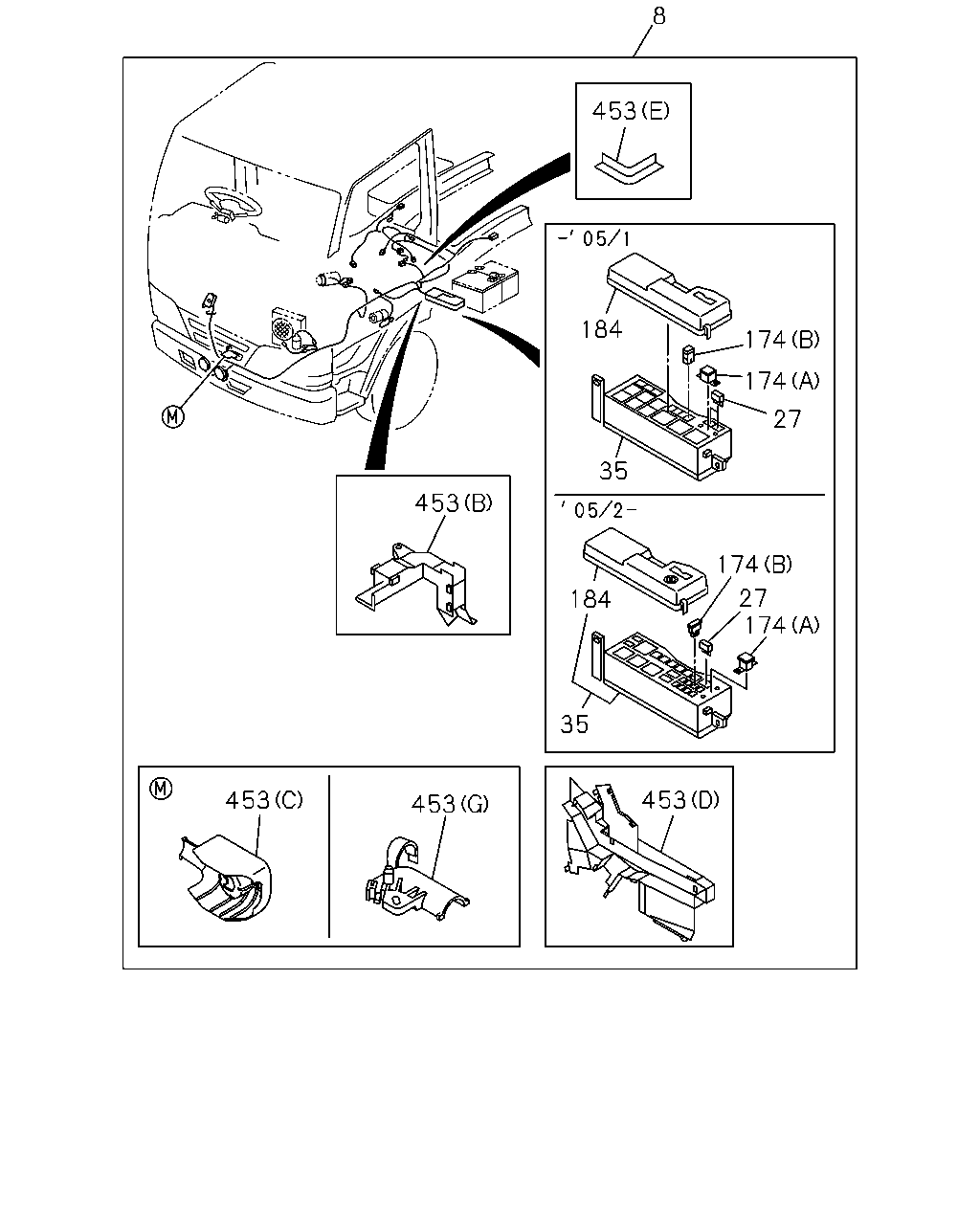

çizim 74095
8 453 184 174 174 27 35 453 174 27 174 184 35 453 453 453
BalonParca AdiParca NoAdetTipApplied Date A B C
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97357-068-1 01 1 0211-0211 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97362-338-0 01 1 0212-0303 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97364-885-1 01 1 0304-0501 ● ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 		8-97380-152-3 01 1 0502- ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97357-067-1 01 1 0211-0211 ●
8 02.480 HARNESS; FRAME,FRT
4JH1 ENG(RJX) 		8-97362-337-1 01 1 0212-0501 ●
8 02.480 HARNESS; FRAME,FRT
4JH1-TC ENG(RDM) 		8-97377-883-3 01 1 0502- ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) 10A MINI RED 		8-97062-022-0 01 1 0508- ● ● ●
27 08.965 FUSE UNIT
4JH1-TC ENG(RDM) 15A MINI BLUE 		8-97062-023-0 01 1 0508- ● ● ●
35 02.530 BOX; RELAY & FUSE
4JH1 ENG(RJX) 		8-97063-150-1 01 1 0211-0501 ● ● ●
35 02.530 BOX; RELAY & FUSE
4JH1-TC ENG(RDM) 		8-97377-739-0 01 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1-TC ENG(RDM) (B) 40A GREEN 		8-97183-644-0 AR 1 0502-0502 ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1-TC ENG(RDM) (B) 60A YELLOW 		8-97219-407-0 AR 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1 ENG(RJX) (A) 80A BLACK 		8-94388-305-1 AR 1 0211-0501 ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1-TC ENG(RDM) (A) 100A BLUE 		8-94388-306-0 AR 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1 ENG(RJX) 02.483 (B) 50A RED 		8-94468-663-0 AR 1 0211-0501 ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1-TC ENG(RDM) (B) 50A RED 		8-97183-645-0 AR 1 0502- ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1 ENG(RJX) 02.483 (B) 60A YELLOW 		8-94468-664-0 AR 1 0211-0501 ● ● ●
174 08.965 FUSE; SLOW BLOW
4JH1-TC ENG(RDM) (B) 30A PINK 		8-97183-643-0 AR 1 0502- ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1 ENG(RJX) 		8-97063-152-1 01 1 0211-0501 ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JH1-TC ENG(RDM) 		8-97377-741-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (G) 		8-97093-668-1 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94452-553-0 01 1 0211-0405 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (E) 		8-94417-716-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (D) 		8-97259-730-3 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (G) 		8-97093-668-1 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94452-553-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (B) 		8-97120-589-0 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (A) 		8-97262-956-3 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (D) 		8-97259-730-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (B) 		8-97120-589-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (F) 		8-97259-731-2 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (E) 		8-94417-716-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (A) 		8-97262-956-3 01 1 0211-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (C) 		8-94482-169-0 01 1 0502- ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1 ENG(RJX) (C) 		8-94482-169-0 01 1 0212-0501 ● ● ●
453 02.483 PROTECTOR; HARNESS
4JH1-TC ENG(RDM) (F) 		8-97259-731-2 01 1 0502- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
