Sayfa 2-81 - Isuzu EPC

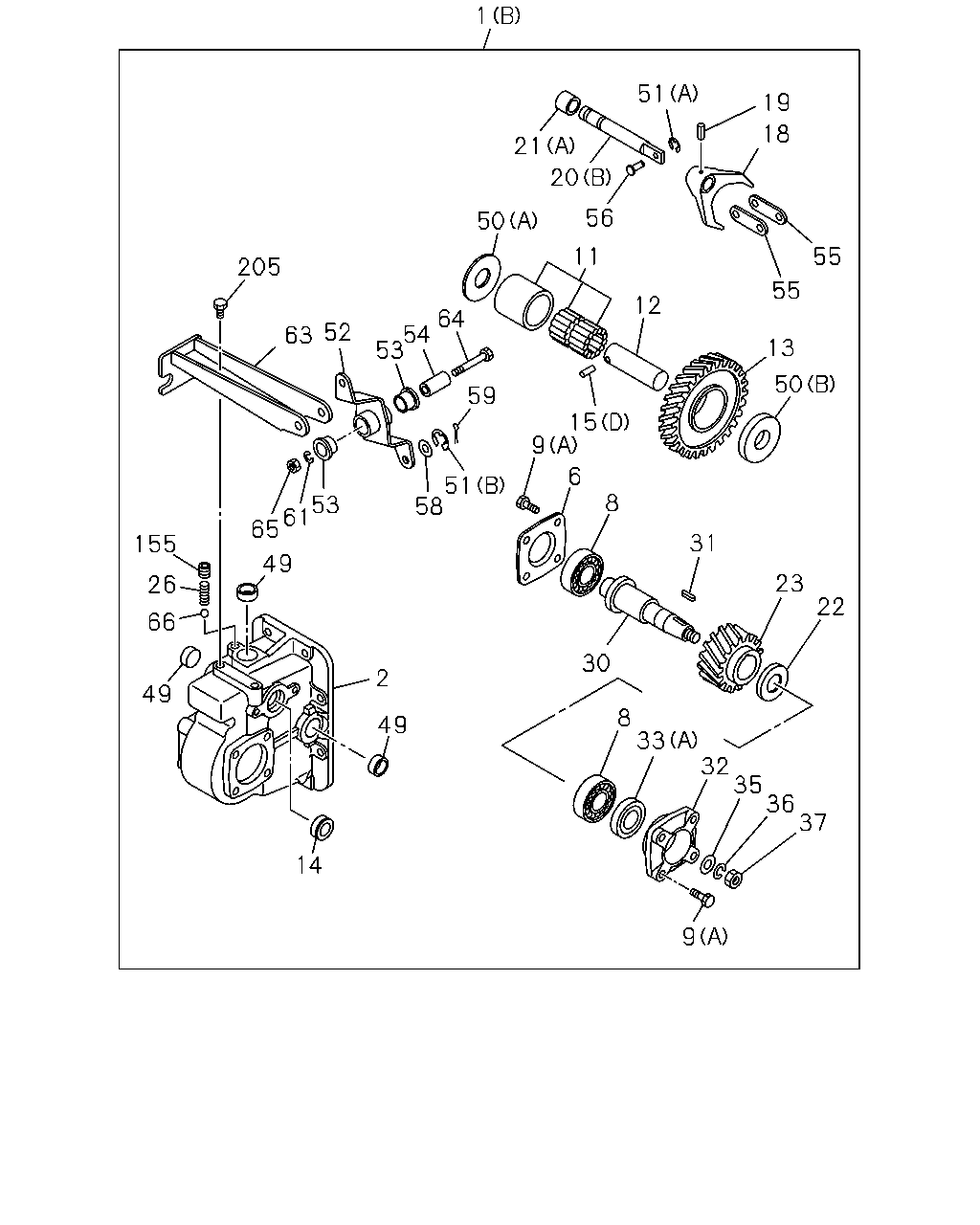

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#38508) — 380 parça

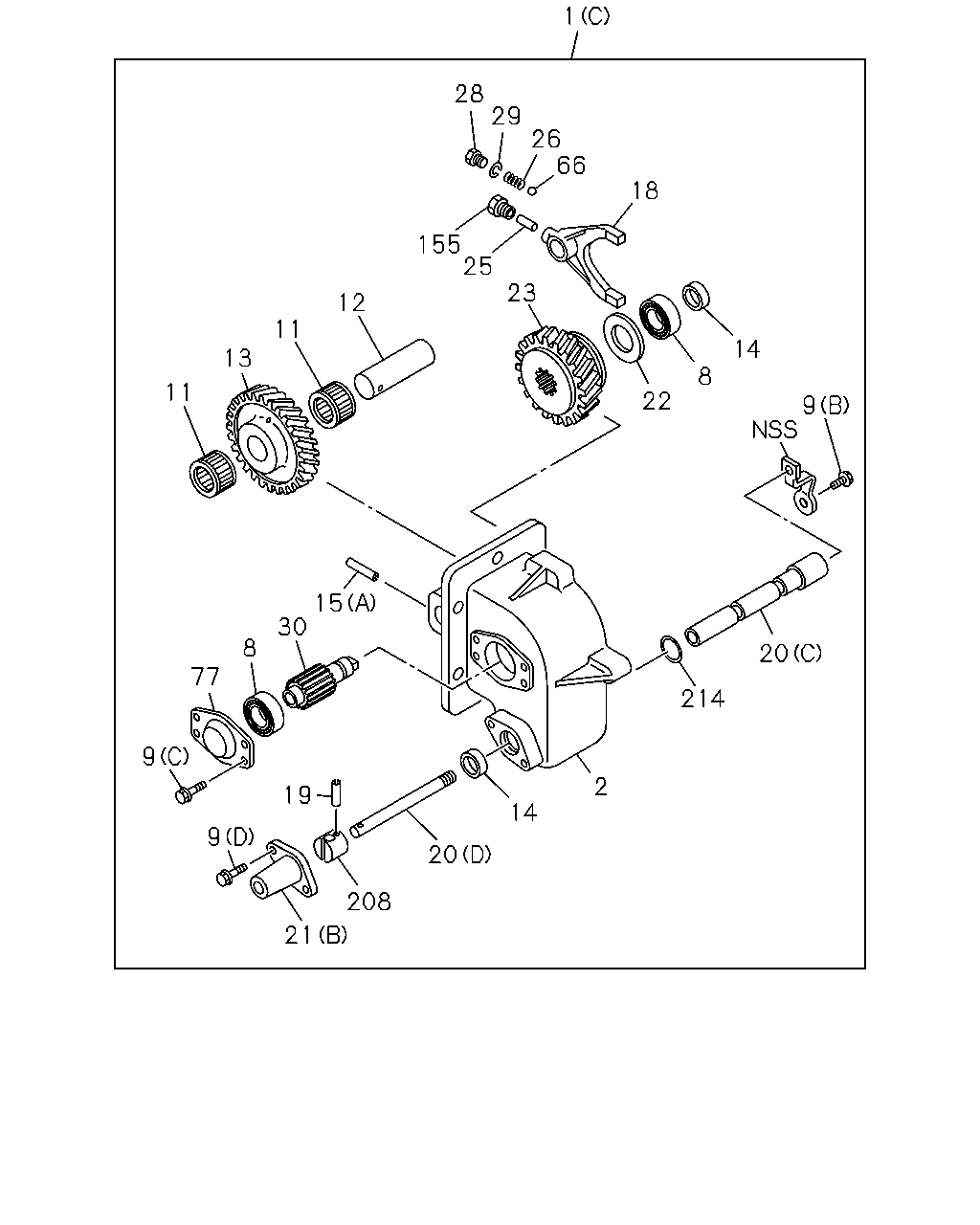

1 28 29 26 66 18 155 25 23 12 11 14 13 8 11 22 9 15 30 8 20 77 214 9 2 19 14 9 20 208 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0710-0903	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (B) NO IDENTIFICATION	8-98047-033-0	01	1	0710-			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C) IDENTIFICATION=F	8-97379-829-1	01	1	0904-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) IDENTIFICATION=YT	8-98136-477-1	01	1	0904-		●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0710-0903	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	0904-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0710-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	0904-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-692-2	01	1	0904-		●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0710-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	0710-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 04.338 (D) M8X20 FLANGE	0-28050-820-0	02	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0904-	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0710-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0710-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0710-0903	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38211-606-0	01	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0904-		●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0710-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	0904-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0710-0903	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	0904-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0710-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0710-0903	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) L=16	9-09878-613-0	01	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (D) L=20 OD=4	9-09678-514-0	01	1	0710-			●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.303 (B) L=25 OD=5	8-94135-771-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=14	8-97175-890-0	01	1	0904-		●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0710-0903	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	0904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0710-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	0904-	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-695-0	01	1	0904-		●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0710-0903	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 L=25 OD=5	8-94135-771-0	01	1	0904-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0710-			●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	0710-0903	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-623-0	01	1	0904-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	0710-			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-97186-946-1	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98080-011-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97308-709-1	01	1	0904-		●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) (A)	8-98046-619-0	01	1	0710-			●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97139-693-0	01	1	0904-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0710-0903	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38245-603-1	01	1	0904-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0904-		●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0710-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	0904-	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0710-0903	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-94169-071-0	01	1	0904-	●	●
25	04.439 PIN; LK,SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-695-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0710-0903	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	0904-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0710-			●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97175-987-0	01	1	0904-		●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0710-0903	●	●
28	04.439 BOLT; SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) M8	8-98038-424-0	01	1	0904-	●
28	04.439 BOLT; SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0904-		●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0710-0903	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 ID=8.2	0-91510-808-0	01	1	0904-	●
29	04.439 WASHER; LK,SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0904-		●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0710-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97374-129-1	01	1	0710-			●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97186-945-0	01	1	0904-	●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.311	9-00097-009-0	01	1	0710-			●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-699-0	01	1	0904-	●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-625-0	01	1	0904-	●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-719-0	01	1	0904-		●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0710-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0710-			●
155	04.439 PLUG; SHIFTER ROD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	0904-	●
208	04.439 CONNECTOR; CABLE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-859-0	01	1	0904-	●
214	04.439 GASKET; SHIFT ROD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-09561-125-0	01	1	0904-	●

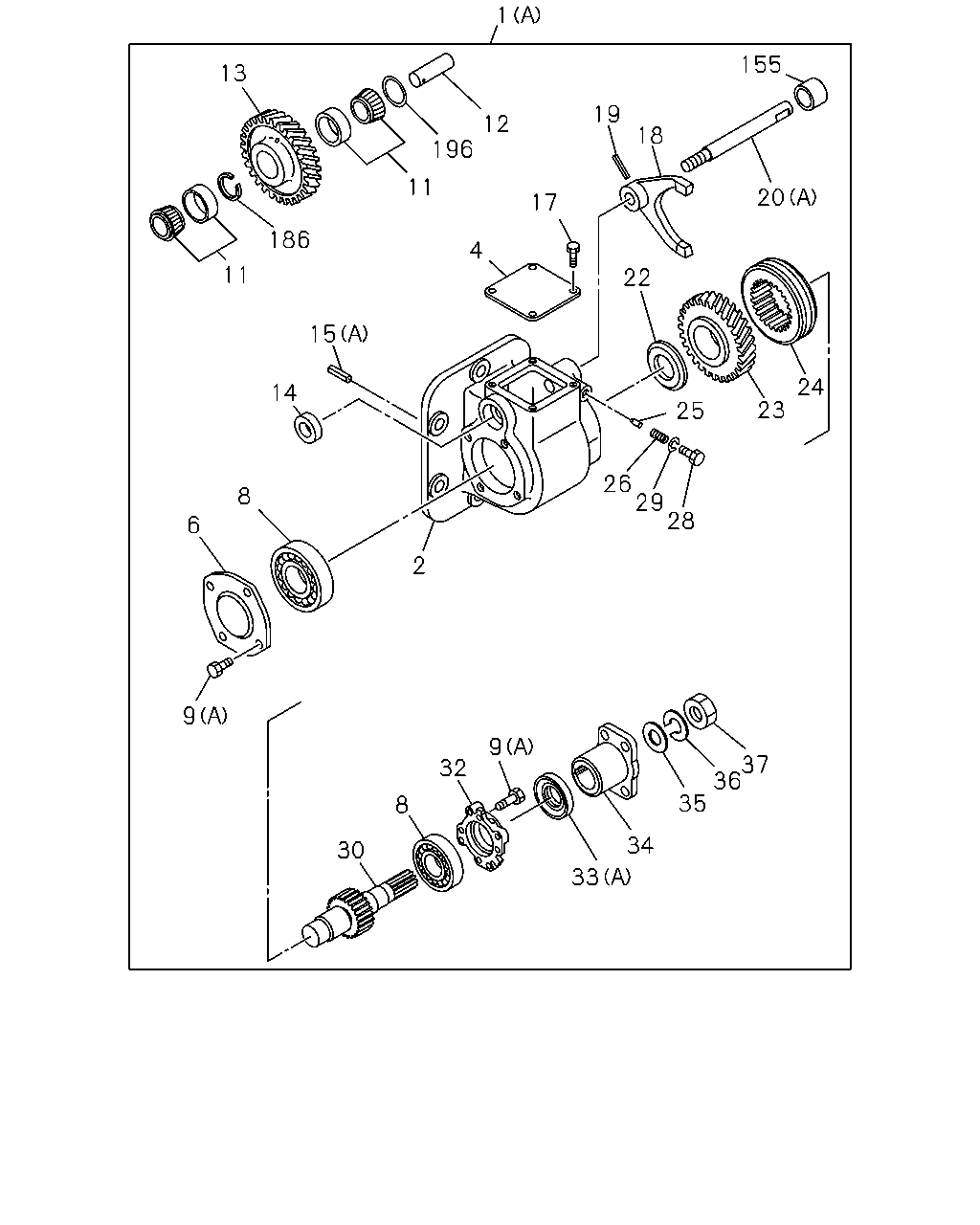

1 155 13 19 12 18 196 11 20 17 186 4 11 22 15 24 14 23 25 26 29 28 8 6 2 9 9 37 36 35 32 8 34 30 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0710-0903	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (B) NO IDENTIFICATION	8-98047-033-0	01	1	0710-			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C) IDENTIFICATION=F	8-97379-829-1	01	1	0904-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) IDENTIFICATION=YT	8-98136-477-1	01	1	0904-		●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0710-0903	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	0904-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0710-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	0904-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-692-2	01	1	0904-		●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0710-0903	●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98046-613-0	01	1	0904-	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0710-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0710-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	0710-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 04.338 (D) M8X20 FLANGE	0-28050-820-0	02	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0904-	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0710-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0710-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0710-0903	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38211-606-0	01	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0904-		●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0710-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	0904-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0710-0903	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	0904-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0710-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0710-0903	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) L=16	9-09878-613-0	01	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (D) L=20 OD=4	9-09678-514-0	01	1	0710-			●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.303 (B) L=25 OD=5	8-94135-771-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=14	8-97175-890-0	01	1	0904-		●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0710-0903	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0710-0903	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	0904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0710-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	0904-	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-695-0	01	1	0904-		●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0710-0903	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 L=25 OD=5	8-94135-771-0	01	1	0904-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0710-			●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	0710-0903	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-623-0	01	1	0904-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	0710-			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-97186-946-1	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98080-011-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97308-709-1	01	1	0904-		●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0710-0903	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38245-603-1	01	1	0904-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0904-		●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0710-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	0904-	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0710-	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0710-0903	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-94169-071-0	01	1	0904-	●	●
25	04.439 PIN; LK,SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-695-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0710-0903	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	0904-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0710-			●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97175-987-0	01	1	0904-		●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0710-0903	●	●
28	04.439 BOLT; SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) M8	8-98038-424-0	01	1	0904-	●
28	04.439 BOLT; SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) M8	8-98038-424-0	01	1	0904-		●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0710-0903	●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 ID=8.2	0-91510-808-0	01	1	0904-	●
29	04.439 WASHER; LK,SPRING,SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) 02.559 ID=8.2	0-91510-808-0	01	1	0904-		●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0710-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97374-129-1	01	1	0710-			●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97186-945-0	01	1	0904-	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0710-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	0710-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-789-0	01	1	0904-		●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0710-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0710-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 ID=15	0-91610-514-0	02	1	0904-		●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0710-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0710-	●	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0710-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0710-			●
155	04.439 PLUG; SHIFTER ROD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	0904-	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0710-	●	●

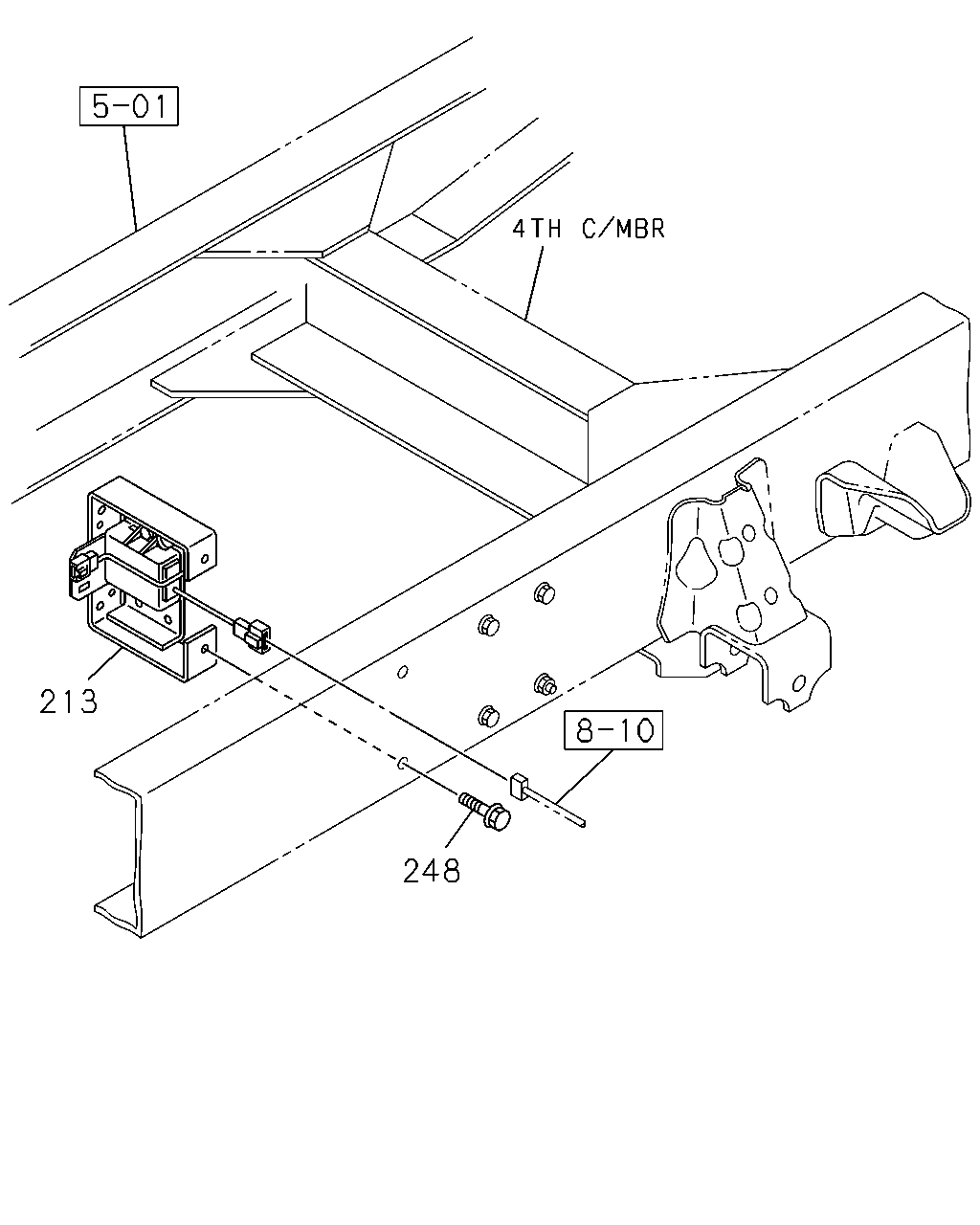

213 248

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	213	04.439 CONTROL UNIT; PTO POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98039-755-2	01	1	0904-	●	●
	248	04.439 BOLT; PTO CONT POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0904-	●	●

1 51 19 18 21 20 56 50 11 55 205 55 12 64 54 53 52 63 13 50 59 15 9 6 51 58 8 53 61 65 31 155 49 23 26 22 66 30 2 49 8 33 49 32 35 36 37 14 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0710-0903	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (B) NO IDENTIFICATION	8-98047-033-0	01	1	0710-			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C) IDENTIFICATION=F	8-97379-829-1	01	1	0904-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) IDENTIFICATION=YT	8-98136-477-1	01	1	0904-		●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0710-0903	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	0904-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0710-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	0904-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-692-2	01	1	0904-		●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-612-0	01	1	0710-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0710-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	0710-	●	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 04.338 (D) M8X20 FLANGE	0-28050-820-0	02	1	0904-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0904-	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0710-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0710-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0710-0903	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38211-606-0	01	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0904-		●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0710-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	0904-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0710-0903	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-98028-789-0	01	1	0904-	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	1-09625-358-0	01	1	0710-			●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0710-0903	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) L=16	9-09878-613-0	01	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (D) L=20 OD=4	9-09678-514-0	01	1	0710-			●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.303 (B) L=25 OD=5	8-94135-771-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=14	8-97175-890-0	01	1	0904-		●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0710-0903	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	0904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0710-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	0904-	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-695-0	01	1	0904-		●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0710-0903	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 L=25 OD=5	8-94135-771-0	01	1	0904-	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-97306-596-0	01	1	0710-			●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	0710-0903	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-623-0	01	1	0904-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	0710-			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-97186-946-1	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98080-011-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97308-709-1	01	1	0904-		●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) (A)	8-98046-619-0	01	1	0710-			●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97139-693-0	01	1	0904-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0710-0903	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38245-603-1	01	1	0904-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0904-		●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0710-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0710-0903	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	0904-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0710-			●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97175-987-0	01	1	0904-		●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0710-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97374-129-1	01	1	0710-			●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97186-945-0	01	1	0904-	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	0710-			●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0710-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	0710-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-789-0	01	1	0904-		●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0710-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 ID=15	0-91610-514-0	02	1	0904-		●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0710-	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0710-	●	●	●
49	04.439 PLUG; IDLE SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98037-773-0	03	1	0710-			●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S PTO TRANSMISSION SIDE(V66) (A)	1-38226-058-1	01	1	0710-			●
50	04.439 WASHER; THRUST,IDLE GEAR,TRANS S PTO TRANSMISSION SIDE(V66) (B)	8-97305-818-0	01	1	0710-			●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 16.585 (A) ID=6	0-91805-506-0	01	1	0710-			●
51	04.439 RING; SNAP,PIN,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B) ID=8	0-91805-508-0	01	1	0710-			●
52	04.439 LEVER; CONT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98049-416-0	01	1	0710-			●
53	04.439 BUSHING; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	1-09330-023-0	02	1	0710-			●
54	04.439 COLLAR; DIST,CONT LVR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	1-38321-003-1	01	1	0710-			●
55	04.439 PLATE; LEVER JOINT,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98046-938-0	02	1	0710-			●
56	04.439 PIN; PLATE TO LVR & ROD,TRANS SI PTO TRANSMISSION SIDE(V66)	8-98046-942-0	01	1	0710-			●
58	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 17.198 ID=10.5	0-91610-510-0	02	1	0710-			●
59	04.439 PIN; PTO CONT LEVER PTO TRANSMISSION SIDE(V66)	0-82154-025-0	01	1	0710-			●
61	04.439 WASHER; LK,CONT LVR,TRANS SIDE P PTO TRANSMISSION SIDE(V66) 02.277 ID=10.2	0-91510-810-0	01	1	0710-			●
63	04.439 BRACKET; CONT LVR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98049-415-0	01	1	0710-			●
64	04.439 BOLT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.685 M10X60 FLANGE	0-28051-060-0	01	1	0710-			●
65	04.439 NUT; CONT LEVER PTO TRANSMISSION SIDE(V66) 00.833 M10	0-91110-510-0	01	1	0710-			●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.311	9-00097-009-0	01	1	0710-			●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-699-0	01	1	0904-	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0710-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0710-			●
155	04.439 PLUG; SHIFTER ROD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	0904-	●
205	04.439 BOLT; BRKT,PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.029 M10X16 FLANGE	0-28151-016-0	02	1	0710-			●

1 155 177 252 44 219 20 160 15 12 196 252 26 13 11 124 77 18 186 11 24 23 22 15 219 33 2 15 44 8 247 258 35 34 212 183 37 10 35 44 32 44 79 33 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0710-0903	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (B) NO IDENTIFICATION	8-98047-033-0	01	1	0710-			●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C) IDENTIFICATION=F	8-97379-829-1	01	1	0904-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) IDENTIFICATION=YT	8-98136-477-1	01	1	0904-		●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0710-0903	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97308-689-2	01	1	0904-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97309-239-1	01	1	0710-			●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	0904-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-692-2	01	1	0904-		●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0710-	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	0904-	●
10	04.439 WASHER; OUTPUT SHAFT COVER,SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 06.174 ID=14.2	0-91510-814-0	01	1	0904-		●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0710-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	8-98068-087-0	01	1	0710-			●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0710-0903	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38211-606-0	01	1	0904-	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0904-		●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97305-817-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0710-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=36	8-97305-810-0	01	1	0710-			●
13	04.439 GEAR; IDLE,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0710-0903	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (A) L=16	9-09878-613-0	01	1	0904-	●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) (A) L=16	9-09878-613-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (D) L=20 OD=4	9-09678-514-0	01	1	0710-			●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.303 (B) L=25 OD=5	8-94135-771-0	01	1	0904-		●
15	04.439 PIN; SPR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=14	8-97175-890-0	01	1	0904-		●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0710-0903	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	8-97224-702-0	01	1	0904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98009-081-0	01	1	0710-			●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	0904-	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98088-695-0	01	1	0904-		●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	0710-0903	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98046-623-0	01	1	0904-	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (B)	8-98046-934-0	01	1	0710-			●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-97186-946-1	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) (D)	8-98080-011-0	01	1	0904-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E)	8-97308-709-1	01	1	0904-		●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0710-0903	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	9-38245-603-1	01	1	0904-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0904-		●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	8-98068-086-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-97308-714-0	01	1	0710-0805	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0806-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=26	8-97305-798-0	01	1	0710-			●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	0904-	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0710-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0710-0903	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR)	9-09940-380-0	01	1	0904-	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-97309-246-0	01	1	0710-			●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	0904-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97175-987-0	01	1	0904-		●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-1	01	1	0710-	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97374-129-1	01	1	0710-			●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-97186-945-0	01	1	0904-	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0710-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66) (A)	1-38159-007-0	01	1	0710-	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98028-789-0	01	1	0904-		●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0710-	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0710-	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.634 ID=15	0-91610-514-0	02	1	0904-		●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0710-	●	●	●
44	04.439 BOLT; COVER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 00.004 (A) M8X16 HEX SOCKET	0-58330-816-0	03	1	0904-		●
44	04.439 BOLT; COVER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.338 (B) M8X20 FLANGE	0-28050-820-0	12	1	0904-1002		●
44	04.439 BOLT; COVER,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 04.338 (B) M8X20 FLANGE	0-28050-820-0	15	1	1003-		●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-625-0	01	1	0904-	●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-719-0	01	1	0904-		●
79	04.439 COVER; DUST,TRANS SIDE PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-728-0	01	1	1003-		●
124	04.439 SWITCH; PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98031-760-0	01	1	0904-		●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0710-	●	●
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-97309-248-0	01	1	0710-			●
155	04.439 PLUG; SHIFTER ROD 4HK1-TCN ENG(RDQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	0904-	●
160	04.439 CLIP; PTO A/T SIDE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.559 L=15	8-94315-436-1	01	1	0904-		●
177	04.439 NUT; SHIFT ROD 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.334 M8	0-91110-508-0	01	1	0904-		●
183	04.439 SOLENOID ASM; PTO 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98136-076-0	01	1	0904-		●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0710-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0710-	●	●
212	04.439 ADAPTER; SOLENOID 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97308-739-0	01	1	0904-		●
219	04.439 CLIP; CABLE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98091-152-0	01	1	0904-1002		●
219	04.439 CLIP; CABLE 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97221-218-0	02	1	0904-		●
247	04.439 WASHER 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 02.559 ID=8.2	0-91510-808-0	01	1	0904-1002		●
252	04.439 WASHER; PL,SHIFTER ROD 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 03.417 (B) ID=8.4 OD=16	0-91610-508-0	01	1	0904-		●
252	04.439 WASHER; PL,SHIFTER ROD 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-97308-737-1	01	1	0904-		●
258	04.439 BOLT 4HK1-TCN ENG(RDQ) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8	8-98038-424-0	01	1	0904-1002		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
