4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#385) — 58 parça

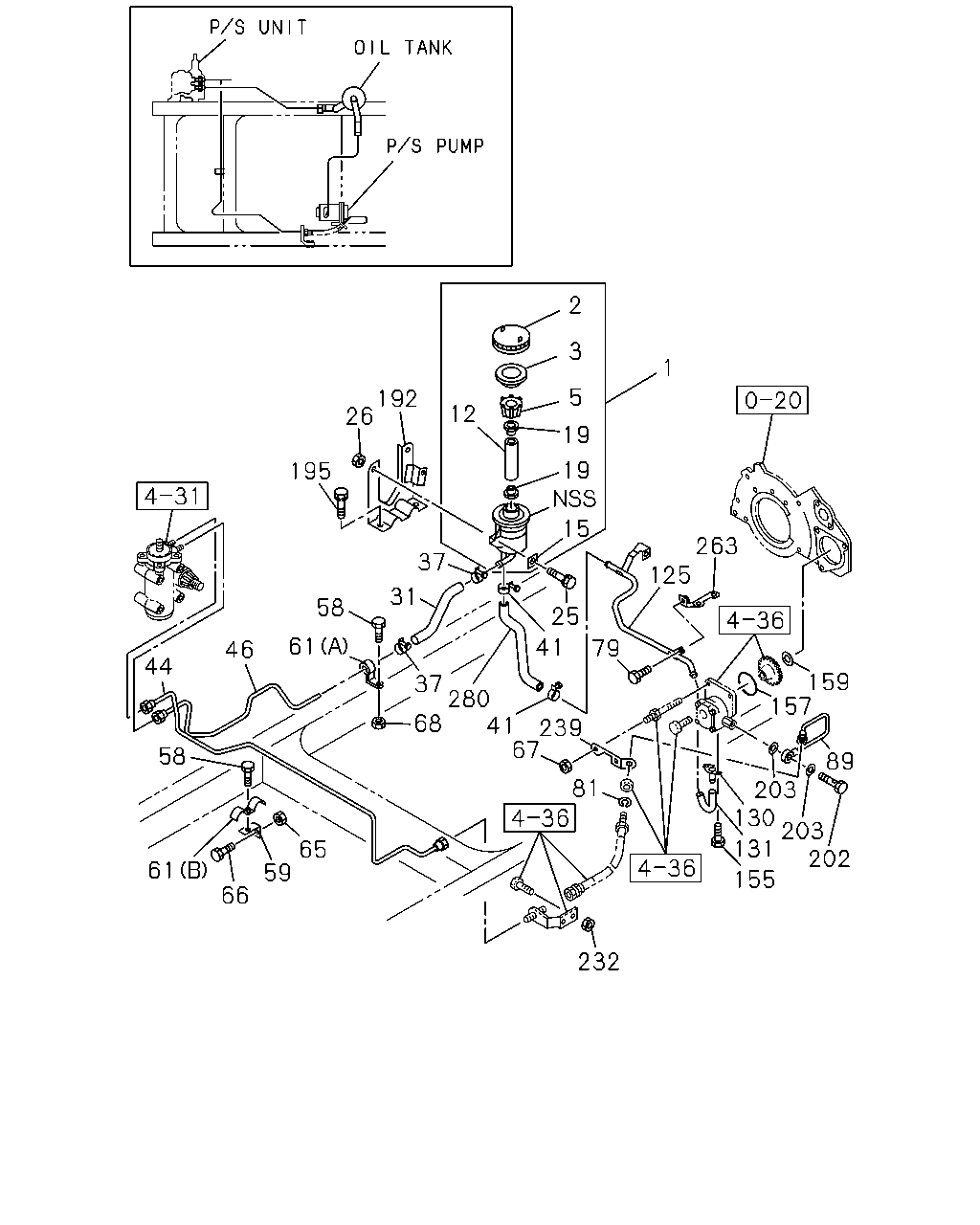

çizim 27854
2 3 1 5 192 26 12 19 19 195 15 263 125 37 31 58 25 61 41 79 46 44 159 157 37 280 68 41 239 67 58 89 81 203 130 203 202 131 65 59 61 155 66 232
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; OIL,P/S
POWER STEERING(N40) 		1-21210-205-0 01 1 9202- ● ●
2 CAP; OIL TANK,P/S
POWER STEERING(N40) 		1-21241-004-3 01 1 9202- ● ●
3 GASKET; OIL TANK,P/S
POWER STEERING(N40) 		1-21249-003-1 01 1 9202- ● ●
5 STRAINER; OIL TANK,P/S
POWER STEERING(N40) 		1-21235-007-1 01 1 9202- ● ●
12 FILTER; MICROBON,OIL TANK,P/S
POWER STEERING(N40) 		1-21235-011-0 01 1 9202- ● ●
15 PLATE; FILTER,OIL TANK
POWER STEERING(N40) 		1-21249-007-1 02 1 9202- ● ●
19 SEAT; OIL TANK
POWER STEERING(N40) 		1-21249-004-0 02 1 9202- ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING(N40) M8X20 FLANGE 		0-28010-820-0 02 1 9202-9204 ● ●
25 BOLT; OIL TANK BRKT
POWER STEERING(N40) M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ●
26 NUT; OIL TANK TO BRKT
POWER STEERING(N40) M8 		9-09110-408-0 02 1 9202- ● ●
31 HOSE; P/S OIL TANK,INL
POWER STEERING(N40) 		1-21113-591-1 01 1 9202- ● ●
37 CLIP; HOSE,P/S
POWER STEERING(N40) ID=26 		1-09704-082-0 02 1 9202- ● ●
41 CLIP; HOSE,P/S
POWER STEERING(N40) ID=32 		1-09704-085-0 02 1 9202- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) FRONT AXLE F049(FS4) 		1-21113-983-1 01 1 9202-9212 ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
POWER STEERING(N40) FRONT AXLE F049(FS4) 		1-21114-753-0 01 1 9301- ● ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-21113-800-0 01 1 9202-9212 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-21114-752-0 01 1 9301-9307 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-21114-954-0 01 1 9308-9308 ●
44 PIPE; OIL,P/S UNIT TO NIPPLE
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-21114-982-1 01 1 9309- ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) FRONT AXLE F049(FS4) 		1-21113-921-1 01 1 9202-9308 ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
POWER STEERING(N40) FRONT AXLE F049(FS4) 		1-21114-980-0 01 1 9309- ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-21113-987-0 01 1 9202-9308 ●
46 PIPE; OIL,P/S UNIT TO OIL TANK
FRONT AXLE F063(FS7) POWER STEERING(N40) 		1-21114-977-0 01 1 9309- ●
58 BOLT; CLIP
POWER STEERING(N40) M8X16 FLANGE 		0-28010-816-0 01 1 9202-9204 ● ●
58 BOLT; CLIP
POWER STEERING(N40) M8X16 FLANGE 		0-28080-816-0 01 1 9205- ● ●
58 BOLT; CLIP
POWER STEERING(N40) M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ● ●
58 BOLT; CLIP
POWER STEERING(N40) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
59 BRACKET; CLIP,OIL PIPE
POWER STEERING(N40) 		1-47465-745-0 01 1 9202- ● ●
61 CLIP; OIL PIPE
POWER STEERING(N40) (A) ID=15 H=24 L=20 		1-09700-606-0 01 1 9202- ● ●
61 CLIP; OIL PIPE
POWER STEERING(N40) (B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 9202- ● ●
65 NUT; BRKT
POWER STEERING(N40) M10 FLANGE 		5-09440-006-0 02 1 9202- ● ●
65 NUT; BRKT
POWER STEERING(N40) M8 		9-09110-408-0 01 1 9202- ● ●
66 BOLT; BRKT,OIL PIPE
POWER STEERING(N40) M8X20 FLANGE 		0-28010-820-0 01 1 9202-9204 ● ●
66 BOLT; BRKT,OIL PIPE
POWER STEERING(N40) M8X20 FLANGE 		0-28080-820-0 01 1 9205- ● ●
67 NUT; BRKT
POWER STEERING(N40) M10 		9-09110-510-0 01 1 9202- ● ●
68 NUT; CLIP,OIL PIPE
POWER STEERING(N40) M8 		9-09110-408-0 01 1 9202- ● ●
79 BOLT; BRKT
POWER STEERING(N40) M8X12 FLANGE 		0-28080-812-0 02 1 9202- ● ●
81 WASHER; LK,FLEX HOSE
POWER STEERING(N40) ID=20.2 		9-09150-520-0 01 1 9202- ● ●
89 PIPE; OIL,P/S OIL PUMP TO FLEX HOSE
POWER STEERING(N40) 		1-21113-506-0 01 1 9202-9212 ● ●
89 PIPE; OIL,P/S OIL PUMP TO FLEX HOSE
POWER STEERING(N40) 		1-21114-561-0 01 1 9301- ● ●
125 CONNECTOR; P/S PUMP
POWER STEERING(N40) 		8-94394-446-0 01 1 9202-9307 ● ●
125 CONNECTOR; P/S PUMP
POWER STEERING(N40) 		8-94394-614-0 01 1 9308- ● ●
130 ADAPTER; P/S PUMP
POWER STEERING(N40) 		8-94396-340-1 01 1 9202- ● ●
131 HOSE; RUBBER,P/S
POWER STEERING(N40) 		8-94396-331-1 01 1 9202- ● ●
155 BOLT; CONNECTOR
POWER STEERING(N40) M8X16 FLANGE 		0-28080-816-0 02 1 9202- ● ●
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING(N40) 		8-94396-678-0 01 1 9202- ● ●
159 WASHER; PL,ADAPTER
POWER STEERING(N40) 		1-09503-099-1 01 1 9202-9308 ● ●
192 BRACKET; P/S OIL TANK
POWER STEERING(N40) 		1-21119-115-5 01 1 9202- ● ●
195 BOLT; BRKT
POWER STEERING(N40) M10X25 W/LK WASHER 		0-50041-025-0 02 1 9202-9407 ● ●
195 BOLT; BRKT
POWER STEERING(N40) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9408- ● ●
202 BOLT; EYE,OIL PIPE
POWER STEERING(N40) M18X36 		1-09675-059-0 01 1 9202-9310 ● ●
202 BOLT; EYE,OIL PIPE
POWER STEERING(N40) M18X36 		1-09675-205-0 01 1 9311- ● ●
203 GASKET; EYE BOLT
POWER STEERING(N40) ID=18 		9-09571-418-0 02 1 9202- ● ●
232 NUT; BRKT
POWER STEERING(N40) M8 		9-09110-408-0 02 1 9202- ● ●
239 BRACKET; FLEX HOSE
POWER STEERING(N40) 		1-21119-114-3 01 1 9202-9202 ● ●
239 BRACKET; FLEX HOSE
POWER STEERING(N40) 		1-21119-131-0 01 1 9203- ● ●
263 BRACKET; P/S PIPE
POWER STEERING(N40) 		8-94393-981-0 01 1 9202- ● ●
280 HOSE; P/S OIL PUMP,INL
POWER STEERING(N40) 		1-21113-592-2 01 1 9202- ● ●
