Sayfa 9-01 - Isuzu EPC

9-01 — TOOLS (#38499) — 209 parça

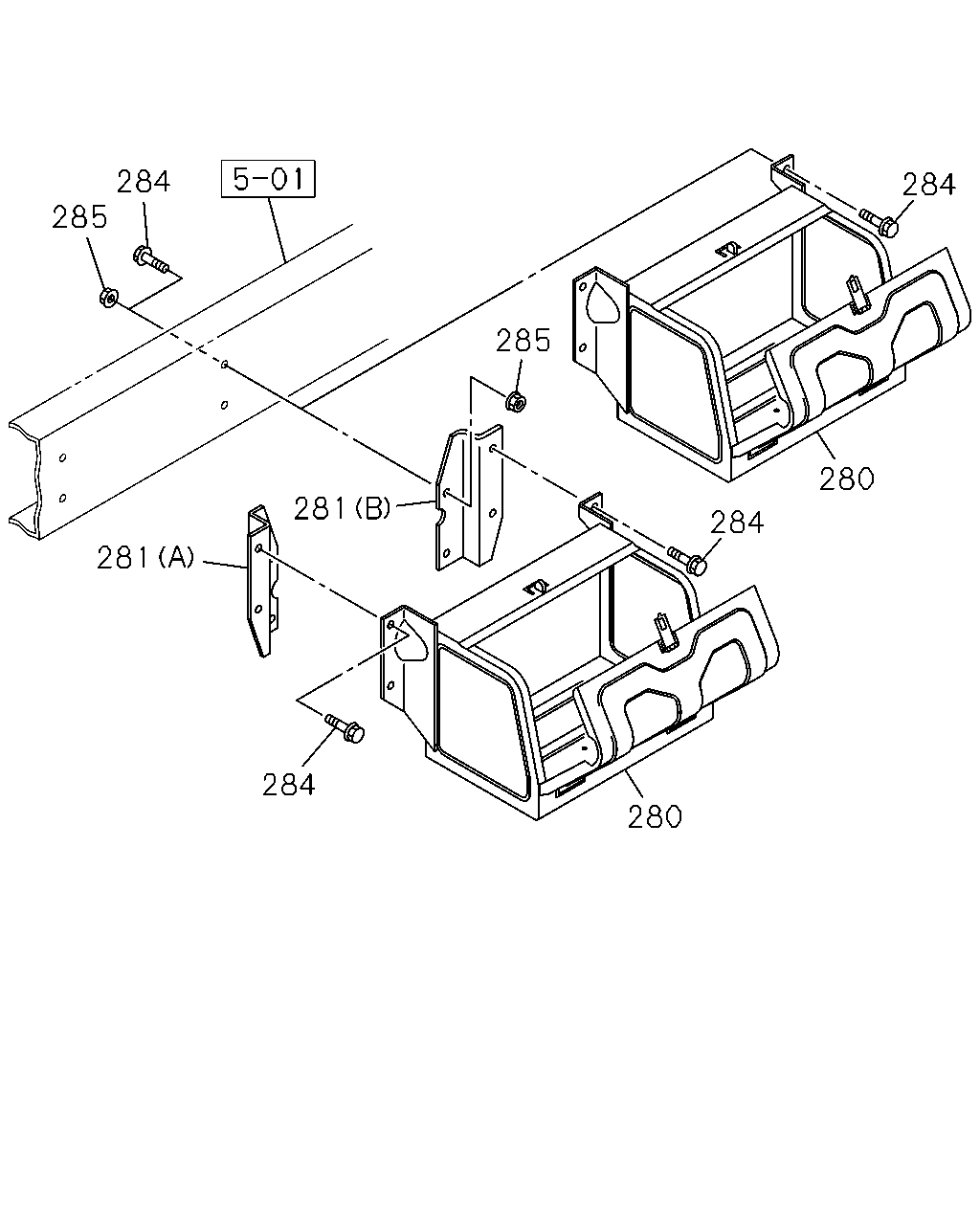

284 285 284 285 280 281 284 281 284 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1012-1511	●	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2>	8-97384-079-0	01	1	1512-	●	●	●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	1012-1511	●			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1012-1511		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1012-1511			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (B)	8-98045-642-1	01	1	1512-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT T YPE<7KJ> (B)	8-98045-642-1	01	1	1512-		●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8>,COUNTRY ALGERIA<D2G>,F RAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1512-		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>,FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1512-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98045-642-1	01	1	1512-				●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	1012-1511	●			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1012-1511		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1012-1511			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> (A)	8-98130-709-0	01	1	1512-	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT T YPE<7KJ> (A)	8-98130-709-0	01	1	1512-		●	●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8>,COUNTRY ALGERIA<D2G>,F RAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1512-		●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>,FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1512-			●
281	08.821 BRACKET; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-98130-709-0	01	1	1512-				●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1511	●	●	●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1511	●			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1511		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1012-1511			●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-	●			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-	●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-		●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-		●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT T YPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-		●	●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAK E<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-		●
284	08.821 BOLT; TOOL BOX VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8>,COUNTRY ALGERIA<D2G>,F RAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-		●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-			●
284	08.821 BOLT; TOOL BOX COUNTRY - SAUDI ARABIA<CU8> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>,FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-			●
284	08.821 BOLT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 00.029 M10X30 FLANGE	0-28651-030-0	04	1	1512-				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1107	●			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1107		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1107		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1107			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1107			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1012-1107				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1108-1307				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> EXC. MINI BUS CHASSIS(V4B),FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511				●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1308-1511				●
285	08.821 NUT; TOOL BOX WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-	●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-		●	●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8>,COUNTRY ALGERIA<D2G>,F RAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAK E<JE5> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-		●
285	08.821 NUT; TOOL BOX VIETNAM EQUIPMENT<CL0>,COUNTRY - SAUDI ARABIA<CU8> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAKE<JE5>,FRAME STRAIGHT T YPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-		●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>, COUNTRY ALGERIA<D2G>,FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-			●
285	08.821 NUT; TOOL BOX COUNTRY - SAUDI ARABIA<CU8> TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) TOOL & STORAGE BOX<VK2> EXC. COUNTRY - SAUDI ARABIA<CU8>,4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-			●
285	08.821 NUT; TOOL BOX WHEEL BASE 3300MM(33W) TOOL & STORAGE BOX<VK2> EXC. FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-				●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 03.162 M10 FLANGE	0-91180-110-0	04	1	1512-				●

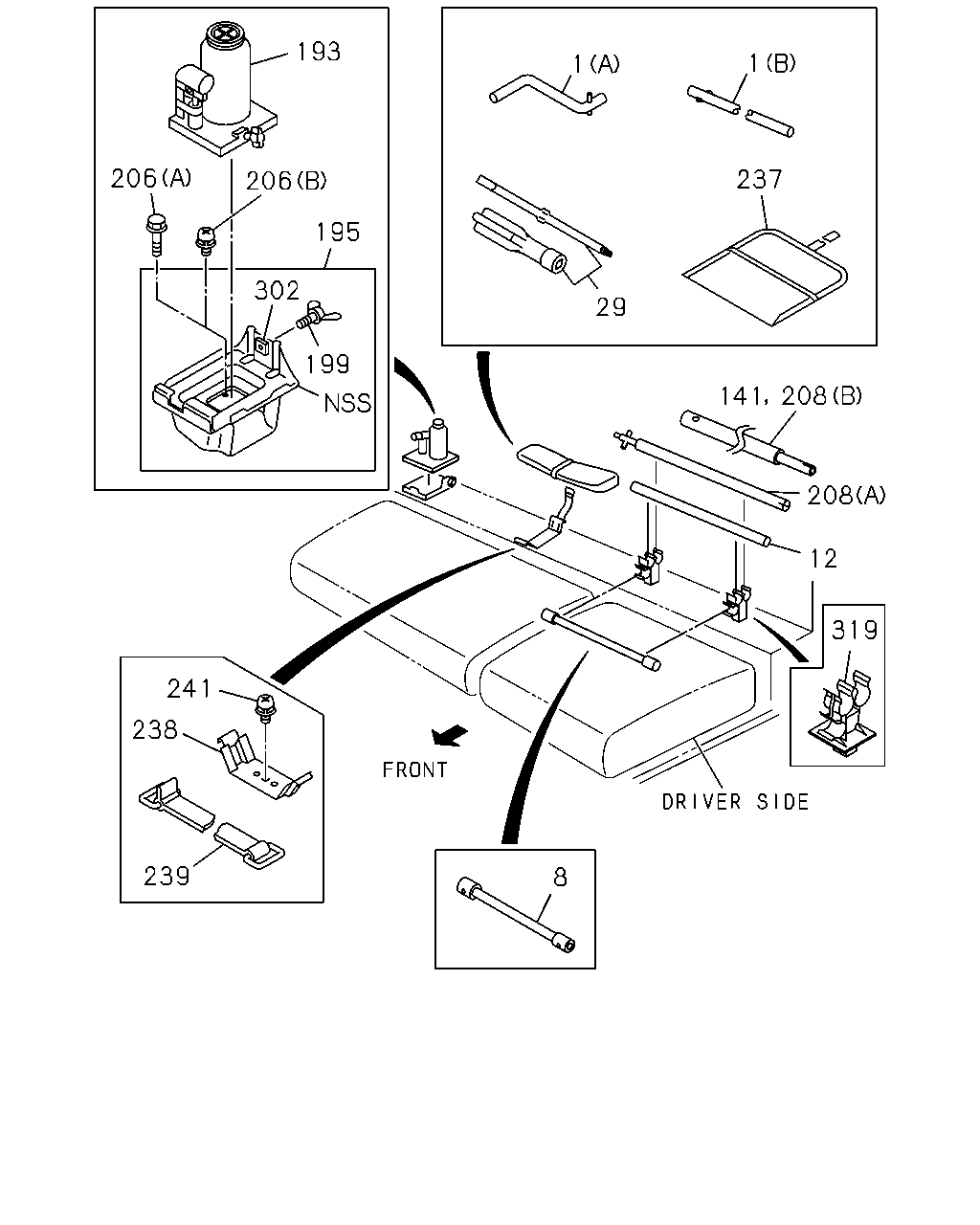

193 1 1 206 237 206 195 302 29 199 208 141 208 12 319 241 238 239 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A)	8-97218-985-0	01	1	1012-1107	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1012-1107		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1012-1107		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1012-1107			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A)	8-97218-985-0	01	1	1108-1307	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1108-1307		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1108-1307		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1108-1307			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A)	8-97218-985-0	01	1	1308-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1308-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1308-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	1308-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	1012-1108				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-	●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=280	8-98181-251-0	01	1	1109-		●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=280	8-98181-251-0	01	1	1109-			●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1109-				●
1	07.629 HANDLE; SPARE TIRE CARRIER WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1109-				●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1012-1506	●		●
8	08.821 WRENCH; WHEEL FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB& LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR T&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX 16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R- 16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440	1-85113-015-1	01	1	1012-1506		●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) B=41X21 L=440	1-85113-015-1	01	1	1012-1506				●
8	08.821 WRENCH; WHEEL B=41X21 L=440	1-85113-015-1	01	1	1507-	●
8	08.821 WRENCH; WHEEL FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB& LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR T&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-14 DISC 6.00GSX 16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R- 16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) B=41X21 L=440	1-85113-015-1	01	1	1507-		●
8	08.821 WRENCH; WHEEL FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR T&RR 225/90R17.5 17.5X6.00-135 6-WHL/NU T(CZK),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V) B=41X21 L=440	1-85113-015-1	01	1	1507-			●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ) B=41X21 L=440	1-85113-015-1	01	1	1507-				●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 7.5R-16-10 DISC 6. 00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/LDISC 5.50FX16-115(CUW),FRT&RR7.50R-16- 12 R/L 6.00GSX16-127 5-WHL/NUT(CVH), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7. 5R-16-12 6GSX16-127(19H) B=41X19 L=330	8-94386-490-1	01	1	1012-		●
8	08.821 WRENCH; WHEEL FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR7.50R-16-12 R/L6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7R- 16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H) B=41X19 L=330	8-94386-490-1	01	1	1012-				●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1209	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1209		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1209		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1012-1209			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480	1-85116-011-0	01	1	1210-1307	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1210-1307		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1210-1307		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1210-1307			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> 08.820 OD=25 L=480	1-85116-011-0	01	1	1308-1407	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1308-1407		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1308-1407		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1308-1407			●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> OD=25 L=480	8-98257-407-0	01	1	1408-	●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-		●
12	08.821 HANDLE; WRENCH,WHEEL PIN WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-			●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	1012-	●	●	●	●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 08.820 L=580	1-85515-005-1	01	1	1012-1108				●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 L=580	1-85515-005-1	01	1	1012-1108				●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 08.820 L=580	8-98181-249-0	01	1	1109-				●
141	08.821 HANDLE; WRENCH WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 L=580	8-98181-249-0	01	1	1109-				●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	1012-1211	●
193	08.820 JACK ASM FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-12 8(CSC),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4TON	8-98012-285-0	01	1	1012-1211		●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON	8-98012-285-0	01	1	1012-1211			●
193	08.820 JACK ASM FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-1 15(07H) 4TON	8-98012-285-0	01	1	1012-1211				●
193	08.820 JACK ASM 4TON	8-98012-285-0	01	1	1212-	●
193	08.820 JACK ASM FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-12 8(CSC),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) 4TON	8-98012-285-0	01	1	1212-		●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) 4TON	8-98012-285-0	01	1	1212-			●
193	08.820 JACK ASM FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-1 15(07H) EXC. SAUDI ARABIA EQUIPMENT(GH3) 4TON	8-98012-285-0	01	1	1212-				●
193	08.820 JACK ASM FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON	8-98114-047-0	01	1	1012-1107		●
193	08.820 JACK ASM FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6 GSX16-127 6-WHL/NUT(83V) 5TON	8-98114-047-0	01	1	1012-1107			●
193	08.820 JACK ASM FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX1 6-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-1 2 6GSX16-127(19H) 5TON	8-98114-047-0	01	1	1012-1107				●
193	08.820 JACK ASM FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON	8-98114-047-0	01	1	1108-		●
193	08.820 JACK ASM FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) 5TON	8-98114-047-0	01	1	1108-			●
193	08.820 JACK ASM FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX1 6-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-1 2 6GSX16-127(19H) 5TON	8-98114-047-0	01	1	1108-				●
193	08.820 JACK ASM FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ) 5TON	8-98114-045-0	01	1	1012-1211			●
193	08.820 JACK ASM FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ) EXC. SAUDI ARABIA EQUIPMENT(GH3) 5TON	8-98114-045-0	01	1	1212-1506			●
193	08.820 JACK ASM FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/ NUT(CUZ),FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/NUT(CZK) EXC. SAUDI ARABIA EQUIPMENT(GH3) 5TON	8-98114-045-0	01	1	1507-			●
195	08.820 BRACKET; JACK	8-98033-737-2	01	1	1012-	●
195	08.820 BRACKET; JACK FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-12 8(CSC),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H)	8-98033-737-2	01	1	1012-		●
195	08.820 BRACKET; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV)	8-98033-737-2	01	1	1012-			●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-97589-376-2	01	1	1012-1107		●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-97589-376-2	01	1	1012-1107			●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-97589-376-2	01	1	1108-1506		●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16- 14 6GSX16-127(CWD),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16- 10 6GSX16-127 6-WHL/NUT(83V)	8-97589-376-2	01	1	1108-1506			●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-97589-376-2	01	1	1507-		●
195	08.820 BRACKET; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16- 14 6GSX16-127(CWD),FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/NUT(CZK),FRT&RR 7.5R -16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-97589-376-2	01	1	1507-			●
195	08.820 BRACKET; JACK FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX1 6-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-1 2 6GSX16-127(19H)	8-94273-287-7	01	1	1012-				●
195	08.820 BRACKET; JACK FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-1 15(07H)	8-94262-068-3	01	1	1012-				●
199	08.820 BOLT; JACK M8X50 WING	8-98005-537-0	01	1	1012-	●
199	08.820 BOLT; JACK FRT&RR 215/75R17.5 RIB&LUG 17.5X6.00-12 7BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R1 7.5(MICHELIN)17.5X6.00-127 SILVER(CRV), FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR TIRE 205/85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-12 8(CSC),FRT&RR 215/85R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.00R-16-10 R/L DISC 5 .50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H) M8X50 WING	8-98005-537-0	01	1	1012-		●
199	08.820 BOLT; JACK FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) M8X50 WING	8-98005-537-0	01	1	1012-			●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING	8-98005-536-0	01	1	1012-1107		●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING	8-98005-536-0	01	1	1012-1107			●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING	8-98005-536-0	01	1	1108-1506		●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16- 14 6GSX16-127(CWD),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16- 10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING	8-98005-536-0	01	1	1108-1506			●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DI SC 6.00GSX16-127(CUV), FRT&RR7.50R-16-12R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&R R7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NU T(CVH),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-12 6GSX16-12 7(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING	8-98005-536-0	01	1	1507-		●
199	08.820 BOLT; JACK FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX),FRT&RR 8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16- 14 6GSX16-127(CWD),FRT&RR 225/90R17.5 17.5X6.00-135 6-WHL/NUT(CZK),FRT&RR 7.5R -16-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5R-16-10 6GSX16-127 6-WHL/NUT(83V) M8X30 WING	8-98005-536-0	01	1	1507-			●
199	08.820 BOLT; JACK FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX1 6-127(CUV),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16-1 2 6GSX16-127(19H) M8X30 WING	8-94279-018-1	01	1	1012-				●
199	08.820 BOLT; JACK FRT&RR TIRE 195/85R16 DISC 16-5.5J-116. 5(CSA),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-1 15(07H) M8X50 WING	8-94279-136-0	01	1	1012-				●
206	08.820 SCREW; OIL JACK BRKT 06.216 (A) BOLT M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 (B) M6X16	0-38050-616-0	01	1	1012-				●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642	8-97217-800-0	01	1	1012-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	1012-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	1012-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	1012-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642	8-98181-477-0	01	1	1109-1209	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-1209		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-1209		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-1209			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642	8-98181-477-0	01	1	1210-1307	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1210-1307		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1210-1307		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1210-1307			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> (A) L=642	8-98181-477-0	01	1	1308-	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE WHEEL CARRIER<P10> EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1308-		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) SPARE WHEEL CARRIER<P10> FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1308-		●
208	08.820 HANDLE; JACK WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1308-			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580	1-85515-005-1	01	1	1012-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1012-1108	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	1012-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	1012-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580	1-85515-005-1	01	1	1012-1108		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	1-85515-005-1	01	1	1012-1108			●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W) SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-	●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 2700MM(27W) SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) SPARE WHEEL CARRIER<P10> (B) L=580	8-98181-249-0	01	1	1109-		●
208	08.820 HANDLE; JACK WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) (B) L=580	8-98181-249-0	01	1	1109-			●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	1012-	●	●	●	●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	1012-	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	1012-	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	1012-	●	●	●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1012-1107	●
302	08.820 NUT; JACK BRKT FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB& LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR T&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/ 85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-1 4 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85 R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-1 2 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-98021-556-0	01	1	1012-1107		●
302	08.820 NUT; JACK BRKT FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6- WHL/NUT(83V)	8-98021-556-0	01	1	1012-1107			●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1108-1506	●
302	08.820 NUT; JACK BRKT FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB& LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR T&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/ 85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-1 4 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85 R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-1 2 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-98021-556-0	01	1	1108-1506		●
302	08.820 NUT; JACK BRKT FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR T&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-98021-556-0	01	1	1108-1506			●
302	08.820 NUT; JACK BRKT	8-98021-556-0	01	1	1507-	●
302	08.820 NUT; JACK BRKT FRT&RR 7.5R-16-10 DISC 6.00GSX16-127 GU LF(BQQ),FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-127(BUM),FRT&RR 215/75R17.5 RIB& LUG 17.5X6.00-127BLACK(CQB),FRT&RR 215/75R17.5 RIB 17.5X6.00-127 BLACK(CQC),FR T&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR TIRE 205/ 85R16 DISC 16-5.5J-116.5(CSB),FRT&RR 215/85R16 16X6K-128(CSC),FRT&RR 7.5R-16-1 4 DISC 6.00GSX16-127(CTF),FRT&RR 225/85R16 16X6K-128 SILVER(CTZ),FRT&RR 215/85 R16 16X6K-128 6-WHL/NUT(CUB),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/L DISC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-W HL/NUT(CUX),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FRT&RR 7.5R-16- 12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-1 2 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V)	8-98021-556-0	01	1	1507-		●
302	08.820 NUT; JACK BRKT FRT&RR 215/75R17.5 17.5X6.00-127 SILVER (CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR7.50R-16-12 R/L 6.00GSX16-127 6-WHL/NUT(CUX), FRT&RR8.25R-16-14 6.00GSX16-135 6-WHL/NUT(CUZ),FRT&RR 7.5R-16-14 6GSX16-127(CWD),FR T&RR 225/90R17.5 17.5X6.00-135 6-WHL/NU T(CZK),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5R-16-10 6GSX16-12 7 6-WHL/NUT(83V)	8-98021-556-0	01	1	1507-			●
302	08.820 NUT; JACK BRKT FRT&RR TIRE 7.5R-16-12 DISC 6.00GSX16-1 27(BUM),FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 225/85R16 16X6K-1 28 SILVER(CTZ),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.00R-16-10 R/ L DISC 5.50FX16-115(CUW), FRT&RR7.50R-16-12 R/L 6.00GSX16-127 5-WHL/NUT(CVH),FR T&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7.5R-16-12 6GSX16-127(19H)	8-94279-522-0	01	1	1012-				●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	1012-	●	●	●	●

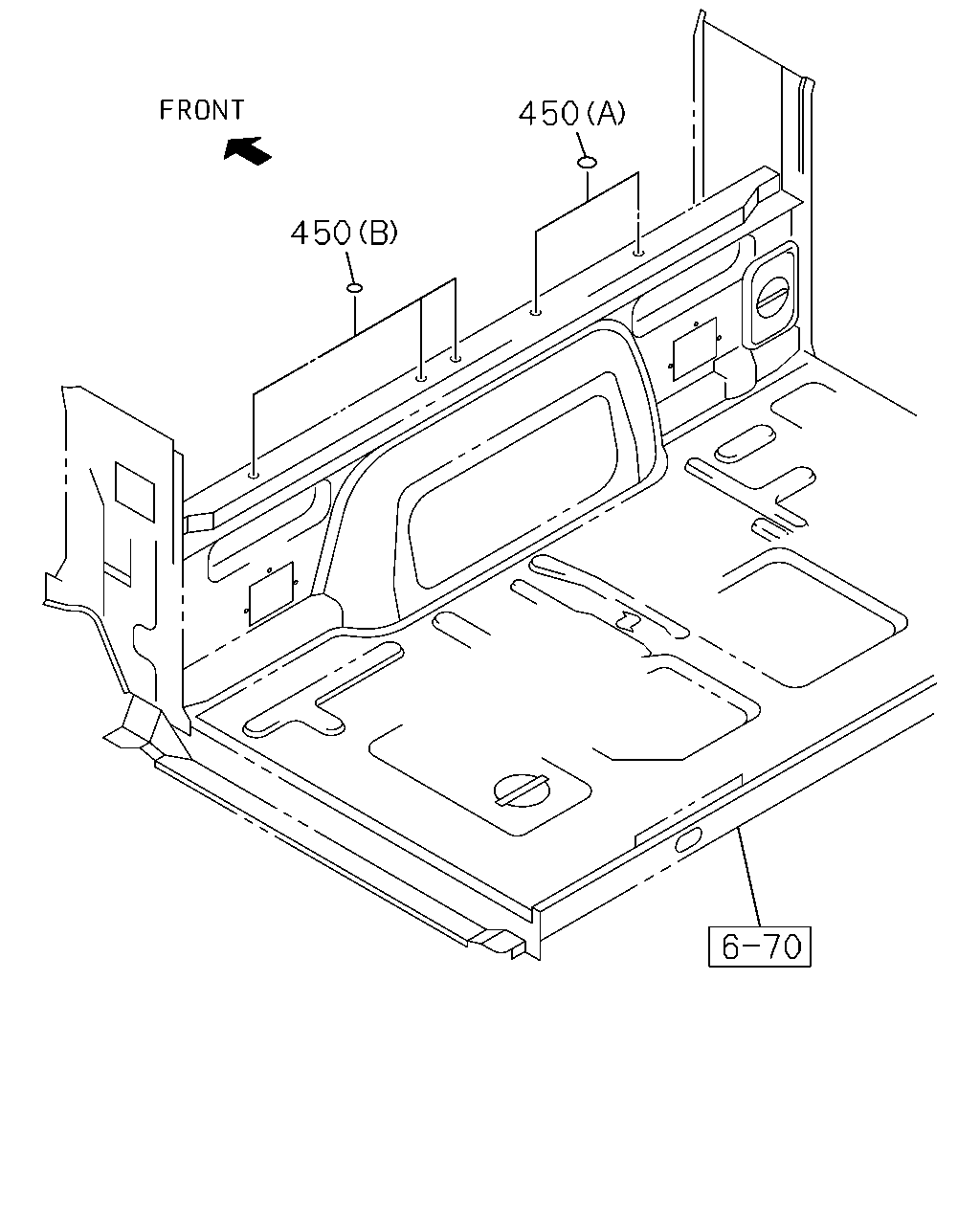

450 450

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	450	16.064 SEAL; HOLE 02.580 (A) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	1012-				●
	450	16.064 SEAL; HOLE 16.165 (B) OD=20 T=0.05 BLACK	5-76777-036-0	03	1	1012-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
