◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#38490) — 110 parça

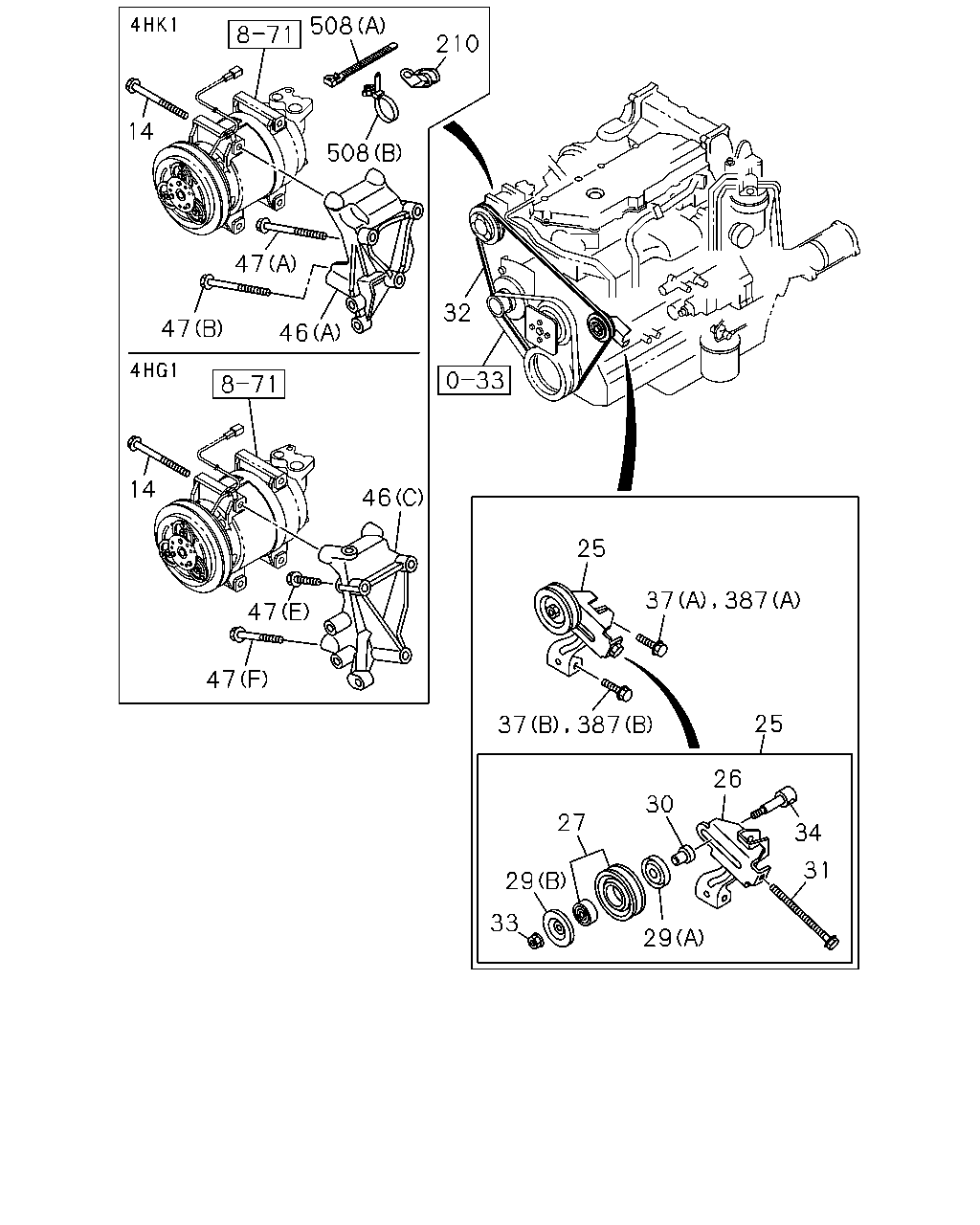

çizim 76605
508 210 14 508 47 32 47 46 14 46 25 37 387 47 47 25 26 30 27 34 31 29 33 29 37 387
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ●
14 09.171 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ● ●
14 09.171 BOLT; CMPR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012- ● ●
14 09.171 BOLT; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012- ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 1012- ● ●
26 09.180 BRACKET; IDLE PULLEY,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97161-031-1 01 1 1012- ●
27 09.180 PULLEY; IDLE,A/C
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 1012- ● ●
27 09.180 PULLEY; IDLE,A/C
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97386-869-0 01 1 1012- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 1012- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97384-114-0 01 1 1012- ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-115-0 01 1 1012- ● ●
29 09.181 COVER; DUST,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97384-115-0 01 1 1012- ●
30 09.181 COLLAR; IDLE PULLEY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 1012- ● ●
30 09.181 COLLAR; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-117-0 01 1 1012- ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 1012- ● ●
31 09.181 BOLT; ADJ,IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-113-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ● ●
33 09.181 NUT; IDLER PULLEY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 1012- ● ●
33 09.181 NUT; IDLER PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-118-0 01 1 1012- ●
34 09.181 SHAFT; IDLE PULLEY
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 1012- ● ●
34 09.181 SHAFT; IDLE PULLEY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 		8-97384-116-0 01 1 1012- ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ● ●
37 09.173 BOLT; PULLEY BRKT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 (C) 		8-97305-489-0 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 (C) 		8-97305-489-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B) 		8-98037-322-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B) 		8-98037-322-0 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A) 		8-98006-515-3 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (F) M10X110 FLANGE 		0-28156-011-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (F) M10X110 FLANGE 		0-28156-011-0 01 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (E) M10X55 FLANGE 		8-97365-449-0 02 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (E) M10X55 FLANGE 		8-97365-449-0 02 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1012- ● ●
210 09.242 CLIP; HARNESS
4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012- ● ● ●
210 09.242 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 01 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
508 09.181 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 02.559 (B) L=170.3 		1-09987-182-0 01 1 1012- ● ●
508 09.181 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 03.162 (A) L=140 		5-09707-031-1 01 1 1012- ●
508 09.181 CLIP; HARNESS
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3) 03.162 (A) L=140 		5-09707-031-1 01 1 1012- ●

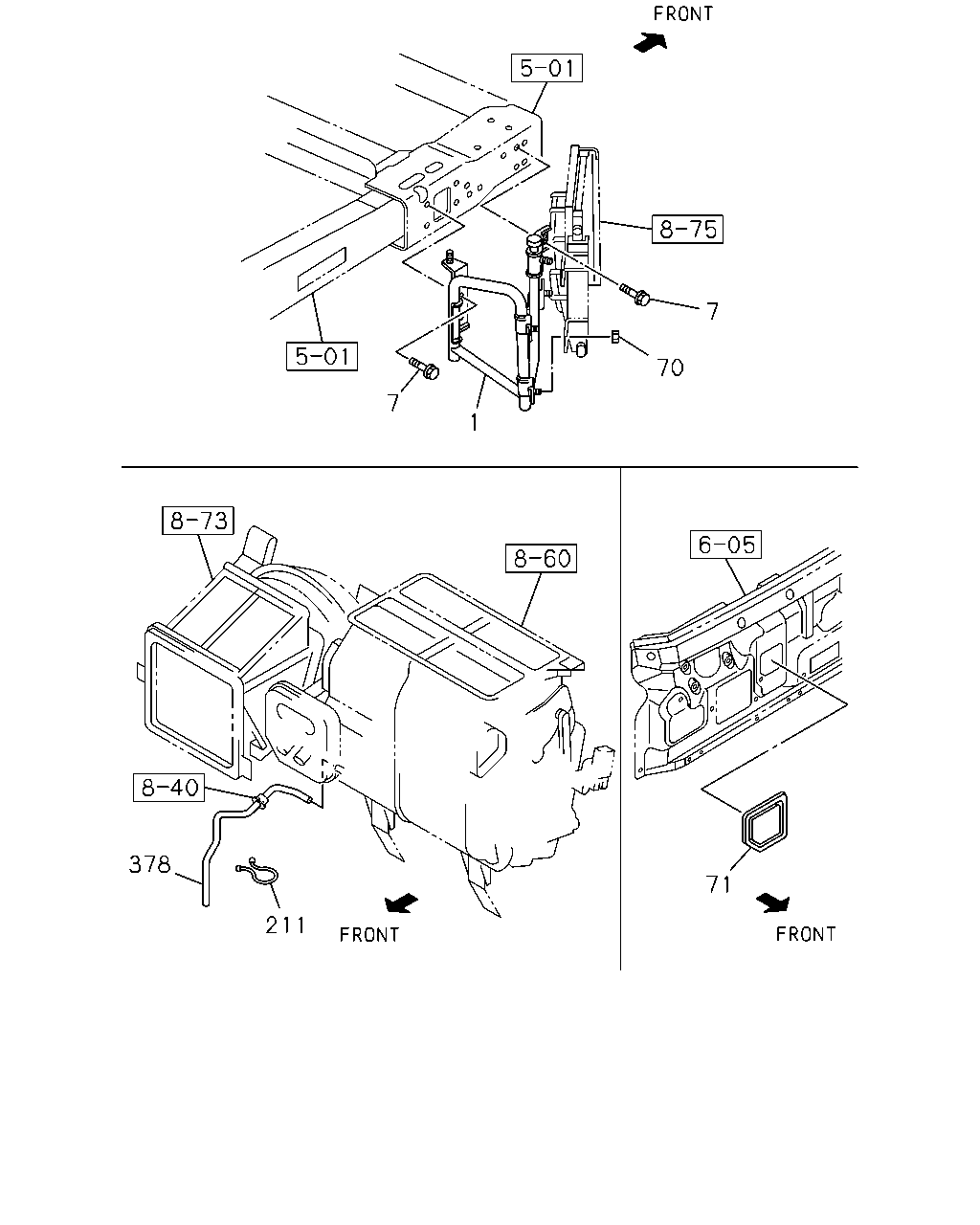

çizim 76609
7 70 7 1 378 71 211
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98006-339-0 01 1 1012-1303 ● ● ● ●
1 09.242 BRACKET; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98214-412-0 01 1 1304- ● ● ● ●
7 09.242 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 07.395 M12X30 FLANGE 		0-28651-230-0 04 1 1012- ● ● ● ●
70 09.190 NUT; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 01.062 M8 FLANGE 		0-91180-108-0 04 1 1012- ● ● ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 1012-1301 ●
71 09.190 COVER; EVAP,A/C
EXC. FORGED AIR VENTILATION(C39), HEATER& DEFROSTER(C41),AIR CONDITIONER MANUA L CONT(C60) 		8-98017-235-1 01 1 1012-1301 ● ● ●
71 09.190 COVER; EVAP,A/C
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98017-235-1 01 1 1302- ● ● ● ●
211 09.190 CLIP; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 03.278 ID=44 		8-94463-508-0 01 1 1012- ● ● ● ●
378 09.211 HOSE; DRAIN,EVAPORATOR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98006-239-3 01 1 1012- ● ● ● ●

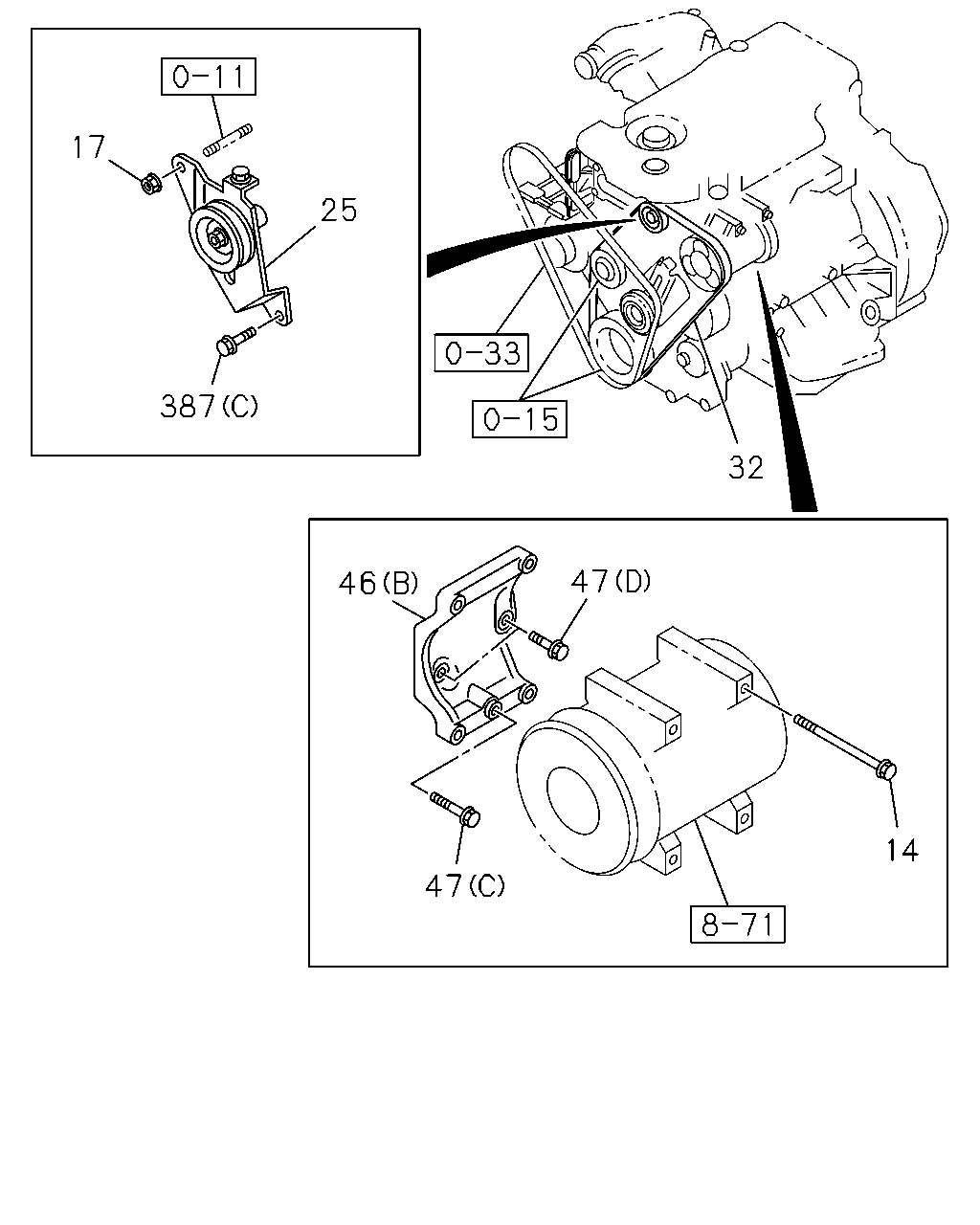

çizim 103479
17 25 387 32 47 46 14 47
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 09.171 BOLT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ●
14 09.171 BOLT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 00.386 M8X100 FLANGE 		0-28050-800-0 04 1 1012- ● ●
14 09.171 BOLT; CMPR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012- ● ●
14 09.171 BOLT; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.100 M8X90 FLANGE 		0-28050-890-0 04 1 1012- ●
17 09.171 NUT; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1012- ●
17 09.171 NUT; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.540 M8 FLANGE 		0-91180-208-0 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ●
25 09.180 PULLEY ASM; IDLER,CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98114-437-0 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012- ● ●
25 09.180 PULLEY ASM; IDLER,CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-97161-198-1 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-097-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) L=1569 		8-97180-183-3 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) L=1355 MITSUBOSHI 		8-98088-385-0 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) L=1674 		8-98010-841-1 01 1 1012- ● ●
32 01.066 BELT; A/C CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ●
32 01.066 BELT; A/C CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) BEST VALUE PARTS 		5-87610-103-0 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 (C) 		8-97305-489-0 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.242 (C) 		8-97305-489-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B) 		8-98037-322-0 01 1 1012- ●
46 09.171 BRACKET; CMPR
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 09.242 (B) 		8-98037-322-0 01 1 1012- ● ●
46 09.171 BRACKET; CMPR
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A) 		8-98006-515-3 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (F) M10X110 FLANGE 		0-28156-011-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.171 (F) M10X110 FLANGE 		0-28156-011-0 01 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (E) M10X55 FLANGE 		8-97365-449-0 02 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.683 (E) M10X55 FLANGE 		8-97365-449-0 02 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) (C) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) (C) M8X45 FLANGE 		0-28050-845-0 01 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ●
47 09.173 BOLT; BRKT TO BODY
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 06.216 (D) M8X25 FLANGE 		0-28650-825-0 02 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 01.062 (A) M10X90 FLANGE 		0-28151-090-0 02 1 1012- ● ●
47 09.173 BOLT; BRKT TO BODY
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONT(C60) 09.171 (B) M10X120 FLANGE 		0-28156-012-0 01 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 00.386 (A) M8X50 FLANGE 		0-28050-850-0 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ● ●
387 09.190 BOLT; TENSIONER FIX
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 04.510 (B) M10X65 FLANGE 		8-94344-540-1 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCS ENG(LFB) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ●
387 09.190 BOLT; TENSIONER FIX
4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60) 01.531 (C) M8X20 FLANGE 		0-28650-820-0 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
