Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#38487) — 173 parça

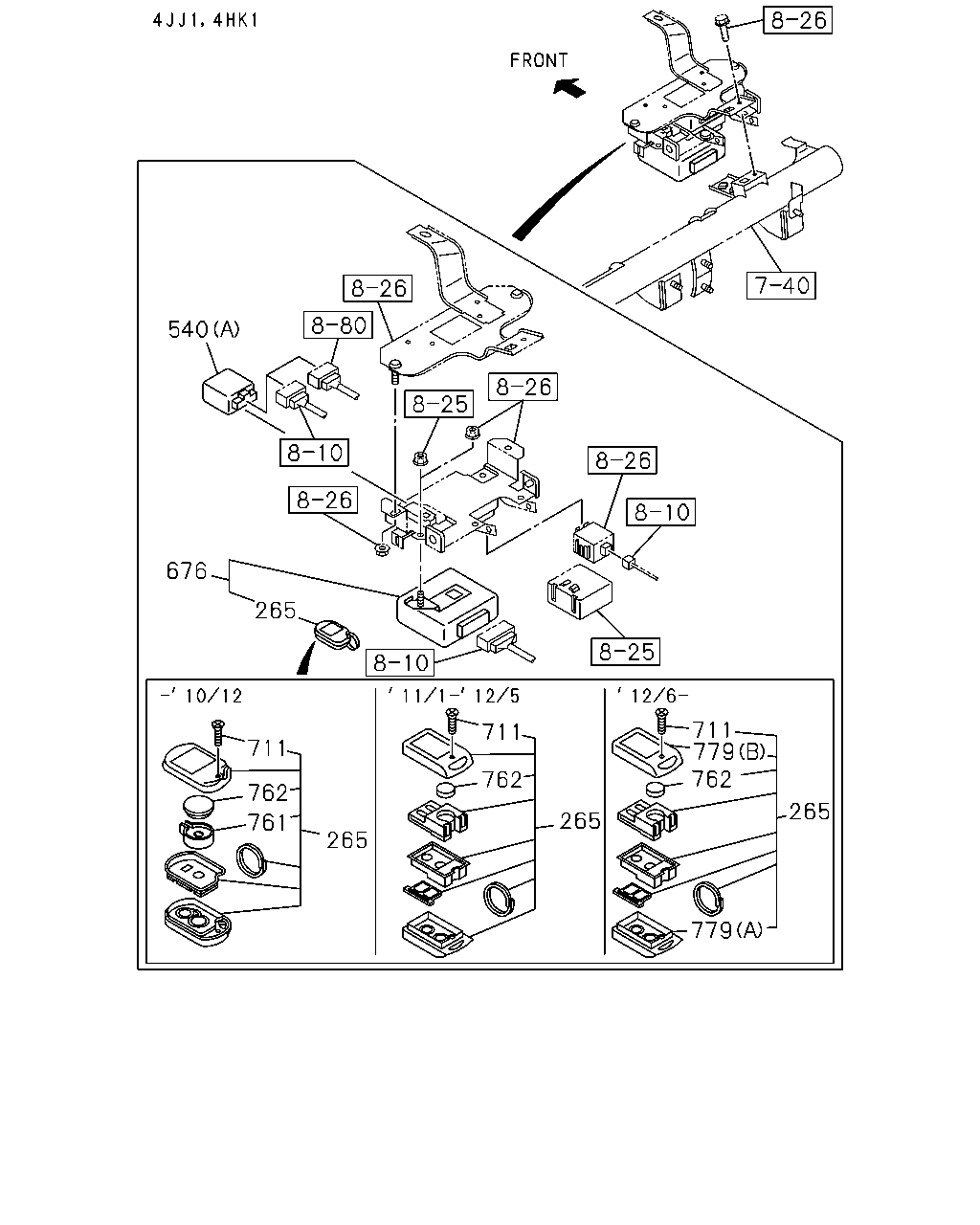

676 265 711 762 761 265 711 762 265 711 779 762 265 779 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98048-459-1	02	1	1012-1012	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98048-459-1	02	1	1012-1012		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98180-751-0	02	1	1101-1205	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98180-751-0	02	1	1101-1205		●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4JJ1-TCS ENG(LFB)	8-98218-236-0	02	1	1206-	●
265	02.440 TRANSMITTER ASM; AUTO DOOR LOCK 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98218-236-0	02	1	1206-		●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	1012-1308	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98233-976-0	01	1	1309-	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98044-504-1	01	1	1012-1012	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98044-504-1	01	1	1012-1012		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98181-810-0	01	1	1101-1205	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98181-810-0	01	1	1101-1205		●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4JJ1-TCS ENG(LFB)	8-98218-233-0	01	1	1206-	●
676	07.450 CONTROL UNIT; KEYLESS ENTRY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98218-233-0	01	1	1206-		●
711	02.510 SCREW; TRANSMITTER 4JJ1-TCS ENG(LFB) M2X5	8-98078-067-0	02	1	1012-1205	●
711	02.510 SCREW; TRANSMITTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	1012-1205		●
711	02.510 SCREW; TRANSMITTER 4JJ1-TCS ENG(LFB) M2X5	8-98218-239-0	02	1	1206-	●
711	02.510 SCREW; TRANSMITTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-		●
761	04.439 HOLDER; BATTERY 4JJ1-TCS ENG(LFB)	8-98078-063-0	02	1	1012-1012	●
761	04.439 HOLDER; BATTERY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	1012-1012		●
762	02.559 BATTERY 4JJ1-TCS ENG(LFB)	8-98078-061-0	02	1	1012-	●
762	02.559 BATTERY 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	1012-		●
779	04.115 COVER; TRANSMITTER 4JJ1-TCS ENG(LFB) 02.510 (A)	8-98218-240-0	02	1	1206-	●
779	04.115 COVER; TRANSMITTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> 02.510 (A)	8-98218-240-0	02	1	1206-		●
779	04.115 COVER; TRANSMITTER 4JJ1-TCS ENG(LFB) 02.510 (B)	8-98218-243-0	02	1	1206-	●
779	04.115 COVER; TRANSMITTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> 02.510 (B)	8-98218-243-0	02	1	1206-		●

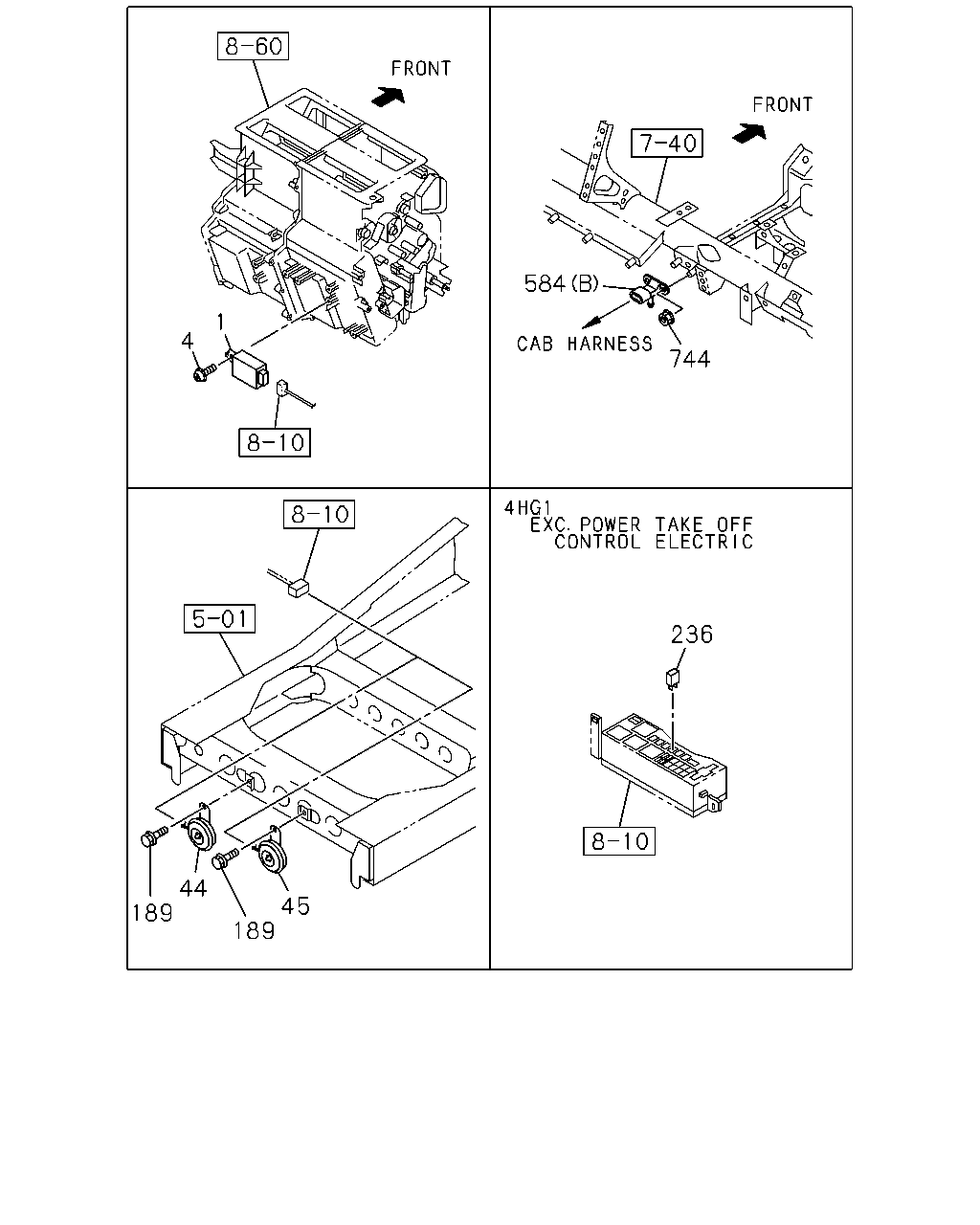

584 1 4 744 236 44 189 45 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.575 UNIT; FLASHER	8-98025-533-1	01	1	1012-	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●	●	●
4	02.575 SCREW; FLASHER UNIT 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●	●	●
44	02.810 HORN; HIGH NOTE	8-98070-080-0	01	1	1012-	●
44	02.810 HORN; HIGH NOTE DUAL HEAVY DUTY HORN(6KK)	8-98070-080-0	01	1	1012-		●	●	●
45	02.810 HORN; LOW NOTE	8-98022-023-0	01	1	1012-	●	●	●	●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●	●	●
189	02.812 BOLT; HORN 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●
189	02.812 BOLT; HORN DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-		●	●	●
236	02.485 RELAY; FUEL PUMP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-		●	●
236	02.485 RELAY; FUEL PUMP 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-				●
584	02.440 SENSOR; PRESSURE 4JJ1-TCS ENG(LFB) 03.331 (B)	8-98020-514-0	01	1	1012-	●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.331 (B)	8-98020-514-0	01	1	1012-		●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B)	8-98020-514-0	01	1	1012-			●
584	02.440 SENSOR; PRESSURE 4JJ1-TCC ENG(RDU) 03.331 (B)	8-98020-514-0	01	1	1012-				●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	1012-1406		●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	1407-1407		●	●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A)	8-97387-682-0	01	1	1408-		●	●
744	09.277 NUT; SENSOR 4JJ1-TCS ENG(LFB) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●
744	09.277 NUT; SENSOR 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-		●
744	09.277 NUT; SENSOR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-			●
744	09.277 NUT; SENSOR 4JJ1-TCC ENG(RDU) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-				●

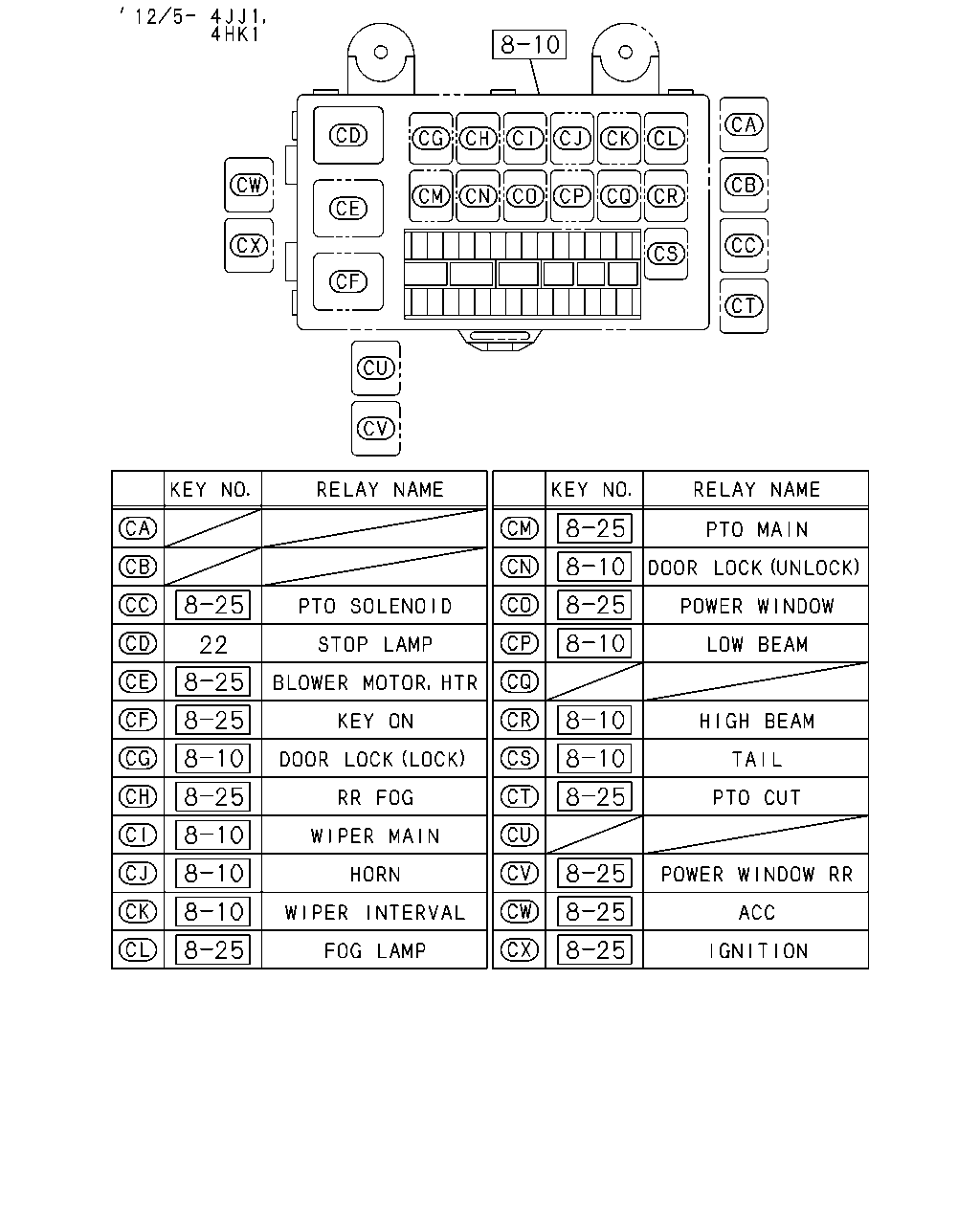

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407				●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-				●

333 531 666 236 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
236	02.485 RELAY; FUEL PUMP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-		●	●
236	02.485 RELAY; FUEL PUMP 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-				●
333	09.277 RELAY; MARKER LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-		●
531	02.769 RELAY; MAIN 4JJ1-TCS ENG(LFB) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1012-1402	●
531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1012-1402		●
531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1012-1402			●
531	02.769 RELAY; MAIN 4JJ1-TCC ENG(RDU) 02.510 24V 30A MITSUBA	8-97238-540-0	01	1	1012-1402				●
531	02.769 RELAY; MAIN 4JJ1-TCS ENG(LFB) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●
531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-		●
531	02.769 RELAY; MAIN 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-			●
531	02.769 RELAY; MAIN 4JJ1-TCC ENG(RDU) 02.485 24V 30A MITSUBA	8-98259-779-0	01	1	1403-				●
666	02.173 RELAY; STARTER 4JJ1-TCS ENG(LFB) 24V 10A PANASONIC	8-98167-173-0	01	1	1012-	●
666	02.173 RELAY; STARTER 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 24V 10A PANASONIC	8-98167-173-0	01	1	1012-		●
666	02.173 RELAY; STARTER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 24V 10A PANASONIC	8-98167-173-0	01	1	1012-			●
666	02.173 RELAY; STARTER 4JJ1-TCC ENG(RDU) 24V 10A PANASONIC	8-98167-173-0	01	1	1012-				●

236 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
236	02.485 RELAY; FUEL PUMP 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-		●	●
236	02.485 RELAY; FUEL PUMP 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-				●
333	09.277 RELAY; MARKER LAMP 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-	●
333	09.277 RELAY; MARKER LAMP RR FOG LAMP<T79> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-		●

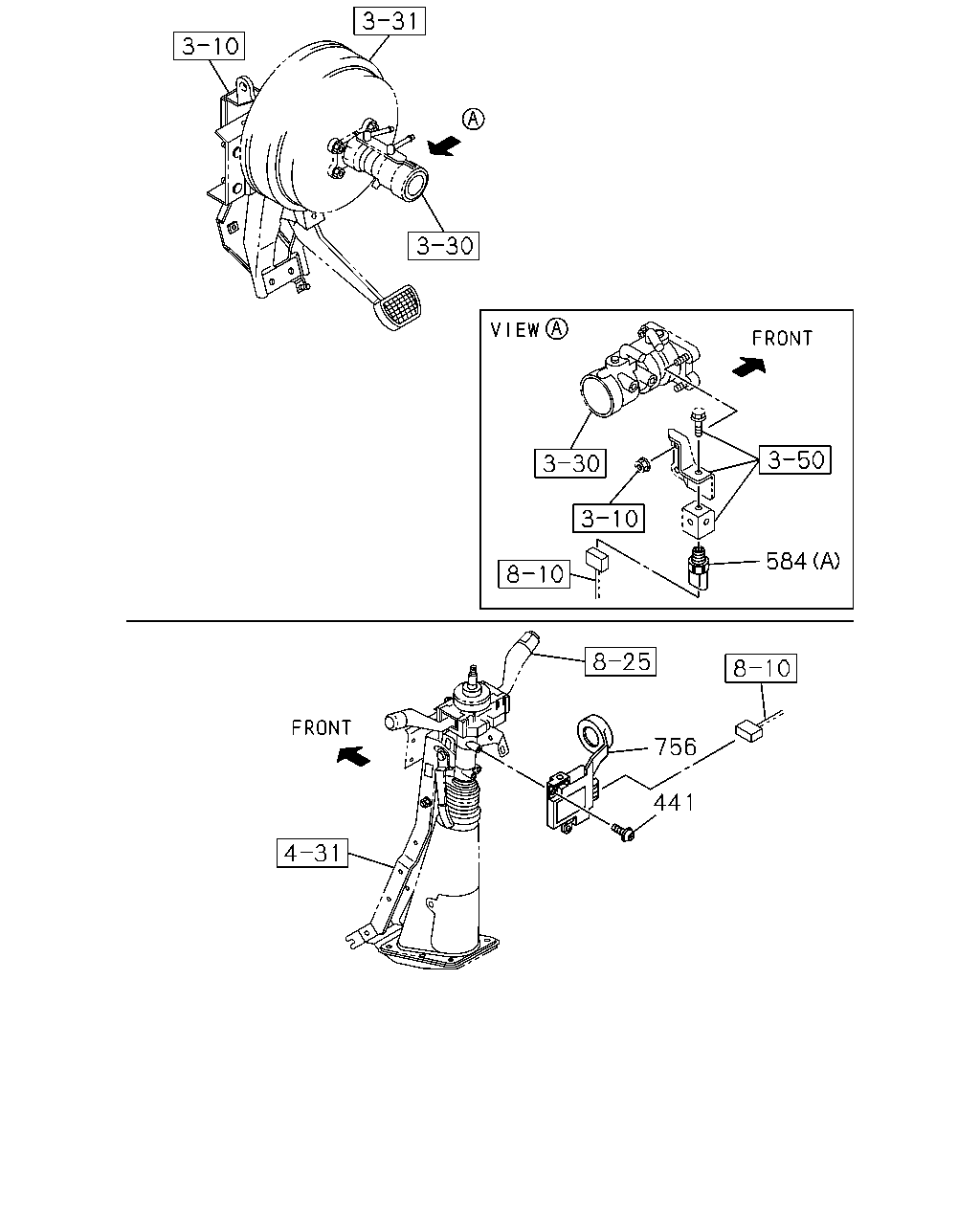

584 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
441	02.575 SCREW; CONT UNIT 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1012-	●
441	02.575 SCREW; CONT UNIT IMMOBILIZER SYSTEM(7KC) 09.650 M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	1012-		●
584	02.440 SENSOR; PRESSURE 4JJ1-TCS ENG(LFB) 03.331 (B)	8-98020-514-0	01	1	1012-	●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 03.331 (B)	8-98020-514-0	01	1	1012-		●
584	02.440 SENSOR; PRESSURE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.331 (B)	8-98020-514-0	01	1	1012-			●
584	02.440 SENSOR; PRESSURE 4JJ1-TCC ENG(RDU) 03.331 (B)	8-98020-514-0	01	1	1012-				●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	1012-1406		●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97387-682-0	01	1	1407-1407		●	●
584	02.440 SENSOR; PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ALGERIA EQUIPMENT(WN1) (A)	8-97387-682-0	01	1	1408-		●	●
756	16.263 CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1012-	●
756	16.263 CONTROL UNIT; IMMOBILIZER IMMOBILIZER SYSTEM(7KC)	8-98158-127-0	01	1	1012-		●

376 42 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	09.766 BRACKET; RELAY 4HG1 ENG(RJH) INTERMITTENT WIPER<C13>	8-98094-199-0	01	1	1012-		●	●	●
376	03.342 BOLT; RELAY 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1012-		●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	1012-1308	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98233-976-0	01	1	1309-	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●

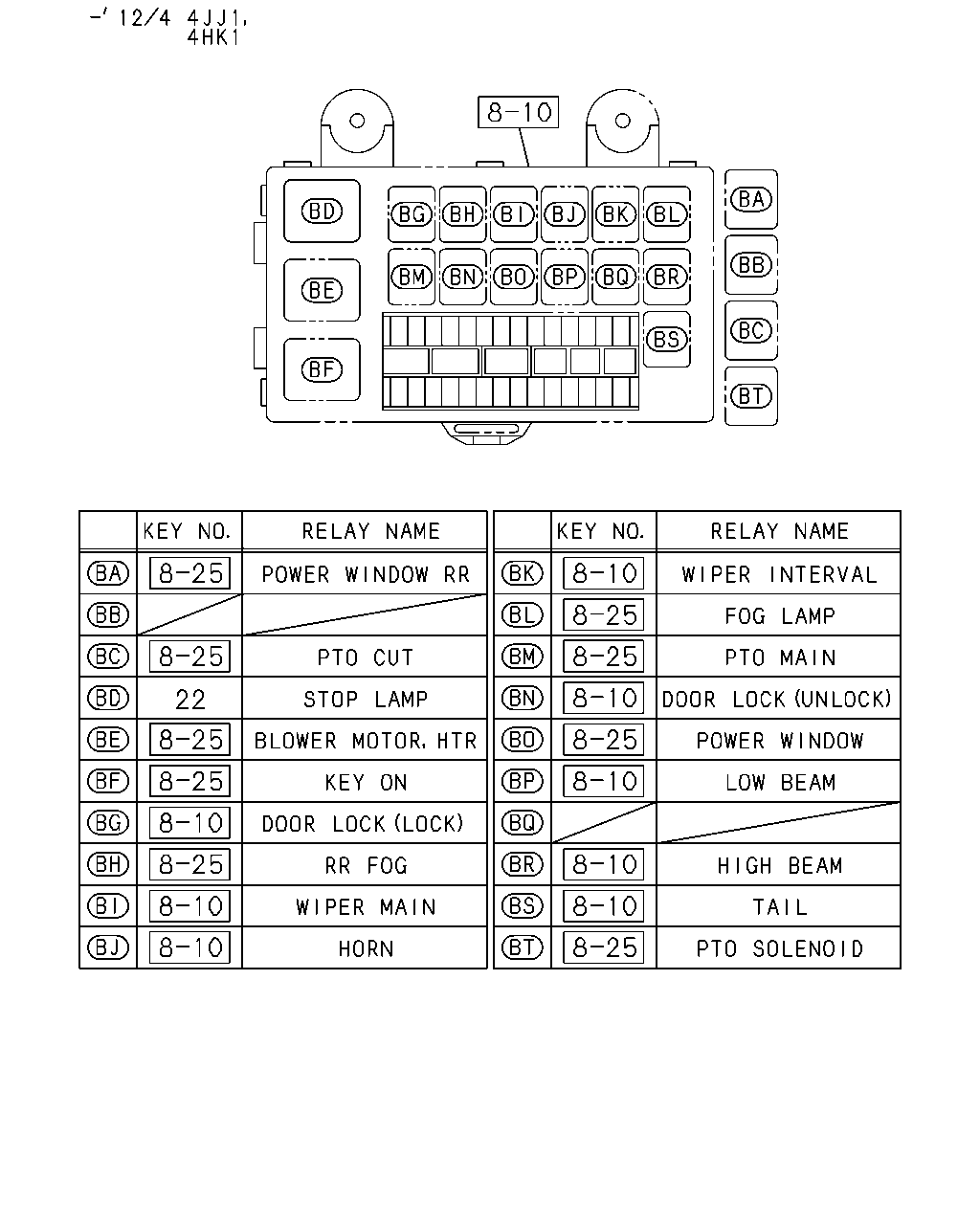

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407				●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-				●

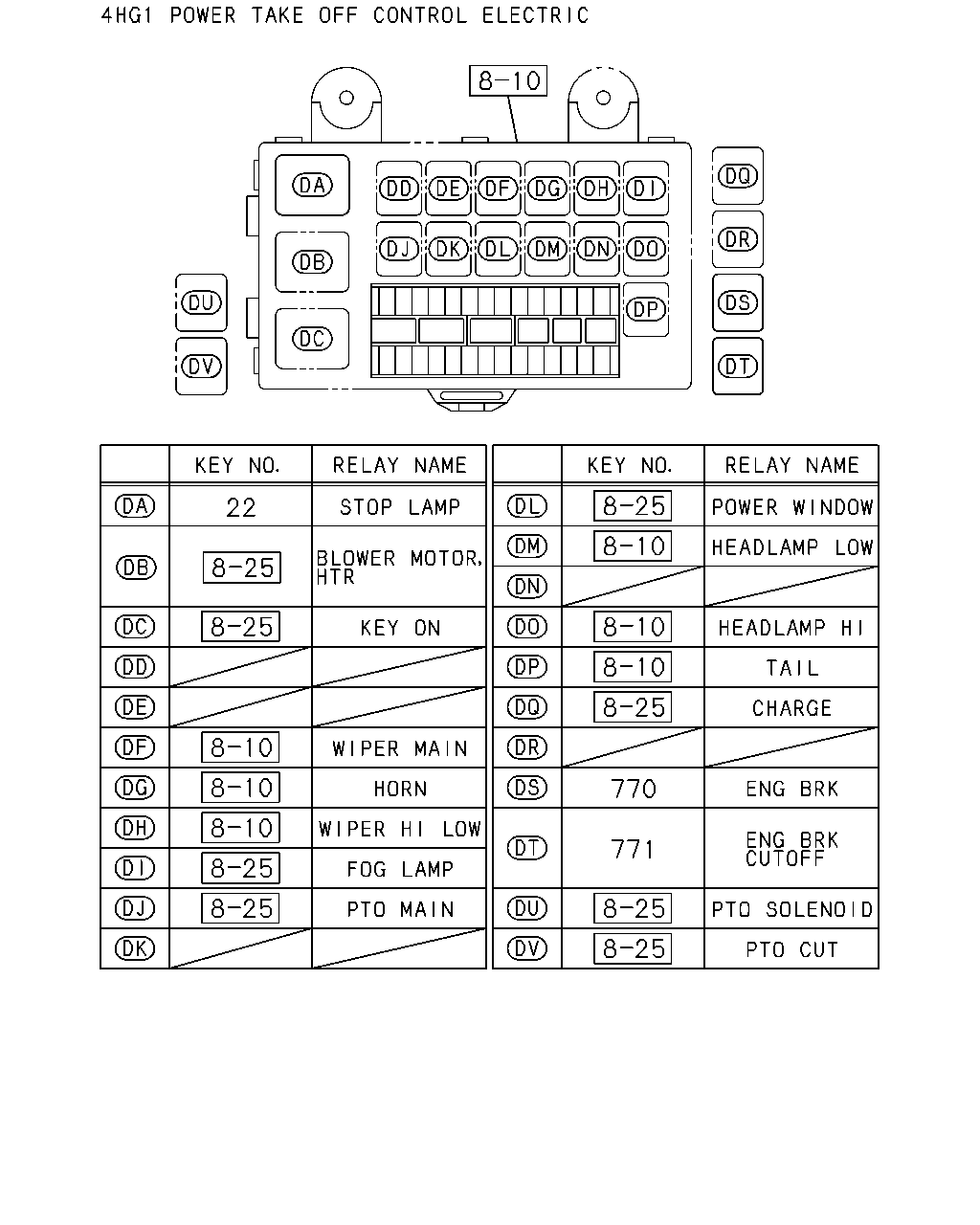

22 770 8 540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	16.067 RELAY; WIPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
8	16.067 RELAY; WIPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
8	16.067 RELAY; WIPER 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
8	16.067 RELAY; WIPER 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
8	16.067 RELAY; WIPER 4HG1 ENG(RJH) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407				●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-				●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	1012-1308	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98233-976-0	01	1	1309-	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
770	02.510 RELAY; ENG BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
770	02.510 RELAY; ENG BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
770	02.510 RELAY; ENG BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●

540

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98060-388-0	01	1	1012-1308	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13> (A)	8-98233-976-0	01	1	1309-	●	●	●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
540	16.067 RELAY; WIPER INTERVAL 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
540	16.067 RELAY; WIPER INTERVAL 4HG1 ENG(RJH) 08.852 (B) 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●

22 770 771

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1012-1407				●
22	02.679 RELAY; STOP LAMP 4JJ1-TCS ENG(LFB) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-	●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-		●
22	02.679 RELAY; STOP LAMP 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-			●
22	02.679 RELAY; STOP LAMP 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) 02.510 24V 12.5A PANASONIC	8-97262-933-0	01	1	1408-				●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
770	02.510 RELAY; ENG BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
770	02.510 RELAY; ENG BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407			●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407				●
770	02.510 RELAY; ENG BRK 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●
770	02.510 RELAY; ENG BRK 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-				●
771	02.510 RELAY; ENG BRK CUTOFF 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1012-1407		●
771	02.510 RELAY; ENG BRK CUTOFF 4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC	8-97173-035-1	01	1	1408-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
