◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#38486) — 17 parça

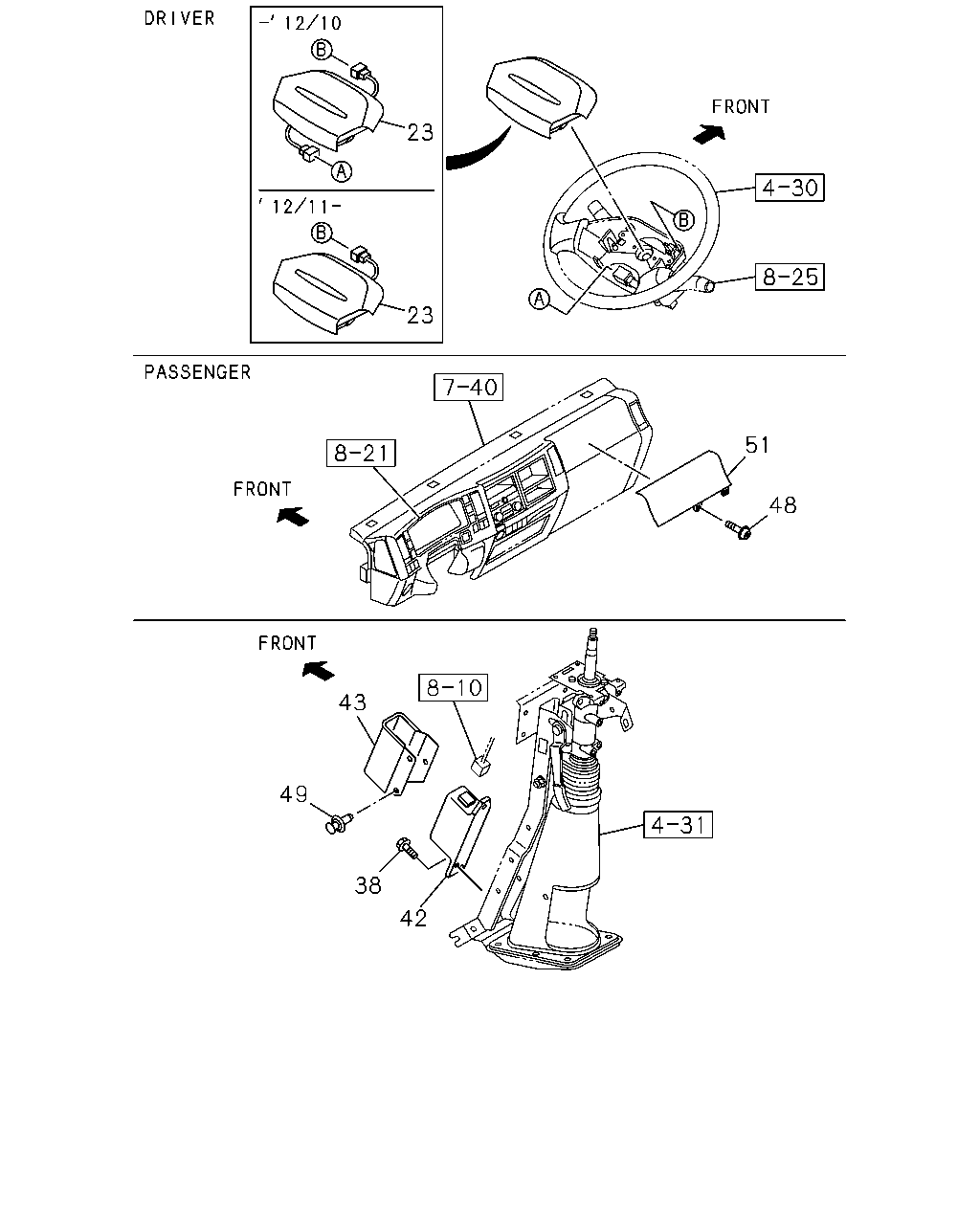

çizim 102801
23 23 51 48 43 49 38 42
BalonParca AdiParca NoAdetTipApplied Date A B C
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. ISUZU BRAND<7WL> DARK GRAY 		8-97424-576-1 01 1 1211- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> EXC. ISUZU BRAND<7WL> DARK GRAY 		8-97424-576-1 01 1 1211- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97418-100-0 01 1 1012-1210 ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> DARK GRAY 		8-97418-100-0 01 1 1012-1210 ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> DARK GRAY 		8-97423-999-1 01 1 1211- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> ISUZU BRAND<7WL> DARK GRAY 		8-97423-999-1 01 1 1211- ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER<AJ3> ISUZU BRAND<7WL> DARK GRAY 		8-97423-999-1 01 1 1211- ●
38 06.870 BOLT; CONT UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> M6X18 W/PL WASHER 		8-97105-796-1 03 1 1012- ● ●
38 06.870 BOLT; CONT UNIT
AIR BAG DRIVER<AJ3> M6X18 W/PL WASHER 		8-97105-796-1 03 1 1012- ●
42 02.510 CONTROL UNIT; SRS
AIR BAG DRIVER<AJ3> 		8-98120-057-2 01 1 1012- ● ● ●
42 02.510 CONTROL UNIT; SRS
AIR BAG DRIVER & PASSENGER<AK5> 		8-98120-059-2 01 1 1012- ● ●
43 02.559 PROTECTOR; CONTROL UNIT
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 		8-98083-536-0 01 1 1012- ● ●
43 02.559 PROTECTOR; CONTROL UNIT
AIR BAG DRIVER<AJ3> 		8-98083-536-0 01 1 1012- ●
48 02.440 BOLT; INST PNL
AIR BAG DRIVER & PASSENGER<AK5> 08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 02 1 1012- ● ●
49 02.559 CLIP; PROTECTOR
AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 16.320 OD=8.3 		8-97997-832-0 03 1 1012- ● ●
49 02.559 CLIP; PROTECTOR
AIR BAG DRIVER<AJ3> 16.320 OD=8.3 		8-97997-832-0 03 1 1012- ●
51 02.559 AIR BAG ASM; P/S
AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97409-783-2 01 1 1012- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
