Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#38485) — 204 parça

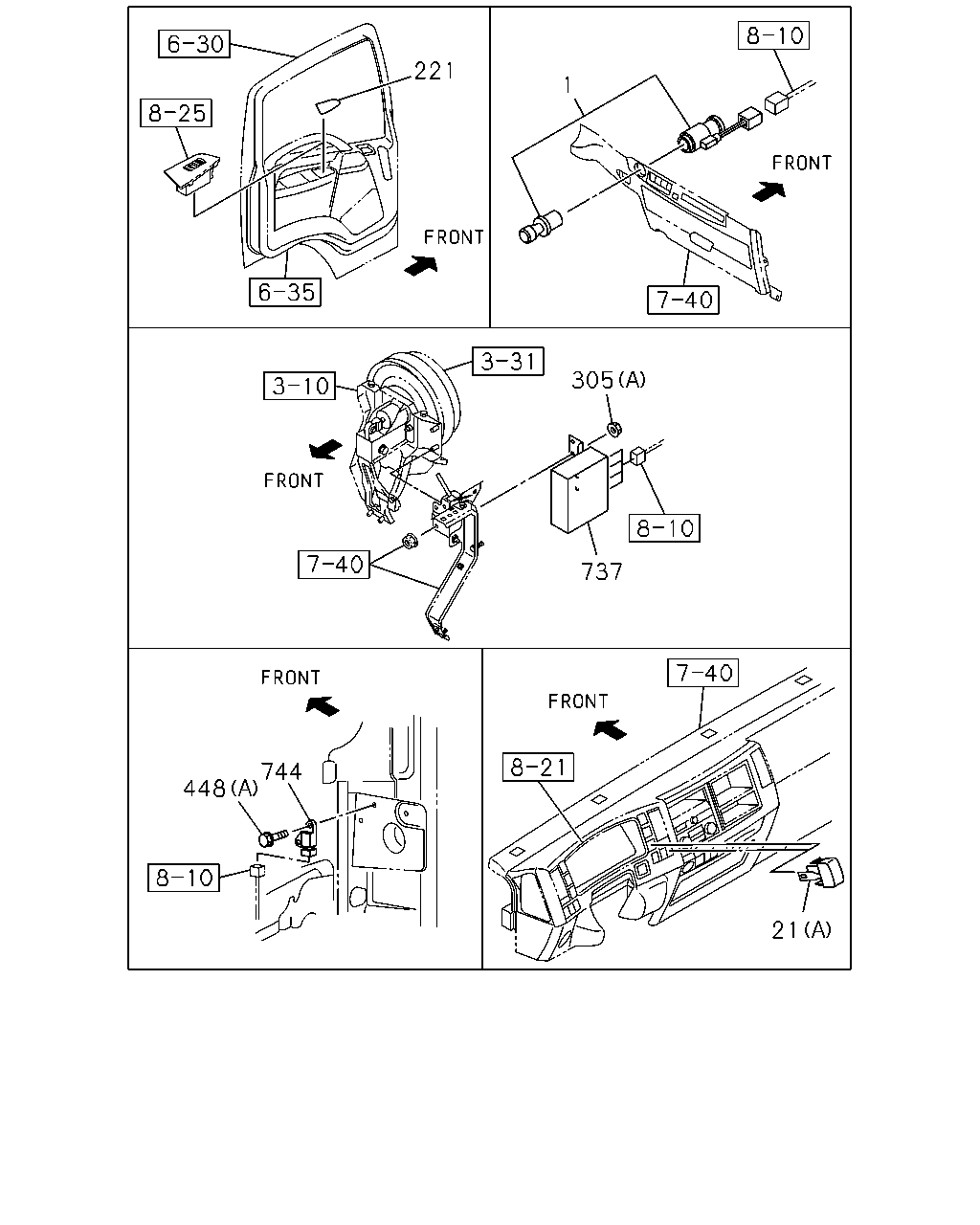

221 1 305 737 744 448 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	09.709 LIGHTER; CIGAR	8-98142-962-0	01	1	1012-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	02	1	1012-1511	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1512-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1512-	●			●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1512-	●			●
21	09.744 COVER; HOLE EXC. CHILE EQUIPMENT(KE1) 16.081 (A)	8-98025-954-1	01	1	1512-		●	●
21	09.744 COVER; HOLE EXC. AUTO CRUISE CONT<K30> 16.081 (A)	8-98025-954-1	01	1	1512-		●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1012-1511	●			●
21	09.744 COVER; HOLE EXC. CHILE EQUIPMENT(KE1) 16.081 (A)	8-98025-954-1	01	1	1012-1511		●	●
21	09.744 COVER; HOLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 09.748 (B)	8-97101-974-0	01	1	1012-		●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	1012-		●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-915-2	01	1	1012-				●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	1012-		●	●
221	16.320 COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT&REAR DOOR<A31>	8-98029-916-2	01	1	1012-				●
305	08.915 NUT; CONT UNIT 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●
305	08.915 NUT; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1012-		●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1012-	●	●
448	02.500 BOLT; SENSOR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1012-		●	●	●
737	04.115 CONTROL UNIT; TRANSMISSION 4HK1-TCN ENG(RDQ) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-712-5	01	1	1012-		●
737	04.115 CONTROL UNIT; TRANSMISSION 4HK1-TCN ENG(RDQ) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-713-3	01	1	1012-1302		●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98236-777-0	01	1	1303-1304		●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98246-646-0	01	1	1305-1308		●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98249-919-0	01	1	1309-1309		●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98254-378-0	01	1	1310-1403		●
737	04.115 CONTROL UNIT; TRANSMISSION 4JJ1-TCC ENG(RDU) EURO3 SPECIFICATION(NT3) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98255-495-0	01	1	1404-		●
737	04.115 CONTROL UNIT; TRANSMISSION 4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98067-715-3	01	1	1012-1302		●
744	03.682 SENSOR; AIR BAG AIR BAG DRIVER & PASSENGER<AK5>	8-97386-841-2	01	1	1012-	●	●

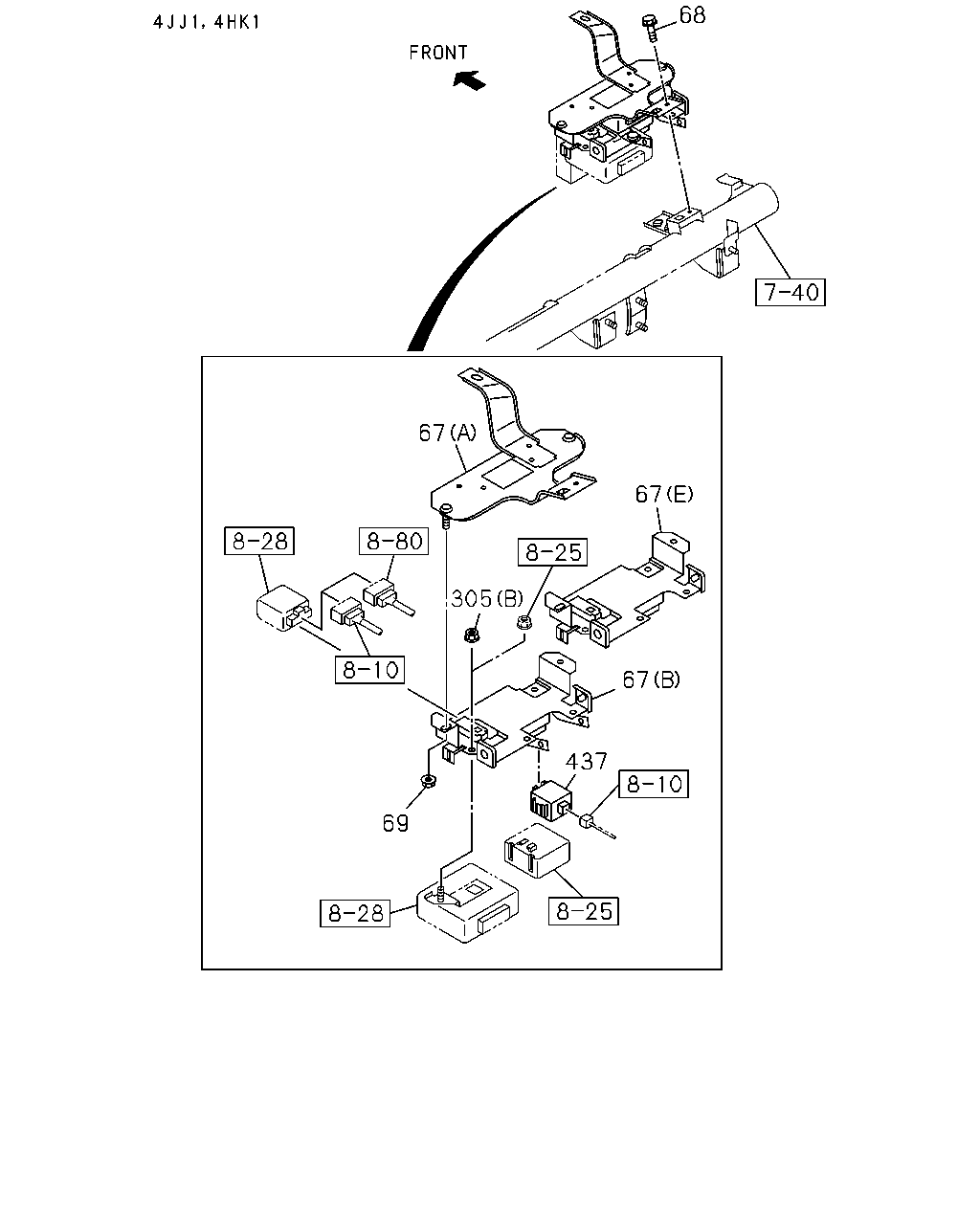

68 67 67 437 305 67 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98203-057-0	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98203-057-0	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98203-057-0	01	1	1112-1207			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98203-057-0	01	1	1112-1207				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98217-377-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98217-377-0	01	1	1208-1212			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98217-377-0	01	1	1208-1212				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98237-555-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98237-555-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98237-555-0	01	1	1301-1404			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98237-555-0	01	1	1301-1404				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98217-377-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98217-377-0	01	1	1405-			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98217-377-0	01	1	1405-				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) (B)	8-98022-206-2	01	1	1012-1111	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) (B)	8-98022-206-2	01	1	1012-1111		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98022-206-2	01	1	1012-1111			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (B)	8-98022-206-2	01	1	1012-1111				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98022-206-2	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98022-206-2	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98217-376-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98237-554-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-554-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98217-376-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1012-	●	●	●	●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) (D)	8-98172-518-0	01	1	1012-1212		●	●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1301-1406		●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) (D)	8-98172-518-0	01	1	1301-1406			●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1407-		●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1407-			●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1012-1212		●	●	●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1301-1406		●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1301-1406			●	●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1407-		●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1407-			●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1407-				●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	1012-	●	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●	●	●
305	08.915 NUT; CONT UNIT 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●
305	08.915 NUT; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1012-		●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	1012-	●
437	10.485 CONVERTER; DC HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO	8-97359-129-0	01	1	1012-		●	●	●

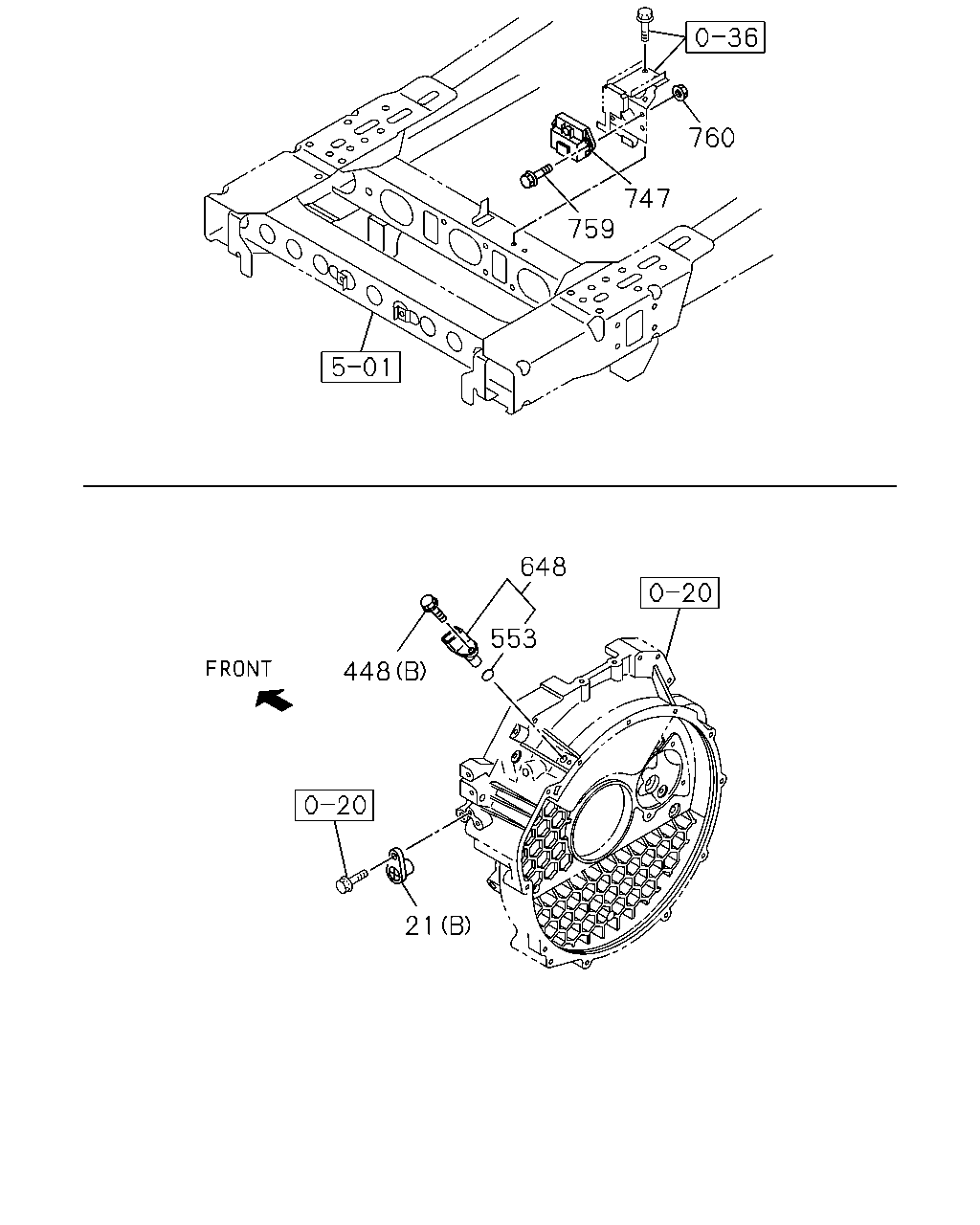

760 747 759 648 553 448 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	02	1	1012-1511	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1512-	●	●	●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1512-	●			●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1512-	●			●
21	09.744 COVER; HOLE EXC. CHILE EQUIPMENT(KE1) 16.081 (A)	8-98025-954-1	01	1	1512-		●	●
21	09.744 COVER; HOLE EXC. AUTO CRUISE CONT<K30> 16.081 (A)	8-98025-954-1	01	1	1512-		●	●
21	09.744 COVER; HOLE 16.081 (A)	8-98025-954-1	01	1	1012-1511	●			●
21	09.744 COVER; HOLE EXC. CHILE EQUIPMENT(KE1) 16.081 (A)	8-98025-954-1	01	1	1012-1511		●	●
21	09.744 COVER; HOLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO3 SPECIFICATION(NT3),EURO4 SPECIFICATION(NT4) 09.748 (B)	8-97101-974-0	01	1	1012-		●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1012-	●	●
448	02.500 BOLT; SENSOR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1012-		●	●	●
553	02.500 GASKET 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2) 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1012-1106		●	●
553	02.500 GASKET 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.724 ID=14.2 OD=18.8	8-97369-404-0	01	1	1107-		●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO2 SPECIFICATION(NT2)	8-97606-943-0	01	1	1012-1106		●	●
648	03.682 SENSOR; CRANK ANGLE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97606-943-0	01	1	1107-		●	●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4)	8-98077-118-2	01	1	1012-1012		●
747	02.510 CONTROL UNIT; TURBOCHARGER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4)	8-98162-807-0	01	1	1101-		●
759	04.115 BOLT; CONT MODULE,TURBOCHARGER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	1012-		●
760	04.115 NUT; CONT MODULE,TURBOCHARGER 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EURO4 SPECIFICATION(NT4) 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-		●

68 67 67 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98203-057-0	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98203-057-0	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98203-057-0	01	1	1112-1207			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98203-057-0	01	1	1112-1207				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98217-377-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98217-377-0	01	1	1208-1212			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98217-377-0	01	1	1208-1212				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98237-555-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98237-555-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98237-555-0	01	1	1301-1404			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98237-555-0	01	1	1301-1404				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98217-377-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98217-377-0	01	1	1405-			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98217-377-0	01	1	1405-				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) (B)	8-98022-206-2	01	1	1012-1111	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) (B)	8-98022-206-2	01	1	1012-1111		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98022-206-2	01	1	1012-1111			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (B)	8-98022-206-2	01	1	1012-1111				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98022-206-2	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98022-206-2	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98217-376-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98237-554-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-554-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98217-376-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1012-	●	●	●	●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) (D)	8-98172-518-0	01	1	1012-1212		●	●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1301-1406		●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) (D)	8-98172-518-0	01	1	1301-1406			●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1407-		●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1407-			●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1012-1212		●	●	●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1301-1406		●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1301-1406			●	●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1407-		●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1407-			●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1407-				●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	1012-	●	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●	●	●

68 67 305 67 437 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98203-057-0	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98203-057-0	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98203-057-0	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98203-057-0	01	1	1112-1207			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98203-057-0	01	1	1112-1207				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98217-377-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98217-377-0	01	1	1208-1212			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98217-377-0	01	1	1208-1212				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98237-555-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98237-555-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98237-555-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98237-555-0	01	1	1301-1404			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98237-555-0	01	1	1301-1404				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. TACHOGRAPH DIGITAL<EBB> (E)	8-98217-377-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98217-377-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (E)	8-98217-377-0	01	1	1405-			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (E)	8-98217-377-0	01	1	1405-				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) (B)	8-98022-206-2	01	1	1012-1111	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) (B)	8-98022-206-2	01	1	1012-1111		●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98022-206-2	01	1	1012-1111			●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCC ENG(RDU) (B)	8-98022-206-2	01	1	1012-1111				●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98022-206-2	01	1	1112-1207	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98022-206-2	01	1	1112-1207		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98217-376-0	01	1	1208-1212	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1208-1212		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98237-554-0	01	1	1301-1404	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98237-554-0	01	1	1301-1404		●
67	03.887 BRACKET; CONT UNIT 4JJ1-TCS ENG(LFB) TACHOGRAPH DIGITAL<EBB> (B)	8-98217-376-0	01	1	1405-	●
67	03.887 BRACKET; CONT UNIT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-98217-376-0	01	1	1405-		●
67	03.887 BRACKET; CONT UNIT (A)	8-98015-039-1	01	1	1012-	●	●	●	●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) (D)	8-98172-518-0	01	1	1012-1212		●	●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1301-1406		●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) (D)	8-98172-518-0	01	1	1301-1406			●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1407-		●
67	03.887 BRACKET; CONT UNIT 4HG1-T ENG(RDP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-98172-518-0	01	1	1407-			●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1012-1212		●	●	●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1301-1406		●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1301-1406			●	●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. TACHOGRAPH DIGITAL<EBB>,4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1407-		●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98110-224-1	01	1	1407-			●
67	03.887 BRACKET; CONT UNIT 4HG1 ENG(RJH) (C)	8-98110-224-1	01	1	1407-				●
68	02.500 BOLT; BRKT 00.206 M6X12 FLANGE	0-28450-612-0	01	1	1012-	●	●	●	●
69	02.458 NUT; BRKT 01.062 M6 FLANGE	0-91180-106-0	02	1	1012-	●	●	●	●
305	08.915 NUT; CONT UNIT 4JJ1-TCS ENG(LFB) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-	●
305	08.915 NUT; CONT UNIT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) REMOTE CONT DOOR LOCK<6NF> 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1012-		●
305	08.915 NUT; CONT UNIT TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	02	1	1012-		●
437	10.485 CONVERTER; DC KOITO	8-97359-129-0	01	1	1012-	●
437	10.485 CONVERTER; DC HEADLAMP LEVELING MANUAL CONTROL<TR6> KOITO	8-97359-129-0	01	1	1012-		●	●	●

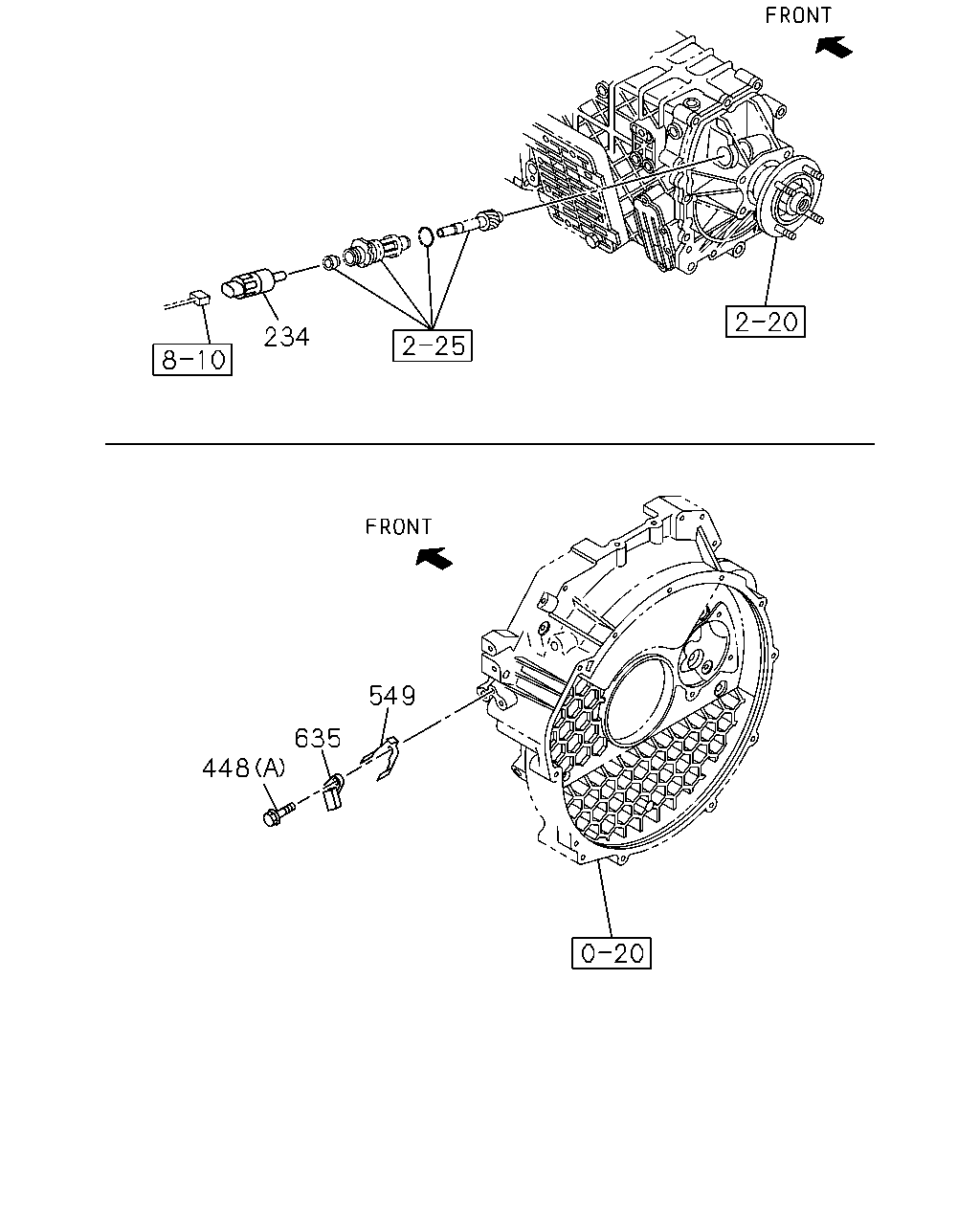

234 549 635 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
234	03.682 SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	1012-1406	●		●	●
234	03.682 SENSOR; VEHICLE SPD EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM	8-97328-058-1	01	1	1012-1406		●
234	03.682 SENSOR; VEHICLE SPD 25 PULSE ALUMINUM	8-97328-058-1	01	1	1407-	●			●
234	03.682 SENSOR; VEHICLE SPD EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 25 PULSE ALUMINUM	8-97328-058-1	01	1	1407-		●	●
448	02.500 BOLT; SENSOR AIR BAG DRIVER & PASSENGER<AK5> 06.870 (A) M6X18 W/PL WASHER	8-97105-796-1	02	1	1012-	●	●
448	02.500 BOLT; SENSOR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) 09.242 (B) M6X16 FLANGE	0-28050-616-0	01	1	1012-		●	●	●
549	02.510 SHEET 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.743	8-97161-633-2	01	1	1012-		●	●	●
635	09.750 SENSOR; TACHOMETER 4HG1-T ENG(RDP) YAZAKI	8-97214-325-0	01	1	1012-		●	●
635	09.750 SENSOR; TACHOMETER 4HG1 ENG(RJH) CALSONIC KANSEI	8-97163-104-0	01	1	1012-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
