◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51293 - NNR/NPR/NQR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#38484) — 582 parça
çizim 76116
527 86 87 609 317 610 45 693 12 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
45 02.252 RELAY; HORN
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
45 02.252 RELAY; HORN
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
86 02.485 RELAY; HI-BEAM
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
86 02.485 RELAY; HI-BEAM
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
87 02.485 RELAY; LOW-BEAM
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
87 02.485 RELAY; LOW-BEAM
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ● ● ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
527 02.510 RELAY; TAIL
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
527 02.510 RELAY; TAIL
4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1407 ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1407 ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1407 ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1408- ● ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1408- ●
çizim 76467
608 151 154 315
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107-1407 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107-1407 ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107-1407 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107-1407 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107-1407 ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXC. EURO4 SPECIFICATION(NT4) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1012-1402 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●

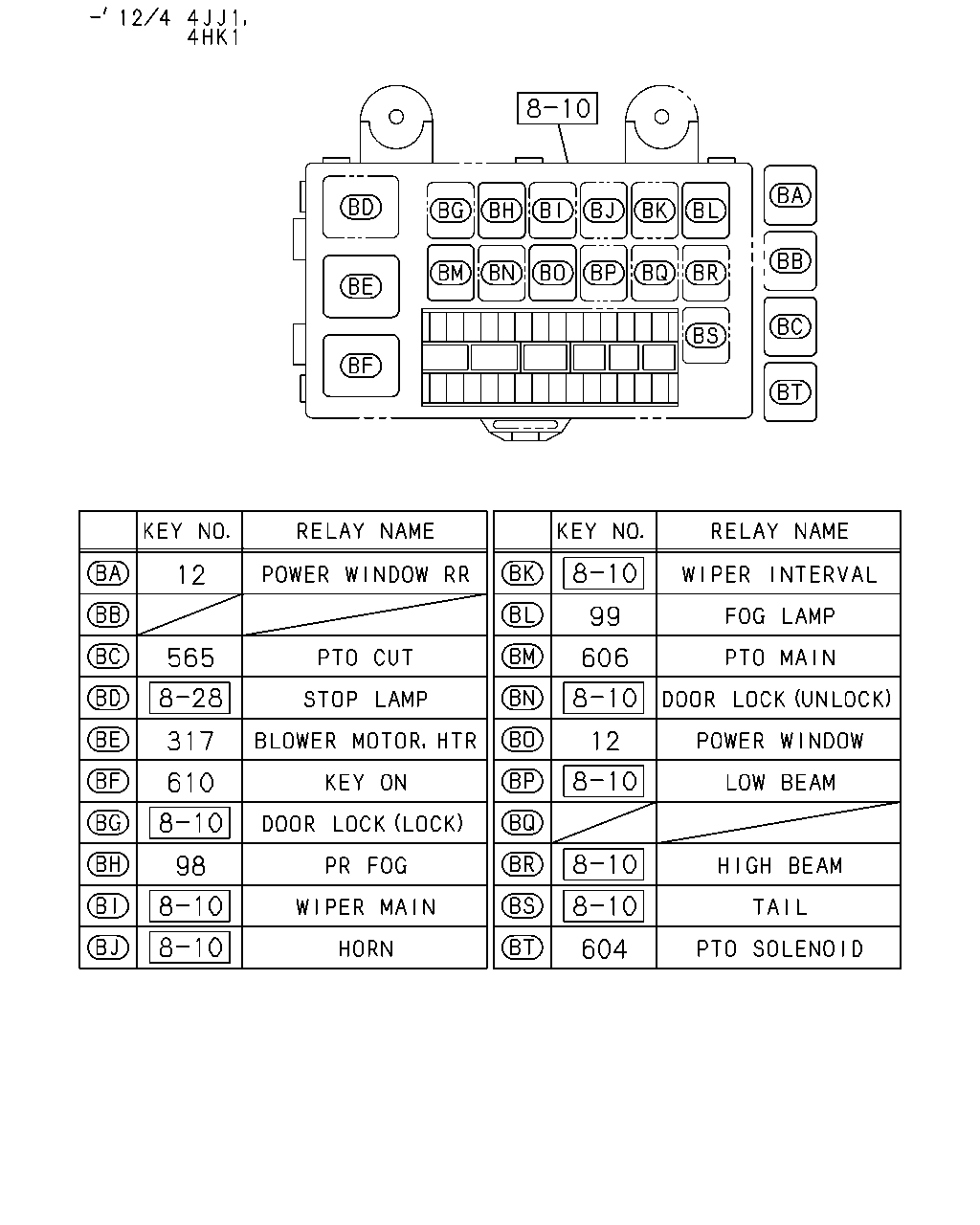

çizim 76541
12 99 565 606 317 12 610 98 604
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
98 02.485 RELAY; RR FOG LAMP
4JJ1-TCS ENG(LFB) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
98 02.485 RELAY; RR FOG LAMP
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ● ● ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●

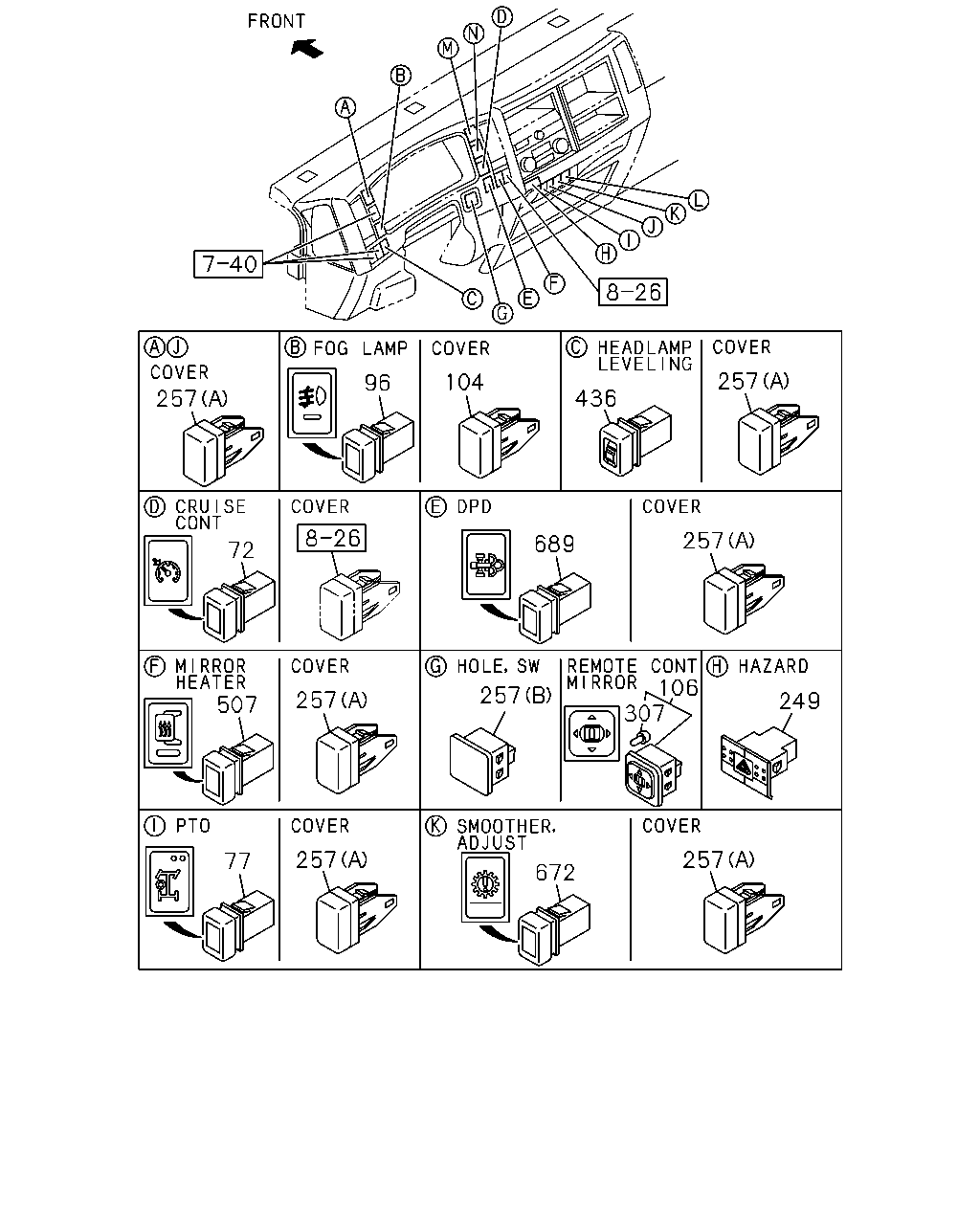

çizim 76571
257 96 104 436 257 257 689 72 507 257 257 307 106 249 257 672 257 77
BalonParca AdiParca NoAdetTipApplied Date A B C D
72 02.485 SWITCH; CRUISE CONT
AUTO CRUISE CONT<K30> 		8-98011-344-1 01 1 1512- ● ●
77 04.439 SWITCH; PTO
DUMP CHASSIS(V4D) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PTO TRANSMISSION SIDE(V66) 		8-97386-964-2 01 1 1012- ●
77 04.439 SWITCH; PTO
PTO TRANSMISSION SIDE(V66) PTO MANUAL CONTROL(6WC) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97386-964-2 01 1 1012- ●
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-4 01 1 1012-1407 ●
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97386-993-4 01 1 1408- ●
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-4 01 1 1408- ●
96 02.485 SWITCH; FOG LAMP 8-97387-031-4 01 1 1012- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1012- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1012- ● ● ●
106 10.186 SWITCH; REMOTE CONT MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-97173-294-1 01 1 1012- ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1012- ● ● ● ●
257 16.081 COVER; HOLE,SW
4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4JJ1-TCC ENG(RDU) (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ●
307 08.991 BULB ASM; SW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 24V 		8-98226-896-0 01 1 1012- ● ●
436 02.485 SWITCH; HEADLAMP LEVELING 8-97386-981-2 01 1 1012- ●
436 02.485 SWITCH; HEADLAMP LEVELING
HEADLAMP LEVELING MANUAL CONTROL<TR6> 		8-97386-981-2 01 1 1012- ● ● ●
507 10.186 SWITCH; MIRROR HEATER
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> 		8-97386-924-3 01 1 1012- ● ●
672 16.263 SWITCH; SMOOTHER,ADJUST
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-949-1 01 1 1012- ●
689 02.780 SWITCH; DPD 8-97386-921-2 01 1 1012- ●
689 02.780 SWITCH; DPD
CATALYSIS CONTROL WITH DPD(8JM) 		8-97386-921-2 01 1 1012- ●

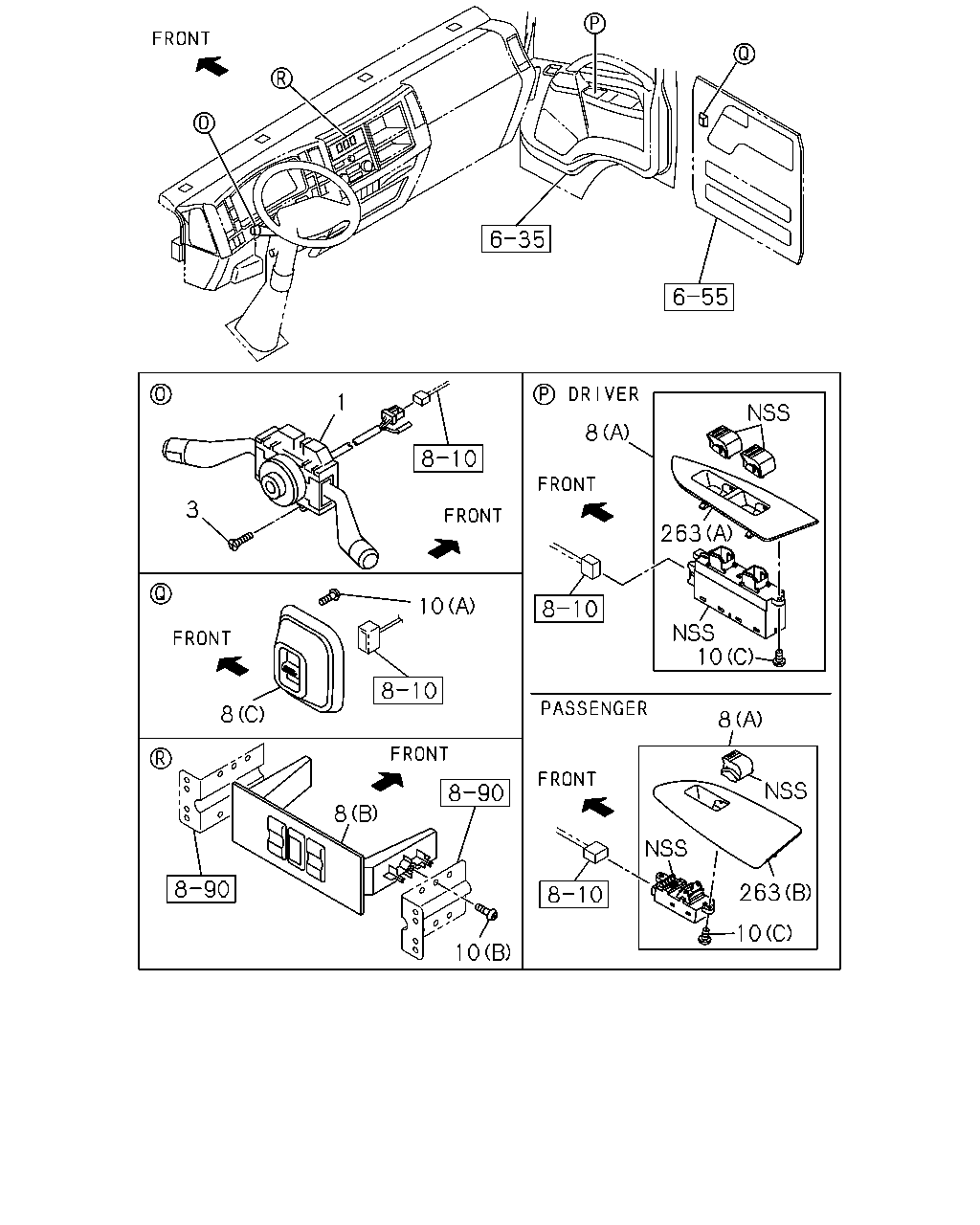

çizim 76606
1 8 3 263 10 10 8 8 8 263 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98333-396-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> AUTO CRUISE CONT<K30> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3> 		8-98333-396-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AUTO CRUISE CONT<K30> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98333-395-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AUTO CRUISE CONT<K30> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98333-395-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98146-639-0 01 1 1012-1210 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98146-639-0 01 1 1012-1210 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98217-812-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98217-812-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-740-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98243-740-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-740-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. CORNERING LAMP<T87> 		8-98243-740-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> 		8-98243-740-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AUTO CRUISE CONT<K30>,CORNERING LAMP<T87> 		8-98243-740-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98073-850-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,CORNERING LAMP<T87> 		8-98073-850-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-757-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-757-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5> 		8-98243-757-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,AUTO CRUISE CONT<K30> ,CORNERING LAMP<T87> 		8-98243-757-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98070-007-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,CORNERING LAMP<T87> 		8-98070-007-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,CORNERING LAMP<T87> 		8-98243-750-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,CORNERING LAMP<T87> 		8-98243-750-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4JJ1-TCS ENG(LFB) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13> 		8-98243-750-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> RR FOG LAMP<T79> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,CORNERING LAMP <T87> 		8-98243-750-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98114-334-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3> 		8-98114-334-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98114-334-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98243-760-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3> 		8-98243-760-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-760-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98243-760-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3> 		8-98243-760-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-760-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,AUTO CRUISE CONT<K30> ,RR FOG LAMP<T79> 		8-98243-760-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-98243-760-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-760-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-669-1 01 1 1012-1107 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1012-1107 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1012-1107 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-669-1 01 1 1108-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1108-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98072-669-1 01 1 1108-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98243-751-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. AIR BAG DRIVER<AJ3>,EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-751-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-751-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,AUTO CRUISE CONT<K30> ,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79>, EXHAUST BRAKE VAR3<8QZ> 		8-98243-751-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30>,EXHAUST BRAKE<NF8>,EXHAUST BRAK E VAR3<8QZ> 		8-98243-751-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> EXC. EXHAUST BRAKE<NF8> 		8-98243-751-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98114-333-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98114-333-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98114-333-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-759-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-759-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,RR FOG LAMP<T79> 		8-98243-759-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 		8-98243-759-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-759-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-667-2 01 1 1012-1107 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1012-1107 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1012-1107 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98072-667-2 01 1 1108-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1108-1310 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98072-667-2 01 1 1108-1310 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79> 		8-98243-752-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79>, EXHAUST BRAKE VAR3<8QZ> 		8-98243-752-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8>,EXHAUST BR AKE VAR3<8QZ> 		8-98243-752-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,EXHAUST BRAKE<NF8>,RR FOG LAMP<T79>,EXHAUST BRAKE VAR 3<8QZ> 		8-98243-752-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-752-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HG1 ENG(RJH) CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,EXHAUST BRAKE<NF8> 		8-98243-752-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. RR FOG LAMP<T79> 		8-98146-640-0 01 1 1012-1210 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> 		8-98146-640-0 01 1 1012-1210 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. RR FOG LAMP<T79> 		8-98217-813-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> 		8-98217-813-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. RR FOG LAMP<T79> 		8-98243-739-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> 		8-98243-739-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. RR FOG LAMP<T79> 		8-98243-739-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> 		8-98243-739-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. AUTO CRUISE CONT<K30>,RR FOG LAMP<T79> 		8-98243-739-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. AUTO CRUISE CONT<K30> 		8-98243-739-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98146-638-0 01 1 1012-1210 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13> 		8-98146-638-0 01 1 1012-1210 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98217-811-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13> 		8-98217-811-0 01 1 1211-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-738-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXHAUST BRAKE<NF8> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13> 		8-98243-738-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-738-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13> 		8-98243-738-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,RR FOG LAMP<T79> 		8-98243-738-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) AIR BAG DRIVER<AJ3> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> CORNERING LAMP<T87> EXC. INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 		8-98243-738-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98070-010-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3> 		8-98070-010-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98070-010-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3> 		8-98243-749-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-749-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3> 		8-98243-749-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-749-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,AUTO CRUISE CONT<K30> ,RR FOG LAMP<T79> 		8-98243-749-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AUTO CRUISE CONT<K30> 		8-98243-749-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-749-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98070-008-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98070-008-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1510-1511 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30>,RR FOG LAMP<T79> 		8-98243-748-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. AIR BAG DRIVER<AJ3>,INTERMITTENT WIPER<C13>,AUTO CRUISE CONT<K30> 		8-98243-748-0 01 1 1512- ●
1 02.895 SWITCH; COMB
4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-748-0 01 1 1512- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1012- ● ● ● ●
8 16.263 SWITCH; POWER WINDOW
06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 06.609 (A) DRIVER SIDE 		8-98159-544-0 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-751-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98001-737-2 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98001-737-2 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
(A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-418-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1012- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
(C) 		8-98153-865-0 03 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ●
263 16.081 COVER; SW
(A) 		8-98153-838-0 01 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (A) 		8-98153-838-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98153-838-0 01 1 1012- ●
263 16.081 COVER; SW
(B) 		8-98153-843-0 01 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> (B) 		8-98153-843-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98153-843-0 01 1 1012- ●

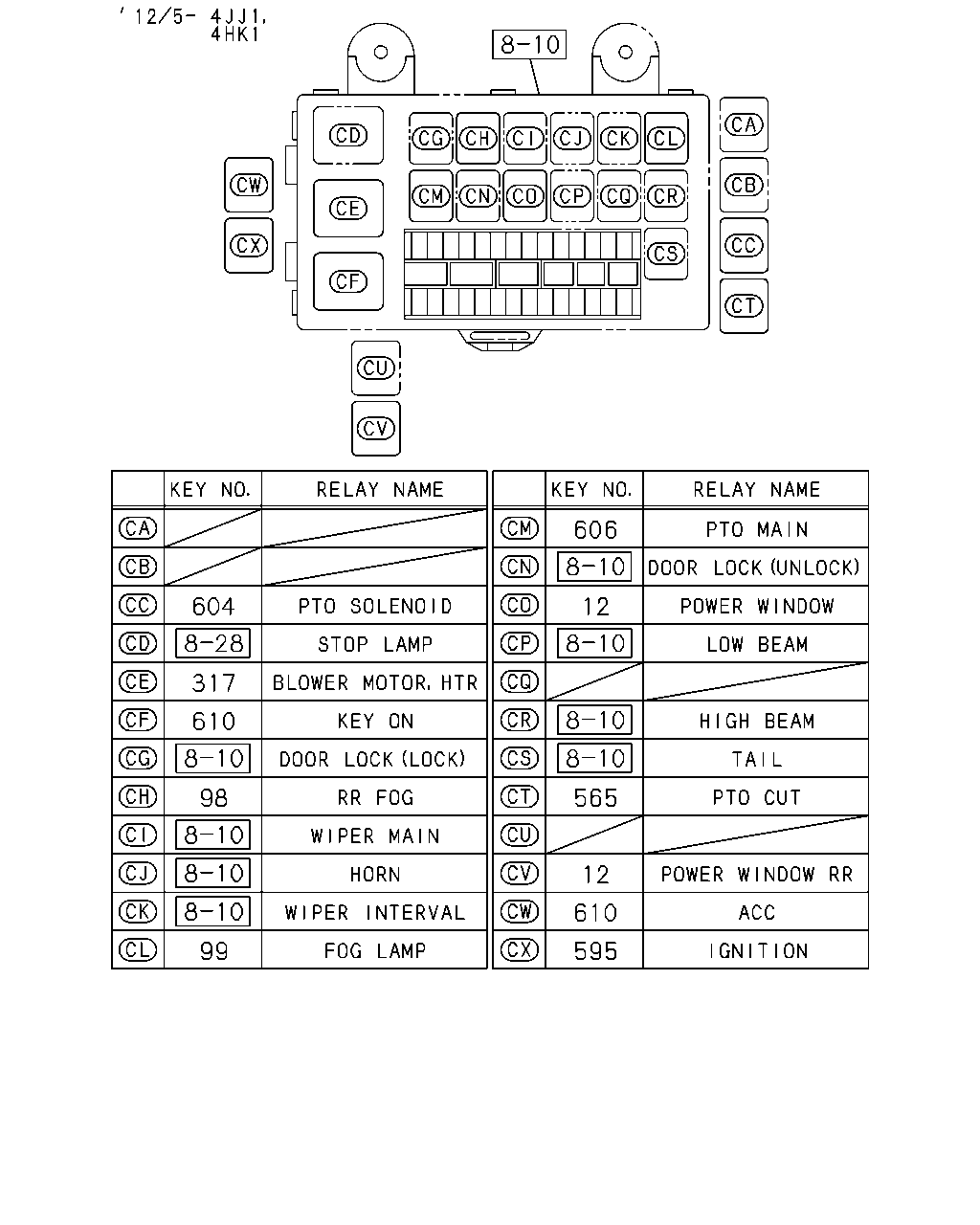

çizim 102804
606 604 12 317 610 565 98 12 610 595 99
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
98 02.485 RELAY; RR FOG LAMP
4JJ1-TCS ENG(LFB) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
98 02.485 RELAY; RR FOG LAMP
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) RR FOG LAMP<T79> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ● ● ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
595 02.510 RELAY; IGNITION
4JJ1-TCS ENG(LFB) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
595 02.510 RELAY; IGNITION
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
595 02.510 RELAY; IGNITION
4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
çizim 102839
154 191 21 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1012-1407 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 1012-1407 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1012-1407 ● ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1408-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 1408-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1408-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1408-1509 ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR),TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97358-248-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 1012-1407 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 1408-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1408-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.447 		8-94109-863-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1510- ●
26 03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1012-1012 ● ●
26 03.636 SWITCH; ACCEL
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1012-1012 ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●
191 02.510 RELAY; EXH BRK CUT
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●

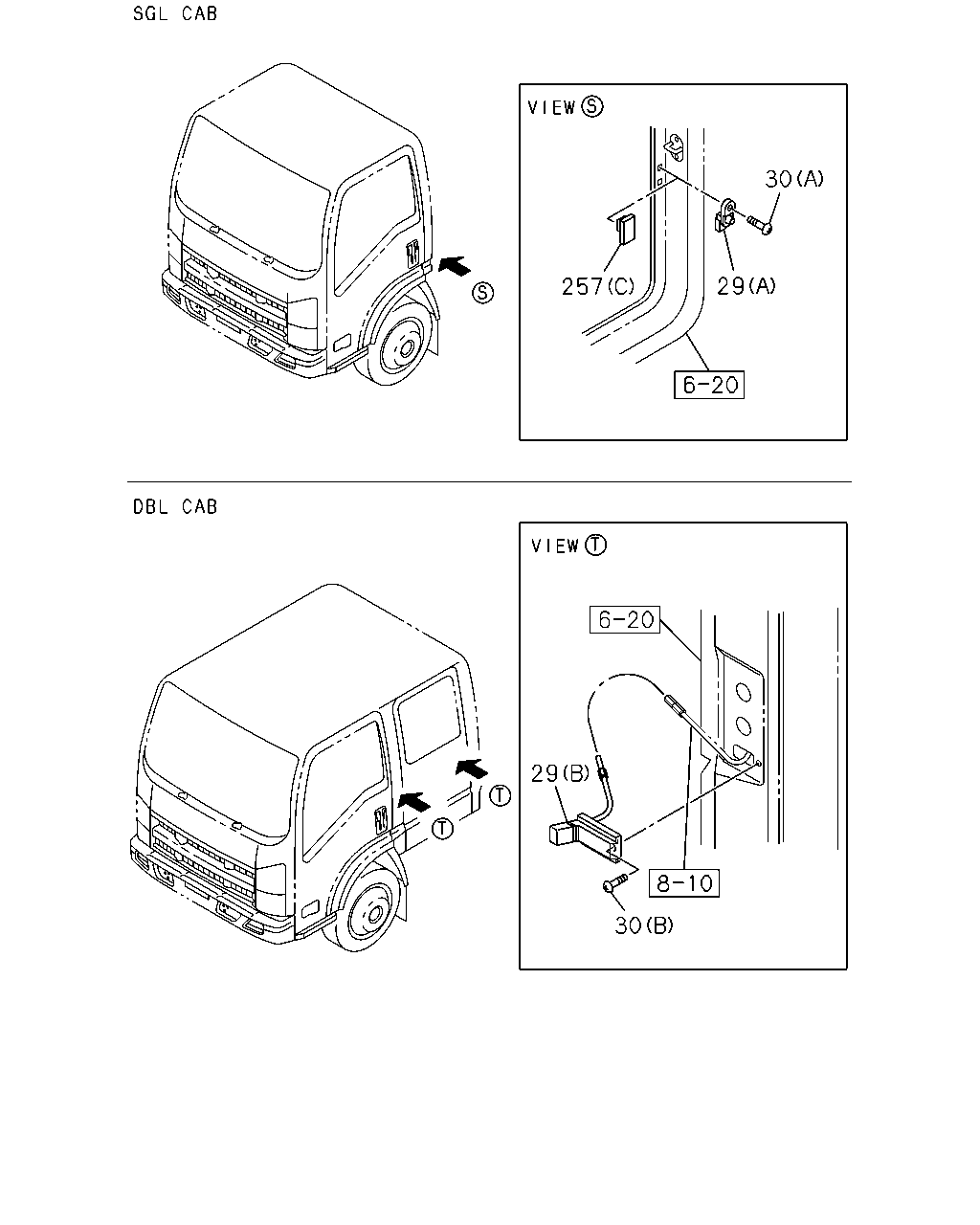

çizim 103427
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C D
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1012- ● ● ●
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK 		8-98022-211-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
ROOM LAMP W/ALL DOORS SW(SDF) (A) BLACK 		8-98022-211-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
30 16.263 SCREW; DOOR SW
(A) M5X18 		8-98047-201-0 02 1 1012- ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) EXC. REMOTE CONT DOOR LOCK<6NF>, TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 1012- ●
30 16.263 SCREW; DOOR SW
REMOTE CONT DOOR LOCK<6NF> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 1012- ●
30 16.263 SCREW; DOOR SW
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 02 1 1012- ●
30 16.263 SCREW; DOOR SW
ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18 		8-98047-201-0 02 1 1012- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M5X18 		8-98047-201-0 01 1 1012- ●
30 16.263 SCREW; DOOR SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (A) M5X18 		8-98047-201-0 01 1 1012- ●
30 16.263 SCREW; DOOR SW
(B) M5X16 		8-94279-341-0 04 1 1012- ●
257 16.081 COVER; HOLE,SW
4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4JJ1-TCC ENG(RDU) (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ●
çizim 103428
608 151 154
BalonParca AdiParca NoAdetTipApplied Date A B C D
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ● ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 02.510 24V 30A MITSUBA 		8-97238-540-0 01 1 1012-1402 ●
608 02.485 RELAY; SHIFT
TRANSMISSION CONTROL-SMOOTHER(8GF) 24V 30A MITSUBA 		8-98259-779-0 01 1 1403- ●
çizim 103429
257 257 639 498 423
BalonParca AdiParca NoAdetTipApplied Date A B C D
257 16.081 COVER; HOLE,SW
4JJ1-TCS ENG(LFB) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HK1-TCS ENG(RJS) EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8> (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
4JJ1-TCC ENG(RDU) (B) 		8-98029-914-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 02 1 1012- ● ● ● ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF), REMOTE CONT DOOR LOCK<6NF>,TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. ROOM LAMP W/ALL DOORS SW(SDF) (C) 		8-98029-917-0 01 1 1012- ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1012-1406 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1012-1406 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1012-1406 ● ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1407-1407 ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1407-1407 ●
257 16.081 COVER; HOLE,SW
EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> (A) 		8-98025-954-1 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. HEADLAMP LEVELING MANUAL CONTROL<TR6> (A) 		8-98025-954-1 01 1 1408- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. THROTTLE CONTROL SYSTEM<6XH> (A) 		8-98025-954-1 01 1 1408- ● ●
257 16.081 COVER; HOLE,SW
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. CATALYSIS CONTROL WITH DPD(8JM) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. DUMP CHASSIS(V4D),PTO TRANSMISSIONSIDE(V66) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98025-954-1 01 1 1408- ●
423 03.883 SWITCH; ENG WARMING
CHILE EQUIPMENT(KE1) 		8-97387-010-2 01 1 1012- ● ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1012-1406 ●
498 03.883 SWITCH; ASR
THROTTLE CONTROL SYSTEM<6XH> 		8-97386-920-2 01 1 1407- ● ●
639 16.263 SWITCH; EMERGENCY
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98119-948-0 01 1 1012- ●
çizim 103431
12 317 610 609 99 606 604 565
BalonParca AdiParca NoAdetTipApplied Date A B C D
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1112 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1201-1212 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1301-1407 ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCS ENG(LFB) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
12 08.852 RELAY; POWER WINDOW
4JJ1-TCC ENG(RDU),4HG1 ENG(RJH) POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ● ● ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ● ● ● ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1 ENG(RJH),4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1407 ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ● ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1408- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1212 ● ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
610 02.510 RELAY; KEY ON
4JJ1-TCS ENG(LFB),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU),4HK1-TCS ENG(RJS) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ● ● ● ●
çizim 103527
183 180 39 39
BalonParca AdiParca NoAdetTipApplied Date A B C D
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98060-789-0 01 1 1012- ●
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1012- ● ●
180 02.510 BRACKET; RELAY
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 		8-98091-660-0 01 1 1012- ●
180 02.510 BRACKET; RELAY
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> 		8-98091-660-0 01 1 1012- ●
183 02.510 NUT; RELAY BRKT
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<6NF> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
183 02.510 NUT; RELAY BRKT
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
