2-08 — CLUTCH MASTER CYLINDER (#38480) — 49 parça

1 1 11 12 13 3 4 42 16 10 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97201-007-0	01	1	9808-0109	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A)	8-97201-007-0	01	1	0110-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) (A)	8-97192-669-1	01	1	9804-9807	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 6VD1 ENG(RLV) (A)	8-97192-669-1	01	1	9808-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JG2 ENG(RJC) (A)	8-97137-261-2	01	1	9910-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B)	8-97300-704-0	01	1	0110-		●
3	00.777 JOINT; JAW,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-94412-201-0	01	1	9804-0109	●	●
3	00.777 JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0110-	●	●
4	00.777 NUT; JAW JOINT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 00.787 M8	9-09111-408-0	01	1	9804-0109	●	●
4	00.777 NUT; JAW JOINT 00.787 M8	9-09111-408-0	01	1	0110-	●	●
10	00.777 GASKET; CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97184-654-0	01	1	9804-0109	●	●
10	00.777 GASKET; CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. CHARGE AIR COOLER<6PL>	8-97184-654-0	01	1	0110-	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-94412-207-0	01	1	9804-0109	●	●
11	00.777 CAP; OUTER,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. CHARGE AIR COOLER<6PL>	8-94412-207-0	01	1	0110-	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-94412-206-0	01	1	9804-0109	●	●
12	00.775 CAP; INNER,OIL TANK,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. CHARGE AIR COOLER<6PL>	8-94412-206-0	01	1	0110-	●	●
13	00.777 GASKET; OIL TANK 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-94412-205-0	01	1	9804-0109	●	●
13	00.777 GASKET; OIL TANK 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. CHARGE AIR COOLER<6PL>	8-94412-205-0	01	1	0110-	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94412-202-0	01	1	9808-9909	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94412-202-0	01	1	9910-0109	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94412-202-0	01	1	0110-	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97192-550-0	01	1	9804-9807	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 6VD1 ENG(RLV)	8-97192-550-0	01	1	9808-		●
42	00.777 TANK; OIL,CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97037-335-0	01	1	9804-0109	●	●
42	00.777 TANK; OIL,CLU 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. CHARGE AIR COOLER<6PL>	8-97037-335-0	01	1	0110-	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER	8-97213-040-0	01	1	9804-9909	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97213-040-0	01	1	9910-0109	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97213-040-0	01	1	0110-	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 4JG2 ENG(RJC)	8-97213-039-0	01	1	9910-		●

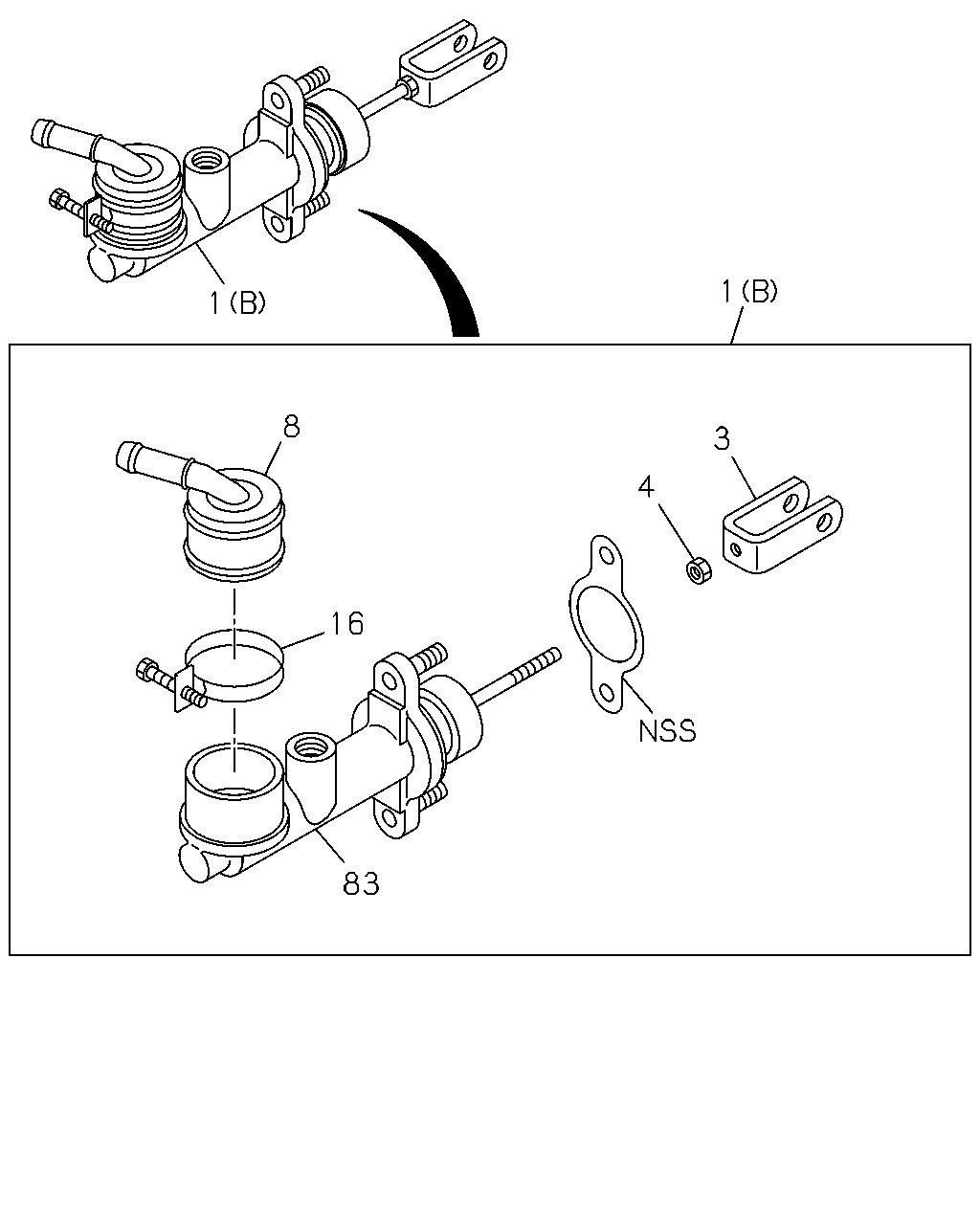

1 1 8 3 4 16 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97201-007-0	01	1	9808-0109	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A)	8-97201-007-0	01	1	0110-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) (A)	8-97192-669-1	01	1	9804-9807	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 6VD1 ENG(RLV) (A)	8-97192-669-1	01	1	9808-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JG2 ENG(RJC) (A)	8-97137-261-2	01	1	9910-		●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B)	8-97300-704-0	01	1	0110-		●
3	00.777 JOINT; JAW,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-94412-201-0	01	1	9804-0109	●	●
3	00.777 JOINT; JAW,CLU M/CYL	8-94412-201-0	01	1	0110-	●	●
4	00.777 NUT; JAW JOINT 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 00.787 M8	9-09111-408-0	01	1	9804-0109	●	●
4	00.777 NUT; JAW JOINT 00.787 M8	9-09111-408-0	01	1	0110-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97300-706-0	01	1	0110-		●
16	00.775 CLIP; OIL TANK,CLU M/CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94412-202-0	01	1	9808-9909	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94412-202-0	01	1	9910-0109	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94412-202-0	01	1	0110-	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97192-550-0	01	1	9804-9807	●	●
16	00.775 CLIP; OIL TANK,CLU M/CYL 6VD1 ENG(RLV)	8-97192-550-0	01	1	9808-		●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER	8-97213-040-0	01	1	9804-9909	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97213-040-0	01	1	9910-0109	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV)	8-97213-040-0	01	1	0110-	●	●
83	00.775 CYLINDER SUB ASM; CLUTCH MASTER 4JG2 ENG(RJC)	8-97213-039-0	01	1	9910-		●
