Sayfa 2-06 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶

2-06 — CLUTCH SLAVE CYLINDER (#38479) — 116 parça

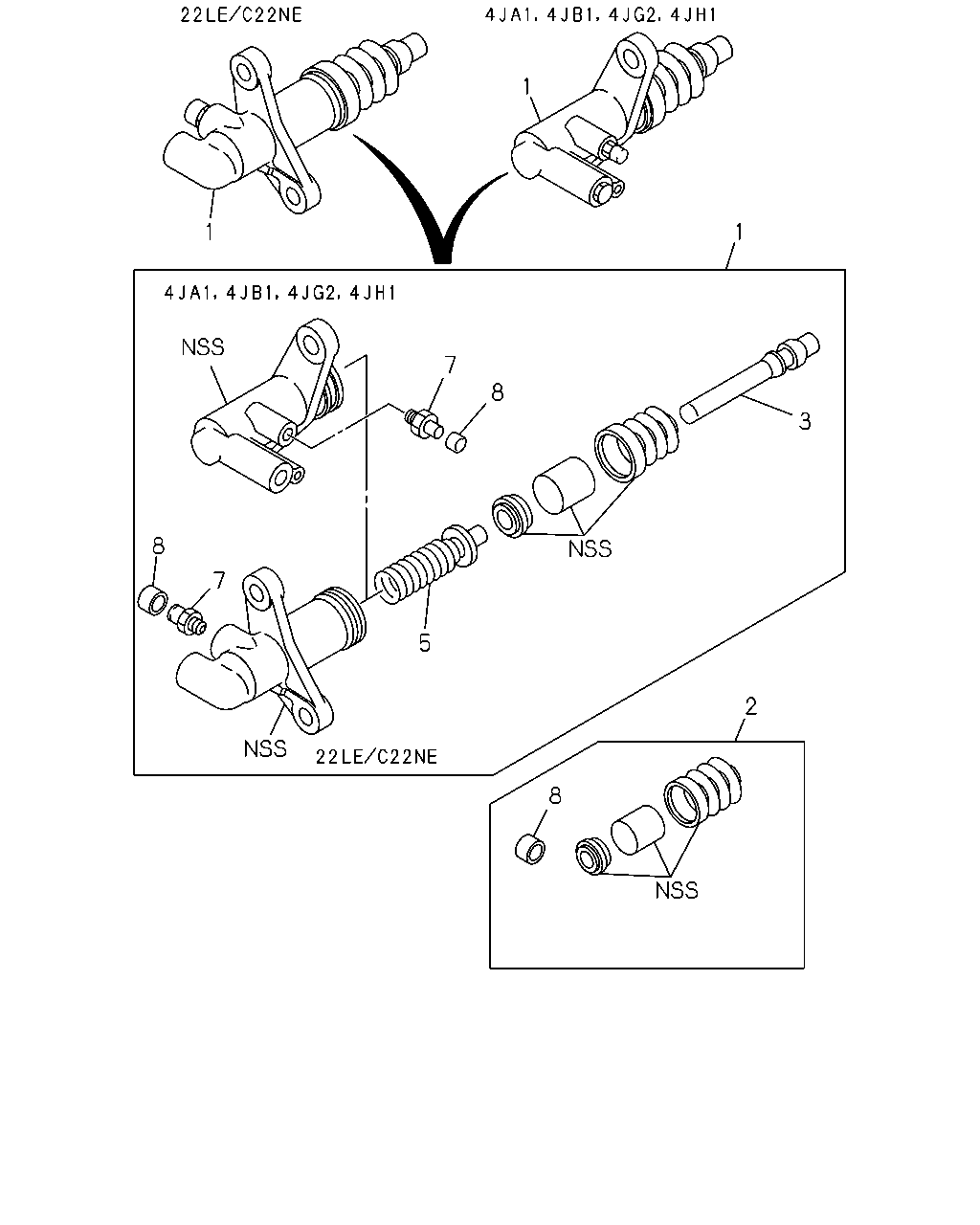

1 3 8 7 5 2 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.780 CYLINDER; SLAVE,CLU 22LE/C22NE ENG(RJT)	8-97184-993-0	01	1	9804-	●
1	00.780 CYLINDER; SLAVE,CLU 4JA1 ENG(RLE)	8-97039-704-0	01	1	9804-0109	●	●
1	00.780 CYLINDER; SLAVE,CLU 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97039-704-0	01	1	0110-	●	●
1	00.780 CYLINDER; SLAVE,CLU 22LE/C22NE ENG(RJT)	8-97084-981-0	01	1	9804-		●
1	00.780 CYLINDER; SLAVE,CLU 4JB1 ENG(RLF)	8-94389-195-1	01	1	9804-9909		●
1	00.780 CYLINDER; SLAVE,CLU 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94389-195-1	01	1	9910-0109		●
1	00.780 CYLINDER; SLAVE,CLU 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94389-195-1	01	1	0110-		●
1	00.780 CYLINDER; SLAVE,CLU 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-94389-195-1	01	1	0110-		●
1	00.780 CYLINDER; SLAVE,CLU 4JH1 ENG(RJX)	8-97259-141-0	01	1	0110-		●
1	00.780 CYLINDER; SLAVE,CLU 6VD1 ENG(RLV)	8-97040-866-2	01	1	9804-9812		●
1	00.780 CYLINDER; SLAVE,CLU 6VD1 ENG(RLV)	8-97188-414-2	01	1	9901-		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 00.030	5-87831-081-0	01	1	9804-9909	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) 00.030	5-87831-081-0	01	1	9804-9909		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 00.030	5-87831-081-0	01	1	9910-0109	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) 00.030	5-87831-081-0	01	1	9910-0109		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 00.030	5-87831-081-0	01	1	0110-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 22LE/C22NE ENG(RJT) 00.030	5-87831-081-0	01	1	0110-	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	5-87830-813-2	01	1	9804-9909		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	5-87830-813-2	01	1	9910-0109		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JB1 ENG(RLF)	5-87830-813-2	01	1	0110-		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	5-87830-813-2	01	1	0110-		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 6VD1 ENG(RLV)	5-87831-388-0	01	1	9804-9812		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 6VD1 ENG(RLV)	5-87831-762-0	01	1	9901-		●
3	00.780 ROD; PUSH,SLAVE CYL	8-94136-252-0	01	1	9804-9909	●
3	00.780 ROD; PUSH,SLAVE CYL 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94136-252-0	01	1	9804-9909		●
3	00.780 ROD; PUSH,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE)	8-94136-252-0	01	1	9910-0109	●
3	00.780 ROD; PUSH,SLAVE CYL 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94136-252-0	01	1	9910-0109		●
3	00.780 ROD; PUSH,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE)	8-94136-252-0	01	1	0110-	●
3	00.780 ROD; PUSH,SLAVE CYL 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94136-252-0	01	1	0110-		●
3	00.780 ROD; PUSH,SLAVE CYL 22LE/C22NE ENG(RJT)	8-97040-380-0	01	1	9804-		●
3	00.780 ROD; PUSH,SLAVE CYL 6VD1 ENG(RLV)	8-97062-923-0	01	1	9804-9812		●
3	00.780 ROD; PUSH,SLAVE CYL 6VD1 ENG(RLV)	8-97188-417-0	01	1	9901-		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL	8-97016-025-0	01	1	9804-9909	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE)	8-97016-025-0	01	1	9804-9909		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE)	8-97016-025-0	01	1	9910-0109	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE)	8-97016-025-0	01	1	9910-0109		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97016-025-0	01	1	0110-	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 22LE/C22NE ENG(RJT)	8-97016-025-0	01	1	0110-	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	8-97016-024-0	01	1	9804-9909		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	8-97016-024-0	01	1	9910-0109		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JB1 ENG(RLF)	8-97016-024-0	01	1	0110-		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97016-024-0	01	1	0110-		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 6VD1 ENG(RLV)	8-97028-736-0	01	1	9804-9812		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 6VD1 ENG(RLV)	8-97188-405-0	01	1	9901-		●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	9804-9812	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) M8X16.5	8-94115-113-0	01	1	9901-9909	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M8X16.5	8-94115-113-0	01	1	9910-0109	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) M8X16.5	8-94115-113-0	01	1	9910-0109		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M8X16.5	8-94115-113-0	01	1	0110-	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M8X16.5	8-94115-113-0	01	1	0110-		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 6VD1 ENG(RLV) M7X19.5	8-97188-329-0	01	1	9901-		●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	9804-9812	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) OD=9.5	9-47619-005-0	01	1	9901-9909	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) OD=9.5	9-47619-005-0	01	1	9910-0109	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) OD=9.5	9-47619-005-0	01	1	9910-0109		●
8	00.780 CAP; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) OD=9.5	9-47619-005-0	01	1	0110-	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) OD=9.5	9-47619-005-0	01	1	0110-		●
8	00.780 CAP; BLEEDER,SLAVE CYL 6VD1 ENG(RLV)	8-97188-330-0	01	1	9901-		●

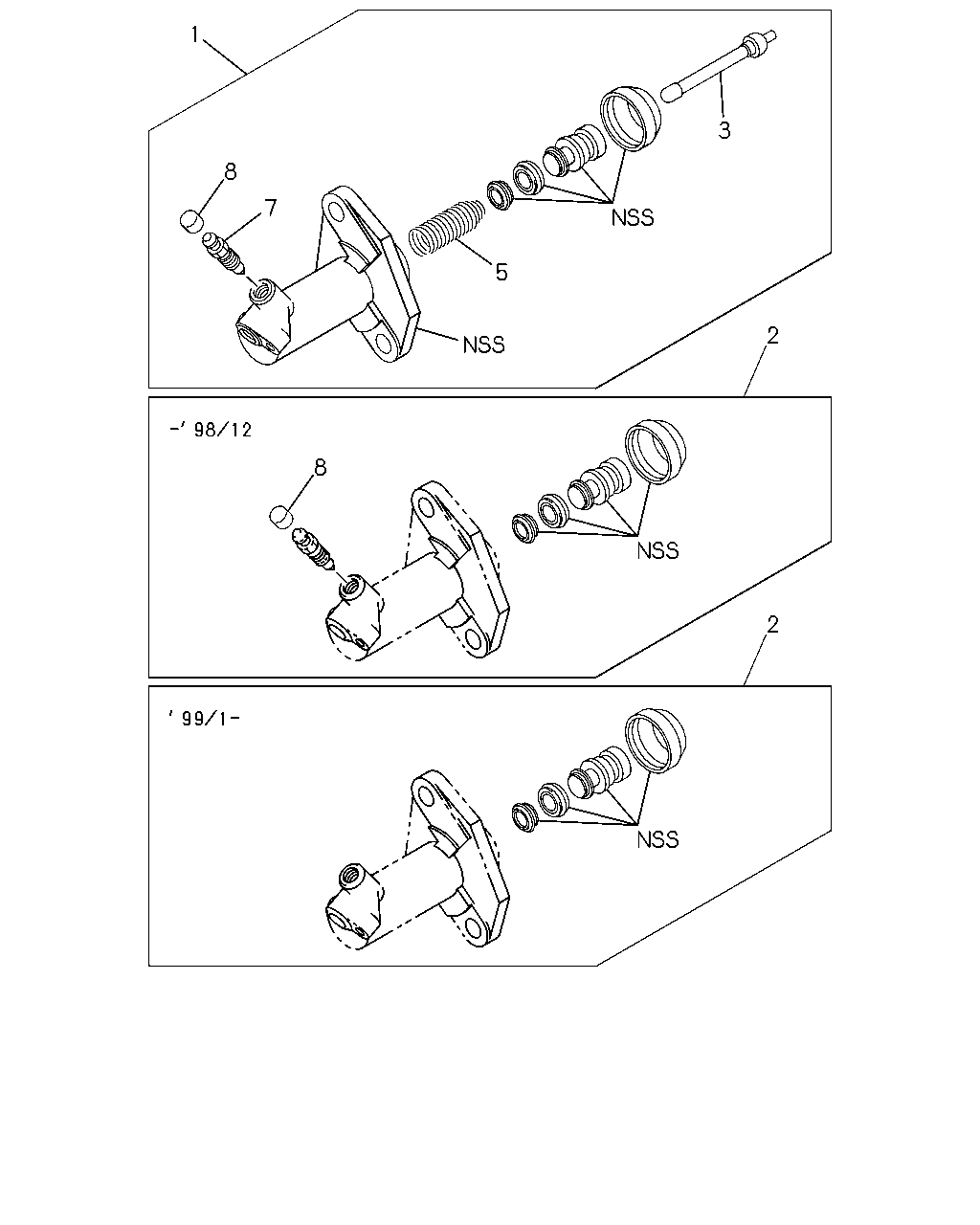

1 1 1 7 8 3 8 7 5 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.780 CYLINDER; SLAVE,CLU 22LE/C22NE ENG(RJT)	8-97184-993-0	01	1	9804-	●
1	00.780 CYLINDER; SLAVE,CLU 4JA1 ENG(RLE)	8-97039-704-0	01	1	9804-0109	●	●
1	00.780 CYLINDER; SLAVE,CLU 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97039-704-0	01	1	0110-	●	●
1	00.780 CYLINDER; SLAVE,CLU 22LE/C22NE ENG(RJT)	8-97084-981-0	01	1	9804-		●
1	00.780 CYLINDER; SLAVE,CLU 4JB1 ENG(RLF)	8-94389-195-1	01	1	9804-9909		●
1	00.780 CYLINDER; SLAVE,CLU 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94389-195-1	01	1	9910-0109		●
1	00.780 CYLINDER; SLAVE,CLU 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94389-195-1	01	1	0110-		●
1	00.780 CYLINDER; SLAVE,CLU 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-94389-195-1	01	1	0110-		●
1	00.780 CYLINDER; SLAVE,CLU 4JH1 ENG(RJX)	8-97259-141-0	01	1	0110-		●
1	00.780 CYLINDER; SLAVE,CLU 6VD1 ENG(RLV)	8-97040-866-2	01	1	9804-9812		●
1	00.780 CYLINDER; SLAVE,CLU 6VD1 ENG(RLV)	8-97188-414-2	01	1	9901-		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 00.030	5-87831-081-0	01	1	9804-9909	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) 00.030	5-87831-081-0	01	1	9804-9909		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 00.030	5-87831-081-0	01	1	9910-0109	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) 00.030	5-87831-081-0	01	1	9910-0109		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL> 00.030	5-87831-081-0	01	1	0110-	●	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 22LE/C22NE ENG(RJT) 00.030	5-87831-081-0	01	1	0110-	●
2	00.780 REPAIR KIT; CLU SLAVE CYL 22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	5-87830-813-2	01	1	9804-9909		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	5-87830-813-2	01	1	9910-0109		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JB1 ENG(RLF)	5-87830-813-2	01	1	0110-		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	5-87830-813-2	01	1	0110-		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 6VD1 ENG(RLV)	5-87831-388-0	01	1	9804-9812		●
2	00.780 REPAIR KIT; CLU SLAVE CYL 6VD1 ENG(RLV)	5-87831-762-0	01	1	9901-		●
3	00.780 ROD; PUSH,SLAVE CYL	8-94136-252-0	01	1	9804-9909	●
3	00.780 ROD; PUSH,SLAVE CYL 4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94136-252-0	01	1	9804-9909		●
3	00.780 ROD; PUSH,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE)	8-94136-252-0	01	1	9910-0109	●
3	00.780 ROD; PUSH,SLAVE CYL 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94136-252-0	01	1	9910-0109		●
3	00.780 ROD; PUSH,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE)	8-94136-252-0	01	1	0110-	●
3	00.780 ROD; PUSH,SLAVE CYL 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF)	8-94136-252-0	01	1	0110-		●
3	00.780 ROD; PUSH,SLAVE CYL 22LE/C22NE ENG(RJT)	8-97040-380-0	01	1	9804-		●
3	00.780 ROD; PUSH,SLAVE CYL 6VD1 ENG(RLV)	8-97062-923-0	01	1	9804-9812		●
3	00.780 ROD; PUSH,SLAVE CYL 6VD1 ENG(RLV)	8-97188-417-0	01	1	9901-		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL	8-97016-025-0	01	1	9804-9909	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE)	8-97016-025-0	01	1	9804-9909		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE)	8-97016-025-0	01	1	9910-0109	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE)	8-97016-025-0	01	1	9910-0109		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>	8-97016-025-0	01	1	0110-	●	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 22LE/C22NE ENG(RJT)	8-97016-025-0	01	1	0110-	●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	8-97016-024-0	01	1	9804-9909		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JB1 ENG(RLF)	8-97016-024-0	01	1	9910-0109		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JB1 ENG(RLF)	8-97016-024-0	01	1	0110-		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 4JA1 ENG(RLE) CHARGE AIR COOLER<6PL>	8-97016-024-0	01	1	0110-		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 6VD1 ENG(RLV)	8-97028-736-0	01	1	9804-9812		●
5	00.780 SPRING ASM; PISTON,SLAVE CYL 6VD1 ENG(RLV)	8-97188-405-0	01	1	9901-		●
7	00.780 SCREW; BLEEDER,SLAVE CYL M8X16.5	8-94115-113-0	01	1	9804-9812	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) M8X16.5	8-94115-113-0	01	1	9901-9909	●	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M8X16.5	8-94115-113-0	01	1	9910-0109	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) M8X16.5	8-94115-113-0	01	1	9910-0109		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M8X16.5	8-94115-113-0	01	1	0110-	●
7	00.780 SCREW; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M8X16.5	8-94115-113-0	01	1	0110-		●
7	00.780 SCREW; BLEEDER,SLAVE CYL 6VD1 ENG(RLV) M7X19.5	8-97188-329-0	01	1	9901-		●
8	00.780 CAP; BLEEDER,SLAVE CYL OD=9.5	9-47619-005-0	01	1	9804-9812	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) OD=9.5	9-47619-005-0	01	1	9901-9909	●	●
8	00.780 CAP; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) OD=9.5	9-47619-005-0	01	1	9910-0109	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF) OD=9.5	9-47619-005-0	01	1	9910-0109		●
8	00.780 CAP; BLEEDER,SLAVE CYL 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) OD=9.5	9-47619-005-0	01	1	0110-	●
8	00.780 CAP; BLEEDER,SLAVE CYL 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) OD=9.5	9-47619-005-0	01	1	0110-		●
8	00.780 CAP; BLEEDER,SLAVE CYL 6VD1 ENG(RLV)	8-97188-330-0	01	1	9901-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
