◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#38477) — 42 parça

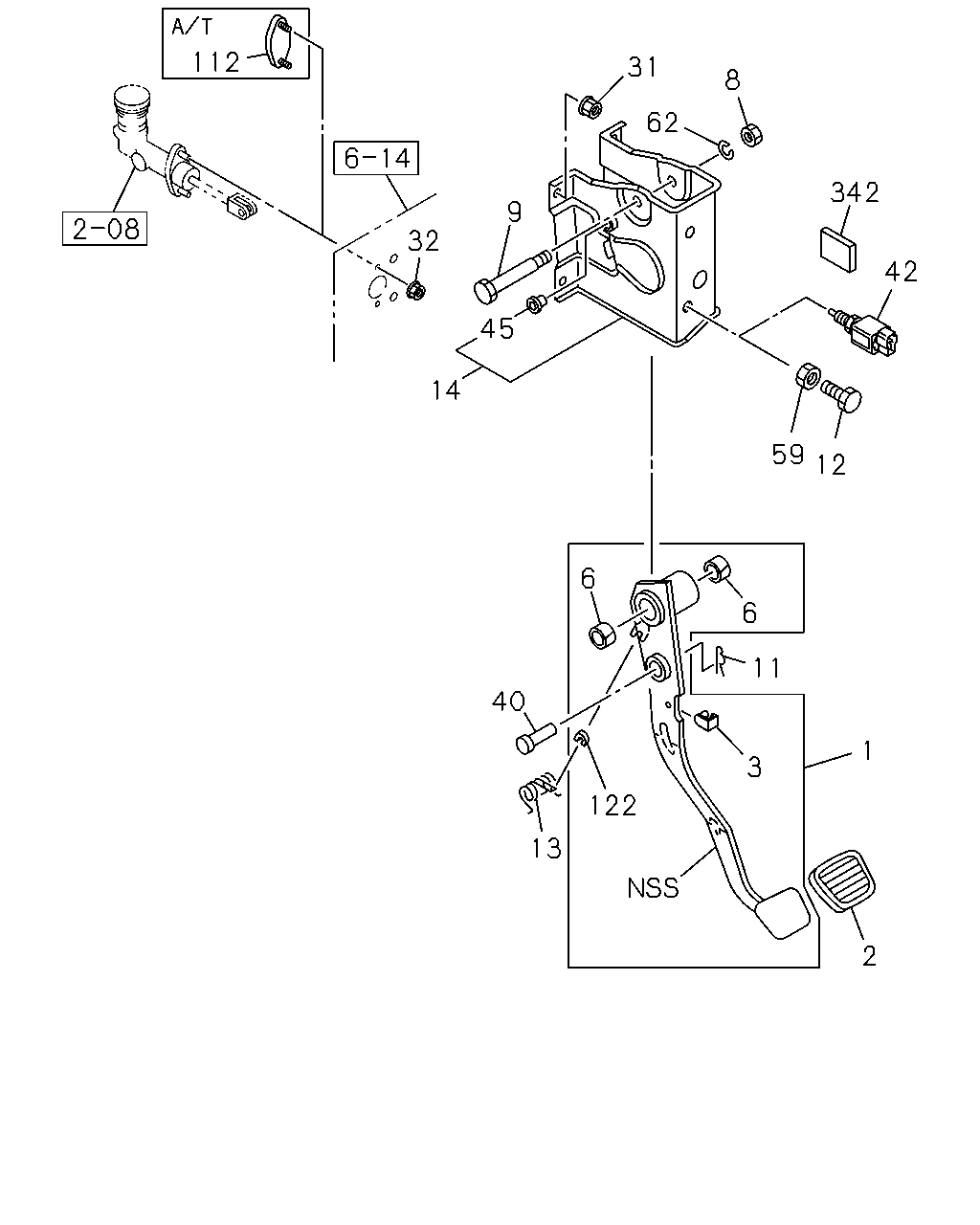

çizim 69937
112 31 8 62 342 9 32 42 45 14 59 12 6 6 11 40 1 3 122 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 00.830 PEDAL; CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97071-836-0 01 1 9804- ● ● ● ● ● ● ● ●
2 04.630 COVER; CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 9804- ● ● ● ● ● ● ● ●
3 00.785 RUBBER; STOPPER,CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94463-258-0 01 1 9804- ● ● ● ● ● ● ● ●
6 00.831 BUSHING; CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.833 		8-94244-439-0 02 1 9804- ● ● ● ● ● ● ● ●
8 00.833 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011 M10 		9-09110-410-0 01 1 9804-0208 ● ● ● ● ● ● ● ●
8 00.833 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0209- ● ● ● ● ● ● ● ●
9 00.833 PIN; CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94455-308-0 01 1 9804- ● ● ● ● ● ● ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 04.662 L=27.7 		1-09747-005-0 01 1 9804- ● ● ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.805 M10X35 		0-20801-035-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
12 00.841 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> 00.805 M10X35 		0-20801-035-0 01 1 0110- ● ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.837 		8-97036-041-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97312-882-0 01 1 0110- ● ● ● ● ● ● ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94329-888-1 01 1 9804- ● ● ● ● ● ● ● ●
31 01.153 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.854 M8 FLANGE 		5-09440-005-0 04 1 9804- ● ● ● ● ● ● ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
07.633 M8 FLANGE 		0-91150-108-0 02 1 9804- ● ● ● ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94432-133-1 01 1 9804-9909 ● ● ● ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94432-133-1 01 1 9910-0012 ● ● ● ● ● ● ●
40 00.833 PIN; JOINT,CLU DAMPER 8-94432-133-1 01 1 9910-0012 ●
40 00.833 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94432-133-1 01 1 0101- ● ● ● ● ● ● ● ●
42 04.054 SWITCH; CLU
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		8-94331-723-1 01 1 0110-0212 ● ● ● ● ●
42 04.054 SWITCH; CLU
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 02.575 		8-97358-248-0 01 1 0301- ● ● ● ● ●
45 00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94175-433-0 02 1 9804- ● ● ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 09.011 M10 		9-09110-410-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
59 00.833 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. CHARGE AIR COOLER<6PL> 09.011 M10 		9-09110-410-0 01 1 0110- ● ● ● ● ● ● ● ●
62 00.833 WASHER; LK,PIN TO PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 00.002 ID=10.2 		9-09150-510-0 01 1 9804-0208 ● ● ● ● ● ● ● ●
112 00.785 PLUG; METAL,M/CYL
A/T THM(RMQ) 		8-94325-869-0 01 1 9804-0007 ● ● ●
112 00.785 PLUG; METAL,M/CYL
A/T THM(RMQ) 		8-97259-210-0 01 1 0008-0012 ● ● ●
112 00.785 PLUG; METAL,M/CYL
A/T THM(RMQ) 		8-97259-210-0 01 1 0101-0109 ● ● ● ● ● ●
112 00.785 PLUG; METAL,M/CYL
A/T AISIN(RMD),A/T THM(RMQ) 		8-97259-210-0 01 1 0110- ● ● ● ● ● ●
122 00.831 BUSHING; ASSIST PEDAL,CLU
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94175-434-0 01 1 9804- ● ● ● ● ● ● ● ●
342 04.592 TAPE; SOFT
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 02.559 100X100 		8-94232-622-0 01 1 0110- ● ● ● ● ●

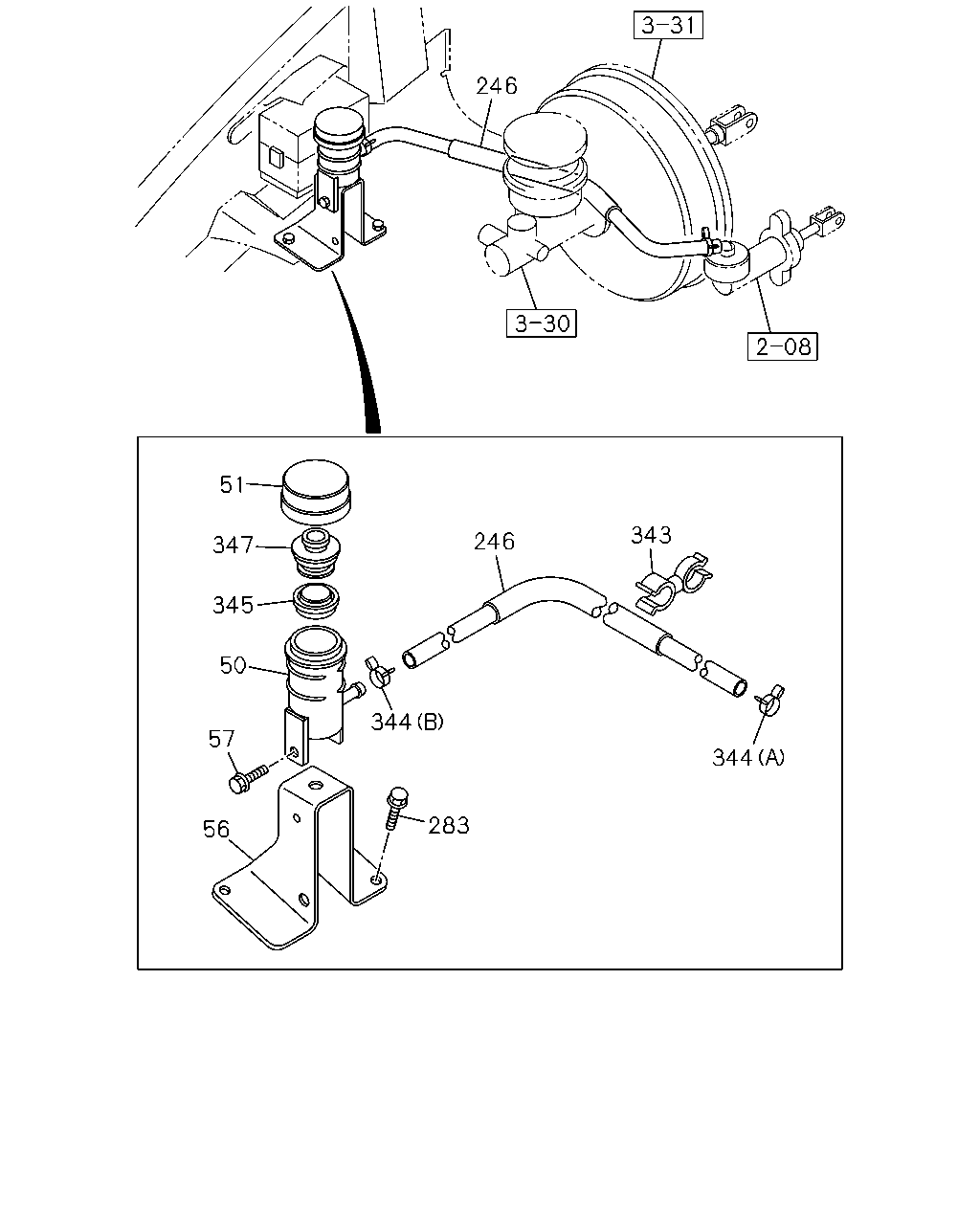

çizim 73859
246 51 343 246 347 345 50 344 57 283 56 344
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
50 00.785 TANK; OIL,CLU
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		8-97300-714-0 01 1 0110- ● ● ● ● ●
51 00.785 CAP; OIL TANK,CLU
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 00.777 		8-94412-207-0 01 1 0110- ● ● ● ● ●
56 00.785 BRACKET; OIL TANK,CLU CONT
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		8-97300-717-0 01 1 0110- ● ● ● ● ●
57 00.782 BOLT; OIL TANK BRKT,CLU
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0110- ● ● ● ● ●
246 00.785 HOSE; OIL TANK
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 		8-97300-718-1 01 1 0110- ● ● ● ● ●
283 00.785 BOLT; OIL TANK
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0110- ● ● ● ● ●
343 00.785 CLIP; HOSE
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 02.589 ID=13 & 16.5 		8-94169-028-0 01 1 0110- ● ● ● ● ●
344 00.785 CLAMP
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 01.219 (A) ID=13 		8-94238-571-0 01 1 0110- ● ● ● ● ●
344 00.785 CLAMP
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> (B) 		8-97300-722-0 01 1 0110- ● ● ● ● ●
345 00.805 SEAL; RESERVOIR
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 00.777 		8-94412-205-0 01 1 0110- ● ● ● ● ●
347 00.805 BASE; CAP
M/T MUA 5 SPEED(RMN) CHARGE AIR COOLER<6PL> 00.775 		8-94412-206-0 01 1 0110- ● ● ● ● ●
