1-35 — CHARGE AIR COOLER (#38470) — 115 parça

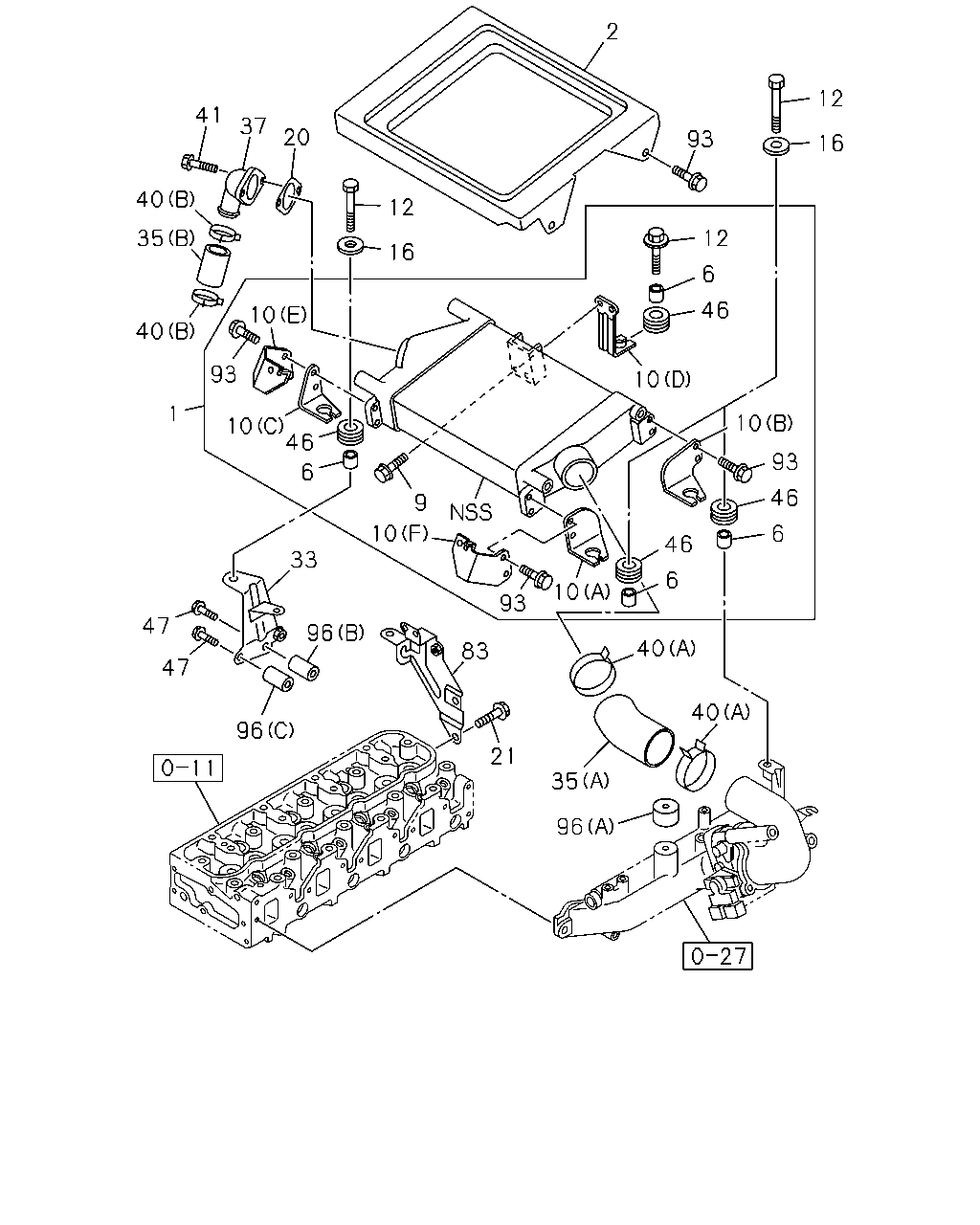

2 12 41 37 20 93 16 40 12 35 12 16 6 46 10 40 93 10 1 10 10 46 93 6 46 9 10 6 46 33 6 10 93 47 96 40 83 47 40 96 21 35 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR CHARGE AIR COOLER<6PL>	8-97307-025-2	01	1	0110-	●
1	03.374 COOLER; CHARGE AIR	8-97307-017-2	01	1	0110-		●
2	01.540 COVER; CHARGE AIR COOLER CHARGE AIR COOLER<6PL>	8-97307-018-2	01	1	0110-	●
2	01.540 COVER; CHARGE AIR COOLER	8-97307-018-2	01	1	0110-		●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER CHARGE AIR COOLER<6PL>	8-97107-898-0	04	1	0110-	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0110-		●
9	01.540 NUT; CHARGE AIR COOLER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-	●
9	01.540 NUT; CHARGE AIR COOLER 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (A)	8-97251-883-2	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (A)	8-97251-883-2	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (B)	8-97251-884-2	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (B)	8-97251-884-2	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (C)	8-97251-885-1	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (C)	8-97251-885-1	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (D)	8-97300-705-2	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (D)	8-97300-705-2	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (E)	8-97301-161-3	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (F)	8-97301-162-2	01	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER CHARGE AIR COOLER<6PL> M8X41 W/PL WASHER	8-97264-622-0	02	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	02	1	0110-		●
12	01.540 BOLT; CHARGE AIR COOLER CHARGE AIR COOLER<6PL> M8X41 W/PL WASHER	8-97264-622-0	01	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	01	1	0110-		●
12	01.540 BOLT; CHARGE AIR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.251 M8X60 FLANGE	0-28080-860-0	01	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0110-		●
16	03.374 WASHER; PL,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	0110-	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	0110-		●
20	01.540 GASKET CHARGE AIR COOLER<6PL> 03.275	8-97086-961-0	01	1	0110-	●
20	01.540 GASKET 03.275	8-97086-961-0	01	1	0110-		●
21	01.540 BOLT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0110-	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97309-958-0	01	1	0110-	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.616	8-97254-248-1	01	1	0110-		●
35	01.540 HOSE; CONNECTING CHARGE AIR COOLER<6PL> (A)	8-97249-290-4	01	1	0110-	●
35	01.540 HOSE; CONNECTING (A)	8-97249-290-4	01	1	0110-		●
35	01.540 HOSE; CONNECTING UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B)	8-97312-383-0	01	1	0110-	●
35	01.540 HOSE; CONNECTING (C)	8-97312-384-0	01	1	0110-		●
37	03.609 PIPE; INL CHARGE AIR COOLER<6PL>	8-97312-365-0	01	1	0110-	●
37	03.609 PIPE; INL	8-97312-365-0	01	1	0110-		●
40	03.162 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.273 (A) ID=65-82	8-97131-942-0	02	1	0110-0110	●
40	03.162 CLIP; RUBBER HOSE 03.273 (A) ID=65-82	8-97131-942-0	02	1	0110-0110		●
40	03.162 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.407 (A) ID=68-85	8-94320-428-0	02	1	0110-	●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=68-85	8-94320-428-0	02	1	0110-		●
40	03.162 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.407 (B) ID=45.5-56.5	8-97131-943-0	02	1	0110-	●
40	03.162 CLIP; RUBBER HOSE 03.407 (B) ID=45.5-56.5	8-97131-943-0	02	1	0110-		●
41	01.540 BOLT; INL PIPE CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0110-	●
41	01.540 BOLT; INL PIPE 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0110-		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER CHARGE AIR COOLER<6PL>	8-97232-774-0	04	1	0110-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER	8-97232-774-0	04	1	0110-		●
47	01.540 BOLT; CHARGE AIR COOLER BRKT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0110-	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.271 M8X40 FLANGE	0-28080-840-0	01	1	0110-	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0110-	●	●
83	01.540 BRACKET; CHARGE AIR COOLER,RR UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL>	8-97310-617-0	01	1	0110-	●
93	01.540 BOLT; COVER CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0110-	●
93	01.540 BOLT; COVER CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0110-	●	●
93	01.540 BOLT; COVER CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0110-	●
93	01.540 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0110-		●
96	01.540 SPACER; BRKT,CHARGE AIR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) OD=36	8-97251-731-0	01	1	0110-	●
96	01.540 SPACER; BRKT,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=17.3	8-94328-221-1	01	1	0110-	●	●
96	01.540 SPACER; BRKT,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) (C) OD=20	8-94369-182-0	01	1	0110-	●	●

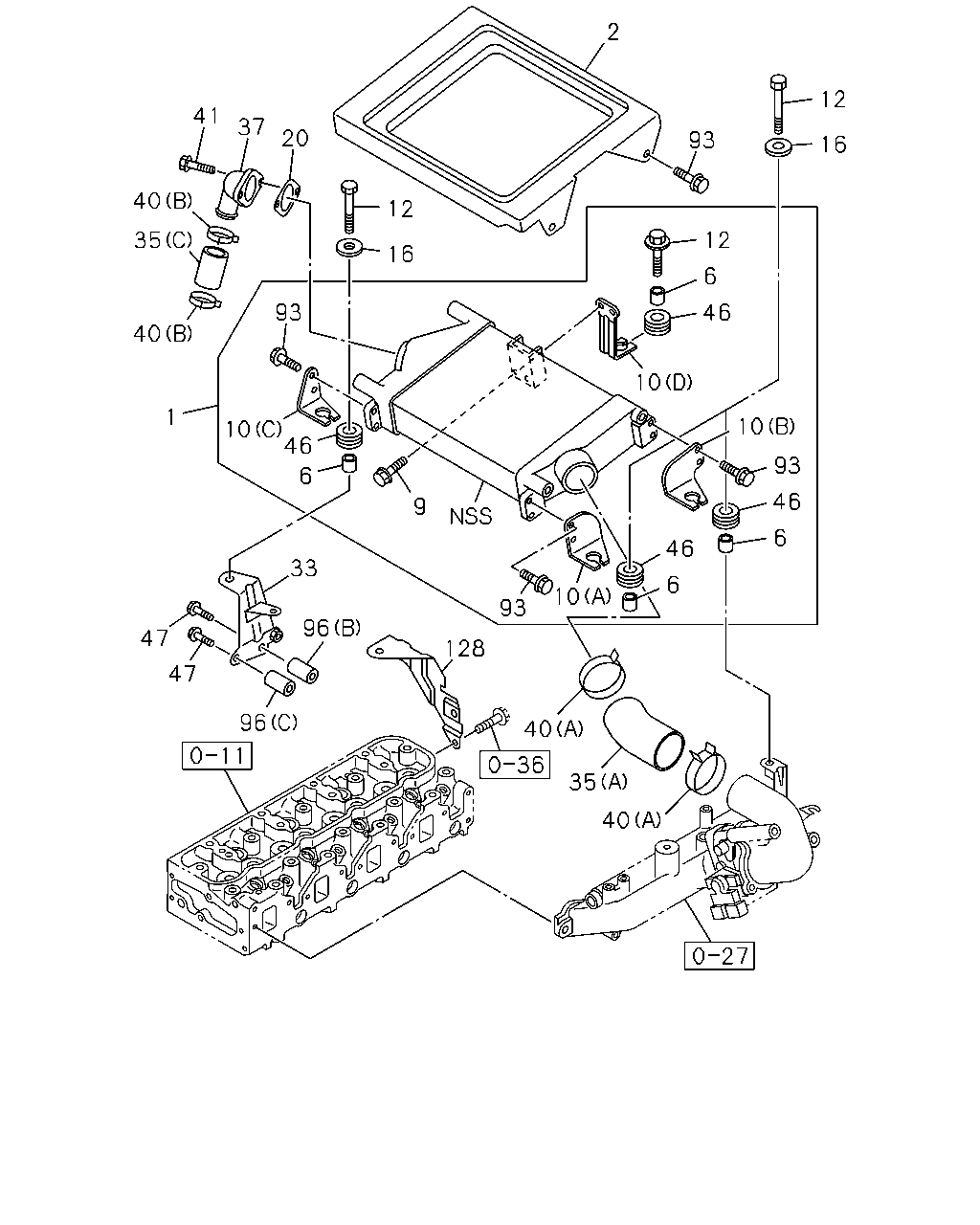

2 12 41 37 20 93 16 40 12 35 12 16 6 93 46 40 10 1 10 10 46 93 6 46 9 6 46 33 6 10 93 96 47 128 47 96 40 35 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR CHARGE AIR COOLER<6PL>	8-97307-025-2	01	1	0110-	●
1	03.374 COOLER; CHARGE AIR	8-97307-017-2	01	1	0110-		●
2	01.540 COVER; CHARGE AIR COOLER CHARGE AIR COOLER<6PL>	8-97307-018-2	01	1	0110-	●
2	01.540 COVER; CHARGE AIR COOLER	8-97307-018-2	01	1	0110-		●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER CHARGE AIR COOLER<6PL>	8-97107-898-0	04	1	0110-	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER	8-97107-898-0	04	1	0110-		●
9	01.540 NUT; CHARGE AIR COOLER CHARGE AIR COOLER<6PL> 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-	●
9	01.540 NUT; CHARGE AIR COOLER 07.633 M8 FLANGE	0-91150-108-0	02	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (A)	8-97251-883-2	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (A)	8-97251-883-2	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (B)	8-97251-884-2	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (B)	8-97251-884-2	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (C)	8-97251-885-1	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (C)	8-97251-885-1	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (D)	8-97300-705-2	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (D)	8-97300-705-2	01	1	0110-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (E)	8-97301-161-3	01	1	0110-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> (F)	8-97301-162-2	01	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER CHARGE AIR COOLER<6PL> M8X41 W/PL WASHER	8-97264-622-0	02	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	02	1	0110-		●
12	01.540 BOLT; CHARGE AIR COOLER CHARGE AIR COOLER<6PL> M8X41 W/PL WASHER	8-97264-622-0	01	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	01	1	0110-		●
12	01.540 BOLT; CHARGE AIR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.251 M8X60 FLANGE	0-28080-860-0	01	1	0110-	●
12	01.540 BOLT; CHARGE AIR COOLER 03.415 M8X35 FLANGE	0-28080-835-0	01	1	0110-		●
16	03.374 WASHER; PL,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	0110-	●
16	03.374 WASHER; PL,CHARGE AIR COOLER 03.405 ID=8.5 OD=36	8-94221-082-0	01	1	0110-		●
20	01.540 GASKET CHARGE AIR COOLER<6PL> 03.275	8-97086-961-0	01	1	0110-	●
20	01.540 GASKET 03.275	8-97086-961-0	01	1	0110-		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-97309-958-0	01	1	0110-	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.616	8-97254-248-1	01	1	0110-		●
35	01.540 HOSE; CONNECTING CHARGE AIR COOLER<6PL> (A)	8-97249-290-4	01	1	0110-	●
35	01.540 HOSE; CONNECTING (A)	8-97249-290-4	01	1	0110-		●
35	01.540 HOSE; CONNECTING UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (B)	8-97312-383-0	01	1	0110-	●
35	01.540 HOSE; CONNECTING (C)	8-97312-384-0	01	1	0110-		●
37	03.609 PIPE; INL CHARGE AIR COOLER<6PL>	8-97312-365-0	01	1	0110-	●
37	03.609 PIPE; INL	8-97312-365-0	01	1	0110-		●
40	03.162 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.273 (A) ID=65-82	8-97131-942-0	02	1	0110-0110	●
40	03.162 CLIP; RUBBER HOSE 03.273 (A) ID=65-82	8-97131-942-0	02	1	0110-0110		●
40	03.162 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.407 (A) ID=68-85	8-94320-428-0	02	1	0110-	●
40	03.162 CLIP; RUBBER HOSE 03.407 (A) ID=68-85	8-94320-428-0	02	1	0110-		●
40	03.162 CLIP; RUBBER HOSE CHARGE AIR COOLER<6PL> 03.407 (B) ID=45.5-56.5	8-97131-943-0	02	1	0110-	●
40	03.162 CLIP; RUBBER HOSE 03.407 (B) ID=45.5-56.5	8-97131-943-0	02	1	0110-		●
41	01.540 BOLT; INL PIPE CHARGE AIR COOLER<6PL> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0110-	●
41	01.540 BOLT; INL PIPE 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0110-		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER CHARGE AIR COOLER<6PL>	8-97232-774-0	04	1	0110-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER	8-97232-774-0	04	1	0110-		●
47	01.540 BOLT; CHARGE AIR COOLER BRKT UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0110-	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.271 M8X40 FLANGE	0-28080-840-0	01	1	0110-	●	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0110-	●	●
93	01.540 BOLT; COVER CHARGE AIR COOLER<6PL> 07.010 M8X20 FLANGE	0-28080-820-0	04	1	0110-	●
93	01.540 BOLT; COVER CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0110-	●	●
93	01.540 BOLT; COVER CHARGE AIR COOLER<6PL> 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0110-	●
93	01.540 BOLT; COVER 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0110-		●
96	01.540 SPACER; BRKT,CHARGE AIR COOLER UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> (A) OD=36	8-97251-731-0	01	1	0110-	●
96	01.540 SPACER; BRKT,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=17.3	8-94328-221-1	01	1	0110-	●	●
96	01.540 SPACER; BRKT,CHARGE AIR COOLER CHARGE AIR COOLER<6PL> EXC. AIR CONDITIONER MANUAL CONT(C60) (C) OD=20	8-94369-182-0	01	1	0110-	●	●
128	01.540 BRACKET; INTER COOLER	8-97256-339-1	01	1	0110-		●
